S7A-SP13BLUETOOTH STEREO MOTORCYCLE HEADSET

1 SENA TECHNOLOGY 10R-OEM-01 User’s Manual 2 CONTENTS 1. INTRODUCTION 2. PACKAGE CONTENTS 3. 10R-OEM-01 CONFIGURATION SETTING 4. OPERATION QUICK REFERENCE 5. FM RADIO 3 1. INTRODUCTION Thank you for choosing the Sena 10R-OEM-01, Low Profile Bluetooth Stereo Headset and Intercom. With the 10R-OEM-01, you can call handsfree on your Bluetooth mobile phone, listen to stereo music or voice instructions from your GPS navigation system by wireless Bluetooth, and have intercom conversations in full duplex with a passenger or other motorcycle riders. The 10R-OEM-01 is compliant with the Bluetooth 3.0 supporting the following profiles: Headset Profile, Hands-Free Profile (HFP), Advanced Audio Distribution Profile (A2DP), and Audio Video Remote Control Profile (AVRCP). Please check with the manufacturers of other devices to determine their compatibility with this headset. Please read this user’s guide carefully before using the headset. Also check www.SenaBluetooth.com for the latest version of the user’s guide and additional information related to Sena Bluetooth products. The 10R-OEM-01 features: ● Bluetooth handsfree for Bluetooth mobile phones ● Bluetooth stereo headset for Bluetooth audio devices such as MP3 players ● Bluetooth stereo headset for Bluetooth GPS navigations ● Bluetooth intercom up to 900 meters (980 yards) * ● Four-way conference intercom ● Three-way conference phone call with intercom participant ● Universal Intercom™ ● Multipoint Bluetooth for dual mobile phone ● Speed Dialing ● Sidetone ● Advanced Noise Control™ ● Light weight and ultra slim profile ● Firmware upgradeable * in open terrain Key Specifications: ● Bluetooth 3.0 ● Supporting profiles: Headset Profile, Hands-Free Profile (HFP), Advanced Audio Distribution Profile (A2DP), Audio Video Remote Control Profile (AVRCP) 4 2. PACKAGE CONTENTS Headset Main Unit (+) Button / (-) Button ● Volume adjustment ● Navigate through voice configuration menu ● MP3 Track-forward and track-back Center Button ● Answer and end a mobile phone call ● Reject an incoming mobile phone call ● Start and end intercom conversation ● Play and pause Bluetooth stereo device ● Enter into intercom pairing mode ● Enter into voice configuration menu DC Power Charging & Firmware Upgrade Port Charging LED Speaker Connector Battery Pack Connector Microphone Connector 5 3. 10R-OEM-01 CONFIGURATION SETTING You can set the configuration of the 10R-OEM-01 by the voice menu instruction as below. 1. To enter into voice configuration menu, press and hold the Center Button for 12 seconds until the LED shows solid blue and you hear high tone double beeps. You will also hear a voice prompt saying “Configuration menu”. 2. Tap the (+) Button or (-) Button to navigate between the menus. You will hear voice prompts for each menu items as below. 3. You can enable the feature or execute the command by tapping the Center Button. 4. If you want to exit the configuration immediately, tap the (+) Button or (-) Button until you hear a voice prompt saying “Exit configuration”, then tap the Center Button. The voice prompt for each menu item is as below: (1) Phone pairing (2) Multipoint pairing (3) Phone selective pairing (4) Media selective pairing (5) Speed dial (6) VOX phone (7) VOX intercom (8) VOX sensitivity (9) Voice prompt (10) Sidetone (11) Delete all pairings (12) Factory reset (13) Exit configuration 6 10R-OEM-01 Accessory Ear piece MIC Battery Controller Charge USB Port 7 4. OPERATION QUICK REFERENCE Type Description ButtonDurationLED Beep Basic Function Power-on Center Button + (+) Button 1 sec Solid blue Ascending beeps Power-off Center Button + (+) Button Tapping Solid red Descending beeps Volume adjustment (+) Button or (- ) Button Tapping - - Mobile Phone Answer phone call Center ButtonTapping - - Speed dial (+) Button 3 sec - Mid-tone single beep Reject incoming call Center Button2 sec - - Intercom Intercom pairing Center Button5 sec Red flashing Mid-tone single beep Center Button of any one of the two headsets 5 sec Red flashing Mid-tone single beep Universal intercom pairing Center Button8 sec Blue flashing - Start/end intercom conversation Center ButtonTapping - - End conference intercom Center Button1 sec Blue flashing Mid-tone single beep Music Play/pause Bluetooth music Center Button1 sec - Mid-tone double beep Track forward/back (+) Button or (- ) Button 1 sec - - 8 5. FM RADIO You can answer the incoming call and intercom while still listening to the FM radio. FM Radio On / Off To turn on the FM radio, press and hold the Phone Button for 2 seconds until you hear a mid-tone double beep sound. You will then hear a voice prompt saying “FM on”. In order to turn off the FM radio, press and hold the Phone Button for 2 seconds until you hear a voice prompt saying “FM off”. When you power off, the SMH5-FM will remember the last station frequency. When you power on, the last station frequency will be playing. Preset Stations You can listen to preset stations while listening to the FM radio. Tap the phone button once to go upward to your next saved preset station. Seek and Save “Seek” is the function that searches from station to station frequencies. To use the “Seek” function, please follow the procedure below: 1. Rotate while pressing the Jog Dial clockwise to search up the station dial or counter clockwise to search down the station dial. 2. If the tuner finds a station while searching frequencies, it stops the seek function. 3. To save the current station, press and hold the Jog Dial for 2 seconds until you hear a voice prompt saying “Preset (#)?” 4. Rotate the Jog Dial clockwise or counter clockwise, in order to select which preset number you want for that specific station, up to 10 preset stations. You may cancel the preset operation by waiting approximately 10 seconds. You will then hear “Save preset cancelled”. You can also rotate the Jog Dial clockwise or counter clockwise until you hear “Cancel”. Tap the Jog Dial to confirm cancellation. You will then hea…

Text truncated - open the document above for the full version.

Sena Technologies, Inc. 210 Yangjae-dong Seocho-gu Seoul 137-130 Korea Tel. +82-2-573-7772 Fax +82-2-573-7710 April 24, 2014 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 LETTER OF AUTHORIZATION To whom it may concern: We, the undersigned, hereby authorize LTA Co., Ltd., to act on our behalf in all manners relating to application for equipment authorization for FCC ID: S7A-SP13. including signing of all documents relating to these matters. Any and all acts carried out by LTA Co., Ltd., on our behalf shall have the same affect as acts of our own. This authorization is valid until further written notice from Sena Technologies, Inc. LTA Co.,LTD. (Contact Person) Contact name: Jae-Ho Lee Position: Manager Phone:(82)31-323-6008 E-mail: [email protected] SeungHyun, Kim / Associate Research Engineer Sena Technologies, Inc.

Sena Technologies, Inc. 210 Yangjae-dong Seocho-gu Seoul 137-130 Korea Tel. +82-2-573-7772 Fax +82-2-573-7710 April 24, 2014 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re : Sena Technologies, Inc. FCC ID : S7A-SP13 Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, Sena Technologies, Inc.. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give Sena Technologies, Inc.. temporary confidentiality of commercially sensitive information prior to product release. The requested Confidential and Temporary Confidential exhibits are listed as follows: Exhibit Type File Name CONFIDENTIAL Schematics CONF APPENDIX S7A-SP13 SCH DIA.pdf Parts list CONF APPENDIX S7A-SP13 PL.pdf Block diagram CONF APPENDIX S7A-SP13 BLK DIA.pdf Operational description CONF APPENDIX S7A-SP13 OpDes.pdf SHORT-TERM CONFIDENTIAL External Photos SHORT-TERM CONF S7A-SP13 EXT Photo.pdf Internal Photos SHORT-TERM CONF S7A-SP13 INT Photo.pdf Test-Setup Photos SHORT-TERM CONF S7A-SP13 Test Photo.pdf User’s Manual SHORT-TERM CONF S7A-SP13 Manual.pdf The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. SeungHyun, Kim / Associate Research Engineer Sena Technologies, Inc.

Sena Technologies, Inc. 210 Yangjae-dong Seocho-gu Seoul 137-130 Korea Tel. +82-2-573-7772 Fax +82-2-573-7710 April 24, 2014 Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 In re : Sena Technologies, Inc. FCC Application for FCC ID: S7A-SP13 To Whom It May Concern: We, the undersigned, hereby attest to the fact that we will apply the Declaration of Conformity procedure to the class B computer peripheral portion of this composite filing. Regards, SeungHyun, Kim / Associate Research Engineer Sena Technologies, Inc.

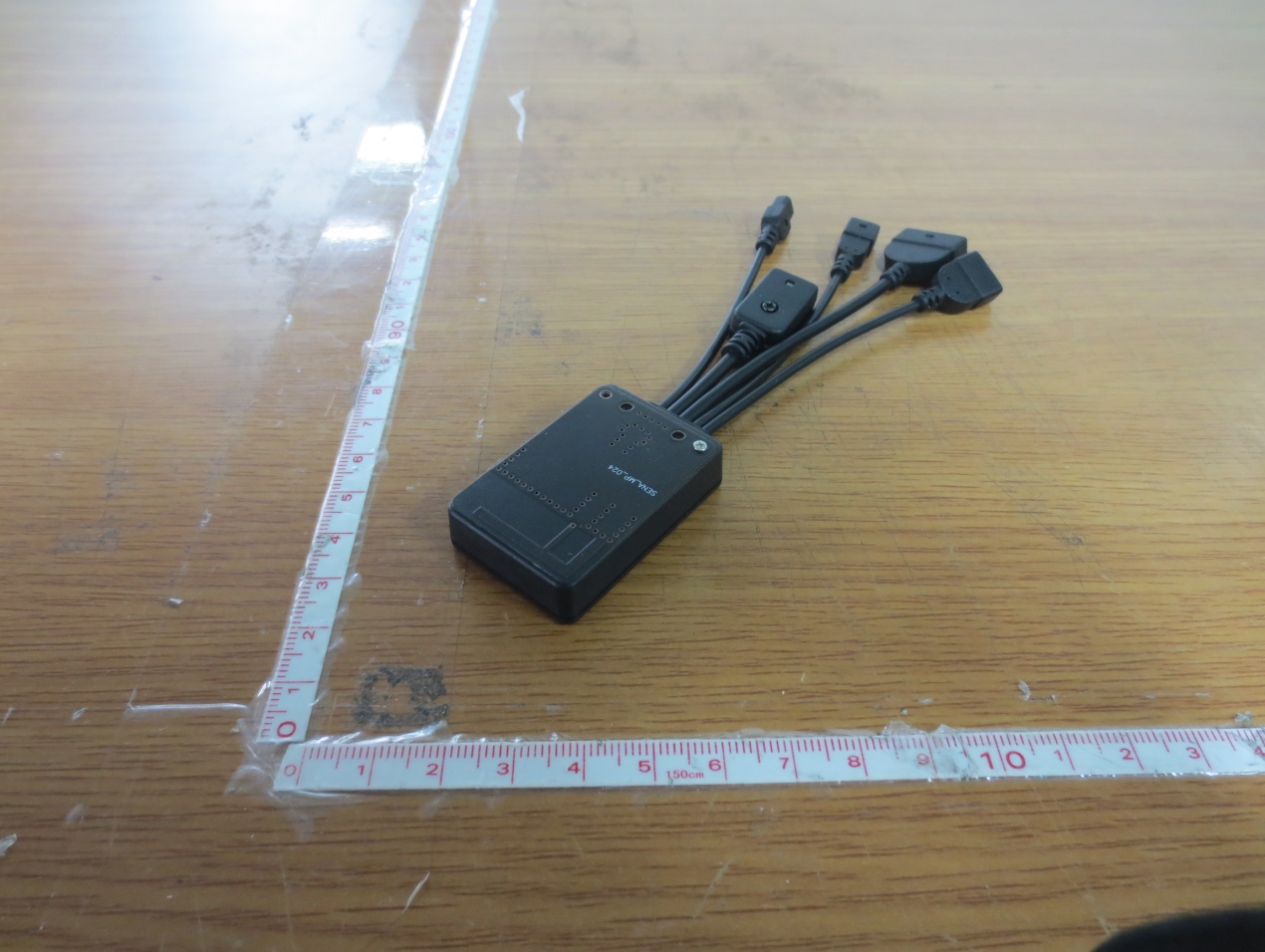

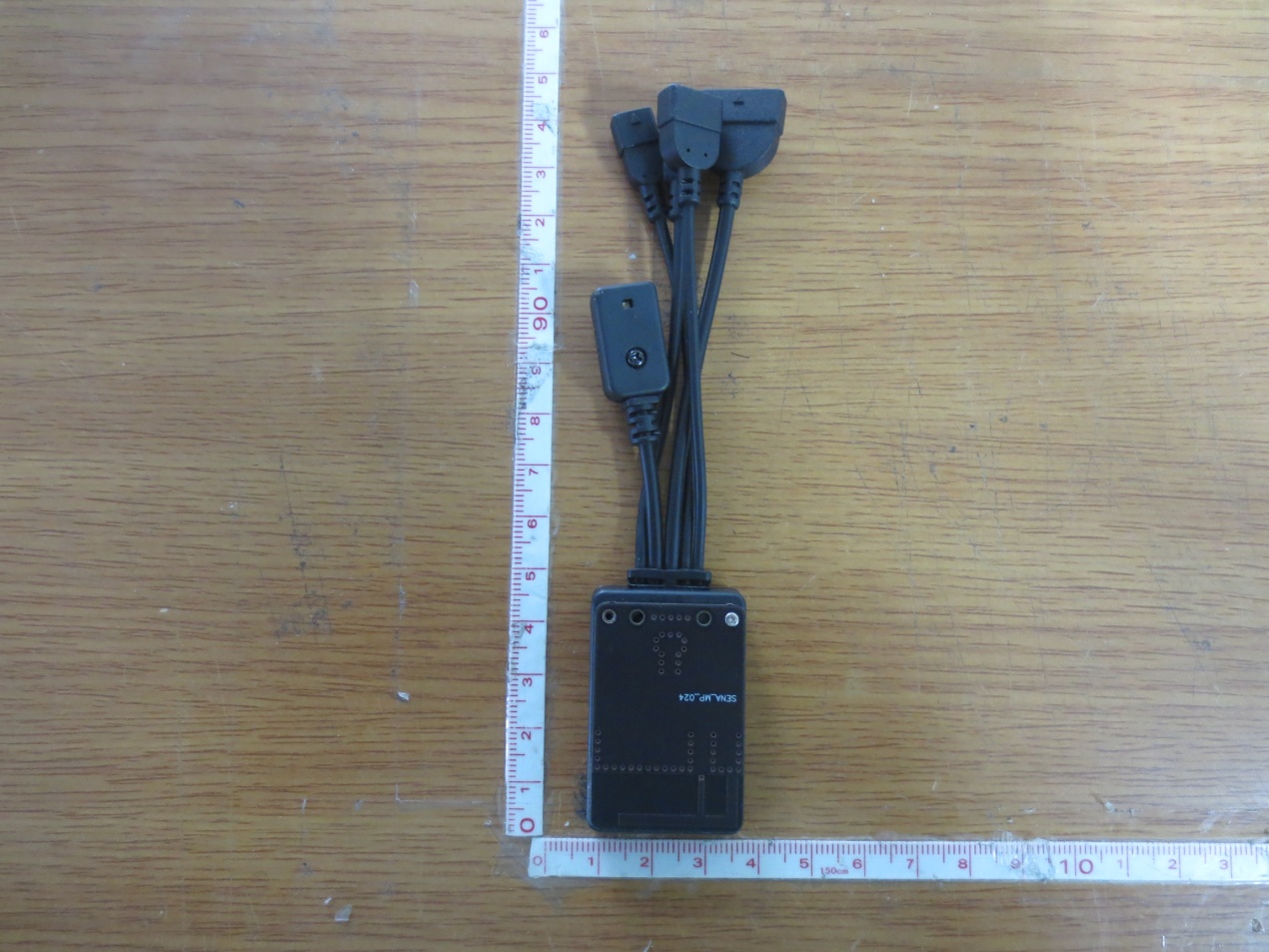

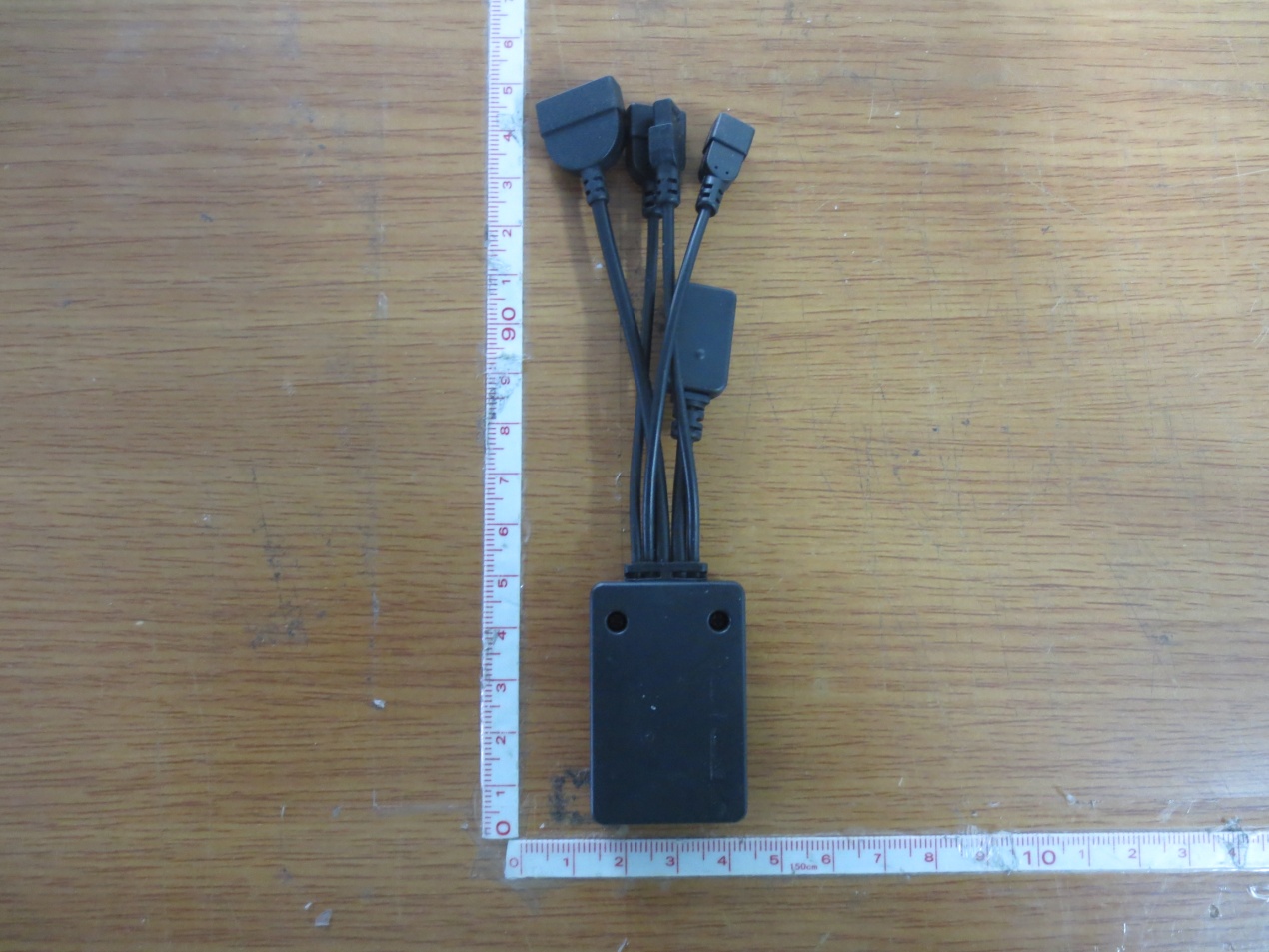

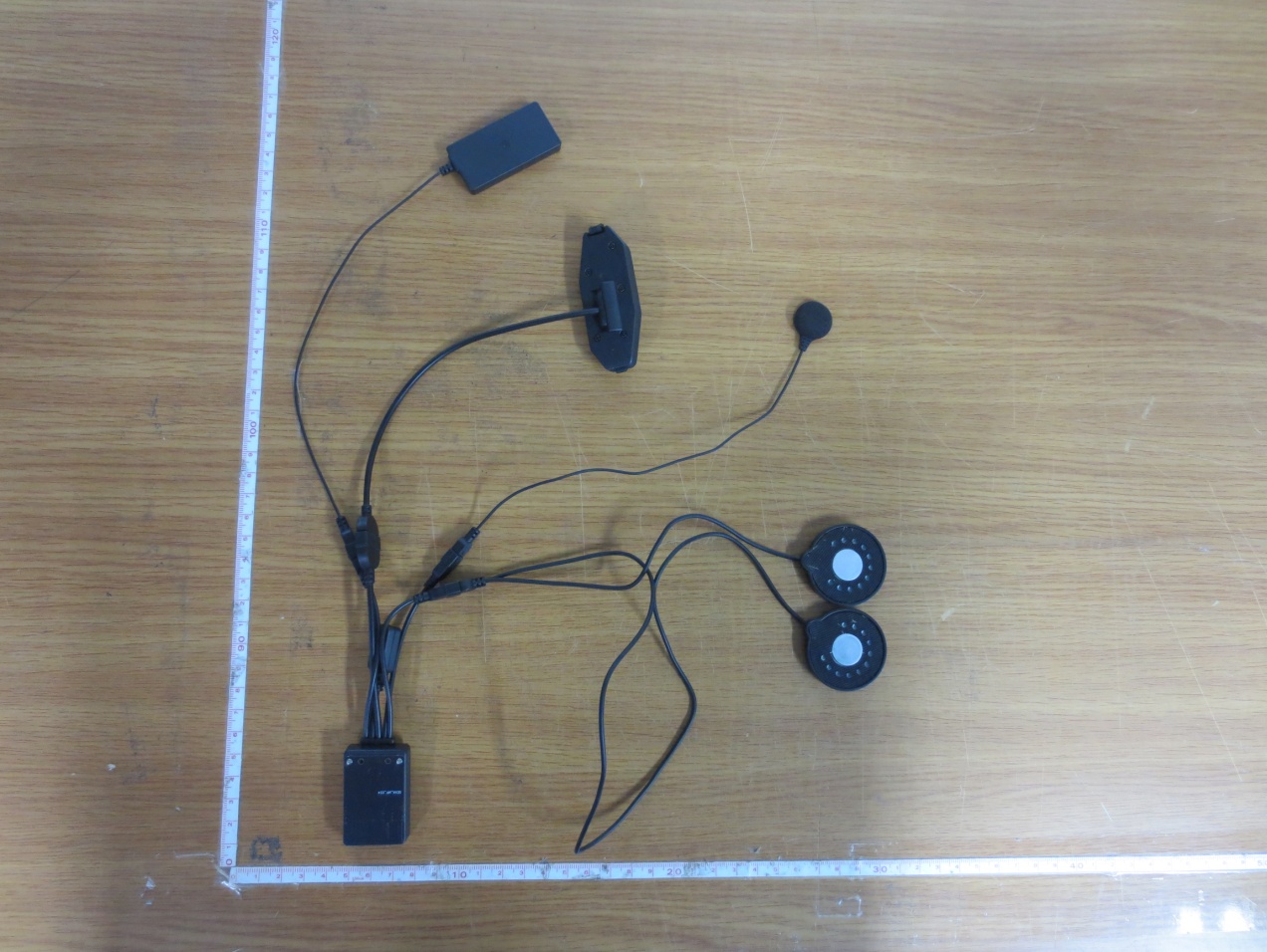

FCC ID: S7A-SP13 IC: 8154A-SP13 Copyright ○ c 2014, LTA Co., Ltd. Page 1 of 3 Upper Lower FCC ID: S7A-SP13 IC: 8154A-SP13 Copyright ○ c 2014, LTA Co., Ltd. Page 2 of 3 Front Rear FCC ID: S7A-SP13 IC: 8154A-SP13 Copyright ○ c 2014, LTA Co., Ltd. Page 3 of 3 Antenna-M/N : SENA_MP_024 / SENA_DP_032 Accessory Ear piece MIC Battery Controller Charge USB Port

FCC ID: S7A-SP13 IC : 8154A-SP13 Copyright Ⓒ 2014, LTA Co., Ltd. SAMPLE LABEL & LOCATION

FCC ID: S7A-SP13 IC: 8154A-SP13 Copyright ○ c 2014, LTA Co., Ltd. Page 1 of 3 Main Board – Front Main Board – Rear FCC ID: S7A-SP13 IC: 8154A-SP13 Copyright ○ c 2014, LTA Co., Ltd. Page 2 of 3 RF Module Only RF Module Top View FCC ID: S7A-SP13 IC: 8154A-SP13 Copyright ○ c 2014, LTA Co., Ltd. Page 3 of 3 Only RF Module Bottom View Total internal

FCC ID:S7A-SP13 ATTACHMENT IC : 8154A-SP13 * Standalone SAR test exclusion considerations - Min. transmitting frequency = 2402 MHz - Min. test separation distance = 10 mm -Max. Power with tune-up tolerance = 12.71 dBm = 18.66 mW (Measured power 12.21 dBm ± 0.5dB) Step 1) SAR Test exclusion thresholds for 100MHz to 6GHz at test separation distance ≤ 50 mm = Used [(max.power of channel, including tune-up torelance, mW)/(min. test separation distance, mm)] * [√f(GHz)] = [ 18.66 / 10 ] * [ √ 2.402 ] = 2.89 ≤ 3, for 1g SAR Thus, SAR for this device is not required. Step 2) SAR Test exclusion thresholds for 100MHz to 1500MHz at test separation distance > 50 mm = N/A [Threshold at 50mm in step 1) + (test separation distance - 50 mm) * (√f(MHz)/150] mW Step 3) SAR Test exclusion thresholds for 1500MHz to 6GHz at test separation distance > 50 mm = N/A [Threshold at 50mm in step 1) + (test separation distance - 50 mm) * 10] mW

Ref. No.: LR500111404B Copyright ○ c 2014, LTA Co., Ltd. Page 1 of 43 243 Jubug-Ri,Yangji-Myeon, Yongin-Si, Gyeonggi-Do, Korea 449-822 Tel: +82-31-323-6008 Fax: +82-31-323-6010 http://www.ltalab.com Dates of Tests: March 25 ~ May 20, 2014 Test Report S/N: LR500111404B Test Site : LTA CO., LTD. CERTIFICATION OF COMPLIANCE FCC ID IC APPLICANT Equipment Class : Part 15 Spread Spectrum Transmitter (DSS) Manufacturing Description : BLUETOOTH STEREO MOTORCYCLE HEADSET Manufacturer : Sena Technologies, Inc. Model name : 10R-OEM-01 Test Device Serial No.: : Identical prototype Rule Part(s) : FCC Part 15.247 Subpart C; ANSI C-63.4-2009 Frequency Range : 2402 ~ 2480MHz RF power : Max 12.21 dBm – Conducted Data of issue : May 20, 2014 This test report is issued under the authority of: The test was supervised by: Jae-Ho Lee, Manager Ho-Jin Ko, Test Engineer This test result only responds to the tested sample. It is not allowed to copy this report even partly without the allowance of the test laboratory. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the Federal Government. NVLAP LAB Code.: 200723-0 S7A-SP13 8154A-SP13 Sena Technologies, Inc. Ref. No.: LR500111404B Copyright ○ c 2014, LTA Co., Ltd. Page 2 of 43 TABLE OF CONTENTS 1. GENERAL INFORMATION ---------------------------------------------------------------------------- 2. INFORMATION ABOUT TEST ITEM --------------------------------------------------------------- 3. TEST REPORT --------------------------------------------------------------------------------------------- 3.1 SUMMARY OF TESTS ------------------------------------------------------------------------------ 3.2 FREQUENCY HOPPING SYSTEM REQUIREMENTS-------------------------------------------- 3.3 TECHNICAL CHARACTERISTICS TEST ------------------------------------------------------- 3.3.1 CARRIER FREQUENCY SEPARATION ---------------------------------------------------- 3.3.2 NUMBER OF HOPPING FREQUENCIES -------------------------------------------------- 3.3.3 20 dB BANDWIDTH ---------------------------------------------------------------------------- 3.3.4 TIME OF OCCUPANCY (Dwell Time) ------------------------------------------------------- 3.3.5 TRANSMITTER OUTPUT POWER ---------------------------------------------------------- 3.3.6 BAND EDGE ------------------------------------------------------------------------------------- 3.3.7 CONDUCTED SPURIOUS EMISSIONS ----------------------------------------------------- 3.3.8 RADIATED SPURIOUS EMISSIONS ------------------------------------------------------- 3.3.9 AC CONDUCTED EMISSIONS --------------------------------------------------------------- APPENDIX APPENDIX TEST EQUIPMENT USED FOR TESTS -------------------------------------------- 3 4 5 5 6 8 8 10 12 19 24 28 31 34 38 41 Ref. No.: LR500111404B Copyright ○ c 2014, LTA Co., Ltd. Page 3 of 43 1. General information 1-1 Test Performed Company name : LTA Co., Ltd. Address : 243, Jubug-ri,Yangji-Myeon,Youngin-Si, Kyunggi-Do, Korea. 449-822 Web site : http://www.ltalab.com E-mail : [email protected] Telephone : +82-31-323-6008 Facsimile : +82-31-323-6010 Quality control in the testing laboratory is implemented as per ISO/IEC 17025 which is the “General requirements for the competents of calibration and testing laboratory”. 1-2 Accredited agencies LTA Co., Ltd. is approved to perform EMC testing by the following agencies: Agency Country Accreditation No. Validity Reference NVLAP U.S.A 200723-0 2014-09-30 ECT accredited Lab. RRA KOREA KR0049 2015-03-06 EMC accredited Lab. FCC U.S.A 610755 2017-04-21 FCC filing FCC U.S.A 649054 2015-04-17 FCC CAB VCCI JAPAN R2133(10 m), C2307 2017-06-21 VCCI registration VCCI JAPAN T-2009 2016-12-23 VCCI registration VCCI JAPAN G-563 2015-05-28 VCCI registration IC CANADA IC5799 2015-06-21 IC filing KOLAS KOREA NO.551 2017-01-08 KOLAS accredited Lab. Ref. No.: LR500111404B Copyright ○ c 2014, LTA Co., Ltd. Page 4 of 43 2. Information about test item 2-1 Client & Manufacturer Company name : Sena Technologies, Inc. Address Telephone / Facsimile : : 210 Yangjae-dong Seocho-gu Seoul 137-130 Korea Tel : +82-2-573-7772 / Fax : +82-2-573-7710 2-2 Equipment Under Test (EUT) Trade name : SENA Model name : 10R-OEM-01 Serial number : Identical prototype Date of receipt : March 24, 2014 EUT condition : Pre-production, not damaged Antenna type : External Antenna(M/N : SENA_DP_032) with Max Gain : -0.2 dBi : External Antenna(M/N : SENA_MP_024) with Max Gain : -0.1 dBi Frequency Range : 2402 ~ 2480MHz RF output power : Max. 12.21 dBm - Conducted Number of channels : 79 Duty cycle : 91 % Channel spacing : 1MHz Channel Access Protocol : Frequency Hopping Spread Spectrum (FHSS) Type of Modulation : Basic Mode(GFSK), EDR Mode(Pi/4 DQPSK, 8DPSK) Power Source : DC 3.7V by battery Firmware Version : V1.0.0 2-3 Tested frequency Bluetooth LOW MID HIGH Frequency (MHz) 2402 2441 2480 2-4 Ancillary Equipment Equipment Model No. Serial No. Manufacturer - - - - Ref. No.: LR500111404B Copyright ○ c 2014, LTA Co., Ltd. Page 5 of 43 3. Test Report 3.1 Summary of tests FCC Part Section(s) Parameter Limit Test Condition Status (note 1) 15.247(a) Carrier Frequency Separation > 25 kHz Conducted C 15.247(a) Number of Hopping Frequencies > 15 hops C 15.247(a) 20 dB Bandwidth 99% Bandwidth > 1.5 MHz C 15.247(a) Dwell Time < 0.4 seconds C 15.247(b) Transmitter Output Power < 1 Watt C 15.247(d) Conducted Spurious emission > 20 dBc C 15.247(d) Band Edge > 20 dBc C 15.249 / 15.209 Field Strength of Harmonics < 54 dBuV (at 3m) Radiated C 15.109 Field Strength - C 15.207 /15.107 AC Conducted Emissions EN 55022 Line Conducted C 15.203 Antenna requirement - - C Note 1: C=Complies NC=Not Complies NT=Not Tested NA=Not Applicable Note 2: The data in this test report are traceable to the national or international standards. Note 1: Antenna Requirement  The Sena Technologies, Inc. , FCC ID: S7A-SP13 unit complies with th…

Text truncated - open the document above for the full version.

FCC ID: S7A-SP13 IC: 8154A-SP13 Copyright ○ c 2014, LTA Co., Ltd. Page 1 of 8 Radiate Emission (9kHz ~ 30MHz)-SENA_MP_024 FCC ID: S7A-SP13 IC: 8154A-SP13 Copyright ○ c 2014, LTA Co., Ltd. Page 2 of 8 Radiate Emission (9kHz ~ 30MHz)-SENA_DP_032 FCC ID: S7A-SP13 IC: 8154A-SP13 Copyright ○ c 2014, LTA Co., Ltd. Page 3 of 8 Radiate Emission (30MHz ~ 1GHz)-SENA_MP_024 FCC ID: S7A-SP13 IC: 8154A-SP13 Copyright ○ c 2014, LTA Co., Ltd. Page 4 of 8 Radiate Emission (30MHz ~ 1GHz)-SENA_DP_032 FCC ID: S7A-SP13 IC: 8154A-SP13 Copyright ○ c 2014, LTA Co., Ltd. Page 5 of 8 Radiate Emission (Above 1GHz)-SENA_MP_024 FCC ID: S7A-SP13 IC: 8154A-SP13 Copyright ○ c 2014, LTA Co., Ltd. Page 6 of 8 Radiate Emission (Above 1GHz)-SENA_DP_032 FCC ID: S7A-SP13 IC: 8154A-SP13 Copyright ○ c 2014, LTA Co., Ltd. Page 7 of 8 Conducted Emission-SENA_MP_024 FCC ID: S7A-SP13 IC: 8154A-SP13 Copyright ○ c 2014, LTA Co., Ltd. Page 8 of 8 Conducted Emission-SENA_DP_032
