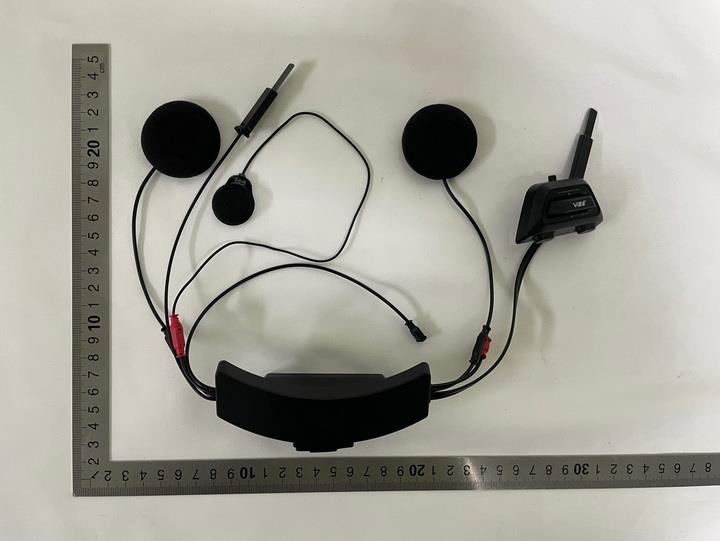

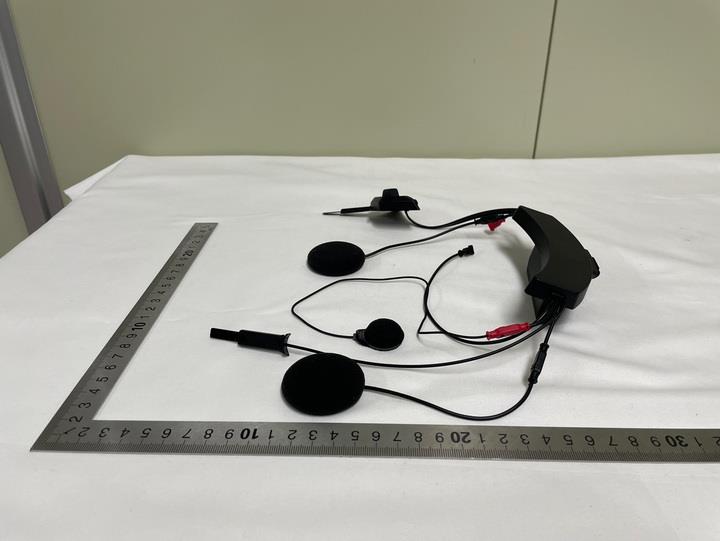

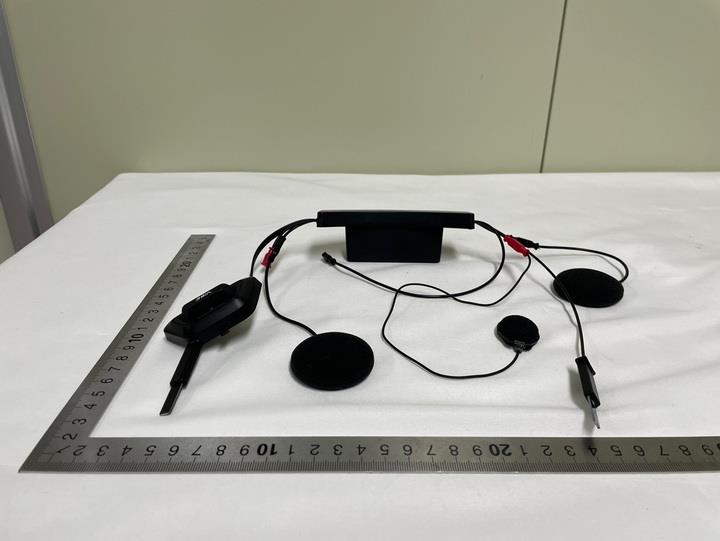

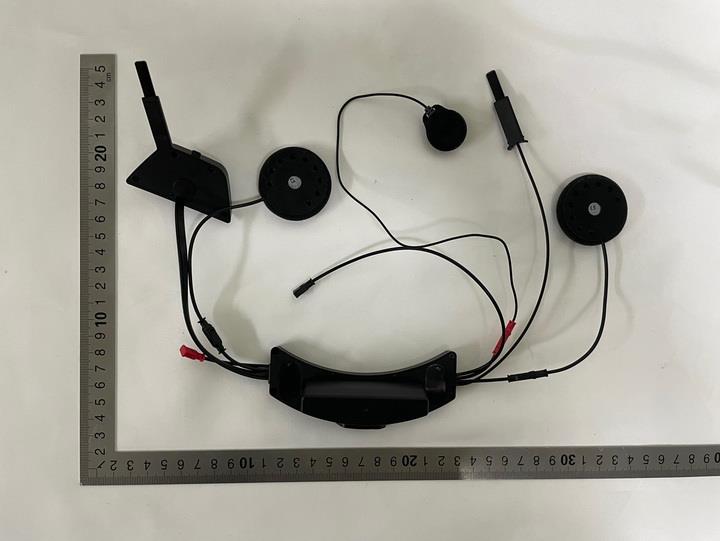

S7A-SP142BRP VIBE

VIBE Manual Legend Long : : 1.5 seconds Charging Red LED: Charging Blue LED: Fully charged Power On/Off Power on : Tap the Pow Button and tap the Joystick down Power off : Tap the Pow Button and tap the Joystick down Volume Adjustment Tap the the Joystick Up/down Battery Check Phone Pairing Initially Pairing the VIBE The headset will automatically enter the phone pairing mode when you initially turn on the headset or in the following situation: • Rebooting after executing Factory Reset 1. Tap the Pow Button and tap the Joystick down. 2. Search for Bluetooth devices on your mobile phone. Select the VIBE in the list of the devices detected on the mobile phone. 3. Enter 0000 for the PIN. Some mobile phones may not ask for the PIN. Music Operation Play or pause music: Press the Joystick down for long. Track forward: Press the Joystick up for long. Mobile Phone Call Making and Answering Answering a call: Tap the Joystick. Ending/Reject a call: Press the Joystick for long. Voice dial: Press the Joystick for long. Mesh Intercom Mesh Intercom On/Off : Tap the Comm Button Setting Configuration Menu: Press the Pow Button for long. Troubleshooting Factory Reset If you want to restore the headset to factory default settings, use the Factory Reset in the configuration menu. The headset automatically restores the default settings and turns off. Certification and Safety Approvals FCC Compliance Statement This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment on and off, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antennae -Increase the separation between the equipment and the receiver -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. FCC RF Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance. The antenna used for this transmitter must not transmit simultaneously with any other antenna or transmitter, except in accordance with FCC multi-transmitter product procedures. When equipped, the distance between antenna and one’s head surface is 40.5mm. FCC Caution Any changes or modifications to the equipment not expressly approved by the party responsible for compliance could void user’s authority to operate the equipment. Industry Canada(IC) Statement This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1)this device may not cause interference, and (2)this device must accept any interference, including interference that may cause undesired operation of the device. Le present appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisee aux deux conditions suivantes : (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioelectrique subi, meme si le brouillage est susceptible d’en compromettre le fonctionnement. IC RF Exposure Statement Cet équipement est conforme aux limites d'exposition aux radiations de la FCC définies pour un environnement non contrôlé. Les utilisateurs finaux doivent suivre les instructions d'utilisation spécifiques pour satisfaire à la conformité d'exposition RF. L'antenne utilisée pour cet émetteur ne doit pas émettre simultanément avec d'autres antennes ou émetteurs, sauf en conformité avec les procédures FCC relatives aux produits multi-émetteurs. Lorsque équipé, la distance entre l’antenne et la surface de la tête est de 40.5mm.

SENA TECHNOLOGIES.Inc January 25, 2023 Applicant: SENA TECHNOLOGIES.Inc FCC ID: S7A-SP142 / IC: 8154A-SP142 To. Whom it may concern: We, Sena Technologies,Inc. declare that when equipped, the distance between antenna and one’s head surface is 40.5mm. Seunghyun Kim, Research Engineer

SENA TECHNOLOGIES.Inc 19, Heolleung-ro 569-gil, Gangnam-gu, Seoul, South Korea January 26, 2023 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Letter of Authorization We, the undersigned, hereby authorize Yong-Min, Won of EMC Labs Co., Ltd. to act on our behalf in all manners relating to application for equipment authorization for FCC ID: S7A-SP142 / IC: 8154A-SP142 including signing of all documents relating to these matters. Any and all acts carried out by Yong-Min, Won of EMC Labs Co., Ltd. on our behalf shall have the same affect as acts of our own. This authorization is valid until further written notice from SENA TECHNOLOGIES.Inc “I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a).” Sincerely, Seunghyun KIM / Research Engineer

SENA TECHNOLOGIES.Inc 19, Heolleung-ro 569-gil, Gangnam-gu, Seoul, South Korea Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: S7A-SP142 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Block Diagram Schematics Operational Description Part List [SP142] BLK [SP142] SCH [SP142] OpDes [SP142] Part List The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); Exhibit Type File Name External Photos Internal Photos Test Setup Photos Manual [SP142] EXT Photo [SP142] INT Photo [SP142] Test Setup Photo [SP142] Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. Sincerely, Seunghyun KIM / Research Engineer

USB Port (Type C _ Charging Only)

SENA_SP142_Label & Location Label Location (Rear)

Internal BT Antenna MESH Antenna 1 (M/N: 30K) MESH Antenna 2 (M/N: 30K) Battery

Model Name : FCC ID : (mm)(dBm)(dB)(dBm)(mW) 24023.463.962.493.00PASS 24413.634.132.593.00PASS 24803.263.762.383.00PASS 24020.571.071.283.00PASS 2441-0.66-0.160.963.00PASS 2480-2.21-1.710.673.00PASS 24021.552.051.603.00PASS 2441-0.060.441.113.00PASS 2480-1.78-1.280.743.00PASS 2402-2.30-1.800.663.00PASS 2442-1.83-1.330.743.00PASS 2480-1.82-1.320.743.00PASS 241014.7315.2333.343.00PASS 244514.1814.6829.403.00PASS 247512.5313.0320.093.00PASS S7A-SP142Separation distance : 40.5 mm MPE Calculation KDB 447498 - 4.3.1 a) For 100 MHz to 6 GHz and test separation distances ≤ 50 mm, the 1-g and 10-g SAR test exclusion thresholds are determined by the following: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR, and ≤ 7.5 for 10-g extremity SAR, where - f(GHz) is the RF channel transmit frequency in GHz - Power and distance are rounded to the nearest mW and mm before calculation - The result is rounded to one decimal place for comparison SP142Device Category : Portable device Standalone SAR Test exclusion thresholds for 100MHz to 6GHz at test separation distance ≤ 50 mm LimitResult GFSK 40.50± 0.50 0.0952 0.0998 0.0924 Modulation Frequency (MHz) Min. Test separation distance Measured Maximum Average power Tune-up tolerance Max. Power with tune-up tolerance π/4DQPSK 40.50± 0.50 0.0490 0.0372 0.0262 8DPSK 40.50± 0.50 0.0614 0.0427 0.0290 BT LE 40.50± 0.50 0.0253 0.0284 0.0287 1.2781 1.1350 0.7804 MESH 40.50± 0.50

R Report No.: KR0140-RF2301-004 EMCLabs-QPF-26-25 [Enactment_00 / 2022. 09. 07] Page 1 / 63 This test report shall not be reproduced except in full, Without the written approval. 본 시험성적서는 (주)ABCD의 서면 동의 없이 무단 전제 및 복사를 할 수 없습니다. Test Report 1. Client ᆞName : SENA TECHNOLOGIES.Inc ᆞAddress : 19, Heolleung-ro 569-gil, Gangnam-gu, Seoul, Korea 2. Use of Report : FCC & IC Approval 3. Sample Description ᆞProduct Name : BRP VIBE ᆞModel Name : SP142 4. Date of Receipt : 2022-12-12 5. Date of Test : 2022-12-28 ~ 2023-01-12 6. Test Method : FCC Part 15 Subpart C 15.247 RSS-247 Issue 2(2017-02), RSS-GEN Issue 5(2019-03) 7. Test Results : Refer to the test results This test report must not be reproduced or reproduced in any way. The results shown in this test report are the results of testing the samples provided. This test report is prepared according to the requirements of ISO / IEC 17025. Affirmation Tested by Dae-Seong, Choi (signature) Technical Manager Jong-Myoung, Shin (signature) Jan 26, 2023 EMC Labs Co., Ltd. (seal) R Report No.: KR0140-RF2301-004 EMCLabs-QPF-26-25 [Enactment_00 / 2022. 09. 07] Page 2 / 63 This test report shall not be reproduced except in full, Without the written approval. 본 시험성적서는 (주)ABCD의 서면 동의 없이 무단 전제 및 복사를 할 수 없습니다. Contents 1. Applicant & Manufacturer & Test Laboratory Information··································· 4 2. Equipment under Test(EUT) Information······················································· 4 3. Test Summary······················································································· 6 4. Used equipment on test··········································································· 8 5. Antenna Requirement·············································································· 9 6. 20 dB Bandwidth & Occupied Bandwidth (99%)·············································· 10 7. Number of Hopping Frequencies ······························································· 14 8. Time of Occupancy (Dwell Time)································································ 17 9. Carrier Frequencies Separation·································································· 19 10. Peak Output Power ················································································ 23 11. TX Radiated Spurious Emission and Conducted Spurious Emission······················ 30 12. Conducted Emission ·············································································· 57 APPENDIX APPENDIX I TEST SETUP············································································· 60 APPENDIX II UNCERTAINTY·········································································· 62 R Report No.: KR0140-RF2301-004 EMCLabs-QPF-26-25 [Enactment_00 / 2022. 09. 07] Page 3 / 63 This test report shall not be reproduced except in full, Without the written approval. 본 시험성적서는 (주)ABCD의 서면 동의 없이 무단 전제 및 복사를 할 수 없습니다. Version TEST REPORT NO. DATE DESCRIPTION KR0140-RF2301-004 Jan 26, 2023 Initial Issue R Report No.: KR0140-RF2301-004 EMCLabs-QPF-26-25 [Enactment_00 / 2022. 09. 07] Page 4 / 63 This test report shall not be reproduced except in full, Without the written approval. 본 시험성적서는 (주)ABCD의 서면 동의 없이 무단 전제 및 복사를 할 수 없습니다. 1. Applicant & Manufacturer & Test Laboratory Information 1.1 Applicant Information Applicant SENA TECHNOLOGIES.Inc Applicant Address 19, Heolleung-ro 569-gil, Gangnam-gu, Seoul, Korea Contact Person Seunghyun Kim Telephone No. +82-2-573-7772 Fax No. +82-2-573-7710 E-mail [email protected] 1.2. Manufacturer Information Manufacturer SENA TECHNOLOGIES.Inc Manufacturer Address 19, Heolleung-ro 569-gil, Gangnam-gu, Seoul, Korea 1.3 Test Laboratory Information Laboratory EMC Labs Co., Ltd. Laboratory Address 100, Jangjateo-ro, Hobeop-myeon, Icheon-si, Gyeonggi-do, Republic of Korea Contact Person Yongmin Won Telephone No. +82-31-637-8895 Fax No. +82-505-116-8895 FCC Designation No. KR0140 FCC Registration No. 580000 IC Site Registration No. 28751 R Report No.: KR0140-RF2301-004 EMCLabs-QPF-26-25 [Enactment_00 / 2022. 09. 07] Page 5 / 63 This test report shall not be reproduced except in full, Without the written approval. 본 시험성적서는 (주)ABCD의 서면 동의 없이 무단 전제 및 복사를 할 수 없습니다. 2. Equipment under Test(EUT) Information 2.1 General Information Product Name BRP VIBE Model Name SP142 FCC ID S7A-SP142 IC 8154A-SP142 Rated Voltage DC 3.7 V 2.2 Additional Information Operating Frequency 2 402 MHz ~ 2 480 MHz Number of channel 79 Modulation Type BDR Mode(GFSK), EDR Mode(Pi/4 DQPSK, 8DPSK) Antenna Type Chip Antenna Antenna Gain 0.5 dBi Firmware Version 1.0 Hardware Version 1.0 Test software BlueTest3 V3.3.5 2.3 Test Frequency Test mode Test Frequency (MHz) Low Frequency Middle Frequency High Frequency GFSK 2 402 2 441 2 480 Pi/4 DQPSK 2 402 2 441 2 480 8DPSK 2 402 2 441 2 480 2.4 Used Test Software Setting Value Test Mode Setting Item Power GFSK 8 Pi/4 DQPSK 8 8DPSK 8 R Report No.: KR0140-RF2301-004 EMCLabs-QPF-26-25 [Enactment_00 / 2022. 09. 07] Page 6 / 63 This test report shall not be reproduced except in full, Without the written approval. 본 시험성적서는 (주)ABCD의 서면 동의 없이 무단 전제 및 복사를 할 수 없습니다. 2.5 Worst-Case BDR GFSK (DH5) EDR 8DPSK (3-DH5) Note: The power measurement has been conducted to determine the worst-case mode from all possible Combinations between available modulations, data rates. 2.6 Mode of operation during the test - The EUT continuous transmission mode during the test with set at Low Channel, Middle Channel, and High Channel. To get a maximum radiated emission levels from the EUT, the EUT was moved throughout the XY, YZ, XZ planes. 2.7 Modifications of EUT - None R Report No.: KR0140-RF2301-004 EMCLabs-QPF-26-25 [Enactment_00 / 2022. 09. 07] Page 7 / 63 This test report shall not be reproduced except in full, Without the written approval. 본 시험성적서는 (주)ABCD의 서면 동의 없이 무단 전제 및 복사를 할 수 없습니다. 3. Test Summary Applied FCC Rule IC Rule Test Items Test Condition Result 15.203 - Antenna Requirement Conducted C 15.247(a) - 20 dB Bandwidth C …

Text truncated - open the document above for the full version.

SPECIFICATION Chip Antenna Manufacturer: Sena Technologies, Inc. Part Number: SENA_009 WRITTEN CHECKED APPROVED Seunghyun Kim Seunghyun Kim September 2, 2020 Sena Technologies, Inc. 19, Heolleung-ro 569-gil, Gangnam-gu, Seoul, 06376, South Korea Tel: +82-2-576-7362 Fax: +82-2-573-7710 Website: http://www.sena.com - 2 - CHIP ANTENNA 1. SPECIFICATIONS 1.1. Electrical Specifications ITEM SPEC. Unit Frequency 2400-2485 MHz Bandwidth @ VSWR 2.5:1 100 MHz Gain Max. 0.5 dBi Polarization Linear Azimuth Beam Pattern Omni-directional Impedance 50 Ω ※ These values are measured on the matched reference test board. 1.2. Mechanical Specifications Electrode Silver Dimensions (L x W x H) 9.0 x 3.0 x 1.2 mm Operating Temperature -35 ~ +85 °C 1.3. Appearance and Dimensions - Laminate: FR-4, 1.20mm - Plating Thickness: 1.5oz (54um) - Board Thickness: 1.30mm (typ.) L 9.0 W 3.0 H 1.2 - 3 - CHIP ANTENNA 2. MEASUREMENT 2.1. Electrical Characteristic S 11 (Return Loss) B. (Smith chart) - 4 - CHIP ANTENNA 3. Radiation Data Frequency Efficiency Average Gain Max Gain Max Position Directivity Ver Hor Total Ver Hor Total 2400 MHz37.4 % -6.6 dBi-8.0 dBi-4.3 dBi-1.1 dBi-0.9 dBi0.1 dBiTheta135/Pie255 4.34 dB 2442 MHz43.0 % -6.0 dBi-7.5 dBi-3.7 dBi-0.3 dBi-0.1 dBi0.5 dBiTheta15/Pie240 4.60 dB 2485 MHz37.2 % -6.6 dBi-8.1 dBi-4.3 dBi-0.1 dBi-0.2 dBi0.2 dBiTheta135/Pie255 4.91 dB - 5 - CHIP ANTENNA 4. RELIABILITY TEST No Item Test condition Test Requirements 1 Adhesion strength . Applied force on SMD chip till detached point from PCB 1. No mechanical damage by forces applied on the right 2. Strength (F) > 5 kgf 2 Thermal Shock (Temperature Cycle) 1. 1 cycle / step 1 : -40 ± 3°C, 30 min step 2 : +85 ± 3°C, 30 min 2. Number of cycle : 10 3. Measure after left for 48 hrs min. at room temperature 1. No visual damage 2. VSWR satisfy 3 High Temperature Resistance 1. Temperature: +85 ± 5°C 2. Time : 96 hrs 3. Measure VSWR C after left for 24 hrs min. at room temperature 1. No visual damage 2. VSWR satisfy 4 Low Temperature Resistance 1. Temperature: -40 ± 5°C 2. Time : 96 hrs 3. Measure VSWR C after left for 48 hrs min. at room temperature 1. No visual damage 2. VSWR satisfy 5 Humidity (Steady Condition) 1. Humidity : 85 % RH 1. Temperature: +85 ± 3°C 2. Time : 96 hrs 3. Measure VSWR C after left for 48 hrs min. at room temperature 1. No visual damage 2. VSWR satisfy 6 ESD 1. ESD Level : 8KV 2. Mode : Contact discharge 3. Number of cycle : 100 ※ Used Ref test PCB. 1. No visual damage 2. VSWR satisfy F PCB - 6 - CHIP ANTENNA 5. SOLDERING RECOMMENDATIOS 5.1. Reflow Soldering Profile

2017.07.25 RA-N0726-4 APPROVAL SHEET MODEL : 30K Antenna layout Review Consent Approval Messrs. SENA Technology Co.,Ltd RadiNa Co. ,Ltd TEL:+82-2-463 -0373 FAX:+82-2-463 -0374 PRODUCT APPROVAL SHEET GRSNT001DP1 MODEL NAME 30K REV. 1.0 Page 2 / 10 RADINA. Co., LTD Table of contents 1. Revision History 2. Product Information 2.1 General Features 2.2 Electrical Specifications 3. Electrical Characteristics 3.1 VSWR 3.2 Smith Chart 3.3 3D-PLOT 3.4 2D-GAIN 4. Passive Measurement PRODUCT APPROVAL SHEET GRSNT001DP1 MODEL NAME 30K REV. 1.0 Page 3 / 10 RADINA. Co., LTD 1. Revision History NO. Before After Reason Date 1 2 3 4 5 6 7 8 9 10 11 12 13 PRODUCT APPROVAL SHEET GRSNT001DP1 MODEL NAME 30K REV. 1.0 Page 4 / 10 RADINA. Co., LTD 2. Product Information 2.1 General Features PART NUMBER GradiANT ANTENNA TYPE PCB Pattern Antenna APPLICATIONS Bluetooth 2.2 Electrical Specifications Frequency Range1 (TX) 2400MHz~2485MHz Frequency Range1 (RX) 2400MHz~2485MHz IMPEDANCE 50  V.S.W.R TX 2400MHz 2485MHz 3↓ 3↓ RX 2400MHz 2485MHz 3↓ 3↓ RADIATION PATTERN Omni-directional POLARIZATION Linear PRODUCT APPROVAL SHEET GRSNT001DP1 MODEL NAME 30K REV. 1.0 Page 5 / 10 RADINA. Co., LTD 3.Electrical Characterristics 3.1 VSWR 3.2 SMITH CHART PRODUCT APPROVAL SHEET GRSNT001DP1 MODEL NAME 30K REV. 1.0 Page 6 / 10 RADINA. Co., LTD 3.3 3D-PLOTs 2400MHZ 2445MHZ 2485MHZ PRODUCT APPROVAL SHEET GRSNT001DP1 MODEL NAME 30K REV. 1.0 Page 7 / 10 RADINA. Co., LTD 3.4 2D-GAIN 2400MHZ 2445MHZ 2485MHZ PRODUCT APPROVAL SHEET GRSNT001DP1 MODEL NAME 30K REV. 1.0 Page 8 / 10 RADINA. Co., LTD 4. Passive Measurement 1 2 3 4 5 6 7 8 9 10 Frequency(MHz) 2400 2405 2410 2415 2420 2425 2430 2435 2440 2445 Efficiency(dB) -4.43 -4.50 -4.38 -4.16 -3.97 -3.89 -3.76 -4.59 -4.52 -4.53 Efficiency(%) 36.09 35.46 36.49 38.39 40.04 40.81 42.10 34.74 35.35 35.25 TRG(dB) -4.43 -4.50 -4.38 -4.16 -3.97 -3.89 -3.76 -4.59 -4.52 -4.53 TRG Theta (dB) -7.19 -7.17 -6.99 -6.73 -6.49 -6.40 -6.16 -6.98 -6.91 -6.92 TRG Phi (dB) -7.70 -7.89 -7.83 -7.66 -7.54 -7.47 -7.48 -8.33 -8.25 -8.25 UHRG(dB) -7.54 -7.56 -7.34 -7.06 -6.79 -6.60 -6.36 -7.08 -6.93 -6.87 UHRG/TRG(%) 48.86 49.48 50.62 51.28 52.34 53.57 54.91 56.37 57.33 58.30 H-Plane -6.40 -6.50 -6.34 -6.18 -6.02 -5.99 -5.93 -6.91 -6.97 -7.06 E1-Plane, AVG(dB) -9.66 -9.64 -9.46 -9.18 -8.99 -8.92 -8.53 -9.38 -9.22 -9.23 E2-Plane, AVG(dB) -5.52 -5.42 -5.18 -4.93 -4.54 -4.50 -4.20 -5.01 -4.84 -4.84 Peak Gain(dB) -1.68 -1.81 -1.78 -1.42 -0.89 -0.79 -0.33 -0.64 -0.33 -0.19 Directivity(dB) 2.74 2.69 2.60 2.73 3.09 3.10 3.43 3.95 4.19 4.34 Minimum Gain(dB) -12.83 -12.96 -13.69 -14.26 -15.40 -16.17 -16.48 -18.51 -19.78 -21.83 11 12 13 14 15 16 17 18 19 20 Frequency(MHz) 2450 2455 2460 2465 2470 2475 2480 2485 2490 2497 Efficiency(dB) -4.65 -4.60 -5.07 -5.21 -5.35 -5.35 -5.47 -5.42 -5.47 -5.59 Efficiency(%) 34.25 34.71 31.11 30.16 29.18 29.20 28.39 28.68 28.40 27.62 TRG(dB) -4.65 -4.60 -5.07 -5.21 -5.35 -5.35 -5.47 -5.42 -5.47 -5.59 TRG Theta (dB) -7.05 -6.96 -7.47 -7.61 -7.72 -7.74 -7.90 -7.87 -7.94 -8.09 TRG Phi (dB) -8.38 -8.37 -8.80 -8.92 -9.11 -9.07 -9.14 -9.08 -9.09 -9.18 UHRG(dB) -6.91 -6.77 -7.20 -7.24 -7.32 -7.26 -7.33 -7.24 -7.22 -7.27 UHRG/TRG(%) 59.51 60.67 61.24 62.61 63.46 64.38 65.19 65.89 66.79 67.85 H-Plane -7.41 -7.29 -7.89 -8.08 -8.29 -8.25 -8.52 -8.48 -8.65 -8.72 E1-Plane, AVG(dB) -9.35 -9.29 -9.74 -9.86 -10.00 -9.85 -10.00 -9.97 -10.01 -10.11 E2-Plane, AVG(dB) -4.93 -4.78 -5.26 -5.43 -5.48 -5.56 -5.70 -5.76 -5.80 -6.02 Peak Gain(dB) 0.13 0.41 0.10 0.24 0.32 0.34 0.30 0.44 0.46 0.34 Directivity(dB) 4.79 5.01 5.17 5.45 5.67 5.69 5.77 5.87 5.93 5.93 Minimum Gain(dB) -22.75 -20.93 -21.43 -21.33 -20.36 -19.45 -20.44 -19.33 -18.27 -17.34 Average Efficiency -4.71dBi, 33.82% Peak Gain 0.46dBi
