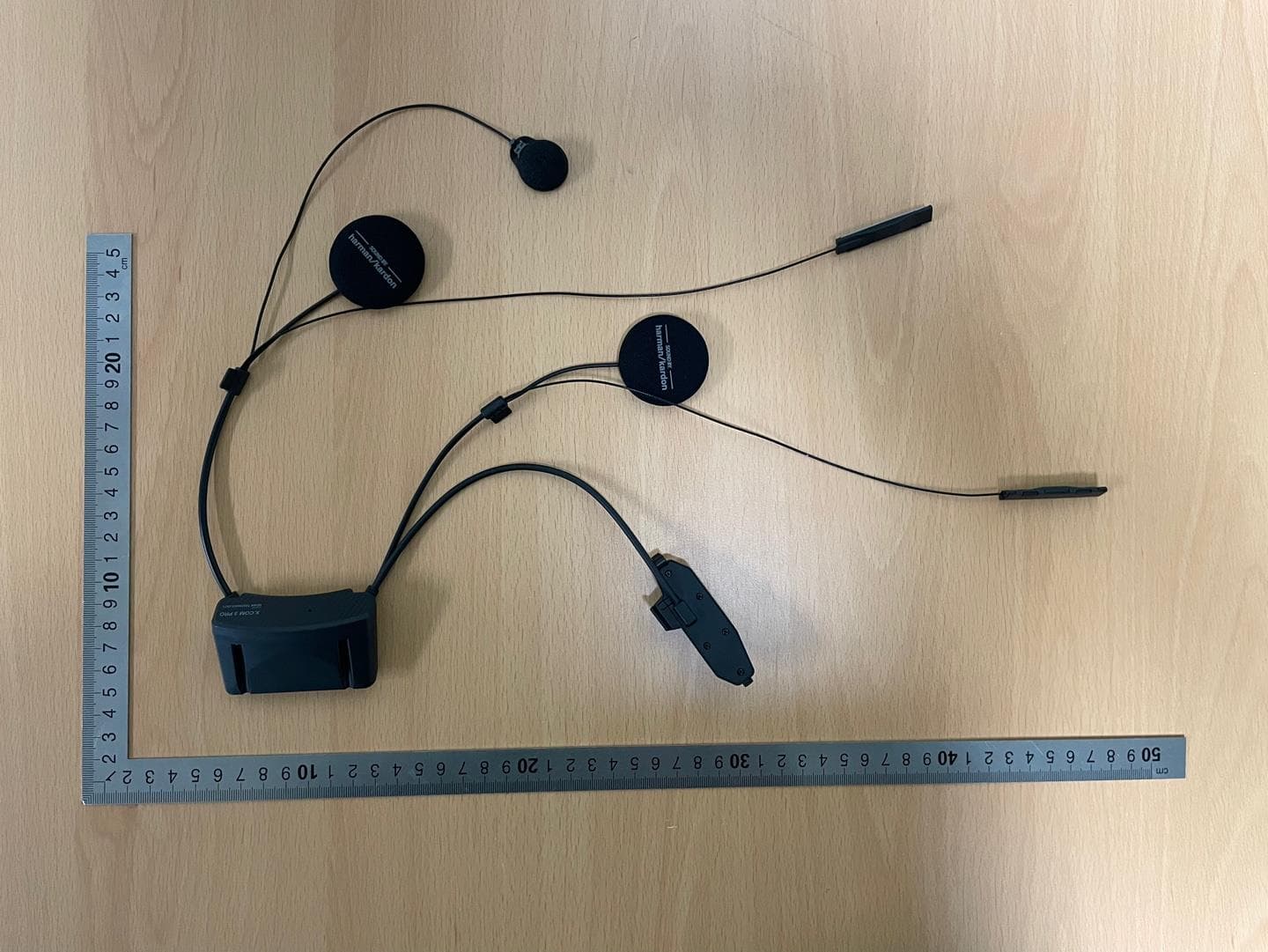

S7A-SP146X-COM 3 PRO

X-COM 3 PRO Manual Install to helmet as below: Charging Red LED: Charging White LED: Fully charged Power On/Off Press and hold the (+) Button and Center Button for 1 second Tap the (+) Button and Center Button. Volume Adjustment (+) Button - Increase the volume (-) Button - Decrease the volume Battery Check Phone, Music Pairing Initially Pairing the Impulse The headset will automatically enter the phone pairing mode when you initially turn on the headset or in the following situation: • Rebooting after executing Factory Reset 1. Press and hold the Center Button and (+) Button for 1 second. 2. Search for Whitetooth devices on your mobile phone. Select the X-COM 3 PRO in the list of the devices detected on the mobile phone. 3. Enter 0000 for the PIN. Some mobile phones may not ask for the PIN. Music Operation Play or pause music: Press the Center Button for 1 second. Track back: Press the (-) Button for 1 second. Track forward: Press the (+) Button for 1 second. Mobile Phone Call Making and Answering Answering a call: Tap the Center Button Ending a call: Press the Center Button for 2 seconds. Voice dial: Press the Center Button for 3 seconds. Speed dial: Press the (+) Button for 3 seconds. Rejecting a call: Press the (+) Button for 2 seconds. Intercom Intercom Pairing 1. Press and hold the Center Button of two headsets for 5 seconds until red LEDs of both units start to flash rapidly. 2. The two headsets will be automatically paired. Intercom Start/End : Tap the Center Button Mesh Intercom Mesh Intercom On/Off : Tap the Mesh Button Radio On/Off Turn on the FM radio: Press the (-) Button for 1 second. Turn off the FM radio: Press the (-) Button for 1 second. Radio Scan Up FM Band Start scanning: Press (+) Button for 1 second. Stop scanning: Press (+) Button for 1 second. Save presets while scanning Save presets: Tap the Center Button Radio Move to Preset Station Move to next preset: Press the Center Button for 1 second (1 → 2 → ... → 10) Radio Seek Stations Seek up stations: Double tap the (+) Button. Seek down stations: Double tap the (-) Button. Setting Configuration Menu: Press the Center Button for 10 seconds. Using the Sena Device Manager Connect the headset to your computer via a USB cable. Launch the Sena Device Manager and click DEVICE SETTING to configure the headset settings. For details about downloading the Sena Device Manager, please refer to the leaflet included in the package. Troubleshooting Factory Reset If you want to restore the headset to factory default settings, use the Factory Reset The headset automatically restores the default settings and turns off. 1. Press the Center Button for 10 second. 2. Tap the (-) Button twice. 3. Tap the Center Button. Certification and Safety Approvals FCC Compliance Statement This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment on and off, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antennae -Increase the separation between the equipment and the receiver -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC RF Exposure Statement This equipment complies with FCC/IC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance. When equipped, the distance between antenna and one’s head surface is 24.3mm. FCC Caution Any changes or modifications to the equipment not expressly approved by the party responsible for compliance could void user’s authority to operate the equipment. Industry Canada(IC) Statement This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1)this device may not cause interference, and (2)this device must accept any interference, including interference that may cause undesired operation of the device. Le present appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisee aux deux conditions suivantes : (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioelectrique subi, meme si le brouillage est susceptible d’en compromettre le fonctionnement. IC RF Exposure Statement Cet équipement est conforme aux limites d'exposition aux radiations de la FCC/IC définies pour un environnement non contrôlé. Les utilisateurs finaux doivent suivre les instructions d'utilisation spécifiques pour satisfaire à la conformité d'exposition RF. Lorsque équipé, la distance entre l’antenne et la surface de la tête est de 24.3mm.

Rev 1/26/2023 Sena Technologies Co., Ltd. 19, Heolleung-ro 569-gil, Gangnam-gu, Seoul, South Korea Sena Technologies Co., Ltd. Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2023-11-22 Ref: Attestation Statements Part 2.911(d)(5)(i) Filing FCC ID: S7A-SP146 [Sena Technologies Co., Ltd.] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, Seunghyun Kim, Research Engineer Rev 1/26/2023 Sena Technologies Co., Ltd. 19, Heolleung-ro 569-gil, Gangnam-gu, Seoul, South Korea Sena Technologies Co., Ltd. Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2023-11-22 Ref: Attestation Statements Part 2.911(d)(5)(ii) Filing FCC ID: S7A-SP146 [Sena Technologies Co., Ltd.] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. And, applicant is not a named entity or any of its subsidiaries or affiliates. Sincerely, Seunghyun Kim, Research Engineer

Sena Technologies Co., Ltd. 19, Heolleung-ro 569-gil, Gangnam-gu, Seoul, South Korea Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: S7A-SP146 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Block Diagram Schematics Operational Description Part List [SP146] BLK [SP146] SCH [SP146] OpDes [SP146] Part List The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); Exhibit Type File Name External Photos Internal Photos Test Setup Photos Manual [SP146] EXT Photo [SP146] INT Photo [SP146] Test Setup Photo [SP146] Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. Sincerely, Seunghyun KIM / Research Engineer

Sena Technologies Co., Ltd. Nov 22, 2023, Applicant: Sena Technologies Co., Ltd. FCC ID: S7A-SP146 / IC: 8154A-SP146 To. Whom it may concern: We, Sena Technologies,Inc. declare that when equipped, the distance between antenna and one’s head surface is 24.3mm. Seunghyun Kim, Research Engineer

Sena Technologies Co., Ltd. 19, Heolleung-ro 569-gil, Gangnam-gu, Seoul, South Korea Nov 22, 2023 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Letter of Authorization We, the undersigned, hereby authorize Jong-Myoung, Shin of EMC Labs Co., Ltd. to act on our behalf in all manners relating to application for equipment authorization for FCC ID: S7A-SP146 / IC: 8154A-SP146 including signing of all documents relating to these matters. Any and all acts carried out by Jong-Myoung, Shin of EMC Labs Co., Ltd. on our behalf shall have the same affect as acts of our own. This authorization is valid until further written notice from Sena Technologies Co., Ltd. “I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a).” Sincerely, Seunghyun KIM / Research Engineer

USB Charging Port

SENA_SP146_Label & Location Label Location

Internal Battery BT Antenna MESH Antenna

Report No.: DRRFCC2311-0107(1) FCC ID: S7A-SP146 Date of issue: Nov. 28, 2023 Copyright Ⓒ 2023, Dt&C Co., Ltd. SAR Plots Verification Plots SAR Test Plots Dt&C Co., Ltd. DUT: Dipole 2450 MHz; Type: D2450V2; Serial: D2450V2 - SN: 726 Communication System: UID 0, CW (0); Frequency: 2450 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2450 MHz; σ = 1.78 S/m; ε r = 39.209; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration: Probe: ES3DV3 - SN3327; ConvF(5.43, 4.96, 5.03); Calibrated: 1/22/2023 Electronics: DAE4 Sn614 Sensor-Surface: 3mm (Mechanical Surface Detection) Phantom: SAM with CRP_2013_10_08_right; Type: QD000P40CD; Serial: TP:1785 Measurement SW: DASY52, Version 52.10 (3); SEMCAD X Version 14.6.13 (7474) Test Date: 2023-11-17; Ambient Temp: 20.9; Tissue Temp: 20.8 2 450 MHz System Verification (100 mW) Area Scan (6x11x1): Measurement grid: dx=12mm, dy=12mm Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Power Drift = -0.11 dB Peak SAR (extrapolated) = 10.9 W/kg SAR(1 g) = 5.27 W/kg; SAR(10 g) = 2.49 W/kg 0 dB = 6.92 W/kg Dt&C Co., Ltd. DUT: SP146; Type: Bluetooth Headset Communication System: UID 0, Bluetooth (0); Frequency: 2441 MHz;Duty Cycle: 1:1.302 Medium parameters used: f = 2441 MHz; σ = 1.77 S/m; ε r = 39.238; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration: Probe: ES3DV3 - SN3327; ConvF(5.43, 4.96, 5.03); Calibrated: 1/22/2023 Electronics: DAE4 Sn614 Sensor-Surface: 3mm (Mechanical Surface Detection) Phantom: SAM with CRP_2013_10_08_right; Type: QD000P40CD; Serial: TP:1785 Measurement SW: DASY52, Version 52.10 (3); SEMCAD X Version 14.6.13 (7474) Test Date: 2023-11-17; Ambient Temp: 20.9; Tissue Temp: 20.8 1 cm space from Body, Rear, Bluetooth 1Mbps Ch. 39, Ant External Area Scan (7x11x1): Measurement grid: dx=12mm, dy=12mm Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Power Drift = 0.13 dB Peak SAR (extrapolated) = 1.95 W/kg SAR(1 g) = 0.953 W/kg; SAR(10 g) = 0.458 W/kg 0 dB = 1.24 W/kg A1

Report No.: DRRFCC2311-0107(1) FCC ID: S7A-SP146 This test report is prohibited to copy or reissue in whole or in part without the approval of Dt&C Co., Ltd. TRF-RF-601(03)161101 Pages: 2 /52 Test Report Version Test Report No. Date Description Tested By Reviewed by DRRFCC2311-0107 Nov. 20, 2023 Initial issue WonJu Ji HakMin Kim DRRFCC2311-0107(1) Nov. 28, 2023 Added device photo WonJu Ji HakMin Kim Report No.: DRRFCC2311-0107(1) FCC ID: S7A-SP146 This test report is prohibited to copy or reissue in whole or in part without the approval of Dt&C Co., Ltd. TRF-RF-601(03)161101 Pages: 3 /52 Table of Contents 1. DESCRIPTION OF DEVICE .......................................................................................................................... 4 1.1 General Information ............................................................................................................................... 4 1.2 Guidance Applied................................................................................................................................... 4 1.3 DUT Antenna Locations ......................................................................................................................... 4 1.5 Power Reduction for SAR ...................................................................................................................... 5 1.6 Device Serial Numbers .......................................................................................................................... 5 2. INTROCUCTION ........................................................................................................................................... 6 3. DESCRIPTION OF TEST EQUIPMENT ........................................................................................................ 7 3.1 SAR MEASUREMENT SETUP .............................................................................................................. 7 3.2 Probe Specification ................................................................................................................................ 8 3.3 Probe Calibration Process ..................................................................................................................... 9 3.3.1 E-Probe Calibration .......................................................................................................................... 9 3.4 Data Extrapolation ............................................................................................................................... 10 3.5 SAM Twin Phantom ............................................................................................................................. 11 3.6 Device Holder for Transmitters ............................................................................................................ 12 3.7 Brain Simulation Mixture Characterization ........................................................................................... 13 3.8 SAR TEST EQUIPMENT ..................................................................................................................... 13 4. TEST SYSTEM SPECIFICATIONS ............................................................................................................. 14 5. SAR MEASUREMENT PROCEDURE ........................................................................................................ 15 5.1 Measurement Procedure ..................................................................................................................... 15 6. RF EXPOSURE LIMITS .............................................................................................................................. 20 7. SAR MEASUREMENT PROCEDURES ...................................................................................................... 21 7.1 Measured and Reported SAR .............................................................................................................. 21 8. Nominal and Maximum Output Power Spec and RF Conducted Powers ............................................. 22 8.1 Bluetooth Nominal and Maximum Output Power Spec and Conducted Powers .................................. 22 8.2 MESH Nominal and Maximum Output Power Spec and Conducted Powers ....................................... 24 9. SYSTEM VERIFICATION ............................................................................................................................ 25 9.1 Tissue Verification ................................................................................................................................ 25 9.2 Test System Verification ....................................................................................................................... 25 10. SAR TEST RESULTS ............................................................................................................................... 26 10.1 Head SAR Results ............................................................................................................................. 26 10.2 SAR Test Notes ................................................................................................................................. 26 11. FCC MULTI-TX AND ANTENNA SAR CONSIDERATIONS ...................................................................... 27 11.1 Introduction ........................................................................................................................................ 27 11.2 Simultaneous Transmission Procedures ............................................................................................ 27 11.3 Simultaneous Transmission Capabilities ............................................................................................ 27 11.4 Head SAR Simultaneous Transmission Analysis ............................................................................... 27 11.5 Phablet SAR Simultaneous Transmission Analysi…

Text truncated - open the document above for the full version.

2023.10.19 RA-N3210-51 APPROVAL SHEET MODEL : X-COM3 PRO Main ANT Antenna layout Review Consent Approval Messrs. SENA Technology Co.,Ltd RadiNa Co. ,Ltd TEL:+82-2-463-0373 FAX:+82-2-463-0374 PRODUCT APPROVAL SHEET GRSN23108MS41 MODEL NAME X-COM3 PRO (Main) REV. 1.0 Page 2 / 9 RADINA. Co., LTD Table of contents 1.Revision History 2.Product Information 2.1 General Features 2.2 Electrical Specifications 3.Electrical Characteristics 3.1 VSWR 3.2 Smith Chart 3.3 3D-PLOT 3.4 2D-GAIN 4.Passive Measurement 5.Measurement Process PRODUCT APPROVAL SHEET GRSN23108MS41 MODEL NAME X-COM3 PRO (Main) REV. 1.0 Page 3 / 9 RADINA. Co., LTD 1. Revision History NO. Before After Reason Date 1 2 3 4 5 6 7 8 9 10 11 12 13 PRODUCT APPROVAL SHEET GRSN23108MS41 MODEL NAME X-COM3 PRO (Main) REV. 1.0 Page 4 / 9 RADINA. Co., LTD 2. Product Information 2.1 General Features PART NUMBER GRSN23108MS41 ANTENNA TYPE Dipole Antenna APPLICATIONS Mesh 2.2 Electrical Specifications Frequency Range1 (TX) 2400MHz~2485MHz Frequency Range1 (RX) 2400MHz~2485MHz IMPEDANCE 50  V.S.W.R TX 2400MHz 2485MHz 3↓ 3↓ RX 2400MHz 2485MHz 3↓ 3↓ RADIATION PATTERN Omni-directional POLARIZATION Linear PRODUCT APPROVAL SHEET GRSN23108MS41 MODEL NAME X-COM3 PRO (Main) REV. 1.0 Page 5 / 9 RADINA. Co., LTD 3.Electrical Characterristics 3.1 VSWR 3.2 SMITH CHART PRODUCT APPROVAL SHEET GRSN23108MS41 MODEL NAME X-COM3 PRO (Main) REV. 1.0 Page 6 / 9 RADINA. Co., LTD 3.3 3D-PLOT 3.4 2D-GAIN PRODUCT APPROVAL SHEET GRSN23108MS41 MODEL NAME X-COM3 PRO (Main) REV. 1.0 Page 7 / 9 RADINA. Co., LTD 4. Passive Measurement 12345678910 Frequency [MHz]2400240524102415242024252430243524402445 Efficiency [dB]-3.71 -3.60 -3.43 -3.48 -3.56 -3.58 -3.19 -3.08 -3.00 -2.91 Efficiency [%]42.6 43.7 45.4 44.9 44.1 43.9 47.9 49.2 50.1 51.2 TRG θ [dB] -4.37 -4.21 -4.03 -4.01 -4.06 -4.04 -3.61 -3.45 -3.36 -3.24 Gain θ Peak [dB] -0.71 -0.52 -0.42 -0.09 -0.03 -0.39 -0.05 0.14 0.57 0.70 Gain θ Min [dB] -27.94 -21.39 -33.83 -27.87 -23.47 -23.15 -19.20 -15.38 -18.96 -17.89 TRG φ [dB] -12.21 -12.40 -12.35 -12.92 -13.17 -13.54 -13.61 -13.90 -14.04 -14.28 Gain φ Peak [dB] -5.76 -5.41 -5.45 -6.93 -6.97 -6.35 -7.26 -6.81 -7.65 -8.53 Gain φ Min [dB] -29.06 -29.37 -33.71 -37.71 -32.29 -27.45 -23.37 -33.68 -37.82 -32.22 UHRG [dB] -5.48 -5.44 -5.22 -5.27 -5.32 -5.39 -5.02 -4.91 -4.85 -4.77 UHRG/TRG [%] 66.5 65.4 66.2 66.3 66.6 65.8 65.6 65.5 65.4 65.1 H-Plane -4.02 -3.58 -3.43 -3.15 -2.99 -2.90 -2.25 -1.98 -1.82 -1.58 E1-Plane, AVG [dB] -4.90 -4.82 -4.76 -5.10 -4.94 -5.08 -4.79 -4.55 -4.36 -4.31 E2-Plane, AVG [dB] -5.53 -5.53 -5.42 -5.14 -5.57 -5.45 -5.01 -5.08 -4.76 -4.68 Peak Gain [dB] -0.55 -0.44 -0.10 -0.03 0.04 -0.33 0.13 0.34 0.64 0.75 Directivity [dB] 3.16 3.16 3.33 3.45 3.59 3.25 3.33 3.42 3.64 3.66 Minimum Gain [dB] -19.33 -18.10 -22.75 -18.71 -17.72 -20.80 -16.49 -14.05 -18.90 -16.03 12131415161718192012 Frequency [MHz]2450245524602465247024752480248524902497 Efficiency [dB]-2.92 -2.93 -3.02 -2.92 -2.71 -2.67 -2.72 -3.27 -3.29 -3.13 Efficiency [%]51.0 50.9 49.9 51.1 53.6 54.1 53.4 47.1 46.8 48.7 TRG θ [dB] -3.22 -3.21 -3.28 -3.18 -2.94 -2.89 -2.93 -3.46 -3.48 -3.28 Gain θ Peak [dB] 0.43 0.75 0.35 0.42 0.82 0.83 0.94 0.01 0.37 -0.04 Gain θ Min [dB] -20.72 -18.56 -19.04 -19.07 -19.77 -19.34 -18.56 -28.68 -22.50 -21.36 TRG φ [dB] -14.66 -14.97 -15.47 -15.20 -15.65 -15.70 -16.13 -16.98 -17.16 -17.71 Gain φ Peak [dB] -9.00 -9.32 -8.83 -9.62 -9.48 -9.93 -11.39 -12.55 -10.55 -11.46 Gain φ Min [dB] -35.65 -52.84 -35.43 -37.16 -31.94 -30.91 -36.20 -35.08 -34.87 -39.94 UHRG [dB] -4.81 -4.87 -4.95 -4.88 -4.73 -4.69 -4.75 -5.35 -5.41 -5.27 UHRG/TRG [%] 64.7 64.1 64.2 63.7 62.8 62.7 62.8 62.0 61.5 61.1 H-Plane -1.47 -1.42 -1.44 -1.26 -0.93 -0.86 -0.94 -1.41 -1.42 -1.30 E1-Plane, AVG [dB] -4.41 -4.37 -4.40 -4.56 -4.22 -4.15 -4.36 -4.65 -4.89 -4.56 E2-Plane, AVG [dB] -4.94 -4.68 -4.91 -4.60 -4.36 -4.34 -4.50 -4.82 -5.04 -4.68 Peak Gain [dB] 0.57 0.80 0.42 0.47 0.83 0.88 0.94 0.04 0.37 -0.03 Directivity [dB] 3.49 3.73 3.44 3.39 3.54 3.54 3.67 3.31 3.67 3.10 Minimum Gain [dB] -18.72 -16.94 -18.37 -18.38 -18.75 -18.35 -18.34 -24.40 -19.75 -20.45 Average Efficiency -3.14dBi 48.47% Average Efficiency 0.94dBi PRODUCT APPROVAL SHEET GRSN23108MS41 MODEL NAME X-COM3 PRO (Main) REV. 1.0 Page 8 / 9 RADINA. Co., LTD 5. Measurement Process 5.1 SWR / Return loss Set Condition Network Analyzer Agilent 8753ES Cable Semi-ridid (40mm, 60mm) Test condition 5.2 Gain Antenna gain is measured in the anechoic chamber of this company. Anechoic Chamber for Antenna Gain Measurement PRODUCT APPROVAL SHEET GRSN23108MS41 MODEL NAME X-COM3 PRO (Main) REV. 1.0 Page 9 / 9 RADINA. Co., LTD 5.3 Gain test block diagram Active test Sysetm - TRP, NHPRP,UHRP - TIS, NHPIS, UHIS - Relative Sensitivity Passiver test Sysetm - Efficiency - Peak Gain, Avg, Gain - Min, Max PWR

APPROVAL SHEET MODEL : X-COM3 PRO DIV ANT Antenna layout Review Consent Approval Messrs. SENA Technology Co.,Ltd RadiNa Co. ,Ltd TEL:+82-2-463-0373 FAX:+82-2-463-0374 2023.10.19 RA-N2310-52 PRODUCT APPROVAL SHEET GRSN23108MS42 MODEL NAME X-COM3 PRO (DIV) REV. 1.0 Page 2 / 9 RADINA. Co., LTD Table of contents 1.Revision History 2.Product Information 2.1 General Features 2.2 Electrical Specifications 3.Electrical Characteristics 3.1 VSWR 3.2 Smith Chart 3.3 3D-PLOT 3.4 2D-GAIN 4.Passive Measurement 5.Measurement Process PRODUCT APPROVAL SHEET GRSN23108MS42 MODEL NAME X-COM3 PRO (DIV) REV. 1.0 Page 3 / 9 RADINA. Co., LTD 1. Revision History NO. Before After Reason Date 1 2 3 4 5 6 7 8 9 10 11 12 13 PRODUCT APPROVAL SHEET GRSN23108MS42 MODEL NAME X-COM3 PRO (DIV) REV. 1.0 Page 4 / 9 RADINA. Co., LTD 2. Product Information 2.1 General Features PART NUMBER GRSN22128MS51 ANTENNA TYPE Dipole Antenna APPLICATIONS Mesh 2.2 Electrical Specifications Frequency Range1 (TX) 2400MHz~2485MHz Frequency Range1 (RX) 2400MHz~2485MHz IMPEDANCE 50  V.S.W.R TX 2400MHz 2485MHz 3↓ 3↓ RX 2400MHz 2485MHz 3↓ 3↓ RADIATION PATTERN Omni-directional POLARIZATION Linear PRODUCT APPROVAL SHEET GRSN23108MS42 MODEL NAME X-COM3 PRO (DIV) REV. 1.0 Page 5 / 9 RADINA. Co., LTD 3.Electrical Characteristics 3.1 VSWR 3.2 SMITH CHART PRODUCT APPROVAL SHEET GRSN23108MS42 MODEL NAME X-COM3 PRO (DIV) REV. 1.0 Page 6 / 9 RADINA. Co., LTD 3.3 3D-PLOT 3.4 2D-GAIN PRODUCT APPROVAL SHEET GRSN23108MS42 MODEL NAME X-COM3 PRO (DIV) REV. 1.0 Page 7 / 9 RADINA. Co., LTD 4. Passive Measurement 12345678910 Frequency [MHz]2400240524102415242024252430243524402445 Efficiency [dB]-2.98 -2.88 -2.85 -2.96 -3.04 -3.18 -2.97 -2.79 -2.72 -2.78 Efficiency [%]50.4 51.6 51.9 50.6 49.7 48.0 50.5 52.6 53.4 52.7 TRG θ [dB] -3.41 -3.31 -3.24 -3.35 -3.39 -3.55 -3.31 -3.11 -3.03 -3.06 Gain θ Peak [dB] -0.23 -0.02 -0.16 -0.12 -0.28 -0.25 -0.16 -0.06 -0.42 -0.49 Gain θ Min [dB] -16.17 -17.70 -17.04 -15.31 -14.60 -13.17 -12.55 -12.21 -11.39 -11.52 TRG φ [dB] -13.17 -13.06 -13.56 -13.66 -14.07 -14.09 -14.18 -14.28 -14.37 -14.90 Gain φ Peak [dB] -6.76 -5.90 -7.35 -6.93 -6.66 -7.11 -8.23 -7.59 -7.69 -8.23 Gain φ Min [dB] -31.99 -46.51 -33.14 -33.67 -32.14 -35.21 -32.67 -44.84 -36.58 -40.57 UHRG [dB] -5.08 -4.99 -4.95 -5.05 -5.12 -5.30 -5.12 -4.93 -4.92 -5.02 UHRG/TRG [%] 61.7 61.5 61.6 61.8 61.9 61.4 60.9 61.1 60.3 59.7 H-Plane -2.07 -2.03 -1.81 -1.93 -2.03 -2.04 -1.83 -1.59 -1.31 -1.38 E1-Plane, AVG [dB] -4.46 -4.45 -4.31 -4.44 -4.45 -4.61 -4.45 -4.15 -4.21 -4.12 E2-Plane, AVG [dB] -4.73 -4.67 -4.70 -4.40 -4.71 -4.97 -4.56 -4.31 -4.40 -4.34 Peak Gain [dB] -0.23 -0.02 -0.10 0.01 0.03 -0.05 -0.16 0.18 -0.32 -0.32 Directivity [dB] 2.75 2.86 2.75 2.97 3.07 3.14 2.81 2.97 2.40 2.46 Minimum Gain [dB] -15.30 -14.40 -13.87 -14.38 -13.98 -12.87 -12.37 -11.72 -11.03 -11.25 12131415161718192012 Frequency [MHz]2450245524602465247024752480248524902497 Efficiency [dB]-2.91 -3.03 -3.22 -3.16 -2.77 -2.91 -2.97 -3.52 -3.73 -3.60 Efficiency [%]51.1 49.8 47.7 48.3 52.9 51.2 50.5 44.4 42.4 43.6 TRG θ [dB] -3.17 -3.28 -3.47 -3.40 -3.01 -3.12 -3.19 -3.75 -3.93 -3.79 Gain θ Peak [dB] -0.40 -0.16 -0.76 -0.85 -0.59 -0.36 -0.68 -1.00 -1.26 -1.19 Gain θ Min [dB] -11.13 -10.79 -11.22 -10.20 -9.84 -9.11 -8.71 -9.44 -9.81 -9.45 TRG φ [dB] -15.35 -15.50 -15.74 -15.81 -15.51 -15.99 -16.05 -16.53 -17.13 -17.46 Gain φ Peak [dB] -8.55 -9.50 -9.44 -9.86 -10.02 -9.83 -9.68 -10.22 -10.71 -11.71 Gain φ Min [dB] -35.58 -33.03 -33.07 -33.48 -45.47 -38.95 -31.33 -38.42 -39.68 -33.21 UHRG [dB] -5.13 -5.27 -5.52 -5.48 -5.12 -5.33 -5.33 -5.96 -6.19 -6.00 UHRG/TRG [%] 60.0 59.7 58.9 58.5 58.2 57.2 58.0 57.1 56.7 57.6 H-Plane -1.54 -1.65 -1.73 -1.63 -1.21 -1.30 -1.34 -1.87 -1.98 -2.13 E1-Plane, AVG [dB] -4.27 -4.33 -4.41 -4.56 -4.03 -4.13 -4.21 -4.96 -5.09 -5.07 E2-Plane, AVG [dB] -4.40 -4.43 -4.72 -4.65 -4.12 -4.54 -4.32 -4.84 -5.29 -5.00 Peak Gain [dB] -0.14 -0.13 -0.74 -0.58 -0.44 -0.33 -0.53 -0.75 -0.90 -1.08 Directivity [dB] 2.77 2.89 2.48 2.58 2.32 2.57 2.43 2.78 2.83 2.52 Minimum Gain [dB] -10.60 -10.57 -10.60 -9.98 -9.69 -9.07 -8.57 -9.20 -9.66 -9.27 Average Efficiency -3.04dBi 49.67% Average Efficiency 0.18dBi PRODUCT APPROVAL SHEET GRSN23108MS42 MODEL NAME X-COM3 PRO (DIV) REV. 1.0 Page 8 / 9 RADINA. Co., LTD 5. Measurement Process 5.1 SWR / Return loss Set Condition Network Analyzer Agilent 8753ES Cable Semi-ridid (40mm, 60mm) Test condition 5.2 Gain Antenna gain is measured in the anechoic chamber of this company. Anechoic Chamber for Antenna Gain Measurement PRODUCT APPROVAL SHEET GRSN23108MS42 MODEL NAME X-COM3 PRO (DIV) REV. 1.0 Page 9 / 9 RADINA. Co., LTD 5.3 Gain test block diagram Active test Sysetm - TRP, NHPRP,UHRP - TIS, NHPIS, UHIS - Relative Sensitivity Passiver test Sysetm - Efficiency - Peak Gain, Avg, Gain - Min, Max PWR

R Report No.: KR0140-RF2311-003 EMCLabs-QPF-26-25 [Enactment_00 / 2022. 09. 07] Page 1 / 41 This test report shall not be reproduced except in full, Without the written approval. 본 시험성적서는 (주)ABCD의 서면 동의 없이 무단 전제 및 복사를 할 수 없습니다. Test Report 1. Client ᆞName : Sena Technologies Co., Ltd. ᆞAddress : 19, Heolleung-ro 569-gil, Gangnam-gu, Seoul, Republic of Korea 2. Use of Report : FCC & IC Approval 3. Sample Description ᆞProduct Name : X-COM 3 PRO ᆞModel Name : SP146 4. Date of Receipt : 2023-10-19 5. Date of Test : 2023-11-03 ~ 2023-11-13 6. Test Method : FCC Part 15 Subpart C 15.247 RSS-247 Issue 2(2017-02), RSS-GEN Issue 5(2019-03) 7. Test Results : Refer to the test results This test report must not be reproduced or reproduced in any way. The results shown in this test report are the results of testing the samples provided. This test report is prepared according to the requirements of ISO / IEC 17025. Affirmation Tested by Dae-Seong, Choi (signature) Technical Manager Jong-Myoung, Shin (signature) Nov 22, 2023 EMC Labs Co., Ltd. (seal) R Report No.: KR0140-RF2311-003 EMCLabs-QPF-26-25 [Enactment_00 / 2022. 09. 07] Page 2 / 41 This test report shall not be reproduced except in full, Without the written approval. 본 시험성적서는 (주)ABCD의 서면 동의 없이 무단 전제 및 복사를 할 수 없습니다. Contents 1. Applicant & Manufacturer & Test Laboratory Information··································· 4 2. Equipment under Test(EUT) Information······················································· 5 3. Test Summary······················································································· 6 4. Used equipment on test·········································································· 7 5. Antenna Requirement·············································································· 7 6. 6 dB Bandwidth····················································································· 9 7. Maximum Peak Output Power···································································· 13 8. Peak Power Spectral Density····································································· 16 9. TX Radiated Spurious Emission and Conducted Spurious Emission····················· 19 10. Conducted Emission··············································································· 35 APPENDIX APPENDIX I TEST SETUP··································································…
