S7A-SP148OUTRUSH M

OUTRUSH M User Manual Charging Red LED: Charging Blue LED: Fully charged Power On/Off (+) Button + Center Button for 1 sec Volume Adjustment (+) Button - Increase the volume (-) Button - Decrease the volume Battery Check Phone, Music Pairing Initially Pairing the Cast The headset will automatically enter the phone pairing mode when you initially turn on the headset or in the following situation: • Rebooting after executing Factory Reset 1. Press and hold the Center Button and (+) Button for 1 second. 2. Search for Bluetooth devices on your mobile phone. Select the OUTRUSH M in the list of the devices detected on the mobile phone. 3. Enter 0000 for the PIN. Some mobile phones may not ask for the PIN. Music Operation Play or pause music: Press the Center Button for 1 second. Track back: Press the (-) Button for 1 second. Track forward: Press the (+) Button for 1 second. Mobile Phone Call Making and Answering Answering a call: Tap the Center Button Ending a call: Press the Center Button for 2 seconds. Voice dial: Press the Center Button for 3 seconds. Speed dial: Press the (+) Button for 3 seconds. Rejecting a call: Press the Center Button for 2 seconds. Mesh Intercom On/Off Mesh Intercom On : Tap the Mesh Intercom Button. Mesh Intercom Off : Tap the Mesh Intercom Button. Setting Configuration Menu: Press the Center Button for 10 seconds. Troubleshooting Factory Reset If you want to restore the headset to factory default settings, use the Factory Reset in the configuration menu. The headset automatically restores the default settings and turns off. Certification and Safety Approvals FCC Compliance Statement This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment on and off, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antennae -Increase the separation between the equipment and the receiver -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. FCC RF Exposure Statement This equipment complies with FCC/IC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance. When equipped, the distance between antenna and one’s head surface is 34.5mm. FCC Caution Any changes or modifications to the equipment not expressly approved by the party responsible for compliance could void user’s authority to operate the equipment. Industry Canada(IC) Statement This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1)this device may not cause interference, and (2)this device must accept any interference, including interference that may cause undesired operation of the device. Le present appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisee aux deux conditions suivantes : (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioelectrique subi, meme si le brouillage est susceptible d’en compromettre le fonctionnement. IC RF Exposure Statement Cet équipement est conforme aux limites d'exposition aux radiations de la FCC/IC définies pour un environnement non contrôlé. Les utilisateurs finaux doivent suivre les instructions d'utilisation spécifiques pour satisfaire à la conformité d'exposition RF. Lorsque équipé, la distance entre l’antenne et la surface de la tête est de 34.5mm.

Sena Technologies Co., Ltd. Aug 10, 2023, Applicant: Sena Technologies Co., Ltd. FCC ID: S7A-SP148 / IC: 8154A-SP148 To. Whom it may concern: We, Sena Technologies,Inc. declare that when equipped, the distance between antenna and one’s head surface is 34.5mm. Seunghyun Kim, Research Engineer

Rev 1/26/2023 Sena Technologies Co., Ltd. 19, Heolleung-ro 569-gil, Gangnam-gu, Seoul, South Korea Sena Technologies Co., Ltd. Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2023-08-16 Ref: Attestation Statements Part 2.911(d)(5)(i) Filing FCC ID: S7A-SP148 [Sena Technologies Co., Ltd.] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, Seunghyun Kim, Research Engineer Rev 1/26/2023 Sena Technologies Co., Ltd. 19, Heolleung-ro 569-gil, Gangnam-gu, Seoul, South Korea Sena Technologies Co., Ltd. Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2023-08-16 Ref: Attestation Statements Part 2.911(d)(5)(ii) Filing FCC ID: S7A-SP148 [Sena Technologies Co., Ltd.] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. And, applicant is not a named entity or any of its subsidiaries or affiliates. Sincerely, Seunghyun Kim, Research Engineer

Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2023-08-16 Ref: Attestation Statements Part 2.911(d)(7) Filing FCC ID: S7A-SP148 Applicant FRN: 0013268917 [Sena Technologies Co., Ltd.] (“the applicant”) certifies that, as of the date of the filing of the application, [Sena Technologies, Inc.] is our designated U.S. agent for service of process for the above referenced FCC ID. [Sena Technologies Co., Ltd.] accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission- related proceeding involving the equipment. [Sena Technologies, Inc.] accepts, as of the date of the filing of the application, the obligation of the designated U.S. agent for service of process for the above referenced FCC ID. Designated U.S. Agent Information: Name: Sena Technologies, Inc. U.S. Agent FRN: 0033442666 Address: 152 Technology Dr.irvine, CA 92618 USA Contact Person : Frank Cha Tell : +1 (888) 333-7362 Email: [email protected] Sincerely, Sena Technologies Co., Ltd. Sena Technologies, Inc. Seunghyun Kim Frank Cha

Sena Technologies Co., Ltd. 19, Heolleung-ro 569-gil, Gangnam-gu, Seoul, South Korea Aug 10, 2023 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Letter of Authorization We, the undersigned, hereby authorize Jong-Myoung, Shin of EMC Labs Co., Ltd. to act on our behalf in all manners relating to application for equipment authorization for FCC ID: S7A-SP148 / IC: 8154A-SP148 including signing of all documents relating to these matters. Any and all acts carried out by Jong-Myoung, Shin of EMC Labs Co., Ltd. on our behalf shall have the same affect as acts of our own. This authorization is valid until further written notice from Sena Technologies Co., Ltd. “I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a).” Sincerely, Seunghyun KIM / Research Engineer

Sena Technologies Co., Ltd. 19, Heolleung-ro 569-gil, Gangnam-gu, Seoul, South Korea Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: S7A-SP148 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Block Diagram Schematics Operational Description Part List [SP148] BLK [SP148] SCH [SP148] OpDes [SP148] Part List The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); Exhibit Type File Name External Photos Internal Photos Test Setup Photos Manual [SP148] EXT Photo [SP148] INT Photo [SP148] Test Setup Photo [SP148] Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. Sincerely, Seunghyun KIM / Research Engineer

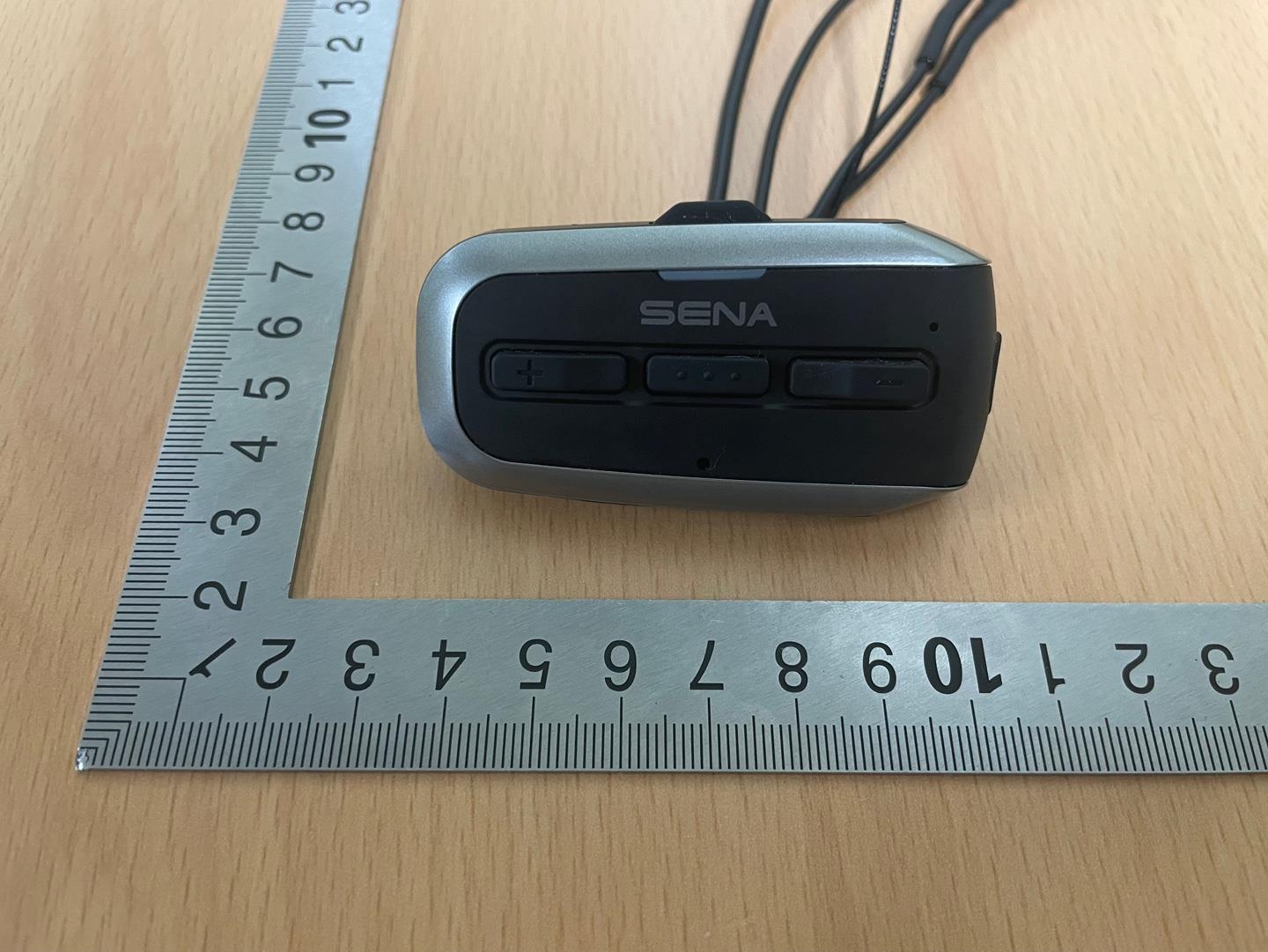

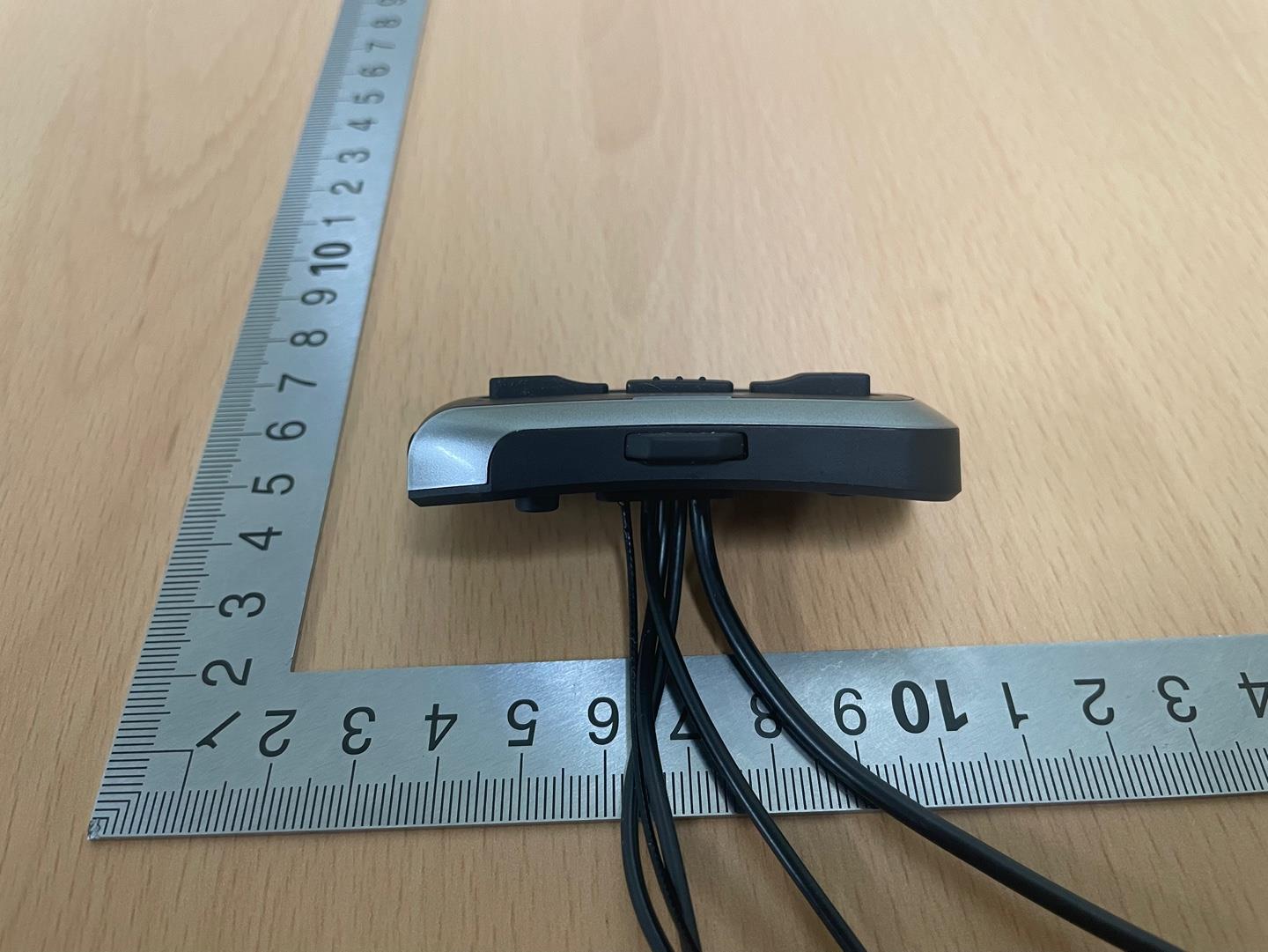

USB Charging Port

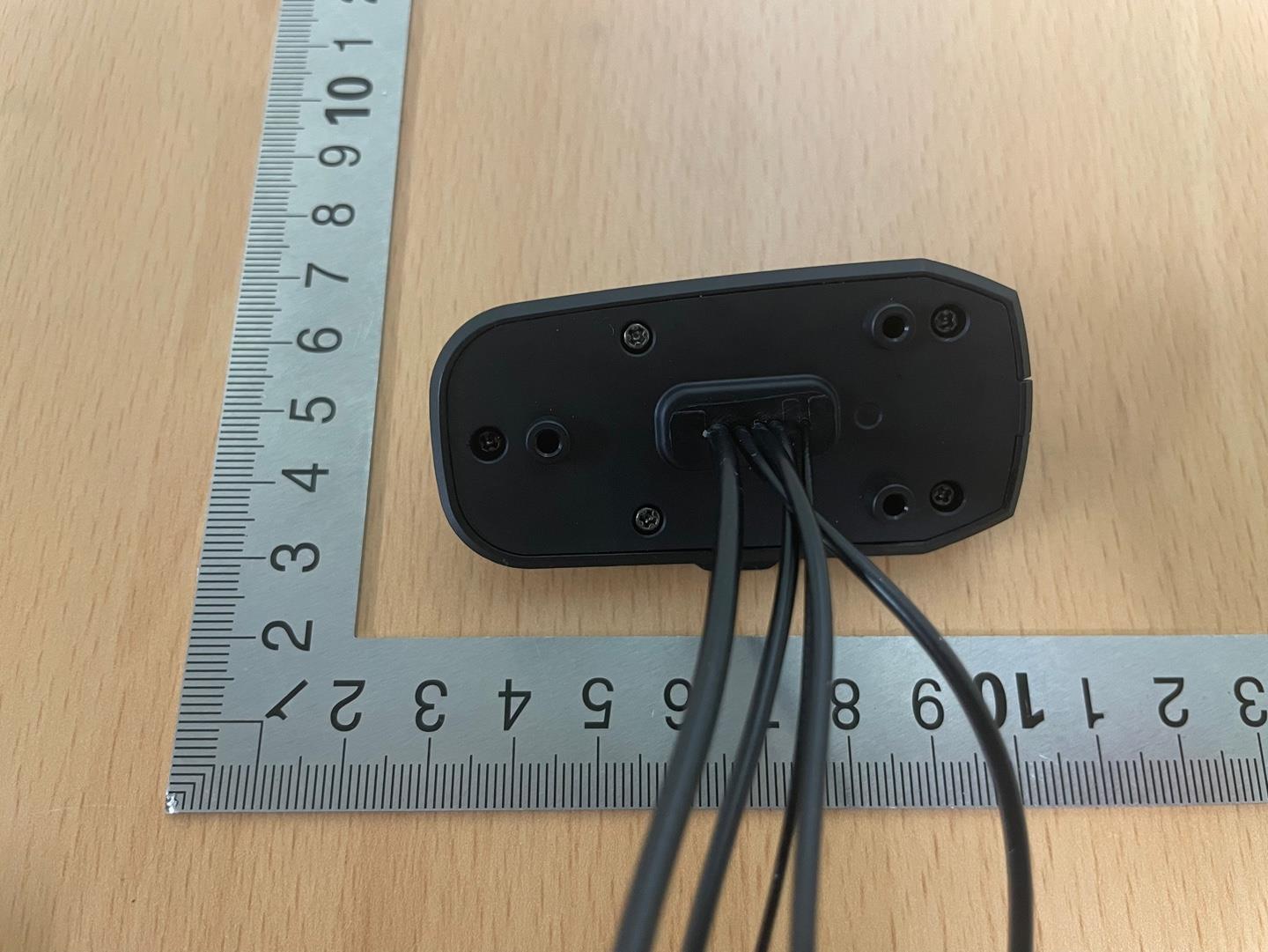

SENA_SP148_Label & Location Label Location (Rear)

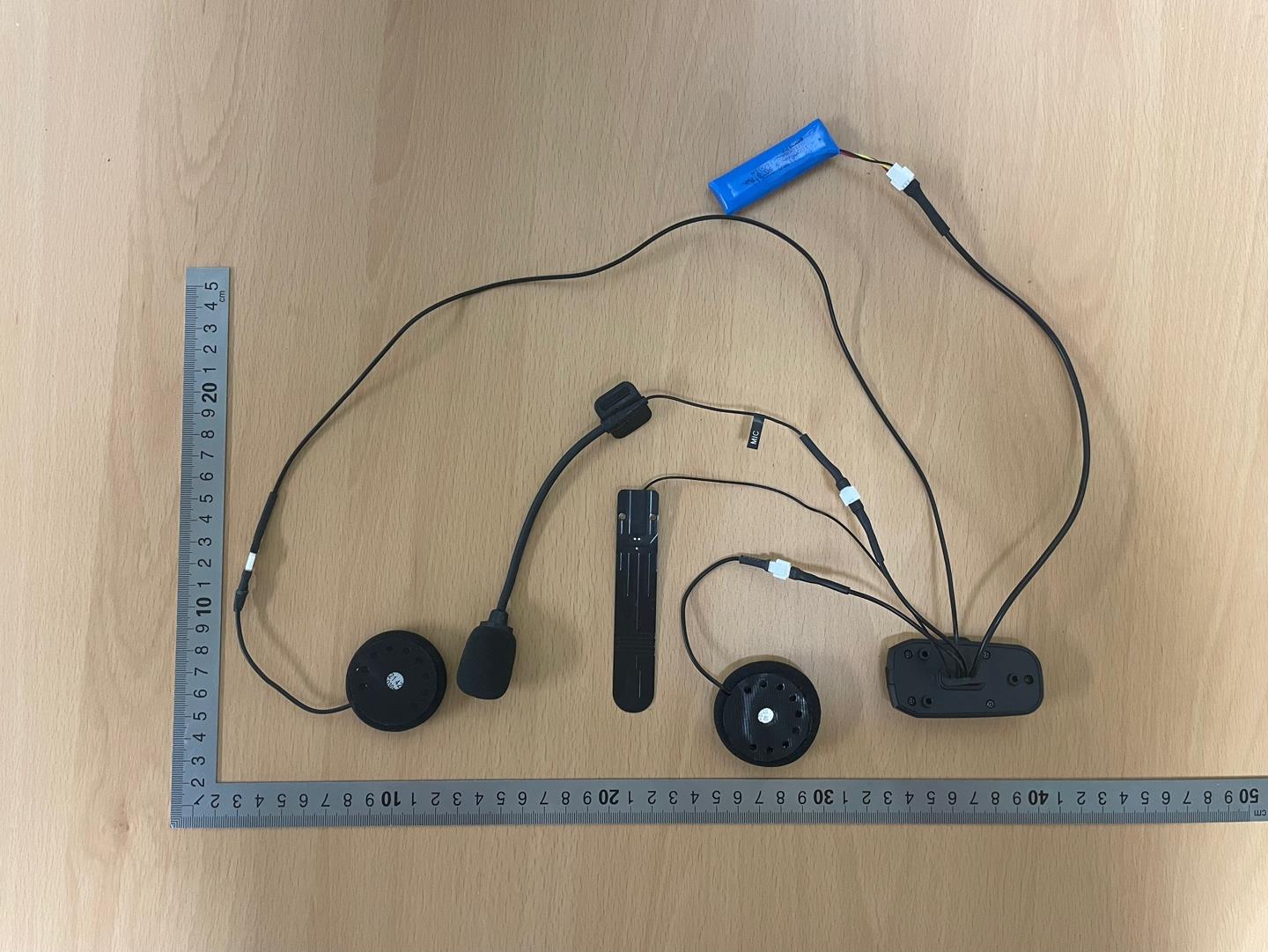

Internal Battery BT Antenna MESH Antenna

Model Name : FCC ID : (mm)(dBm)(dB)(dBm)(mW) 24027.328.326.793.00PASS 24417.328.326.793.00PASS 24806.997.996.303.00PASS 24024.145.143.273.00PASS 24414.455.453.513.00PASS 24804.285.283.373.00PASS 24024.305.303.393.00PASS 24414.595.593.623.00PASS 24804.415.413.483.00PASS 24022.793.792.393.00PASS 24423.074.072.553.00PASS 24802.893.892.453.00PASS 241016.1817.1852.243.00PASS 244516.2117.2152.603.00PASS 247515.0616.0640.363.00PASS 2.3507 2.3841 1.8406 MESH1 34.50± 1.00 BT LE 34.50± 1.00 0.1075 0.1156 0.1118 8DPSK 34.50± 1.00 0.1522 0.1640 0.1586 π/4DQPSK 34.50± 1.00 0.1467 0.1588 0.1540 Standalone SAR Test exclusion thresholds for 100MHz to 6GHz at test separation distance ≤ 50 mm LimitResult GFSK 34.50± 1.00 0.3051 0.3076 0.2873 Modulation Frequency (MHz) Min. Test separation distance Measured Maximum Average power Tune-up tolerance Max. Power with tune-up tolerance S7A-SP148Separation distance : 34.5 mm MPE Calculation KDB 447498 - 4.3.1 a) For 100 MHz to 6 GHz and test separation distances ≤ 50 mm, the 1-g and 10-g SAR test exclusion thresholds are determined by the following: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR, and ≤ 7.5 for 10-g extremity SAR, where - f(GHz) is the RF channel transmit frequency in GHz - Power and distance are rounded to the nearest mW and mm before calculation - The result is rounded to one decimal place for comparison SP148Device Category : Portable device

R Report No.: KR0140-RF2308-001 EMCLabs-QPF-26-25 [Enactment_00 / 2022. 09. 07] Page 1 / 58 This test report shall not be reproduced except in full, Without the written approval. 본 시험성적서는 (주)ABCD의 서면 동의 없이 무단 전제 및 복사를 할 수 없습니다. Test Report 1. Client ᆞName : Sena Technologies Co., Ltd. ᆞAddress : 19, Heolleung-ro 569-gil, Gangnam-gu, Seoul, Korea 2. Use of Report : FCC & IC Approval 3. Sample Description ᆞProduct Name : OUTRUSH M ᆞModel Name : SP148 4. Date of Receipt : 2023-07-13 5. Date of Test : 2023-08-01 ~ 2023-08-08 6. Test Method : FCC Part 15 Subpart C 15.247 RSS-247 Issue 3(2023-08), RSS-GEN Issue 5(2019-03) 7. Test Results : Refer to the test results This test report must not be reproduced or reproduced in any way. The results shown in this test report are the results of testing the samples provided. This test report is prepared according to the requirements of ISO / IEC 17025. Affirmation Tested by Dae-Seong, Choi (signature) Technical Manager Jong-Myoung, Shin (signature) Aug 10, 2023 EMC Labs Co., Ltd. (seal) R Report No.: KR0140-RF2308-001 EMCLabs-QPF-26-25 [Enactment_00 / 2022. 09. 07] Page 2 / 58 This test report shall not be reproduced except in full, Without the written approval. 본 시험성적서는 (주)ABCD의 서면 동의 없이 무단 전제 및 복사를 할 수 없습니다. Contents 1. Applicant & Manufacturer & Test Laboratory Information··································· 4 2. Equipment under Test(EUT) Information······················································· 4 3. Test Summary······················································································· 6 4. Used equipment on test··········································································· 8 5. Antenna Requirement·············································································· 8 6. 20 dB Bandwidth & Occupied Bandwidth (99%)·············································· 10 7. Number of Hopping Frequencies ······························································· 14 8. Time of Occupancy (Dwell Time)································································ 17 9. Carrier Frequencies Separation·································································· 19 10. Peak Output Power ················································································ 23 11. TX Radiated Spurious Emission and Conducted Spurious Emission······················ 30 12. Conducted Emission ·············································································· 52 APPENDIX APPENDIX I TEST SETUP············································································· 55 APPENDIX II UNCERTAINTY·········································································· 57 R Report No.: KR0140-RF2308-001 EMCLabs-QPF-26-25 [Enactment_00 / 2022. 09. 07] Page 3 / 58 This test report shall not be reproduced except in full, Without the written approval. 본 시험성적서는 (주)ABCD의 서면 동의 없이 무단 전제 및 복사를 할 수 없습니다. Version TEST REPORT NO. DATE DESCRIPTION KR0140-RF2308-001 Aug 10, 2023 Initial Issue R Report No.: KR0140-RF2308-001 EMCLabs-QPF-26-25 [Enactment_00 / 2022. 09. 07] Page 4 / 58 This test report shall not be reproduced except in full, Without the written approval. 본 시험성적서는 (주)ABCD의 서면 동의 없이 무단 전제 및 복사를 할 수 없습니다. 1. Applicant & Manufacturer & Test Laboratory Information 1.1 Applicant Information Applicant Sena Technologies Co., Ltd. Applicant Address 19, Heolleung-ro 569-gil, Gangnam-gu, Seoul, Korea Contact Person Seunghyun Kim Telephone No. +82-2-573-7772 Fax No. +82-2-573-7710 E-mail [email protected] 1.2. Manufacturer Information Manufacturer Sena Technologies Co., Ltd. Manufacturer Address 19, Heolleung-ro 569-gil, Gangnam-gu, Seoul, Korea 1.3 Test Laboratory Information Laboratory EMC Labs Co., Ltd. Laboratory Address 100, Jangjateo-ro, Hobeop-myeon, Icheon-si, Gyeonggi-do, Republic of Korea Contact Person Jong-Myoung, Shin Telephone No. +82-31-637-8895 Fax No. +82-505-116-8895 FCC Designation No. KR0140 FCC Registration No. 580000 IC Site Registration No. 28751 R Report No.: KR0140-RF2308-001 EMCLabs-QPF-26-25 [Enactment_00 / 2022. 09. 07] Page 5 / 58 This test report shall not be reproduced except in full, Without the written approval. 본 시험성적서는 (주)ABCD의 서면 동의 없이 무단 전제 및 복사를 할 수 없습니다. 2. Equipment under Test(EUT) Information 2.1 General Information Product Name OUTRUSH M Model Name SP148 FCC ID S7A-SP148 IC 8154A-SP148 Rated Voltage DC 3.7 V 2.2 Additional Information Operating Frequency 2 402 MHz ~ 2 480 MHz Number of channel 79 Modulation Type BDR Mode(GFSK), EDR Mode(Pi/4 DQPSK, 8DPSK) Antenna Type Chip Antenna Antenna Gain 0.3 dBi Firmware Version 1.0 Hardware Version 1.0 Test software Lab Test Tool V2.9.1 2.3 Test Frequency Test mode Test Frequency (MHz) Low Frequency Middle Frequency High Frequency GFSK 2 402 2 441 2 480 Pi/4 DQPSK 2 402 2 441 2 480 8DPSK 2 402 2 441 2 480 2.4 Used Test Software Setting Value Test Mode Setting Item Power GFSK 57 Pi/4 DQPSK 49 8DPSK 49 R Report No.: KR0140-RF2308-001 EMCLabs-QPF-26-25 [Enactment_00 / 2022. 09. 07] Page 6 / 58 This test report shall not be reproduced except in full, Without the written approval. 본 시험성적서는 (주)ABCD의 서면 동의 없이 무단 전제 및 복사를 할 수 없습니다. 2.5 Worst-Case BDR GFSK (DH5) EDR 8DPSK (3-DH5) Note: The power measurement has been conducted to determine the worst-case mode from all possible Combinations between available modulations, data rates. 2.6 Mode of operation during the test - The EUT continuous transmission mode during the test with set at Low Channel, Middle Channel, and High Channel. To get a maximum radiated emission levels from the EUT, the EUT was moved throughout the XY, YZ, XZ planes. 2.7 Modifications of EUT - None R Report No.: KR0140-RF2308-001 EMCLabs-QPF-26-25 [Enactment_00 / 2022. 09. 07] Page 7 / 58 This test report shall not be reproduced except in full, Without the written approval. 본 시험성적서는 (주)ABCD의 서면 동의 없이 무단 전제 및 복사를 할 수 없습니다. 3. Test Summary Applied FCC Rule IC Rule Test Items Test Condition Result 15.203 - Antenna Requirement Conducted…

Text truncated - open the document above for the full version.

SPECIFICATION Chip Antenna Model No. : SENA_003 WRITTEN CHECKED APPROVED Seunghyun Kim Seunghyun Kim July 22, 2009 Notes The contents of this data sheet are subject to change without notice. Please confirm the specifications and delivery conditions when placing your order. - 2 - CHIP ANTENNA 1. SPECIFICATIONS 1.1. Electrical Specifications ITEMSPEC.Unit Frequency2400-2485MHz Bandwidth @ VSWR 2.5:1 100 MHz Gain Max. 0.3dBi PolarizationLinear Azimuth Beam Pattern Omni-directional Impedance50Ω ※ These values are measured on the matched reference test board. 1.2. Mechanical Specifications ElectrodeSilver Dimensions (L x W x H) 9.0 x 3.0 x 1.2 mm Operating Temperature -35 ~ +85 °C 1.3. Appearance and Dimensions L9.0 W3.0 H1.2 - 3 - CHIP ANTENNA 2. MEASUREMENT 2.1. Electrical Characteristic A. S 11 (Return Loss) B. S 11 (Smith chart) - 4 - CHIP ANTENNA 3. Radiation Data Average Gain Max Gain Frequency Efficiency Ver Hor Total Ver Hor Total Max PositionDirectivity 2400 MHz 41.8 % -7.0 dBi -6.6 dBi-3.8 dBi0.3 dBi-0.8 dBi0.1 dBi Theta165/Pie304.32 dB 2442 MHz 39.7 % -6.9 dBi -7.2 dBi-4.0 dBi-0.2 dBi-1.6 dBi0.3 dBi Theta120/Pie454.53 dB 2485 MHz 36.3 % -7.1 dBi -7.7 dBi-4.4 dBi-2.2 dBi-1.6 dBi0.2 dBi Theta120/Pie305.05 dB - 5 - CHIP ANTENNA 4. RELIABILITY TEST No Item Test condition Test Requirements 1 Adhesion strength . Applied force on SMD chip till detached point from PCB 1. No mechanical damage by forces applied on the right 2. Strength (F) > 5 kgf 2 Thermal Shock (Temperature Cycle) 1. 1 cycle / step 1 : -40 ± 3°C, 30 min step 2 : +85 ± 3°C, 30 min 2. Number of cycle : 10 3. Measure after left for 48 hrs min. at room temperature 1. No visual damage 2. VSWR satisfy 3 High Temperature Resistance 1. Temperature: +85 ± 5°C 2. Time : 96 hrs 3. Measure VSWR C after left for 24 hrs min. at room temperature 1. No visual damage 2. VSWR satisfy 4 Low Temperature Resistance 1. Temperature: -40 ± 5°C 2. Time : 96 hrs 3. Measure VSWR C after left for 48 hrs min. at room temperature 1. No visual damage 2. VSWR satisfy 5 Humidity (Steady Condition) 1. Humidity : 85 % RH 1. Temperature: +85 ± 3°C 2. Time : 96 hrs 3. Measure VSWR C after left for 48 hrs min. at room temperature 1. No visual damage 2. VSWR satisfy 6 ESD 1. ESD Level : 8KV 2. Mode : Contact discharge 3. Number of cycle : 100 ※Used Ref test PCB. 1. No visual damage 2. VSWR satisfy F PCB - 6 - CHIP ANTENNA 5. SOLDERING RECOMMENDATIOS 5.1. Reflow Soldering Profile A. Non Pb free 25 150 230 200 60 sec 20 ~ 40 sec Temperate (°C) Time (sec) Cooling zone (slowly) 100 100 ~ 120sec B. Pb free 240°C±5°C(Peak temp.) 230°C

SPECIFICATION External Antenna Model No. : SENA-DP01-19.7 WRITTEN CHECKED APPROVED April. 20, 2015 Notes The contents of this data sheet are subject to change without notice. Please confirm the specifications and delivery conditions when placing your order. - 2 - External ANTENNA 1. SPECIFICATIONS 1.1. Electrical Specifications ITEM SPEC. Unit Frequency 2400-2485 MHz Bandwidth @ VSWR 2.5:1 100 MHz Gain @ 2442MHz 1.0 dBi Polarization Linear Azimuth Beam Pattern Omni-directional Impedance 50 Ω ※ These values are measured on the matched reference test board. 1.2. Mechanical Specifications Electrode Copper Dimensions (W x L x H) 19.7x105x0.4 mm Operating Temperature -35 ~ +85 °C 1.3. Appearance and Dimensions W(가로) 19.7 L(세로) 105 H(높이) 0.4 L W - 3 - External ANTENNA 2. MEASUREMENT 2.1. Electrical Characteristic A. S 11 (Return Loss) B. (Smith Chart) - 4 - External ANTENNA - 5 - External ANTENNA 3. Radiation Data Frequency Efficiency Average Gain Max Gain Max Position Directivity Ver Hor Total Ver Hor Total 2400.000000 MHz 32.5 % -6.2 dBi -5.8 dBi -4.9 dBi -1.0 dBi 0.5 dBi 0.5 dBi Theta90/Pie240 4.42 dB 2442.000000 MHz 35.4 % -6.3 dBi -5.3 dBi -4.5 dBi -1.6 dBi 0.6 dBi 0.6 dBi Theta75/Pie255 4.11 dB 2485.000000 MHz 42.8 % -6.8 dBi -4.4 dBi -3.7 dBi -1.6 dBi 1.2 dBi 1.3 dBi Theta75/Pie270 3.97 dB - 6 - External ANTENNA 4. RELIABILITY TEST No Item Test condition Test Requirements 1 Thermal Shock (Temperature Cycle) 1. 1 cycle / step 1 : -40 ± 3°C, 30 min step 2 : +85 ± 3°C, 30 min 2. Number of cycle : 10 3. Measure after left for 48 hrs min. at room temperature 1. No visual damage 2. VSWR satisfy 2 High Temperature Resistance 1. Temperature : +85 ± 5°C 2. Time : 96 hrs 3. Measure VSWR C after left for 24 hrs min. at room temperature 1. No visual damage 2. VSWR satisfy 3 Low Temperature Resistance 1. Temperature : -40 ± 5°C 2. Time : 96 hrs 3. Measure VSWR C after left for 48 hrs min. at room temperature 1. No visual damage 2. VSWR satisfy 4 Humidity (Steady Condition) 1. Humidity : 85 % RH 1. Temperature : +85 ± 3°C 2. Time : 96 hrs 3. Measure VSWR C after left for 48 hrs min. at room temperature 1. No visual damage 2. VSWR satisfy 5 ESD 1. ESD Level : 8KV 2. Mode : Contact discharge 3. Number of cycle : 100 ※ Used Ref test PCB. 1. No visual damage 2. VSWR satisfy

Below 30 MHz Below 1 GHz Above 1 GHz Conducted Emission
