PHANTOM Manual Power Power On : Press and hold the (+) Button and Multi-function Button for 1 second Power Off : Tap the (+) Button and Multi-function Button. Volume Adjustment Increase/decrease the volume : Tap the (+) Button or (-) Button. Phone Pairing 1. Initially Pairing the Bluetooth system The bluetooth system will automatically enter the phone pairing mode when you initially turn on the Bluetooth system or reboot after executing Factory Reset 1) Press and hold the (+) Button and Multi-function Button for 1 second to turn on the Phantom. 2) Search for Bluetooth devices on your mobile phone. Select the Phantom in the list of the devices detected on the mobile phone. 2. Starting with your Bluetooth system powered on 1. Press and hold the Multi-function Button for 5 seconds. 2. Search for Bluetooth devices on your mobile phone. Select the Phantom in the list of the devices detected on the mobile phone. Music Operation Play or pause music: Press and hold the Multi-function Button for 1 second. Track back: Press and hold the (-) Button for 1 second. Track forward: Press and hold the (+) Button for 1 second. Mobile Phone Call Making and Answering Answering a call: Tap the Multi-function Button Ending a call: Press and hold the Multi-function Button for 2 seconds. Rejecting a call: Press and hold the Multi-function Button for 2 seconds. Call a voice assistant: Press and hold the Multi-function Button for 2 seconds. Mesh Intercom Mesh Intercom On/Off : Tap the Mesh Intercom Button ANC Mode ANC Mode On/Off : Tap the ANC Button. LED LIGHT Flashlight On/Off : Tap the Flashlight Button. Taillight On/Off : Tap the Tallight Button. Setting Enter the Configuration Menu: Press and hold the Multi-function Button for 10 seconds. Troubleshooting Factory Reset If you want to restore the bluetooth system to factory default settings, use the Factory Reset in the configuration menu. 1) Press the hold the Multi-function Button for 10 seconds. 2) Double tap the (-) Button. 3) Tap the Multi-function Button. The bluetooth system automatically restores the default settings and turns off. Fault Reset When the bluetooth system is not working properly, you can easily reset the unit: 1. Locate the pinhole reset button next to the Power Charging & Firmware Upgrade Port. 2. Gently insert a paperclip into the hole and tap the Pin-hole Fault Reset Button with light pressure. 3. The bluetooth system will shut down. Certification and Safety Approvals FCC Compliance Statement This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment on and off, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antennae -Increase the separation between the equipment and the receiver -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC RF Exposure Statement This equipment complies with FCC/IC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance. When equipped, the distance between antenna and one’s head surface is 35.8mm. FCC Caution Any changes or modifications to the equipment not expressly approved by the party responsible for compliance could void user’s authority to operate the equipment. Industry Canada(IC) Statement This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1)this device may not cause interference, and (2)this device must accept any interference, including interference that may cause undesired operation of the device. Le present appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisee aux deux conditions suivantes : (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioelectrique subi, meme si le brouillage est susceptible d’en compromettre le fonctionnement. IC RF Exposure Statement Cet équipement est conforme aux limites d'exposition aux radiations de la FCC/IC définies pour un environnement non contrôlé. Les utilisateurs finaux doivent suivre les instructions d'utilisation spécifiques pour satisfaire à la conformité d'exposition RF. Lorsque équipé, la distance entre l’antenne et la surface de la tête est de 35.8mm.

Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2024-02-08 Ref: Attestation Statements Part 2.911(d)(7) Filing FCC ID: S7A-SP149 Applicant FRN: 0013268917 [Sena Technologies Co., Ltd.] (“the applicant”) certifies that, as of the date of the filing of the application, [Sena Technologies, Inc.] is our designated U.S. agent for service of process for the above referenced FCC ID. [Sena Technologies Co., Ltd.] accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission- related proceeding involving the equipment. [Sena Technologies, Inc.] accepts, as of the date of the filing of the application, the obligation of the designated U.S. agent for service of process for the above referenced FCC ID. Designated U.S. Agent Information: Name: Sena Technologies, Inc. U.S. Agent FRN: 0033442666 Address: 152 Technology Dr.irvine, CA 92618 USA Contact Person : Frank Cha Tell : +1 (888) 333-7362 Email: [email protected] Sincerely, Sena Technologies Co., Ltd. Sena Technologies, Inc. Seunghyun Kim Frank Cha

Rev 1/26/2023 Sena Technologies Co., Ltd. 19, Heolleung-ro 569-gil, Gangnam-gu, Seoul, South Korea Sena Technologies Co., Ltd. Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2024-02-08 Ref: Attestation Statements Part 2.911(d)(5)(i) Filing FCC ID: S7A-SP149 [Sena Technologies Co., Ltd.] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, Seunghyun Kim, Research Engineer Rev 1/26/2023 Sena Technologies Co., Ltd. 19, Heolleung-ro 569-gil, Gangnam-gu, Seoul, South Korea Sena Technologies Co., Ltd. Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2024-02-08 Ref: Attestation Statements Part 2.911(d)(5)(ii) Filing FCC ID: S7A-SP149 [Sena Technologies Co., Ltd.] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. And, applicant is not a named entity or any of its subsidiaries or affiliates. Sincerely, Seunghyun Kim, Research Engineer

Sena Technologies Co., Ltd. Feb 08, 2024 Applicant: Sena Technologies Co., Ltd. FCC ID: S7A-SP149 / IC: 8154A-SP149 To. Whom it may concern: We, Sena Technologies,Inc. declare that when equipped, the distance between antenna and one’s head surface is 35.8mm. Seunghyun Kim, Research Engineer

Sena Technologies Co., Ltd. 19, Heolleung-ro 569-gil, Gangnam-gu, Seoul, South Korea Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: S7A-SP149 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Block Diagram Schematics Operational Description Part List [SP149] BLK [SP149] SCH [SP149] OpDes [SP149] Part List The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); Exhibit Type File Name External Photos Internal Photos Test Setup Photos Manual [SP149] EXT Photo [SP149] INT Photo [SP149] Test Setup Photo [SP149] Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. Sincerely, Seunghyun KIM / Research Engineer

Sena Technologies Co., Ltd. 19, Heolleung-ro 569-gil, Gangnam-gu, Seoul, South Korea Feb 08, 2024 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Letter of Authorization We, the undersigned, hereby authorize Jong-Myoung, Shin of EMC Labs Co., Ltd. to act on our behalf in all manners relating to application for equipment authorization for FCC ID: S7A-SP149 / IC: 8154A-SP149 including signing of all documents relating to these matters. Any and all acts carried out by Jong-Myoung, Shin of EMC Labs Co., Ltd. on our behalf shall have the same affect as acts of our own. This authorization is valid until further written notice from Sena Technologies Co., Ltd. “I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a).” Sincerely, Seunghyun KIM / Research Engineer

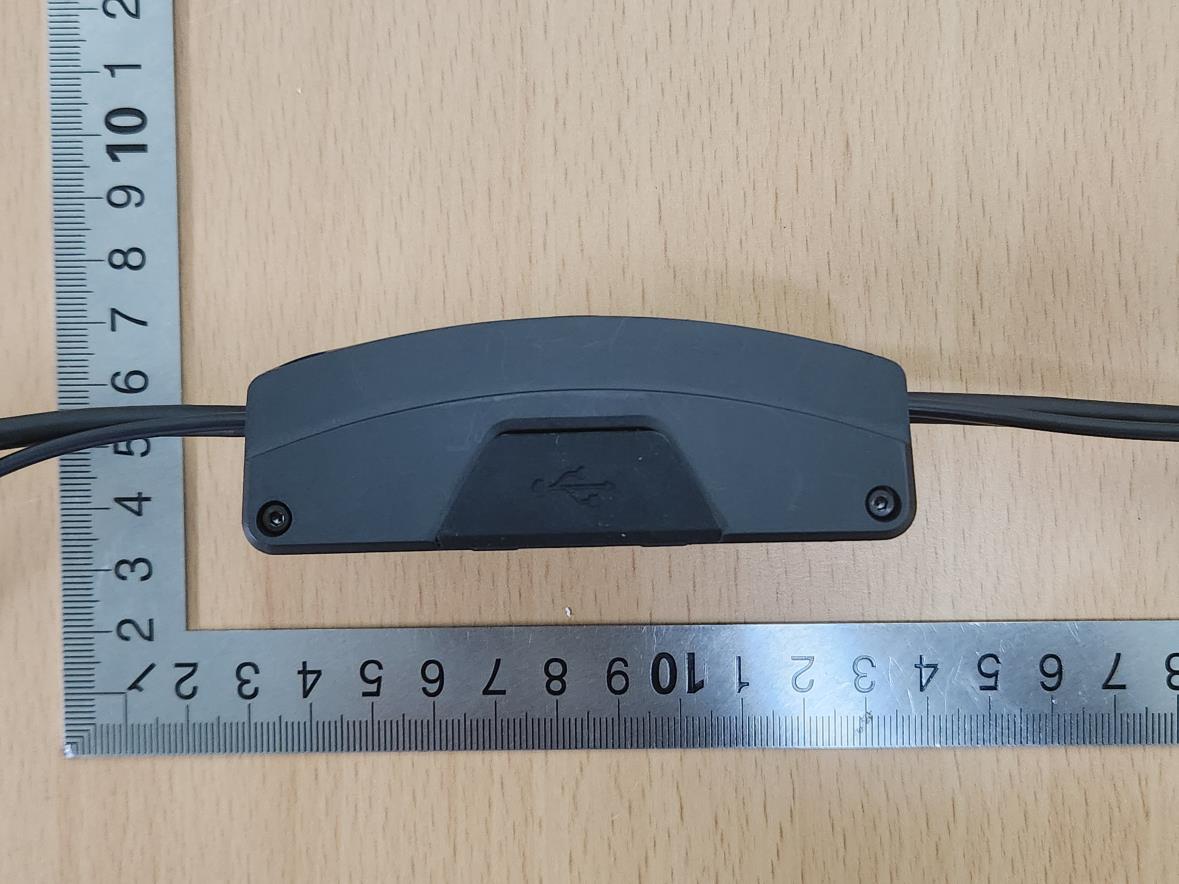

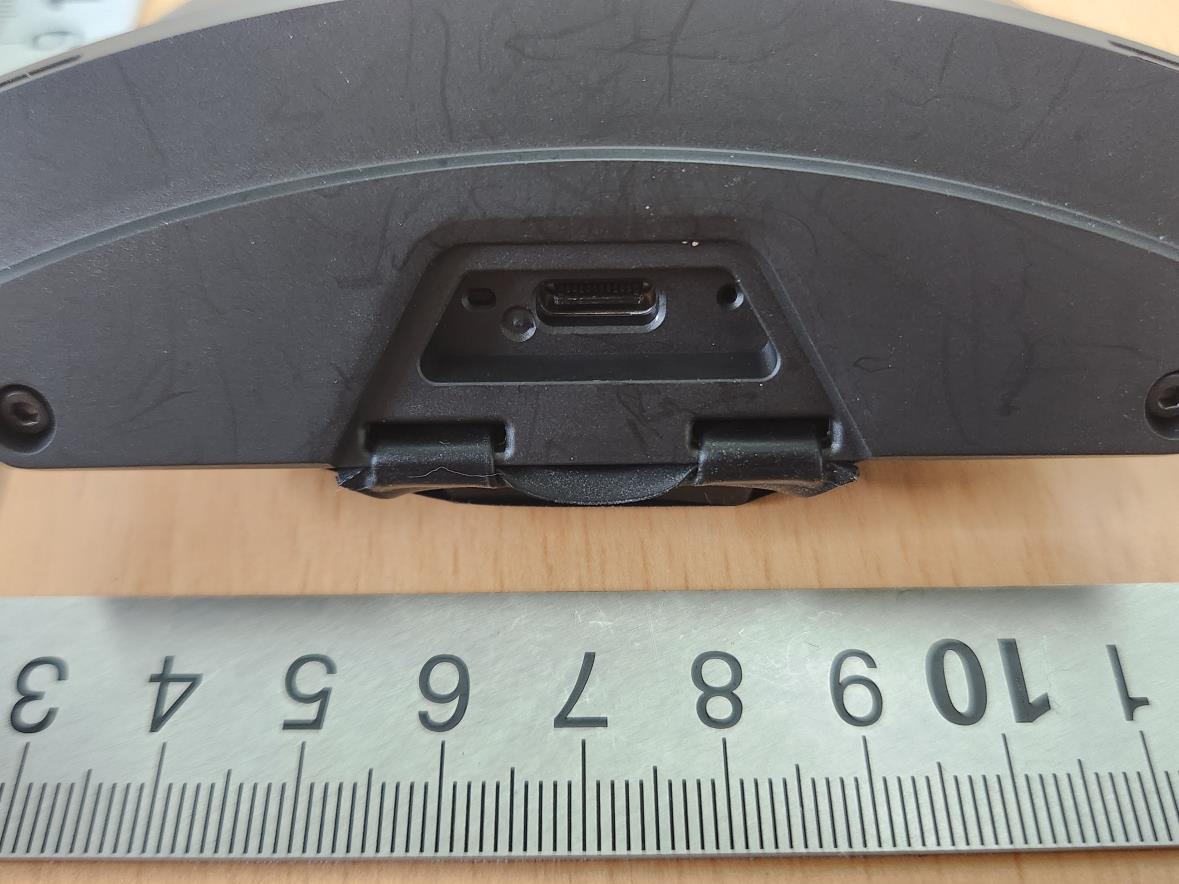

USB Charging Port

SENA_SP149_Label & Location Label Location

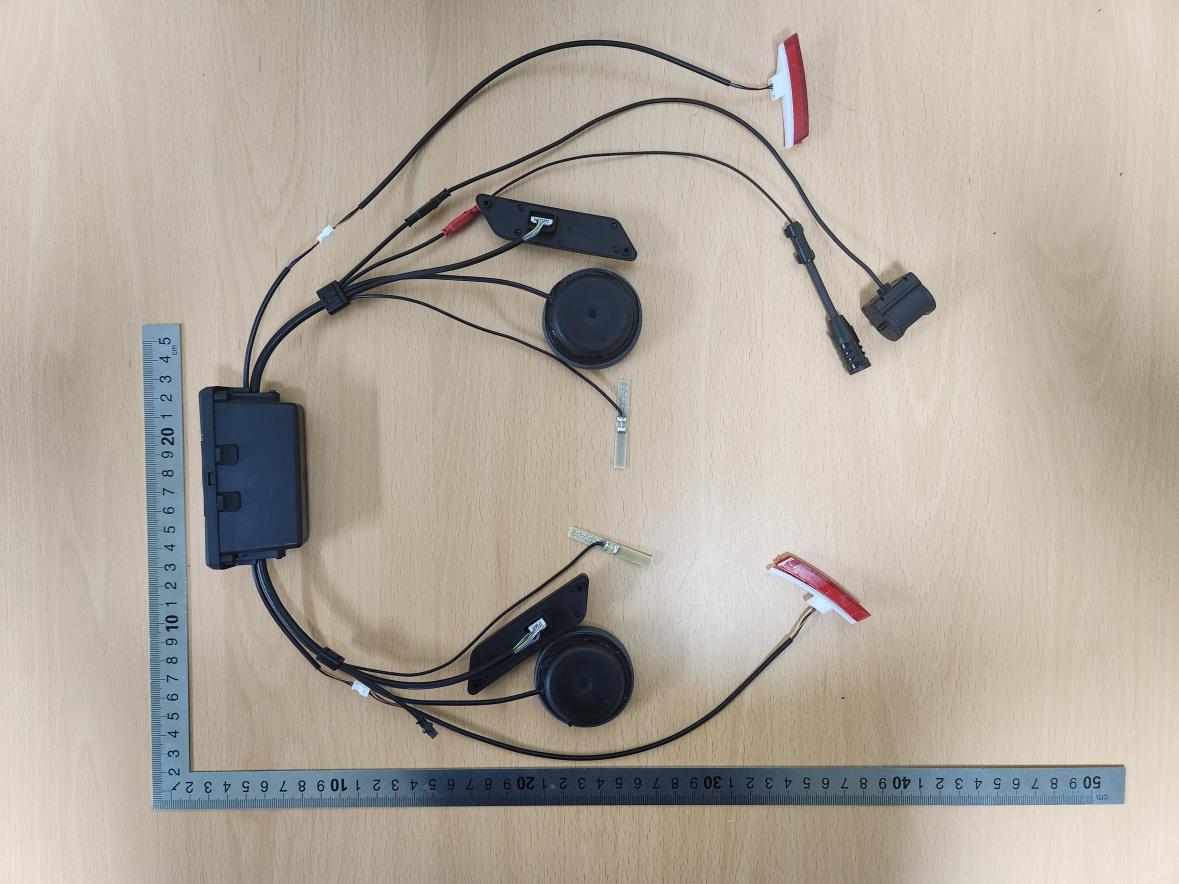

Internal Battery BT Antenna MESH Antenna 1 (RIGHT) MESH Antenna 2 (LEFT) WLAN Antenna

Model Name : FCC ID : (mm)(dBm)(dB)(dBm)(mW) 240211.0412.0416.003.00PASS 244111.2912.2916.943.00PASS 248010.6111.6114.493.00PASS 24026.267.265.323.00PASS 24417.098.096.443.00PASS 24805.876.874.863.00PASS 24026.347.345.423.00PASS 24417.168.166.553.00PASS 24805.906.904.903.00PASS 24022.023.022.003.00PASS 24423.084.082.563.00PASS 24802.013.012.003.00PASS 24022.253.252.113.00PASS 24422.413.412.193.00PASS 24802.423.422.203.00PASS 241014.2415.2433.423.00PASS 244514.0015.0031.623.00PASS 247513.3014.3026.923.00PASS 24127.358.356.843.00PASS 24427.448.446.983.00PASS 24627.188.186.583.00PASS 24125.656.654.623.00PASS 24425.696.694.673.00PASS 24625.466.464.433.00PASS 24123.314.312.703.00PASS 24423.384.382.743.00PASS 24623.184.182.623.00PASS 24124.035.033.183.00PASS 24423.744.742.983.00PASS 24523.934.933.113.00PASS 35.80± 1.00 0.2967 0.3048 0.2882 0.0915 0.0957 0.0967 BT LE 2M 35.80± 1.00 MESH 35.80± 1.00 1.4492 1.3812 1.1828 802.11b BT LE 1M 35.80± 1.00 0.0868 0.1117 0.0880 8DPSK 35.80± 1.00 0.2346 0.2857 0.2154 π/4DQPSK 35.80± 1.00 0.2304 0.2811 0.2140 Standalone SAR Test exclusion thresholds for 100MHz to 6GHz at test separation distance ≤ 50 mm LimitResult GFSK 35.80± 1.00 0.6925 0.7394 0.6373 Modulation Frequency (MHz) Min. Test separation distance Measured Maximum Average power Tune-up tolerance Max. Power with tune-up tolerance S7A-SP149 Separation distance : 35.8 mm MPE Calculation KDB 447498 - 4.3.1 a) For 100 MHz to 6 GHz and test separation distances ≤ 50 mm, the 1-g and 10-g SAR test exclusion thresholds are determined by the following: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR, and ≤ 7.5 for 10-g extremity SAR, where - f(GHz) is the RF channel transmit frequency in GHz - Power and distance are rounded to the nearest mW and mm before calculation - The result is rounded to one decimal place for comparison SP149 Device Category : Portable device 802.11g 35.80± 1.00 0.2006 0.2037 0.1940 802.11n(HT20)35.80± 1.00 0.1170 0.1197 0.1148 802.11n(HT40)35.80± 1.00 0.1381 0.1300 0.1361 (mm)(dBm)(mW) Bluetooth2480 35.8012.2916.94 MESH2475 35.8015.2433.42 WLAN2462 35.808.446.98 0.40 PASS 0.3360 Min. Test separation distance Modulation Max. Power with tune-up tolerance Frequency (MHz) Simultaneous transmission SAR Test exclusion thresholds for 100MHz to 6GHz at test separation distance ≤ 50 mm (x=7.5) KDB 447498 - 4.3.2 b) When an antenna qualifies for the standalone SAR test exclusion of 4.3.1 and also transmits simultaneously with other antennas, the standalone SAR value must be estimated according to the following to determine the simultaneous transmission SAR test exclusion criteria: 1) [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)]·[√f(GHz)/x] W/kg, for test separation distances ≤ 50 mm; where x = 7.5 for 1-g SAR and x = 18.75 for 10-g SAR. LimitResult
