S7A-SP16Motorcycle Bluetooth Communication System

User's Guide www.sena.com Motorcycle Bluetooth ® Communication System 20S 20S © 1998-2014 Sena Technologies, Inc. All rights reserved. Sena Technologies, Inc reserves the right to make any changes and improvements to its product without providing prior notice. Sena ™ is a trademark of Sena Technologies, Inc. or its subsidiaries in the USA and other countries. 20S ™ , SMH10 ™ , SMH5 ™ , SMH5-FM ™ , SPH10 ™ , SPH10H ™ , SPH10H-FM ™ , SMH10R ™ , SPH10S ™ , SPH10H ™ , SR10 ™ , SM10 ™ , EXPAND ™ , Bluetooth Pack for GoPro ® , and PRISM ™ are trademarks of Sena Technologies, Inc. or its subsidiaries. These trademarks may not be used without the express permission of Sena. GoPro ® is a registered trademark of Woodman Labs of San Mateo, California. Sena Technologies, Inc. (“Sena”) is not affiliated with Woodman Labs. The Sena Bluetooth Pack for GoPro ® is an after-market accessory specially designed and manufactured by Sena Technologies, Inc. for the GoPro ® Hero3 allowing for Bluetooth capabilities. The Bluetooth ® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Sena is under license. iPhone, iPod touch are registered trademarks of Apple Inc. Zumo ™ is a trademark of Garmin Ltd. or its subsidiaries. TomTom ™ is the trademark or registered trademark owned by TomTom International B.V. Other trademarks and tradenames are those of their respective owners. 20S English CONTENTS 1 INTRODUCTION ...................................................................................................5 2 PACKAGE CONTENTS ........................................................................................6 3 INSTALLING THE 20S ON YOUR HELMET ........................................................8 3.1 Helmet Installation ..............................................................................................................8 3.2 Glued Surface Mounting Adapter ....................................................................................10 3.3 Switching the Microphone ................................................................................................11 3.4 Earbuds ............................................................................................................................12 3.5 External Antenna ..............................................................................................................12 4 GETTING STARTED ...........................................................................................12 4.1 Charging .........................................................................................................................12 4.2 Low Battery Warning ........................................................................................................12 4.3 Checking the Battery Level .............................................................................................12 4.4 Powering On and Off ........................................................................................................13 4.5 Volume Adjustment ..........................................................................................................13 4.6 Software ...........................................................................................................................13 5 PAIRING THE 20S WITH BLUETOOTH DEVICES ............................................14 5.1 Mobile Phone Pairing .......................................................................................................14 5.2 Second Mobile phone Pairing ..........................................................................................15 5.3 Bluetooth Stereo Device Pairing ......................................................................................15 5.4 Bluetooth GPS Navigation Pairing ....................................................................................16 5.5 Pairing with the Sena SR10, Bluetooth Two-way Radio Adapter......................................17 6 PAIRING WITH SELECTIVE PROFILE: A2DP STEREO OR HANDSFREE .....19 6.1 A2DP Stereo Music Only ..................................................................................................19 6.2 HFP for Phone Call Only ...................................................................................................19 7 MOBILE PHONE CALL MAKING AND ANSWERING ........................................20 7.1 Mobile Phone Call Making and Answering ......................................................................20 7.2 Speed Dialing ...................................................................................................................20 7.3 Intercom and Mobile Phone Call ......................................................................................21 8 STEREO MUSIC .................................................................................................22 8.1 By Stereo Audio Cable .....................................................................................................22 8.2 By Bluetooth Wireless Stereo ...........................................................................................22 8.3 Music Sharing ..................................................................................................................23 9 GPS NAVIGATION ..............................................................................................24 10 SENA SR10, TWO-WAY RADIO ADAPTER ......................................................25 11 FM RADIO ...........................................................................................................26 11.1 FM Radio On / Off ............................................................................................................26 11.2 Preset Stations .................................................................................................................26 11.3 Seek and Save ................................................................................…

Text truncated - open the document above for the full version.

Sena Technologies,Inc. 210 Yangjae-dong Seocho-gu Seoul 137-130 Korea June 13, 2014 Applicant: Sena Technologies,Inc. FCC ID: S7A-SP16 The thickness of plastic of helmet is at least 7.5mm The thickness of guard in helmet is at least 25 mm So, We, Sena Technologies,Inc. confirm that when equipped, the helmet needs to be at least30mm apart from one's head Sincerely, Seunghyun Kim Reasearch Engineer

Sena Technologies,Inc. 210 Yangjae-dong Seocho-gu Seoul, 137-130, Korea Date: June 13, 2014 Timco Engineering, Inc. 849 N.W. State Road 45 P.O. Box 370 Newberry, Florida 32669 USA Letter of Authorization We, the undersigned, hereby authorize Harvey Sung of Digital EMC Co., Ltd. to act on our behalf in all manners relating to application for equipment authorization for FCCID: S7A-SP16 including signing of all documents relating to these matters. Any and all acts carried out by Harvey Sung of Digital EMC Co., Ltd. on our behalf shall have the same affect as acts of our own. This authorization is valid until further written notice from Sena Technologies,Inc. “I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a).” Sincerely, Seunghyun Kim Reasearch Engineer

Sena Technologies,Inc. 210 Yangjae-dong Seocho-gu Seoul, 137-130, Korea Date: June 13, 2014 Timco Engineering, Inc. 849 N.W. State Road 45 P.O. Box 370 Newberry, Florida 32669 USA RE: Request of Confidentiality for FCCID: S7A-SP16 To Whom It may Concern: Pursuant to Sections 0.457 and 0.459 of the Commission`s Rules(CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, Sena Technologies,Inc. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give Sena Technologies,Inc. temporary confidentiality of commercially sensitive information prior to product release. The requested permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT & SHORT-TERM CONFIDENTIAL LIST Exhibit Description PERMANENT 1 Block Diagram 2 Schematics 3 Part Lists 4 Operation Description SHORT-TERM 5 Internal Photos 6 External Photos 7 Test-Setup Photos 8 User Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be public before the date of the Grant for this application. Sincerely, Seunghyun Kim Reasearch Engineer

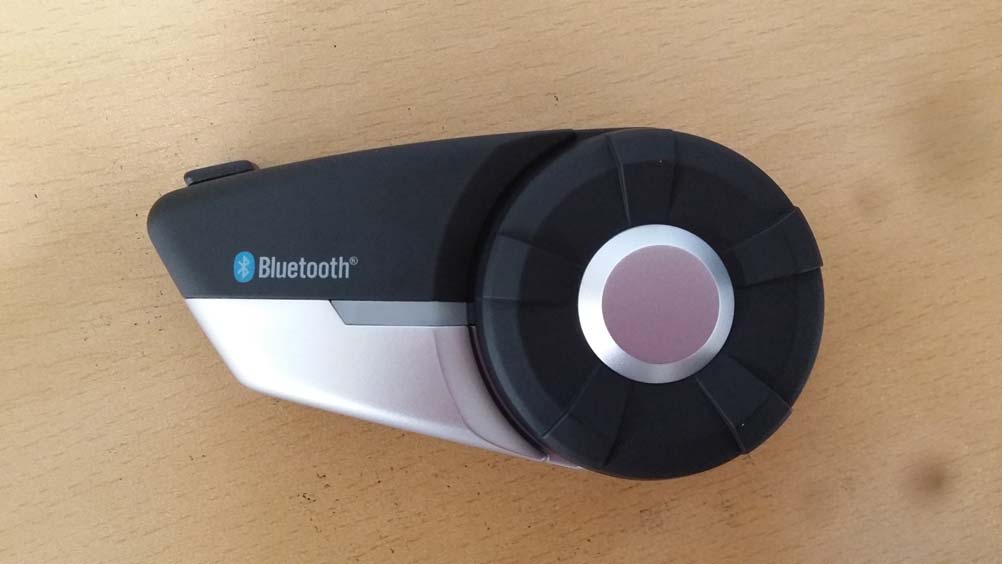

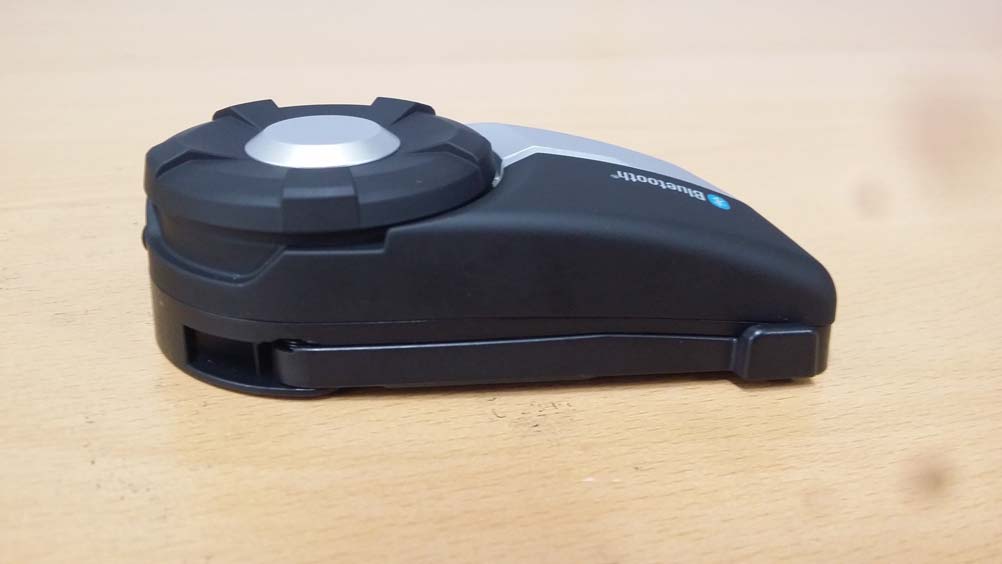

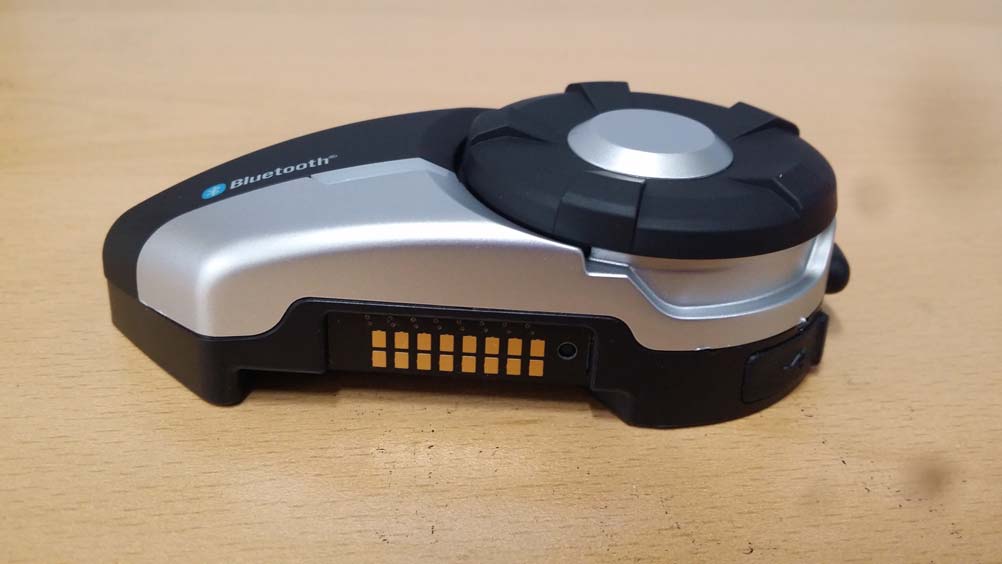

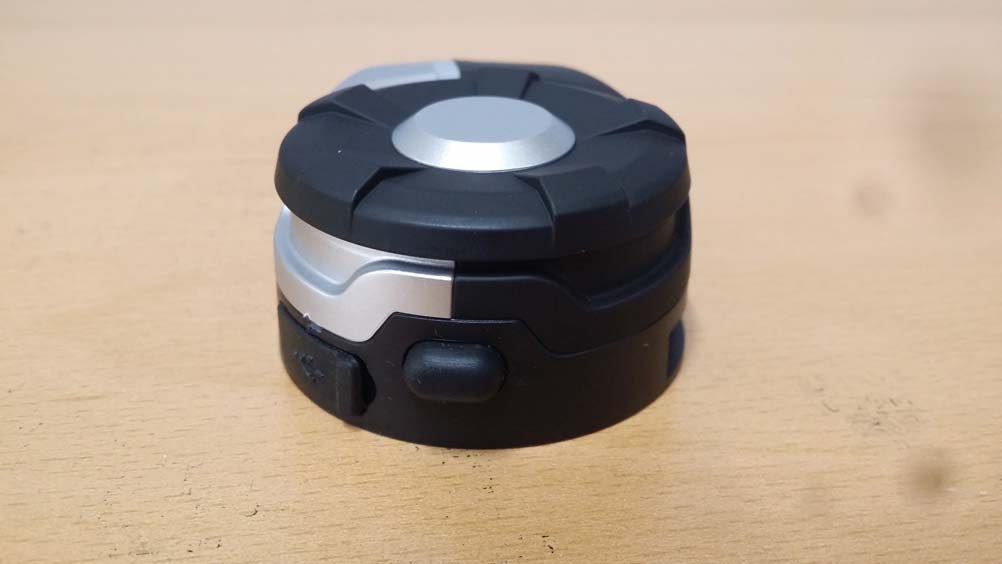

FCCID: S7A-SP16 Copyright Ⓒ 2014, Digital EMC Co., Ltd. View 1 FCCID: S7A-SP16 Copyright Ⓒ 2014, Digital EMC Co., Ltd. View 2 FCCID: S7A-SP16 Copyright Ⓒ 2014, Digital EMC Co., Ltd. View 3

FCC ID: S7A-SP16 Copyright Ⓒ 2014, Digital EMC Co., Ltd. FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase - The FCC label shown is representative of the label that will appear on the radio when in production. Other information may also be included on this label. - The device is so small that it is not practicable to place the statement specified under 15.19 statement request, the information required by this paragraph shall be placed in a prominent location in the user's manual. Rear side of EUT

FCCID: S7A-SP16 Copyright Ⓒ 2014, Digital EMC Co., Ltd. Page1 / 4 View 1 FCCID: S7A-SP16 Copyright Ⓒ 2014, Digital EMC Co., Ltd. Page2 / 4 View 2 FCCID: S7A-SP16 Copyright Ⓒ 2014, Digital EMC Co., Ltd. Page3 / 4 View 3 FCCID: S7A-SP16 Copyright Ⓒ 2014, Digital EMC Co., Ltd. Page4 / 4 View 4 Antenna

Preliminary SPECIFICATION Chip Antenna Model No. : SENA_F0165 WRITTEN CHECKED APPROVED Feb. 06, 2012 Notes The contents of this data sheet are subject to change without notice. Please confirm the specifications and delivery conditions when placing your order. - 2 - CHIP ANTENNA 1. SPECIFICATIONS 1.1. Electrical Specifications ITEM SPEC. Unit Frequency 2400-2485 MHz Bandwidth @ VSWR 2.5:1 100 MHz Peak Gain 1 dBi Polarization Linear Azimuth Beam Pattern Omni-directional Impedance 50 Ω  These values are measured on the matched reference test board. 1.2. Mechanical Specifications Electrode Silver Dimensions (L x W x H) 11 x 3 x 1 mm Operating Temperature -45 ~ +85 °C 1.3. Dimension and PCB pattern [Recommended PCB pattern] Direction Dimension Unit L 11 mm W 3 mm H 1 mm - 3 - CHIP ANTENNA 2. MEASUREMENT 2.1. Electrical Characteristic A. S 11 (Return Loss) B. (Smith Chart) - 4 - CHIP ANTENNA 3. Radiation Data Frequency Efficiency Average Gain Max Gain Max Position Directivity Ver Hor Total Ver Hor Total 2400.000000 MHz 36.1 % -6.5 dBi -8.6 dBi-4.4 dBi-1.0 dBi-0.3 dBi0.0 dBi Theta150/Pie2554.45 dB 2442.000000 MHz 34.9 % -6.7 dBi -8.7 dBi-4.6 dBi-1.7 dBi-0.4 dBi-0.1 dBi Theta150/Pie2554.48 dB 2485.000000 MHz 33.9 % -7.0 dBi -8.6 dBi-4.7 dBi-1.8 dBi-0.8 dBi0.2 dBi Theta15/Pie2404.88 dB - 5 - CHIP ANTENNA 4. RELIABILITY TEST No Item Test condition Test Requirements 1 Thermal Shock (Temperature Cycle) 1. 1 cycle / step 1: -40 ± 3°C, 30 min step 2: +85 ± 3°C, 30 min 2. Number of cycle: 10 3. Measure after left for 48 hrs min. at room temperature 1. No visual damage 2. VSWR satisfy 2 High Temperature Resistance 1. Temperature: +85 ± 5°C 2. Time: 96 hours 3. Measure VSWR C after left for 24 hrs min. at room temperature 1. No visual damage 2. VSWR satisfy 3 Low Temperature Resistance 1. Temperature: -40 ± 5°C 2. Time: 96 hours 3. Measure VSWR C after left for 48 hrs min. at room temperature 1. No visual damage 2. VSWR satisfy 4 Humidity (Steady Condition) 1. Humidity: 85% RH 1. Temperature: +85 ± 3°C 2. Time: 96 hours 3. Measure VSWR C after left for 48 hrs min. at room temperature 1. No visual damage 2. VSWR satisfy 5 ESD 1. ESD Level: 8kV 2. Mode: Contact discharge 3. Number of cycle: 100 ※ Used Ref test PCB. 1. No visual damage 2. VSWR satisfy 5. SOLDERING RECOMMENDATIOS 5.1. Reflow Soldering Profile 240°C±5°C(Peak temp.) 230°C

Product Number: AN2400-06C01BBF Product Name: Antenna Page 1 Specification For Approval Date: 2014 / 05 / 20 File No.: 140520002 Version: 1.1 Customer： HICOM Customer P/N： / INVAX P/N： AN2400-06C01BBF Description : Antenna Cortec Checked By: Customer Approved By: INVAX System Technology Corp. Cortec Technology Inc. 4F. No. 815.Chung Hsiao East Rd.,Sec.5 Xian-Xi Industrial, Sha-Tou Administration Zone, Taipei, TAIWAN Chang-An Town, Dong-Guan City, Guangdong Province, China TEL:886-2-2788-5218 FAX:886-2-2783-1658 TEL:86-769-85388261 FAX:86-769-85317869 http://www.invaxsystem.com http://www.cortec.com.cn Product Number: AN2400-06C01BBF Product Name: Antenna Page 2 Index: 1. Revision History / Page 3 2. Specification / Page 4 3. Characteristics and Reliability Test / Page 5 4. Antenna - S Parameter Test Data / Page 6 5. Antenna - Radiation Pattern Test Data / Page 7 6. Mechanical and Packing Drawing / Page 8 ~ 9 7. Material Description and RoHS Test Report / Page 10 ~ end Product Number: AN2400-06C01BBF Product Name: Antenna Page 3 1. Revision History Revision Date Change NotificationDescription 1.0 2014.05.15 1.1 2014.05.20 ECR 变更图纸和包装 Product Number: AN2400-06C01BBF Product Name: Antenna Page 4 2. Specification Sample Photo A. Electrical Characteristics Frequency 2400 ~ 2500 MHz S.W.R. <= 2.0 Antenna Gain 2.0 ± 0.5dBi Polarization Linear Impedance 50 Ohm B. Material & Mechanical Characteristics Material of Radiator Cu Material of Plastic Body 1: PC Cable Type OD1.13mm(Black) Connector Type Mini Connector C. Environmental Operation Temperature - 40 ̊C ~ + 65 ̊C Storage Temperature - 40 ̊C ~ + 80 ̊C Antenna Color Storage life < 2 year Product Number: AN2400-06C01BBF Product Name: Antenna Page 5 3. Characteristics and Reliability Test Test Items Test Condition and Procedure Requirements C1 S.W.R. Set DUT on Network Analyzer; make individual calibration to test Directive DUT specification C2 Antenna Gain Set DUT on Antenna Chamber; make individual calibration to test Directive DUT specification M1 Vibration GB / T2423 . 48-1997 Amplitude: 0.03 inch (1.5mm); Freq: 20 to 80 to 20 Hz 3 directions; 2 hours for each direction 1. No Visual Damage 2. Frequency Tol.<= 5% M2 Random Drop GB / T2423.8-1995 Height: 1.0 Meter; 3 directions; 1 time for each direction 1. No parts separated 2. Frequency Tol.<= 5% M3 Solderability GB 2423 . 28- 82 Solder iron: 260±5°C; Duration: 5 seconds 1. Mounted on PCB 2. No Visual Damage M4 Terminal- Pull Test Holding with individual specification; force applied to axis of terminal 1. Directive DUT specification 2. Frequency Tol.<= 5% M5 Terminal- Torque Test Holding with individual specification; applied clockwise and counterclockwise to the axis of terminal 1. Directive DUT specification 2. Frequency Tol.<= 5% M6 Dimension Inspection of dimension, color, material, package, surface process Directive DUT specification E1 Salt Spray GB / T 2423 . 17- 93 Temp: 35°C; RH: >= 95%; NaCl solution: >= 5%; Time: 24 hours After 2 Hours Recovery 1. No Visual Damage 2. Frequency Tol.<= 5% E2 Humidity GB / T 2423 . 4 - 93 Temp: 80°C / 12 H; -40°C / 12H RH: >= 90%; Time: 24 hours After 2 Hours Recovery 1. No Visual Damage 2. Frequency Tol.<= 5% E3 Thermal Shock GB / T 2423 . 22 - 87 1 Cycle: - 40°C (30 minutes) to + 80°C (30 minutes) Cycles: 24 After 2 Hours Recovery 1. No Visual Damage 2. Frequency Tol.<= 5% E4 Life (High Temp.) GB /T 2423 . 2 - 89 Temp: 80°C; Time: 24 hours After 2 Hours Recovery 1. No Visual Damage 2. Frequency Tol.<= 5% R1 RoHS With Reference to IEC 62321:2008 with flow chart Directive RoHS 2011/65/EU R2 PFOS With Reference to USA EPA 3540C:1996 by LC/MS Directive RoHS 2006/122/EC R3 PFOA With Reference to USA EPA 3540C:1996 by LC/MS Directive RoHS 2006/122/EC Product Number: AN2400-06C01BBF Product Name: Antenna Page 6 4. Antenna - S Parameter Test Data Product Number: AN2400-06C01BBF Product Name: Antenna Page 7 5. Antenna - Radiation Pattern Test Data 2400 MHz 2450 MHz 2500 MHz 6. Mechanical Drawing See attached files 7. Material Description and RoHS Test Report See attached files 填表： 時麗 部門： 研發部 職務： 文員 Cd Pb Hg Cr(VI) PBBs PBDE s 1 R-AN12160 Male 銅 60 31000 N.D. Negative CE/2013/73960 2013.07.25 FREECUTTINGBRASSBAR SGS 2 R-HSTUBE-002N HST EVA N.D. N.D. N.D. N.D. N.D. N.D. CANEC1402540003 2014.03.13 HEAT SHRINKABLE TUBING ( BK ) SGS 3 TUBE-AN06-04CS Tube 銅 N.D. 4 N.D. Negative N.D. N.D. SHAEC1402624401 2014.03.01 BRASS TUBE . SGS 4 AN65-33 Plug POM N.D. N.D. N.D. N.D. N.D. N.D. CANEC1320256606 2013.12.31 POM rod SGS PC N.D. N.D. N.D. N.D. N.D. N.D. CANEC1312635401 2013.12.16 PC S2000VR SGS 黑色色母 N.D. N.D. N.D. N.D. A001T140306202002-2 2014.03.12 black white color masterbatch p i g ment AOV 黑色色母 N.D. N.D. N.D. N.D. N.D. N.D. SHAEC1404233901 2014.03.22 FEP Colormasterbatch SGS 鍍錫銅 N.D. N.D. N.D. Negative N.D. N.D. RHS05F011891003E 2013.08.26 电线电缆料 CTI FEP N.D. N.D. N.D. N.D. N.D. N.D. RHS05F011891001E 2013.08.26 电线电缆料 CTI 镀银铜丝 N.D. N.D. N.D. Negative N.D. N.D. RHS05F011891004E 2013.08.26 电线电缆料 CTI PBT 黑色 N.D 6.47 N.D. N.D N.D. N.D. KA/2013/70363 2013.07.15 PBT SGS 銅 N.D. 10 N.D. N.D. TSNIND1301164602 2013.11.21 C5210 青铜带 SGS 鍍金層 N.D. N.D. N.D. Negative RHS05G001036003E 2014.01.14 金镀层 CTI BODY-AN06C-02BBODY-AN06C-01B 5 本体 各構成物料的材質 物料中 HSF 對象物質含量調查表 測試名稱 測試報告裡 RoHS 對應物質測試結果 檢測報告編號 歐盟ROHS指令豁免條款2009/95/BC、钢中合金元素中的铅含量达0.35%、铝含量达0.4%、铜合金中的铅含量达4% COR/F-G-47a 包裝材料中鉛、鎘、汞、六價鉻總含量不超過 100ppm ，鎘的允許濃度為 5ppm 測試日期 物料型號 物料各構成名稱 測試機構 名稱 序號 康捷電子有限公司 物料名稱：AN2400-06C01BBF R-CB-113B Cable 6 根據測試報告如實填寫鉛、鎘、汞、六價鉻、 PBBs 和 PBDEs 六項禁用物質的含量 7 CR-113 Mini Conn

MHzmm = Typical Power: ± =[ / ]*[√ ] = Thus SAR for this device is not required. [Threshold at 50 mm in step 1) + (test separation distance - 50 mm)·( f(MHz)/150)] mW [Threshold at 50 mm in step 1) + (test separation distance - 50 mm)·10] mW S7A-SP16 51.00 2.48 30 - Max. power with turn-up tolerance = 51 Used Step 1) SAR test exclusion thresholds for 100MHz to 6GHz at te st separationn distances ≤ 50 mm = [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] FCC ID : Standalone SAR test exclusion considerations June 17, 2014 2480 - Min. test separation distance = mW 16.99 17.00 dBm - Min. transmitting frequency = dB 16.00 dBm 1.00 dBm Measured Average Power: ≤ 3, for 1g SAR Copyright Ⓒ 2013, Digital EMC Co., Ltd. Step 2-2) SAR test exclusion thresholds for 1500MHz to 6GHz at test separationn distances > 50 mm = N/A 30 Step 2-1) SAR test exclusion thresholds for 100MHz to 1500MHz at test separationn distances > 50 mm = N/A 2.68

FCCID: S7A-SP16 DEMC1405-01869 Report No.: DRTFCC1406-0800(1) TRF-RF-219(00)130701 Page2 / 35 Copyright ○ C 2014, Digital EMC Co., Ltd. Test Report Version Test Report No. Date Description DRTFCC1406-0800 Jun. 18, 2014 Initial issue DRTFCC1406-0800(1) Jul. 1, 2014 Retest Radiated Emission FCCID: S7A-SP16 DEMC1405-01869 Report No.: DRTFCC1406-0800(1) TRF-RF-219(00)130701 Page3 / 35 Copyright ○ C 2014, Digital EMC Co., Ltd. Table of Contents 1. GENERAL INFORMATION ......................................................... 4 2. EUT DESCRIPTION .................................................................... 4 3. SUMMARY OF TESTS ................................................................ 5 4. TEST METHODOLOGY .............................................................. 6 4.1 EUT CONFIGURATION ....................................................................................... 6 4.2 EUT EXERCISE ................................................................................................... 6 4.3 GENERAL TEST PROCEDURES ....................................................................... 6 4.4 DESCRIPTION OF TEST MODES ...................................................................... 6 5. INSTRUMENT CALIBRATION .................................................... 7 6. FACILITIES AND ACCREDITATIONS ........................................ 7 6.1 FACILITIES .......................................................................................................... 7 6.2 EQUIPMENT ........................................................................................................ 7 7. ANTENNA REQUIREMENTS ..................................................... 7 8. TEST RESULT ............................................................................ 8 8.1 6dB Bandwidth Measurement ........................................................................... 8 8.2 Maximum Peak Conducted Output Power ..................................................... 11 8.3 Maximum Power Spectral Density. ................................................................. 14 8.4 Out of Band Emissions at the Band Edge/ Conducted Spurious Emissions17 8.5 Radiated Measurement. ................................................................................... 26 8.5.1 Radiated Spurious Emissions. ................................................................... 26 8.6 POWERLINE CONDUCTED EMISSIONS ......................................................... 29 8.7 Occupied Bandwidth ........................................................................................ 32 9. LIST OF TEST EQUIPMENT ..................................................... 33 APPENDIX I................................................................................... 34 APPENDIX II.................................................................................. 35 FCCID: S7A-SP16 DEMC1405-01869 Report No.: DRTFCC1406-0800(1) TRF-RF-219(00)130701 Page4 / 35 Copyright ○ C 2014, Digital EMC Co., Ltd. 1. GENERAL INFORMATION Applicant : Sena Technologies,Inc. Address : 210 Yangjae-dong Seocho-gu, Seoul, 137-130, Korea FCC ID : S7A-SP16 EUT : Motorcycle Bluetooth Communication System Model : 20S Additional Model(s) : NA Data of Test : 2014-06-05 ~ 2014-07-01 Contact person : Seunghyun KIM 2. EUT DESCRIPTION Product Motorcycle Bluetooth Communication System Model Name 20S Power Supply DC 3.7 V Battery type Standard Battery: Lithium Ion Battery Frequency Range 2402 ~ 2480 MHz (40 channels) Max. RF Output Power 11.15 dBm Modulation Type GFSK Antenna Specification Antenna Type: Internal Antenna Gain: 0.0 dBi(PK) FCCID: S7A-SP16 DEMC1405-01869 Report No.: DRTFCC1406-0800(1) TRF-RF-219(00)130701 Page5 / 35 Copyright ○ C 2014, Digital EMC Co., Ltd. 3. SUMMARY OF TESTS FCC Part Section(s) RSS Section(s) Parameter Limit Test Condition Status Note 1 I. Transmitter Mode (TX) 15.247(a) RSS-210 [A8.2] 6 dB Bandwidth > 500 kHz Conducted C 15.247(b) RSS-210 [A8.4] Transmitter Output Power < 1Watt C 15.247(d) RSS-210 [A8.5] Out of Band Emissions / Band Edge 20dBc in any 100kHz BW C 15.247(e) RSS-210 [A8.2] Transmitter Power Spectral Density < 8dBm / 3kHz C - RSS Gen [4.6.1] Occupied Bandwidth (99%) RSS-Gen(4.6.1) NA 15.205 15.209 RSS-210 [A8.5] General Field Strength Limits (Restricted Bands and Radiated Emission Limits) <FCC 15.209 limits Radiated C Note2 15.207 RSS-Gen [7.2.4] AC Conducted Emissions < FCC 15.207 limits AC Line Conducted C 15.203 - Antenna Requirements FCC 15.203 - C Note 1: C=Comply NC=Not Comply NT=Not Tested NA=Not Applicable Note 2: This test item was performed in each axis and the worst case data was reported. FCCID: S7A-SP16 DEMC1405-01869 Report No.: DRTFCC1406-0800(1) TRF-RF-219(00)130701 Page6 / 35 Copyright ○ C 2014, Digital EMC Co., Ltd. 4. TEST METHODOLOGY Generally the tests were performed according to the KDB558074 v03r1. And ANSI C63.10-2009 was used to reference appropriate EUT setup and maximizing procedures of radiated spurious emission and AC line conducted emission testing. 4.1 EUT CONFIGURATION The EUT configuration for testing is installed on RF field strength measurement to meet the Commissions requirement and operating in a manner that intends to maximize its emission characteristics in a continuous normal application. 4.2 EUT EXERCISE The EUT was operated in the engineering mode to fix the TX frequency that was for the purpose of the measurements. According to its specifications, the EUT must comply with the requirements of the Section 15.207, 15.209 and 15.247 under the FCC Rules Part 15 Subpart C. 4.3 GENERAL TEST PROCEDURES Conducted Emissions According to the requirements in Section 6.2 of ANSI C63.10, the EUT is placed on the turntable, which is 0.8 m above ground plane and the conducted emissions from the EUT are measured in the frequency range between 0.15 MHz and 30MHz using CISPR Quasi-peak and Average detector. Radiated Emissions The EUT is placed on a turntable, which is 0.8 m abo…
