S7A-SP24Wristband Remote

| 20S 1 Wristband Remote SENA www.sena.com User’s Guide | 20S 2 © 1998-2015 Sena Technologies, Inc. All rights reserved. Sena Technologies, Inc reserves the right to make any changes and improvements to its product without providing prior notice. Sena™ is a trademark of Sena Technologies, Inc. or its subsidiaries in the USA and other countries. 20S™, SMH10™, SMH5™, SMH5-FM™, SPH10™, SPH10H™, SPH10H-FM™, SMH10R™, SPH10S™, SPH10H™, SR10™, SM10™, EXPAND™, Bluetooth Pack for GoPro ® are trademarks of Sena Technologies, Inc. or its subsidiaries. These trademarks may not be used without the express permission of Sena. GoPro ® is a registered trademark of Woodman Labs of San Mateo, California. Sena Technologies, Inc. (“Sena”) is not affiliated with Woodman Labs. The Sena Bluetooth Pack for GoPro® is an after-market accessory specially designed and manufactured by Sena Technologies, Inc. for the GoPro® Hero3 allowing for Bluetooth capabilities. The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Sena is under license. iPhone, iPod touch are registered trademarks of Apple Inc. Zumo™ is a trademark of Garmin Ltd. or its subsidiaries. TomTom™ is the trademark or registered trademark owned by TomTom International B.V. Other trademarks and tradenames are those of their respective owners. | 20S 3 1 INTRODUCTION Thank you for choosing the Sena Wristband Remote, remote control for Sena motorcycle bluetooth headsets. With the Wristband Remote, you can control your headset from your wrist. The Wristband Remote is compliant with Bluetooth 4.1 Sena headsets. Check www.sena.com for more information. 2 PACKAGE CONTENTS Wristband Remote Unit | 20S 4 3 INSTALLING THE WRISTBAND REMOTE 1. Use the straps to wear the Wristband Remote on your wrist. 2. After you wear the Wristband Remote, put the strap inside the rubber band. 4 GETTING STARTED 4.1 Charging You can charge the Wristband Remote by connecting the supplied USB power & data cable into a computer’s USB port or USB wall charger. You can use any standard micro-USB cable to charge the Wristband Remote. The LED turns red while the headset is charging and turns blue when it is fully charged. It takes about 2.5 hours to be fully charged. 4.2 Powering On and Off Press the Side Button to turn on the Wristband Remote. Press the Side Button and the Joystick simultaneously to turn off the device. 5 PAIRING WITH YOUR HEADSET Before using the Wristband Remote with any other Sena headsets for the first time, you will need to pair them together. The pairing operation is required only once for each Bluetooth device. The device remains paired with the headsets and automatically reconnects to them when they are within range. 1. Turn on the Wristband Remote and press and hold the Top Button for 5 seconds. 2. Place the headset into Remote Control Pairing mode inside the configuration menu. Please refer to the headset’s manual for details. 3. Wait until the headset’s LED turns blue. Note: The Wristband Remote is compliant only with Bluetooth 4.1 Sena Headsets. | 20S 5 6 REMOTE CONTROL FUNCTIONS 6.1 Mobile Phone Call Making and Answering Please have your headset Bluetooth paired to a phone before using the mobile phone functions with the Wristband Remote. 1. When you have an incoming call, simply tap the Top Button or the Side Button to answer the call. 2. To end a call, tap the Top Button or press the Side Button for 2 seconds until you hear a beep, or wait for the called person to end the call. 3. To reject a call, press the Side Button for 2 seconds until you hear a beep while the phone is ringing. 4. To transfer a call between the mobile phone and the headset during the phone conversation, press the Side Button for 2 seconds until you hear a beep. 5. Double tap the Top Button to enter into speed dials. 6.2 Bluetooth Stereo Music Please have your headset Bluetooth paired to a media device before using the Bluetooth stereo music functions with the Wristband Remote. 1. To play or pause music, press and hold the Joystick for 1 second until you hear a double beep. 2. To adjust volume, move the Joystick up or down. 3. To track forward or track back, move the Joystick left or right for 1 second. 6.3 Intercom You can start an intercom conversation with one of any intercom friends by tapping the Side Button: single tap to intercom with the first intercom friend, double tap to intercom with the second intercom friend, and triple tap to intercom with the third intercom friend. To terminate an intercom conversation, single tap the Side Button. Any intercom connection with any intercom friend will be terminated by a single tap. A double or triple tap will do nothing in this case. 6.4 FM Radio To turn on the FM radio, press and hold the Top Button for 1 second until you hear a mid-toned double beep sound. To turn off the FM radio, press and hold the Top Button for 1 second. 1. You can listen to preset stations while listening to the FM radio. Tap the Top Button once to go upward to your next saved preset station. 2. Push the Joystick right or left to seek station frequencies up or down. 3. Double tap the Top Button to scan up the radio frequencies. Tap the Top Button if you want to save the station. 4. Press and hold the Side Button for 1 seconds to enter into preset mode. Push the Joystick up or down to seek through the presets. Tap the Side Button if you want to save the preset. Tap the Top Button if you want to delete the preset. 6.5 Configuration Menu Press and hold the Side Button for about 12 seconds to enter into configuration setting mode. | 20S 6 CERTIFICATION AND SAFETY APPROVALS FCC Compliance Statement This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with…

Text truncated - open the document above for the full version.

Sena Technologies,Inc. 210 Yangjae-dong Seocho-gu, Seoul, South Korea, 137-130 Date: June. 30, 2015 Timco Engineering, Inc. 849 N.W. State Road 45 P.O. Box 370 Newberry, Florida 32669 USA RE: Request of Confidentiality for FCCID: S7A-SP24 To Whom It may Concern: Pursuant to Sections 0.457 and 0.459 of the Commission`s Rules(CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, Sena Technologies,Inc. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give Sena Technologies,Inc. temporary confidentiality of commercially sensitive information prior to product release. The requested permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT & SHORT-TERM CONFIDENTIAL LIST Exhibit Description PERMANENT 1 Block Diagram 2 Schematics 3 Operational Description 4 Part Lists SHORT-TERM 5 External Photos 6 Internal Photos 7 Test-Setup Photos 8 User Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be public before the date of the Grant for this application. Sincerely, Seunghyun KIM Reasearch Engineer

Sena Technologies,Inc. 210 Yangjae-dong Seocho-gu, Seoul, South Korea, 137-130 Date: June.30, 2015 Timco Engineering, Inc. 849 N.W. State Road 45 P.O. Box 370 Newberry, Florida 32669 USA Letter of Authorization We, the undersigned, hereby authorize Harvey Sung of DT&C Co., Ltd. to act on our behalf in all manners relating to application for equipment authorization for FCC ID: S7A-SP24 including signing of all documents relating to these matters. Any and all acts carried out by Harvey Sung of DT&C Co., Ltd. on our behalf shall have the same affect as acts of our own. This authorization is valid until further written notice from Sena Technologies,Inc. “I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a).” Sincerely, Seunghyun KIM Reasearch Engineer

FCCID:S7A-SP24 IC:8154A-SP24 Copyright Ⓒ 2015, DT&C Co., Ltd. Page1 / 3 View 1 FCCID:S7A-SP24 IC:8154A-SP24 Copyright Ⓒ 2015, DT&C Co., Ltd. Page2 / 3 View 2 FCCID:S7A-SP24 IC:8154A-SP24 Copyright Ⓒ 2015, DT&C Co., Ltd. Page3 / 3 View 3

FCC ID: S7A-SP24 IC: 8154A-SP24 Copyright Ⓒ 2015, DT&C Co., Ltd. FCC & IC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase Label Location (the inside) - The FCC label shown is representative of the label that will appear on the radio when in production. Other information may also be included on this label. - The device is so small that it is not practicable to place the statement specified under 15.19 statement request, the information required by this paragraph shall be placed in a prominent location in the user's manual.

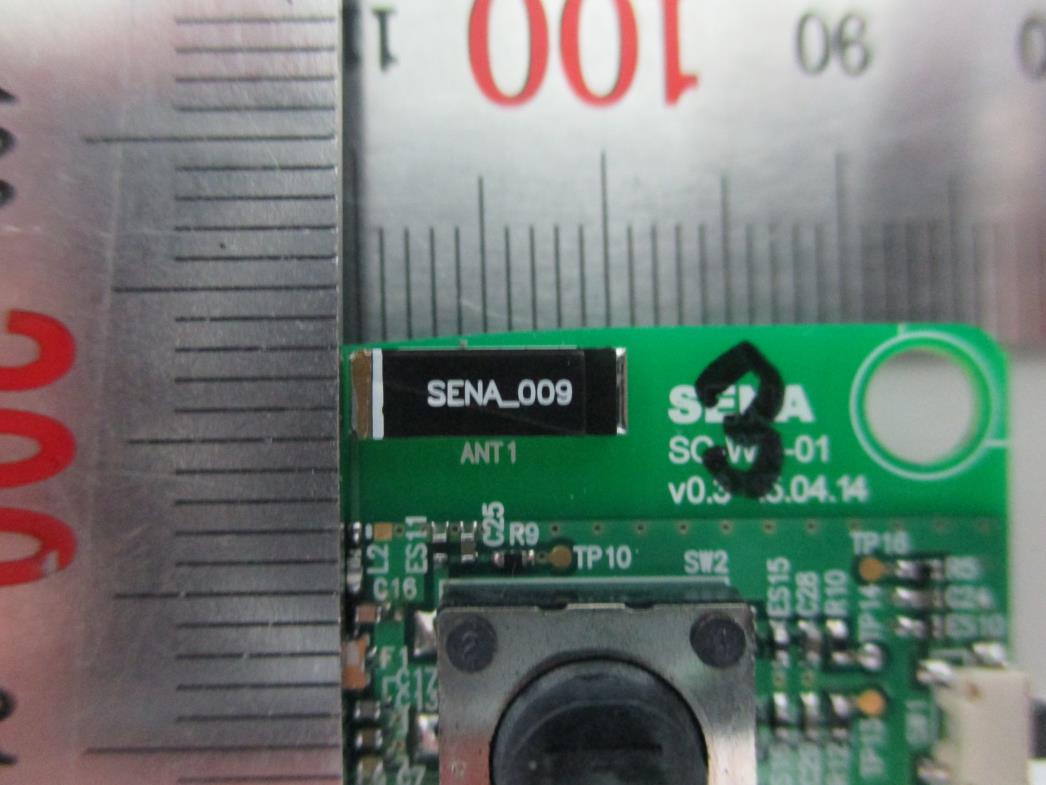

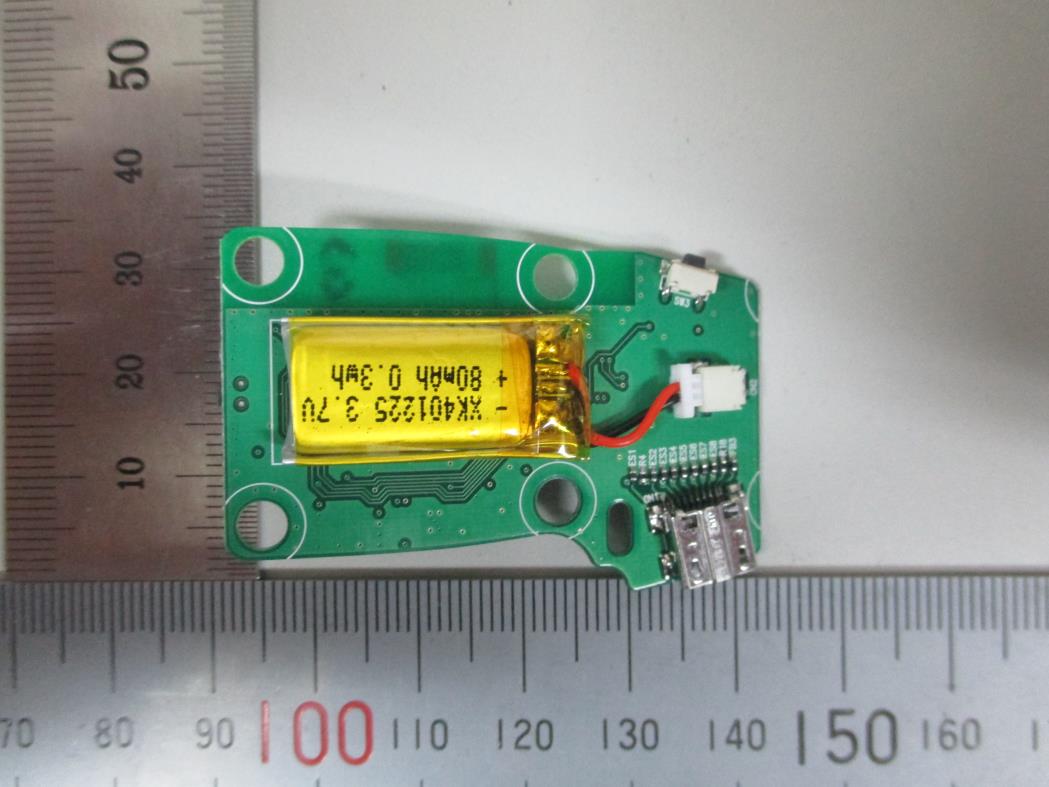

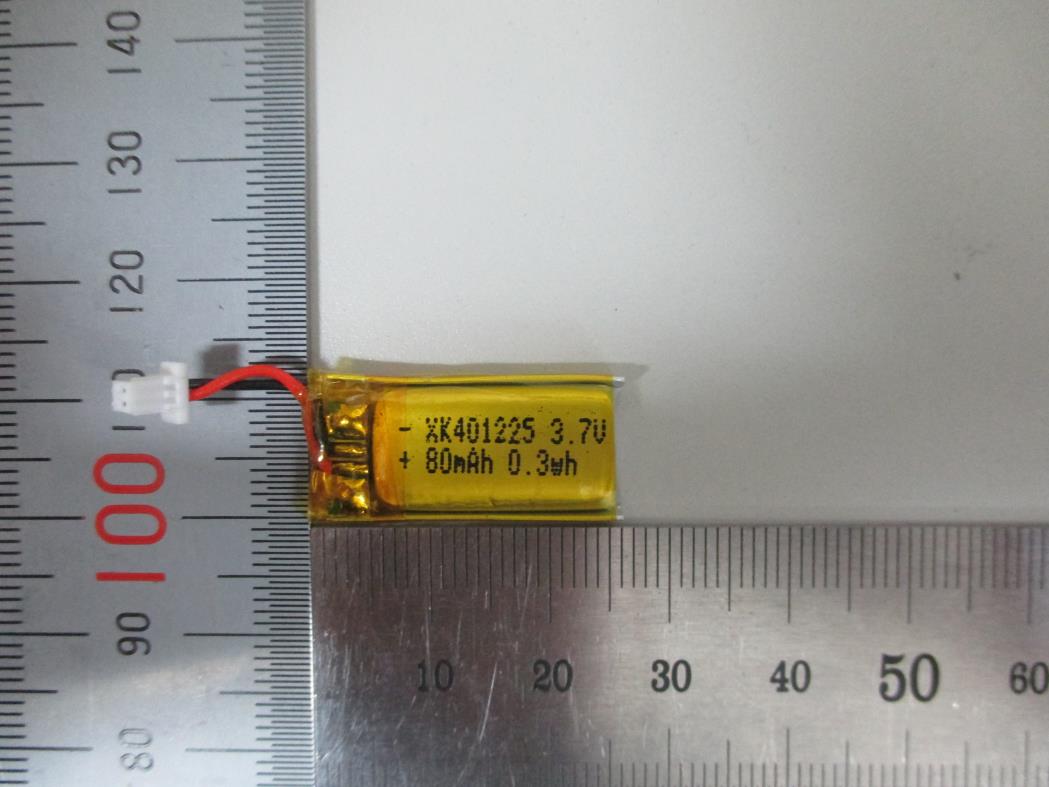

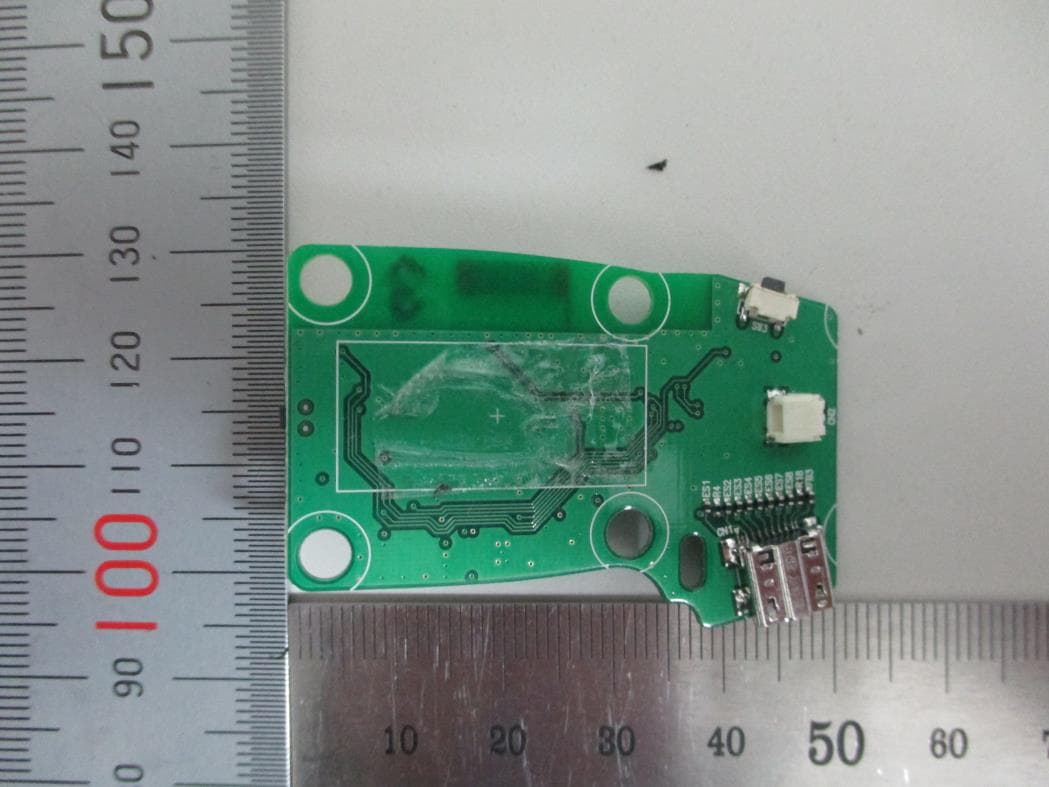

FCC ID: S7A-SP24 IC:8154A-SP24 Copyright Ⓒ 2015, DT&C Co., Ltd. Page 1 / 5 View 1 FCC ID: S7A-SP24 IC:8154A-SP24 Copyright Ⓒ 2015, DT&C Co., Ltd. Page 2 / 5 View 2 FCC ID: S7A-SP24 IC:8154A-SP24 Copyright Ⓒ 2015, DT&C Co., Ltd. Page 3 / 5 View 3 FCC ID: S7A-SP24 IC:8154A-SP24 Copyright Ⓒ 2015, DT&C Co., Ltd. Page 4 / 5 View 4 FCC ID: S7A-SP24 IC:8154A-SP24 Copyright Ⓒ 2015, DT&C Co., Ltd. Page 5 / 5 View 5

Top_layout Bottom_layout

Preliminary SPECIFICATION Chip Antenna Manufacturer: Sena Technologies, Inc. Part Number: SENA_009 WRITTEN CHECKED APPROVED Seunghyun Kim Seunghyun Kim July 12, 2015 Sena Technologies, Inc. 40, Maeheon-ro, Seocho-gu, Seoul, 137-893 Korea (Republic of) Tel: +82-2-576-7362 Fax: +82-2-573-7710 Website: http://www.sena.com - 2 - CHIP ANTENNA 1. SPECIFICATIONS 1.1. Electrical Specifications ITEM SPEC. Unit Frequency 2400-2485 MHz Bandwidth @ VSWR 2.5:1 100 MHz Gain Max. 1 dBi Polarization Linear Azimuth Beam Pattern Omni-directional Impedance 50 Ω ※ These values are measured on the matched reference test board. 1.2. Mechanical Specifications Electrode Silver Dimensions (L x W x H) 9.0 x 3.0 x 1.2 mm Operating Temperature -35 ~ +85 °C 1.3. Appearance and Dimensions L 9.0 W 3.0 H 1.2 - 3 - CHIP ANTENNA 2. MEASUREMENT 2.1. Electrical Characteristic S 11 (Return Loss) B. (Smith chart) - 4 - CHIP ANTENNA 3. Radiation Data Frequency Efficiency Average Gain Max Gain Max Position Directivity Ver Hor Total Ver Hor Total 2400 MHz 37.4 % -6.6 dBi -8.0 dBi -4.3 dBi-1.1 dBi-0.9 dBi0.1 dBiTheta135/Pie255 4.34 dB 2442 MHz 43.0 % -6.0 dBi -7.5 dBi -3.7 dBi-0.3 dBi-0.1 dBi0.5 dBiTheta15/Pie240 4.60 dB 2485 MHz 37.2 % -6.6 dBi -8.1 dBi -4.3 dBi-0.1 dBi-0.2 dBi0.2 dBiTheta135/Pie255 4.91 dB - 5 - CHIP ANTENNA 4. RELIABILITY TEST No Item Test condition Test Requirements 1 Adhesion strength . Applied force on SMD chip till detached point from PCB 1. No mechanical damage by forces applied on the right 2. Strength (F) > 5 kgf 2 Thermal Shock (Temperature Cycle) 1. 1 cycle / step 1 : -40 ± 3°C, 30 min step 2 : +85 ± 3°C, 30 min 2. Number of cycle : 10 3. Measure after left for 48 hrs min. at room temperature 1. No visual damage 2. VSWR satisfy 3 High Temperature Resistance 1. Temperature: +85 ± 5°C 2. Time : 96 hrs 3. Measure VSWR C after left for 24 hrs min. at room temperature 1. No visual damage 2. VSWR satisfy 4 Low Temperature Resistance 1. Temperature: -40 ± 5°C 2. Time : 96 hrs 3. Measure VSWR C after left for 48 hrs min. at room temperature 1. No visual damage 2. VSWR satisfy 5 Humidity (Steady Condition) 1. Humidity : 85 % RH 1. Temperature: +85 ± 3°C 2. Time : 96 hrs 3. Measure VSWR C after left for 48 hrs min. at room temperature 1. No visual damage 2. VSWR satisfy 6 ESD 1. ESD Level : 8KV 2. Mode : Contact discharge 3. Number of cycle : 100 ※ Used Ref test PCB. 1. No visual damage 2. VSWR satisfy F PCB - 6 - CHIP ANTENNA 5. SOLDERING RECOMMENDATIOS 5.1. Reflow Soldering Profile

MHz mm = Typical Power: ± =[/]*[√] =Thus SAR for this device is not required. [Threshold at 50 mm in step 1) + (test separation distance - 50 mm)·( f(MHz)/150)] mW [Threshold at 50 mm in step 1) + (test separation distance - 50 mm)·10] mW S7A-SP24 4.002.48 5 - Max. power with turn-up tolerance =4 UsedStep 1) SAR test exclusion thresholds for 100MHz to 6GHz at test separationn distances ≤ 50 mm = [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] FCCID : Standalone SAR test exclusion considerations June 22, 2015 2480 - Min. test separation distance = mW 4.80 5.50dBm - Min. transmitting frequency = dB4.50dBm1.00 dBmMeasured Output Power: ≤ 3, for 1g SAR Copyright Ⓒ 2015, DT&C Co., Ltd. Step 2-2) SAR test exclusion thresholds for 1500MHz to 6GHz at test separationn distances > 50 mm =N/A 5 Step 2-1) SAR test exclusion thresholds for 100MHz to 1500MHz at test separationn distances > 50 mm =N/A 1.26

FCCID : S7A-SP24 DTNC156-02746 Report No. : DRTFCC1507-0149 TRF-RF-219(01)150610 Page 2 / 34 Copyright ○ C 2015, DT&C Co., Ltd. Test Report Version Test Report No. Date Description DRTFCC1507-0149 Jul. 01, 2015 Initial issue FCCID : S7A-SP24 DTNC156-02746 Report No. : DRTFCC1507-0149 TRF-RF-219(01)150610 Page 3 / 34 Copyright ○ C 2015, DT&C Co., Ltd. Table of Contents 1. GENERAL INFORMATION ........................................................ 4 2. EUT DESCRIPTION ................................................................... 4 2.1 Support equipments ......................................................................................................... 4 3. SUMMARY OF TESTS ............................................................... 5 4. TEST METHODOLOGY ............................................................. 6 4.1 EUT CONFIGURATION ..................................................................................................... 6 4.2 EUT EXERCISE ................................................................................................................. 6 4.3 GENERAL TEST PROCEDURES ..................................................................................... 6 4.4 DESCRIPTION OF TEST MODES..................................................................................... 6 5. INSTRUMENT CALIBRATION ................................................... 7 6. FACILITIES AND ACCREDITATIONS ........................................ 7 6.1 FACILITIES ........................................................................................................................ 7 6.2 EQUIPMENT ...................................................................................................................... 7 7. ANTENNA REQUIREMENTS ..................................................... 7 8. TEST RESULT ........................................................................... 8 8.1 6 dB Bandwidth Measurement ........................................................................................ 8 8.2 Maximum Peak Conducted Output Power ................................................................... 11 8.3 Maximum Power Spectral Density. ............................................................................... 14 8.4 Out of Band Emissions at the Band Edge / Conducted Spurious Emissions .......... 17 8.5 Radiated Measurement. ................................................................................................. 26 8.5.1 Radiated Spurious Emissions. ................................................................................. 26 8.6 POWERLINE CONDUCTED EMISSIONS ....................................................................... 29 9. LIST OF TEST EQUIPMENT .................................................... 32 APPENDIX I ................................................................................. 33 APPENDIX II ................................................................................ 34 FCCID : S7A-SP24 DTNC156-02746 Report No. : DRTFCC1507-0149 TRF-RF-219(01)150610 Page 4 / 34 Copyright ○ C 2015, DT&C Co., Ltd. 1. GENERAL INFORMATION Applicant : Sena Technologies,Inc. Address : 210 Yangjae-dong Seocho-gu, Seoul, South Korea 137-130 FCC ID : S7A-SP24 EUT : Wristband Remote Model : SC-WR-01 Additional Model(s) : NA Data of Test : 2015-06-18 ~ 2015-06-22 Contact person : Seunghyun KIM 2. EUT DESCRIPTION Product Wristband Remote Model Name SC-WR-01 Add Model Name NA Serial Number Identical prototype Hardware version SW : 1.0 HW : 1.0 Software version SW : 1.0 HW : 1.0 Power Supply DC 3.7 V Frequency Range 2402 ~ 2480 MHz (40 channels) Max. RF Output Power 8.04 dBm Modulation Type GFSK Antenna Specification Antenna Type : Internal Antenna Gain : 0.932 dBi (PK) 2.1 Support equipments Equipment Model No. Serial No. Manufacturer Note - - - - - FCCID : S7A-SP24 DTNC156-02746 Report No. : DRTFCC1507-0149 TRF-RF-219(01)150610 Page 5 / 34 Copyright ○ C 2015, DT&C Co., Ltd. 3. SUMMARY OF TESTS FCC Part Section(s) Parameter Limit Test Condition Status Note 1 I. Transmitter Mode (TX) 15.247(a) 6 dB Bandwidth > 500 kHz Conducted C 15.247(b) Transmitter Output Power < 1 Watt C 15.247(d) Out of Band Emissions / Band Edge 20 dBc in any 100 kHz BW C 15.247(e) Transmitter Power Spectral Density < 8 dBm/3kHz C 15.205 15.209 General Field Strength Limits (Restricted Bands and Radiated Emission Limits) FCC 15.209 limits Radiated C Note 2,3 15.207 AC Conducted Emissions FCC 15.207 limits AC Line Conducted C 15.203 Antenna Requirements FCC 15.203 - C Note 1 : C=Comply NC=Not Comply NT=Not Tested NA=Not Applicable Note 2 : This test item was performed in each axis and the worst case data was reported. Note 3 : For emission measurements at or below 1 GHz, the table height is 80 cm. For emission measurements above 1 GHz, the table height is 1.5 m. (Instead of 0.8m EUT height above 1GHz for FCC, 1.5m EUT height was used as allowed by FCC December 2014 TCB conference call.) FCCID : S7A-SP24 DTNC156-02746 Report No. : DRTFCC1507-0149 TRF-RF-219(01)150610 Page 6 / 34 Copyright ○ C 2015, DT&C Co., Ltd. 4. TEST METHODOLOGY Generally the tests were performed according to the KDB558074 v03r03. And ANSI C63.10-2009 was used to reference appropriate EUT setup and maximizing procedures of radiated spurious emission and AC line conducted emission testing. 4.1 EUT CONFIGURATION The EUT configuration for testing is installed on RF field strength measurement to meet the Commissions requirement and operating in a manner that intends to maximize its emission characteristics in a continuous normal application. 4.2 EUT EXERCISE The EUT was operated in the test mode to fix the TX frequency that was for the purpose of the measurements. According to its specifications, the EUT must comply with the requirements of the Section 15.207, 15.209 and 15.247 under the FCC Rules Part 15 Subpart C. 4.3 GENERAL TEST PROCEDURES Conducted Emissions According to the requirements in Se…

Text truncated - open the document above for the full version.

FCC ID: S7A-SP24 IC: 8154A-SP24 Copyright Ⓒ 2015, DT&C Co., Ltd. Test Setup photographs EUT Position: X-axis EUT Position: Y-axis EUT Position: Z-axis FCC ID: S7A-SP24 IC: 8154A-SP24 Copyright Ⓒ 2015, DT&C Co., Ltd. Test Setup Photo of Radiated Measurement (0.009 ~ 30 MHz) FCC ID: S7A-SP24 IC: 8154A-SP24 Copyright Ⓒ 2015, DT&C Co., Ltd. Test Setup Photo of Radiated Measurement (below 1000 MHz) FCC ID: S7A-SP24 IC: 8154A-SP24 Copyright Ⓒ 2015, DT&C Co., Ltd. Test Setup Photo of Radiated Measurement (Above 1 GHz) FCC ID: S7A-SP24 IC: 8154A-SP24 Copyright Ⓒ 2015, DT&C Co., Ltd. Test Setup Photo for AC Conducted Emissions
