S7AIW02BLUETOOTH MODULE

Bluetooth Class 1 OEM Module Parani-BCD110 Product Datasheet Version 1.0.0 February 9, 2012 Sena Technologies, Inc. PARANI-BCD110 Page 2 of 26 Copyright Copyright 2012, Sena Technologies, Inc. All rights reserved. Sena Technologies reserves the right to make changes and improvements to its product without providing notice. Trademark Parani™ is a trademark of Sena Technologies, Inc. Windows® is a registered trademark of Microsoft Corporation. Notice to Users When a system failure may cause serious consequences, protecting life and property against such consequences with a backup system or safety device is essential. The user agrees that protection against consequences resulting from system failure is the user's responsibility. This device is not approved for life-support or medical systems. Changes or modifications to this device not explicitly approved by Sena Technologies will void the user's authority to operate this device. Precautions and Safety Do not drop or subject the device to impact. Damage to your products may result from improper use. Keep away from harsh environments including humid, dusty, and smoky areas. Damage to your products may result from improper use. Do not use excessive force on the buttons or attempt to disassemble the device. Damage to your products may result from improper use. Do not place heavy objects on the product. Damage to your products may result from improper use. Contact Information Technical support email: [email protected] Company website: http://www.sena.com PARANI-BCD110 Page 3 of 26 Contents 1. General .......................................................................................................................................................... 4 1.1 Features ............................................................................................................................................... 4 1.2 Applications .......................................................................................................................................... 4 1.3 Device Diagram .................................................................................................................................... 5 1.4 Pin Diagram .......................................................................................................................................... 5 1.5 Pin Descriptions.................................................................................................................................... 6 1.6 Dimensions and PCB land pattern ....................................................................................................... 8 2. Electrical characteristics ............................................................................................................................... 11 2.1 Absolute maximum ratings .................................................................................................................. 11 2.2 Recommended operating conditions ................................................................................................... 11 2.3 Power Consumptions .......................................................................................................................... 11 3. RF Characteristics ....................................................................................................................................... 12 3.1 Basic Data Rate .................................................................................................................................. 12 3.1.1 Transmitter Performance .......................................................................................................... 12 3.1.2 Transceiver ............................................................................................................................... 12 3.1.3 Receiver Performance ............................................................................................................. 12 3.2 Enhanced Data Rate .......................................................................................................................... 13 3.2.1 Transmitter performance .......................................................................................................... 13 3.2.2 Receiver performance .............................................................................................................. 14 4. Device Terminal Descriptions ...................................................................................................................... 15 4.1 UART Interface ................................................................................................................................... 15 4.2 USB Interface ..................................................................................................................................... 15 4.3 I2C Interface ....................................................................................................................................... 16 4.4 PCM CODEC Interface ...................................................................................................................... 16 4.5 I/O Parallel Ports ................................................................................................................................ 16 4.6 Reset Interface ................................................................................................................................... 17 5. Application Schematic.................................................................................................................................. 18 6. Software Stack ............................................................................................................................................. 21 7. Solder Profiles ............................................................................................................................................. 22 8. Packaging Info…

Text truncated - open the document above for the full version.

Sena Technologies, Inc. 210 Yangjae-dong Seocho-gu Seoul 137-130 Korea Tel. +82-2-571-8283 Fax +82-2-573-7710 February 13, 2012 Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 In re : Sena Technologies, Inc. FCC Application for FCC ID: S7AIW02 To Whom It May Concern: We, the undersigned, hereby attest to the fact that we will apply the Declaration of Conformity procedure to the class B computer peripheral portion of this composite filing. Regards, YoungSam, KIM / Vice President Sena Technologies, Inc.

Sena Technologies, Inc. 210 Yangjae-dong Seocho-gu Seoul 137-130 Korea Tel. +82-2-571-8283 Fax +82-2-573-7710 ATTESTATION STATEMENT In re : SENA Technologies, Inc. FCC ID: S7AIW02 Date : February 13, 2012 15.247(a)(1) The hopping sequence must be pseudorandom all Channels are used equally on average the receiv er input bandwidth is approximately equal to the transmit bandwidth the receiver hops in sequence with the transmitted signal 15.247(g) The system is designed to comply with all of the regulations in Section 15.247 when the transmitter is presented with a continuous data (or information) 15.247(h) The system does not coordinate its channel selection/hopping sequence with other frequency hopping systems for the express purpose of avoiding the simultaneous occupancy of individual hopping frequ encies by multiple transmitters. Sincerely, YoungSam, KIM / Vice President Sena Technologies, Inc.

Sena Technologies, Inc. 210 Yangjae-dong Seocho-gu Seoul 137-130 Korea Tel. +82-2-571-8283 Fax +82-2-573-7710 February 13, 2012 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 LETTER OF AUTHORIZATION To whom it may concern: We, the undersigned, hereby authorize LTA Co., Ltd., to act on our behalf in all manners relating to application for equipment authorization for FCC ID: S7AIW02. including signing of all documents relating to these matters. Any and all acts carried out by LTA Co., Ltd., on our behalf shall have the same affect as acts of our own. This authorization is valid until further written notice from Sena Technologies, Inc. LTA Co.,LTD. (Contact Person) Contact name: You, HyunChae Position: Manager Phone:(82)31-323-6008 E-mail: [email protected] YoungSam, KIM / Vice President Sena Technologies, Inc.

Sena Technologies, Inc. 210 Yangjae-dong Seocho-gu Seoul 137-130 Korea Tel. +82-2-571-8283 Fax +82-2-573-7710 February 13, 2012 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re : Sena Technologies, Inc. FCC ID : S7AIW02 Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, Sena Technologies, Inc.. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give Sena Technologies, Inc.. temporary confidentiality of commercially sensitive information prior to product release. The requested Confidential and Temporary Confidential exhibits are listed as follows: Exhibit Type File Name CONFIDENTIAL Schematics CONF APPENDIX S7AIW02 SCH DIA.pdf Parts list CONF APPENDIX S7AIW02 PL.pdf Block diagram CONF APPENDIX S7AIW02 BLK DIA.pdf Operational description CONF APPENDIX S7AIW02 OpDes.pdf SHORT-TERM CONFIDENTIAL External Photos SHORT-TERM CONF S7AIW02 EXT Photo.pdf Internal Photos SHORT-TERM CONF S7AIW02 INT Photo.pdf Test-Setup Photos SHORT-TERM CONF S7AIW02 Test Photo.pdf User’s Manual SHORT-TERM CONF S7AIW02 Manual.pdf The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. YoungSam, KIM / Vice President Sena Technologies, Inc.

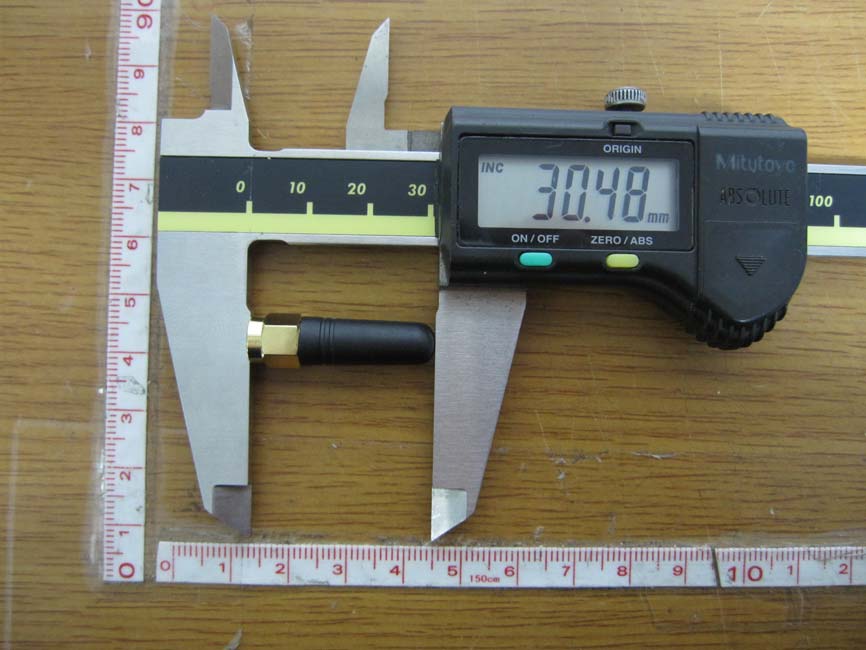

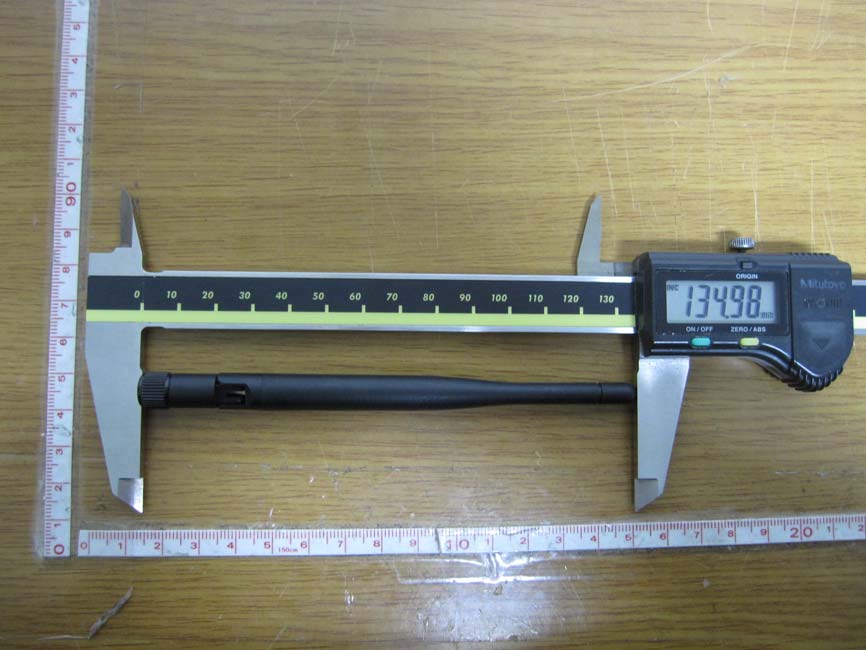

Sena Technologies, Inc. 210 Yangjae-dong Seocho-guSeoul 137-130 Korea Tel. +82-2-571-8283 Fax +82-2-573-7710 FCC ID: S7AIW02 Request for transmitter Modular approval Transmitter Module Characteristics No Requirements EUT 1 Have its own RF shielding Device is equipped with metal shielding to cover RF section. Refer to external photos. 2 Have buffered modulation/data inputs (if such inputs are provided) All inputs to the modules are buffered th ought logic or microprocessor inputs. 3 Have it own power supply regulation Internal 1.8V power regulation. Refer to Module Block diagram 4 Meet the antenna requirements of Section 15.203 BCD110DU, BCD110SU is equipped with unique antenna connector (U.FL) BCD110DS is equipped with unique antenna connector (RPSMA). BCD110DC, BCC110SC is equipped with SMD antenna (Chip). Refer to external photos. 5 Be tested in a stand-alone configuration, i.e., the antenna, AC or DC power and data input/output lines must be connected to the module but, the module must not be inside another case during testing Device was tested on a supplied developmen t platform for Single modular approval. Refer to setup photos. 6 Be labeled with its own FCC ID number, and if the FCC ID is not visible when the module is installed inside another device, then the out side of the device into which the module is installed must also display a label referring to the enclosed module Label is to be placed in front of the EUT (Parani-BCD110DU), and other label is to be placed in the User’s Guide. Refer to FCC ID label format. 7 The modular transmitter is manufactured so t hat the user cannot influence the operation of the transmitter that will operate outsi de of the scope of the regulations. Refer to “User’s Guide” 8 Address compliance with the Commission’s RF exposure limits in Sections 1.1310 and 2.1091. In addition, spread spectrum transmitters operating under Section 15.247 are required to address RF exposure compliance in accordance with Section 15.247(b)(4). This device is categorically excluded from routine environmental because it operate at very low power level

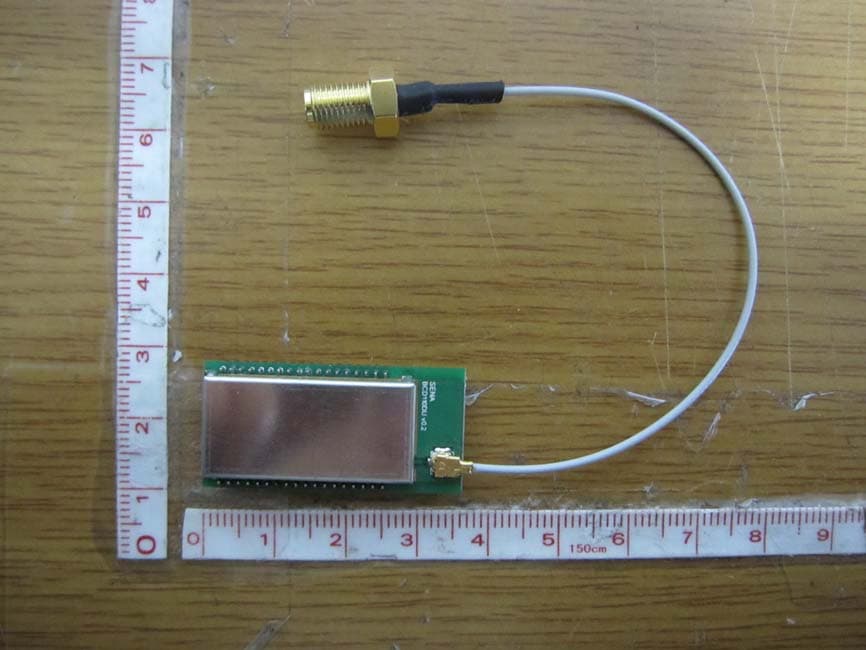

FCC ID: S7AIW02 IC : 8154A-IW02 Copyright ○ c 2012, LTA Co., Ltd. Page 1 of 14 Parani-BCD110DU Basic model (DIP Type & U.FL Type) Upper Lower FCC ID: S7AIW02 IC : 8154A-IW02 Copyright ○ c 2012, LTA Co., Ltd. Page 2 of 14 Front Rear FCC ID: S7AIW02 IC : 8154A-IW02 Copyright ○ c 2012, LTA Co., Ltd. Page 3 of 14 Parani-BCD110DS ADD Model (DIP Type & RP-SMA Type) Upper Lower FCC ID: S7AIW02 IC : 8154A-IW02 Copyright ○ c 2012, LTA Co., Ltd. Page 4 of 14 Front Rear FCC ID: S7AIW02 IC : 8154A-IW02 Copyright ○ c 2012, LTA Co., Ltd. Page 5 of 14 Parani-BCD110DC Add Model(DIP Type & Chip Type) Upper Lower FCC ID: S7AIW02 IC : 8154A-IW02 Copyright ○ c 2012, LTA Co., Ltd. Page 6 of 14 Front Rear FCC ID: S7AIW02 IC : 8154A-IW02 Copyright ○ c 2012, LTA Co., Ltd. Page 7 of 14 Parani-BCD110SU ADD Model(SMD Type & U.FL Type) Upper Lower FCC ID: S7AIW02 IC : 8154A-IW02 Copyright ○ c 2012, LTA Co., Ltd. Page 8 of 14 Front Rear FCC ID: S7AIW02 IC : 8154A-IW02 Copyright ○ c 2012, LTA Co., Ltd. Page 9 of 14 Parani-BCD110SC ADD Model(SMD Type & Chip Type) Upper Lower FCC ID: S7AIW02 IC : 8154A-IW02 Copyright ○ c 2012, LTA Co., Ltd. Page 10 of 14 Front Rear FCC ID: S7AIW02 IC : 8154A-IW02 Copyright ○ c 2012, LTA Co., Ltd. Page 11 of 14 ANTENNA- M/N: R-AN2400-1901RS FCC ID: S7AIW02 IC : 8154A-IW02 Copyright ○ c 2012, LTA Co., Ltd. Page 12 of 14 ANTENNA- M/N: R-AN2400-5801RS FCC ID: S7AIW02 IC : 8154A-IW02 Copyright ○ c 2012, LTA Co., Ltd. Page 13 of 14 ANTENNA- M/N: AN2400-3306RS FCC ID: S7AIW02 IC : 8154A-IW02 Copyright ○ c 2012, LTA Co., Ltd. Page 14 of 14 ANTENNA- M/N: SENA_F0165

FCC ID: S7AIW02 IC : 8154A-IW02 Copyright Ⓒ 2012, LTA Co., Ltd. SAMPLE LABEL & LOCATION M/N Interface Type ANT Connector TypeType Description BCD110DU DIP Type U.FL DDIP(Interface) BCD110DC DIP Type CHIP SSMD(Interface) BCD110DS DIP Type RPSMA U U.FL Connector ANT BCD110SC SMD Type CHIP CCHIP ANT BCD110SU SMD Type U.FL S RPSMA Connector ANT

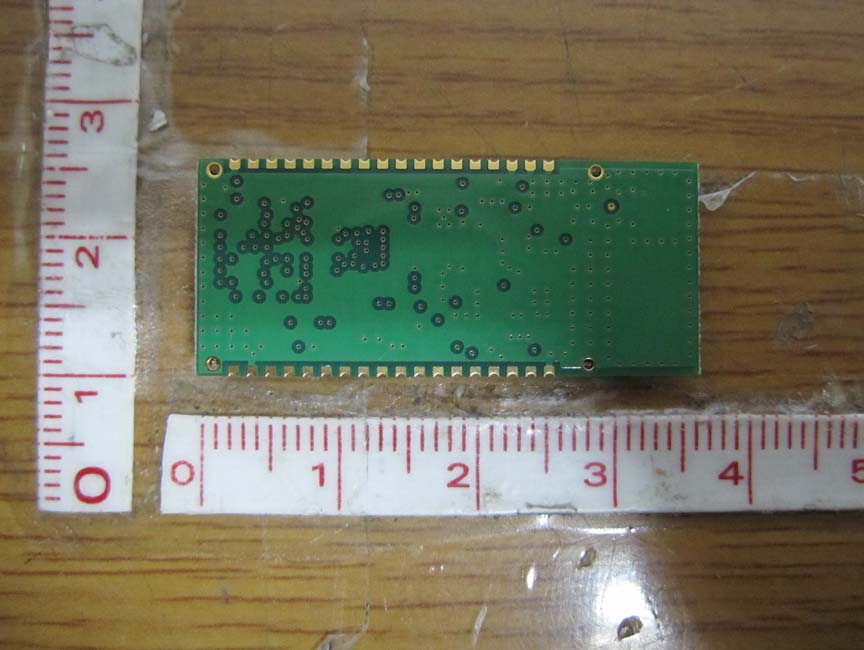

FCC ID: S7AIW02 IC: 8154A-IW02 Copyright ○ c 2012, LTA Co., Ltd. Page 1 of 1 MainBoard - Front MainBoard - Rear

FCC ID: S7AIW02 ATTACHMENT ** MPE Calculations ** The MPE calculation for this exposure is shown below. The peak radiated output power (EIRP) is calculated as follows: EIRP = P + G EIRP = 14.21 dBm + 5.37 dBi EIRP = 19.58 dBm Where, P = Power input to the antenna (mW) G = Power gain of the antenna (dBi) Power density at the specific separation: S = PG/(4R 2 π) Where, S = Maximum power density (mW/cm 2 ) P = Power input to the antenna (mW) G = Numeric power gain of the antenna R = Distance to the center of the radiation of the antenna (20cm = limit for MPE) S = (26.36 *3.44) / (4 * 20 2 * π) S = 0.0181 mW/cm 2 The Maximum permissible exposure (MPE) for the general population is 1 mW/cm 2 . The power density does not exceed the 1 mW/cm 2 limit. Therefore, the exposure condition is compliant with FCC rules. Estimated safe separation: R = √(PG / 4π) Where, P = Power input to the antenna (mW) G = Numeric power gain of the antenna R = Distance to the center of the radiation of the antenna (20cm = limit for MPE) R = √(26.36*3.44 / 4π) R = 2.69 Cm The numeric gain(G) of the antenna with a gain specified in dB is determined by: G = Log -1 (dB antenna gain / 10) G = Log -1 (5.37 / 10) G = 3.44

Ref. No.: LR500111202A Copyright c 2012, LTA Co., Ltd. Page 1 of 53 243 Jubug-Ri,Yangji-Myeon, Yongin-Si, Gyeonggi-Do, Korea 449-822 Tel: +82-31-323-6008 Fax: +82-31-323-6010 http://www.ltalab.com Dates of Tests: February 02 ~10, 2012 Test Report S/N: LR500111202A Test Site : LTA CO., LTD. CERTIFICATION OF COMPLIANCE FCC ID IC APPLICANT Equipment Class : Part 15 Spread Spectrum Transmitter (DSS) Manufacturing Description : Bluetooth Module Manufacturer : Sena Technologies, Inc. Model name : Parani-BCD110DU Variant Model name : Parani-BCD110DS, Parani-BCD110DC Parani-BCD110SU, Parani-BCD110SC Test Device Serial No.: : Identical prototype Rule Part(s) : FCC Part 15.247 Subpart C; ANSI C-63.4-2003 RSS-210 and ISSUE No. :8 Date :2010 Frequency Range : 2402 ~ 2480MHz RF power : Max 14.21 dBm - Conducted Data of issue : February 16, 2012 This test report is issued under the authority of: The test was supervised by: Hyun-Chae You, Manager Ki-Hun Cho, Test Engineer This test result only responds to the tested sample. It is not allowed to copy this report even partly without the allowance of the test laboratory. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the Federal Government. S7AIW02 8154A-IW02 Sena Technologies, Inc. Ref. No.: LR500111202A Copyright c 2012, LTA Co., Ltd. Page 2 of 53 TABLE OF CONTENTS 1. GENERAL INFORMATION’S -------------------------------------------------------------------------- 2. INFORMATION’S ABOUT TEST ITEM ------------------------------------------------------------- 3. TEST REPORT --------------------------------------------------------------------------------------------- 3.1 SUMMARY OF TESTS ------------------------------------------------------------------------------ 3.2 TECHNICAL CHARACTERISTICS TEST ------------------------------------------------------- 3.2.1 CARRIER FREQUENCY SEPARATION ---------------------------------------------------- 3.2.2 NUMBER OF HOPPING FREQUENCIES -------------------------------------------------- 3.2.3 20 dB BANDWIDTH ---------------------------------------------------------------------------- 3.2.4 TIME OF OCCUPANCY (Dwell Time) ------------------------------------------------------- 3.2.5 TRANSMITTER OUTPUT POWER ---------------------------------------------------------- 3.2.6 BAND – EDGE & SPURIOUS ----------------------------------------------------------------- 3.2.7 FIELD STRENGTH OF HARMONICS-Transmitter ------------------------------------------- 3.2.8 FIELD STRENGTH OF HARMONICS-Receiver ---------------------------------------------- 3.2.9 AC CONDUCTED EMISSIONS -------------------------------------------------------------- APPENDIX APPENDIX TEST EQUIPMENT USED FOR TESTS -------------------------------------------- 3 4 5 5 6 6 8 10 17 23 27 34 42 51 52 Ref. No.: LR500111202A Copyright c 2012, LTA Co., Ltd. Page 3 of 53 1. General information’s 1-1 Test Performed Company name : LTA Co., Ltd. Address : 243, Jubug-ri,Yangji-Myeon,Youngin-Si, Kyunggi-Do, Korea. 449-822 Web site : http://www.ltalab.com E-mail : [email protected] Telephone : +82-31-323-6008 Facsimile +82-31-323-6010 Quality control in the testing laboratory is implemented as per ISO/IEC 17025 which is the “General requirements for the competents of calibration and testing laboratory”. 1-2 Accredited agencies LTA Co., Ltd. is approved to perform EMC testing by the following agencies: Agency Country Accreditation No. Validity Reference NVLAP U.S.A 200723-0 2012-09-30 ECT accredited Lab. RRL KOREA KR0049 2013-04-24 EMC accredited Lab. FCC U.S.A 610755 2014-04-27 FCC filing FCC U.S.A 649054 2013-04-13 FCC CAB VCCI JAPAN R2133(10m), C2307 2014-06-21 VCCI registration VCCI JAPAN T-2009 2013-12-23 VCCI registration IC CANADA IC5799 2012-05-14 IC filing Ref. No.: LR500111202A Copyright c 2012, LTA Co., Ltd. Page 4 of 53 2. Information’s about test item 2-1 Client & Manufacturer Company name : Sena Technologies, Inc. Address : 210 Yangjae-dong Seocho-gu Seoul 137-130 Korea Telephone / Facsimile : +82-2-571-8283/ +82-2-573-7710 2-2 Equipment Under Test (EUT) Trade name : Bluetooth Module FCC ID : S7AIW02 Model name : Parani-BCD110DU Serial number : Identical prototype Date of receipt : January 26, 2012 EUT condition : Pre-production, not damaged Antenna type : Dipole antenna (M/N: R-AN2400-1901RS) Max Gain 5.37 dBi Dipole antenna (M/N: R-AN2400-5801RS) Max Gain 3.27 dBi Dipole antenna (M/N: AN2400-3306RS) Max Gain 1.40 dBi Chip antenna (SENA_F0615) Max Gain: 0.2dBi Frequency Range : 2402 ~ 2480MHz RF output power : Max.14.21 dBm - Conducted Number of channels : 79 Duty cycle : 80.90 % Channel spacing : 1MHz Channel Access Protocol : Frequency Hopping Spread Spectrum (FHSS) Type of Modulation : Basic Mode(GFSK), EDR Mode(Pi/4 DQPSK, 8DPSK) Power Source : 3.3Vdc by Main System Firmware Version : V1.0.0 2-4 Tested frequency LOW MID HIGH Frequency (MHz) 2402 2441 2480 Ref. No.: LR500111202A Copyright c 2012, LTA Co., Ltd. Page 5 of 53 2-5 Ancillary Equipment Equipment Model No. Serial No. Manufacturer Notebook PP37L 29705283757 DELL MOUSE SMH-210U M2UWTAKQ605877M MONTEREY INTERNATIONAL CORP PRINTER Deskjet 600K SG763131XX HP DC Power Supply E3615A KR72705061 HP 2-6 Model Description Ref. No.: LR500111202A Copyright c 2012, LTA Co., Ltd. Page 6 of 53 3. Test Report 3.1 Summary of tests FCC Part Section(s) Parameter Limit Test Condition Status (note 1) 15.247(a) Carrier Frequency Separation > 25 kHz Conducted C 15.247(a) Number of Hopping Frequencies > 15 hops C 15.247(a) 20 dB Bandwidth 99% Bandwidth > 1.5 MHz C 15.247 Dwell Time < 0.4 seconds C 15.247(b) Transmitter Output Power < 250 mWatt C 15.247(d) Conducted Spurious emission > 20 dBc C 15.247(d) Band Edge > 20 dBc C 15.249 / 15.209 Field Strength of Harmonics < 54 dBuV (at 3m) Radiated C 15.109 Field Strength - C 15.207 /15.107 AC Conducted Emissions EN 55022 Line Conducted NC Note3 15.203 Antenna requirement - - C Note 1: C=Complies …

Text truncated - open the document above for the full version.

FCC ID: S7AIW02 IC: 8154A-IW02 Copyright ○ c 2012, LTA Co., Ltd. Page 1 of 2 Radiated Emission FCC ID: S7AIW02 IC: 8154A-IW02 Copyright ○ c 2012, LTA Co., Ltd. Page 2 of 2 Radiated Emission
