1 Parani-ESD100/110/200/210 User Guide Version 1.0.0 2006-08-14 2 User Guide for the Parani-ESD100/110/200/210 Version 1.0.0 Firmware version 1.0.X Last revised on June 14, 2006 Printed in Korea Copyright Copyright 2002, Sena Technologies, Inc. All rights reserved. Sena Technologies reserves the right to make changes and improvements to its product without providing notice. Trademark Parani™ is a trademark of Sena Technologies, Inc. Windows® is a registered trademark of Microsoft Corporation. Ethernet® is a registered trademark of XEROX Corporation. Notice to Users When a system failure may cause serious consequences, protecting life and property against such consequences with a backup system or safety device is essential. The user agrees that protection against consequences resulting from system failure is the user's responsibility. This device is not approved for life-support or medical systems. Changes or modifications to this device not explicitly approved by Sena Technologies will void the user's authority to operate this device. Precautions and Safety Electricity Use only the supplied AC adapter. Use of unauthorized power adapter is not recommended. Electrical shock may result. Do not kink or crease the power cable or place heavy objects on the power cable. Fire can result from damaged power cables. Do not handle power plug and adapter with wet hands. Electrical shock may result. Immediately power off the product and unplug the AC adapter if smoke or odors emit from the product and adapter. Fire can result from improper use. Immediately power off the product and unplug the AC adapter if water or other liquids are present. Fire can result from improper use. Product Parani-ESD meets the RS-232 standards. Do not wire with non-standard products. Damage to your products may result from improper use. Do not drop or subject the device to impact. Damage to your products may result from improper use. Keep away from harsh environments including humid, dusty, and smoky areas. Damage to your products may result from improper use. Do not use excessive force on the buttons or attempt to disassemble the device. Damage to your products may result from improper use. Do not place heavy objects on the product. Damage to your products may result from improper use. Technical Support Sena Technologies, Inc. 210 Yangjae-dong, Seocho-gu Seoul 137-130, Korea Tel: (+82-2) 573-5422 Fax: (+82-2) 573-7710 E-Mail: [email protected] Website: http://www.sena.com 3 Contents 1. Introduction 6 1.1. Overview ................................................................................................................................... 6 1.2. Package Check List ................................................................................................................... 6 1.3. Product Specification.................................................................................................................. 7 2. Getting Started 8 2.1. Panel Layout .............................................................................................................................. 8 2.2. Connecting the Hardware .......................................................................................................... 8 2.2.1. Connecting Parani-ESD to Jig Board .............................................................................. 9 2.2.2. Connecting Power to Jig Board ....................................................................................... 9 2.2.3. Connecting a Device to Jig Board ................................................................................. 10 3. Configuration 11 3.1. Operation Modes...................................................................................................................... 11 3.2. Serial Ports ............................................................................................................................... 12 3.2.1. Data Bit .......................................................................................................................... 12 3.2.2. Hardware Flow Control .................................................................................................. 12 3.2.3. Software and Utility ........................................................................................................ 12 3.2.4. ParaniWIN...................................................................................................................... 13 3.2.5. ParaniUpdater ................................................................................................................ 19 3.2.6. Terminal Program .......................................................................................................... 19 4. Approval Information 21 4.1. FCC ................................................................................................................................. 21 4.1.1. FCC Compliance Statement .......................................................................................... 21 4.1.2. RF Exposure Statement................................................................................................. 21 4.1.3. Do not............................................................................................................................. 21 4.2. CE ................................................................................................................................. 21 4.2.1. EC-R&TTE Directive ......................................................................................................21 5. RF Information 22 5.1. Radio Frequency Range .......................................................................................................... 22 5.2. Number of Frequency Channel ................................................................................................22 5.3. Transmission Method ...............................................................................................…

Text truncated - open the document above for the full version.

Sena Technologies, Inc. 210 Yangjae-dong Seocho-gu Seoul 137-130 Korea Tel. +82-2-571-8283 Fax +82-2-573-7710 September 07, 2006 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re : Sena Technologies, Inc. FCC ID : S7APARANIESD100 Request for Confidentiality Gentlemen: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Schematics, Parts list, Block diagram and Operational description. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, __________________________ Seung – Hyun Kim Associate Research Engineer

Sena Technologies, Inc. 210 Yangjae-dong Seocho-gu Seoul 137-130 Korea Tel. +82-2-571-8283 Fax +82-2-573-7710 FCC ID : S7APARANIESD100 Request for transmitter Modular approval Transmitter Module Characteristics No Requirements EUT 1 Have its own RF shielding Device is equipped with metal shielding to cover RF section. Refer to external photos. 2 Have buffered modulation/data inputs (if such inputs are provided) All inputs to the modules are buffered thought logic or microprocessor inputs. 3 Have it own power supply regulation Internal 1.8V power regulation. Refer to Module Block diagram 4 Meet the antenna requirements of Section 15.203 Refer to external photos. 5 Be tested in a stand-alone configuration, i.e., the antenna, AC or DC power and data input/output lines must be connected to the module but, the module must not be inside another case during testing Device was tested on a supplied development platform for limited modular approval. Refer to setup photos. 6 Be labeled with its own FCC ID number, and if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module Label is to be placed in front of the EUT(ESD100), and other label is to be placed in the User’s Guide. Refer to FCC ID label format. 7 The modular transmitter is manufactured so that the user cannot influence the operation of the transmitter that will operate outside of the scope of the regulations. Refer to “User’s Guide” 8 Address compliance with the Commission’s RF exposure limits in Sections 1.1310 and 2.1091. In addition, spread spectrum transmitters operating under Section 15.247 are required to address RF exposure compliance in accordance with Section 15.247(b)(4). This device is categorically excluded from routine environmental because it operate at very low power level

Sena Technologies, Inc. 210 Yangjae-dong Seocho-gu Seoul 137-130 Korea Tel. +82-2-571-8283 Fax +82-2-573-7710 September 07, 2006 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re : Sena Technologies, Inc. FCC ID : S7APARANIESD100 Request for Short-Term Confidentiality Gentlemen: In accordance with 0.459 of CFR 47, Sena Technologies, Inc. requests short-term Confidentiality of following sections of this application for a period of 45 days after grant is issued. Test setup photos External photos Internal photos, and User’s manual These documents contain detailed system and equipment descriptions and related information about the product, which Sena Technologies, Inc. considers to be proprietary, confidential, and a custom design and otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, Sena Technologies, Inc. feels that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give our competitors an unfair advantage in the market. Sincerely, __________________________ Seung – Hyun Kim Associate Research Engineer

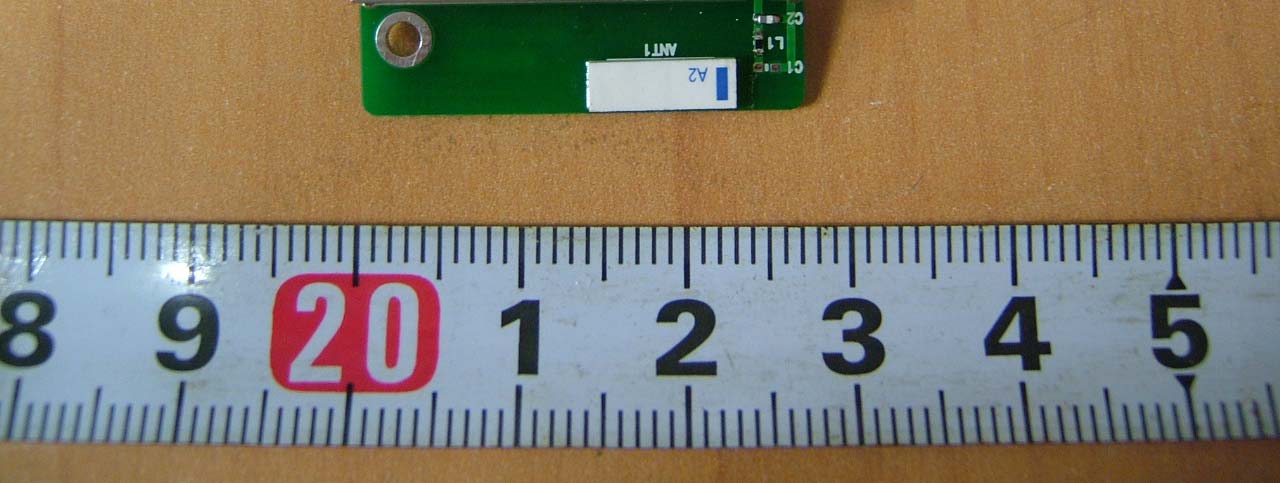

FCC ID: S7APARANIESD100 Copyright ○ c 2006, LTA Co., Ltd. Page 1 of 1

FCC ID: S7APARANIESD100 Copyright Ⓒ 2006, LTA Co., Ltd. SAMPLE LABEL & LOCATION - The FCC label shown is representative of the label that will appear on the radio when in production. Other information may also be included in the user's manual. FCC ID:S7APARANIESD100

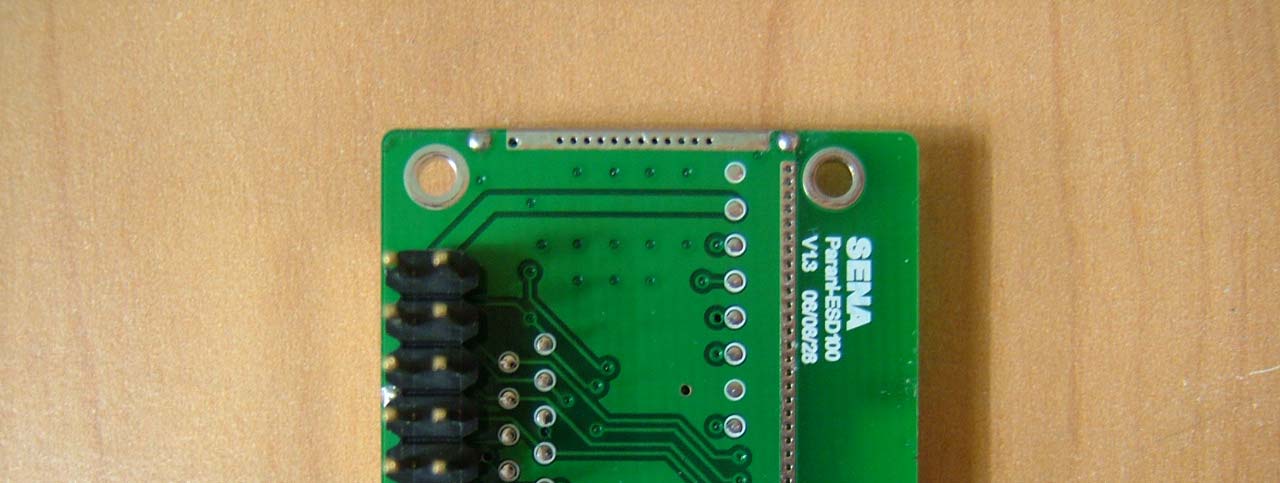

FCC ID: S7APARANIESD100 Copyright ○ c 2006, LTA Co., Ltd. Page 1 of 1

ATTACHMENT FCC ID: S7APARANIESD100 ** MPE Calculations ** The EUT will only be used with a separation of 20 centimeters or greater between the antenna and the body of the user. The MPE calculation for this exposure is shown below. The peak radiated output power (EIRP) is calculated as follows: EIRP = P + G EIRP = 13.61 dBm +3.95 dBi EIRP = 17.56 dBm Where, P = Power input to the antenna (mW) G = Power gain of the antenna (dBi) Power density at the specific separation: S = PG/(4R 2 π) S = (22.96 * 2.48) / (4 * 20 2 * π) S = 0.0113 mW/cm 2 Where, S = Maximum power density (mW/cm 2 ) P = Power input to the antenna (mW) G = Numeric power gain of the antenna R = Distance to the center of the radiation of the antenna (20cm = limit for MPE) The Maximum permissible exposure (MPE) for the general population is 1 mW/cm 2 . The power density at 20cm does not exceed the 1 mW/cm 2 limit. Therefore, the exposure condition is compliant with FCC rules. Estimated safe separation: R = √(PG / 4π) R = √(22.96 * 2.48 / 4π) R = 2.13 cm Where, P = Power input to the antenna (mW) G = Numeric power gain of the antenna R = Distance to the center of the radiation of the antenna (20cm = limit for MPE) The numeric gain(G) of the antenna with a gain specified in dB is determined by: G = Log -1 (dB antenna gain / 10) G = Log -1 (3.95 / 10) G = 2.48

Ref. No.: LR500110609A Copyright ○ c 2006, LTA Co., Ltd. Page 1 of 28 243 Jubug-Ri,Yangji-Myeon, Yongin-Si, Gyeonggi-Do, Korea 449-822 Tel: +82-31-323-6008 Fax: +82-31-323-6010 http://www.ltalab.com Dates of Tests: AUG 21 ~ SEP 04, 2006 Test Report S/N: LR500110609A Test Site : LTA C O . , LT D . CERTIFICATIO OF COMPLIANCE FCC ID. APPLICANT FCC Classification : FHSS Sequence Spread Spectrum (FHSS) Manufacturing Description : Bluetooth Serial Adaptor Manufacturer : Sena Technologies, Inc. Model name : Parani-ESD100 Test Device Serial No.: : Identification Rule Part(s) : FCC Part 15.247 Subpart C; ANSI C-63.4-2003 Frequency Range : 2402 ~ 2480MHz RF power : 13.61dBm - Conducted Data of issue : September 05, 2006 This test report is issued under the authority of: The test was supervised by: Dong –Min JUNG, Technical Manager Kyung-Taek LEE, Test Engineer This test result only responds to the tested sample. It is not allowed to copy this report even partly without the allowance of the test laboratory. This report must not be used by the applicant to claim product endorsement by any agency. NVLAP LAB Code.: 200723-0 S7APARANIESD100 Sena Technologies, Inc. Ref. No.: LR500110609A Copyright ○ c 2006, LTA Co., Ltd. Page 2 of 28 TABLE OF CONTENTS 1. GENERAL INFORMATION’S -------------------------------------------------------------------------- 2. INFORMATION’S ABOUT TEST ITEM ------------------------------------------------------------- 3. TEST REPORT --------------------------------------------------------------------------------------------- 3.1 SUMMARY OF TESTS ------------------------------------------------------------------------------ 3.2 TECHNICAL CHARACTERISTICS TEST ------------------------------------------------------- 3.2.1 CARRIER FREQUENCY SEPARATION ---------------------------------------------------- 3.2.2 NUMBER OF HOPPING FREQUENCIES -------------------------------------------------- 3.2.3 20 dB BANDWIDTH ---------------------------------------------------------------------------- 3.2.4 TIME OF OCCUPANCY (Dwell Time) ------------------------------------------------------- 3.2.5 TTANSMITTER OUTPUT POWER ---------------------------------------------------------- 3.2.6 BAND - EDGE ----------------------------------------------------------------------------------- 3.2.7 FIELD STRENGTH OF HARMONICS ------------------------------------------------------ APPENDIX APPENDIX TEST EQUIPMENT USED FOR TESTS -------------------------------------------- 3 4 5 5 6 6 8 11 13 15 17 26 27 Ref. No.: LR500110609A Copyright ○ c 2006, LTA Co., Ltd. Page 3 of 28 1. General information’s 1-1 Test Performed Company name : LTA Co., Ltd. Address : 243, Jubug-ri,Yangji-Myeon,Youngin-Si, Kyunggi-Do, Korea. 449-822 Web site : http://www.ltalab.com E-mail : [email protected] Telephone : +82-31-323-6008 Facsimile +82-31-323-6010 Quality control in the testing laboratory is implemented as per ISO/IEC 17025 which is the “General requirements for the competents of calibration and testing laboratory”. 1-2 Accredited agencies LTA Co., Ltd. is approved to perform EMC testing by the following agencies: Agency Country Accreditation No. Validity Reference NVLAP U.S.A 200723-0 2006-09-30 ECT accredited Lab. RRL KOREA KR0049 2007-07-13 EMC accredited Lab. FCC U.S.A 610755 2008-03-28 FCC filing VCCI JAPAN R2133, C2307 2008-06-22 VCCI registration IC CANADA IC5799 2008-04-23 IC filing Ref. No.: LR500110609A Copyright ○ c 2006, LTA Co., Ltd. Page 4 of 28 2. Information’s about test item 2-1 Client & Manufacturer Company name : Sena Technologies, Inc. Address : 210 Yangjae-dong Seocho-gu Seoul 137-130 Korea TEL / FAX : +82-2-571-8283/ +82-2-573-7710 2-2 Equipment Under Test (EUT) Trade name : Bluetooth Serial Adaptor FCC ID : S7APARANIESD100 Model name : Parani-ESD100 Serial number : Identification Date of receipt : August 21, 2006 EUT condition : Pre-production, not damaged Antenna type : Chip antenna Max Gain 3.95dBi Frequency Range : 2402 ~ 2480MHz RF output power : 13.61 dBm - Conducted Number of channels : 79 Channel spacing : 1MHz Channel Access Protocol : Frequency Hopping Type of Modulation : GFSK Power Source : 3.3V 2-3 Tested frequency LOW MID HIGH Frequency (MHz) 2402 2441 2480 2-4 Ancillary Equipment Equipment Model No. Serial No. Manufacturer Mouse MO56UO 510022473 DELL Notebook Latitude D505 8N29F1S DELL Bluetooth Jig N/A N/A SENA Ref. No.: LR500110609A Copyright ○ c 2006, LTA Co., Ltd. Page 5 of 28 3. Test Report 3.1 Summary of tests FCC Part Section(s) Parameter Limit Te s t Condition Status (note 1) 15.247(a) Carrier Frequency Separation > 25 kHz C 15.247(a) Number of Hopping Frequencies > 75 hops C 15.247(a) 20 dB Bandwidth < 1 MHz C 15.247 Dwell Time < 0.4 seconds C 15.247(b) Transmitter Output Power < 1Watt C 15.247(d) Conducted Spurious emission > 20 dBc C 15.247(d) Band Edge > 20 dBc Conducted C 15.249 / 15.209 Field Strength of Harmonics < 54 dBuV (at 3m) Radiated C 15.207 /15.107 AC Conducted Emissions EN 55022 Line Conducted NA Note 1: C=Complies NC=Not Complies NT=Not Tested NA=Not Applicable Note 2: The data in this test report are traceable to the national or international standards. The sample was tested according to the following specification: FCC Parts 15.247; ANSI C-63.4-2003 Ref. No.: LR500110609A Copyright ○ c 2006, LTA Co., Ltd. Page 6 of 28 3.2 Transmitter requirements 3.2.1 Carrier Frequency Separation Procedure: The carrier frequency separation was measured with a spectrum analyzer connected to the antenna terminal, while EUT had its hopping function enabled. After the trace being stable, the reading value between the peaks of the adjacent channels using the marker-delta function was recorded as the measurement results. The spectrum analyzer is set to: Span = 3 MHz (wide enough to capture the peaks of two adjacent channels) RBW = 30 kHz (1% of the span or more) Sweep = auto VBW = 30 kHz Detector function = peak Trace = max hold Measurement Data: Test Results Carrier Frequency Separation (…

Text truncated - open the document above for the full version.

FCC ID: S7APARANIESD100 Copyright Ⓒ 2006, LTA Co., Ltd. Radiated Emission FCC ID: S7APARANIESD100 Copyright Ⓒ 2006, LTA Co., Ltd.
