S7APARANIMSP1000BLUETOOTH ACCESS POINT

Parani-MSP1000 For Wireless Multi-Serial Communications, based on Bluetooth Technology User Guide Version 0.0.1 2007-05-28 2 User Guide for the Parani-MSP1000 Version 0.0.1 Firmware version 1.0.X Last revised on August 16, 2007 Printed in Korea Copyright Copyright 2007, Sena Technologies, Inc. All rights reserved. Sena Technologies reserves the right to make changes and improvements to its product without providing notice. Trademark Parani™ is a trademark of Sena Technologies, Inc. Windows® is a registered trademark of Microsoft Corporation. Ethernet® is a registered trademark of XEROX Corporation. Notice to Users Proper back-up systems and necessary safety devices should be utilized to protect against injury, death or property damage due to system failure. Such protection is the responsibility of the user. This device is not approved for use as a life-support or medical system. Any changes or modifications made to this device without the explicit approval or consent of Sena Technologies will void Sena Technologies of any liability or responsibility of injury or loss caused by any malfunction. Technical Support Sena Technologies, Inc. 210 Yangjae-dong, Seocho-gu Seoul 137-130, Korea Tel: (+82-2) 573-5422 Fax: (+82-2) 573-7710 E-Mail: [email protected] Website: http://www.sena.com 3 Revision History Revision Date Name Description V0.0.1 2007-08-16 Hanjun Yeom Initial Draft 4 Contents 1. Introduction 7 1.1. Overview .................................................................................................................................... 7 1.2. Package Check List.................................................................................................................... 8 1.3. Product Specification.................................................................................................................. 8 2. Getting Started 10 2.1. External View ........................................................................................................................... 10 2.2. LED Indicators.......................................................................................................................... 10 2.3. Connecting the Hardware ........................................................................................................ 10 2.3.1. Connecting to the network ...............................오류! 책갈피가 정의되어 있지 않습니다. 2.3.2. Connecting the power ......................................오류! 책갈피가 정의되어 있지 않습니다. 2.3.3. Accessing the System console ........................오류! 책갈피가 정의되어 있지 않습니다. 2.3.4. Using the System console ...............................오류! 책갈피가 정의되어 있지 않습니다. 2.3.5. Using Remote console.....................................오류! 책갈피가 정의되어 있지 않습니다. 2.4. Accessing the Web Browser Management Interface .오류! 책갈피가 정의되어 있지 않습니다. 2.5. Serial Port...................................................................오류! 책갈피가 정의되어 있지 않습니다. 2.6. Reset/Reboot/Quit......................................................오류! 책갈피가 정의되어 있지 않습니다. 3. Network Configuration 10 3.1. ETHERNET0 (eth0) Configuration ........................................................................................... 17 3.1.1. When using a Static IP Address..................................................................................... 17 3.1.2. When using Dynamic Host Configuration Protocol (DHCP) .......................................... 19 3.2. ETHERNET1 (eth1) Configuration ........................................................................................... 19 3.3. SYSLOG server Configuration ................................................................................................. 20 3.4. Firewall Configuration .............................................................................................................. 21 3.5. TCP service Configuration ....................................................................................................... 22 4. Bluetooth Configuration 24 4.1. Overview .................................................................................................................................. 24 4.2. Device Configuration ................................................................................................................ 24 4.2.1. Bluetooth friendly name ...................................오류! 책갈피가 정의되어 있지 않습니다. 4.2.2. Inquiry scan......................................................오류! 책갈피가 정의되어 있지 않습니다. 4.2.3. Page scan ........................................................오류! 책갈피가 정의되어 있지 않습니다. 4.2.4. Authentication ..................................................오류! 책갈피가 정의되어 있지 않습니다. 4.2.5. Pass key (PIN code) ........................................오류! 책갈피가 정의되어 있지 않습니다. 4.2.6. Encryption ........................................................오류! 책갈피가 정의되어 있지 않습니다. 4.2.7. Available Bluetooth devices .............................오류! 책갈피가 정의되어 있지 않습니다. 4.3. Serial Port Profile (SPP) Configuration ................................................................................... .24 4.3.1. Operation mode ............................................................................................................. 24 4.3.2. Operation mode – Initiate connection to unspecific devices.......................................... 25 4.3.3. Operation mode – Accept connection from unspecific devices ..................................... 28 4.3.4. Operation mode – Initiate/Accept connection to/from specific devices ......................... 28 4.3.5. Available Bluetooth devices .............................오류! 책갈피가 정의되어 있지 않습니다. 4.4. PAN/DUN/LAP Configuration ................................................................................................... 30 4.4.1. Private address .............................................................................................................. 30 4.4.2. Personal Area Networking (PAN)................................................................................... 30 …

Text truncated - open the document above for the full version.

Sena Technologies, Inc. 210 Yangjae-dong Seocho-gu Seoul 137-130 Korea Tel. +82-2-571-8283 Fax +82-2-573-7710 August 31, 2007 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re : Sena Technologies, Inc. FCC ID : S7APARANIMSP1000 Request for Confidentiality Gentlemen: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Schematics (File name: [S7APARANIMSP1000] SCH.pdf), Parts list(File name: [S7APARANIMSP1000] PL.pdf), Block diagram (File name: [S7APARANIMSP1000] BLK.pdf), and Operational description (File name: [S7APARANIMSP1000] Op Des.pdf). The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, __________________________ Seung – Hyun Kim Associate Research Engineer

Model No.: Parani-MSP1000 FCC ID: S7APARANIMSP1000 Copyright ○ c 2007, LTA Co., Ltd. Page 1 of 4 Model No.: Parani-MSP1000 FCC ID: S7APARANIMSP1000 Copyright ○ c 2007, LTA Co., Ltd. Page 2 of 4 Model No.: Parani-MSP1000 FCC ID: S7APARANIMSP1000 Copyright ○ c 2007, LTA Co., Ltd. Page 3 of 4 Model No.: Parani-MSP1000 FCC ID: S7APARANIMSP1000 Copyright ○ c 2007, LTA Co., Ltd. Page 4 of 4

FCC ID: S7APARANIMSP1000 Copyright Ⓒ 2007, LTA Co., Ltd. SAMPLE LABEL & LOCATION SENA FCC ID:S7APARANIMSP1000 M/N: Parani-MSP1000 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference, and This device must accept any interference received, Including interference that may cause undesired operation. Made in Korea

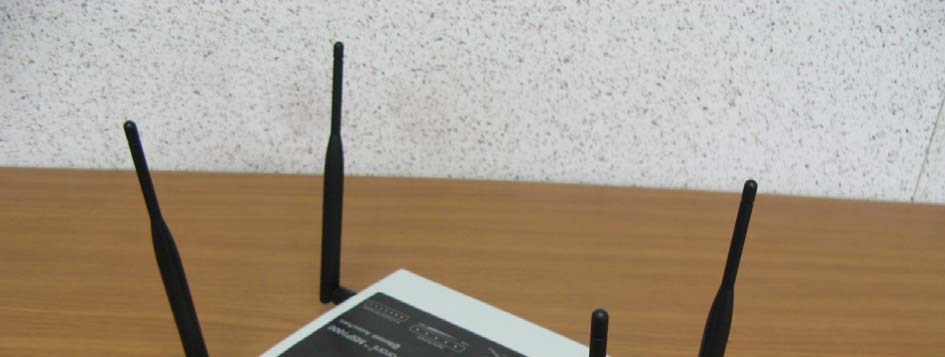

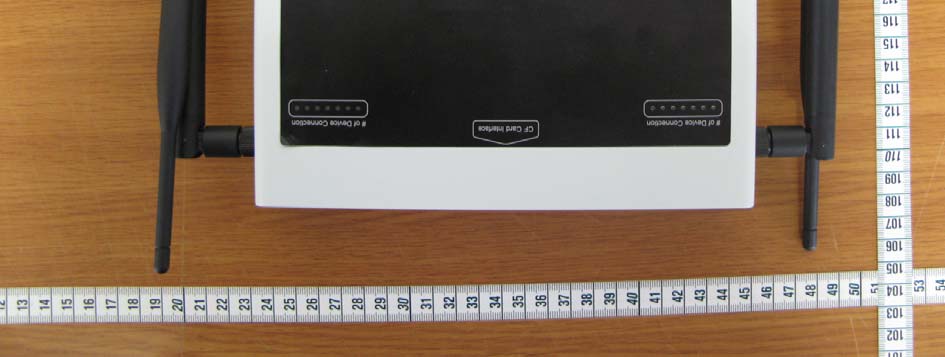

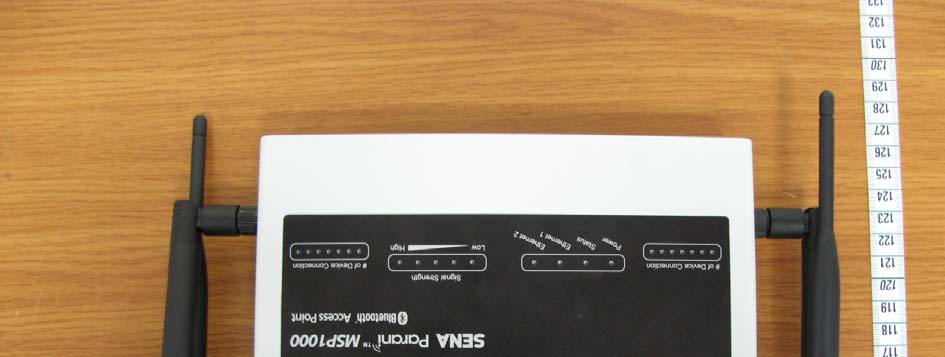

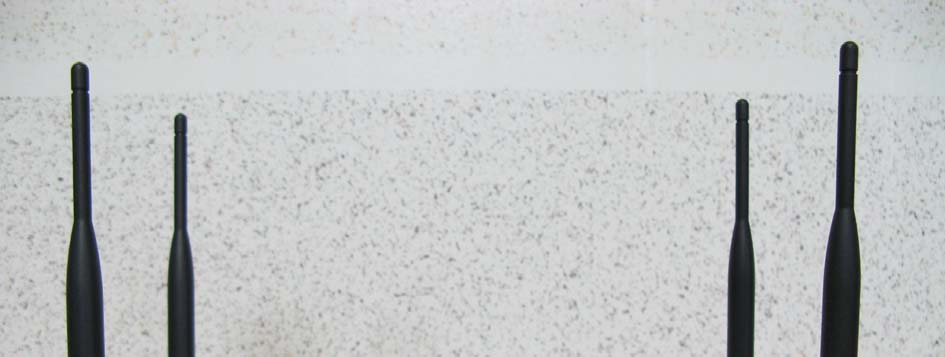

Model No.: Parani-MSP1000 FCC ID: S7APARANIMSP1000 Copyright ○ c 2007, LTA Co., Ltd. Page 1 of 8 Model No.: Parani-MSP1000 FCC ID: S7APARANIMSP1000 Copyright ○ c 2007, LTA Co., Ltd. Page 2 of 8 Model No.: Parani-MSP1000 FCC ID: S7APARANIMSP1000 Copyright ○ c 2007, LTA Co., Ltd. Page 3 of 8 ANTENNA- M/N: R-AN2400-1901RS Model No.: Parani-MSP1000 FCC ID: S7APARANIMSP1000 Copyright ○ c 2007, LTA Co., Ltd. Page 4 of 8 Model No.: Parani-MSP1000 FCC ID: S7APARANIMSP1000 Copyright ○ c 2007, LTA Co., Ltd. Page 5 of 8 ANTENNA- M/N: R-AN2400-5801RS Model No.: Parani-MSP1000 FCC ID: S7APARANIMSP1000 Copyright ○ c 2007, LTA Co., Ltd. Page 6 of 8 Model Description-Internal Potograph M/N: Parani-MSP1000 A ; with RF Module 1ea Model No.: Parani-MSP1000 FCC ID: S7APARANIMSP1000 Copyright ○ c 2007, LTA Co., Ltd. Page 7 of 8 Model Description-Internal Potograph M/N: Parani-MSP1000 B ; with RF Module 2ea Model No.: Parani-MSP1000 FCC ID: S7APARANIMSP1000 Copyright ○ c 2007, LTA Co., Ltd. Page 8 of 8 Model Description-Internal Potograph M/N: Parani-MSP1000 C ; with RF Module 4ea

ATTACHMENT FCC ID: S7APARANIMSP1000 ** MPE Calculations ** The EUT will only be used with a separation of 20 centimeters or greater between the antenna and the body of the user. The MPE calculation for this exposure is shown below. The peak radiated output power (EIRP) is calculated as follows: EIRP = P + G EIRP = 14.63 dBm + 5.0dBi EIRP = 19.63 dBm Where, P = Power input to the antenna (mW) G = Power gain of the antenna (dBi) Power density at the specific separation: S = PG/(4R 2 π) S = (29.04 * 3.16) / (4 * 20 2 * π) S = 0.0183 mW/cm 2 Where, S = Maximum power density (mW/cm 2 ) P = Power input to the antenna (mW) G = Numeric power gain of the antenna R = Distance to the center of the radiation of the antenna (20cm = limit for MPE) The Maximum permissible exposure (MPE) for the general population is 1 mW/cm 2 . The power density at 20cm does not exceed the 1 mW/cm 2 limit. Therefore, the exposure condition is compliant with FCC rules. Estimated safe separation: R = √(PG / 4π) R = √(29.04 * 3.16 / 4π) R = 2.7 Cm Where, P = Power input to the antenna (mW) G = Numeric power gain of the antenna R = Distance to the center of the radiation of the antenna (20cm = limit for MPE) The numeric gain(G) of the antenna with a gain specified in dB is determined by: G = Log -1 (dB antenna gain / 10) G = Log -1 (5 / 10) G = 3.16

Ref. No.: LR500190708C Copyright ○ c 2007, LTA Co., Ltd. Page 1 of 34 243 Jubug-Ri,Yangji-Myeon, Yongin-Si, Gyeonggi-Do, Korea 449-822 Tel: +82-31-323-6008 Fax: +82-31-323-6010 http://www.ltalab.com Dates of Tests: August 01 ~ 08, 2007 Test Report S/N: LR500190708C Test Site : LTA CO., LTD. CERTIFICATION OF COMPLIANCE FCC ID. APPLICANT FCC Classification : FHSS Sequence Spread Spectrum (FHSS) Manufacturing Description : Bluetooth Serial Adaptor Manufacturer : Sena Technologies, Inc. Model name : Parani-ESD1000 Test Device Serial No.: : Identical prototype Rule Part(s) : FCC Part 15.247 Subpart C; ANSI C-63.4-2003 Frequency Range : 2402 ~ 2480MHz RF power : 14.63dBm - Conducted Data of issue : August 10, 2007 This test report is issued under the authority of: The test was supervised by: Dong –Min JUNG, Technical Manager Kyung-Taek LEE, Test Engineer This test result only responds to the tested sample. It is not allowed to copy this report even partly without the allowance of the test laboratory. This report must not be used by the applicant to claim product endorsement by any agency. NVLAP LAB Code.: 200723-0 S7APARANIESD1000 Sena Technologies, Inc. Ref. No.: LR500190708C Copyright ○ c 2007, LTA Co., Ltd. Page 2 of 34 TABLE OF CONTENTS 1. GENERAL INFORMATION’S -------------------------------------------------------------------------- 2. INFORMATION’S ABOUT TEST ITEM ------------------------------------------------------------- 3. TEST REPORT --------------------------------------------------------------------------------------------- 3.1 SUMMARY OF TESTS ------------------------------------------------------------------------------ 3.2 TECHNICAL CHARACTERISTICS TEST ------------------------------------------------------- 3.2.1 CARRIER FREQUENCY SEPARATION ---------------------------------------------------- 3.2.2 NUMBER OF HOPPING FREQUENCIES -------------------------------------------------- 3.2.3 20 dB BANDWIDTH ---------------------------------------------------------------------------- 3.2.4 TIME OF OCCUPANCY (Dwell Time) ------------------------------------------------------- 3.2.5 TTANSMITTER OUTPUT POWER ---------------------------------------------------------- 3.2.6 BAND – EDGE ----------------------------------------------------------------------------------- 3.2.7 FIELD STRENGTH OF HARMONICS ------------------------------------------------------ 3.2.8 AC CONDUCTED EMISSIONS -------------------------------------------------------------- APPENDIX APPENDIX TEST EQUIPMENT USED FOR TESTS -------------------------------------------- 3 4 5 5 6 6 8 11 15 17 21 28 30 33 Ref. No.: LR500190708C Copyright ○ c 2007, LTA Co., Ltd. Page 3 of 34 1. General information’s 1-1 Test Performed Company name : LTA Co., Ltd. Address : 243, Jubug-ri,Yangji-Myeon,Youngin-Si, Kyunggi-Do, Korea. 449-822 Web site : http://www.ltalab.com E-mail : [email protected] Telephone : +82-31-323-6008 Facsimile +82-31-323-6010 Quality control in the testing laboratory is implemented as per ISO/IEC 17025 which is the “General requirements for the competents of calibration and testing laboratory”. 1-2 Accredited agencies LTA Co., Ltd. is approved to perform EMC testing by the following agencies: Agency Country Accreditation No. Validity Reference NVLAP U.S.A 200723-0 2007-09-30 ECT accredited Lab. RRL KOREA KR0049 2009-06-20 EMC accredited Lab. FCC U.S.A 610755 2008-03-28 FCC filing VCCI JAPAN R2133, C2307 2008-06-22 VCCI registration IC CANADA IC5799 2008-04-23 IC filing Ref. No.: LR500190708C Copyright ○ c 2007, LTA Co., Ltd. Page 4 of 34 2. Information’s about test item 2-1 Applicant & Manufacturer Company name : Sena Technologies, Inc. Address : 210 Yangjae-dong Seocho-gu Seoul 137-130 Korea TEL / FAX : +82-2-571-8283/ +82-2-573-7710 2-2 Equipment Under Test (EUT) Trade name : Bluetooth Serial Adaptor FCC ID : S7APARANIESD1000 Model name : Parani-ESD1000 Serial number : Identification Date of receipt : July 30, 2007 EUT condition : Pre-production, not damaged Antenna type : External antenna (M/N: R-AN2400-1901RS) Max Gain 5dBi External antenna (M/N: R-AN2400-5801RS) Max Gain 3.17dBi External antenna (M/N: WE-2400PO) Max Gain 1.564dBi Antenna connector : Reverse polarity SMA connector Frequency Range : 2402 ~ 2480MHz Conducted output power : GFSK: 14.63dBm / Pi/4 DQPSK: 7.54dBm / 8DPSK: 8.57dBm Number of channels : 79 Channel spacing : 1MHz Channel Access Protocol : Frequency Hopping Type of Modulation : GFSK, Pi/4 DQPSK, 8DPSK Power Source : 3.3V 2-3 Tested frequency LOW MID HIGH Frequency (MHz) 2402 2441 2480 2-5 Ancillary Equipment Equipment Model No. Serial No. Manufacturer Note PC Latitude D505 8N29F1S DELL - - - - Ref. No.: LR500190708C Copyright ○ c 2007, LTA Co., Ltd. Page 5 of 34 3. Test Report 3.1 Summary of tests FCC Part Section(s) Parameter Limit Test Condition Status (note 1) 15.247(a) Carrier Frequency Separation > 25 kHz C 15.247(a) Number of Hopping Frequencies > 75 hops C 15.247(a) 20 dB Bandwidth < 1 MHz C 15.247 Dwell Time < 0.4 seconds C 15.247(b) Transmitter Output Power < 1Watt C 15.247(d) Conducted Spurious emission > 20 dBc C 15.247(d) Band Edge > 20 dBc Conducted C 15.249 / 15.209 Field Strength of Harmonics < 54 dBuV (at 3m) C 15.109 Field Strength - Radiated C 15.207 /15.107 AC Conducted Emissions EN 55022 Line Conducted C 15.203 Antenna requirement - - C Note 1: C=Complies NC=Not Complies NT=Not Tested NA=Not Applicable Note 2: The data in this test report are traceable to the national or international standards. The sample was tested according to the following specification: FCC Parts 15.247; ANSI C-63.4-2003 Æ Antenna Requirement The Sena Technologies, Inc. Parani-ESD1000 unit complies with the requirement of §15.203. The antenna connector is the reverse polarity SMA connector. Ref. No.: LR500190708C Copyright ○ c 2007, LTA Co., Ltd. Page 6 of 34 3.2 Transmitter requirements 3.2.1 Carrier Frequency Separation Procedure: The carrier frequency separation was measured with a spectrum analy…

Text truncated - open the document above for the full version.

Ref. No.: LR500110708D Copyright ○ c 2007, LTA Co., Ltd. Page 1 of 12 243 Jubug-Ri,Yangji-Myeon, Yongin-Si, Gyeonggi-Do, Korea 449-822 Tel: +82-31-323-6008 Fax: +82-31-323-6010 http://www.ltalab.com Dates of Tests: August 13 ~ 14, 2007 Test Report S/N: LR500110708D Test Site : LTA CO., LTD. CERTIFICATION OF COMPLIANCE FCC ID. APPLICANT FCC Classification : FHSS Sequence Spread Spectrum (FHSS) Manufacturing Description : Bluetooth Access Point Manufacturer : Sena Technologies, Inc. Model name : Parani-MSP1000 Test Device Serial No.: : Identical prototype Rule Part(s) : FCC Part 15.247 Subpart C; ANSI C-63.4-2003 Frequency Range : 2402 ~ 2480MHz Max. Output Power : 14.63dBm - Conducted Data of issue : August 17, 2007 This test report is issued under the authority of: The test was supervised by: Dong –Min JUNG, Technical Manager Kyung-Taek LEE, Test Engineer This test result only responds to the tested sample. It is not allowed to copy this report even partly without the allowance of the test laboratory. This report must not be used by the applicant to claim product endorsement by any agency. NVLAP LAB Code.: 200723-0 S7APARANIMSP1000 Sena Technologies, Inc. Ref. No.: LR500110708D Copyright ○ c 2007, LTA Co., Ltd. Page 2 of 12 TABLE OF CONTENTS 1. GENERAL INFORMATION’S -------------------------------------------------------------------------- 2. INFORMATION’S ABOUT TEST ITEM ------------------------------------------------------------- 3. TEST REPORT --------------------------------------------------------------------------------------------- 3.1 SUMMARY OF TESTS ------------------------------------------------------------------------------ 3.2 TECHNICAL CHARACTERISTICS TEST ------------------------------------------------------- 3.2.1 FIELD STRENGTH OF HARMONICS ------------------------------------------------------ 3.2.2 AC CONDUCTED EMISSIONS -------------------------------------------------------------- APPENDIX APPENDIX TEST EQUIPMENT USED FOR TESTS -------------------------------------------- 3 4 5 5 6 6 8 11 Ref. No.: LR500110708D Copyright ○ c 2007, LTA Co., Ltd. Page 3 of 12 1. General information’s 1-1 Test Performed Company name : LTA Co., Ltd. Address : 243, Jubug-ri,Yangji-Myeon,Youngin-Si, Kyunggi-Do, Korea. 449-822 Web site : http://www.ltalab.com E-mail : [email protected] Telephone : +82-31-323-6008 Facsimile +82-31-323-6010 Quality control in the testing laboratory is implemented as per ISO/IEC 17025 which is the “General requirements for the competents of calibration and testing laboratory”. 1-2 Accredited agencies LTA Co., Ltd. is approved to perform EMC testing by the following agencies: Agency Country Accreditation No. Validity Reference NVLAP U.S.A 200723-0 2007-09-30 ECT accredited Lab. RRL KOREA KR0049 2009-06-20 EMC accredited Lab. FCC U.S.A 610755 2008-03-28 FCC filing VCCI JAPAN R2133, C2307 2008-06-22 VCCI registration IC CANADA IC5799 2008-04-23 IC filing Ref. No.: LR500110708D Copyright ○ c 2007, LTA Co., Ltd. Page 4 of 12 2. Information’s about test item 2-1 Applicant & Manufacturer Company name : Sena Technologies, Inc. Address : 210 Yangjae-dong Seocho-gu Seoul 137-130 Korea TEL / FAX : +82-2-571-8283/ +82-2-573-7710 2-3 Equipment Under Test (EUT) Trade name : Bluetooth Access Point FCC ID : S7APARANIMSP1000 Model name : Parani-MSP1000 Serial number : Identification Date of receipt : July 30, 2007 EUT condition : Production, not damaged Antenna type : External antenna (M/N: R-AN2400-1901RS) Max Gain 5dBi External antenna (M/N: R-AN2400-5801RS) Max Gain 3.17dBi Frequency Range : 2402 ~ 2480MHz RF output power : 19.12dBm EIRP Number of channels : 79 Channel spacing : 1MHz Duty Cycle : 78 % Channel Access Protocol : Frequency Hopping Type of Modulation : GFSK, Pi/4 DQPSK, 8DPSK Power Source : 230V, 50Hz by AC/DC Adaptor 2-3 Model Difference according to the number of RF Module Model Number The number of RF Module Parani-MSP1000 A 1ea Parani-MSP1000 B 2ea Parani-MSP1000 C 4ea 2-5 Ancillary Equipment Equipment Model No. Serial No. Manufacturer PC dx2200Microtower CNG6500RX9 HP Monitor VS11353 E060T4021/1-1 View Sonic Keyboard SK-8115 641-OEWW DELL Mouse MO56UO 510022473 DELL Print Deskjet 600K SG7631B1XX HP - - - - - - - - Ref. No.: LR500110708D Copyright ○ c 2007, LTA Co., Ltd. Page 5 of 12 3. Test Report 3.1 Summary of tests Parameter Limit Test Condition Status (note 1) I. FCC Part Section(s) Bluetooth Module is certified by FCC(FCC ID: S7APARANIESD1000). II. Additional items 15.209 Field Strength of Harmonics < 54 dBuV (at 3m) Radiated C 15.207 AC Conducted Emissions EN 55022 Line Conducted C Note 1: C=Complies NC=Not Complies NT=Not Tested NA=Not Applicable Note 2: The data in this test report are traceable to the national or international standards. The sample was tested according to the following specification: FCC Parts 15.247; ANSI C-63.4-2003 Ref. No.: LR500110708D Copyright ○ c 2007, LTA Co., Ltd. Page 6 of 12 3.2 Technical Characteristics Test 3.2.1 Field Strength of Harmonics Procedure: The EUT was placed on a 0.8m high wooden table inside a shielded enclosure. An antenna was placed near the EUT and measurements of frequencies and amplitudes of field strengths were recorded for reference during final measurements. For final radiated testing, measurements were performed in OATS. Measurements were performed with the EUT oriented in 3 orthogonal axis and rotated 360 degrees to determine worst-case orientation for maximum emissions. The spectrum analyzer is set to: Center frequency = the worst channel Frequency Range = 30 MHz ~ 10 th harmonic. RBW = 100 kHz ( 30MHz ~ 1 GHz) = 1 MHz (1 GHz ~ 10 th harmonic ) VBW ≥ RBW Span = 100 MHz Detector function = peak Trace = max hold Sweep = auto Measurement Data: Complies Minimum Standard: FCC Part 15.109 Frequency (MHz) Limit (uV/m) @ 10m 30 ~ 88 90 ** 88 ~ 216 150 ** 216 ~ 960 210 ** Above 960 300 ** Except as provided in 15.209(g), fundamental emissions from intentional radiators operating under this Section sh…

Text truncated - open the document above for the full version.

FCC ID: S7APARANIMSP1000 Copyright Ⓒ 2007, LTA Co., Ltd. Radiated Emission FCC ID: S7APARANIMSP1000 Copyright Ⓒ 2007, LTA Co., Ltd. Conducted Emission
