S7APARANISD200LBLUETOOTH SERIAL ADAPTOR

1 Parani-SD100L/200L User Guide Version 1.0.0 2006-09-18 2 User Guide for the Parani-SD100L/200L Version 1.0.0 Firmware version 1.0.X Last revised on June 14, 2006 Printed in Korea Copyright Copyright 2002, Sena Technologies, Inc. All rights reserved. Sena Technologies reserves the right to make changes and improvements to its product without providing notice. Trademark Parani™ is a trademark of Sena Technologies, Inc. Windows® is a registered trademark of Microsoft Corporation. Ethernet® is a registered trademark of XEROX Corporation. Notice to Users When a system failure may cause serious consequences, protecting life and property against such consequences with a backup system or safety device is essential. The user agrees that protection against consequences resulting from system failure is the user's responsibility. This device is not approved for life-support or medical systems. Changes or modifications to this device not explicitly approved by Sena Technologies will void the user's authority to operate this device. Precautions and Safety Electricity Use only the supplied AC adapter. Use of unauthorized power adapter is not recommended. Electrical shock may result. Do not kink or crease the power cable or place heavy objects on the power cable. Fire can result from damaged power cables. Do not handle power plug and adapter with wet hands. Electrical shock may result. Immediately power off the product and unplug the AC adapter if smoke or odors emit from the product and adapter. Fire can result from improper use. Immediately power off the product and unplug the AC adapter if water or other liquids are present. Fire can result from improper use. Product Parani-SD meets the RS-232 standards. Do not wire with non-standard products. Damage to your products may result from improper use. Do not drop or subject the device to impact. Damage to your products may result from improper use. Keep away from harsh environments including humid, dusty, and smoky areas. Damage to your products may result from improper use. Do not use excessive force on the buttons or attempt to disassemble the device. Damage to your products may result from improper use. Do not place heavy objects on the product. Damage to your products may result from improper use. Technical Support Sena Technologies, Inc. 210 Yangjae-dong, Seocho-gu, Seoul 137-130, Korea Tel: (+82-2) 573-5422 Fax: (+82-2) 573-7710 E-Mail: [email protected] Website: http://www.sena.com 3 Contents 1. Introduction 6 1.1. Overview ................................................................................................................................... 6 1.2. Package Check List.................................................................................................................... 6 1.3. Product Specification.................................................................................................................. 7 2. Getting Started 8 2.1. Panel Layout .............................................................................................................................. 8 2.2. Connecting the Hardware .......................................................................................................... 9 2.2.1. Connecting Power to Parani-SD ...................................................................................... 9 2.2.2. Connecting Device to Parani-SD ..................................................................................... 9 2.2.3. Attaching Battery Pack to Parani-SD200LL.....오류! 책갈피가 정의되어 있지 않습니다. 3. Configuration 10 3.1. Operation Modes...................................................................................................................... 10 3.2. LED Indicators.......................................................................................................................... 11 3.3. Serial Ports ............................................................................................................................... 11 3.3.1. Data Bit .......................................................................................................................... 11 3.3.2. Hardware Flow Control .................................................................................................. 11 3.3.3. Reset to Factory Defaults .............................................................................................. 12 3.3.4. Dipswitch........................................................................................................................ 12 3.3.5. Pairing Button ................................................................................................................ 13 3.3.6. Software and Utility ........................................................................................................ 13 3.3.7. ParaniWIN...................................................................................................................... 14 3.3.8. ParaniUpdater ................................................................................................................ 20 3.3.9. Terminal Program .......................................................................................................... 20 4. Approval Information 22 4.1. FCC ................................................................................................................................. 22 4.1.1. FCC Compliance Statement .......................................................................................... 22 4.1.2. RF Exposure Statement................................................................................................. 22 4.1.3. Do not............................................................................................................................. 22 4.2. CE ................................................................................................................................. 22 4.2.1. EC-R&TTE Directive .......................…

Text truncated - open the document above for the full version.

Sena Technologies, Inc. 210 Yangjae-dong Seocho-gu Seoul 137-130 Korea Tel. +82-2-571-8283 Fax +82-2-573-7710 September 23, 2006 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re : Sena Technologies, Inc. FCC ID : S7APARANISD200L Request for Confidentiality Gentlemen: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Schematics (File name: [S7APARANISD200L] SCH.pdf), Parts list(File name: [S7APARANISD200L] PL.pdf), Block diagram (File name: [S7APARANISD200L] BLK.pdf) and Operational description (File name:[S7APARANISD200L] Op Description.pdf). The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, __________________________ Seung – Hyun Kim Associate Research Engineer

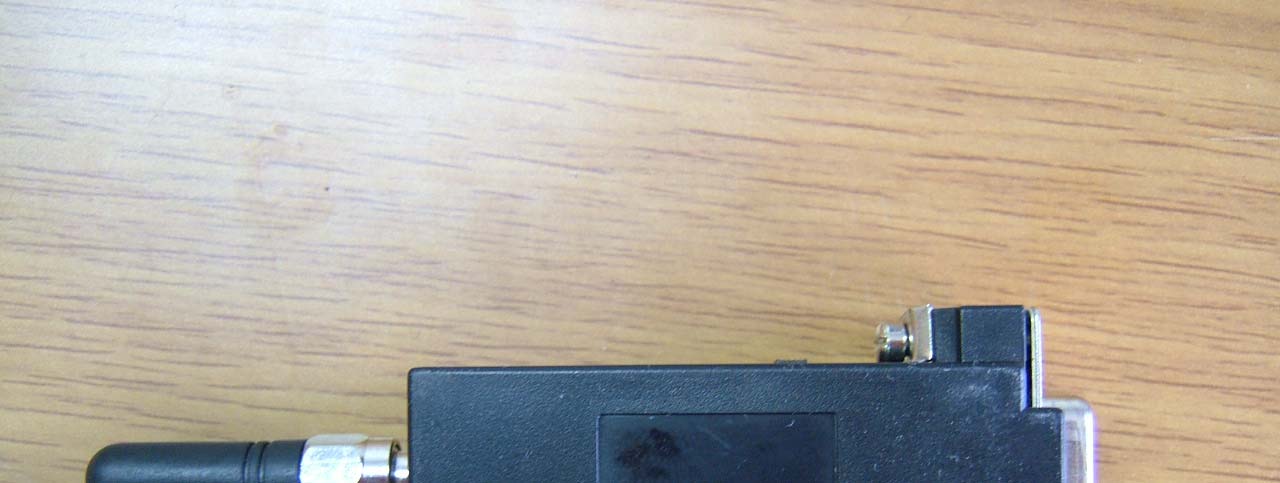

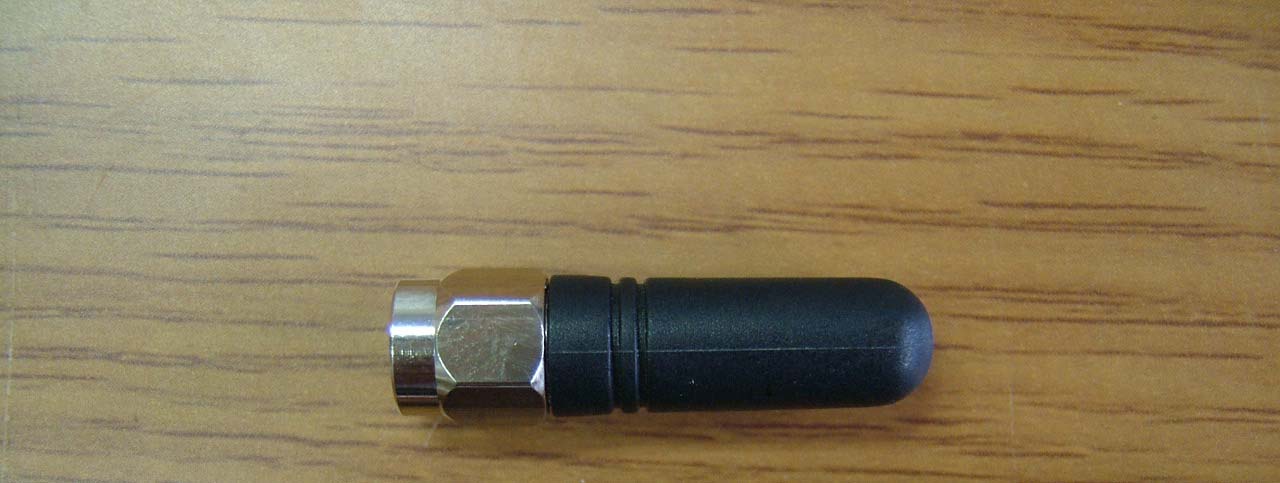

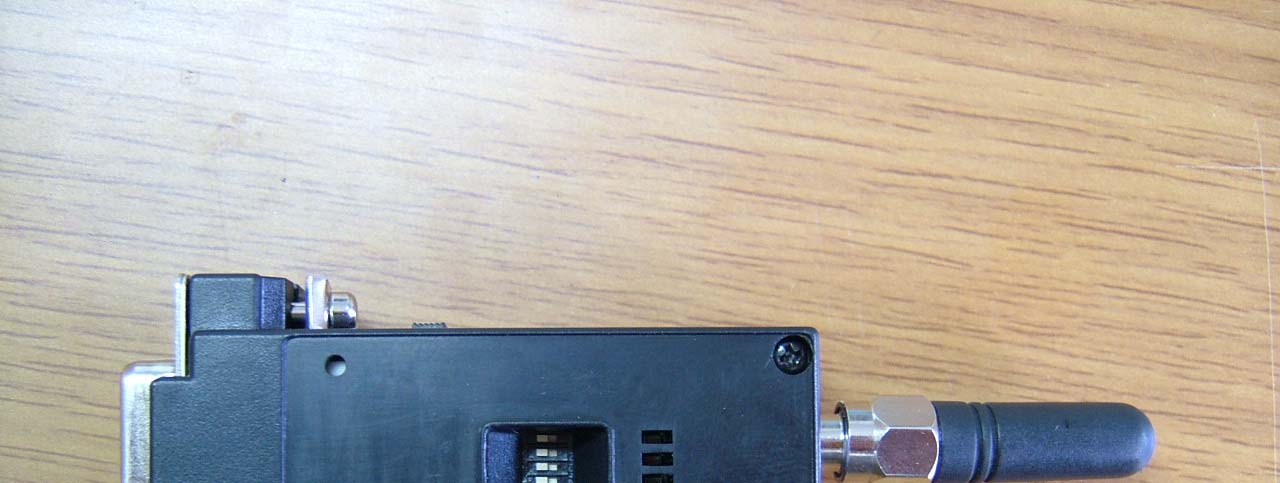

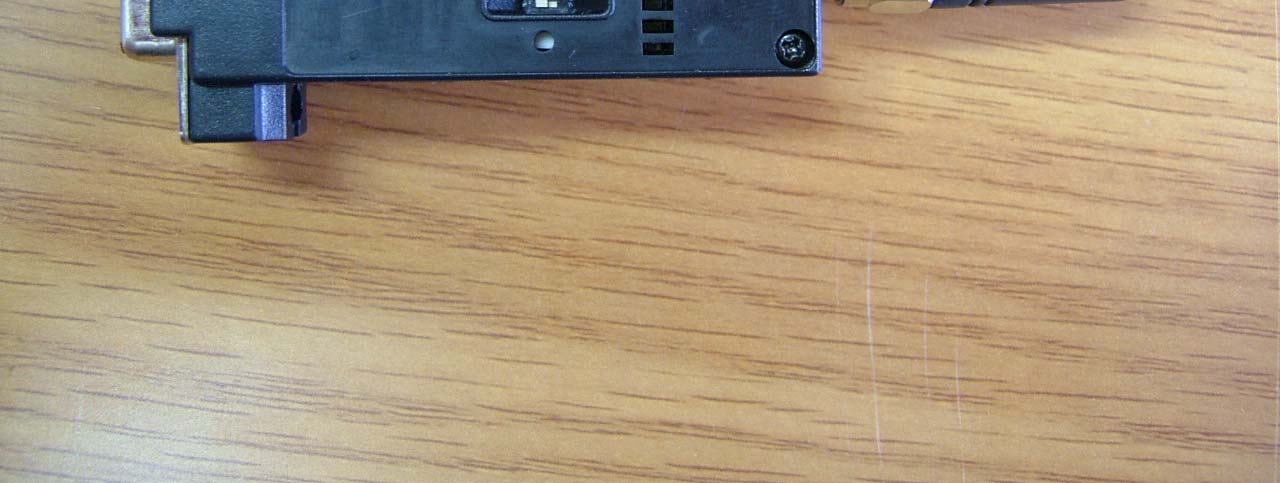

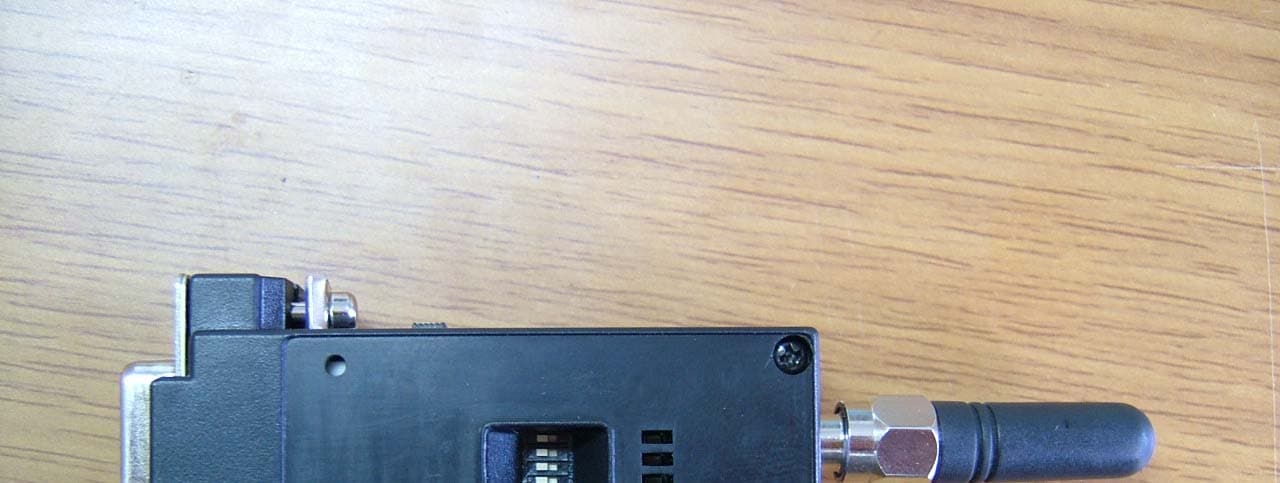

FCC ID: S7APARANISD200L Copyright ○ c 2006, LTA Co., Ltd. Page 1 of 4 FCC ID: S7APARANISD200L Copyright ○ c 2006, LTA Co., Ltd. Page 2 of 4 FCC ID: S7APARANISD200L Copyright ○ c 2006, LTA Co., Ltd. Page 3 of 4 FCC ID: S7APARANISD200L Copyright ○ c 2006, LTA Co., Ltd. Page 4 of 4

FCC ID: S7APARANISD200L Copyright Ⓒ 2006, LTA Co., Ltd. SAMPLE LABEL & LOCATION - The FCC label shown is representative of the label that will appear on the radio when in production. Other information may also be included in the user's manual. FCC ID:S7APARANISD200L

FCC ID: S7APARANISD200L Copyright ○ c 2006, LTA Co., Ltd. Page 1 of 2 FCC ID: S7APARANISD200L Copyright ○ c 2006, LTA Co., Ltd. Page 2 of 2

Sena Technologies, Inc. 210 Yangjae-dong Seocho-gu Seoul 137-130 Korea Tel. +82-2-571-8283 Fax +82-2-573-7710 RE : RF exposure information FCC ID : S7APARANISD200L Model Name: SD-200L Bluetooth Serial Adaptor To whom it may concern: This device is categorically excluded from routine environmental because it operate at very low power level. The equipment is deemed to comply with the SAR or MPE limits without testing due to this very low power level (EIRP < 3 mW) Sincerely, __________________________ Seung – Hyun Kim Associate Research Engineer

Ref. No.: LR500110609F Copyright ○ c 2006, LTA Co., Ltd. Page 1 of 32 243 Jubug-Ri,Yangji-Myeon, Yongin-Si, Gyeonggi-Do, Korea 449-822 Tel: +82-31-323-6008 Fax: +82-31-323-6010 http://www.ltalab.com Dates of Tests: September 02 ~ 08, 2006 Test Report S/N: LR500110609F Test Site : LTA C O . , LT D . CERTIFICATIO OF COMPLIANCE FCC ID. APPLICANT FCC Classification : FHSS Sequence Spread Spectrum (FHSS) Manufacturing Description : Bluetooth Serial Adaptor Manufacturer : Sena Technologies, Inc. Model name : Parani-SD200L Test Device Serial No.: : Identification Rule Part(s) : FCC Part 15.247 Subpart C; ANSI C-63.4-2003 Frequency Range : 2402 ~ 2480MHz RF power : 3.02dBm - Conducted Data of issue : September 10, 2006 This test report is issued under the authority of: The test was supervised by: Dong –Min JUNG, Technical Manager Kyung-Taek LEE, Test Engineer This test result only responds to the tested sample. It is not allowed to copy this report even partly without the allowance of the test laboratory. This report must not be used by the applicant to claim product endorsement by any agency. NVLAP LAB Code.: 200723-0 S7APARANISD200L Sena Technologies, Inc. Ref. No.: LR500110609F Copyright ○ c 2006, LTA Co., Ltd. Page 2 of 32 TABLE OF CONTENTS 1. GENERAL INFORMATION’S -------------------------------------------------------------------------- 2. INFORMATION’S ABOUT TEST ITEM ------------------------------------------------------------- 3. TEST REPORT --------------------------------------------------------------------------------------------- 3.1 SUMMARY OF TESTS ------------------------------------------------------------------------------ 3.2 TECHNICAL CHARACTERISTICS TEST ------------------------------------------------------- 3.2.1 CARRIER FREQUENCY SEPARATION ---------------------------------------------------- 3.2.2 NUMBER OF HOPPING FREQUENCIES -------------------------------------------------- 3.2.3 20 dB BANDWIDTH ---------------------------------------------------------------------------- 3.2.4 TIME OF OCCUPANCY (Dwell Time) ------------------------------------------------------- 3.2.5 TTANSMITTER OUTPUT POWER ---------------------------------------------------------- 3.2.6 BAND - EDGE ----------------------------------------------------------------------------------- 3.2.7 FIELD STRENGTH OF HARMONICS ------------------------------------------------------ 3.2.8 AC CONDUCTED EMISSIONS -------------------------------------------------------------- APPENDIX APPENDIX TEST EQUIPMENT USED FOR TESTS ------------------------------------------- 3 4 5 5 6 6 8 11 13 15 17 26 28 31 Ref. No.: LR500110609F Copyright ○ c 2006, LTA Co., Ltd. Page 3 of 32 1. General information’s 1-1 Test Performed Company name : LTA Co., Ltd. Address : 243, Jubug-ri,Yangji-Myeon,Youngin-Si, Kyunggi-Do, Korea. 449-822 Web site : http://www.ltalab.com E-mail : [email protected] Telephone : +82-31-323-6008 Facsimile +82-31-323-6010 Quality control in the testing laboratory is implemented as per ISO/IEC 17025 which is the “General requirements for the competents of calibration and testing laboratory”. 1-2 Accredited agencies LTA Co., Ltd. is approved to perform EMC testing by the following agencies: Agency Country Accreditation No. Validity Reference NVLAP U.S.A 200723-0 2006-09-30 ECT accredited Lab. RRL KOREA KR0049 2007-07-13 EMC accredited Lab. FCC U.S.A 610755 2008-03-28 FCC filing VCCI JAPAN R2133, C2307 2008-06-22 VCCI registration IC CANADA IC5799 2008-04-23 IC filing Ref. No.: LR500110609F Copyright ○ c 2006, LTA Co., Ltd. Page 4 of 32 2. Information’s about test item 2-1 Client & Manufacturer Company name : Sena Technologies, Inc. Address : 210 Yangjae-dong Seocho-gu Seoul 137-130 Korea TEL / FAX : +82-2-571-8283/ +82-2-573-7710 2-2 Equipment Under Test (EUT) Trade name : Bluetooth Serial Adaptor FCC ID : S7APARANISD200L Model name : Parani-SD200L Serial number : Identification Date of receipt : September 01, 2006 EUT condition : Pre-production, not damaged Antenna type : Helical antenna Max Gain 1.56dBi (Left-handed SMA Connector) Frequency Range : 2402 ~ 2480MHz RF output power : 3.02 dBm - Conducted Number of channels : 79 Channel spacing : 1MHz Channel Access Protocol : Frequency Hopping Type of Modulation : GFSK Power Source : 5.0Vdc, AC Adaptor 100- 240Vac 2-3 Tested frequency LOW MID HIGH Frequency (MHz) 2402 2441 2480 2-4 Ancillary Equipment Equipment Model No. Serial No. Manufacturer Notebook Latitude D505 8N29F1S DELL - - - - Ref. No.: LR500110609F Copyright ○ c 2006, LTA Co., Ltd. Page 5 of 32 3. Test Report 3.1 Summary of tests FCC Part Section(s) Parameter Limit Te s t Condition Status (note 1) 15.247(a) Carrier Frequency Separation > 25 kHz C 15.247(a) Number of Hopping Frequencies > 75 hops C 15.247(a) 20 dB Bandwidth < 1 MHz C 15.247 Dwell Time < 0.4 seconds C 15.247(b) Transmitter Output Power < 1Watt C 15.247(d) Conducted Spurious emission > 20 dBc C 15.247(d) Band Edge > 20 dBc Conducted C 15.249 / 15.209 Field Strength of Harmonics < 54 dBuV (at 3m) Radiated C 15.207 /15.107 AC Conducted Emissions EN 55022 Line Conducted C Note 1: C=Complies NC=Not Complies NT=Not Tested NA=Not Applicable Note 2: The data in this test report are traceable to the national or international standards. The sample was tested according to the following specification: FCC Parts 15.247; ANSI C-63.4-2003 Ref. No.: LR500110609F Copyright ○ c 2006, LTA Co., Ltd. Page 6 of 32 3.2 Transmitter requirements 3.2.1 Carrier Frequency Separation Procedure: The carrier frequency separation was measured with a spectrum analyzer connected to the antenna terminal, while EUT had its hopping function enabled. After the trace being stable, the reading value between the peaks of the adjacent channels using the marker-delta function was recorded as the measurement results. The spectrum analyzer is set to: Span = 3 MHz (wide enough to capture the peaks of two adjacent channels) RBW = 30 kHz (1% of the span or more) Sweep = auto VBW = 30 k…
