S7AZBLINXZS10ZIGBEE SERIAL ADAPTER

Sena Technologies Co., Ltd.
ZIGBEE SERIAL ADAPTER - FCC ID S7AZBLINXZS10 - Sena Technologies Co., Ltd.
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Feb 04, 2010
Application Purpose
Original Equipment
Date of Application
Feb 03, 2010
Equipment Note
ZIGBEE SERIAL ADAPTER
Frequency Range
2410.00000000 - 2475.00000000
Company
Sena Technologies Co., Ltd.
Country
South Korea

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

ZBlinx-Z series User Guide Version 0.0.1 2010-02-01 User Guide for the ZBlinx-Z series Version 0.0.1 Firmware version 1.0.X Last revised on January 12, 2010 Printed in Korea Copyright Copyright 2002, SENA technologies, Inc. All rights reserved. SENA Technologies reserves the right to make changes and improvements to its product without providing notice. Trademark ZBlinx™ is a trademark of SENA Technologies, Inc. Windows® is a registered trademark of Microsoft Corporation. Ethernet® is a registered trademark of XEROX Corporation. Notice to Users When a system failure may cause serious consequences, protecting life and property against such consequences with a backup system or safety device is essential. The user agrees that protection against consequences resulting from system failure is the user's responsibility. This device is not approved for life-support or medical systems. Changes or modifications to this device not explicitly approved by SENA Technologies will void the user's authority to operate this device. Precautions and Safety Electricity Use only the supplied AC adapter. Use of unauthorized power adapter is not recommended. Electrical shock may result. Do not kink or crease the power cable or place heavy objects on the power cable. Fire can result from damaged power cables. Do not handle power plug and adapter with wet hands. Electrical shock may result. Immediately power off the product and unplug the AC adapter if smoke or odors emit from the product and adapter. Fire can result from improper use. Immediately power off the product and unplug the AC adapter if water or other liquids are present. Fire can result from improper use. Product ZBlinx-Z meets the RS-232 standards. Do not wire with non-standard products. Damage to your products may result from improper use. Do not drop or subject the device to impact. Damage to your products may result from improper use. Keep away from harsh environments including humid, dusty, and smoky areas. Damage to your products may result from improper use. Do not use excessive force on the buttons or attempt to disassemble the device. Damage to your products may result from improper use. Do not place heavy objects on the product. Damage to your products may result from improper use. Technical Support SENA Technologies, Inc. 210 Yangjae-dong, Seocho-gu Seoul 137-130, Korea Tel: (+82-2) 573-5422 Fax: (+82-2) 573-7710 E-Mail: [email protected] Website: http://www.sena.com Revision History Revision Date Name Description V0.0.1 2010-01-12 Initial Revision History - 4 - Contents 1. Introduction ...................................................................................................................................... 6 1.1. Overview........................................................................................................................... 6 1.2. Product Specification ........................................................................................................ 7 2. Approval Information........................................................................................................................ 8 2.1. FCC .................................................................................................................................. 8 2.1.1. FCC Compliance Statement ..................................................................................... 8 2.1.2. RF Exposure Statement............................................................................................ 8 2.1.3. Do not ....................................................................................................................... 8 2.2. CE..................................................................................................................................... 8 2.2.1. EC-R&TTE Directive................................................................................................. 8 2.3. TELEC .............................................................................................................................. 8 2.4. KCC .................................................................................................................................. 8 3. RF Information ................................................................................................................................. 9 3.1. Radio Frequency Range .................................................................................................. 9 3.2. Number of Frequency Channel ........................................................................................ 9 3.3. Transmission Method .......................................................................................................9 3.4. Modulation Method ........................................................................................................... 9 3.5. Radio Output Power .........................................................................................................9 3.6. Receiving Sensitivity ........................................................................................................ 9 4. AT Command ................................................................................................................................. 10 4.1. Overview......................................................................................................................... 10 4.2. Command Line Format................................................................................................... 10 4.3. Standard AT Commands..................................................................................................11 4.3.1. AT.............................................................................................................................11 4.3.2. ATA...........................................................................................................................11 4.3.3. ATD<node ID or IEEE address>..................…

Text truncated - open the document above for the full version.

Cover Letter(s)

Sena Technologies, Inc. 210 Yangjae-dong Seocho-gu Seoul 137-130 Korea Tel. +82-2-571-8283 Fax +82-2-573-7710 January 29, 2010 Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 In re : Sena Technologies, Inc. FCC Application for FCC ID: S7AZBLINXZS10 To Whom It May Concern: We, the undersigned, hereby attest to the fact that we will apply the Declaration of Conformity procedure to the class B computer peripheral portion of this composite filing. Regards, YoungSam, KIM / Vice President Sena Technologies, Inc.

Cover Letter(s)

Sena Technologies, Inc. 210 Yangjae-dong Seocho-gu Seoul 137-130 Korea Tel. +82-2-571-8283 Fax +82-2-573-7710 January 29, 2010 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 LETTER OF AUTHORIZATION To whom it may concern: We, the undersigned, hereby authorize LTA Co., Ltd., to act on our behalf in all manners relating to application for equipment authorization for FCC ID: S7AZBLINXZS10. including signing of all documents relating to these matters. Any and all acts carried out by LTA Co., Ltd., on our behalf shall have the same affect as acts of our own. This authorization is valid until further written notice from Sena Technologies, Inc. LTA Co.,LTD. (Contact Person) Contact name: LEE, Kyung-Taek Position: Manager Phone:(82)31-323-6008 E-mail: [email protected] YoungSam, KIM / Vice President Sena Technologies, Inc.

Cover Letter(s)

Sena Technologies, Inc. 210 Yangjae-dong Seocho-gu Seoul 137-130 Korea Tel. +82-2-571-8283 Fax +82-2-573-7710 January 29, 2010 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re : Sena Technologies, Inc. FCC ID : S7AZBLINXZS10 Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, Sena Technologies, Inc.. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give Sena Technologies, Inc.. temporary confidentiality of commercially sensitive information prior to product release. The requested Confidential and Temporary Confidential exhibits are listed as follows: Exhibit Type File Name Schematics CONF APPENDIX S7AZBLINXZS10 SCH DIA.pdf Parts list CONF APPENDIX S7AZBLINXZS10 PL.pdf Block diagram CONF APPENDIX S7AZBLINXZS10 BLK DIA.pdf CONFIDENTIAL Operational description CONF APPENDIX S7AZBLINXZS10 OpDes.pdf External Photos SHORT-TERM CONF S7AZBLINXZS10 EXT Photo.pdf Internal Photos SHORT-TERM CONF S7AZBLINXZS10 INT Photo.pdf Test-Setup Photos SHORT-TERM CONF S7AZBLINXZS10 Test Photo.pdf SHORT-TERM CONFIDENTIAL User’s Manual SHORT-TERM CONF S7AZBLINXZS10 Manual.pdf The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. YoungSam, KIM / Vice President Sena Technologies, Inc.

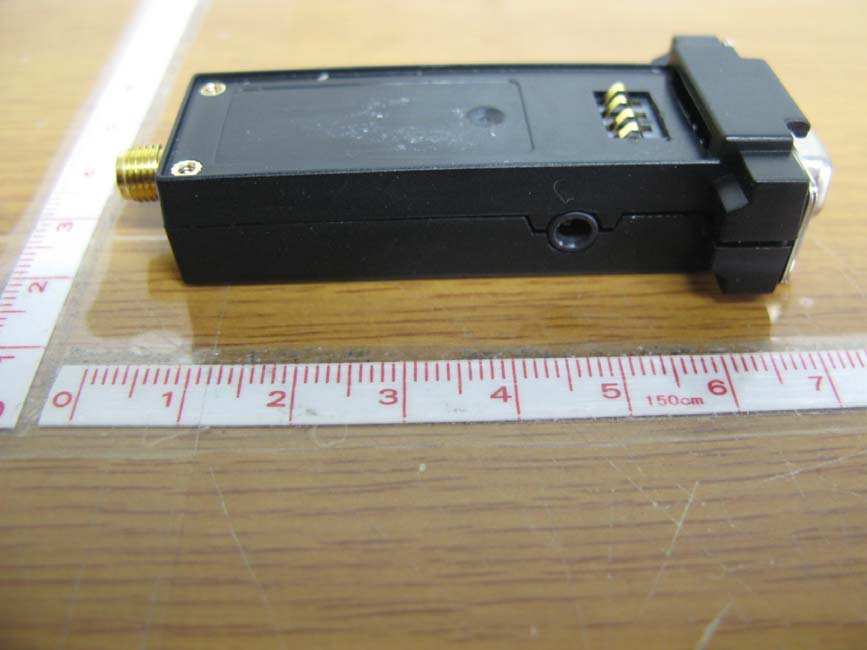

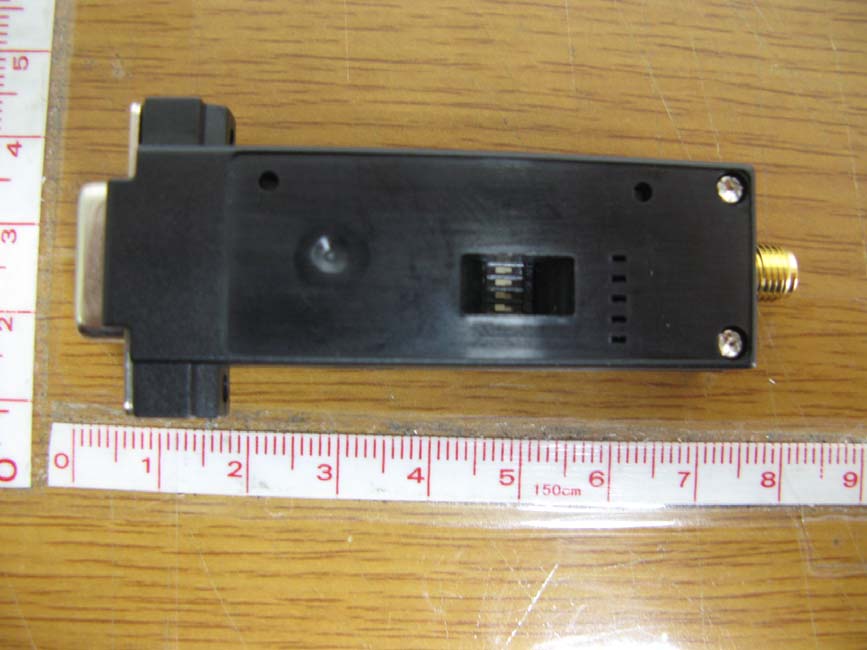

External Photos

FCC ID: S7AZBLINXZS10 Copyright ○ c 2010, LTA Co., Ltd. Page 1 of 3 Upper Lower 20mm 75mm FCC ID: S7AZBLINXZS10 Copyright ○ c 2010, LTA Co., Ltd. Page 2 of 3 Front Rear FCC ID: S7AZBLINXZS10 Copyright ○ c 2010, LTA Co., Ltd. Page 3 of 3 Left Right 15mm

ID Label/Location Info

FCC ID: S7AZBLINXZS10 Copyright Ⓒ 2010, LTA Co., Ltd. SAMPLE LABEL & LOCATION

Internal Photos

FCC ID: S7AZBLINXZS10 Copyright ○ c 2010, LTA Co., Ltd. Page 1 of 5 Internal photo FCC ID: S7AZBLINXZS10 Copyright ○ c 2010, LTA Co., Ltd. Page 2 of 5 MainBoard - Front MainBoard - Rear FCC ID: S7AZBLINXZS10 Copyright ○ c 2010, LTA Co., Ltd. Page 3 of 5 ANTENNA- M/N: R-AN2400-1901RS FCC ID: S7AZBLINXZS10 Copyright ○ c 2010, LTA Co., Ltd. Page 4 of 5 ANTENNA- M/N: R-AN2400-5801RS FCC ID: S7AZBLINXZS10 Copyright ○ c 2010, LTA Co., Ltd. Page 5 of 5 ANTENNA- M/N: AN2400-3306RS

RF Exposure Info

FCC ID: S7AZBLINXZS10 ATTACHMENT ** MPE Calculations ** The MPE calculation for this exposure is shown below. The peak radiated output power (EIRP) is calculated as follows: EIRP = P + G EIRP = 13.42dBm + 5.37dBi EIRP = 18.79 dBm Where, P = Power input to the antenna (mW) G = Power gain of the antenna (dBi) Power density at the specific separation: S = PG/(4R 2 π) S = (21.98 * 3.44) / (4 * 20 2 * π) S = 0.0151 mW/cm 2 Where, S = Maximum power density (mW/cm 2 ) P = Power input to the antenna (mW) G = Numeric power gain of the antenna R = Distance to the center of the radiation of the antenna (20cm = limit for MPE) The Maximum permissible exposure (MPE) for the general population is 1 mW/cm 2 . The power density does not exceed the 1 mW/cm 2 limit. Therefore, the exposure condition is compliant with FCC rules. Estimated safe separation: R = √(PG / 4π) R = √(21.98* 3.44 / 4π) R = 2.45Cm Where, P = Power input to the antenna (mW) G = Numeric power gain of the antenna R = Distance to the center of the radiation of the antenna (20cm = limit for MPE) The numeric gain(G) of the antenna with a gain specified in dB is determined by: G = Log -1 (dB antenna gain / 10) G = Log -1 (0 / 10) G = 3.44

Test Report

Ref. No.: LR5001901002B Copyright ○ c 2010, LTA Co., Ltd. Page 1 of 28 243 Jubug-Ri,Yangji-Myeon, Yongin-Si, Gyeonggi-Do, Korea 449-822 Tel: +82-31-323-6008 Fax: +82-31-323-6010 http://www.ltalab.com Dates of Tests: Jan 20 ~ 29, 2010 Test Report S/N: LR500191002B Test Site : LTA CO., LTD. CERTIFICATION OF COMPLIANCE FCC ID. APPLICANT Equipment Class : Digital Transmission System (DTS) Manufacturing Description : ZigBee Serial Adapter Manufacturer : Sena Technologies, Inc. Model name : ZBlinx-ZS10 Test Device Serial No.: : Identical prototype Rule Part(s) : FCC Part 15.247 Subpart C; ANSI C-63.4-2003 Frequency Range : 2410MHz ~ 2475MHz Max. Output Power : Max 13.42dBm - Conducted Data of issue : February 1, 2010 This test report is issued under the authority of: The test was supervised by: Dong –Min JUNG, Technical Manager Kyung-Taek LEE, Test Engineer This test result only responds to the tested sample. It is not allowed to copy this report even partly without the allowance of the test laboratory. This report must not be used by the applicant to claim product endorsement by any agency. NVLAP LAB Code.: 200723-0 S7AZBLINXZS10 Sena Technologies, Inc. Ref. No.: LR5001901002B Copyright ○ c 2010, LTA Co., Ltd. Page 2 of 28 TABLE OF CONTENTS 1. GENERAL INFORMATION’S -------------------------------------------------------------------------- 2. INFORMATION’S ABOUT TEST ITEM ------------------------------------------------------------- 3. TEST REPORT --------------------------------------------------------------------------------------------- 3.1 SUMMARY OF TESTS ------------------------------------------------------------------------------ 3.2 TECHNICAL CHARACTERISTICS TEST ------------------------------------------------------- 3.2.1 6dB BANDWIDTH ------------------------------------------------------------------------------ 3.2.2 PEAK OUTPUT POWER ----------------------------------------------------------------------- 3.2.3 POWER SPECTRAL DENSITY --------------------------------------------------------------- 3.2.4 BAND – EDGE & SPURIOUS ----------------------------------------------------------------- 3.2.5 FIELD STRENGTH OF HARMONICS ------------------------------------------------------ 3.2.6 AC CONDUCTED EMISSIONS -------------------------------------------------------------- APPENDIX APPENDIX TEST EQUIPMENT USED FOR TESTS -------------------------------------------- 3 4 5 5 6 6 9 12 15 21 24 27 Ref. No.: LR5001901002B Copyright ○ c 2010, LTA Co., Ltd. Page 3 of 28 1. General information’s 1-1 Test Performed Company name : LTA Co., Ltd. Address : 243, Jubug-ri,Yangji-Myeon,Youngin-Si, Kyunggi-Do, Korea. 449-822 Web site : http://www.ltalab.com E-mail : [email protected] Telephone : +82-31-323-6008 Facsimile +82-31-323-6010 Quality control in the testing laboratory is implemented as per ISO/IEC 17025 which is the “General requirements for the competents of calibration and testing laboratory”. 1-2 Accredited agencies LTA Co., Ltd. is approved to perform EMC testing by the following agencies: Agency Country Accreditation No. Validity Reference NVLAP U.S.A 200723-0 2010-09-30 ECT accredited Lab. RRL KOREA KR0049 2011-06-20 EMC accredited Lab. FCC U.S.A 610755 2011-04-22 FCC filing VCCI JAPAN R2133, C2307 2011-06-21 VCCI registration IC CANADA IC5799 2010-05-03 IC filing Ref. No.: LR5001901002B Copyright ○ c 2010, LTA Co., Ltd. Page 4 of 28 2. Information’s about test item 2-1 Client & Manufacturer Company name : Sena Technologies, Inc. Address : 210 Yangjae-dong Seocho-gu Seoul 137-130 Korea Tel / Fax : +82-2-571-8283/ +82-2-573-7710 2-2 Equipment Under Test (EUT) Trade name : ZigBee Serial Adapter FCC ID : S7AZBLINXZS10 Model name : ZBlinx-ZS10 Serial number : Identical prototype Date of receipt : January 20, 2010 EUT condition : Pre-production, not damaged Antenna type : Dipole antenna (M/N: R-AN2400-1901RS) Max Gain 5.37 dBi Dipole antenna (M/N: R-AN2400-5801RS) Max Gain 3.27 dBi Dipole antenna (M/N: AN2400-3306RS) Max Gain 1.40 dBi Frequency Range : 2410MHz ~ 2475MHz (DSSS) RF output power : Max 13.42dBm - Conducted Number of channels : 14 Type of Modulation : O-QPSK Channel spacing : 5MHz Power Source : 3.7Vdc by Battery 2-3 Tested frequency LOW MID HIGH Frequency (MHz) 2410 2445 2475 2-4 Ancillary Equipment Equipment Model No. Serial No. Manufacturer PC HP Compaq dx7400 Microtower CNG8330J95 HP MONITOR HPL1710 CNC816QHF2 HP KEYBOARD SK-8115 68A-04Q6 DELL MOUSE MO56UO 520107013 DELL PRINTER STYLUS C65 N/A EPSON Ref. No.: LR5001901002B Copyright ○ c 2010, LTA Co., Ltd. Page 5 of 28 3. Test Report 3.1 Summary of tests FCC Part Section(s) Parameter Limit Test Conditio n Status (note 1) 15.247(a) 6 dB Bandwidth > 500kHz C 15.247(b) Transmitter Peak Output Power < 1Watt C 15.247(d) Transmitter Power Spectral Density < 8dBm @ 3kHz C 15.247(d) Band Edge & Spurious > 20 dBc Conducted C 15.209 Field Strength of Harmonics Emission Radiated C 15.207 AC Conducted Emissions Emissions Conducted C 15.203 Antenna requirement - - C Note 1: C=Complies NC=Not Complies NT=Not Tested NA=Not Applicable Note 2: The data in this test report are traceable to the national or international standards.  Antenna Requirement The Sena Technologies, Inc. FCC ID: S7AZBLINXZS10 unit complies with the requirement of §15.203. The antenna connector is the reverse polarity SMA connector. The sample was tested according to the following specification: FCC Parts 15.247; ANSI C-63.4-2003 Ref. No.: LR5001901002B Copyright ○ c 2010, LTA Co., Ltd. Page 6 of 28 3.2 Technical Characteristics Test 3.2.1 6 dB Bandwidth Procedure: The bandwidth at 6dB below the highest in-band spectral density was measured with a spectrum analyzer connected to the antenna terminal, while EUT is operating in transmission mode at the appropriate frequencies. After the trace being stable, Use the marker-to-peak function to set the marker to the peak of the emission. Use the marker-delta function to measure 6dB down one side of the emission. Reset the marker…

Text truncated - open the document above for the full version.

Test Setup Photos

FCC ID: S7AZBLINXZS10 Copyright ○ c 2010, LTA Co., Ltd. Page 1 of 2 Radiated Emission FCC ID: S7AZBLINXZS10 Copyright ○ c 2010, LTA Co., Ltd. Page 2 of 2 Conducted Emission

Contact Information

Applicant

Seunghyun KIM(Research Engineer)
[email protected]8225718283Fax: 8225737710

Test Firm

LTA Co.,LtdAhn Chulho
[email protected]82-31-323-6008Fax: 82-31-323-6010

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.41 GHz - 2.48 GHz22.00 mW
Confidentiality
Long Term
Grant Notes
Power listed is conducted. The antenna installation and operating configurations of this transmitter, including any applicable antenna gain and cable loss must satisfy MPE categorical Exclusion Requirements of �2.1091. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operated in conjunction with any other antenna or transmitter. Users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.
