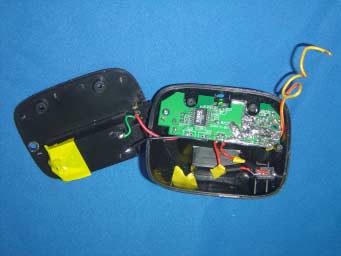

Page 7 AN Yang Industrial (H.K.) Limited Probe Temp FCC ID:S7HAN241901 Figure 3 Main Board, Component Side Figure 4 Main Board, Component Side Page 8 AN Yang Industrial (H.K.) Limited Probe Temp FCC ID:S7HAN241901 Figure 5 Main Board, Component Side Figure 6 Main Board, Component Side Page 9 AN Yang Industrial (H.K.) Limited Probe Temp FCC ID:S7HAN241901 Figure 7 Main Board, Component Side

Page 17 AN Yang Industrial (H.K.) Limited Probe Temp FCC ID:S7HAN241901 PROBE TEMP Description of Operation 1. Power (DC 3V with two pieces of AAA batteries) 2. Power Switch ( Control the “on” & “off”) 3. Temperature Sensor (to sense the temperature of EUT) 4. MCU Coding ( Code the EUT temperature value into the digital signal & sent to RF carrier <315MHz> for modulation 5. RF Transmission (send the electric magnetic wave into the surrounding space by 1/4 antenna) Put 2 pieces of batteries ,turn on the power switch, the power light is on which indicates the electric circuit is operating. Insert the temperature sensor into the EUT (Meat), and then send the digital signal into the RF Oscillator, after ASIC modulation. Send the electric magnetic wave into the surrounding space by 1/4 antenna

Page 14 AN Yang Industrial (H.K.) Limited Probe Temp FCC ID:S7HAN241901

FCC ID:S7HAN241901 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F05110 APPLICATION FOR CERTIFICATION On Behalf of AN Yang Industrial (H.K.) Limited Probe Temp Model Number: AN-2419 Prepared for : AN Yang Industrial (H.K.) Limited RM608 Prosper Comm Bldg, 9 Yin Chong Street, Mong KOK, Kowloon, Hong Kong Prepared By : Audix Technology (Shenzhen) Co., Ltd. No. 6, Ke Feng Rd., 52 Block, Shenzhen Science & Industrial Park, Nantou, Shenzhen, Guangdong, China Tel: (0755) 26639496 Report Number ： ACS-F05110 Date of Test ： Apr.10~18, 2005 Date of Report ： Apr.22, 2005 FCC ID:S7HAN241901 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F05110 TABLE OF CONTENTS Description Page Test Report Declaration 1. GENERAL INFORMATION .................................................................................................... 1-1 1.1. Description of Device (EUT) .............................................................................................................1-1 1.2. Test Facility........................................................................................................................................1-2 1.3. Test Uncertainty .................................................................................................................................1-2 2. POWER LINE CONDUCTED EMISSION TEST ................................................................. 2-1 3. RADIATED EMISSION TEST................................................................................................. 3-1 3.1. Test Equipment...................................................................................................................................3-1 3.2. Block Diagram of Test Setup .............................................................................................................3-1 3.3. Radiated Emission Limit ( FCC Part 15.231 ) ...................................................................................3-2 3.4. EUT Configuration on Test................................................................................................................3-2 3.5. Operating Condition of EUT ..............................................................................................................3-3 3.6. Test Procedure....................................................................................................................................3-3 3.7. Radiated Emission Test Results .........................................................................................................3-4 4. BANDWIDTH TEST..................................................................................................................4-7 4.1. Test Equipment...................................................................................................................................4-7 4.2. Test Standard......................................................................................................................................4-7 4.3. Bandwidth Limit: (0.0025*315MHz=787KHz).................................................................................4-7 4.4. Test Procedure....................................................................................................................................4-7 5. PHOTOGRAPH.......................................................................................................................... 5-1 5.1. Photos of Radiated Emission Test (In Anechoic Chamber)...............................................................5-1 APPENDIX I (5 pages) FCC ID:S7HAN241901 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F05110 TEST REPORT DECLARATION Applicant ： AN Yang Industrial (H.K.) Limited Manufacturer ： AN Yang Electric Products FTY Ltd. EUT Description ： Probe Temp (A) MODEL NO. : AN-2419 (B) SERIAL NO. : F2005042201 (C) POWER SUPPLY : Battery DC 3V Test Procedure Used: FCC Rules and Regulations Part 15 Subpart C Apr. 2004. The device described above is tested by Audix Technology (Shenzhen) Co., Ltd. to determine the maximum emission levels emanating from the device. The maximum emission levels are compared to the FCC Part 15 Subpart C limits for radiated and conducted emissions. The test results are contained in this test report and Audix Technology (Shenzhen) Co., Ltd. is assumed full responsibility for the accuracy and completeness of tests. Also, this report shows that EUT is technically compliant with FCC requirements. This report applies to above tested sample only. This report shall not be reproduced in part without written approval of Audix Technology (Shenzhen) Co., Ltd. Date of Test : Apr.10~18, 2005 Prepared by : Reviewer : Approved & Authorized Signer : Name of the Representative of the Responsible Party : Signature : FCC ID:S7HAN241901 Page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F05110 1-1 1. GENERAL INFORMATION 1.1. Description of Device (EUT) Description : Probe Temp Model Number : AN-2419 Applicant : AN Yang Industrial (H.K.) Limited RM608 Prosper Comm Bldg, 9 Yin Chong Street, Mong KOK, Kowloon, Hong Kong Manufacturer : AN Yang Electric Products FTY Ltd. Dong Bao Industrial Park, Wang Fon Sajin County Shen Zhen Date of Test : Apr.10~18, 2005 FCC ID:S7HAN241901 Page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F05110 1-2 1.2. Test Facility Site Description 3m Anechoic Chamber : Certificated by FCC, USA Registration Number: 90454 Aug. 15, 2003 3m & 10m Anechoic Chamber : Certificated by FCC, USA Registration Number: 794232 Mar. 15, 2004 EMC Lab. : Certificated by DATech, German Registration Number: DAT-P-091/99-01 Feb. 02, 2004 Certificated by NVLAP, USA NVLAP Code: 200372-0 Mar. 31, 2004 Certificated by Nemko, Norway Aut. No.: ELA135 April. 22, 2004 Certificated by Industry Canada Registration Number: IC 5183 Jul. 28, 2004 Name of Firm : Audix Technology (Shenzhen) Co., Ltd. Site Location : No. 6, Ke Feng Rd., 52 Block, Shenzhen Science & Industrial Park, Nantou, Shenzhen, Guangd…
