S7ZAG12Bluetooth Wireless Stereo Audio Transmitter

icombi ™ icombi ™ icombi™ Bluetooth Stereo Headphone Contents 1. Introduction 3 2. What is in the package ?4 3. Headphone Features5 4. Preparation7 5. Connection to audio devices 10 6. Operation11 7. Troubleshooting13 8. Limited Warranty14 1. Introduction icombi™Bluetooth Stereo Headphone can be carried as a wireless headphone product based on Bluetooth technology. What is Bluetooth Technology? Bluetooth Technology allows the users to communicate data in the wireless network, which is the wireless network technology can be used in the short-range distance. It is designed to communicate data/voice within short-range distance of 10m to 100m. Bluetooth Technology operates in 2.4GHz ISM(Industrial Scientific Medical) of RF bandwidth, which can be used in most countries without any government regulations. Low cost, low power consumption and Robust data communication are main feature of Bluetooth Technology and Bluetooth allows Home appliance, Handheld PC/PDA, LAN PSTN, Mobile Phone to connect to wireless network, such as internet service. icombi™ 2. What is in the package ? Our bluetooth headphone package comes equipped with a headphone and battery charger. In this package you will find : icombi™Bluetooth headphone(AH10) Battery charger / USB Cable 3.5mm Audio jack User manual iPod dongle (Option) General Audio Dongle (Option) USB Stereo Dongle (Option) icombi™ icombi™ 3. Headphone Features Bluetooth Stereo Headphone (AH10) Power button Volume up / down Remote control USB Charging port Indicator / Play / Pause button icombi™ Optional Audio Dongles You will have a bluetooth stereo headphone with one of the audio dongles in the package, which is mentioned as follow 1) General Audio Dongle(AG12) : For all the audio devices such as MP3 mobile phone, MP3 player, CD player, TV and etc. 2) USB Stereo Dongle (AU Dongle) : For your computers such as Desktop or Laptop computer with USB port. 3) iPod Dongle (AP11) : For all the iPod products such as 2G, 3G, 4G, iPhoto, iPod Mini and etc. icombi™ 4. Preparation A) Getting started Before you start using the headphone with a phone or other device for the first time, you should: - Charge the headphone battery by using a battery charger in the package Or charge the headphone by using USB cable from your computer USB port. - For access range, please make sure that the headphone is within 5m (15 feet) ~ 10m (30 feet) of your devices. B) Charging The bluetooth stereo headphone is packaged with a built-in rechargeable battery. The battery may not be fully charged when you buy the headphone. So, we recommend that you charge the battery until the headphone indicator light turns blue before using the headphone for the first time. icombi™ To remind you that you will soon need to recharge the battery, the headphone indicator light flashes red rapidly when the headphone is on. And before connecting the battery charger to the outlet, please ensure power voltage is suitable for battery charger. 1) Plug the battery charger into the charging port placed at bottom of the headphone. 2) Plug the battery charger plug into the outlet. 3) The LED indication is red when charging the headphone. 4) The LED indication turns blue after the battery is fully charged. 5) Remove the battery charger from the headphone. icombi™ Before using your headphone, you will have to charge the battery for approximate 2.5 or 3.0 hours for the fully charged battery. And please refer to the following picture for charging your headphone from USB cable or battery charger <How to charge the headphone> 5. Connection to audio devices Plug the built-in standard stereo audio plug of the bluetooth dongles into the audio out jack of your audio device such as a iPod, MP3 Player, CD Player, PC and etc. With the Advanced Audio Distribution Profile (A2DP), the bluetooth dongle enables your audio devices to transfer the stereo audio signal cordlessly to the Headphone. icombi™ icombi™ 6. Operation Before using your headphone with the dongles for the first time, you will have to pair them first. > Pairing the headphone and audio dongle. 1) Press and hold the power button on the headphone or dongles for 2 seconds until the LED(light on the power button) starts to flash blue and red. 2) Release the button once the LED is flashing , this indicates the headphone or dongles are now in pairing mode. 3)And then connect your audio dongle(AG, AU and AP Dongle) into your audio devices. 4) After a few seconds, the LED stops flashing blue and red, which means the pairing process between two devices is finished. The headphone and a dongle will return to the normal status of flashing blue only. > Playing the music 1)After the power on the headphone, plug the audio dongles connector into the iPod, MP3, CD player or computer. and play the music in your audio device and you will hear the music from the headphone. -Note : Before playing music, please ensure that the headphone has already been paired with one of the audio dongles. 2)If you want to stop hearing music from the headphone, you can press the pause button on the headphone. Pressing the pause button again returns you to the music. 3)You need to pair your headphone with your audio dongle again if you took off the audio dongle from the device while playing the music. No sound you would get in this case. icombi™ icombi™ 7. Trouble Shooting It will guide you how to solve problems, which you might encounter while you are using the headphone. 1. If you get no sound from headphone. The pairing procedure should be done between the headphone and audio dongle for recongnizing each other. And please make sure if they are within the range of each other, for the outdoor, it is up to 10m(30 feet), and we recommend to keep the audio device and headphone in the same room, or within 5m(15 feet) from each devices 2. If you have no light on the indicator LED. Please make sure if the headphone is switched on or you also check the battery if it is too low for power on 3. The headphone is automati…

Text truncated - open the document above for the full version.

April 12, 2005 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re : AIRLOGIC Co., Ltd. FCC ID : S7ZAG12 Request for Confidentiality Gentlemen: In accordance with 0.459 of CFR 47, AIRLOGIC Co., Ltd. hereby requests confidentiality of the Schematics, Parts list , Block diagram and Operational description of the attached test report. These documents contain detailed system and equipment description and related information about the product which AIRLOGIC Co., Ltd. considers to be proprietary, confidential, and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, AIRLOGIC Co., Ltd. considers that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, __________________________ Seung – Hyun Kim Associate Research Engineer / Research Institute A-606,Ssangyong IT Twin Tower, 442-17 Sangdaewon-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, 462-723, Korea TEL No : +82 31 747-1031 FAX No : +82 31 747-1034

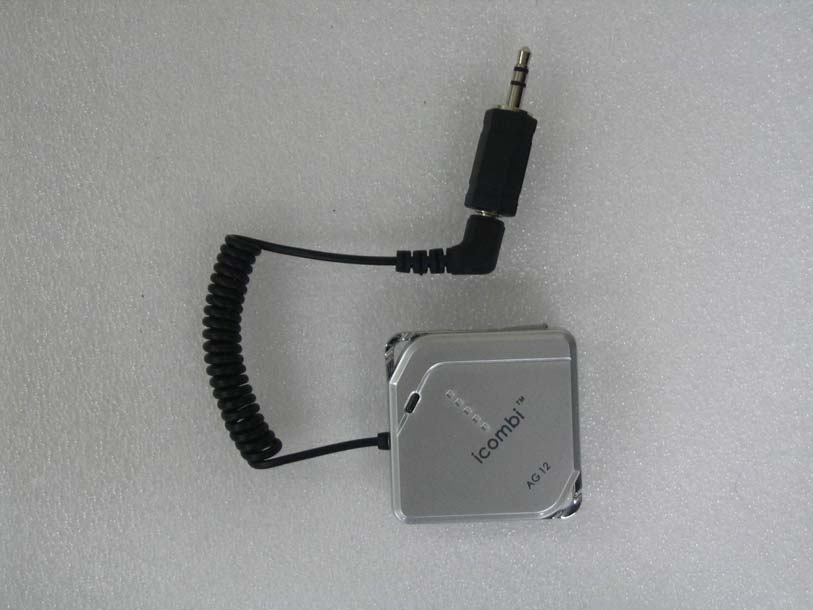

BWS TECH Inc. 1 of 1 #294-9 Jungdae-Dong, Kwanggu-Si,Kyunggi-Do, 464-800, Korea Report No: BWS-05-RF-0008 FCC ID : S7ZAG12 Date of Test : April 1, 2005 AIRLOGIC Co., Ltd. Bluetooth Wireless Stereo Audio Transmitter / AG12 Appendix 3. External Photographs of EUT

FCC ID: S7ZAG12 FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase (SEE NEXT PAGE) FCC ID: S7ZAG12 FCC IDENTIFICATION (NAME PLATE) INFORMATION - The FCC label shown is representative of the label that will appear on the radio when in production. Other information may also be included in the user's manual. FCC ID: S7ZAG12 Bluetooth Wireless Stereo Audio Transmitter Model No.: AG12 Serial No.: Made in Korea

BWS TECH Inc. 1 of 1 #294-9 Jungdae-Dong, Kwanggu-Si,Kyunggi-Do, 464-800, Korea Report No: BWS-05-RF-0008 FCC ID : S7ZAG12 Date of Test : April 1, 2005 AIRLOGIC Co., Ltd. Bluetooth Wireless Stereo Audio Transmitter / AG12 Appendix 4. Internal Photographs of EUT

This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the BWS TECH,Inc. RF MEASUREMENT REPORT CERIFICATION OF COMPLIANCE PRODUCT : Bluetooth Wireless Stereo Audio Transmitter MODEL/TYPE NO : AG12 FCC ID : S7ZAG12 TRADE NAME : AIRLOGIC Co., Ltd. APPLICANT : AIRLOGIC Co., Ltd. A-606, Ssangyoung IT Twin Tower, 442-17, Sangdaewon-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, 462-723, Korea Attn. : Seung Hyun Kim / Assistant FCC CLASSIFICATION : DTS Part 15 Digital Transmission System FCC RULE PART(S) : FCC Part 15 Subpart C Section 15.247 FCC PROCEDURE : Certification DATES OF TEST : April 1, 2005 DATES OF ISSUE : April 1, 2005 TEST REPORT No. : BWS-05-RF-0008 TEST LAB. : BWS TECH Inc. (Registration No. : 553281) This Digital Transmission System has been tested in accordance with the measurement procedures specified in ANSI C63.4-2000 at the BWS TECH/EMC Test Laboratory and has been shown to be complied with the electromagnetic radiated emission limits specified in FCC Rule Part15 Subpart C Section 15.247. I attest to the accuracy of data. All measurement herein was performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. The results of testing in this report apply to the product/system, which was tested only. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. TaeHyun Nam Chief of Laboratory Division BWS TECH Inc. BWS TECH Inc. www.bws.co.kr 294-9, Jungdae-Dong, Kwangju-Si, Kyunggi-Do, 464-080, Korea TEL: +82 31 762 0124 FAX: +82 31 762 0126 BWS TECH Inc. #294-9 Jungdae-Dong, Kwanggu-Si,Kyunggi-Do, 464-800, Korea 2 of 24 AIRLOGIC Co., Ltd. Bluetooth Wireless Stereo Audio Transmitter / AG12 Report No: BWS-05-RF-0008 FCC ID : S7ZAG12 Date of Test : April 1, 2005 TABLE OF CONTENTS Pages 1. General Information 3 2. Description of Test Facility 4 3. Product Information 5 4. Description of Tests 6 5. Test Condition 8 6. Test Results 10 7. Test Equipment List 24 Appendix 1. Test Setup Photos Appendix 2. FCC ID Label and location Appendix 3. External Photos of EUT Appendix 4. Internal Photos of EUT Appendix 5. Block Diagram Appendix 6. Schematics Appendix 7. Operational Description Appendix 8. User Manual Appendix 9. Antenna Specification Appendix 10. RF Exposure Requirement Appendix 11. Statement request BWS TECH Inc. #294-9 Jungdae-Dong, Kwanggu-Si,Kyunggi-Do, 464-800, Korea 3 of 24 AIRLOGIC Co., Ltd. Bluetooth Wireless Stereo Audio Transmitter / AG12 Report No: BWS-05-RF-0008 FCC ID : S7ZAG12 Date of Test : April 1, 2005 FCC TEST REPORT Scope – Measurement and determination of electromagnetic emission(EME) of radio frequency devices including intentional radiators and/or unintentional radiators for compliance with the technical rules and regulations of the U.S Federal Communications Commission(FCC) 1. General Information Applicant Manufacturer z EUT Type : Bluetooth Wireless Stereo Audio Transmitter z Model Number : AG12 z FCC Identifier : S7ZAG12 z S/N : Prototype z Freq. Range : 2402MHz ~ 2480MHz z Number of Channels : 79 z Modulation Method : FHSS (Frequency Hopping Spread Spectrum) z FCC Rule Part(s) : Part 15 Subpart C Section 15.247 z Test Procedure : ANSI C63.4-2000 z Dates of Tests : April 1, 2005 z Place of Tests : BWS TECH Inc. EMC Testing Lab (FCC Registration Number : 553281) #294-9, Jungdae-Dong, Kwangju-Si, Kyunggi-Do, 464-080, Korea TEL: +82 31 762 0124 FAX: +82 31 762 0126 z Test Report No. : BWS-05-RF-0008 Company Name : AIRLOGIC Co., Ltd. Company Address : A-606, Ssangyoung IT Twin Tower, 442-17, Sangdaewon-dong, Jungwon-gu, Seongnam- si, Gyeonggi-do, Korea Phone/Fax : Phone : +82 31 747 1031 Fax : +82 31 747 1034 Company Name : AIRLOGIC Co., Ltd. Company Address : A-606, Ssangyoung IT Twin Tower, 442-17, Sangdaewon-dong, Jungwon-gu, Seongnam- si, Gyeonggi-do, Korea Phone/Fax : Phone : +82 31 747 1031 Fax : +82 31 747 1034 BWS TECH Inc. #294-9 Jungdae-Dong, Kwanggu-Si,Kyunggi-Do, 464-800, Korea 4 of 24 AIRLOGIC Co., Ltd. Bluetooth Wireless Stereo Audio Transmitter / AG12 Report No: BWS-05-RF-0008 FCC ID : S7ZAG12 Date of Test : April 1, 2005 2. Description of Test Facility The measurement for radiated emission test were practiced at the open area test site of BWS TECH Inc. Measurement for conducted emission test were practiced at the semi EMC Anechoic Chamber test site of BWS TECH Inc. facility located at #294-9, Jungdae-Dong, Kwangju-Si, Kyunggi-Do, Korea. The site is constructed in conformance with the requirements of the ANSI C63.4-2000 and CISPR Publication 16. The BWS TECH measurement facility has been filed to the Commission with the FCC for 3 and 10-meter site configurations. Detailed description of test facility was found to be in compliance with the requirements of Section 2.948 FCC Rules according to the ANSI C63.4-1992 and registered to the Federal Communications Commission (Registration Number : 553281 ). The measurement procedure described in American National Standard for Method of Measurement of Radio-Noise Emission from Low-Voltage Electrical and Electronic Equipment in the Range of 9kHz to 40GHz (ANSI C.63.4-2000) was used in determining radiated emissions from the AIGLOGIC Co., Ltd. Model : AG12. BWS TECH Inc. #294-9 Jungdae-Dong, Kwanggu-Si,Kyunggi-Do, 464-800, Korea 5 of 24 AIRLOGIC Co., Ltd. Bluetooth Wireless Stereo Audio Transmitter / AG12 Report No: BWS-05-RF-0008 FCC ID : S7ZAG12 Date of Test : April 1, 2005 3. Product Information 3.1 Equipment Description The Equipment Under Test (EUT) is RF transmitter by the AIRLOGIC Co.,Ltd. Model : AG12. (FCC ID : S7ZAG12). This product enables convenient cord-free communication with mobile phone(CDMA/GSM/GPRS) and Bluetooth device that are compliant with Bluetooth Version 1.2. It is a highly integra…

Text truncated - open the document above for the full version.

BWS TECH Inc. 1 of 2 #294-9 Jungdae-Dong, Kwanggu-Si,Kyunggi-Do, 464-800, Korea Report No: BWS-05-RF-0008 FCC ID : S7ZAG12 Date of Test : April 1, 2005 AIRLOGIC Co., Ltd. Bluetooth Wireless Stereo Audio Transmitter / AG12 Appendix 1. Test Setup Photos Radiated Emission Fundamental & Harmonics Test Setup BWS TECH Inc. 2 of 2 #294-9 Jungdae-Dong, Kwanggu-Si,Kyunggi-Do, 464-800, Korea Report No: BWS-05-RF-0008 FCC ID : S7ZAG12 Date of Test : April 1, 2005 AIRLOGIC Co., Ltd. Bluetooth Wireless Stereo Audio Transmitter / AG12 Conducted EmissionsTest Setup
