S83-AWK-1100AIndustrial IEEE 802.11g Wireless AP/Bridge/Client

MOXA AirWorks AWK-1100 User’s Manual www.moxa.com/product First Edition, July 2005 Moxa Networking Co., Ltd. Tel: +886-2-2910-1230 Fax: +886-2-2910-1231 Web: www.moxa.com MOXA Technical Support Worldwide: [email protected] The Americas [email protected] MOXA AirWorks AWK-1100 User’s Manual The software described in this manual is furnished under a license agreement and may be used only in accordance with the terms of that agreement. Copyright Notice Copyright © 2005 Moxa Networking Co., Ltd. All rights reserved. Reproduction without permission is prohibited. Trademarks MOXA is a registered trademark of the Moxa Group. All other trademarks or registered marks in this manual belong to their respective manufacturers. Disclaimer Information in this document is subject to change without notice and does not represent a commitment on the part of Moxa. Moxa provides this document “as is,” without warranty of any kind, either expressed or implied, including, but not limited to, its particular purpose. Moxa reserves the right to make improvements and/or changes to this manual, or to the products and/or the programs described in this manual, at any time. Information provided in this manual is intended to be accurate and reliable. However, Moxa assumes no responsibility for its use, or for any infringements on the rights of third parties that may result from its use. This product might include unintentional technical or typographical errors. Changes are periodically made to the information herein to correct such errors, and these changes are incorporated into new editions of the publication. Table of Contents Chapter 1 Introduction ...............................................................................................1-1 Overview ..............................................................................................................................1-2 Package Checklist................................................................................................................. 1-2 Product Features ...................................................................................................................1-2 Product Specifications .......................................................................................................... 1-2 Chapter 2 Getting Started ..........................................................................................2-1 First-Time Installation and Configuration ............................................................................2-2 Deploying the Access Point (AP) .........................................................................................2-5 Setting up Client Computers.................................................................................................2-5 Configuring IEEE 802.11g-related Settings ..............................................................2-5 Configuring TCP/IP-related Settings ........................................................................2-6 Confirming the Settings of the AP and Client Computers ....................................................2-6 Checking if the IEEE 802.11g-related Settings Work...............................................2-6 Checking if the TCP/IP-related Settings Work .........................................................2-7 Chapter 3 Web Console Configuration .....................................................................3-1 Overview ..............................................................................................................................3-2 Menu Structure ..........................................................................................................3-2 Save, Save & Restart, and Cancel Buttons................................................................3-3 Home and Refresh Buttons........................................................................................3-3 Viewing Status......................................................................................................................3-4 Associated Wireless Clients ......................................................................................3-4 Current DHCP Mappings ..........................................................................................3-4 System Log................................................................................................................3-4 Link Monitor (AP Client mode only) ........................................................................3-5 General Operations ............................................................................................................... 3-5 Specifying the Operational Mode..............................................................................3-5 Administrative Password...........................................................................................3-6 Managing the Firmware ............................................................................................3-6 Configuring TCP/IP-related Settings..................................................................................3-10 Addressing...............................................................................................................3-10 DHCP Server (AP/Bridge modes only)...................................................................3-11 Configuring IEEE 802.11g-related Settings .......................................................................3-12 Communication .......................................................................................................3-12 Security ...................................................................................................................3-15 IEEE 802.1X/RADIUS (AP mode only).................................................................3-19 Configuring Advanced Settings..........................................................................................3-21 Packet Filters .......................…

Text truncated - open the document above for the full version.

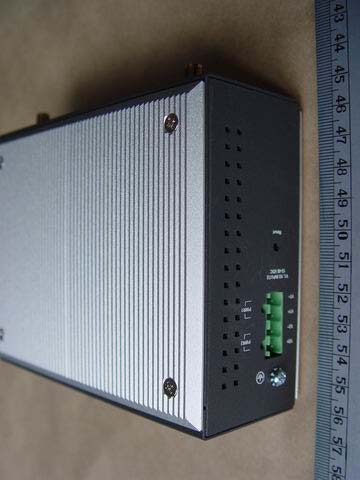

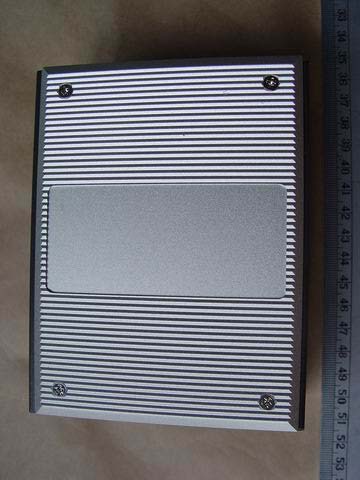

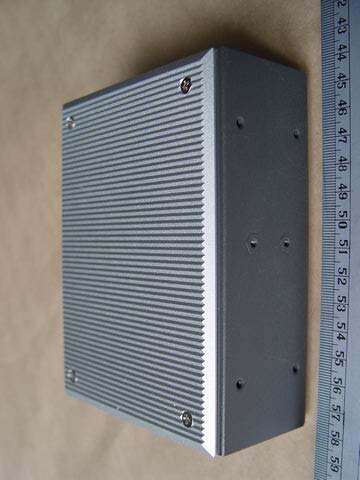

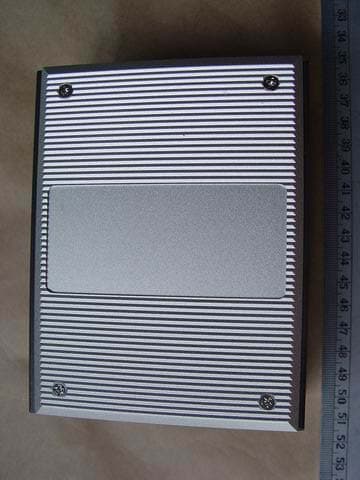

ETS DR.GENZ TAIWAN PS CO., LTD. Registration number: W6M20606-7070-C-2 FCC ID: S83-AWK-1100A ETS Dr.Genz Taiwan PS Co., Ltd. External Photos ETS DR.GENZ TAIWAN PS CO., LTD. Registration number: W6M20606-7070-C-2 FCC ID: S83-AWK-1100A ETS Dr.Genz Taiwan PS Co., Ltd. ETS DR.GENZ TAIWAN PS CO., LTD. Registration number: W6M20606-7070-C-2 FCC ID: S83-AWK-1100A ETS Dr.Genz Taiwan PS Co., Ltd. ETS DR.GENZ TAIWAN PS CO., LTD. Registration number: W6M20606-7070-C-2 FCC ID: S83-AWK-1100A ETS Dr.Genz Taiwan PS Co., Ltd. ETS DR.GENZ TAIWAN PS CO., LTD. Registration number: W6M20606-7070-C-2 FCC ID: S83-AWK-1100A ETS Dr.Genz Taiwan PS Co., Ltd. ETS DR.GENZ TAIWAN PS CO., LTD. Registration number: W6M20606-7070-C-2 FCC ID: S83-AWK-1100A ETS Dr.Genz Taiwan PS Co., Ltd. ETS DR.GENZ TAIWAN PS CO., LTD. Registration number: W6M20606-7070-C-2 FCC ID: S83-AWK-1100A ETS Dr.Genz Taiwan PS Co., Ltd. ETS DR.GENZ TAIWAN PS CO., LTD. Registration number: W6M20606-7070-C-2 FCC ID: S83-AWK-1100A ETS Dr.Genz Taiwan PS Co., Ltd. ETS DR.GENZ TAIWAN PS CO., LTD. Registration number: W6M20606-7070-C-2 FCC ID: S83-AWK-1100A ETS Dr.Genz Taiwan PS Co., Ltd. ETS DR.GENZ TAIWAN PS CO., LTD. Registration number: W6M20606-7070-C-2 FCC ID: S83-AWK-1100A ETS Dr.Genz Taiwan PS Co., Ltd. ETS DR.GENZ TAIWAN PS CO., LTD. Registration number: W6M20606-7070-C-2 FCC ID: S83-AWK-1100A ETS Dr.Genz Taiwan PS Co., Ltd. ETS DR.GENZ TAIWAN PS CO., LTD. Registration number: W6M20606-7070-C-2 FCC ID: S83-AWK-1100A ETS Dr.Genz Taiwan PS Co., Ltd. ETS DR.GENZ TAIWAN PS CO., LTD. Registration number: W6M20606-7070-C-2 FCC ID: S83-AWK-1100A ETS Dr.Genz Taiwan PS Co., Ltd. ETS DR.GENZ TAIWAN PS CO., LTD. Registration number: W6M20606-7070-C-2 FCC ID: S83-AWK-1100A ETS Dr.Genz Taiwan PS Co., Ltd. ETS DR.GENZ TAIWAN PS CO., LTD. Registration number: W6M20606-7070-C-2 FCC ID: S83-AWK-1100A ETS Dr.Genz Taiwan PS Co., Ltd. ETS DR.GENZ TAIWAN PS CO., LTD. Registration number: W6M20606-7070-C-2 FCC ID: S83-AWK-1100A ETS Dr.Genz Taiwan PS Co., Ltd. ETS DR.GENZ TAIWAN PS CO., LTD. Registration number: W6M20606-7070-C-2 FCC ID: S83-AWK-1100A ETS Dr.Genz Taiwan PS Co., Ltd.

Size: 89 x 39 mm

MPE Prediction FCC Rule: 15.247(b)(5) Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission’s guidelines. See §1.1307(b)(1) of this Chapter. LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm2) Average time (minutes) (A)Limits For Occupational / Control Exposures 30-300 61.4 0.613 1.0 6 300-1500 ... ... F/300 6 1500-100,000 ... ... 5 6 (B)Limits For General Population / Uncontrolled Exposure 30-300 27.5 0.073 0.2 30 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 PG S = -------------- 4πR² where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal: 15.72 (dBm) Maximum peak output power at antenna input terminal: 37.32502 (mW) Antenna gain(maximal): 2 (dBi) Prediction distance: 20 (cm) Prediction frequency: 2412 (MHz) MPE limit for uncontrolled exposure at prediction frequency: 1.0 (mW/cm²) Power density at prediction frequency: 0.01485 (mW/cm²) The manual instruct the user to install and operate the device in a minimum distance of 20 cm between antenna and the users body.

MPE Prediction FCC Rule: 15.247(b)(5) Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission’s guidelines. See §1.1307(b)(1) of this Chapter. LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm2) Average time (minutes) (A)Limits For Occupational / Control Exposures 30-300 61.4 0.613 1.0 6 300-1500 ... ... F/300 6 1500-100,000 ... ... 5 6 (B)Limits For General Population / Uncontrolled Exposure 30-300 27.5 0.073 0.2 30 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 PG S = -------------- 4πR² where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal: 15.99 (dBm) Maximum peak output power at antenna input terminal: 39.71915 (mW) Antenna gain(maximal): 2 (dBi) Prediction distance: 20 (cm) Prediction frequency: 2412 (MHz) MPE limit for uncontrolled exposure at prediction frequency: 1.0 (mW/cm²) Power density at prediction frequency: 0.015084 (mW/cm²) The manual instruct the user to install and operate the device in a minimum distance of 20 cm between antenna and the users body.

ETS Dr.Genz Taiwan PS Co., Ltd. FCC Registration No.: 930600 Industry Canada filed test laboratory Reg. No. IC 5679 Accredited Testing Laboratory A2LA Cert.No.: 2300.01 PTCRB Accredited Type Certification Test House FCC TEST - REPORT FCC Part 15 C for IEEE 802.11 b device FCC ID: S83-AWK-1100A Test report no.: W6M20606-7070-C-1 ETS DR.GENZ TAIWAN PS CO., LTD. 6F, NO. 58, LANE 188, RUEY-KUANG RD., NEIHU, TAIPEI 114, TAIWAN, R.O.C. PHONE 886-2-66068877 FAX 886-2-66068879 ETS Dr.Genz Taiwan PS CO., Ltd. Registration number: W6M20606-7070-C-1 FCC ID: S83-AWK-1100A ETS Dr.Genz Taiwan PS Co., Ltd. 2 of 35 TABLE OF CONTENTS 1 GENERAL INFORMATION ................................................................................................... 3 1.1 N OTES................................................................................................................................... 3 1.2 TESTING LABORATORY......................................................................................................... 4 1.2.1 Location .......................................................................................................................4 1.2.2 Details of accreditation status ..................................................................................... 4 1.3 D ETAILS OF APPROVAL HOLDER............................................................................................ 4 1.4 APPLICATION DETAILS.......................................................................................................... 5 1.5 G ENERAL INFORMATION OF TEST ITEM................................................................................. 5 1.6 TEST STANDARDS.................................................................................................................. 6 2 TECHNICAL TEST ..................................................................................................................7 2.1 S UMMARY OF TEST RESULTS................................................................................................. 7 2.2 TEST ENVIRONMENT.............................................................................................................. 7 2.3 T EST EQUIPMENT LIST.......................................................................................................... 8 2.4 GENERAL TEST PROCEDURE............................................................................................... 11 3 TEST RESULTS (ENCLOSURE).......................................................................................... 13 3.1 PEAK OUTPUT POWER (TRANSMITTER) ............................................................................... 14 3.2 EQUIVALENT ISOTROPIC RADIATED POWER......................................................................... 15 3.2.1 Transmitter................................................................................................................. 15 3.3 RF EXPOSURE COMPLIANCE REQUIREMENTS..................................................................... 15 3.4 TRANSMITTER RADIATED EMISSIONS IN RESTRICTED BANDS............................................. 16 3.5 S PURIOUS EMISSIONS (TX) .................................................................................................. 17 3.6 MINIMUM 6 DB BANDWIDTH.............................................................................................. 21 3.7 P EAK POWER SPECTRAL DENSITY....................................................................................... 22 3.8 R ADIATED EMISSIONS FROM RECEIVER SECTION OF TRANSCEIVER.................................... 23 3.9 P OWER LINE CONDUCTED EMISSION.................................................................................. 26 APPENDIX ....................................................................................................................................... 27 APPENDIX A.................................................................................................................................... 28 A PPENDIX B .................................................................................................................................... 29 APPENDIX C .................................................................................................................................... 30 A PPENDIX D.................................................................................................................................... 31 APPENDIX E .................................................................................................................................... 32 APPENDIX F .................................................................................................................................... 33 A PPENDIX G.................................................................................................................................... 34 A PPENDIX H.................................................................................................................................... 35 ETS Dr.Genz Taiwan PS CO., Ltd. Registration number: W6M20606-7070-C-1 FCC ID: S83-AWK-1100A ETS Dr.Genz Taiwan PS Co., Ltd. 3 of 35 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has Passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The tes…

Text truncated - open the document above for the full version.

ETS Dr.Genz Taiwan PS Co., Ltd. FCC Registration No.: 930600 Industry Canada filed test laboratory Reg. No. IC 5679 Accredited Testing Laboratory A2LA Cert.No.: 2300.01 PTCRB Accredited Type Certification Test House FCC TEST - REPORT FCC Part 15C for IEEE 802.11 g device FCC ID: S83-AWK-1100A Test report no.: W6M20606-7070-C-2 ETS DR.GENZ TAIWAN PS CO., LTD. 6F, NO. 58, LANE 188, RUEY-KUANG RD., NEIHU, TAIPEI 114, TAIWAN, R.O.C. PHONE 886-2-66068877 FAX 886-2-66068879 ETS Dr.Genz Taiwan PS CO., Ltd. Registration number: W6M20606-7070-C-2 FCC ID: S83-AWK-1100A ETS Dr. Genz Taiwan PS Co., Ltd. 2 of 36 TABLE OF CONTENTS 1 GENERAL INFORMATION ................................................................................................... 3 1.1 N OTES................................................................................................................................... 3 1.2 TESTING LABORATORY......................................................................................................... 4 1.2.1 Location .......................................................................................................................4 1.2.2 Details of accreditation status ..................................................................................... 4 1.3 D ETAILS OF APPROVAL HOLDER............................................................................................ 4 1.4 APPLICATION DETAILS.......................................................................................................... 4 1.5 G ENERAL INFORMATION OF TEST ITEM................................................................................. 5 1.6 TEST STANDARDS.................................................................................................................. 6 2 TECHNICAL TEST ..................................................................................................................7 2.1 S UMMARY OF TEST RESULTS................................................................................................. 7 2.2 TEST ENVIRONMENT.............................................................................................................. 7 2.3 T EST EQUIPMENT LIST.......................................................................................................... 8 3 TEST RESULTS (ENCLOSURE).......................................................................................... 13 3.1 PEAK OUTPUT POWER (TRANSMITTER) ............................................................................... 14 3.2 EQUIVALENT ISOTROPIC RADIATED POWER......................................................................... 15 3.2.1 Transmitter................................................................................................................. 15 3.3 RF EXPOSURE COMPLIANCE REQUIREMENTS..................................................................... 15 3.4 TRANSMITTER RADIATED EMISSIONS IN RESTRICTED BANDS............................................. 16 3.5 SPURIOUS EMISSIONS (TX) .................................................................................................. 17 3.6 M INIMUM 6 DB BANDWIDTH.............................................................................................. 21 3.7 PEAK POWER SPECTRAL DENSITY....................................................................................... 22 3.8 RADIATED EMISSIONS FROM RECEIVER SECTION OF TRANSCEIVER.................................... 23 3.9 P OWER LINE CONDUCTED EMISSION.................................................................................. 26 APPENDIX ....................................................................................................................................... 28 A PPENDIX A.................................................................................................................................... 29 APPENDIX B .................................................................................................................................... 30 A PPENDIX C .................................................................................................................................... 31 APPENDIX D.................................................................................................................................... 32 A PPENDIX E .................................................................................................................................... 33 APPENDIX F .................................................................................................................................... 34 APPENDIX G.................................................................................................................................... 35 A PPENDIX H.................................................................................................................................... 36 ETS Dr.Genz Taiwan PS CO., Ltd. Registration number: W6M20606-7070-C-2 FCC ID: S83-AWK-1100A ETS Dr. Genz Taiwan PS Co., Ltd. 3 of 36 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has Passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduce…

Text truncated - open the document above for the full version.

ETS DR.GENZ TAIWAN PS CO., LTD. Registration number: W6M20606-7070-C-2 FCC ID: S83-AWK-1100A ETS Dr.Genz Taiwan PS Co., Ltd. Set Up Photos ETS DR.GENZ TAIWAN PS CO., LTD. Registration number: W6M20606-7070-C-2 FCC ID: S83-AWK-1100A ETS Dr.Genz Taiwan PS Co., Ltd. ETS DR.GENZ TAIWAN PS CO., LTD. Registration number: W6M20606-7070-C-2 FCC ID: S83-AWK-1100A ETS Dr.Genz Taiwan PS Co., Ltd. ETS DR.GENZ TAIWAN PS CO., LTD. Registration number: W6M20606-7070-C-2 FCC ID: S83-AWK-1100A ETS Dr.Genz Taiwan PS Co., Ltd. ETS DR.GENZ TAIWAN PS CO., LTD. Registration number: W6M20606-7070-C-2 FCC ID: S83-AWK-1100A ETS Dr.Genz Taiwan PS Co., Ltd. ETS DR.GENZ TAIWAN PS CO., LTD. Registration number: W6M20606-7070-C-2 FCC ID: S83-AWK-1100A ETS Dr.Genz Taiwan PS Co., Ltd. ETS DR.GENZ TAIWAN PS CO., LTD. Registration number: W6M20606-7070-C-2 FCC ID: S83-AWK-1100A ETS Dr.Genz Taiwan PS Co., Ltd. ETS DR.GENZ TAIWAN PS CO., LTD. Registration number: W6M20606-7070-C-2 FCC ID: S83-AWK-1100A ETS Dr.Genz Taiwan PS Co., Ltd.
