S9HZJRNFY03Bluetooth Headphones

(manual) [AcousticSheep Logo] [Model Number] [Instructions] (we are still reviewing it) INSTRUCTIONS Charging instructions: 1.Plug the micro­USB cable into the charging port of the SleepPhones® Wireless Bluetooth® receiver. 2.While charging, there will be a solid red LED light. 3.When fully charged, there will be a solid green LED light. Pairing instructions: 1.Find the slightly raised button. 2.Press and hold for 5 seconds. On your SleepPhones® Wireless headphones, a voice will announce, “Power on, ready to pair.” 3.Check on your phone, computer, or other Bluetooth® transmitter. Make sure it is discoverable and adding a device. 4.Add SleepPhones® Wireless headphones to your phone, computer, or other Bluetooth® transmitter. 5.On your SleepPhones® Wireless headphones, a voice will announce, “Pairing complete.” Operating instructions: 1.Click the button to change the volume. The volume will cycle up and down in 10% increments. 2.Double click the button to pause the music. Double click to resume playing music. 3.To turn the device off, press and hold the button for 2 seconds. A voice will announce, “Power off.” Troubleshooting: 1.Check the volume on the Bluetooth® transmitter. 2.Check the volume on the SleepPhones® Wireless Bluetooth® receiver. 3.Make sure that the SleepPhones® Bluetooth® receiver is charged. 4.Refer to your phone, computer, or other Bluetooth® transmitter manual. If the Bluetooth® transmitter is separated from the SleepPhones® Wireless headphones for more than 5 minutes, the headphones will automatically power off. Not all apps or software support Bluetooth®. [Battery] [Care] SPECIFICATIONS Fleece Band Polartec® Power Stretch® (88% recycled polyester, 12% spandex) Internal Speakers Frequency Range: 20­20 kHz Impedance: 32 Ω Battery: Rechargeable Lithium Ion 80mAh Bluetooth Receiver: 3.0 (backward compatible) & A2DP 1.2 with SBC decoder [Warnings Information] [Warranty] CUSTOMER SERVICE The answers to most setup and performance questions can be found in the Troubleshooting guide. You can also consult the FAQs at www.SleepPhones.com. If you live in North America and still can’t find the information you need, please call our customer service team for assistance before returning the products to your retailer under their return policy. Tel: 877­838­4790 Email: [email protected] If you live outside of North America, please visit our website at www.SleepPhones.com to locate your country’s distributor. For the most up­to­date information, be sure to check our Web site at www.SleepPhones.com. FCC STATEMENT FCC ID: S9HZJRNFY03 ●For the product FCC registration label, please see the Bluetooth® module contained inside of the headband. ●This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. ●This device has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiated radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment of and on, the user is encouraged to try to correct the interference by one or more of the following measures: ○Reorient or relocate the receiving antenna. ○Increase the separation between the equipment and receiver. ○Connect the equipment into an outlet on a circuit diferent from that to which the receiver is connected. ○Consult the dealer or an experienced radio/TV technician for help. ○Changes or modifcations not expressly approved by the party responsible for compliance could void the user‘s authority to operate the equipment. RF Exposure Information This device is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission for an uncontrolled environment. [EU Trash symbol] Disposal of Old Electrical & Electronic Equipment This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local city office or your household waste disposal service. AcousticSheep LLC PO Box 298 Bellefonte PA 16823 USA © 2013 AcousticSheep LLC. All rights reserved. SleepPhones, the SleepPhones logo, and “pajamas for your ears” are trademarks or registered trademark of AcousticSheep, LLC. Other trademarks belong to their respective owners. Unauthorized duplication is a violation of applicable law. US Patent No. 8,213,670. Other US and international patents pending. SPWWWINS R01

AcousticSheep LLC 179 Jefferson Circle, Bellefonte, PA 16823, United States Tel: 814-321-6800 ; Fax: 877-838-4790 Date: March 20, 2013 Federal Communications Commission Authorization and Evaluation Division Permanent Confidentiality Request regarding application for certification of FCC ID: S9HZJRNFY03 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request Permanent Confidential treatment of information accompanying this application as outlined below:  Schematics  Block Diagram  Operation Description  Parts List The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Sincerely, ________________________ Wei-Shin Lai Rev. 1/1/03

AcousticSheep LLC 179 Jefferson Circle, Bellefonte, PA 16823, United States Tel: 814-321-6800 ; Fax: 877-838-4790 Date: March 20, 2013 Power of Attorney To whom it may concern, Please be notified that I, Wei-Shin Lai, have designated Jones Tsai in Sporton International Inc. as the person being responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out by Jones Tsai in Sporton International Inc. on the matters of relating to all processes required in the FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002 (b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This authorization is limited to the product of as following: FCC ID: S9HZJRNFY03 If you have any acknowledgement and response, please send it to Sporton International Inc. directly. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely yours, Contact Person: Wei-Shin Lai Company: AcousticSheep LLC TEL: 814-321-6800 FAX: 877-838-4790 E-mail: [email protected]

AcousticSheep LLC 179 Jefferson Circle, Bellefonte, PA 16823, United States Tel: 814-321-6800 ; Fax: 877-838-4790 Date: March 20, 2013 Federal Communications Commission Authorization and Evaluation Division RE: Certification Application FCC ID: S9HZJRNFY03 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 180 days:  External Photos  Internal Photos  Test Setup Photos  User Manual The application contains technical information, which AcousticSheep LLC deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Sincerely, Wei-Shin Lai 1/1

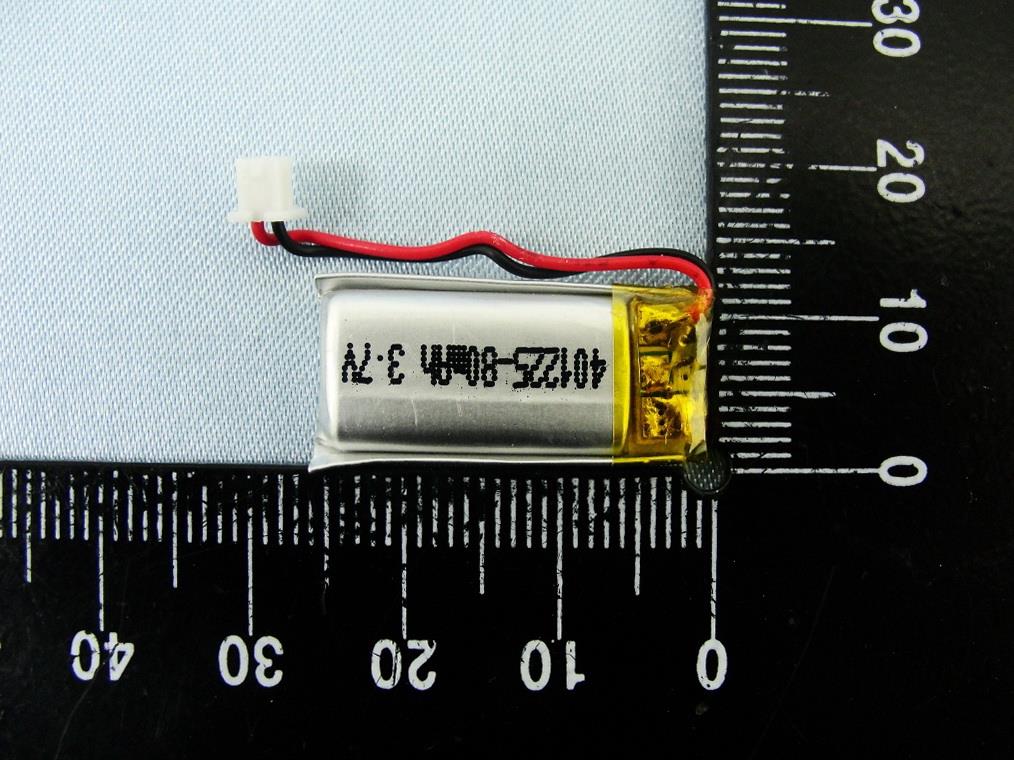

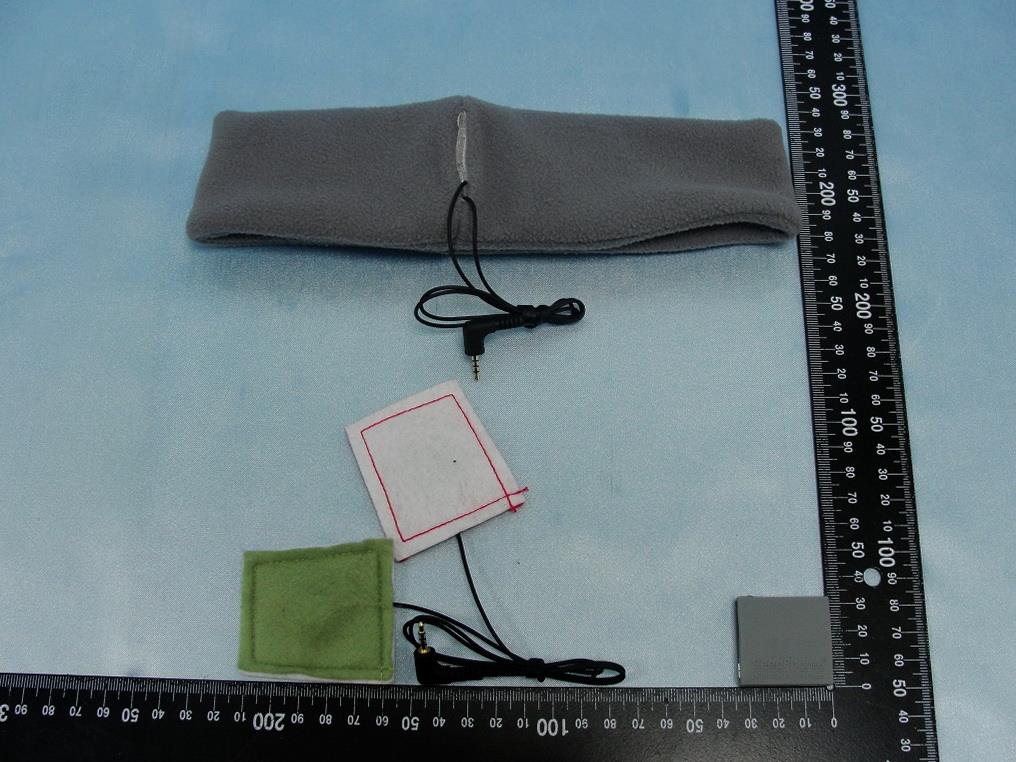

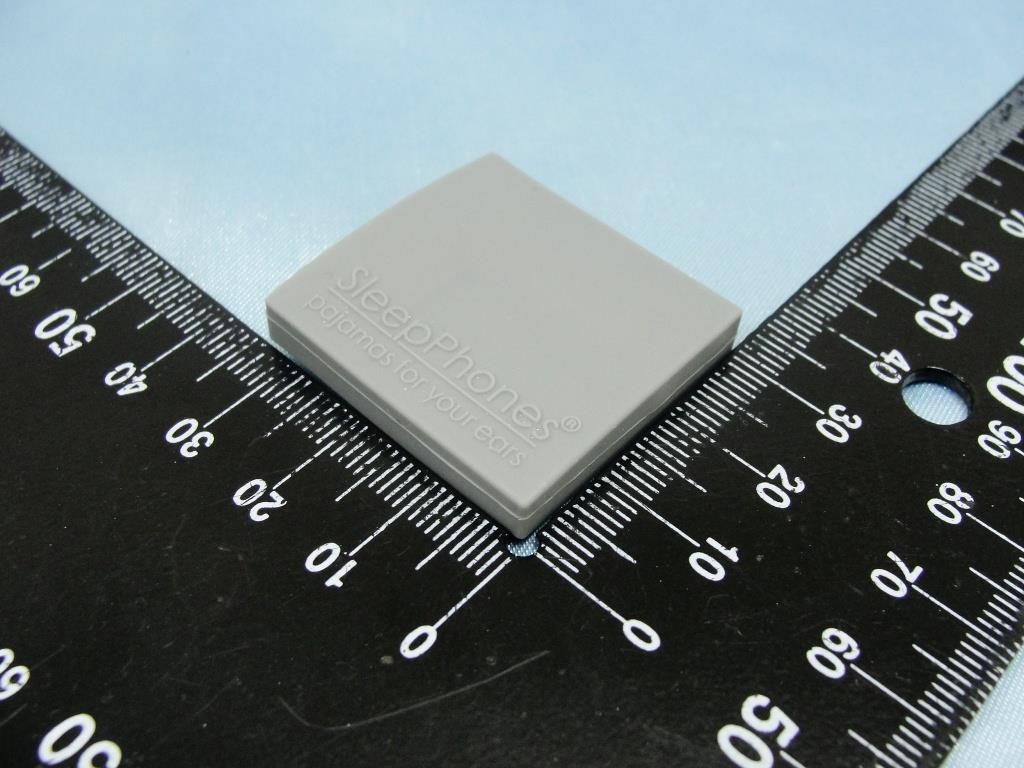

Photographs of EUT Report No.: EP322107 Brand Name: AcousticSheep, LLC / Model Name: Bluetooth® Wireless Headphones SPORTON INTERNATIONAL INC. Page Number : 1 of 12 TEL : 886-3-327-3456 Report Issued Date : Mar. 20, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: S9HZJRNFY03 1. External Photograph of EUT Photographs of EUT Report No.: EP322107 Brand Name: AcousticSheep, LLC / Model Name: Bluetooth® Wireless Headphones SPORTON INTERNATIONAL INC. Page Number : 2 of 12 TEL : 886-3-327-3456 Report Issued Date : Mar. 20, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: S9HZJRNFY03 720510 Photographs of EUT Report No.: EP322107 Brand Name: AcousticSheep, LLC / Model Name: Bluetooth® Wireless Headphones SPORTON INTERNATIONAL INC. Page Number : 3 of 12 TEL : 886-3-327-3456 Report Issued Date : Mar. 20, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: S9HZJRNFY03 List of Accessory: Specification of Accessory Battery Brand Name GOLDEN CELL BATTERY CO LTD Model Name CPL401225-80mAh Earphone 1 Brand Name MAX WAY DIFFERENTIAL SPEAKER 2.5mm Model Name ASL03_SPK Earphone 2 Brand Name MAX WAY DIFFERENTIAL SPEAKER 2.5mm Model Name ASL03_SPK Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP322107 Brand Name: AcousticSheep, LLC / Model Name: Bluetooth® Wireless Headphones SPORTON INTERNATIONAL INC. Page Number : 4 of 12 TEL : 886-3-327-3456 Report Issued Date : Mar. 20, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: S9HZJRNFY03 Photographs of EUT Report No.: EP322107 Brand Name: AcousticSheep, LLC / Model Name: Bluetooth® Wireless Headphones SPORTON INTERNATIONAL INC. Page Number : 5 of 12 TEL : 886-3-327-3456 Report Issued Date : Mar. 20, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: S9HZJRNFY03 Battery Photographs of EUT Report No.: EP322107 Brand Name: AcousticSheep, LLC / Model Name: Bluetooth® Wireless Headphones SPORTON INTERNATIONAL INC. Page Number : 6 of 12 TEL : 886-3-327-3456 Report Issued Date : Mar. 20, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: S9HZJRNFY03 Earphone 1 Photographs of EUT Report No.: EP322107 Brand Name: AcousticSheep, LLC / Model Name: Bluetooth® Wireless Headphones SPORTON INTERNATIONAL INC. Page Number : 7 of 12 TEL : 886-3-327-3456 Report Issued Date : Mar. 20, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: S9HZJRNFY03 720510 Earphone 2

Label Location Front of the EUT

FCC ID: S9HZJRNFY03 This product complies with part 15 of the FCC Rules. Operation is subject to the following 2 conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Bluetooth® Wireless Headphones AcousticSheep, LLC

Photographs of EUT Report No.: EP322107 Brand Name: AcousticSheep, LLC / Model Name: Bluetooth® Wireless Headphones SPORTON INTERNATIONAL INC. Page Number : 8 of 12 TEL : 886-3-327-3456 Report Issued Date : Mar. 20, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: S9HZJRNFY03 720510 3. Internal Photograph of EUT Photographs of EUT Report No.: EP322107 Brand Name: AcousticSheep, LLC / Model Name: Bluetooth® Wireless Headphones SPORTON INTERNATIONAL INC. Page Number : 9 of 12 TEL : 886-3-327-3456 Report Issued Date : Mar. 20, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: S9HZJRNFY03 720510 Photographs of EUT Report No.: EP322107 Brand Name: AcousticSheep, LLC / Model Name: Bluetooth® Wireless Headphones SPORTON INTERNATIONAL INC. Page Number : 10 of 12 TEL : 886-3-327-3456 Report Issued Date : Mar. 20, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: S9HZJRNFY03 720510 Photographs of EUT Report No.: EP322107 Brand Name: AcousticSheep, LLC / Model Name: Bluetooth® Wireless Headphones SPORTON INTERNATIONAL INC. Page Number : 11 of 12 TEL : 886-3-327-3456 Report Issued Date : Mar. 20, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: S9HZJRNFY03 720510 Photographs of EUT Report No.: EP322107 Brand Name: AcousticSheep, LLC / Model Name: Bluetooth® Wireless Headphones SPORTON INTERNATIONAL INC. Page Number : 12 of 12 TEL : 886-3-327-3456 Report Issued Date : Mar. 20, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: S9HZJRNFY03 720510 Bluetooth Antenna <Tx / Rx>

Photographs of EUT Report No.: 322107 Brand Name: AcousticSheep, LLC / Model Name: Bluetooth® Wireless Headphones SPORTON INTERNATIONAL INC. Page Number : 1 of 1 TEL : 886-3-327-3456 Issued Date : Mar. 20, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: S9HZJRNFY03 EUT Length: 3.3 cm EUT Width: 3.3 cm Antenna Length Width Bluetooth Antenna <Tx / Rx> 1.4 cm 0.6 cm Bluetooth Antenna <Tx / Rx> 2.7 cm 1.9 cm

SPORTON INTERNATIONAL INC. Page Number : 1 of 69 TEL : 886-3-327-3456 Report Issued Date : Mar. 21, 2013 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : S9HZJRNFY03 FCC RF Test Report Report No. : FR322107 FCC RF Test Report APPLICANT : AcousticSheep, LLC EQUIPMENT : AcousticSheep Bluetooth Version 1.0 BRAND NAME : AcousticSheep, LLC MODEL NAME : Bluetooth® Wireless Headphones FCC ID : S9HZJRNFY03 STANDARD : FCC Part 15 Subpart C §15.247 CLASSIFICATION : (DSS) Spread Spectrum Transmitter The product was received on Feb. 21, 2013 and completely tested on Mar. 19, 2013. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Joseph Lin / Supervisor Approved by: Jones Tsai / Manager SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. SPORTON INTERNATIONAL INC. Page Number : 2 of 69 TEL : 886-3-327-3456 Report Issued Date : Mar. 21, 2013 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : S9HZJRNFY03 FCC RF Test Report Report No. : FR322107 TABLE OF CONTENTS REVISION HISTORY .......................................................................................................................................... 3 SUMMARY OF TEST RESULT ......................................................................................................................... 4 1 GENERAL DESCRIPTION .......................................................................................................................... 5 1.1 Applicant ............................................................................................................................................ 5 1.2 Manufacturer ...................................................................................................................................... 5 1.3 Feature of Equipment Under Test ..................................................................................................... 5 1.4 Product Specification of Equipment Under Test ................................................................................ 6 1.5 Testing Site ........................................................................................................................................ 6 1.6 Applied Standards ............................................................................................................................. 6 2 TEST CONFIGURATION OF EQUIPMENT UNDER TEST ........................................................................ 7 2.1 Descriptions of Test Mode ................................................................................................................. 7 2.2 Test Mode .......................................................................................................................................... 8 2.3 Connection Diagram of Test System ................................................................................................. 9 2.4 Support Unit used in test configuration and system ........................................................................ 10 2.5 Description of RF Function Operation Test Setup ........................................................................... 10 2.6 Measurement Results Explanation Example ................................................................................... 11 3 TEST RESULT .......................................................................................................................................... 12 3.1 Number of Channel Measurement .................................................................................................. 12 3.2 Hopping Channel Separation Measurement ................................................................................... 14 3.3 Dwell Time Measurement ................................................................................................................ 21 3.4 20dB and 99% Bandwidth Measurement ........................................................................................ 24 3.5 Peak Output Power Measurement .................................................................................................. 31 3.6 Conducted Band Edges Measurement............................................................................................ 33 3.7 Conducted Spurious Emission Measurement ................................................................................. 40 3.8 Radiated Band Edges and Spurious Emission Measurement ........................................................ 50 3.9 AC Conducted Emission Measurement........................................................................................... 63 3.10 Antenna Requirements .................................................................................................................... 67 4 LIST OF MEASURING EQUIPMENT ........................................................................................................ 68 5 UNCERTAINTY OF EVALUATION ........................................................................................................... 69 APPENDIX A. PHOTOGRAPHS OF EUT APPENDIX B. SETUP PHOTOGRAPHS SPORTON INTERNATIONAL INC. Page Number : 3 of 69 TEL : 886-3-327-3456 Report Issued Date : Mar. 21, 2013 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : S9HZJRNFY03 FCC RF Test Report Report No. : FR322107 REVISION HISTORY REPORT NO. VERSION DESCRIPTION ISSUED DATE FR322107 Rev. 01 Initial issue of report Mar. 20, 2013 FR322107 Rev. 02 Update report for revising typo of the worst mode data rate 3 Mbps to 2 Mbps for radiated test cases. Mar. 21, 2013 SPORTON INTERNATIONAL…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL INC. Page Number : B1 of B2 TEL : 886-3-327-3456 Report Issued Date : Mar. 20, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : S9HZJRNFY03 FCC RF Test Report Report No. : FR322107 Appendix B. Setup Photographs <Conducted Emission> SPORTON INTERNATIONAL INC. Page Number : B2 of B2 TEL : 886-3-327-3456 Report Issued Date : Mar. 20, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : S9HZJRNFY03 FCC RF Test Report Report No. : FR322107 <Radiated Emission> LF HF
