S9QP202SWIFI Phone

P202S WLAN Phone Quick User Guide Version 1.01 TABLE OF CONTENTS 1.0 INTRODUCTION............................................................................................................. 1 2.0 PACKAGE CONTENT.................................................................................................... 1 3.0 LIST OF FIGURES .......................................................................................................... 2 4.0 QUICK START................................................................................................................ 3 4.1 F IT THE BATTERY............................................................................................................. 3 4.2 C HARGE THE BATTERY..................................................................................................... 4 4.3 P OWER ON THE PHONE..................................................................................................... 4 4.3 M AKE/RECEIVE A CALL................................................................................................... 4 5.0 MENU ................................................................................................................................ 6 5.1 S TATUS ICONS.................................................................................................................. 6 5.2 M ENU STRUCTURE........................................................................................................... 7 5.3 T EXT ENTRY..................................................................................................................... 7 5.4 T EXT ENTRY IN JAVA VIRTUAL MACHINE........................................................................ 8 6.0 SETTINGS......................................................................................................................... 9 6.1 N ETWORK........................................................................................................................ 9 6.2 W IRELESS SETTINGS...................................................................................................... 10 6.3 H OT SPOT...................................................................................................................... 11 6.4 SIP................................................................................................................................. 12 6.5 STUN AND UPNP .......................................................................................................... 12 7.0 PHONE BOOK ............................................................................................................... 14 7.1 C REATE A NEW CONTACT.............................................................................................. 14 7.2 B ROWSE......................................................................................................................... 14 8.0 MESSAGING .................................................................................................................. 16 8.1 V IEW MESSAGE............................................................................................................. 16 8.2 V IEW MESSAGE............................................................................................................. 16 9.0 CALL LOG ..................................................................................................................... 17 10.0 ENTERTAINMENT....................................................................................................... 18 11.0 CALENDAR .................................................................................................................... 18 12.0 PHONE SETTING ......................................................................................................... 19 12.1 T IME & DATE................................................................................................................. 19 12.2 B ACKLIGHT LEVEL........................................................................................................ 19 12.3 M ELODY VOLUME......................................................................................................... 20 12.4 A LERT TYPE.................................................................................................................. 20 12.5 I MAGE MANAGEMENT................................................................................................... 20 12.6 M ELODY MANAGEMENT................................................................................................ 21 13.0 INFORMATION............................................................................................................. 22 14.0 CALL FORWARD ......................................................................................................... 22 15.0 USING THE CONFIGURATION WEB ...................................................................... 23 15.1 ACCESSING CONFIGURATION MENU.............................................................................. 23 15.2 WEB LOGIN SETTING..................................................................................................... 23 15.3 MANAGEMENT SETTING ñ RESTORE FACTORY SETTING................................................ 24 15.4 NETWORK SETTING ñ DHCP ......................................................................................... 24 15.5 NETWORK SETTING ñ STATIC IP .................................................................................... 25 15.6 SIP SETTING ñ SIP PHONE SETTING, REGISTRAR AND OUTBOUND PROXY SERVER....... 26 15.7 SIP SETTING ñ OTHERS.................................................................................................. 27 15.8 SIP ACCOUNT SETTINGS................................................................................................ 28 15.9 STUN SETTING ñ STUN SERVER SETTING, UPNP SETTING.......................................... 29 15…

Text truncated - open the document above for the full version.

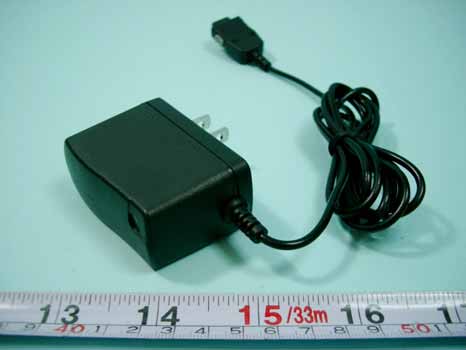

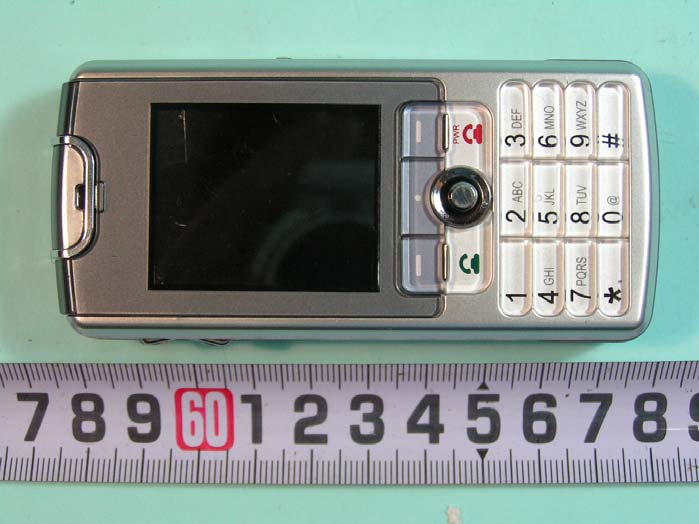

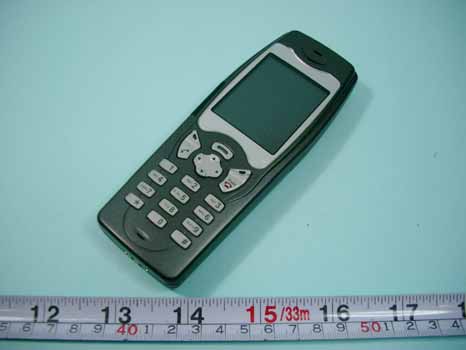

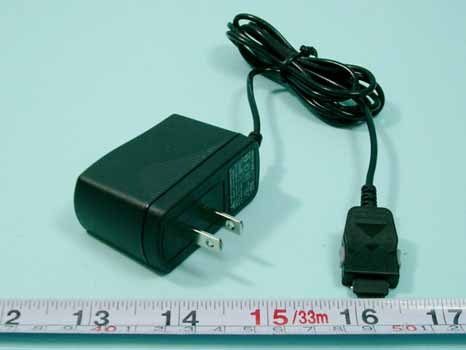

SPORTON International Inc. PAGE NUMBER : A1 OF A10 TEL : 886-2-2696-2468 ISSUED DATE : May 4, 2005 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT SPORTON International Inc. PAGE NUMBER : A2 OF A10 TEL : 886-2-2696-2468 ISSUED DATE : May 4, 2005 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A3 OF A10 TEL : 886-2-2696-2468 ISSUED DATE : May 4, 2005 FAX : 886-2-2696-2255

SPORTON International Inc. PAGE NUMBER : A5 OF A10 TEL : 886-2-2696-2468 ISSUED DATE : May 4, 2005 FAX : 886-2-2696-2255

SPORTON International Inc. PAGE NUMBER : A1 OF A7 TEL : 886-2-2696-2468 ISSUED DATE : May 4, 2005 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A2 OF A7 TEL : 886-2-2696-2468 ISSUED DATE : May 4, 2005 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A3 OF A7 TEL : 886-2-2696-2468 ISSUED DATE : May 4, 2005 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A4 OF A7 TEL : 886-2-2696-2468 ISSUED DATE : May 4, 2005 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A5 OF A7 TEL : 886-2-2696-2468 ISSUED DATE : May 4, 2005 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A6 OF A7 TEL : 886-2-2696-2468 ISSUED DATE : May 4, 2005 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A7 OF A7 TEL : 886-2-2696-2468 ISSUED DATE : May 4, 2005 FAX : 886-2-2696-2255

Description of Operation Date: 2005/9/13 EUT is a 802.11b VoIP phone with 11 channels(2412MHz~2462MHz, Space 5MHz). It allows you to connect to other WLAN device. It is not able to be operated while in charge mode. General Opera tional Description : 1. Time base of the transmission frequency: For IF and RF frequency, Crystal is a clock reference. 2. Synthesizer: Synthesizer inside Transceiver IC and operate frequency in 2.4GHz ISM Band. Internal voltage controlled oscillator (VCO) provides the desired LO signal base on the phase-locked loop (PLL) with a relatively wide tuning range for this application. 3. Transmission: BBP IC has DSSS (BPSK/QPSK/CCK) modulation function, it provides transmission data rate are 1, 2, 5.5, 11 Mbps. Digital data signal will be converted to analog (TX IQ) signals through DAC in BBP IC, TX IQ pass through to low pass filter. TX I/Q signal use direct conversion (zero-IF) architecture converter to generate carrier frequency signal. Transceiver IC and external PA magnify output power. 4. Receiver: Reverse direction isolation of LNA inside Transceiver IC suppresses unwanted radiation. Then 2.4GHz RF signal will be directly down to IF signal (RX IQ) and high frequency spurious emissions are suppressed by LPF. At last RX IQ signal will be demodulated digital data. 5. Base band Processing: Channel Selection: Channel selection is controlled by BBP IC. Data Modulation: DSSS (BPSK/QPSK/CCK) modulation type is controlled by BBP IC. Power Control Level: BBP IC has the power leveling loop table are calibrated by manufacturer, then uses closed-loop power control function to limit RF output power level. Power leveling step accuracy is ± 0.5dB. Transmit/Receive Switch: EUT has Transmit/Receive Switch and Antenna switch Data Link Layer: Firmware implements the full IEEE 802.11 Wireless LAN MAC protocol. It supports BSS and IBSS operation under DCF, and operation under the optional Point Coordination Function (PCF). Lower level protocol functions such as RTS/CTS generation and acknowledgment, fragmentation and de-fragmentation, and automatic beacon monitoring are handled without host intervention. Active scanning is performed autonomously once initiated by host command. Host interface command and status handshakes allow concurrent operations from multi-threaded I/O drivers. 6. Interface: Not-applicable 7. Power: Input 5Vdc from power adapter. This power is provided to regulator components to regulated DC power. FCC ID: S9QP202S Issued on May 4, 2005 Report No.: FR533142 SPORTON International Inc. Page No. : 1 of 44 TEL : 886-2-2696-2468 Issued Date : May 4, 2005 FAX : 886-2-2696-2255 General Description of Equipment under Test Applicant ADVANTAGE CENTURY TELECOMMUNICATION CORP. 4F, NO.41, TUNG-SING RD., TAIPEI, TAIWAN, R.O.C. Manufacturer Cameo Communications, Inc. No.42, Section 6, Min-Chuan East Road, Taipei 114, Taiwan, R.O.C. Basic Description of Equipment under Test This product is a Wireless LAN VoIP phone with 802.11b wireless solution. The technical data has been listed on section “ Features of Equipment under Test ”. Features of Equipment under Test Items Description Type of Modulation DSSS (CCK / DQPSK / DBPSK) Number of Channels 11 Frequency Band 2400 MHz ~ 2483.5 MHz Carrier Frequency 2412 MHz ~ 2462 MHz Data Rate 1, 2, 5.5, 11 Mbps Max. Conducted Output Power 16.00 dBm Antenna Type Chip Antenna Communication Type Half-Duplex Testing Duty Cycle 100.00% Test Power Source 5V DC from power adapter; Chargeable Battery Temperature Range (Operating) 0 ~ 40 °C

©2005 SPORTON International Inc. SAR Testing Lab This report shall not be reproduced except in full, without the written approval of Sporton. Rev. 02 FCC SAR Test Report Test Report No FA533142-1-2-02 Appendix C – Calibration Data ©2005 SPORTON International Inc. SAR Testing Lab This report shall not be reproduced except in full, without the written approval of Sporton. Rev. 02 FCC SAR Test Report Test Report No FA533142-1-2-02 ©2005 SPORTON International Inc. SAR Testing Lab This report shall not be reproduced except in full, without the written approval of Sporton. Rev. 02 FCC SAR Test Report Test Report No FA533142-1-2-02 ©2005 SPORTON International Inc. SAR Testing Lab This report shall not be reproduced except in full, without the written approval of Sporton. Rev. 02 FCC SAR Test Report Test Report No FA533142-1-2-02 ©2005 SPORTON International Inc. SAR Testing Lab This report shall not be reproduced except in full, without the written approval of Sporton. Rev. 02 FCC SAR Test Report Test Report No FA533142-1-2-02 ©2005 SPORTON International Inc. SAR Testing Lab This report shall not be reproduced except in full, without the written approval of Sporton. Rev. 02 FCC SAR Test Report Test Report No FA533142-1-2-02 ©2005 SPORTON International Inc. SAR Testing Lab This report shall not be reproduced except in full, without the written approval of Sporton. Rev. 02 FCC SAR Test Report Test Report No FA533142-1-2-02 ©2005 SPORTON International Inc. SAR Testing Lab This report shall not be reproduced except in full, without the written approval of Sporton. Rev. 02 FCC SAR Test Report Test Report No FA533142-1-2-02 ©2005 SPORTON International Inc. SAR Testing Lab This report shall not be reproduced except in full, without the written approval of Sporton. Rev. 02 FCC SAR Test Report Test Report No FA533142-1-2-02 ©2005 SPORTON International Inc. SAR Testing Lab This report shall not be reproduced except in full, without the written approval of Sporton. Rev. 02 FCC SAR Test Report Test Report No FA533142-1-2-02 ©2005 SPORTON International Inc. SAR Testing Lab This report shall not be reproduced except in full, without the written approval of Sporton. Rev. 02 FCC SAR Test Report Test Report No FA533142-1-2-02 ©2005 SPORTON International Inc. SAR Testing Lab This report shall not be reproduced except in full, without the written approval of Sporton. Rev. 02 FCC SAR Test Report Test Report No FA533142-1-2-02 ©2005 SPORTON International Inc. SAR Testing Lab This report shall not be reproduced except in full, without the written approval of Sporton. Rev. 02 FCC SAR Test Report Test Report No FA533142-1-2-02 ©2005 SPORTON International Inc. SAR Testing Lab This report shall not be reproduced except in full, without the written approval of Sporton. Rev. 02 FCC SAR Test Report Test Report No FA533142-1-2-02 ©2005 SPORTON International Inc. SAR Testing Lab This report shall not be reproduced except in full, without the written approval of Sporton. Rev. 02 FCC SAR Test Report Test Report No FA533142-1-2-02 ©2005 SPORTON International Inc. SAR Testing Lab This report shall not be reproduced except in full, without the written approval of Sporton. Rev. 02 FCC SAR Test Report Test Report No FA533142-1-2-02 ©2005 SPORTON International Inc. SAR Testing Lab This report shall not be reproduced except in full, without the written approval of Sporton. Rev. 02 FCC SAR Test Report Test Report No FA533142-1-2-02 ©2005 SPORTON International Inc. SAR Testing Lab This report shall not be reproduced except in full, without the written approval of Sporton. Rev. 02 FCC SAR Test Report Test Report No FA533142-1-2-02 ©2005 SPORTON International Inc. SAR Testing Lab This report shall not be reproduced except in full, without the written approval of Sporton. Rev. 02 FCC SAR Test Report Test Report No FA533142-1-2-02 ©2005 SPORTON International Inc. SAR Testing Lab This report shall not be reproduced except in full, without the written approval of Sporton. Rev. 02 FCC SAR Test Report Test Report No FA533142-1-2-02 ©2005 SPORTON International Inc. SAR Testing Lab This report shall not be reproduced except in full, without the written approval of Sporton. Rev. 02 FCC SAR Test Report Test Report No FA533142-1-2-02 ©2005 SPORTON International Inc. SAR Testing Lab This report shall not be reproduced except in full, without the written approval of Sporton. Rev. 02 FCC SAR Test Report Test Report No FA533142-1-2-02 ©2005 SPORTON International Inc. SAR Testing Lab This report shall not be reproduced except in full, without the written approval of Sporton. Rev. 02 FCC SAR Test Report Test Report No FA533142-1-2-02

FCC ID: S9QP202S Issued on May 4, 2005 Report No.: FR533142 SPORTON International Inc. TEL : 886-2-2696-2468 FAX : 886-2-2696-2255 FCC TEST REPORT CATEGORY : Portable PRODUCT NAME : WIFI Phone FCC ID. : S9QP202S FILING TYPE : Certification BRAND NAME : ACT MODEL NAME : P202S, P202SU, P202SJ APPLICANT : ADVANTAGE CENTURY TELECOMMUNICATION CORP. 4F, NO.41, TUNG-SING RD., TAIPEI, TAIWAN, R.O.C. MANUFACTURER : Cameo Communications, Inc. No.42, Section 6, Min-Chuan East Road, Taipei 114, Taiwan, R.O.C. ISSUED BY : SPORTON INTERNATIONAL INC. 6F, No. 106, Sec. 1, Hsin Tai Wu Rd., His Chih, Taipei Hsien, Taiwan, R.O.C. Statements: The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. Certificate or Test Report could not be used by the applicant to claim the product endorsement by CNLA and any agency of U.S. government. The test equipment used to perform the test is calibrated and traceable to NML/ROC or NIST/USA. 1190 ILAC MRA FCC ID: S9QP202S Issued on May 4, 2005 Report No.: FR533142 SPORTON International Inc. Page No. : i TEL : 886-2-2696-2468 Issued Date : May 4, 2005 FAX : 886-2-2696-2255: Table of Contents HISTORY OF THIS TEST REPORT......................................................................................................................... II CERTIFICATE OF COMPLIANCE .......................................................................................................................... III 1. GENERAL DESCRIPTION OF EQUIPMENT UNDER TEST .............................................................................. 1 1.1. Applicant ................................................................................................................................................................................................1 1.2. Manufacturer ..........................................................................................................................................................................................1 1.3. Basic Description of Equipment under Test...........................................................................................................................................1 1.4. Features of Equipment under Test ........................................................................................................................................................1 1.5. Antenna Description...............................................................................................................................................................................2 1.6. Table for Carrier Frequencies ................................................................................................................................................................2 2. TEST CONFIGURATION OF THE EQUIPMENT UNDER TEST ........................................................................ 3 2.1. Connection Diagram of Test System .....................................................................................................................................................3 2.2. The Test Mode Description....................................................................................................................................................................3 2.3. Description of Test Supporting Units .....................................................................................................................................................4 3. GENERAL INFORMATION OF TEST.................................................................................................................. 5 3.1. Test Facility ............................................................................................................................................................................................5 3.2. Standards for Methods of Measurement................................................................................................................................................5 3.3. DoC Statement ......................................................................................................................................................................................5 3.4. Frequency Range Investigated ..............................................................................................................................................................5 3.5. Test Distance .........................................................................................................................................................................................5 3.6. Test Software .........................................................................................................................................................................................5 4. LIST OF MEASUREMENTS ................................................................................................................................ 6 4.1. Summary of the Test Results.................................................................................................................................................................6 5. TEST RESULT ..................................................................................................................................................... 7 5.1. Test of 6dB Spectrum Bandwidth ..........................................................................................................................................................7 5.2. Test of Maximum Peak Conducted Output Power...............................................................................................................................10 5.3. Test of Peak Power Spectral Density ...........................................................................................................................…

Text truncated - open the document above for the full version.

FCC ID: S9QP202S Issued on May 4, 2005 Report No.: FR533142 SPORTON International Inc. Page No. : 23 of 44 TEL : 886-2-2696-2468 Issued Date : May 4, 2005 FAX : 886-2-2696-2255 5.5.8. Photographs of Conducted Emission Test Configuration FRONT VIEW REAR VIEW FCC ID: S9QP202S Issued on May 4, 2005 Report No.: FR533142 SPORTON International Inc. Page No. : 36 of 44 TEL : 886-2-2696-2468 Issued Date : May 4, 2005 FAX : 886-2-2696-2255 5.6.11. Photographs of Radiated Emission Test Configuration Mode 1 FRONT VIEW REAR VIEW FCC ID: S9QP202S Issued on May 4, 2005 Report No.: FR533142 SPORTON International Inc. Page No. : 37 of 44 TEL : 886-2-2696-2468 Issued Date : May 4, 2005 FAX : 886-2-2696-2255 Mode 2 FRONT VIEW REAR VIEW
