SA72207LOW POWER TRANSMITTER

FCC Information Federal Communications Commission Radio Frequency Interference Statement. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ? Reorient or relocate the receiving antenna. ? Increase the separation between the equipment and receiver. ? Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ? Consult the dealer or an experienced radio/TV technician for help. Any user that changes or modifies these devices not expressly approved by the party responsible for compliance will void the user’s authority to operate the equipment. This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. ©Savant Technology Group, Inc 2005 Owner’s Manual Communications And Distance Education CADE CADE Wireless Remote Control and Receiver Model Number 2207 and 2207R Savant Technology Group, Inc. 7011 Koll Center Parkway Suite 150 Pleasanton, CA 94566 (925) 461-4510 USB Receiver Connect the CADE Receiver to any USB port on the Virtual Classroom PC with the cable provided. The Receiver is self- configuring so no special installation is necessary. The drivers for the Receiver are installed during the installation of the Virtual Classroom software by checking the “Use USB” label on the Setup Dialog. Remote Control The CADE Remote Control requires no setup or special installation. Pressing the red button turns on the remote and it is ready to use. It operates on two AAA batteries and will automatically turn itself off after one hour of inactivity. Each remote contains a unique ID that differentiates it from all other remotes. The Remote uses radio frequency for communication and has a range of about 100 meters. There is no limit to the number of remotes at any single location. Testing the Remote and Receiver To test the Receiver and Remote Controls, click Start, Programs, CADE, CADE Remote Control Setup to bring up the Remote Control Setup Dialog. Turn on each remote by pushing the red, “On” button and then press one of the buttons on the face of the Remote. You will see the Remote’s ID number and the button you pressed appear in the dialog box. If you should fail to see a number appear: ? Check to make sure the receiver is plugged in ? Check the batteries in the remote Using the CADE Remote Control After the Virtual Classroom program has been started, you will be allowed to enter your personal ID. Click the logon button on the Virtual Classroom screen and a dialog box will appear asking you to press the “On” button on your remote. Press “On” and any number to identify yourself to the system. This establishes the relationship between you and the remote for the duration of the broadcast. If you have any questions, please see your Site Coordinator for more information.

January 3, 2005 Timco Engineering Inc. 849 NW State Road 45 Newberry, FL 32669 Applicant: Savant Technology Group, Inc. 7011 Koll Center Parkway, Suite 150 Pleasanton, CA 94566 Re: Confidentiality for submittal information regarding FCC ID number SA7 2207 PRODUCT: Low Power Transceiver operating in the 431-432 MHz frequency band under part 15.231. Dear Sirs: Savant Technology Group, Inc. requests that the material in the Block diagram, Parts list, Schematics, and Operational Description be withheld from public disclosure in accordance with Section 0.459 of the Commissions Rules, 47 C.F.R. 0.459 (1998), following grant of the application. In support of this request, Savant Technology Group, Inc. submits the following: 1. Identification of the specific information for which confidential treatment is sought: The materials set fourth in the Operational Description, Block Diagram, Parts List, and Schematics, which are segregated from the non-confidential exhibits of the application, are those for which confidentiality is sought. 2. Identification of the Commission proceeding in which the information was submitted or a description of the circumstances giving rise to the submission: The proceeding is that involving the application for equipment authorization (certification) under FCC ID No: SA7 2207 3. Explanation of the degree to which the information is commercial or financial, or contains a trade secret or is privileged: This material includes a detailed theory of operation and circuit diagrams, (schematic, and block diagrams). As such, this material is treated as highly confidential business information. ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 4. Explanation of the degree to which the information concerns a service that is subject to competition: The material for which confidentiality is sought is employed in the design and manufacture of this low power transmitting equipment that is offered on a highly competitive basis. Customers for this equipment have a variety of competing sources. 5. Explanation of how disclosure of the information could result in substantial competitive harm: Disclosure would, in effect, give away the fruits of the labors of Savant Technology Group, Inc.’s engineering personnel, who have designed the equipment and the manufacturing process. Disclosure would also offer competitors additional unwarranted insight into the state of the product development, thereby allowing competitors an advantage, not available to Savant Technology Group, Inc. 6. Identification of any measures taken by the submitting party to prevent unauthorized disclosure: The information for which confidential treatment is sought is kept confidential by Savant Technology Group, Inc. and not made available to third parties except pursuant to non-disclosure agreements. 7. Identification of whether the information is available to the public and the extent of any previous disclosure of the information to third parties: To the knowledge of those preparing this application, the information has not been disclosed publicly heretofore. While the general theory of operation of this equipment has been the subject of numerous disclosures in industry and standards groups as well as in rule making proceedings of the FCC, the protection sought is narrowly drawn and pertains to certain specific implementations of the low power radio technology. 8. Justification of the period during which the submitting party asserts that the material should not be available for public disclosure: This material should not be disclosed for at least 25 years. While improvements in design are made relatively frequently, disclosure of the design information would lead to insights into both design and manufacturing techniques that could have an adverse competitive effect for many years to come. This equipment is designed for residential, commercial, industrial, and governmental applications. As such, it is important that the design not be made available to unauthorized persons who might attempt to use knowledge of the design to compromise the applications for which the equipment will be employed. 9. Any other information that the party seeking confidential treatment believes may be useful in assessing whether its request for confidentiality should be granted: See item 8 above. Note that the equipment for which approval is being sought will be employed in applications that inherently place a premium on security. Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Sincerely, Scot Rogers

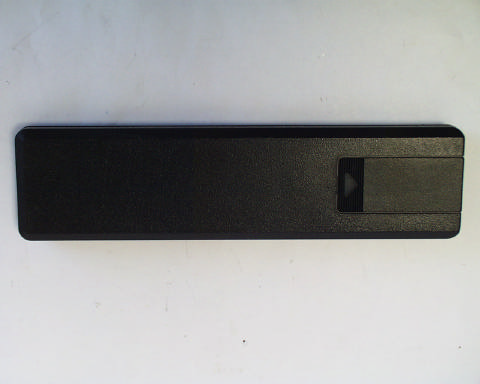

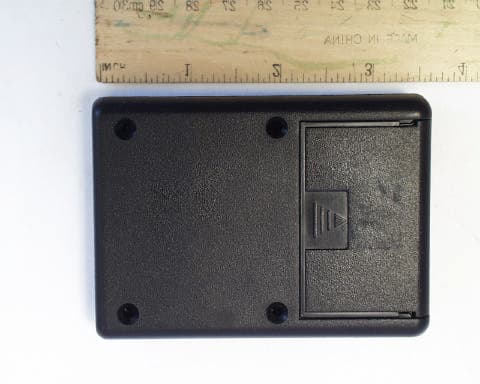

ROGERS LABS, INC. Savant Technology Group, Inc. 4405 W. 259th Terrace MODEL: 2207 Louisburg, KS 66053 Test #:041204 FCC ID#: SA7 2207 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 and 15C Page 1 of 1 Savant 2207 ExtPho 1/10/2005 External Photos of Savant Technology Group, Inc. 2207.

ROGERS LABS, INC. Savant Technology Group, Inc. 4405 W. 259th Terrace MODEL: 2207 Louisburg, KS 66053 Test #: 041204 FCC ID#: SA7 2207 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 and 15C Page 1 of 1 Savant 2207 ID Label 1/10/2005 FCC ID label and location for Savant Technology Group, Inc. 2207. Savant Technology Group Model 2207 www.savant-us.com FCC ID: SA7 2207

ROGERS LABS, INC. Savant Technology Group, Inc. 4405 W. 259th Terrace MODEL: 2207 Louisburg, KS 66053 Test #:041204 FCC ID#: SA7 2207 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 and 15C Page 1 of 1 Savant 2207 IntPho.doc 1/10/2005 Internal Photographs of Savant Technology Group, Inc. 2207.

ENGINEERING TEST REPORT FOR APLLICATION of GRANT of CERTIFICATION FOR CFR 47, PART 15C - INTENTIONAL RADIATORS Paragraph 15.231 Radiated emission limits; general requirements For SAVANT TECHNOLOGY GROUP, INC. 7011 Koll Center Parkway, Suite 150 Pleasanton, CA 94566 Stephen D. Ricketts, CLASSROOM WIRELESS LEARNING REMOTE Model: 2207 Frequency 433 MHz FCC ID#: SA7 2207 Test Date: December 3, 2004 Certifying Engineer: Scot D. Rogers ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 Phone: (913) 837-3214 FAX: (913) 837-3214 This report shall not be reproduced except in full, without the written approval of the laboratory. This report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government. ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 Phone / Fax (913) 837-3214 NVLAP Accredited Laboratory NVLAP Lab Code: 200087-0 ROGERS LABS, INC. Savant Technology Group, Inc. 4405 W. 259th Terrace MODEL: 2207 Louisburg, KS 66053 Test #: 041204 FCC ID#: SA7 2207 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 and 15c (15.231) Page 2 of 22 Savant 2207 TstRpt.doc 1/11/2005 TABLE OF CONTENTS FORWARD:.....................................................................................................................3 1) APPLICABLE STANDARDS & TEST PROCEDURES...........................................3 2.1033(b) Application for Certification....................................................................................................4 2) EQUIPMENT TESTED.............................................................................................5 3) EQUIPMENT FUNCTION AND TESTING PROCEDURES.....................................5 4) EQUIPMENT AND CABLE CONFIGURATIONS.....................................................6 Conducted Emission Test Procedure............................................................................................................6 Radiated Emission Test Procedure:.............................................................................................................6 5) LIST OF TEST EQUIPMENT...................................................................................6 6) UNITS OF MEASUREMENTS.................................................................................7 7) TEST SITE LOCATIONS.........................................................................................7 8) SUBPART B – UNINTENTIONAL RADIATORS.....................................................8 Conducted EMI.............................................................................................................................................8 Radiated EMI................................................................................................................................................8 Conducted (Highest Emissions)..................................................................................................................11 Data: General Radiated Emissions from test system (Highest Emissions)...................................................12 Summary of Results for Test System Conducted Emissions......................................................................12 Summary of Results for Test System Radiated Emissions.........................................................................12 Statement of Modifications and Deviations................................................................................................12 9) SUBPART C - INTENTIONAL RADIATORS.........................................................13 15.203 Antenna Requirements....................................................................................................................13 15.205 Restricted Bands of Operation........................................................................................................13 Data: Emissions in Restricted Bands..........................................................................................................13 Summary of Results for Radiated Emissions in Restricted Bands:...........................................................14 15.209 Radiated Emissions Limits; General Requirements.......................................................................14 Radiated EMI.............................................................................................................................................14 Data: General Radiated Emissions from EUT ( Highest Emissions)...........................................................15 Summary of Results for Radiated Emissions:............................................................................................15 Radiated Emissions of Intentional Radiator in the Band 431 MHz..........................................................15 Data: Radiated Emissions data from EUT taken at three meter distance......................................................17 Data: Antenna Substitution Method............................................................................................................17 Summary of Results for Radiated Emissions of Intentional Radiator.......................................................18 Statement of Modifications and Deviations................................................................................................18 NVLAP Accredited Laboratory NVLAP Lab Code: 200087-0 ROGERS LABS, INC. Savant Technology Group, Inc. 4405 W. 259th Terrace MODEL: 2207 Louisburg, KS 66053 Test #: 041204 FCC ID#: SA7 2207 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 and 15c (15.231) Page 3 of 22 Savant 2207 TstRpt.doc 1/11/2005 FORWARD: The following is submitted for consideration in obtaining a Grant of Certification for intentional radiators operating under CFR Paragraph 15.231. Name of Applicant: SAVANT TECHNOLOGY GROUP, INC. 7011 Koll Center Parkway, Suite 150 Pleasanton, CA 94566 Model: 2207. FCC I.D.: SA7 2207. Frequency Range: 433 MHz. Operating Power: 34.4E-6 W (3 me…

Text truncated - open the document above for the full version.

ROGERS LABS, INC. Savant Technology Group, Inc. 4405 W. 259th Terrace MODEL: 2207 Louisburg, KS 66053 Test #:041203 FCC ID#: SA7 2207 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 and 15C Page 1 of 1 Savant 2207 Tsup.doc 1/10/2005 Test Setup Photographs for Savant Technology Group, Inc. 2207.
