SD2-1Smart Profile

WO#: 404675DATE: 02.12.14 OPERATOR: pdROUND: 2 40394320_08378_SmartPro le_Guide_US

Raj Shah, Device Regulatory Affairs March 10, 2014 CONFIDENTIAL Smart Profile Block Diagram for Radio March 10 th 2014 Smart Profile uses only one radio (ST Micro IC: CR95HF) with following parameters:  RFID frequency: 13.56 MHz  Power: 55 mw

WTD 13.4.9 FCC Compliance Opinion CLRS0003 Information about the Applicant Grantee (Company Name) Pacific Bioscience Laboratories, Inc. FCC Contact Person Raj Shah Address 17275 NE 67th Ct. City, State, Zip Redmond, WA 98052 Job Number CLRS0003 Model Smart Profile FCC ID SD2-1 Agent Approval Type Original Equipment Class DXX - Part 15 Low Power Communication Device Transmitter Rule Part 15.225 Overview Clarsonic is a trademark of Pacific Bioscience Laboratories, Inc. The Smart Profile device is a 13.56 MHz RFID reader, which cannot be operated while charging. Confidentiality requested for allowed files. Request is properly addressed and referenced. Recommendation All items have been resolved and completed to my satisfaction; therefore I recommend this application for approval. Signature Dave Tolman, TCB Committee 3/13/2014

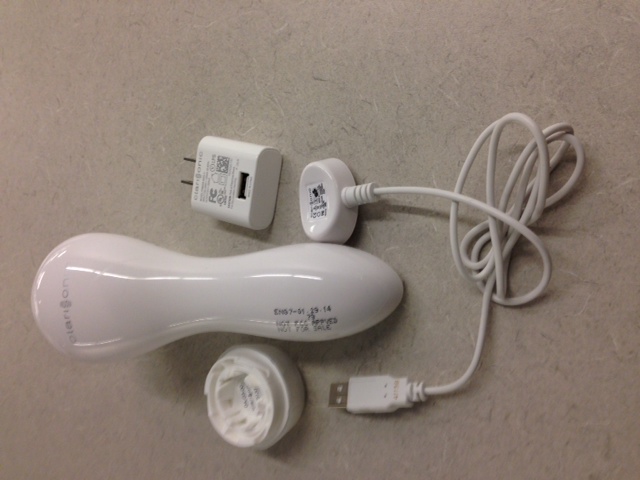

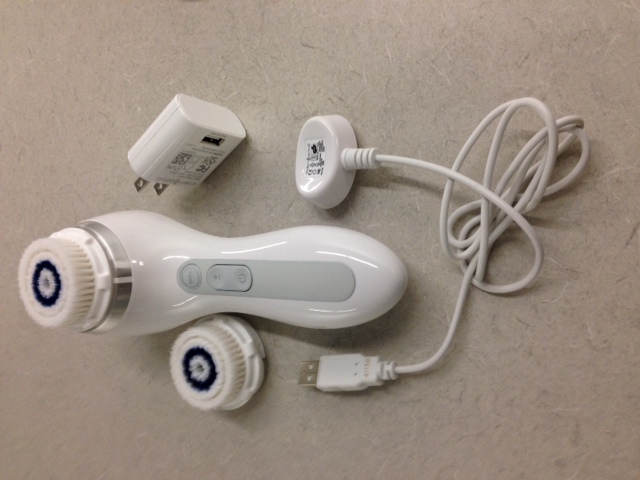

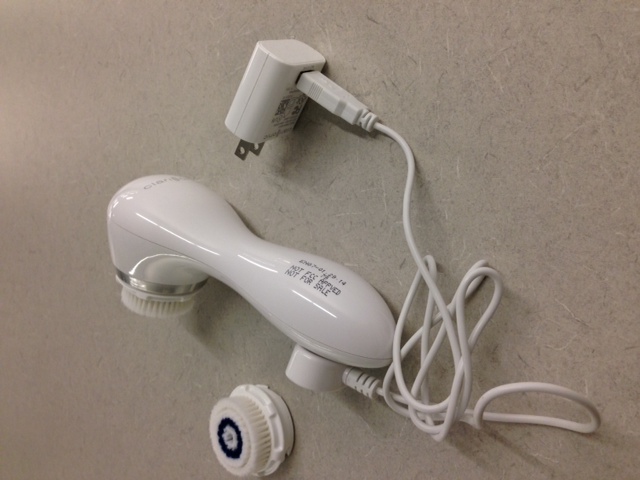

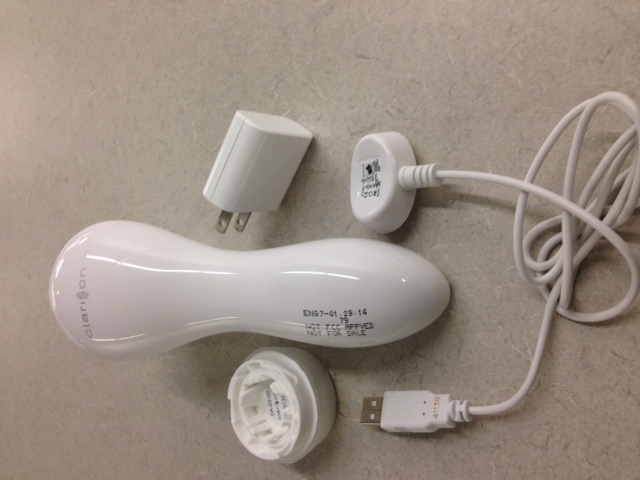

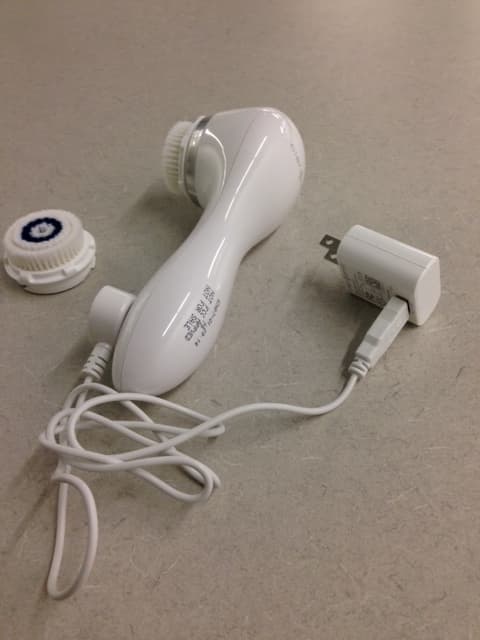

Raj Shah, Device Regulatory Affairs March 10 2014 CONFIDENTIAL Subject: FCC Certification for Smart Profile: COVER LETTER March 10 th 2014 Smart Profile is a skin cleansing system that consists of the following:  Handle (called Smart Profile) with 13.56 MHz, 55 mw RFID tranceiver and brushhead(s) with passive RF ID tag (s) with 2 NiMH AA 1300 mAh batteries.  Small inductive charging puck  USB wall power supply (5 VDC @ 500 mA). When Smart Profile is charging it can not be operated. Also, the charging puck simply charges and there is no data communications between the puck and the handle. Also, Smart Profile is sealed with IPX7 rating and is not serviceable. Batteries or any other component can not be replaced. Smart Profile has fixed (no tune‐up needed) 13.56 MHz RF ID tranceiver IC with 55 mw rating. No tune‐up is required. When the On/Off switch is pressed about 100 ms pulse is sent. The (passive) brushhead tag is read and operating parameter such as (power, duration, etc) are adjusted specifically for the detected brushhead. Smart profile after obtaining all required approvals (FCC, IC, CE and others) will be sold in USA, Canada and EU. Following exhibits are submitted with this application: 1. Complete system photographs (external) (Smart Profile with brushhead, charging puck and USB wall power supply) 2. Internal photographs of Smart Profile PCBA without conformal coating. All production units will have conformal coating protecting the identitiy of key components. 3. User Guide with regulatory info in French as well. 4. Smart Profile ring drawing with FCC, IC and CE mark 5. Smart Profile: BOM, Schematics, PWB and PCBA drawings. 6. RF ID Antenna drawings (both sides). 7. 731 forms signed for FCC and Canada 8. Separate Confidentiality requests for FCC and IC NOTEs: 1. Clarisonic is a registered trademark of Pacific Bioscience Laboratories, Inc. a subsidiary of L'Oreal USA.

Request for Confidentiality Letter-FCC March 1 51 2014 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 To whom it may concern, We hereby respectfully request that under the provision of 47 CFR 0.459 and 0.457(d) th e documents listed below and attached with this application for certification be provided with long-term confidential status. 1. Schematics Any exhibit I information for which we have requested confidentiality, but which may not be accorded such treatment by the FCC, should be returned to us. The documents listed above contain trade secrets that are treated as confidential by us. Substantial competitive harm to us could result should they be made available to the public. Sincerely, Raj Shah Manager, Device R egulatory Affairs Ra j Shah, Device Regulatory Affairs March 12014 CONFIDENTIAL

1.660 1.200±.008 3X R.125 1.780±.008 AA 6 R.040 R.020 .015±.002 17° .180 .100 SECTION A-A MAX FLASH .005 ALL AROUND MAX FLASH .010 ALL AROUND 5 5 5 NOTES: UNLESS OTHERWISE SPECIFIED 1. MATERIAL: POLYPROPYLENE, RANDOM COPOLYMER, LYONDELL BASELL INDUSTRIES, PRO-FAX RP448S 2. COLOR: BADGER-PCC 66998L OPAQUE GRAY 3. REFER TO CAD MODEL FOR UNSPECIFIED SHAPES, FEATURES, AND DRAFT ANGLES. All UNSPECIFIED DIMENSIONS TO MATCH REFERENCED MODEL SHAPES +/- .005 in 4. EXTERIOR SURFACE TEXTURE: SPI B1 POLISH 5 KEY CHARACTERISTIC 6 SIZE, HEIGHT AND LOCATION OF "CE" MARK ARE PER CAD MODEL FEATURE DESIGN 7. ALL FILLET AND CORNER RADII SHOWN SHARP SHALL BE R.010 MAX EXCEPT AS NOTED 8. NO REGRIND ALLOWED 9. GATE LOCATION AND VESTIGE HEIGHT TO BE MUTUALLY AGREED UPON BY PBL AND TOOLER, SEE SHEET 3 10. GATE VESTIGE: .005" MAX 11. FLASH: .005" MAX 12 EJECTOR PIN IMPRESSIONS +.000/-.003 ALLOWED ON THIS SIDE ONLY 13 IDENTIFY EACH CAVITY/CORE MOLD USING ALPHA/NUMERIC NUMBER SUPPLIED BY PBL 14. QUALITY REQUIREMENT: 70000 PBL GENERAL SUPPLIER REQUIREMENT. 15. PART MUST MEET REQUIREMENTS FOR LEAD FREE, RoHS, AND CA PROP. 65 16. COSMETIC REQUIREMENTS: 70014 PBL COSMETIC INSPECTION PROCEDURE 17. GAGES AND FIXTURES USED FOR INSPECTION MUST BE APPROVED BY PBL 18. THE ITEMS DESCRIBED ON THIS DRAWING ARE APPROVED BY PBL CORPORATION, AN ALTERNATE DESIGN OR MATERIAL SHALL NOT BE USED WITHOUT PRIOR TESTING AND WRITTEN APPROVAL BY PBL REVISIONS LTRDESCRIPTIONDATEAPPROVED AINITIAL RELEASE PER DCO 28892/25/2014AJS MODEL FILE REF: 7119 Brush Ring, RFID, Smart Profile <0009> CONFIDENTIAL RFID - SEE NOTES UNLESS OTHERWISESPECIFIED: DIMENSIONS ARE IN INCHES TOLERANCES: DECIMALS: ANGULAR: .XX .03 2 .XXX .005 FRACTIONS .XXXX .0010 1/32" DO NOT SCALE DRAWING APPROVALS PACIFIC BIOSCIENCE LABS INC. 17275 NE 67th CT, Redmond, Wa 98052 (425)-285-4000 SCALE: - MATERIAL FINISH DRAWN CHECKED ENG APPR. DATE TITLE: SIZE B DWG. NO.REV R.CHAN - R. Chan 12/13/13 - 12/13/13 SHEET 1 OF 2 7119 A BRUSH RING FOR CONFIDENTIAL DWG FILE NAME: 7119 Brush Ring, RFID, Smart Profile Rev A B B 12 13 3X .030 3X .025 SECTION B-B SCALE 4 : 1 5 PACIFIC BIOSCIENCE LABS INC. 17275 NE 67th CT, Redmond, Wa 98052 (425)-285-4000 SCALE: - DRAWN CHECKED SIZE B DWG. NO.REV R.CHAN - SHEET 2 OF 2 7119 A

Location of Label

1 1 2 2 3 3 4 4 5 5 6 6 FF EE DD CC BB AA DETAIL A - SMALLEST TRACE WIDTH SCALE: NONE .014 TRACE .01 SPACE FAB NOTES: UNLESS OTHERWISE SPECIFIED 1.Dimensions are given in inches if no units are specified 2.Refer to 6178-SCH (Schematic) and 6177-GBR (Gerbers) for design data. 3.Fabricate Flex in accordance with IPC-6013 Class 2 using customer-supplied data 4.Material: Double-layer flex circuit with polyimide coverlay and adhesiveless substrate A.Copper Weight: .5 oz. rolled annealed Cu with .5 oz. Cu plating. Finished Cu thickness 1 oz. B.Laminate shall be per IPC-4202,4203, and 4204, with UL 94 V-0 flammability rating C.Overall flex thickness to be .01 ±10%. 5.Finish: A.Apply .001 thick polyimide coverlay to both sides of PCB per IPC-4203 using "Solder Mask" CAD data for areas to remove coverlay. B.Exposed copper shall be plated with Electroless Nickel Immersion Gold (ENIG) per IPC-4552 a)Minimum 3um Ni and 0.05um Au plating C.Silkscreen/Overlay shall be white, permanent, non-conductive ink. Silkscreen shall not encroach on any solderable component pad. 6.Tolerances: A.Unless otherwise specified all hole dimensions apply after plating. Plated through holes to have a minimum of .001 copper wall plating. B.All holes shall be located within .005 diameter of true position. All holes surrounded by land pads shall have a minimum annular ring of .001. Tangency on holes with pad breakout is acceptable. C.Conductor outlines shall be within .001 of artwork originals. D.Maximum radius on any inside corner: .020 E.Layer to layer registration shall be within .003 F.Board outline contours shall be within .005 7.Test Requirements: A.100% electrical verification of opens/shorts 8.A certification of conformance shall be supplied to the circuit board assembler with each lot indicating that PCBs were built and tested in accordance with these requirements. 9.Panelization shall be at the fabricator's discretion to minimize cost and maximize yield. BOARD OUTLINE DRILL PATTERN SizeQtyPlatedTolerance 6 Sym Drill Chart Total .01182Yes+0/-.0118 .022Yes+0/-.02 .0322No+/-.002 LAYER STACK-UP SILKSCREEN (TOP) POLYIMIDE COVERLAY (TOP) .001 LAYER 1 (Signal ) .0014 Cu (1 OZ) Substrate .004 LAYER 2 (Signal ) .0014 Cu (1 OZ) POLYIMIDE COVERLAY (BOTTOM) .001 ∆1.85 ± .01 3.042 ± .01 .41 ± .01 .128 ± .01 .151 ± .01 .197 ± .01 .232 ± .01 .342 ± .01 .342 ± .01 .245 ± .01 REVISION NOTESAUTHORAPPROVED initial flex antenna design for Pedi RFIDR. Rutledge2013-07-03 REV X1 TEL: 425-285-4000 FAX: 425-952-5335 www.clarisonic.com DRAWNDATE R. Rutledge2013-07-03 ENGINEERDATE R. Rutledge2013-07-03 CHECKEDDATE D. Gunderson2013-07-03 APPROVEDDATESIZEDWG NOREV S. Straka2013-07-03C6177-PCBX1 ISSUEDDATESHEET NAMESHEET R. Rutledge2013-07-03 SCALE 2 : 1Bare Board1 OF 3 Clarisonic Pacific Bioscience Laboratories Products, Inc. PO Box 429 Redmond, WA 98075 Flex Antenna for RFID, Pedi Fabrication Drawing DWG TITLE The information contained herein is confidential and proprietary to Pacific Bioscience Laboratories Products, Inc. (PBLP) and shall not be reproduced or disclosed in whole or in part without the prior written authorization of PBLP. .201 ± .01 1 1 2 2 3 3 4 4 5 5 6 6 FF EE DD CC BB AA SCALE 2 : 1 C SIZE 6177-PCB DWG NO Pacific Bioscience Laboratories Products, Inc. X1 REV SHEET 2 OF 3 SHEET NAME: Layer Prints 1 1 2 2 3 3 4 4 5 5 6 6 FF EE DD CC BB AA Bottom Side SCALE 2 : 1 C SIZE 6177-PCB DWG NO Pacific Bioscience Laboratories Products, Inc. X1 REV SHEET 3 OF 3 SHEET NAME: Pressure Sensitive Adhesive Strips R20.35 R22.85 12.90 15.40 R1.25 R3.75 10.31 12.81 R3.45 R5.95 38.25 2.50 Attach strips of TESA 8853 FPC Mounting Tape or equivalent die-cut to the dimensions shown. Place approximately as indicated, ensuring that tape does not hang over any edges.

Raj Shah, Device Regulatory Affairs March 10, 2014 CONFIDENTIAL Smart Profile Operational Description March 10 th 2014 Smart Profile uses 13.56 MHz RF ID technology at low power (55 mw). Upon pressing the on‐off switch Smart profile transmits and receives (100ms or less) the information from the passive RF ID tag in the brush head. Smart Profile then adjusts the power level, duration etc designed for the particular brushhead (generally used for face/skin cleansing). The wireless communication standard followed is ISO‐15693 and the modulation scheme is described in that standard. Only data is transferred. The modulation index is 10%. Data rate is 26Kbps. Smart Profile can not be operated while it is charging.

Clarisonic Smart Profile FCC 15.209:2014 FCC 15.225:2014 Report #: CLRS0003.2 Report Prepared By Northwest EMC Inc. NORTHWEST EMC – (888) 364-2378 – www.nwemc.com California – Minnesota – Oregon – New York – Washington WTD 12.5.23 CERTIFICATE OF TEST Last Date of Test: February 14, 2014 Clarisonic Model: Smart Profile Emissions Test Description Specification Test Method Pass/Fail Field Strength of Fundamental FCC 15.225:2014 ANSI C63.10:2009Pass Field Strength of Spurious Emissions >30 MHz FCC 15.209:2014 ANSI C63.10:2009 Pass Field Strength of Spurious Emissions <30 MHz FCC 15.209:2014 ANSI C63.10:2009 Pass Frequency Stability FCC 15.225:2014ANSI C63.10:2009Pass Deviations From Test Standards None Approved By: Tim O'Shea, Operations Manager NVLAP Lab Code: 200629-0 This report must not be used to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government of the United States of America. Product compliance is the responsibility of the client, therefore the tests and equipment modes of operation represented in this report were agreed upon by the client, prior to testing. This Report may only be duplicated in its entirety. The results of this test pertain only to the sample(s) tested. The specific description is noted in each of the individual sections of the test report supporting this certificate of test. REV 2012.08.02 REVISION HISTORY Revision Number Description Date Page Number 00 None Barometric Pressure The recorded barometric pressure has been normalized to sea level. REV 2012.05.24 ACCREDITATIONS AND AUTHORIZATIONS United States FCC - Designated by the FCC as a Telecommunications Certification Body (TCB). Certification chambers, Open Area Test Sites, and conducted measurement facilities are listed with the FCC. A2LA - Accredited by A2LA to ISO / IEC Guide 65 as a product certifier. This allows Northwest EMC to certify transmitters to FCC and IC specifications. NVLAP - Each laboratory is accredited by NVLAP to ISO 17025 Canada IC - Recognized by Industry Canada as a Certification Body (CB). Certification chambers and Open Area Test Sites are filed with IC. European Union European Commission – Validated by the European Commission as a Conformity Assessment Body (CAB) under the EMC directive and as a Notified Body under the R&TTE Directive. Australia/New Zealand ACMA - Recognized by ACMA as a CAB for the acceptance of test data. Korea KCC / RRA - Recognized by KCC’s RRA as a CAB for the acceptance of test data. Japan VCCI - Associate Member of the VCCI. Conducted and radiated measurement facilities are registered. Taiwan BSMI – Recognized by BSMI as a CAB for the acceptance of test data. NCC - Recognized by NCC as a CAB for the acceptance of test data. Singapore IDA – Recognized by IDA as a CAB for the acceptance of test data. Hong Kong OFTA – Recognized by OFTA as a CAB for the acceptance of test data. Vietnam MIC – Recognized by MIC as a CAB for the acceptance of test data. Russia GOST – Accredited by Certinform VNIINMASH, CERTINFO, SAMTES, and Federal CHEC to perform EMC and Hygienic testing for Information Technology products to GOST standards. SCOPE For details on the Scopes of our Accreditations, please visit: http://www.nwemc.com/accreditations/ REV 2013.03.8 MEASUREMENT UNCERTAINTY Measurement Uncertainty When a measurement is made, the result will be different from the true or theoretically correct value. The difference is the result of tolerances in the measurement system that cannot be completely eliminated. To the extent that technology allows us, it has been our aim to minimize this error. Measurement uncertainty is a statistical expression of measurement error qualified by a probability distribution. A measurement uncertainty estimation has been performed for each test per our internal quality document WP 342. The estimation is used to compare the measured result with its "true" or theoretically correct value. The expanded measurement uncertainty (K=2) for each test is listed below. Our measurement data meets or exceeds the measurement uncertainty requirements of the applicable specification; therefore, the test data can be compared directly to the specification limit to determine compliance. The calculations for estimating measurement uncertainty are based upon ETSI TR 100 028 (or CISPR 16-4-1 as applicable), and are available upon request. The following table represents the Measurement Uncertainty (MU) budgets for each of the tests that may be contained in this report. Test + MU - MU Frequency Accuracy (Hz) 0.12 -0.01 Amplitude Accuracy (dB) 0.49 -0.49 Conducted Power (dB) 0.41 -0.41 Radiated Power via Substitution (dB) 0.69 -0.68 Temperature (degrees C) 0.81 -0.81 Humidity (% RH) 2.89 -2.89 Field Strength (dB) 3.80 -3.80 AC Powerline Conducted Emissions (dB) 2.94 -2.94 REV 2013.06.28 FACILITIES Oregon Labs EV01-12 22975 NW Evergreen Pkwy Hillsboro, OR 97124 (503) 844-4066 California Labs OC01-13 41 Tesla Irvine, CA 92618 (949) 861-8918 New York Labs NY01-04 4939 Jordan Rd. Elbridge, NY 13060 (315) 685-0796 Minnesota Labs MN01-08 9349 W Broadway Ave. Brooklyn Park, MN 55445 (763) 425-2281 Washington Labs NC01-05,SU02,SU07 19201 120 th Ave. NE Bothell, WA 98011 (425) 984-6600 VCCI A-0108 A-0029 A-0109 A-0110 Industry Canada 2834D-1, 2834D-2 2834B-1, 2834B-2, 2834B-3 2834E-1 2834C-1 NVLAP NVLAP Lab Code: 200630-0 NVLAP Lab Code: 200676-0 NVLAP Lab Code: 200761-0 NVLAP Lab Code: 200881-0 NVLAP Lab Code: 200629-0 WTD 12.5.23 PRODUCT DESCRIPTION Client and Equipment Under Test (EUT) Information Company Name: Clarisonic Address: 17275 NE 67th Ct. City, State, Zip: Redmond, WA 98052 Test Requested By: Raj Shah Model: Smart Profile First Date of Test: February 07, 2014 Last Date of Test: February 14, 2014 Receipt Date of Samples: February 07, 2014 Equipment Design Stage: Production Equipment Condition: No Damage Information Provided by the Party Requesting the Test Functional Description of the EUT (Equipment Under Test): Ski…

Text truncated - open the document above for the full version.

photo Transmitter 1.JPG Transmitter 2.JPG FIELD STRENGTH OF FUNDAMENTAL PSA-ESCI 2012.12.14 photo Transmitter 3.JPG Transmitter below 30MHz.JPG FIELD STRENGTH OF FUNDAMENTAL PSA-ESCI 2012.12.14 photo Transmitter 3 Maxed.JPG Transmitter above 30MHz.JPG FIELD STRENGTH OF SPURIOUS EMISSIONS > 30MHZ PSA-ESCI 2012.12.14 photo Transmitter 3.JPG Transmitter below 30MHz.JPG FIELD STRENGTH OF SPURIOUS EMISSIONS < 30 MHZ PSA-ESCI 2012.12.14 FREQUENCY STABILITY XMit 2013.08.15 NORTHWEST FREQUENCY STABIL PsaTx 2013.07.11 EMC FS 1.JPG FS 2.JPG FREQUENCY STABILITY FREQUENCY STABILITY XMit 2013.08.15 NORTHWEST FREQUENCY STABIL PsaTx 2013.07.11 EMC FS 3.JPG FREQUENCY STABILITY
