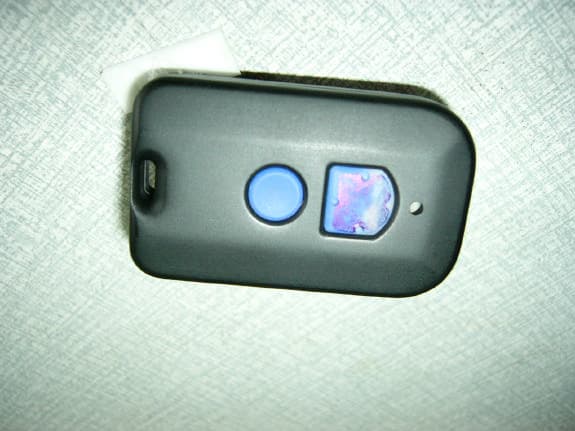

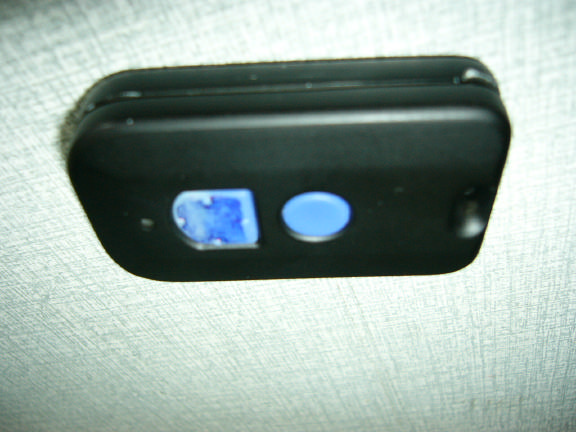

SDFRF01Remote Lock Control

Users Manual User Manual Programming Instruction 1. Open the battery cover, find S, C buttons and a programming switch 2. Press the (S) set button and hear 1 beep 3. On keypad, punch in desired code from 2 digits up to 8 digits, then press the unlock button on keypad to enter this code 4. Engage lock by pressing the lock button on the keypad 5. Test the lock by pressing this code then unlock key 6. Repeat procedure 2 and 3 to program up to 6 different sets of code To Delete Or Erase A Code 1. Press the ( C ) cancel button in the battery module 2. Enter the code desired to delete, then press the unlock button, hear 2 confirmation beeps 3. Repeat 1 and 2 to delete other codes To Erase All Code Previously Programmed Press the C (cancel button) and hold for 10 seconds, then hear 2 confirmation beeps. This reset the lock Lock Function will NOT operate without any code preprogrammed Auto Relock Function Switch the function button to position (1), the unit auto relock in 10 seconds after every unlock entry. Switch the function button to position (2) to deactivate the Auto Lock Function Factory setting is at position (2) THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE

Theory of Operation: ¡Vhopping code creates digit code to turn on and off devise. Use 434Mhz. Modulation: ASK, Amp Short Key

M:\MailBox\Attach\FCCDoc1(1).doc User Manual Programming Instruction 1. Open the battery cover, find S, C buttons and a programming switch 2. Press the (S) set button and hear 1 beep 3. On keypad, punch in desired code from 2 digits up to 8 digits, then press the unlock button on keypad to enter this code 4. Engage lock by pressing the lock button on the keypad 5. Test the lock by pressing this code then unlock key 6. Repeat procedure 2 and 3 to program up to 6 different sets of code To Delete Or Erase A Code 1. Press the ( C ) cancel button in the battery module 2. Enter the code desired to delete, then press the unlock button, hear 2 confirmation beeps 3. Repeat 1 and 2 to delete other codes To Erase All Code Previously Programmed Press the C (cancel button) and hold for 10 seconds, then hear 2 confirmation beeps. This reset the lock Lock Function will NOT operate without any code preprogrammed Auto Relock Function Switch the function button to position (1), the unit auto relock in 10 seconds after every unlock entry. Switch the function button to position (2) to deactivate the Auto Lock Function Factory setting is at position (2) Tune-Up Procedure-Coils and SWA Resonator Circuit Description or Theory of Operation – Modulation: ASK

FCC ID: SDFRF01 MFA p0450004, d0470023 Page Number 7 of 15. AMENDED October 13, 2004 Name of Test: RF Power Output (Radiated) Specification: 47 CFR 2.1046(a) Test Equipment: As per attached page Measurement Procedure (Radiated) 1. The EUT was placed on an open-field site and its radiated field strength at a known distance was measured by means of a spectrum analyzer. Equivalent loading was calculated from the equation P t =((E x R) 2 /49.2) watts, where R = 3m. 2. Measurement accuracy is ±1.5 dB. Measurement Results g0470013: 2004-Jul-16 Fri 08:40:00 State: General Ambient Temperature: 23°C ± 3°C Frequency Tuned, MHz Frequency Emission, MHz Meter, dBuV/m CF, dB @ m Calculated dBuV/m Field Strength uV/m 434.000 433.973500 49.4 23.5 3 72.9 4,400

FCC ID: SDFRF01 MFA p0450004, d0470023 Page Number 7 of 15. AMENDED October 13, 2004 Name of Test: RF Power Output (Radiated) Specification: 47 CFR 2.1046(a) Test Equipment: As per attached page Measurement Procedure (Radiated) 1. The EUT was placed on an open-field site and its radiated field strength at a known distance was measured by means of a spectrum analyzer. Equivalent loading was calculated from the equation P t =((E x R) 2 /49.2) watts, where R = 3m. 2. Measurement accuracy is ±1.5 dB. Measurement Results g0470013: 2004-Jul-16 Fri 08:40:00 State: General Ambient Temperature: 23°C ± 3°C Frequency Tuned, MHz Frequency Emission, MHz Meter, dBuV/m CF, dB @ m Calculated dBuV/m Field Strength uV/m 434.000 433.973500 49.4 23.5 3 72.9 4,400

MFA p0450004, d0470024 Test Setup: Radiated Emissions (KF Series)
