SDUFFMT-001TFOOT PEDAL TRANSMITTER

The future will be a better tomorrow! MusicTurner TM User Guide i Copyright Notice Copyrightⓒ FineFuture Co., Ltd., All rights Reserved. FineFuture Co., Ltd. owns the copyright of this guide. No part of this manual may be cited, reproduced or transmitted in any form or by any means, electronic or mechanical, without the consent of FineFuture Co., Ltd. TRADEMARKS FineFuture and MusicTurner™ are trademarks of FineFuture Co., Ltd. NOTE The information in this document is subject to change to include updates or to correct errata, without notice. All statements, information, and recommendation in this manual are believed to be accurate but are presented without warranty of any kind, express or implied. Users must take full responsibility for their application of any products. FineFuture Co., Ltd. #809, RosenVill Officetel 1588-3 Seocho-dong, Seocho-gu Seoul, Korea TEL: +82-2-3487-4010 FAX: +82-2-3487-6010 http://www.finefuture.com ii Notes and Cautions NOTE: A NOTE indicates important information that helps you make better use of your MusicTurner™. CAUTION: A CAUTION indicates a potential damage to Music Turner and tells you how to avoid the problem. Document Revision No.: 1.00 Document Revision Date: July 28, 2004 iii Table of Contents Welcome..........................................................................................１ 1. Features.................. .........................................................２ 1. MusicTurner TM Basics................................................................３ 1. Package Contents...............................................................３ 2. Parts & Locations.................................................................４ 3. Optional Accessories...........................................................６ 4. Supported Book Sizes.........................................................７ 5. Product Specification...........................................................８ 2. Using MusicTurner TM ..................................................................９ 1. Operating Instruction...........................................................９ 2. Using Upright Piano Adapter (UPA)..................................１６ 3. Using Angle-Recliner with Grand Piano/Digital Piano......１８ 4. How to Handle New Books...............................................１９ 5. How to Handle Sticky Pages............................................２０ 6. Battery Replacement........................................................２１ 6.1. Changing Batteries for MusicTurner Main Body....２１ 6.2. Changing Batteries for Foot Pedal.........................２２ 7. Cleaning............................................................................２３ Guarantee.....................................................................................２４ FAQ................................................................................................２５ １ WELCOME Thank you for purchasing the MusicTurner™. MusicTurner™ is an automatic page-turning device for music books or sheet music. It is a highly powerful and convenient device that will change the way you play music instruments forever. The MusicTurner™ has a patented design that solves the problem of having to stop or rush to turn the pages of sheet music while playing an instrument. By allowing you to play your instrument without interruption, the MusicTurner™ enhances the overall performance and enjoyment. Because most musical instruments require both hands to play, the perceived convenience of a mechanical device that could turn the pages of sheet music automatically has been around since the Renaissance. Even Leonardo DaVinci reportedly tried to come up with a design but to no avail. Many have tried since to come up with a practical solution, but often it was too large, too cumbersome, too noisy, or all of the above. The MusicTurner™ is the first product to address and solve all of these problems. The MusicTurner™ is compact, portable, reliable and easy to use. Open up the MusicTurner™ and set up your sheet music. Then as you play your instrument, step on the foot pedal to turn the page. It’s really that simple. Now you need only to concentrate on playing. ２ 1. FEATURES ¾ Ease of Use & One-touch Operation: Simply open up the MusicTurner TM and set up the bound sheet music on it. Then turn the power on and start playing your instrument. Just press the Foot Pedal switch whenever you want to turn a page. ¾ Reliability: Turns one page at a time accurately. Also, holding the opened book firmly, the MusicTurner TM keeps pages from turning back. ¾ Convenience: Set up once and you are good to go until last page. ¾ Portability: Being small, light and battery-operated, it’s easy to carry anywhere. ¾ Wireless Remote Control: The wireless Foot Pedal is used to turn the pages. It also allows a second person to operate the device from up to 5m (15 ft) away. ¾ Magnetic Attachment: Equipped with two magnets at the back panel side, the MusicTurner TM will attach to a metal music stand firmly and won’t fall down easily. ¾ Versatility: The MusicTurner TM fits any music stands or keyboard instruments and accommodates most classical music book sizes. Additional information on MusicTurner TM is available at http://www.finefuture.com. ３ 1. MusicTurner TM Basics 1. PACKAGE CONTENTS In this package, you will find the following items: ①. MusicTurner™ Main Body ②. Wireless Foot Pedal (Containing two 3V button type batteries) ③. Up-right Piano Adapter ④. 4 AA batteries ⑤. This User Guide If any of these items are missing, please contact the dealer where you purchased the product. ４ 2. PARTS & LOCATIONS Front View ①. Cover ②. Cover Rubber Knob ③. MusicTurner™ Body ④. Power Switch ⑤. Page-Turning Arm ⑥. Page-Turning Arm Rubber ⑦. Book Pressers ⑧. Book Edge Holder ⑨. Page-Turn Button ⑩. External DC 6V Supply Jack ５ Back View ①. Magnets Bottom View ①. Battery Cover ②. Angle Recliner Foot Pedal ①. Page-Turn Switch ②. Battery Cover ③. Power On/Off Switch ６ 3. …

Text truncated - open the document above for the full version.

[ Block Diagram ] SW2 ON Data Signal Transmit U1 Saw Resonator 433.92MHz F1 Amplitude Modulation Q1 Loop ANT

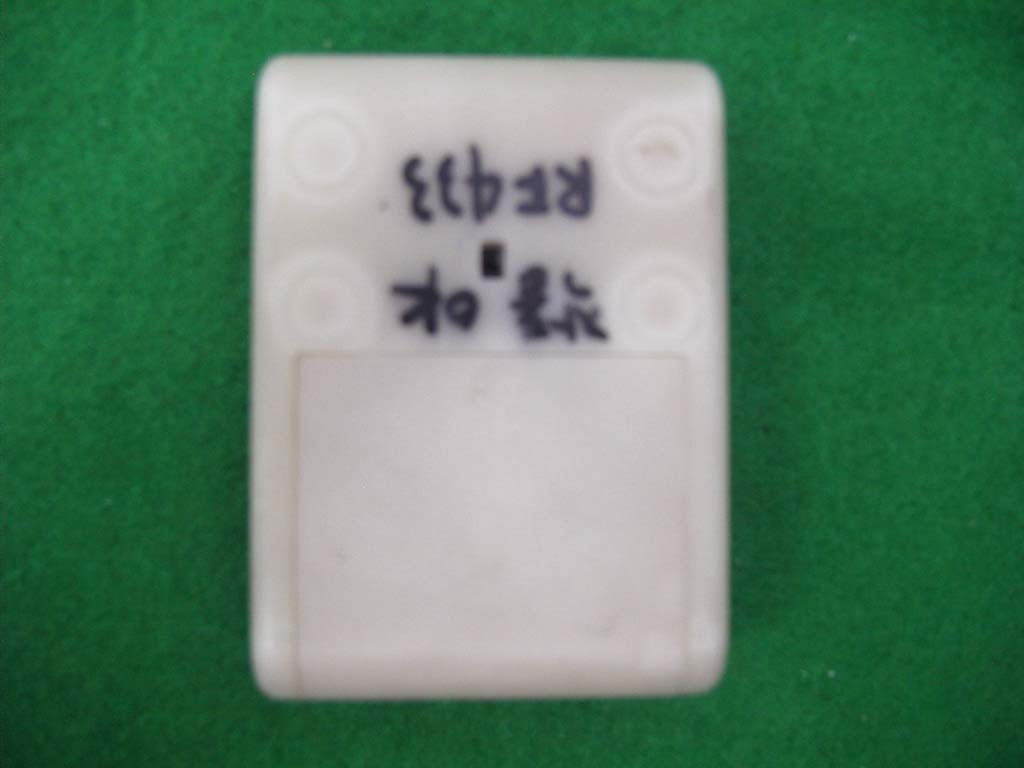

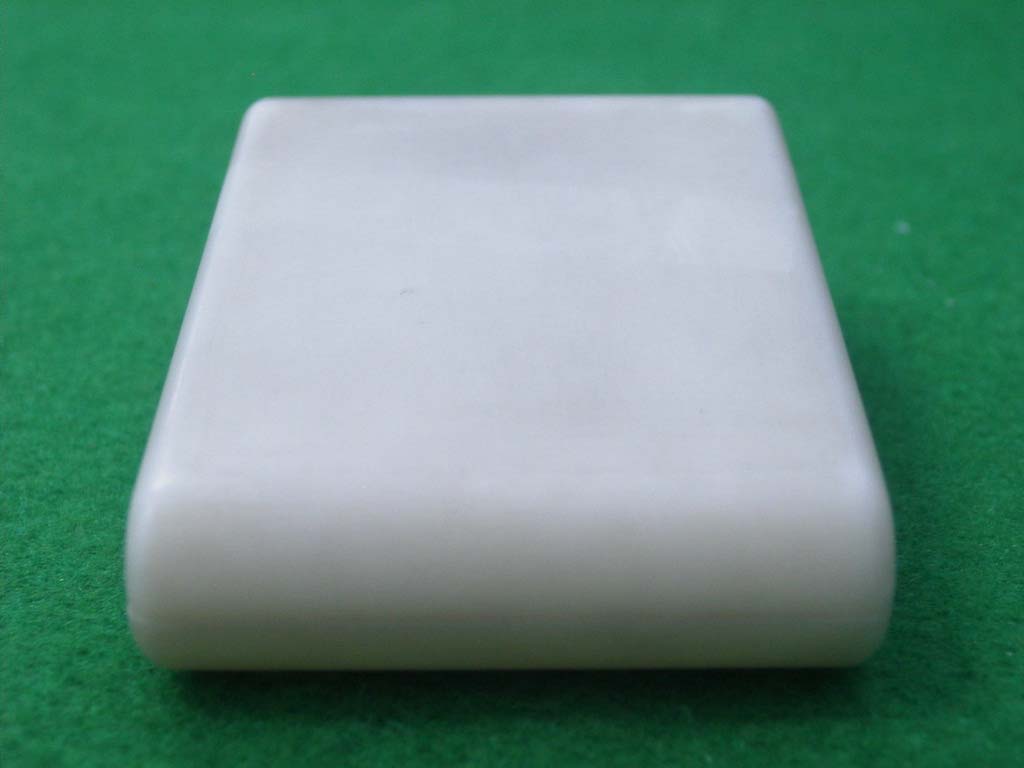

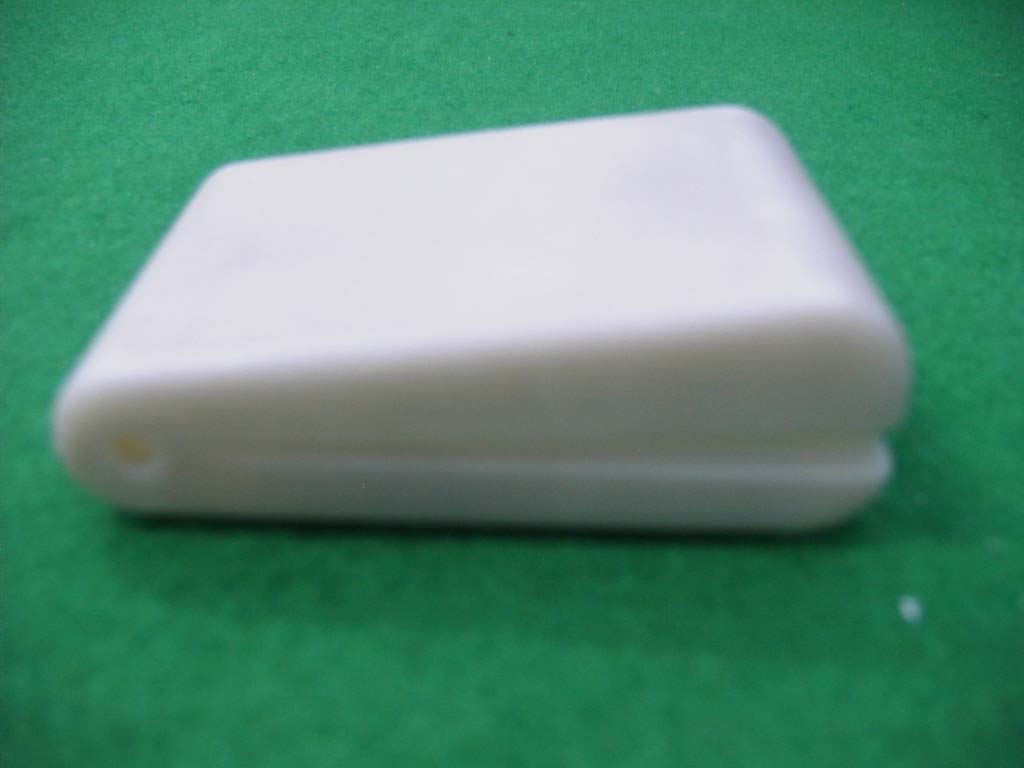

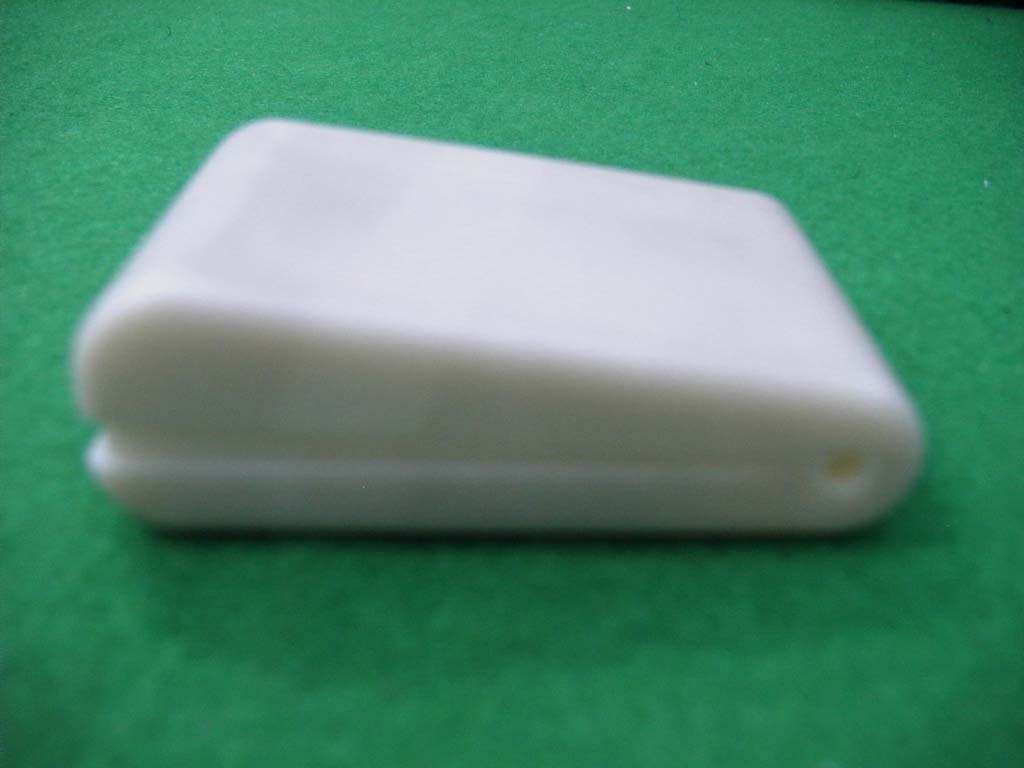

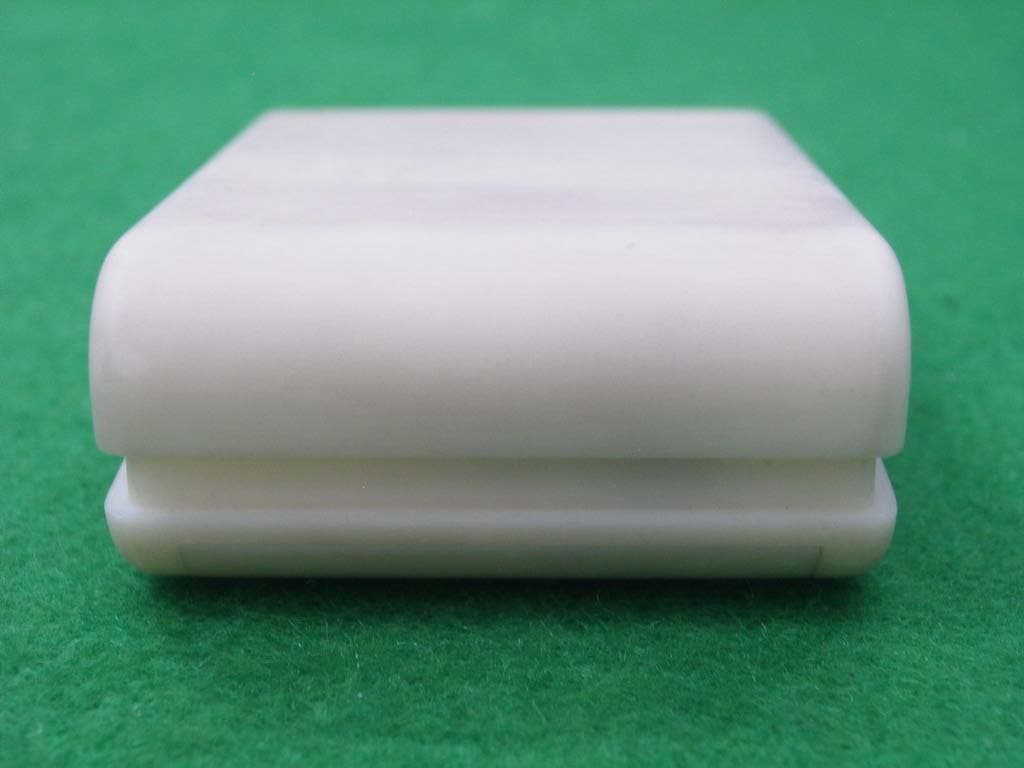

KTI04EF07007 FCC ID: SDUFFMT-001T Korea Technology Institute Co., Ltd. Page 1 of 6 External photo (front) KTI04EF07007 FCC ID: SDUFFMT-001T Korea Technology Institute Co., Ltd. Page 2 of 6 External photo (Rear) KTI04EF07007 FCC ID: SDUFFMT-001T Korea Technology Institute Co., Ltd. Page 3 of 6 External photo (Top) KTI04EF07007 FCC ID: SDUFFMT-001T Korea Technology Institute Co., Ltd. Page 4 of 6 External photo (Bottom) KTI04EF07007 FCC ID: SDUFFMT-001T Korea Technology Institute Co., Ltd. Page 5 of 6 External photo (Left Side) KTI04EF07007 FCC ID: SDUFFMT-001T Korea Technology Institute Co., Ltd. Page 6 of 6 External photo (Right Side)

KTI04EF07007 Model:SDUFFMT-001T Korea Technology Institute Co., Ltd. Page 1 of 1 Label location FCC Label Location

KTI04EF07007 Model: SDUFFMT-001T Korea Technology Institute Co., Ltd. Page 1 of 1 FCC ID Sample Label Model Number: FFMT-001T FCC ID: SDUFFMT-001T S/N: FINE FUTURE CO., LTD. Made in Korea

KTI04EF07007 FCC ID:SDUFFMT-001T Korea Technology Institute Co., Ltd. Page 1 of 2 Internal photo (Front) KTI04EF07007 FCC ID:SDUFFMT-001T Korea Technology Institute Co., Ltd. Page 2 of 2 Internal photo (Rear)

z Oprational Description 1) Push Switch ON At the SW2 push, System is active condition 2) U1 The data signal transmits through the RB1 port in the U1 3) Saw Resonator F1 The Saw Resonator generates the 433.92MHz Carrier signal 4) ASK(Amplitude Shift Keying) Modulation The digital signals from CPU are modulated based on ASK by Q1 5) Loop ANT Radiation of the RF Signal though the loop antenna

[ Circuit Diagram ]

KTI04EF07007 FCC ID: SDUFFMT-001T Korea Technology Institute Co., Ltd. Page 1 of 15 Test Report Test Report No.: KTI04EF07007 Registration No.: 99058 Applicant: Fine Future Co., Ltd. Applicant Address: #809, Rosen Vill B/D 1588-3, Seocho-Dong, Seocho-Gu, SEOUL, KOREA, 135-010 Product: Poot Fedal Transmitter FCC ID: SDUFFMT-001T Model No. FFMT-001T Receipt No.: 04-0724 Date of receipt:July 12, 2004 Date of Issue: July 29, 2004 Testing location Korea Technology Institute Co., Ltd. 51-19, Sanglim3-Ri, Docheok-Myeun, Gwangju-Shi, Gyeungki-Do, Korea Test Standards: FCC/ANSI. C63.4: 2001 Rule Parts: FCC Part 15, Subpart C Equipment Class: Remote Control Transmitter Test Result: The above-mentioned product has been tested with compliance. Tested by: Hyun, Kim / Engineer Approved by: G. C, Min /President Signature Date Signature Date Other Aspects: Abbreviations: * OK, Pass=passed * Fail=failed * N/A=not applicable - This test report is not permitted to copy partly without our permission. - This test result is dependent on only equipment to be used. - This test result is based on a single evaluation of one sample of the above mentioned. - This test report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S Government. - We certify this test report has been based on the measurement standards that is traceable to the national or international standards. KTI04EF07007 FCC ID: SDUFFMT-001T Korea Technology Institute Co., Ltd. Page 2 of 15 Contents ≫≫≪≪ 1. 2. 3. 4. 5. 6. 7. 8. Annex1 Annex2 Contents List of Tables List of Figures List of Photographs General Test Site 2.1 Location 2.2 List of Test and Measurement Instruments 2.3 Test Date 2.4 Test Environment Description of the tested samples 3.1 Rating and Physical characteristics 3.2 Submitted documents Measurement conditions 4.1 Modes of operation 4.2 Additional Equipment 4.3 Uncertainty 4.4 Test Setup Definition and limit 5.1 Definition 5.2 Restricted Bands of Operation 5.3 Limitation 5.4 Labeling Requirement 5.5 User Information Conducted Emissions Measurement Radiated Emission Measurement Emission Bandwidth Measurement Bandwidth Ploted Data Photographs of the Test Set-up Label Photographs of EUT 2 3 3 3 4 4 4 5 5 5 6 6 6 7 7 7 7 8 9 9 9 9 10 10 11 12 14 15 16 17-18 19-26 KTI04EF07007 FCC ID: SDUFFMT-001T Korea Technology Institute Co., Ltd. Page 3 of 15 List of Tables≫ Table 1 List of test and measurement equipment Table 2 Test Data. Radiated Emissions List o≫f Figures ≫List of Photographs Photograph 1 Setup for Radiated Emissions 5 13 16 KTI04EF07007 FCC ID: SDUFFMT-001T Korea Technology Institute Co., Ltd. Page 4 of 15 1. General This equipment has been shown to be capable of compliance with the applicable technical standards and was tested in accordance with the measurement procedures as indicated in this report. We attest to the accuracy of data. Korea Technology Institute Co., Ltd. performed all measurements reported herein. And were made under Chief Engineer’s supervisor. We assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. 2. Test Site Korea Technology Institute Co., Ltd. 2.1 Location 51-19, Sanglim3-Ri, Docheok-Myeun, Gwangju-Shi, Gyeungki-Do, Korea The test site is in compliance with ANSI C63.4/2001 for measurement of radio interference. KTI04EF07007 FCC ID: SDUFFMT-001T Korea Technology Institute Co., Ltd. Page 5 of 15 2.2 List of Test and Measurement Instruments Table 1: List of Test and Measurement Equipment - Conducted Emissions Kind of Equipment Type S/N Calibrated until Spectrum Analyzer R3261C 61720417 11.2004 Field Strength Meter ESPC 832827/011 9.2004 LISN KNW407 8-1157-2 10.2004 LISN EM-7823 115019 4.2005 Conducted Cable N/A N/A 11.2004 - Radiated Emissions Kind of Equipment Type S/N Calibrated until Field Strength Meter ESIB40 100093 3.2005 Spectrum Analyzer R3261C 61720417 11.2004 Pre Amplifier 8447D 2944A06874 11.2004 BiconiLog Antenna 3142B 1705 2.2005 Horn Antenna 3115 6443 6.2005 Open Site Cable N/A N/A 11.2004 Antenna Mast DETT-03 N/A N/A Antenna & Turntable controller DETT-04 91X519 N/A 2.3 Test Date Date of Application: July 12, 2004 Date of Test: July 26, 2004 2.4 Test Environment Temperature: 25 °C Humidity: 44% KTI04EF07007 FCC ID: SDUFFMT-001T Korea Technology Institute Co., Ltd. Page 6 of 15 3. Description of the tested samples The EUT is a Foot Pedal transmitter. 3.1. Rating and Physical Characteristics Model Name MusicTurner™ FM-1R MuscTurner 500 g (17.64 oz) (without batteries) Weight Foot Pedal 100 g (3.53 oz) (including batteries) MuscTurner DC 6V (4 AA 1.5V alkaline batteries) Optional: 6V AC Adapter Power Supply Foot Pedal DC 6V (2 button type 3V lithium batteries (CR2032)) Operating Mode Up to 250mA Power Consumption Standing-by Mode 50mA Page Turning Speed 1 page / 1.5 second Maximum Wireless signal (RF) Operating Distance 5 m (16’) RF Radio Frequency Rage 433MHz (Europe) Operating Temperature / Humidity 15°C ~ 32°C (59°F ~ 90°F) / 15% ~ 85% Battery Life Approximately 500 pages (when using the alkaline batteries) Turning Arm Rubber Life 100,000 page-urns 3.2. Submitted Documents - User’s Guide - Block Diagram KTI04EF07007 FCC ID: SDUFFMT-001T Korea Technology Institute Co., Ltd. Page 7 of 15 4. Measurement Conditions Testing Input Voltage: DC 6V 4.1 Modes of Operation The EUT was in the following operation mode during all testing; 1) Normal mode. 4.2 Additional Equipment DEVICE TYPE Manufacturer M/N S/N FCC ID - - - - - - - - - - 4.3 Uncertainty 1) Radiated disturbance Uc (Combined standard Uncertainty) = ± 1.8dB Expanded uncertainty U=KUc K = 2 U = ± 3.6dB 2) Conducted disturbance Uc = ± 0.88dB U = KUc=2 x Uc = ± 1.8dB KTI04EF07007 FCC ID: SDUFFMT-001T Korea Technology Institute Co., Ltd. Page 8 of 15 4.4 Test Setup Signal Line Power Line EUT KTI04EF07007 FCC ID: SDUFFMT-001T Korea Technology Institute Co., Ltd. Page 9 of 15 5. Definition and Limits 5.1 Definition Intentional radiato…

Text truncated - open the document above for the full version.

KTI04EF07007 Model: SDUFFMT-001T Korea Technology Institute Co., Ltd. Page 1 of 1 6. Photograph of the Test Set-Up Photograph 1 : Setup for radiated Emissions
