Carillon Table Top Light Item# 65036 ( with ML-23 Wireless Remote Control LED Light ) 1 2 3 4 5 6 • (1) Light Body (2) Lens Holder (3) Glass Lens (4) Brass Top with LED Light ( 3 x C Size Batteries Required--Not Included ) (5) Remote Control ( 2 x Button Cell CR2032 Batteries Included ) (6) Hardware and Assembly Tool ( 2 x Spare Nuts ) 1. Product Components a b c 2. Assembly Instructions: Diagram ADiagram BDiagram CDiagram D a c + Remove the Top to Access the LED Module b Diagram EDiagram FDiagram G • • • • • • • Manual PUSH ONOFF Button• b Diagram A: Separate the top from the lens holder by unscrewing the brass nuts. Access the LED Module underneath the brass top for battery installation. Carefully store the brass nuts for later assembly. Diagram B: Unscrew the lower section of the LED Module by hand to install the C size batteries. Once installed, screw the lower section back in. See Operating Instructions for further details. Diagram C: Attach the lens holder to the body of the light using the supplied bolt and tool. Diagram D: Remove the protective sleeves on the top and bottom of the glass lens. Place the glass lens into the lens holder. Diagram E: Attach the brass top to the brass lens holder by hand turning the nuts from step 1 (Diagram A) into the screws protruding from underneath the brass top. Diagram F: Unscrew the battery cover to remove the battery tab. Screw the battery cover back on. See Operating Instructions for further details. 3. Operating Instructions: This product comes with a Remote Control Battery Operated LED Light with several unique features including an adjustable dimmer and timer settings for automatic shut off. The light may also be operated by a manual On/Off button accessible through the Lens Holder(Diagram G). LED Light: a. Unscrew the lower section of the puck shaped LED light module located underneath the brass top. The upper section of the LED module is permanently attached to the underside of the brass top. (Diagram B) b. Install 3 x C size alkaline batteries noting the correct polarity. (Diagram B) c. Screw the lower section with batteries now installed back into the upper section. Please take care to screw the lower section in all the way to ensure the LED module remains water resistant. You will know this has been done correctly as you will have easy access with your finger through the glass lens holder to the back up manual on/off button. (Diagram G) Remote Control: a. Unscrew the back plate from the remote control. (Diagram F) b. Remove the battery tab. (Diagram F) c. Screw the back plate back on (Diagram F) d. Press the On button to turn the light on. Press the Off button to turn the light off. e. Press the + or - buttons to adjust the light level. f. Press the 2H, 3H, or 4H buttons (H=Hours) to select the amount of time you wish to have the light on. When you press any one of these buttons you will see the green timer light indicating that the timer has been set. You can reset this by pressing another of the timer settings or by turning the light off and then on again. If you don't press one of the timer buttons then the light will remain on until you turn it off. g. This light works best when the remote control is activated within 10' of the light. In a situation when the light is placed further away then please extend the antenna on the remote control for better reception. Please contact one of our Product Specialists for assembly assistance or questions at 1-800-537-8484 or email [email protected]. Specialists are available weekdays 8:00 a.m. to 8:00 p.m. EST or Saturday 9:30 a.m. to 6:00 p.m. FCC Statement: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment a - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. nd receiver. - Consult the dealer or an experienced radio/TV technician for help. WARNING: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This light may be used outdoors as it is water resistant but it is not water proof and so cannot be submerged in water. Remove the batteries if the light will not be used for a prolonged period of time. Do not mix battery types. Use only fresh batteries for reliable operation. Do not look directly into the light. CAUTION:

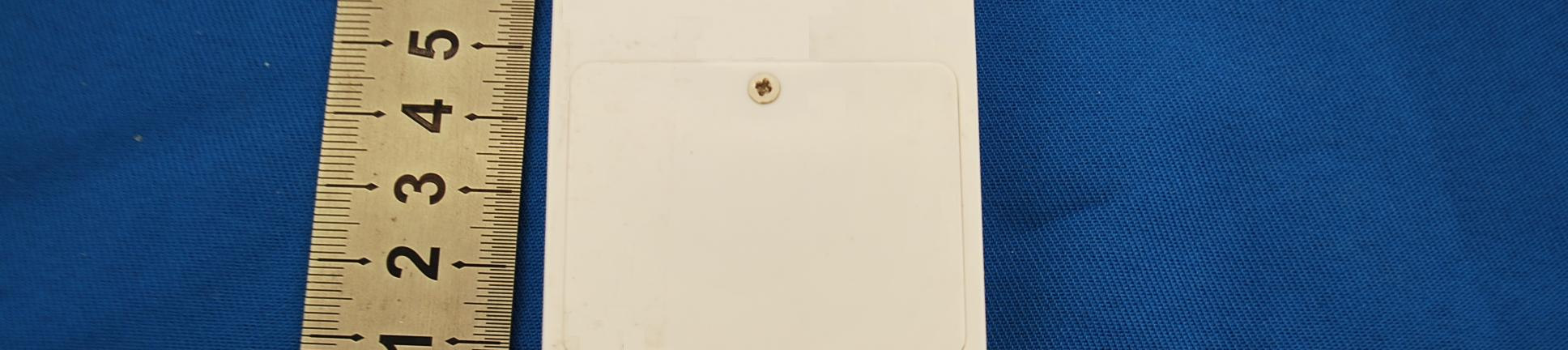

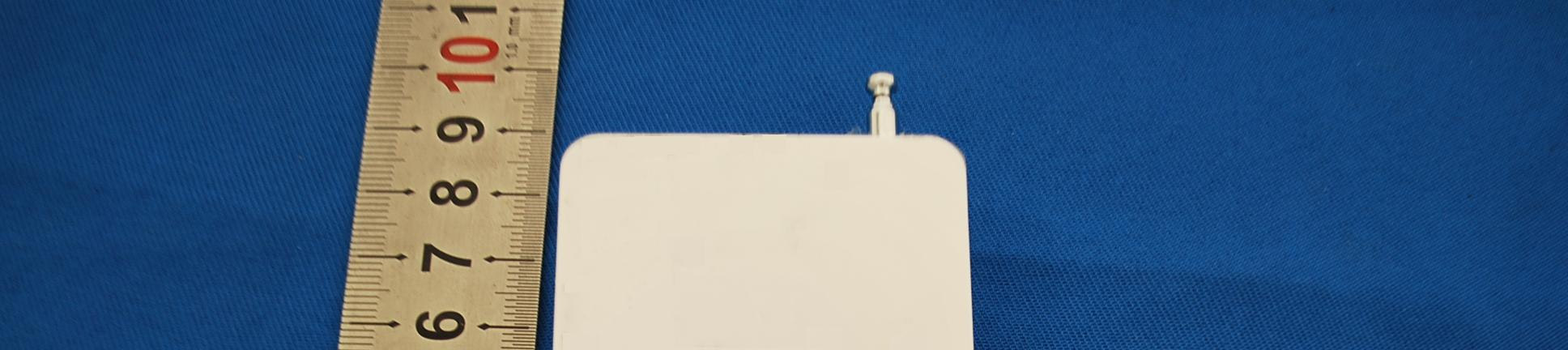

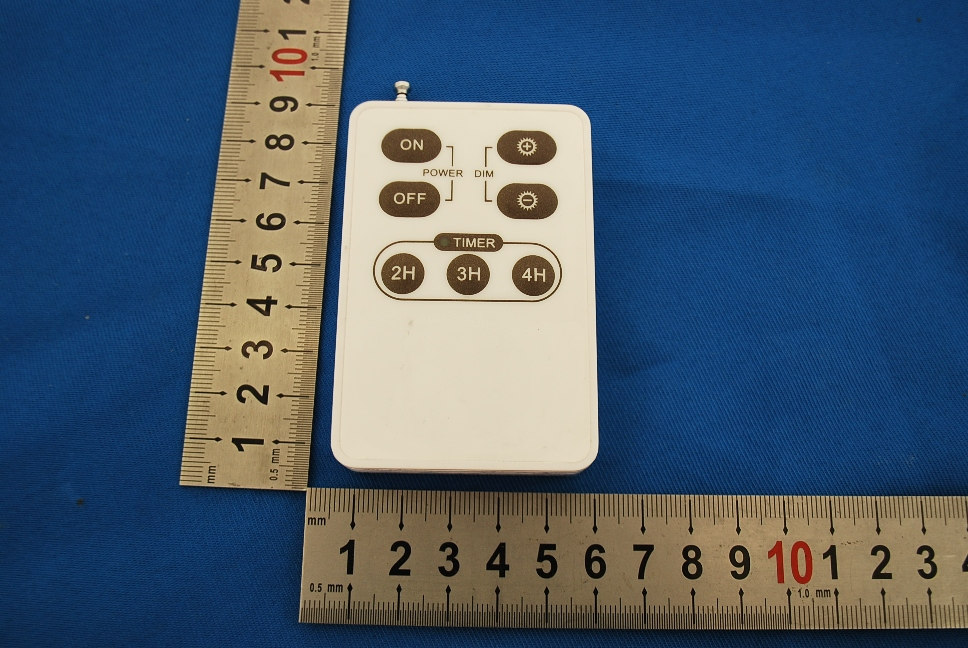

1 Photographs - EUT Constructional Details (Test Model No.: ML-23)

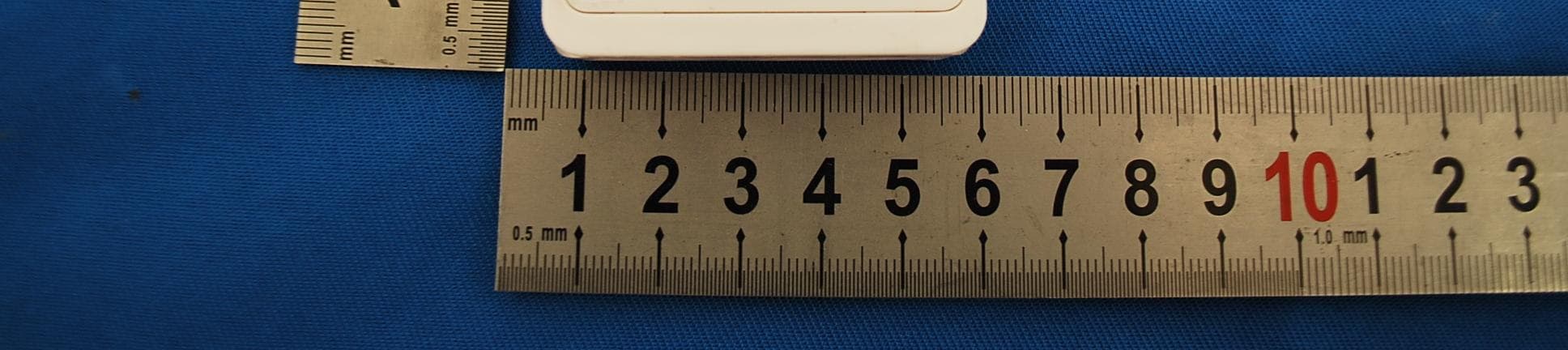

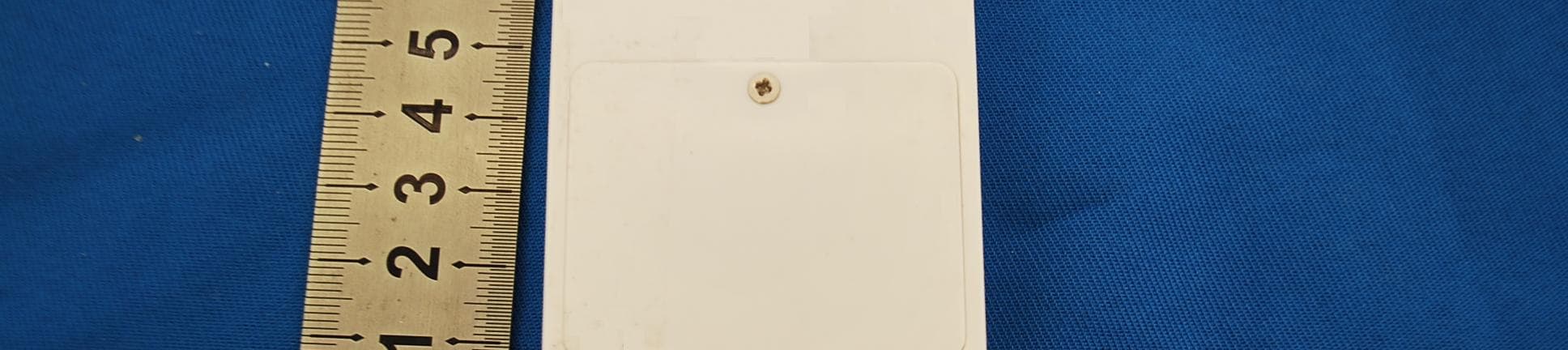

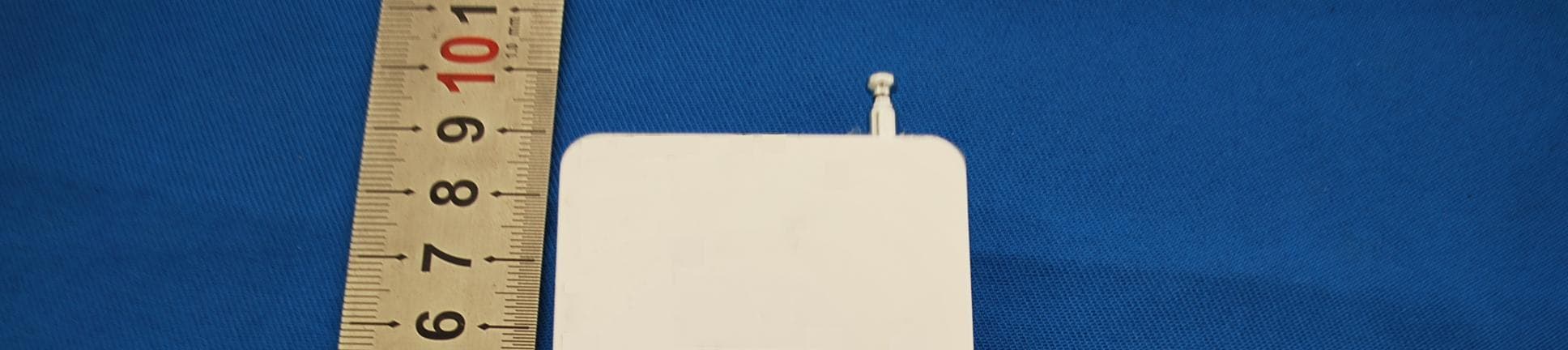

1 Photographs - EUT Constructional Details (Test Model No.: ML-23)

SGS-CSTC Standards Technical Services Ltd. No. 1 Workshop, M-10, Middle section, Science & Technology Park, Nanshan District, Shenzhen, Guangdong, China 518057 Telephone: +86 (0) 755 2601 2053 Fax: +86 (0) 755 2671 0594 Email: [email protected] Report No.: SZEM130200066501 Page: 1 of 20 Authorized Signature: Jack Zhang EMC Laboratory Manager The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. All test results in this report can be traceable to National or International Standards. ′′This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.′′ 1 Cover Page FCC REPORT Application No.: SZEM1302000665RF Applicant: MYLITE INTERNATIONAL LIMITED Product Name: Wireless Remote Control LED Light Model No.(EUT): ML-23 Add Model No.: ML-CBS-03, ML-CBT-05L, 65036, 65038 FCC ID: SE2ML23 Standards: 47 CFR Part 15, Subpart C (2011) Date of Receipt: 2013-02-06 Date of Test: 2013-02-20 to 2013-03-05 Date of Issue: 2013-03-27 Test Result: PASS * * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Ltd. Report No.: SZEM130200066501 Page: 2 of 20 “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm . Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 2 Test Summary Test Item Test Requirement Test method Result Antenna Requirement 47 CFR Part 15, Subpart C Section 15.203 ANSI C63.10(2009) PASS Field Strength of the Fundamental Signal 47 CFR Part 15, Subpart C Section 15.231 (b) ANSI C63.10(2009) PASS Spurious Emissions 47 CFR Part 15, Subpart C Section 15.231 (b)/15.209 ANSI C63.10(2009) PASS 20dB Bandwidth 47 CFR Part 15, Subpart C Section 15.231 (c) ANSI C63.10(2009) PASS Deactivated Time 47 CFR Part 15, Subpart C Section 15.231 (a) ANSI C63.10(2009) PASS Remark: Model No.: ML-23, ML-CBS-03, ML-CBT-05L, 65036, 65038 Only the model ML-23 was tested, since the electrical circuit design, layout, components used and internal wiring were identical for all above models. Only different on model number, product name and color. SGS-CSTC Standards Technical Services Ltd. Report No.: SZEM130200066501 Page: 3 of 20 “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm . Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthor…

Text truncated - open the document above for the full version.

1 Photographs - EUT Test Setup (Test Model No.: ML-23) 1.1 Radiated Emission
