THE CLAPPER PLUS® (logo) 6-21-2006 Congratulations! You now have the convenience, flexibility and security of The Clapper Plus. No other product allows you to control your lights and appliance by sound and RF remote control. With The Clapper Plus, you can turn on or off up to two different appliances by clapping your hands. Clap two times to operate one appliance and three times to operate a different appliance. In addition to clapping, you can also turn on or off your appliances by pressing the buttons on the remote control. The Clapper Plus also has a special AWAY mode. In this mode almost any noise will turn on the connected appliance(s) which can be use as a limited function security device to discourage potential intruders. The AWAY mode is also great for temporarily turning on lights when entering a dark room such as a garage or basement. In this mode there is no need to clap or press any button -- any noise will turn on the lights! For QUICK INSTRUCTIONS on operating your Clapper Plus, please refer to the yellow Quick Tips card. (I THINK A DIAGRAM OF THE CLAPPER AND REMOTE ARE APPROPRIATE HERE. OPERATING YOUR APPLIANCES BY CLAPPING HOW TO OPERATE AN APPLIANCE WITH 2 CLAPS: 1. Set the three position switch on the side of the unit to the HOME (HI) position. 2. Plug an appliance into the left receptacle of The Clapper Plus. This is the receptacle below the “II.” The maximum wattage per outlet is 250 watts. If you are using both the 2 clap and 3 clap receptacles, the combined total wattage cannot exceed 400 watts. (e.g.; 250 watts + 150 watts) 3. Plug the Clapper Plus into the wall socket. 4. Manually turn the appliance on. The indicator light to the left of the “II” will glow when the appliance has been manually turned on, but is clapped off. 5. You can now turn your appliance on and off by clapping. You don’t have to clap very hard! The clapping sequence is more important than how loudly you clap. CLAP (pause) CLAP (pause) (pause) (pause) where each pause is approximately ½ to 1 second long. The three pauses after the second clap are very important since the Clapper Plus must determine that you are not going to clap a third time. If you did clap a third time, the appliance connected to the II clap receptacle would not activate. HOW TO OPERATE AN APPLIANCE WITH 3 CLAPS: 1. Set the three position switch on the side of the unit to the HOME (HI) position. 2. Plug an appliance into right receptacle of the Clapper Plus. This is the receptacle below “III.” The maximum wattage per outlet is 250 watts. If you are using both the 2 clap and 3 clap receptacles, the combined total wattage can not exceed 400 watts. (e.g.; 200 watts + 200 watts) 3. Plug Clapper Plus into the wall socket. 4. Manually turn the appliance on. The indicator light to the right of the “III” will glow when the appliance has been manually turned on, but is clapped off. 5. You can now turn your appliance on and off by clapping. You don’t have to clap very hard. The clapping sequence is more important than how loudly you clap: CLAP (pause) CLAP (pause) CLAP (pause) where each pause is approximately ½ to 1 second long. The last pause after the third clap is very important since the Clapper Plus must determine if you are not going to clap a forth time. If you did clap a fourth time, the appliance would not activate. CLAP DETECTION LIGHTS The three red lights on the face of the Clapper Plus will help you determine the proper way to clap your appliances on or off. Each clap detection light will glow when a proper clap (or similar sound) is detected. Claps that are too soft will not be detected. Claps that are too fast together or too long apart will be rejected as noise and as a result the appliance will not turn on. When the Clapper Plus detects the first clap (or similar sound) the first light will glow. The second light will glow if a second clap is detected about ½ second after the first clap occurs. If the Clapper Plus does not detect a third clap, it will activate the appliance attached to the “II Clap side.” If a third clap is detected, then the third light will glow and the appliance connected to the “III Clap Side” will activate. AUTO SOUND SENSITIVITY: If room noise is detected or if a 2 clap or 3 clap sequences are not proper, the Clapper Plus will reject the sounds as noise. It indicates that it has rejected the noise by turning the LEFT and RIGHT clap detection lights on and automatically reduces the sensitivity of the Clap detection. This feature of automatically reducing the clap detection sensitivity helps to reduce background noises from turning on the appliances. The LEFT and RIGHT lights will remain on until the background noise is not detected. You can still clap while the lights are on, but because of the background noise, you will need to clap louder. When the lights go off the sensitivity of the Clapper Plus clap detection is at its greatest. You may notice the clap detection lights on occasionally even if you have not clapped. This is not unusual as the Clapper Plus has detected sounds that are similar to a clap. Your appliances should not activate as it would require a second or third sound similar to a clap within the proper time allowed. By observing the clap detection lights you can become familiar with the types of claps (or similar sounds) that will activate your appliances attached to the Clapper Plus. MANUAL SOUND SENSITIVITY You can also manually adjust your Clapper Plus to respond to soft or loud claps, as well as adjust for the noise level in your room. Placing the three position switch on the side to the Clapper Plus to the HOME (HI) position puts the Clapper Plus in the high sensitivity mode. This is helpful if your claps are soft or if the Clapper Plus is far away. Your appliance, however, may occasionally turn on or off unexpectedly as the Clapper Plus may detect other noises similar to your claps. Sliding the switch down to the HOME (LO) position will put the Clapper Plus into the low sens…

Text truncated - open the document above for the full version.

"Teresa White" <[email protected]> 07/06/2006 03:23 PM To Yunus Faziloglu/USA/VERITAS@VERITAS cc bcc Subject RE: CS02009 Joseph Ent. Inc. FCC ID:SEC-CLAPPLUS TCB Questions Hi Yunus, Please see responses to the issues below. Thanks. Regards, Teresa LS Research, LLC W66 N220 Commerce Court Cedarburg, WI 53012 « Direct: 262.421.4991 « Main: 262.375.4400 ¬ Fax: 262.364.2649 | Email: twhite @lsr.com Visit us on the web: www.lsr.com Notice: This message and any included attachments are intended only for the use of the addressee, and may contain information that is privileged or confidential. If you are not the intended recipient, you are hereby notified that any review, copying or distribution of this communication is strictly prohibited. If you have received this e-mail in error, please destroy the original message and any copies or printouts hereof. Any views or opinions presented are solely those of the author of this e-mail, and do not necessarily represent those of LS Research, LLC, unless otherwise specifically stated. From: [email protected] [mailto:[email protected]] Sent: Thursday, July 06, 2006 9:19 AM To: Teresa White Subject: CS02009 Joseph Ent. Inc. FCC ID:SEC-CLAPPLUS TCB Questions Hello Teresa, Please address the following issues for this application, 1. Operational description text has "?"'s in it. It appears these are to be filled with numbers representing number of pulses. Please clarify. Attached please find updated theory of operation under file: “Clapper Plus Theory Of Operations July 6 2006 VLSC2.DOC”. 2. Operational description must provide information about modulation type and antenna (type, gain). Please supply a revised description. Attached please find updated theory of operation under file: “Clapper Plus Theory Of Operations July 6 2006 VLSC2.DOC”. 3. The first plot on Pg 15 of the report shows video averaging (VBW 10kHz). Please clarify if the reading at 4339.2 MHz listed on Pg 10 of the report (67.8dBuV/m) is a peak value or the average value seen on that plot. The measurements reported are all using a Peak detector. As the EUT was tested in CW mode, the measurements utilizing a Peak detector and an Average detector produced the same results to within fractions of 1 dB. The report has been updated with additional verbiage to reflect the test modes. Attached please find updated test report under file: “306276-Tx-v3 Joseph Enterprises Clapper Plus.DOC”. Best Regards, Yunus Faziloglu Curtis-Straus LLC Bureau Veritas

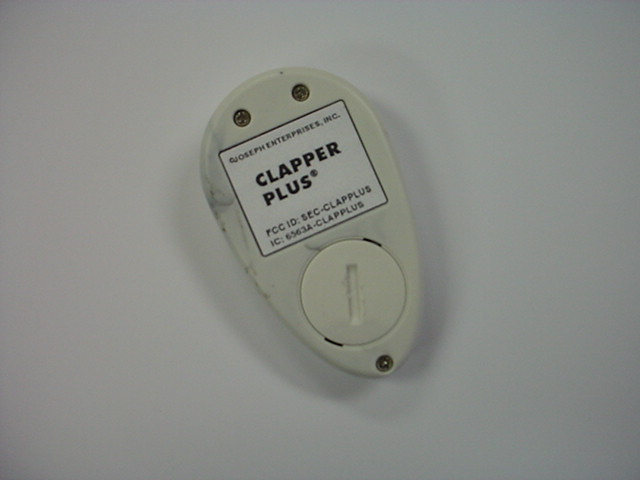

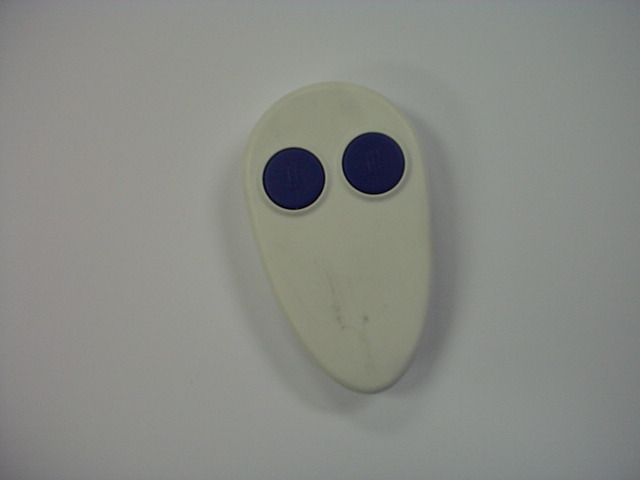

Joseph Enterprises, Inc. Clapper Plus FCC ID#: SEC-CLAPPLUS Photo One – External Top View of EUT Joseph Enterprises, Inc. Clapper Plus FCC ID#: SEC-CLAPPLUS Photo Two – External Bottom View Joseph Enterprises, Inc. Clapper Plus FCC ID#: SEC-CLAPPLUS Photo Three – External Bottom View, showing FCC ID Label

Joseph Enterprises, Inc. Clapper Plus FCC ID#: SEC-CLAPPLUS Photo One – Internal Open for Inspection Joseph Enterprises, Inc. Clapper Plus FCC ID#: SEC-CLAPPLUS Photo Two – Internal Joseph Enterprises, Inc. Clapper Plus FCC ID#: SEC-CLAPPLUS Photo Three – Internal Joseph Enterprises, Inc. Clapper Plus FCC ID#: SEC-CLAPPLUS Photo Four – Internal

Prepared by LS Research, LLC Page 1 of 21 Test Report #: 306276-Tx-v4 Prepared For: Joseph Enterprises LS Research, LLC W66 N220 Commerce Court Cedarburg, WI 53012 Phone: 262.375.4400 Fax: 262.375.4248 COMPLIANCE TESTING OF : Clapper Plus RF Remote Control Prepared For: Joseph Enterprises Attention: Mr. Mark Grossmeyer 415 California Street San Francisco, CA 94104-2101 United States of America Test Report Number: 306276-Tx-v4 Test Dates: June 13 TH and 14 TH , 2006 All results of this report relate only to the items that were tested. This report is not to be reproduced, except in full, without written approval of LS Research, LLC. Prepared by LS Research, LLC Page 2 of 21 Test Report #: 306276-Tx-v4 Prepared For: Joseph Enterprises Table of Contents Section Description Page Index 2 1 LS Research, LLC in Review 3 2 Signature Page 4 3 Product and General Information 5 4 Introduction 5 5 Product Description 6 6 Test Requirements 7 7 Summary of Test Report 7 8 Radiated Emissions Test 8-17 9 Conducted Emissions Test (AC Line) 18 Appendices A Calculations of Radiated Emission Limits 19 B Calculations of Duty Factor Relaxation and Occupied Bandwidth 20 C Test Equipment List 21 Prepared by LS Research, LLC Page 3 of 21 Test Report #: 306276-Tx-v4 Prepared For: Joseph Enterprises 1. LS Research, LLC in Review LS Research, LLC - Accreditations and Listing’s As an EMC Testing Laboratory, our Accreditation and Assessments are recognized through the following: A2LA – American Association for Laboratory Accreditation Accreditation based on ISO/IEC 17025 : 2005 with Electrical (EMC) Scope of Accreditation A2LA Certificate Number: 1255.01 Federal Communications Commission (FCC) – USA Listing of 3 Meter Semi-Anechoic Chamber based on Title 47 CFR – Part 2.948 FCC Registration Number: 90756 Industry Canada On file, 3 Meter Semi-Anechoic Chamber based on RSS-212 – Issue 1 File Number: IC 3088-A On file, 3 and 10 Meter OATS based on RSS-212 – Issue 1 File Number: IC 3088 U. S. Conformity Assessment Body (CAB) Validation Validated by the European Commission as a U. S. Competent Body operating under the U. S. /EU, Mutual Recognition Agreement (MRA) operating under the European Union Electromagnetic Compatibility –Council Directive 2004/108/EC (formerly 89/336/EEC, Article 10.2) Date of Validation: January 16, 2001 Validated by the European Commission as a U.S. Notified Body operating under the U.S./EU, Mutual Recognition Agreement (MRA) operating under the European Union Telecommunication Equipment – Council Directive 99/5/EC, Annex V. Date of Validation: November 20, 2002 Notified Body Identification Number: 1243 Prepared by LS Research, LLC Page 4 of 21 Test Report #: 306276-Tx-v4 Prepared For: Joseph Enterprises 2. Signature Page Prepared By: June 21, 2006 Teresa A. White, Document Coordinator Date Tested By: June 21, 2006 Abtin Spantman, EMC Engineer Date Approved By: June 21, 2006 Brian E. Petted, VP of Engineering Date Prepared by LS Research, LLC Page 5 of 21 Test Report #: 306276-Tx-v4 Prepared For: Joseph Enterprises 3. Product and General Information Manufacturer: Joseph Enterprises Date(s) of Test: June 13 TH and 14 TH , 2006 Test Engineer(s): Tom Smith √ Abtin Spantman Ken Boston Model #: Clapper Plus Serial #: Engineering Sample 3 Voltage: 3.0 VDC Operation Mode: Normal operation and CW Environmental Conditions in the Test Lab : Temperature: 23 °C Atmospheric Pressure: 102 kPa Humidity: 38 % 4. Introduction On June 13 TH and 14 TH , 2006, a series of Conducted and Radiated Emissions tests were performed on one sample of the Joseph Enterprises, Model Number: “Clapper Plus”, serial number: “Engineering Sample 3”, here forth referred to as the “Equipment Under Test” or “EUT”. These tests were performed using the test procedure outlined in ANSI C63.4, 2003 for intentional radiators, and in accordance with the limits set forth in FCC Part 15.231(b) for a periodic operation of a low power transmitter. All Conducted and Radiated Emission tests were performed to measure the emissions in the frequency bands described later in this report, and to determine whether said emissions are below the limits established by the aforementioned standards. These tests were performed in accordance with the procedures described in the American National Standard for methods of measurements of Radio-Noise Emissions from Low- Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz (ANSI C63.4, 2003). These tests were performed by Abtin Spantman, EMC Engineer of LS Research, LLC and witnessed by Mark Grossmeyer of Joseph Enterprises, Inc. Also used as a reference for the EMI Receiver specification is the International Special Committee on Radio Interference – CISPR 16-1, 2003. Prepared by LS Research, LLC Page 6 of 21 Test Report #: 306276-Tx-v4 Prepared For: Joseph Enterprises 5. Product Description System Overview: The “Clapper Plus” is a controlled appliance switch system with two components of FOB transmitter and Base receiver. The Clapper Plus is an RF and sound controlled appliance switch system capable of controlling up to two switches. The “Clapper Plus” Base contains the circuitry to control the switches and also contains the receiver portion of the system. The Base is connected to the household AC Mains, at 120 VAC, and has the capability of switching two onboard outlets on and off on- demand. The “Clapper Plus” Base may be controlled via sound, as that of clapping hands, or by an RF signal from the RF Remote Control FOB transmitter. The user can also turn on and off appliance 1 by clapping two times. The user can turn on and off the appliance 2 by clapping three times. The user can plug in one or two appliances in the Base (receiver) unit. They can turn on or off the appliances in two ways. The first is using the RF remote control. The control has one button for each appliance. Pressing the first button turns on appliance 1. Pressing the first button again turn off appliance 1. Pressing button …

Text truncated - open the document above for the full version.

TEST SETUP PHOTOS Joseph Enterprises Clapper Plus FCC ID: SEC-CLAPPLUS Page 1 of 2 Radiated Emissions Test View of the EUT setup in vertical orientation (Highest emissions measured) View of the EUT setup in Horizontal orientation View of the EUT setup in side orientation TEST SETUP PHOTOS Joseph Enterprises Clapper Plus FCC ID: SEC-CLAPPLUS Page 2 of 2 Front View of the EUT setup on the test pedestal
