SEF-HDMIDONGLEPORTABLE SET-TOP BOX FOR USE WITH TELEVISIONS

Version: 0.1 USER MANUAL HDMI DONGLE The HDMI Dongle is a device very easy to operate. 1. Plugging the HDMI Dongle Plug the HDMI Dongle HDMI end into the HDMI port of your TV. Use a USB 2.0 cable to connect the HDMI Dongle to a power source. It could be the USB port of the TV, the USB port of a computer, a 5V 1A DC-to- USB adapter. Select on the TV the HDMI input corresponding the the HDMI port you have pl ugged the device. Voilà, your HDMI Dongle is operational. 2. Use the remote co ntrol Use the 7-button remot e control to navigate in the Android int erface. Replace the 3V CR2032 battery if the red led doesn't turn on when pressing a button. 3. Connect Wireless and Bluetooth Go to the Settings application of Android and select Wi-Fi and Blue tooth to connect to a 802.11b/g/ n network or to associate a Blue tooth HID device. 4. Compliance notes Radio Frequency Interference Requirements Note: This device has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna • Increase the separation between the equipment and receiver • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected • Consult the dealer or an experienced radio/TV technician for help Radio Transmitters (Part 15) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Class B Equipment This equipment has been certified to comply with the limits for a class B computing device pursuant to FCC Rules. In order to maintain compliance with FCC regulations, shielded cables must be used with this equipment. Operation with non-approved equipment or unshielded cables is likely to result in interference to radio and TV reception. The user is cautioned that changes and modifications made to the equipment without the approval of the manufacturer could void the user’s authority to operate this equipment. FCC Radiation Exposure Statement The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter.

FCC ID: SEF-HDMIDONGLE ELECTRO MAGNETIC TEST, INC. 1547 Plymouth Street, Mountain View, CA 94043 Tel: (650) 965-4000 Fax: (650) 965-3000 April 1, 2013 Federal Communications Commission Equipment Approval Services P.O. Box 358315 Pittsburgh, PA 15251-5315 Subject: Request for a new certification for: Always Innovating, Inc. HDMI Dongle Model: Rev. E4 FCC ID: SEF-HDMIDONGLE Gentlemen, Please find enclosed a package with responses to questions for the HDMI Dongle, Model: Rev. E4. The HDMI Dongle is a portable set-top box. The EUT operates on 802.11 b/g/n and Bluetooth. The digital device portion of the EUT is approved under the Verification procedure. Always Innovating would like to keep the block diagrams, schematics, and operational description with this application confidential. Please see the request for confidentiality enclosed. We have enclosed the completed Form 731 with the applicable exhibits. If you have any questions or need any additional information, please give me a call at (650)965-4000. Sincerely, Kevin Bothmann Lab Manager FCC ID: SEF-HDMIDONGLE ELECTRO MAGNETIC TEST, INC. 1547 Plymouth Street, Mountain View, CA 94043 Tel: (650) 965-4000 Fax: (650) 965-3000 DSS Filing: 1. MAXIMUM CONDUCTED OUTPUT POWER: Item 14 of the 731 form lists 0.0063W (8dBm). Page 61 of the test report lists -32.52dBm (0.0000009W). Please explain or revise. Please see the updated 731 form.

February, 2013 Federal Communications Commission 7435 Oakland Mills Road Columbia, Maryland 2l046 Gentlemen: Thi s is a letter of authorization to accept Electro Magnetic Test, Inc. (Kevin Bothmann, Lab Manager) as an Agent for Always Innovating, Inc., for a period of one year, to sign applications before the Commission on our behalf, to make representations t o you on our behalf, and to receive and exchange data between our company and the Commission in connection with certif ication of the following Always Innovating product: TV HDMI Dongle accessory under FCC Docket Number 20780 and General Docket Number 80-284 pursuant to Part l5 of FCC Rules and Regulations. Please also accept this letter as an attestation that neither Always Innovating, Inc. nor any of its of ficers, di rectors, or persons holdi ng 5% or more of the outstanding stock or shares, voting or non- voting, have been denied federal benefits under section 5301 of the Ant i-Drug-Abuse act of 1988,21 U.S.C. 853(a). In addition, Always Innovating, Inc. will notify the Federal Communications Commission if, at any time, the situation changes causing Always Innovating, Inc. to be denied federal benefits. If you have any further questions or need additional information, pl ease feel free to gi ve me a call at 646 549 7779. Sincerely, Grégoire Gentil Owner Always Innovating, Inc.

February, 2013 Federal Communications Commission 7435 Oakland Mills Road Columbia, Maryland 2l046 Gentlemen: This is a letter of certification to stipulate that the 916MHz receiver on the HDMI Dongle was turned on during all the unintentional and intentional tests performed by EMT Labs. If you have any further questions or need additional information, please feel free to give me a call at 646 549 7779. Sincerely, Grégoire Gentil Owner Always Innovating, Inc.

February, 2013 Federal Communications Commission 7435 Oakland Mills Road Columbia, Maryland 2l046 Gentlemen: This is a letter of certification to stipulate that the USB port of the HDMI Dongle is solely used for power connectivity. No data is exchanged between the HDMI Dongle and TV through the USB port. If you have any further questions or need additional information, please feel free to give me a call at 646 549 7779. Sincerely, Grégoire Gentil Owner Always Innovating, Inc.

February, 2013 Federal Communications Commission Authorization and Evaluation Division Confidentia lity Request regarding application for certification of FCC ID: (SEF-HDMIDONGLE). Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request permanent confidentia l tre atment of information accompanying this application as outlined below: Exhibit Type File Name Block Diagram, Schematics, Operational Description m130227e1_Dongle_BlkDia.pdf, m130227e2_Dongle_Schem.pdf, m130227e2_Dongle_OpDes.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustif ied benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. If you have any further questions or need additional information, please feel free to give me a call at 646 549 7779. Sincerely, Grégoire G entil Owner Always Innovating, Inc.

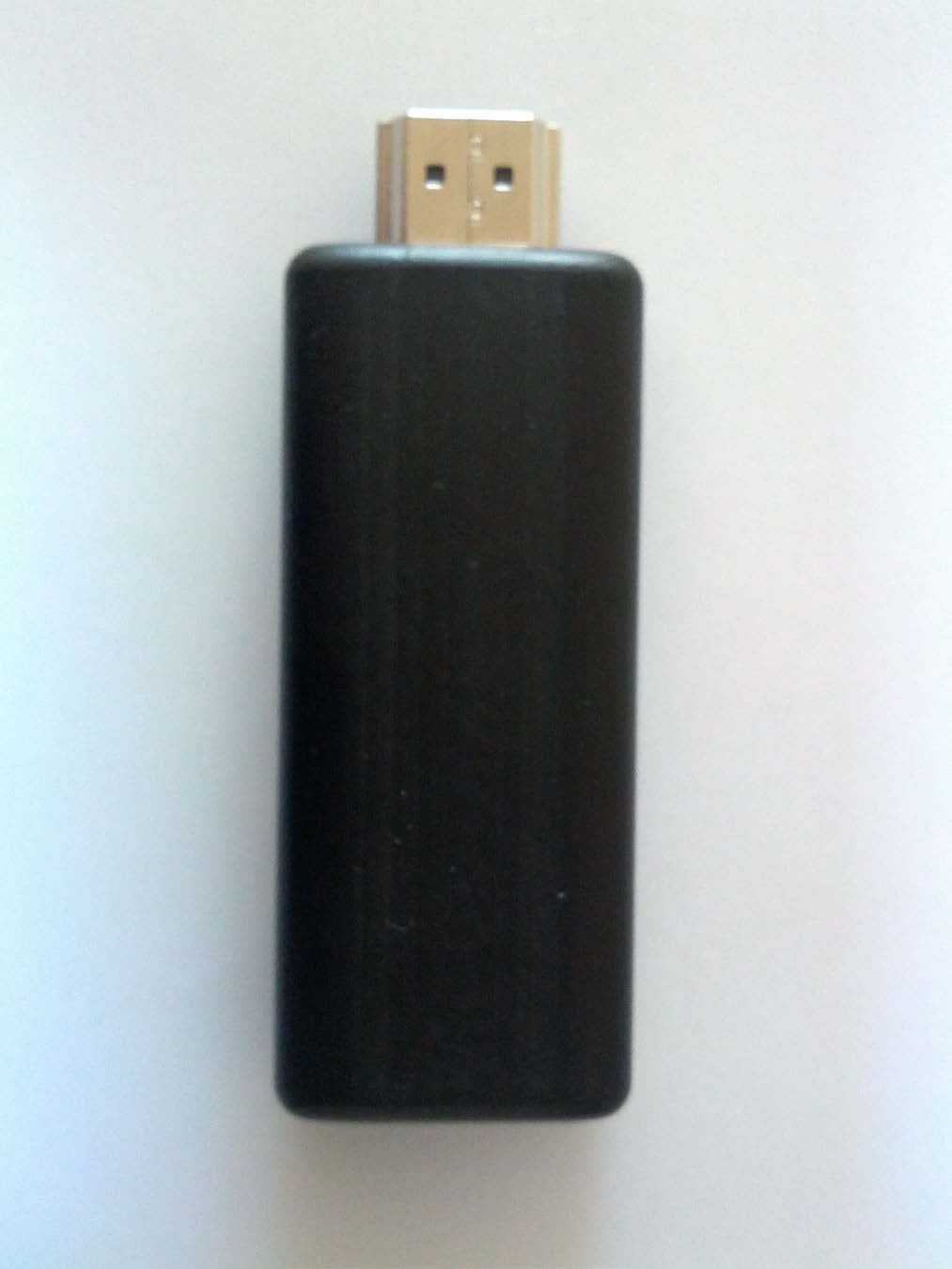

FCC ID: SEF-HDMIDONGLE EXTERNAL PHOTOGRAPHS FCC ID: SEF-HDMIDONGLE TOP EXTERNAL VIEW OF EUT FCC ID: SEF-HDMIDONGLE BOTTOM EXTERNAL VIEW OF EUT FCC ID: SEF-HDMIDONGLE EXTERNAL VIEW OF HDMI PORT OF EUT FCC ID: SEF-HDMIDONGLE EXTERNAL VIEW OF USB PORT OF EUT

FCC ID: SEF-HDMIDONGLE FCC LABEL AND LOCATION FCC ID: SEF-HDMIDONGLE FCC LABEL AND LOCATION BOTTOM EXTERNAL VIEW OF EUT

FCC ID: SEF-HDMIDONGLE FCC LABEL SAMPLE FCC ID: SEF-HDMIDONGLE FCC LABEL SAMPLE (To Be Located On The Bottom Of The Unit)

FCC ID: SEF-HDMIDONGLE INTERNAL PHOTOGRAPHS FCC ID: SEF-HDMIDONGLE TOP VIEW OF PCB FCC ID: SEF-HDMIDONGLE BOTTOM VIEW OF PCB

FCC Subpart C Report Number: M130227E1 FCC ID: SEF-HDMIDONGLE Page 1 of 31 ELECTRO MAGNETIC TEST, INC. 1547 Plymouth Street, Mountain View, CA 94043 Tel: (650) 965-4000 Fax: (650) 965-3000 FCC PART 15, SUBPART C TEST REPORT for the HDMI DONGLE MODEL: REV. E4 Prepared for ALWAYS INNOVATING, INC. 1245 BRODERICK STREET SAN FRANCSICO, CALIFORNIA 94115 Prepared by: GEORGE HSU Approved by: KEVIN BOTHMANN ELECTRO MAGNETIC TEST, INC. 1547 PLYMOUTH STREET MOUNTAIN VIEW, CALIFORNIA 94043 (650) 965-4000 DATE: MARCH 5, 2013 REPORT APPENDICES TOTAL BODY A B C D E PAGES 31 53 5 3 2 2 96 This report shall not be reproduced except in full, without the written approval of Electro Magnetic Test, Inc. FCC Subpart C Report Number: M130227E1 FCC ID: SEF-HDMIDONGLE Page 2 of 31 ELECTRO MAGNETIC TEST, INC. 1547 Plymouth Street, Mountain View, CA 94043 Tel: (650) 965-4000 Fax: (650) 965-3000 TABLE OF CONTENTS GENERAL REPORT SUMMARY .................................................................................................................................. 5 SUMMARY OF TEST RESULTS .................................................................................................................................... 6 TECHNICAL DESCRIPTION OF THE EUT ................................................................................................................ 7 1. PURPOSE ................................................................................................................................................................... 9 2. ADMINISTRATIVE DATA ...................................................................................................................................... 9 2.1 LOCATION OF TESTING .......................................................................................................................................... 9 2.2 TRACEABILITY STATEMENT................................................................................................................................... 9 2.3 COGNIZANT PERSONNEL ........................................................................................................................................ 9 2.4 DATE TEST SAMPLE WAS RECEIVED ...................................................................................................................... 9 2.5 DISPOSITION OF THE TEST SAMPLE ........................................................................................................................ 9 2.6 ABBREVIATIONS AND ACRONYMS ....................................................................................................................... 10 3. APPLICABLE DOCUMENTS................................................................................................................................ 11 4. DESCRIPTION OF TEST CONFIGURATION ................................................................................................... 12 4.1 DESCRIPTION OF TEST CONFIGURATION - EMI .................................................................................................... 12 4.1.1 Cable Construction and Termination ......................................................................................................... 13 5. LISTS OF EUT, ACCESSORIES AND TEST EQUIPMENT ............................................................................. 14 5.1 EUT AND ACCESSORY LIST ................................................................................................................................. 14 5.2 EMI TEST EQUIPMENT ........................................................................................................................................ 15 6. TEST SITE DESCRIPTION ................................................................................................................................... 17 6.1 TEST FACILITY DESCRIPTION .............................................................................................................................. 17 6.2 EUT MOUNTING, BONDING AND GROUNDING..................................................................................................... 17 6.3 FACILITY ENVIRONMENTAL CHARACTERISTICS ................................................................................................ 177 7. TEST PROCEDURES ............................................................................................................................................. 18 7.1 RADIATED EMISSIONS ......................................................................................................................................... 18 7.1.1 Limit (FCC PART 15 SECTION 15.209(a)(1)) ........................................................................................... 18 7.1.2 Test Procedure ............................................................................................................................................ 18 7.2 Conducted Emissions ...................................................................................................................................... 20 7.2.1 Limit (FCC PART 15 SECTION 15.207(a)) ............................................................................................... 20 7.2.2 Test Procedure ............................................................................................................................................ 20 7.3 OCCUPIED BANDWIDTH ....................................................................................................................................... 21 7.3.1 Limit (FCC PART 15 SECTION 15.247(a)(1)) ........................................................................................... 21 7.3.2 Test Procedure ............................................................................................................................................ 22 7.4 CARRIER FREQUENCY SEPERATION ......................................................................................…

Text truncated - open the document above for the full version.

FCC ID: SEF-HDMIDONGLE ELECTRO MAGNETIC TEST, INC. 1547 Plymouth Street, Mountain View, CA 94043 Tel: (650) 965-4000 Fax: (650) 965-3000 FRONT VIEW ALWAYS INNOVATING, INC. HDMI DONGLE MODEL: REV. E4 FCC PART 15 - RADIATED EMISSIONS PHOTOGRAPH SHOWING THE EUT CONFIGURATION FOR MAXIMUM EMISSIONS FCC ID: SEF-HDMIDONGLE ELECTRO MAGNETIC TEST, INC. 1547 Plymouth Street, Mountain View, CA 94043 Tel: (650) 965-4000 Fax: (650) 965-3000 REAR VIEW ALWAYS INNOVATING, INC. HDMI DONGLE MODEL: REV. E4 FCC PART 15 - RADIATED EMISSIONS PHOTOGRAPH SHOWING THE EUT CONFIGURATION FOR MAXIMUM EMISSIONS FCC ID: SEF-HDMIDONGLE ELECTRO MAGNETIC TEST, INC. 1547 Plymouth Street, Mountain View, CA 94043 Tel: (650) 965-4000 Fax: (650) 965-3000 FRONT VIEW ALWAYS INNOVATING, INC. HDMI DONGLE MODEL: REV. E4 FCC PART 15 - CONDUCTED EMISSIONS PHOTOGRAPH SHOWING THE EUT CONFIGURATION FOR MAXIMUM EMISSIONS FCC ID: SEF-HDMIDONGLE ELECTRO MAGNETIC TEST, INC. 1547 Plymouth Street, Mountain View, CA 94043 Tel: (650) 965-4000 Fax: (650) 965-3000 REAR VIEW ALWAYS INNOVATING, INC. HDMI DONGLE MODEL: REV. E4 FCC PART 15 - CONDUCTED EMISSIONS PHOTOGRAPH SHOWING THE EUT CONFIGURATION FOR MAXIMUM EMISSIONS
