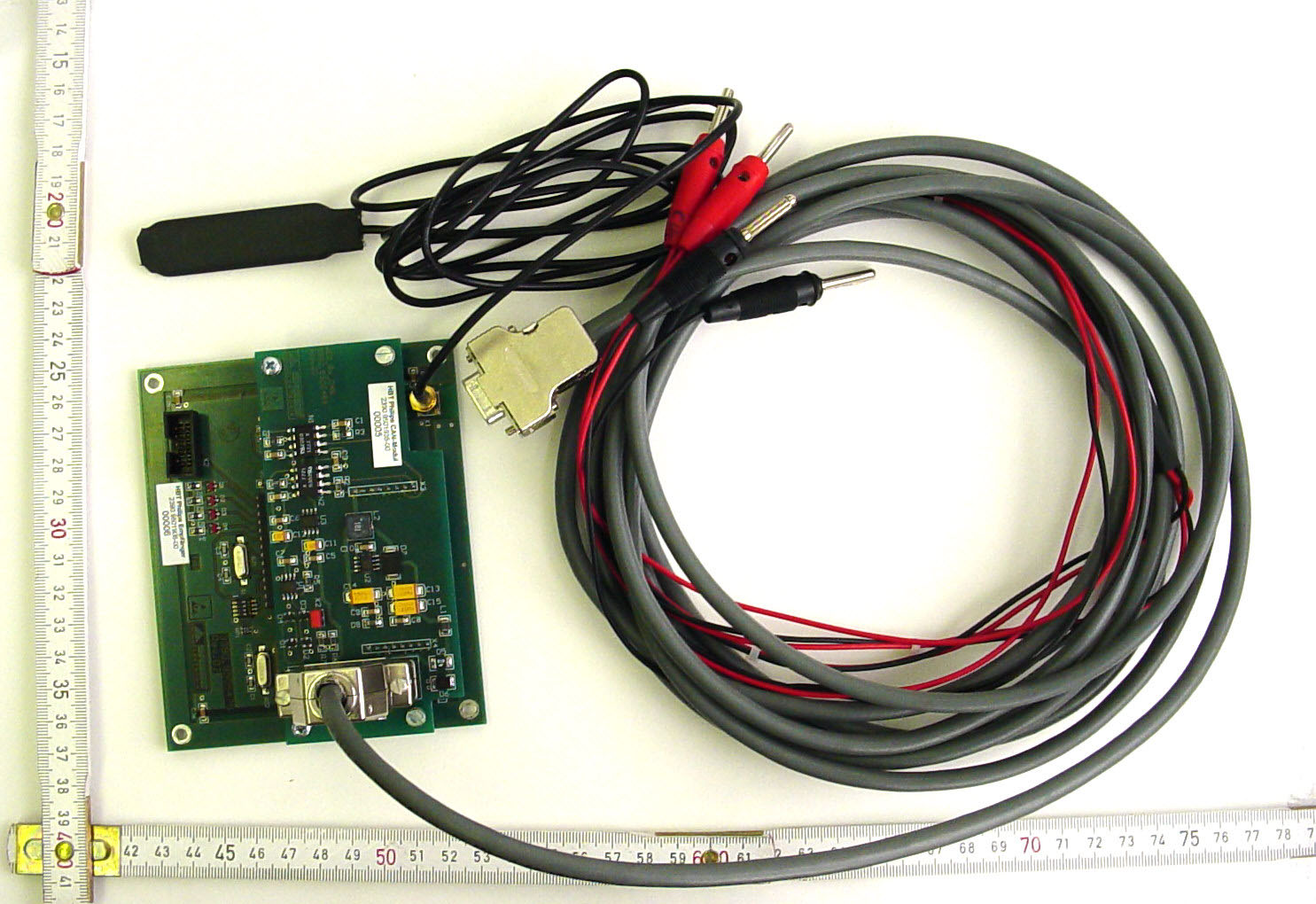

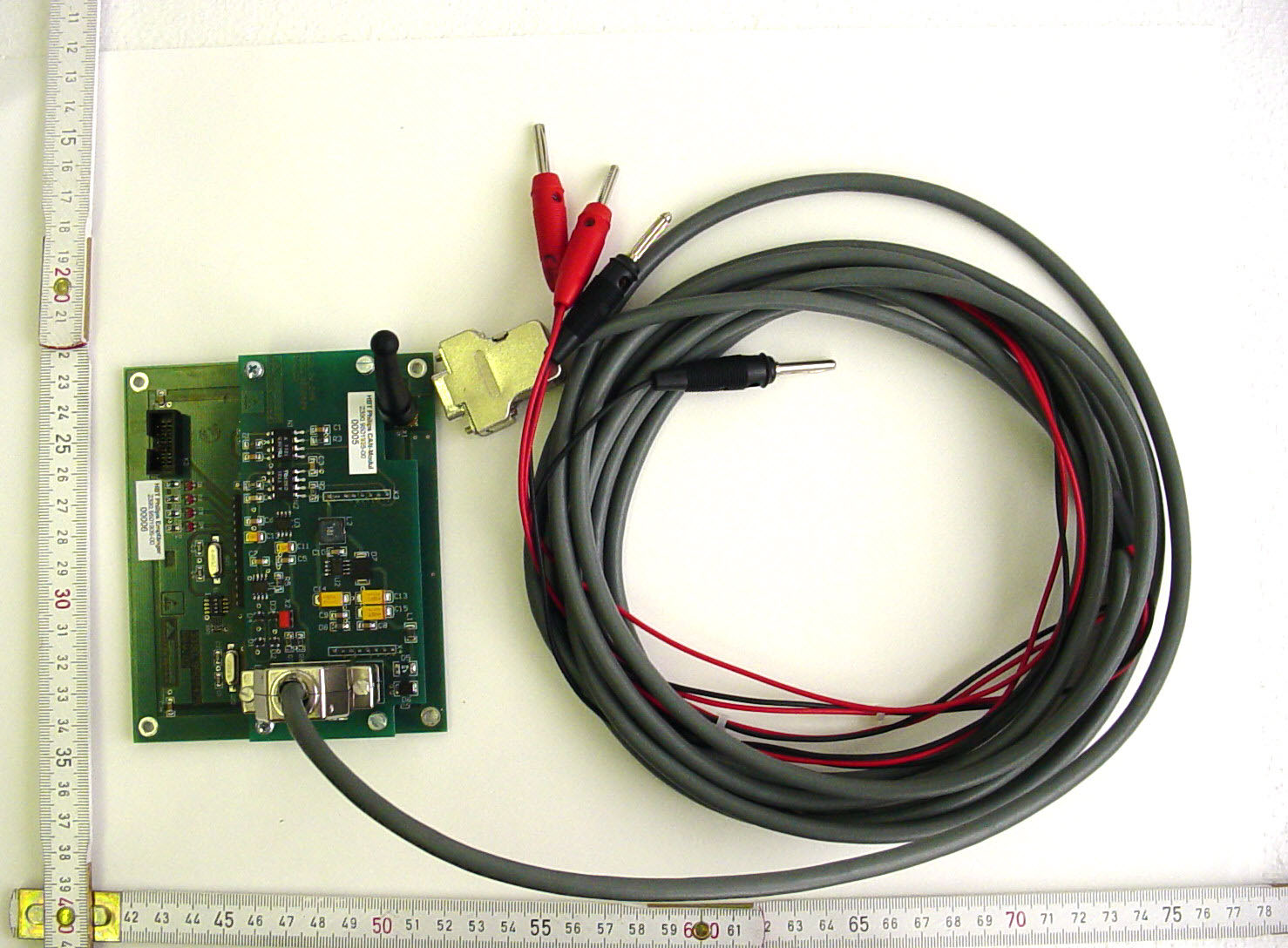

FCC ID: SEI-45121330195E RADIO LABORATORIES EMC LABORATORIES TTI-P-G 094/94 TTI-P-G 074/95 EMCC DR. RAŠEK Moggast 72-74 91320 Ebermannstadt Germany FCC Registration # 90566 880104HD_Annex2.doc Telephone: +49-9194-9016 Telefax: +49-9194-8125 e-mail: [email protected] web site: http://www.emcc.de Page 1 of 4 ANNEX 2 TO TEST REPORT # EMCC-880104HD, 2004-10-18 PHOTOGRAPHS OF EQUIPMENT UNDER TEST (EUT) EXTERNAL VIEWS EQUIPMENT UNDER TEST: Trade Name: Remote Control W13 Model: 4512-133-02901 (Receiver f. RemCon W13) Serial No: 1001 Equipment Category: Transceiver Manufacturer: Sasse Elektronik GmbH Address: Mühlenstrasse 4 91126 Schwabach Germany Phone: +49-9122-978-126 Fax: +49-9122-978-133 [email protected] RELEVANT STANDARD: 47 CFR Part 15.249 CONTENTS Page 1 Top View of EUT with Blade Antenna ................................................................................................................................................2 2 Top View of EUT with Rod Antenna...................................................................................................................................................3 3 Rear Side View of EUT.........................................................................................................................................................................4 FCC ID: SEI-45121330195E ANNEX 2 to Test Report #EMCC-880104HD Page 2 of 4 Issue Date: 2004-10-18 Test of Sasse Elektronik GmbH Remote Control W13 Model 4512-133-02901 (Receiver f. RemCon W 1 3 ) to 47 CFR Part 15.249 880104HD_ANNEX2.DOC 1 Top View of EUT with Blade Antenna FCC ID: SEI-45121330195E ANNEX 2 to Test Report #EMCC-880104HD Page 3 of 4 Issue Date: 2004-10-18 Test of Sasse Elektronik GmbH Remote Control W13 Model 4512-133-02901 (Receiver f. RemCon W 1 3 ) to 47 CFR Part 15.249 880104HD_ANNEX2.DOC 2 Top View of EUT with Rod Antenna FCC ID: SEI-45121330195E ANNEX 2 to Test Report #EMCC-880104HD Page 4 of 4 Issue Date: 2004-10-18 Test of Sasse Elektronik GmbH Remote Control W13 Model 4512-133-02901 (Receiver f. RemCon W 1 3 ) to 47 CFR Part 15.249 880104HD_ANNEX2.DOC 3 Rear Side View of EUT

FCC ID: SEI-45121330195E RADIO LABORATORIES EMC LABORATORIES TTI-P-G 094/94 TTI-P-G 074/95 EMCC DR. RAŠEK Moggast 72-74 91320 Ebermannstadt Germany FCC Registration # 90566 880104HD_Annex0.doc Telephone: +49-9194-9016 Telefax: +49-9194-8125 e-mail: [email protected] web site: http://www.emcc.de Page 1 of 2 ANNEX 0 TO TEST REPORT # EMCC-880104HD, 2004-10-18 LABEL AND LABEL PLACEMENT DIAGRAMS EQUIPMENT UNDER TEST: Trade Name: Remote Control W13 Model: 4512-133-02901 (Receiver f. RemCon W13) Serial No: 1001 Equipment Category: Transceiver Manufacturer: Sasse Elektronik GmbH Address: Mühlenstrasse 4 91126 Schwabach Germany Phone: +49-9122-978-126 Fax: +49-9122-978-133 [email protected] RELEVANT STANDARD: 47 CFR Part 15.249 FCC ID: SEI-45121330195E ANNEX 0 to Test Report #EMCC-880104HD Page 2 of 2 Issue Date: 2004-10-18 Test of Sasse Elektronik GmbH Remote Control W13 Model 4512-133-02901 (Receiver f. RemCon W 1 3 ) to 47 CFR Part 15.249 880104HD_ANNEX0.DOC

FCC ID: SEI-45121330195E RADIO LABORATORIES EMC LABORATORIES TTI-P-G 094/94 TTI-P-G 074/95 EMCC DR. RAŠEK Moggast 72-74 91320 Ebermannstadt Germany FCC Registration # 90566 880104HD_Annex3.doc Telephone: +49-9194-9016 Telefax: +49-9194-8125 e-mail: [email protected] web site: http://www.emcc.de Page 1 of 5 ANNEX 3 TO TEST REPORT # EMCC-880104HD, 2004-10-18 PHOTOGRAPHS OF EQUIPMENT UNDER TEST (EUT) INTERNAL VIEWS EQUIPMENT UNDER TEST: Trade Name: Remote Control W13 Model: 4512-133-02901 (Receiver f. RemCon W13) Serial No: 1001 Equipment Category: Transceiver Manufacturer: Sasse Elektronik GmbH Address: Mühlenstrasse 4 91126 Schwabach Germany Phone: +49-9122-978-126 Fax: +49-9122-978-133 [email protected] RELEVANT STANDARD: 47 CFR Part 15.249 CONTENTS Page 1 Top View of the Transceiver Board....................................................................................................................................................2 2 Rear View of the Transceiver Board ..................................................................................................................................................3 3 Top View of the CAN Board ................................................................................................................................................................4 4 Rear View of the CAN Board...............................................................................................................................................................5 FCC ID: SEI-45121330195E ANNEX 3 to Test Report #EMCC-880104HD Page 2 of 5 Issue Date: 2004-10-18 Test of Sasse Elektronik GmbH Remote Control W13 Model 4512-133-02901 (Receiver f. RemCon W 1 3 ) to 47 CFR Part 15.249 880104HD_ANNEX3.DOC 1 Top View of the Transceiver Board FCC ID: SEI-45121330195E ANNEX 3 to Test Report #EMCC-880104HD Page 3 of 5 Issue Date: 2004-10-18 Test of Sasse Elektronik GmbH Remote Control W13 Model 4512-133-02901 (Receiver f. RemCon W 1 3 ) to 47 CFR Part 15.249 880104HD_ANNEX3.DOC 2 Rear View of the Transceiver Board FCC ID: SEI-45121330195E ANNEX 3 to Test Report #EMCC-880104HD Page 4 of 5 Issue Date: 2004-10-18 Test of Sasse Elektronik GmbH Remote Control W13 Model 4512-133-02901 (Receiver f. RemCon W 1 3 ) to 47 CFR Part 15.249 880104HD_ANNEX3.DOC 3 Top View of the CAN Board FCC ID: SEI-45121330195E ANNEX 3 to Test Report #EMCC-880104HD Page 5 of 5 Issue Date: 2004-10-18 Test of Sasse Elektronik GmbH Remote Control W13 Model 4512-133-02901 (Receiver f. RemCon W 1 3 ) to 47 CFR Part 15.249 880104HD_ANNEX3.DOC 4 Rear View of the CAN Board

FCC-ID: SEI-45121330195E Test Report #EMCC-880104HD Page 2 of 21 Issue Date: 2004-10-18 Test of Sasse Elektronik GmbH Remote Control W13 Model 4512-133-02901 (Receiver f. RemCon W13) to 47 CFR Part 15.249 880104HD.doc CONTENTS Page 1 GENERAL INFORMATION ...................................................................................................................3 1.1 Purpose .....................................................................................................................................3 1.2 Limits and Reservations ............................................................................................................3 1.3 Test Location.............................................................................................................................3 1.4 Manufacturer .............................................................................................................................3 1.5 Dates .........................................................................................................................................3 2 PRODUCT DESCRIPTION ...................................................................................................................4 2.1 Equipment Under Test (EUT)....................................................................................................4 2.2 EUT Peripherals ........................................................................................................................4 2.3 Mode of Operation During Testing ............................................................................................4 2.4 Modifications Required for Compliance.....................................................................................4 3 TEST RESULTS SUMMARY ................................................................................................................5 4 ANTENNA REQUIREMENT .................................................................................................................6 4.1 Regulation .................................................................................................................................6 4.2 Result ........................................................................................................................................6 5 CONDUCTED EMISSIONS TESTS......................................................................................................7 5.1 Regulation .................................................................................................................................7 5.2 Test Equipment .........................................................................................................................7 5.3 Test Procedures ........................................................................................................................8 5.4 Test Results ..............................................................................................................................8 6 RADIATED EMISSIONS .......................................................................................................................9 6.1 Regulation .................................................................................................................................9 6.2 Test Equipment .......................................................................................................................12 6.3 Test Procedures ......................................................................................................................12 6.4 Calculation of Field Strength Limits.........................................................................................13 6.5 Calculation of Average Correction Factor ...............................................................................13 6.6 Field Strength Calculation .......................................................................................................13 6.7 Test Results ............................................................................................................................15 7 VARIATION OF OUTPUT POWER DUE TO INPUT VOLTAGE VARIATION ....................................18 7.1 Regulation ...............................................................................................................................18 7.2 Test Equipment .......................................................................................................................18 7.3 Test Procedure........................................................................................................................18 7.4 Test Result ..............................................................................................................................19 8 PRODUCT LABELING AND INFORMATION TO THE USER ............................................................21 9 MISCELLANEOUS COMMENTS AND NOTES..................................................................................21 10 LIST OF ANNEXES ............................................................................................................................21 FCC-ID: SEI-45121330195E Test Report #EMCC-880104HD Page 3 of 21 Issue Date: 2004-10-18 Test of Sasse Elektronik GmbH Remote Control W13 Model 4512-133-02901 (Receiver f. RemCon W13) to 47 CFR Part 15.249 880104HD.doc 1 GENERAL INFORMATION 1.1 Purpose The purpose of this report is to show compliance to the FCC regulations for unlicensed devices operating under section 15.249 of the Code of Federal Regulations title 47. Furthermore the receiver part was investigated to the requirements of section 15.109. 1.2 Limits and Reservations The test results in this report apply only to the particular Equipment Under Test (EUT) as declared in this report. This test report shall not be reproduced except in full without the written permission of EMCC DR. RAŠEK. 1.3 Test Location Company Name: EMCC DR. RAŠEK…

Text truncated - open the document above for the full version.

FCC ID: SEI-45121330195E RADIO LABORATORIES EMC LABORATORIES TTI-P-G 094/94 TTI-P-G 074/95 EMCC DR. RAŠEK Moggast 72-74 91320 Ebermannstadt Germany FCC Registration # 90566 880104HD_Annex4.doc Telephone: +49-9194-9016 Telefax: +49-9194-8125 e-mail: [email protected] web site: http://www.emcc.de Page 1 of 10 ANNEX 4 TO TEST REPORT # EMCC-880104HD, 2004-10-18 BANDWIDTH AND BAND-EDGE COMPLIANCE EQUIPMENT UNDER TEST: Trade Name: Remote Control W13 Model: 4512-133-02901 (Receiver f. RemCon W13) Serial No: 1001 Equipment Category: Transceiver Manufacturer: Sasse Elektronik GmbH Address: Mühlenstrasse 4 91126 Schwabach Germany Phone: +49-9122-978-126 Fax: +49-9122-978-133 [email protected] RELEVANT STANDARD: 47 CFR Part 15.249 CONTENTS Page 1 Bandwidth .............................................................................................................................................................................................2 2 Spurious Emissions; Bandedges.......................................................................................................................................................5 FCC ID: SEI-45121330195E ANNEX 4 to Test Report #EMCC-880104HD Page 2 of 10 Issue Date: 2004-10-18 Test of Sasse Elektronik GmbH Remote Control W13 Model 4512-133-02901 (Receiver f. RemCon W 1 3 ) to 47 CFR Part 15.249 880104HD_ANNEX4.DOC 1 BANDWIDTH Remark: Bandwidth measured according to Section 15.215 (c) and ANSI C63.4. Plot 1.1: 20 dB Bandwidth; EUT operating at lowest frequency; T1: unmodulated; T2: modulated. FCC ID: SEI-45121330195E ANNEX 4 to Test Report #EMCC-880104HD Page 3 of 10 Issue Date: 2004-10-18 Test of Sasse Elektronik GmbH Remote Control W13 Model 4512-133-02901 (Receiver f. RemCon W 1 3 ) to 47 CFR Part 15.249 880104HD_ANNEX4.DOC Plot 1.2: 20 dB Bandwidth; EUT operating at middle frequency; T1: unmodulated; T2: modulated. FCC ID: SEI-45121330195E ANNEX 4 to Test Report #EMCC-880104HD Page 4 of 10 Issue Date: 2004-10-18 Test of Sasse Elektronik GmbH Remote Control W13 Model 4512-133-02901 (Receiver f. RemCon W 1 3 ) to 47 CFR Part 15.249 880104HD_ANNEX4.DOC Plot 1.3: 20 dB Bandwidth; EUT operating at highest frequency; T1: unmodulated; T2: modulated. FCC ID: SEI-45121330195E ANNEX 4 to Test Report #EMCC-880104HD Page 5 of 10 Issue Date: 2004-10-18 Test of Sasse Elektronik GmbH Remote Control W13 Model 4512-133-02901 (Receiver f. RemCon W 1 3 ) to 47 CFR Part 15.249 880104HD_ANNEX4.DOC 2 SPURIOUS EMISSIONS; BANDEDGES Plot 2.1: Bandedge Emissions, lower bandedge; EUT with Rod Antenna operating at lowest frequency FCC ID: SEI-45121330195E ANNEX 4 to Test Report #EMCC-880104HD Page 6 of 10 Issue Date: 2004-10-18 Test of Sasse Elektronik GmbH Remote Control W13 Model 4512-133-02901 (Receiver f. RemCon W 1 3 ) to 47 CFR Part 15.249 880104HD_ANNEX4.DOC Plot 2.2: Bandedge Emissions, lower and upper bandedge; EUT with Rod Antenna operating at middle frequency FCC ID: SEI-45121330195E ANNEX 4 to Test Report #EMCC-880104HD Page 7 of 10 Issue Date: 2004-10-18 Test of Sasse Elektronik GmbH Remote Control W13 Model 4512-133-02901 (Receiver f. RemCon W 1 3 ) to 47 CFR Part 15.249 880104HD_ANNEX4.DOC Plot 2.3: Bandedge Emissions, upper bandedge; EUT with Rod Antenna operating at highest frequency FCC ID: SEI-45121330195E ANNEX 4 to Test Report #EMCC-880104HD Page 8 of 10 Issue Date: 2004-10-18 Test of Sasse Elektronik GmbH Remote Control W13 Model 4512-133-02901 (Receiver f. RemCon W 1 3 ) to 47 CFR Part 15.249 880104HD_ANNEX4.DOC Plot 2.4: Bandedge Emissions, lower bandedge; EUT with Blade Antenna operating at lowest frequency FCC ID: SEI-45121330195E ANNEX 4 to Test Report #EMCC-880104HD Page 9 of 10 Issue Date: 2004-10-18 Test of Sasse Elektronik GmbH Remote Control W13 Model 4512-133-02901 (Receiver f. RemCon W 1 3 ) to 47 CFR Part 15.249 880104HD_ANNEX4.DOC Plot 2.5: Bandedge Emissions, lower and upper bandedge; EUT with Blade Antenna operating at middle frequency FCC ID: SEI-45121330195E ANNEX 4 to Test Report #EMCC-880104HD Page 10 of 10 Issue Date: 2004-10-18 Test of Sasse Elektronik GmbH Remote Control W13 Model 4512-133-02901 (Receiver f. RemCon W 1 3 ) to 47 CFR Part 15.249 880104HD_ANNEX4.DOC Plot 2.6: Bandedge Emissions, upper bandedge; EUT with Blade Antenna operating at highest frequency

FCC ID: SEI-45121330195E RADIO LABORATORIES EMC LABORATORIES TTI-P-G 094/94 TTI-P-G 074/95 EMCC DR. RAŠEK Moggast 72-74 91320 Ebermannstadt Germany FCC Registration # 90566 880104HD_Annex1.doc Telephone: +49-9194-9016 Telefax: +49-9194-8125 e-mail: [email protected] web site: http://www.emcc.de Page 1 of 3 ANNEX 1 TO TEST REPORT # EMCC-880104HD, 2004-10-18 PHOTOGRAPHS OF TEST SETUPS EQUIPMENT UNDER TEST: Trade Name: Remote Control W13 Model: 4512-133-02901 (Receiver f. RemCon W13) Serial No: 1001 Equipment Category: Transceiver Manufacturer: Sasse Elektronik GmbH Address: Mühlenstrasse 4 91126 Schwabach Germany Phone: +49-9122-978-126 Fax: +49-9122-978-133 [email protected] RELEVANT STANDARD: 47 CFR Part 15.249 FCC ID: SEI-45121330195E ANNEX 1 to Test Report #EMCC-880104HD Page 2 of 3 Issue Date: 2004-10-18 Test of Sasse Elektronik GmbH Remote Control W13 Model 4512-133-02901 (Receiver f. RemCon W 1 3 ) to 47 CFR Part 15.249 880104HD_ANNEX1.DOC 1 RADIATED EMISSIONS TEST Photo 1.1 Radiated emissions test below 1 GHz; example set-up with Blade Antenna Photo 1.2 Radiated emissions test above 1 GHz; example set-up with Rod Antenna: Emissions test 1 – 18 GHz FCC ID: SEI-45121330195E ANNEX 1 to Test Report #EMCC-880104HD Page 3 of 3 Issue Date: 2004-10-18 Test of Sasse Elektronik GmbH Remote Control W13 Model 4512-133-02901 (Receiver f. RemCon W 1 3 ) to 47 CFR Part 15.249 880104HD_ANNEX1.DOC 2 CONDUCTED EMISSIONS TEST Photo 2.1 Conducted emissions test set-up; front view Photo 2.2 Conducted emissions test set-up; side view
