2 3 FCC WARNINGS-PLEASE READ Concerning Transmitter Crystal Replacement: 4 frequency of the transmitter(i.e.Crystal)MUST be made only by an authorized service technician Any transmitter frequency change made by a non-authorized person may result in a violation of FCC rules. Per FCC rules, the transmitter crystal should only be changed by an authorized se- rvice technician. Concerning Transmitter Repairs: Any repairs that are deemed necessary should be done only by an authorized ser- vice technician .Any repairs made by a non-authorized person may result in a violation of FCC rules. It is against FCC rules of modify this transmitter for any use other than that intended by the manufacturer. The Federal Communications Commission (Fcc) requires that changes made to the

FM75MHz TRANSMITTER BLOCK DIAGRAM LCD ( D1 ) E1、D3 POWER C17、L2 Band Pass Filter CPU double Amp. CR1、L1、D1 C3、R3、Q1 Regulator 15MHz CR1、L1、D1 OSC FM-34T-IC1 Block diagram 1. Accept the analog voltages from the control inputs (joysticks, switch) 2. power offer to the LCD (D12) 、 encoder circuit、tuned circuit、transmit circuit,etc. 3. Process width of the pluse to create control mixing ,adding ,reversing ,etc.,as desired by the user. 4. pulse of synchronization and pulse of channel 1-3 output from CPU . (encoder circuit) 5. then modulator the pulse. 6. The oscillator excite by a quartz crystal.the crystal supports oscillation at the crystal’s fundamental frequency (approximately 15MHz). ( L1、CR1、D1 ) 7. Its output frequency is 5* crystal 8. The tuned circuit in the oscillator transistor’s collector is tuned to the second harmonic of this frequency . 9. double Amp. 10. Band Pass Filter ( C17、L2 ) 11. send signal from the ANT .

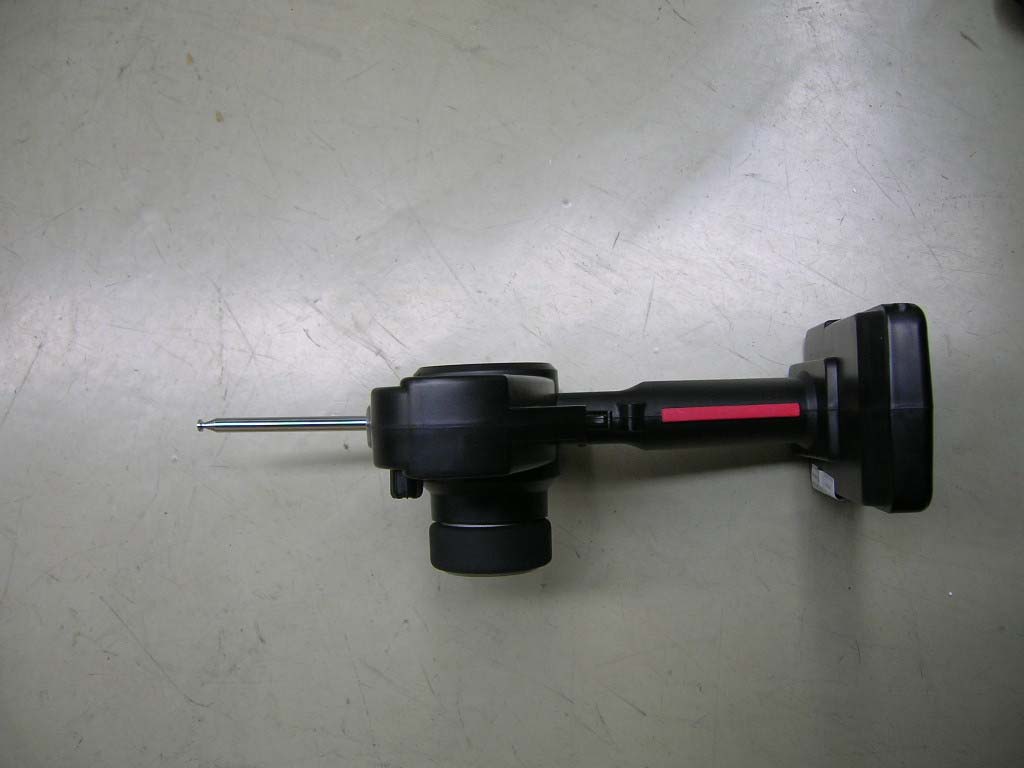

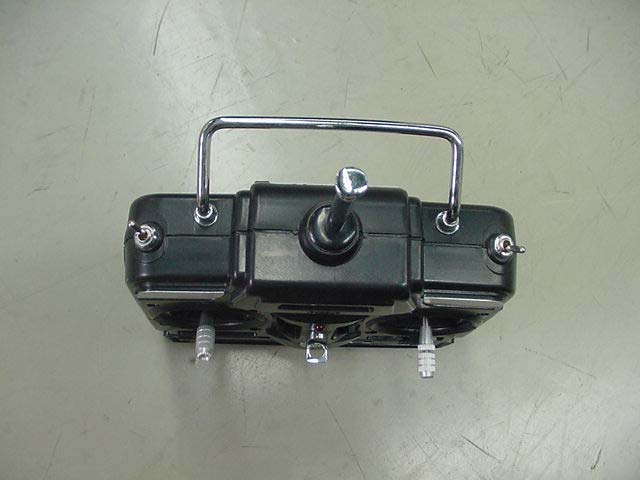

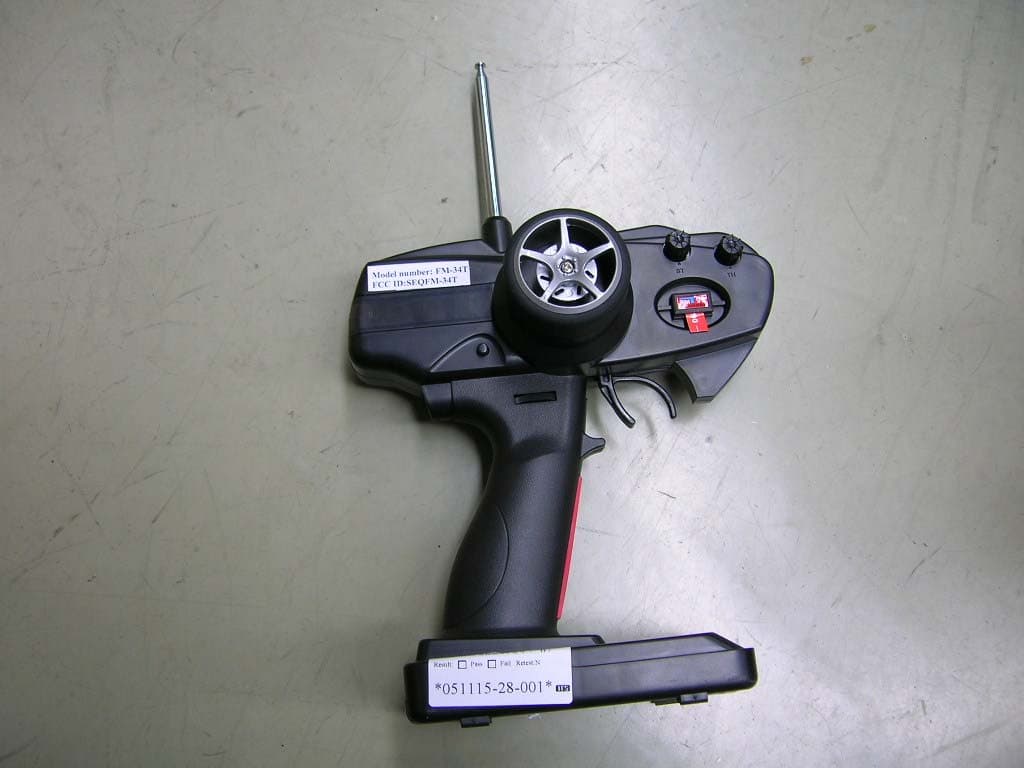

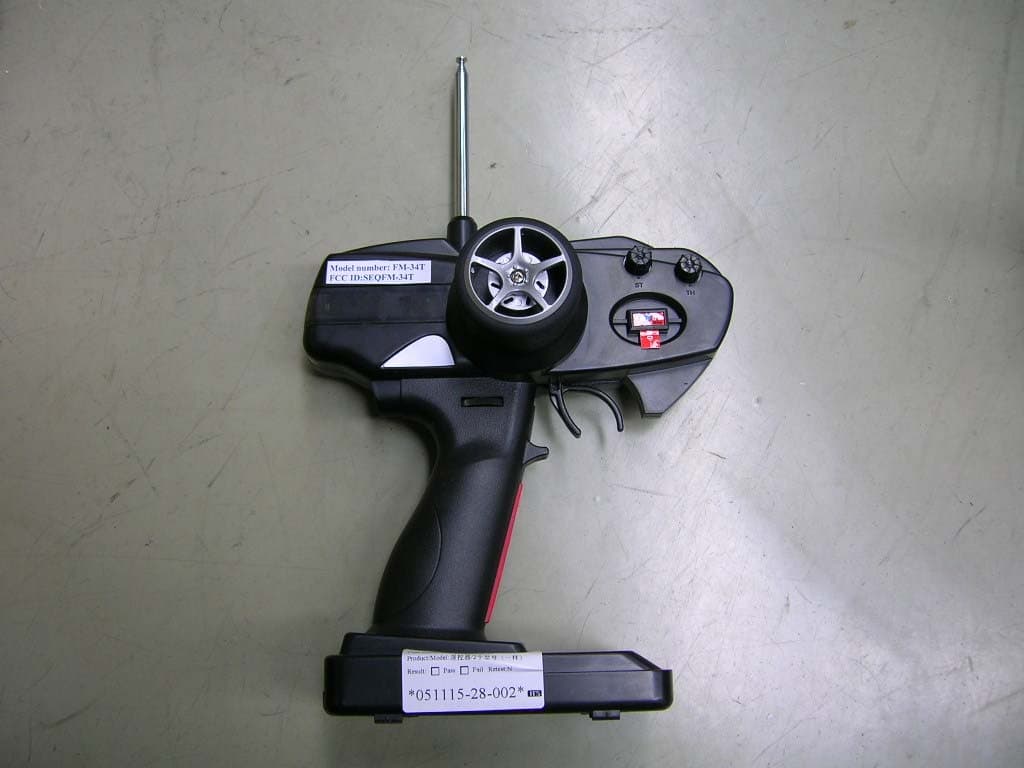

FCC ID: SEQFM-34T Page 1 of 4 External Picture FCC ID: SEQFM-34T Page 2 of 4 3 CHANNELS 2 CHANNELS FCC ID: SEQFM-34T Page 3 of 4 FCC ID: SEQFM-34T Page 4 of 4

FCC ID: SEQFM-34T Page 1 of 3 FCC ID Label FCC ID: SEQFM-34T Page 2 of 3 FCC ID: SEQFM-34T Page 3 of 3

FCC ID: SEQFM-34T Page 1 of 4 Internal Picture FCC ID: SEQFM-34T Page 2 of 4 FCC ID: SEQFM-34T Page 3 of 4 FCC ID: SEQFM-34T Page 4 of 4

Block diagram 1. Accept the analog voltages from the control inputs (joysticks, switch) 2. power offer to the LCD (D12) 、 encoder circuit、tuned circuit、transmit circuit,etc. 3. Process width of the pluse to create control mixing ,adding ,reversing ,etc.,as desired by the user. 4. pulse of synchronization and pulse of channel 1-3 output from CPU . (encoder circuit) 5. then modulator the pulse. 6. The oscillator excite by a quartz crystal.the crystal supports oscillation at the crystal’s fundamental frequency (approximately 15MHz). ( L1、CR1、D1 ) 7. Its output frequency is 5* crystal 8. The tuned circuit in the oscillator transistor’s collector is tuned to the second harmonic of this frequency . 9. double Amp. 10. Band Pass Filter ( C17、L2 ) 11. send signal from the ANT .

Working principle for 75MHZ pistol radio (FM-34) 1. Oscillation of fundamental frequency Fundamental frequency is made up of some components, such as Q1...etc. For applying to FM technology, so adopt the oscillated circuit, supposed RF as fo , then the frequency of oscillation (fa) ,is as follows: fa=fo/5,that is to say,RF frequency is fivefold bigger than the fundamental frequency. And the fundamental frequency is decided by the total Amount of contacted capacitance ,including CR1,C J (D1,reverse capacity),C2//C ID (Q1,import capacity) and C3. So long as 1 + 1 + 1 = CL. Then fa can be stay at the appoint by CR1 stablely. As above-mentioned C J C2+ C ID C3 CL, is the loaded capacitance for CR1 crystal 。 If fa does not conform to the standard, we can amend it by changing C2. For C3≥C2+ C ID , the input capacitance of Q2 does not influence too much towards the oscillated frequency. Other wise, for Q1,choose a work place which is near to saturated area, to disturb the waveform of oscillation, so that can assure that circuit can not stop even if in the status of lower voltage. 2. Modulation We usually finish off modulation as following steps. Firstly change the reverse voltage of diode (D1), so that the capacitance of D1 can be changeable. Finally achieve to changing the frequency of Oscillation. At this point, we must make sure that the modulation range or scope must be smaller than the breadth of frequency band. According to the formula,R2/(R1+R2)=1/5, choose suitable R1,then can limit the frequency breath at the suitable scope. 3. Restrain If we tune the loop ( which is made up of T1,T2,L3, L4 and other related appliances) at the frequency of RF strictly. We can control it well . 4. The dc voltages applied to and dc currents into the several elements of the final radio frequency amplifying device for normal operation over the power range is 8-12v, not over200mA.

serial no. Name & Specification Code Quantity for each Location Remark resistance 1 RCT05000JTP 1.02.010.-.301 5 R01、R02、R04、R05、R06 0805-0Ω， 2 RCT054R7JTP 1.02.010.4.314 2 R15、R15’ 0805-4.7Ω±5%。3 RCT05102JTP 1.02.010.4.364 2 R19、R20 0805-1KΩ±5%。4 RCT05103JIP 1.02.010.4.368 2 R22、R23 0805-10KΩ±5%5 RCT05104JTP 1.02.010.4.391 1 R21 0805-100KΩ±5%。6 RCT06000JTP 1.02.010.-.501 1 R03 1206-0KΩ±5%。7 RTX-106-2.2Ω±5% 1.02.001.4.111 1 R10 以下1/16W8 RTX-106-22Ω±5% 1.02.011.4.121 3 R7、R9、R119 RTX-106-100Ω±5% 1.02.011.4.129 1 R4 10 RTX-106-200Ω±5% 1.02.011.4.134 1 R1311 RTX-106-510Ω±5% 1.02.011.4.142 1 R512 RTX-106-680Ω±5% 1.02.011.4.144 2 R14、R1813 RTX-106-820Ω±5% 1.02.011.4.145 1 R1614 RTX-106-2.7kΩ±5% 1.02.011.4.154 1 R1215 RTX-106-4.3kΩ±5% 1.02.011.4.159 1 R1716 RTX-106-10kΩ±5% 1.02.011.4.165 1 R217 RTX-106-47kΩ±5% 1.02.011.4.179 1 R118 RTX-106-20kΩ±5% 1.02.011.4.172 2 R3、R619 RTX-106-56kΩ±5% 1.02.011.4.181 1 R8 Material list for FM-34T 75MHz Pistol radio (Electronic Part) SPC-FM-34T.BOM 2005年10月22日 第 1 页，共 5 页 serial no. Name & Specification Code Quantity for each Location Remark Potentionmeter 20 R09A11H21B502-20F104 1.02.015.5.128 2 W1、W221 R09A11V22B502-20F016 1.02.015.5.126 1 VR3 22 R13A11C33B502-1ST611 1.02.015.5.127 2 VR1、VR2 capacitance 23 0805N180J500NT 1.02.020.4.313 1 C14 0805-50V-18PF±5%（NPO） 24 0805N300J500NT 1.02.020.4.319 2 C18、C19 0805-50V-30PF±5%（NPO）。25 0805N470J500NT 1.02.020.4.322 1 C12 0805-50V-47PF±5%（NPO）。26 0805N560J500NT 1.02.020.4.324 1 C15 0805-50V-56PF±5%（NPO）。27 0805N271J500NT 1.02.020.4.332 1 C3 0805-50V-270PF±5%（NPO）。28 0805F102Z500NT 1.02.020.8.359 10 C1、C20、C23、C24、C25、C26、 0805-50V-1000PF +80 -20 %（Y5V）。 C27、C28、C29、C30 29 0805F104Z500NT 1.02.020.8.352 6 C13 、C21、C22、C31、C32、C35 0805-50V-0.1μF +80 -20 %（Y5V）。 30 CC1-50V-15PF±5% 1.02.021.4.113 2 C6、C931 CC1-50V-27PF±5% 1.02.021.4.117 1 C232 CT1-50V-1000PF +80 -20 % 1.02.022.8.111 2 C5、C8 33 CT1-50V-0.022μF +80 -20 % 1.02.022.8.118 1 C4 34 CT1-50V-0.1μF +80 -20 % 1.02.022.8.123 6 C7、C10、C11、C17、C33、C34 35 CD11-16V-33μF±20% 1.02.025.6.130 1 C16 inductance (Electronic Part) SPC-FM-34T.BOM 2005年10月22日 Material list for FM-34T 75MHz Pistol radio(Continued) 第 2 页，共 5 页 serial no. Name & Specification Code Quantity for each Location Remark 36 CECL2R7K/2.7μH 1.02.031.5.021 1 L237 CECL181k/180μH 1.02.031.5.024 1 L138 7K72T05 1.02.032.-.122 1 T1 39 7K72T06 1.02.032.-.123 1 T2 40 7K72T03 1.02.032.-.118 1 L341 7K72T04 1.02.032.-.119 1 L442 quartz crystal syntony meterHC-50U-13MHz series 1 CR1transistor 43 LL4148ST 1.02.040.-.001 1 D644 HZ5B1 1.02.040.-.156 1 D345 HZ5C2 1.02.040.-.158 1 D746 1N4004 1.02.040.-.113 1 D247 304HL 1.02.040.-.140 1 D448 312GD 1.02.040.-.141 1 D549 1T33 1.02.040.-.101 1 D150 S9018G 1.02.041.-.111 3 Q1、Q2、Q3 f T ≥800MHZ，β：80～120。 51 3DG130C 1.02.041.-.114 1 Q4 f T ≥300MHZ，β：120～180。 52 2SC 1623L5 1.02.041.-.011 1 Q5 53 intergrate circuit Material list for FM-34T 75MHz Pistol radio(Continued) (Electronic Part) SPC-FM-34T.BOM 2005年10月22日 第 3 页，共 5 页 serial no. Name & Specification Code Quantity for each Location Remark HT46R22 1.02.091.-.118 1 IC1switch 54 SS-22F07-G10 1.02.060.-.019 2 S2、S355 SS-22F07-G6 1.02.060.-.021 1 S156 PBS-2201SL 1.02.060.-.101 1 S4 meet and insert piece 57 1.01.210.01.010 1 CR1'58 KZH-DC-005 1.02.093.-.013 1 CK1 lead 59 AV0.15/7-3C-L85mm（白、红、 1.02.080.-.452 1 FM-34T-X2 60 AV0.15/7-3C-L102mm（白、 红 1.02.080.-.452 1 FM-34T-X1 61 AV0.15/7-3C-L132mm（白、 红 1.02.080.-.452 1 FM-34T-X3 62 AV0.15/16-L210mm（红） 1.02.080.-.101 1 FM-34T-X463 AV0.15/16-L165mm（黑） 1.02.080.-.102 1 FM-34T-X5 skip line 64 TR-05-L5.08mm 1.02.094.-.102 3 J3、J3、C3465 TR-05-L5.5mm 1.02.094.-.107 1 J1 66 TR-05-L7.62mm 1.02.094.-.103 1 J4 67 radiator3DG130C 1.02.090.-.002 1 (Electronic Part) Material list for FM-34T 75MHz Pistol radio(Continued) SPC-FM-34T.BOM 2005年10月22日 第 4 页，共 5 页 serial no. Name & Specification Code Quantity for each Location Remark 68 antennaφ7-0.83M/7pcs 1.04.05.002 1printing circuit board 69 FM-34T.PCB 1.02.072.1.301 170 FM-34T-VR-A.PCB 1.02.072.1.302 1 Thereafter blank line Auditing: draft: Material list for FM-34T 75MHz Pistol radio(Continued) (Electronic Part) SPC-FM-34T.BOM 2005年10月22日 第 5 页，共 5 页

1 2 3 4 A BC D 4 3 2 1 D CB A Title Number Revision Size A4 Date: 22-Oct-2005 Sheet of File: D:\ÏîÄ¿\Fm-34T\FM-34T.SCH.DDB Drawn By: 拟制： FM-34型75MHz调频枪型遥控器电原理图 C28 C27 C1830PF D11T33 D30.5W/4.7V D70.5W/5.1V C3270PF C11000PF C19 30PF C29 CR1 50U-15MHz R210k¦ ̧ R16820¦ ̧ R1 47k¦ ̧ R174.3k R18680¦ ̧ R9 22¦ ̧ R154.7¦ ̧ R102.2¦ ̧ R620k¦ ̧ R5510¦ ̧ R3 20k¦ ̧ R14680¦ ̧ R856k¦ ̧ R1122¦ ̧ R21100k¦ ̧ C2 27PF C12 47PF C4 0.022¦ÌF C51000PF C915PF C81000PF C130.1¦ÌF C110.1¦ÌF C15 56PF C1418PF C615PF L37K40T03 L2 2.7¦ÌH T1 7K72T05 L47K40T04 L1 180¦ÌH T27K72T06 ANT S1 IC1 S4 SPC-FM-34T.SCH HT46R22 Q1S9018G Q2S9018G Q3S9018G Q43DG130C R13200¦ ̧R122.7k¦ ̧ VR2B5k¦ ̧ VR1B5k¦ ̧ CK1 D4304HL D5312GD C1633¦ÌF C17 0.1¦ÌF D21N4004 C100.1¦ÌF C241000PF¡Á7 C25 R4 100¦ ̧ R722¦ ̧ C7 0.1¦ÌF R15'4.7¦ ̧ VR3B5k¦ ̧ CR24.0MHz S2 S3 E1 DC:9.6V¡«12V R191k¦ ̧ R201k¦ ̧ W2B5k¦ ̧ W1B5k¦ ̧ C210.1¦ÌF C220.1¦ÌF C310.1¦ÌF C320.1¦ÌF D6LL4148ST C30 C26 C20 1000PF C330.1¦ÌF C231000PF C340.1¦ÌF C350.1¦ÌF Q5 1623L5 R2310K R22 10K Circuit diagram of FM-24T PISTOL RADIO

Test report no. JSH05110518-001 Page 1 of 13 EMC TEST REPORT No. JSH05110518-001 Applicant :Shanghai P&C Telesystems Inc. No. 1991-1 Cao An Road, Shanghai, P.R.China Manufacturer : Shanghai P&C Telesystems Inc. No. 1991-1 Cao An Road, Shanghai, P.R.China Equipment :Pistol Radio（75MHz）2CH&3CH Type/Model :FM-34T Summary The test report is to certify that the tested equipment properly complies with the requirements of: FCC Rules and Regulations Part 95: Radio Control (R/C) Radio Service Description The appliances were tested by Quitek Corp. and found compliance with relevant requirements described in FCC Part 95: Radio Control (R/C) Radio Service. Test results are contained in this test report and Intertek Testing Services ETL SEMKO Shanghai Limited is assumed full responsibility for the accuracy and completeness of these measurements. The test report shall not be reproduced in part without written approval of Intertek Testing Services ETL SEMKO Shanghai Limited. Date of issue: January 5, 2006 Prepared by: Approved by: Daniel Zhao( Project engineer) Steve Li (Reviewer) Test report no. JSH05110518-001 Page 2 of 13 Description of Test Facility Name: Intertek Testing Service Shanghai Limited Address: Building No.86, 1198 Qinzhou Road(North), Shanghai 200233, P.R. China FCC Registration Number: 236597 Name of contact : Steve Li Test report no. JSH05110518-001 Page 3 of 13 Content SUMMARY............................................................................................................................................ 1 DESCRIPTION................................................................................................................................... 1 DESCRIPTION OF TEST FACILITY................................................................................ 2 CONTENT............................................................................................................................................. 3 1.APPLICANT INFORMATION......................................................................................................................... 4 2.INFORMATION OF EQUIPMENT UNDER TEST (EUT) ................................................................................. 4 2.1 Identification of the EUT ............................................................................................................ 4 2.2 Technical specification ................................................................................................................ 4 2.3 Mode of operation during the test / Test peripherals used................................................. 5 2.4 Standards.......................................................................................................................................... 5 2.5 Instrument list................................................................................................................................. 5 3. TEST SUMMARY......................................................................................................................................... 7 4. RF OUTPUT POWER AND RADIATED SPURIOUS EMISSIONS ................................................. 8 4.1 Reference File and Specification.............................................................................................. 8 4.2 Test Procedure................................................................................................................................8 4.3 Test Configuration......................................................................................................................... 9 4.4 Test Results ................................................................................................................................... 10 5. EMISSION BANDWIDTH............................................................................................................................ 11 5.1 Reference Rule and Specification........................................................................................... 11 5.2 Test Procedure.............................................................................................................................. 11 5.3 Test Configuration ....................................................................................................................... 11 5.4 Test Results................................................................................................................................... 11 6. FREQUENCY STABILITY MEASUREMENT ................................................................................. 12 6.1Reference Rule and Specification ............................................................................................ 12 6.2 Frequency VS Temperature Test ............................................................................................ 12 6.3Test Configuration........................................................................................................................ 12 6.4Test Result ...................................................................................................................................... 13 6.4.1Frequency vs Temperature Test ............................................................................................ 13 6.4.2 Frequency vs Voltage Test.................................................................................................... 13 Test report no. JSH05110518-001 Page 4 of 13 1.Applicant Information Applicant :Shanghai P&C Telesystems Inc. No. 1991-1 Cao An Road, Shanghai, P.R.China Manufacture : Shanghai P&C Telesystems Inc. No. 1991-1 Cao An Road, Shanghai, P.R.China Country of origin : P.R. China Name of contact : Ms. Lucy Dong Telephone : 86 21 59148358 Telefax : 86 21 59144872 2.Information of Equipment Under Test (EUT) 2.1 Identification of the EUT Equipment : Pistol Radio（75MHz）2CH&3CH Type of equipment : Radio Control (R/C) Transmitter Type/model : FM-34T FCC ID : SEQFM-34T D…
