FCC ID: SF5-08 Report No. M040642_Cert_Tx EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au EMC Technologies Report Number: M040642_Cert_Tx APPENDIX K – User Manual MOBiLert Global System Installation and Operation ManualInstallation and Operation Manual MOBiLert Systems MOBiLert Crewsafe 7000 Series Ver. 0.1 Prerelease This device complies with Part 15 of the FCC Rules. Operation is sub- ject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Compliance information statement NOTE This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guar- antee that nterference will not occur in a particular installation. If this equip- ment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encourage to try to correct the interference by one or more of the following measures:  Reorient or relocate the receiving antenna  Increase the separation between the equipment and receiver  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected  Consult the dealer or an experienced radio/TV technician for help WARNING Any changes or modifications not expressively approved by MOBilarm Ltd. could void the user’s authority to operate this equipment MOBiLert CREWSAFE 7000 SERIES 3 W E L C O M E MOBiLert Crewsafe 7000 Series Installation and Operation Manual Section One – Introducing your MOBiLert System 6 1.1 What is MOBiLert? 6 1.2 How it keeps you safe 6 1.3 What you have to do 6 1.4 What MOBiLert will do 6 1.5 What MOBiLert can not do 7 Section Two – Installing for best performance 8 Console 2.1 A short lesson in radio frequency propagation 8 2.2 Using the External Dipole Antenna 9 2.3 Finding the sweet spot 10 2.4 Testing for reliability 12 2.50 Mechanical considerations 15 2.51 Bracket mounting 15 2.52 Bulkhead flush mounting 16 2.60 Electrical considerations 19 2.61 Connection to essential services power 19 2.62 Connection to standard ships power 19 2.63 Keeping the cables out of trouble 20 2.64 Connection of the external alarm 21 Charger 22 2.7 How the charger does its thing 22 2.8 Finding the best spot 22 2.9 Testing for reliability 23 2.10 Mechanical considerations 23 2.11 Electrical considerations 24 PTX’s 25 2.12 How does the PTX work 25 2.13 Making it easy for the crew to use them 25 2.14 Some options for wearing them 25 Section Three – Using the system 27 3.10 PTX Status LED 27 3.11 Short Green flash once every 2 seconds: 27 CONTENTS MOBiLert CREWSAFE 7000 SERIES 5 CONTENTS 3.12 Short Red flash once every 2 seconds: 27 3.13 Long Orange flash once every 5 seconds: 27 3.14 Red on hard: 27 3.15 LED is off: 27 3.20 Charger Status LED 27 3.21 Long Green flash once every 3 seconds: 27 3.22 Quick alternating Red and Green flash. 28 3.23 LED is off: 28 3.30 Controls on the Console Unit 29 3.31 What the buttons do 29 3.32 Powering up the display 30 3.40 Normal Operation – PTX Status Screen 31 3.50 MOB screen 33 3.60 Recharging the PTX 35 3.70 Switching the PTXs off and on. 36 Section Four – Making changes to MOBiLert 37 4.10 Changing the screen settings 37 4.11 Contrast 37 4.12 Backlight 38 4.20 System Setup 38 4.30 Configuring the remote alarms 39 Section Five – Appendices 5.10 Console bulkhead mounting template 44 5.20 Console connection diagram 45 5.30 Charger connection diagram 46 5.40 MFP 0012 Console - Technical Specifications 48 5.50 MFP 0013 Charger Technical Specifications 48 5.60 MFP 0015 Pendant Technical Specifications 49 5.70 EC Declaration of conformity 50 Section One 1.0 Introducing your MOBiLert System 1.1 What is MOBiLert? MobiLert is a dedicated system designed to help prevent loss of life at sea. The system uses personal radio transmitters to maintain a constant link with a central Console Unit. The moment a PTX is out of radio range for more than 7 seconds, an alarm is sounded and the exact GPS position is logged. The MobiLert Console will then auto- matically switch to a track back screen giving the direction and range back to the victim. 1.2 How it keeps you safe Every PTX sends out a constant radio heartbeat to the Console. Providing your crew is wearing a PTX you can be sure that they are within about 30 Meters of the boat. MOBiLert is an active system. Any flat batteries, broken PTXs or failures in the transmission system will result in an alarm. 1.3 What you have to do As the Captain, crew safety is your responsibility. This system will only work if it is turned on and all of your crew are wearing PTXs. Make sure that PTXs are easy to find, you have enough on board and every one knows how to respond to an MOB emergen- cy. 1.4 What MOBiLert will do MOBiLert will give the Captain piece o f mind that all crew are safely onboard. We have put a lot of effort into making the PTX small, tough and easy to wear. Providing they are worn properly by the crew, the system will keep track of the PTXs proximity and the battery condition. In the event of a MOB Emer- gency, MOBiLert will log the position that the PTX went missing and provide the helmsman with instructions on how to get back to the MOB position. MOBiLert CREWSAFE 7000 SERIES 7 SECTION ONE 1.5 What MOBiLert can not do MOBiLert can not replace good safety practices and procedures. MO- BiLert won’t stop people falling overboard, can’t stop them drowning and has only limited ability to find them when th…

Text truncated - open the document above for the full version.

Response to TCB Findings 1. If the charger connects to the AC power lines via a power supply, then AC line conducted emissions (15.207) test data is required for it when the transmitter (PTX) is on it; charging and operating normally. Please clarify. Client Response; “Charger is intended to be permanently mounted in the boat and only powered from a 12V or 24V DC supply. We have no intention to allow it to be powered from an AC supply.” 2. Please specify the RBW and VBW settings of the measurement system for the peak readings listed in Section 4.4 of the report. Below 1 GHz, the RBW = 120 kHz and the VBW = 300 kHz. Above 1 GHz, the RBW = 1 MHz and the VBW = 1 MHz.

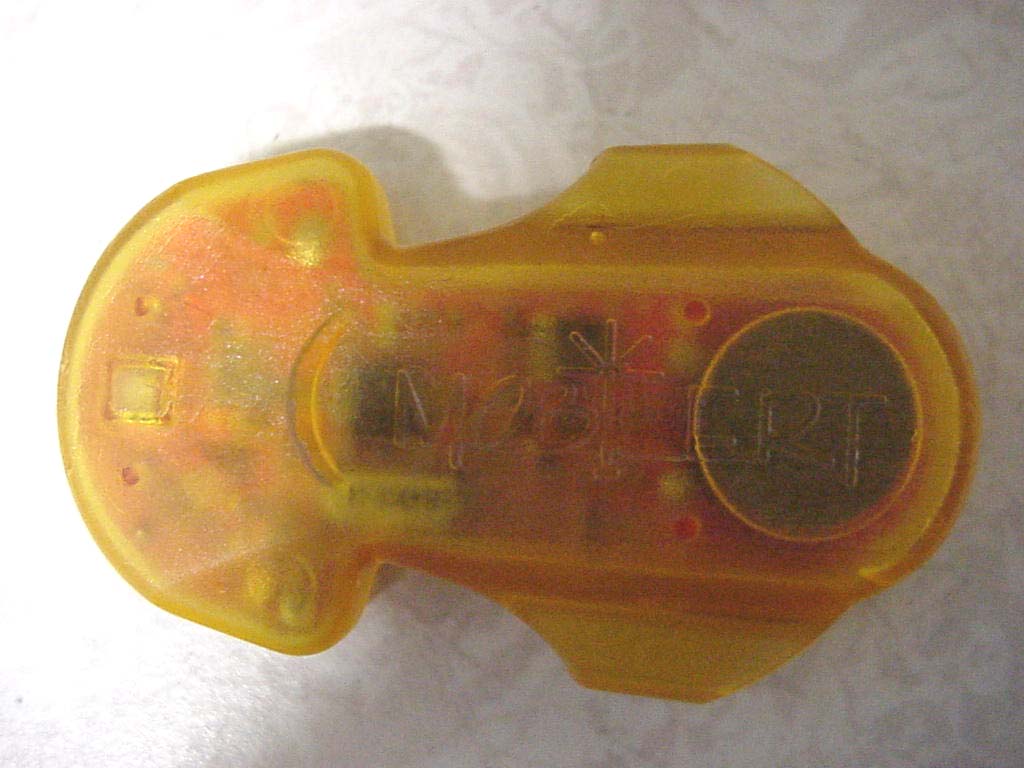

FCC ID: SF5-08 Report No. M040642_Cert_Tx EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au EMC Technologies Report Number: M040642_Cert_Tx APPENDIX B1 – Test Sample Photographs (external) FCC ID: SF5-08 Report No. M040642_Cert_Tx EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au Test Sample

FCC ID: SF5-08 Report No. M040642_Cert_Tx EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au EMC Technologies Report Number: M040642_Cert_Tx APPENDIX G – FCC Label 5.50 30.00 Label affixed to interior of clearpolished polycarbonate housing with >92% transparency. Housing is permanently sealed by ultrasonicweld. 6 point Arial type DEFC 1234 BA 3 2 1 5 CD 4 678 AB HSG1- (00016-00021) Pendant Housing Rear Casing FCC Placement DWG - FCC.HSG1-00016- Rev:A WEIGHT: A3 SHEET 1 OF 1 SCALE:1:1DWG NO. TITLE: REVISION DO NOT SCALE DRAWING MATERIAL: DATE SIGNATURE NAME DEBUR AND BREAK SHARP EDGES UNLESS OTHERWISE SPECIFIED:DIMENSIONS ARE IN MILLIMETERSSURFACE FINISH:TOLERANCES: LINEAR: ANGULAR: Q.A MFG APPV'D CHK'D DRAWN D. O'Driscoll Mobilert Limited. 19/08/2004 A Clear Polycarbonate Iupilon S3000R. A. Hill Sanmina - Sci A. Hill Sanmina - Sci Revision comment : FCC ID: SF5-08 08 123456

FCC ID: SF5-08 Report No. M040642_Cert_Tx EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au EMC Technologies Report Number: M040642_Cert_Tx APPENDIX B3 – Test Sample Photographs (internal) FCC ID: SF5-08 Report No. M040642_Cert_Tx EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au Test Sample

FCC ID: SF5-08 Report No. M040642_Cert_Tx This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd. www.emctech.com.au APPENDIX A MEASUREMENT INSTRUMENTATION DETAILS EQUIPMENT TYPE MAKE/MODEL SERIAL NUMBER LAST CAL. DD/MM/YY DUE DATE DD/MM/YY CAL. INTERVAL EMI RECEIVER HP 8574B System Components 26/09/03 26/09/04 1 YEAR *2 EMI RECEIVER HP 8546A, Sn: 3549A00290 13/02/04 13/02/05 1 YEAR *2 EMI RECEIVER Rohde & Schwarz, Model ESIB40 SN 1088 7490, 20 Hz – 40 GHz 20/07/03 20/07/04 1 YEAR *3 EMI RECEIVER Rohde & Schwarz, Model FSET22 SN 1080 3508, 100 Hz – 22 GHz 31/10/03 31/10/04 1 YEAR *3 RF PRE-SELECTOR Rohde & Schwarz, Model FSET-Z22 SN 1070 2009, 100 Hz – 22 GHz 31/10/03 31/10/04 1 YEAR *3 ANTENNAS EMCO 93110B BICONICAL 20/08/03 20/08/04 1 YEAR *1 20 - 300 MHz Sn. 9804-3092 EMCO 93146A LOG PERIODIC 19/07/04 19/07/05 1 YEAR *1 200 -1000MHz Sn. 5033 EMCO 3115 DOUBLE RIDGED HORN 1 - 18 GHz Sn: 8908-3282 29/01/03 29/01/06 3 YEAR *1 EMCO 3116 Double Ridged Guide Horn -------- -------- *4 18 – 40 GHz Sn 2276 LISN EMCO 3825/2 50ohm / 50 microH 31/03/04 31/03/05 1 YEAR *1 0.009 – 30MHz Sn.9607-2567 Note *1. In-house calibration. Refer to Quality Manual. Note *2. NATA calibration by Agilent Technologies (Aust) Pty Ltd Note *3. NATA calibration by Rohde & Schwarz Note *4. Manufacturer’s calibration TEST SITES Shielded Room Test Laboratory Melbourne 11m x 8m x 4m Chamber-semi-anechoic 8.8m x 5.8m x 3.1m Test Chamber 3.4m x 6.1m x 2.5m Test Chamber 3.4m x 7.3m x 7.5m Test Chamber Feb 03 N/A N/A N/A Feb 04 N/A N/A N/A 1 Year *1 N/A N/A N/A Open Area Test Site Melbourne 3/10 Metre site. 1-4 metre antenna mast. 1.2 metre/400 kg Turntable. (Situated at Lerderderg Gorge, near Bacchus Marsh, Victoria) 11/02/04 11/02/05 1 Year *1 Note *1. In-house calibration. Refer to Quality Manual.

FCC ID: SF5-08 Report No. M040642_Cert_Tx EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au EMC Technologies Report Number: M040642_Cert_Tx APPENDIX H – Graphs of EMI Measurement EMC Technologies Pty. Ltd. - Global Product Certification Job No:M040642 Test Date: 05-07-2004 GRAPH No. 1 r:\PCF\M040642f_1.PCF Melbourne- 57 Assembly Drv Tullamarine, 3043, Vic, Australia Ph+(613) 9335 3333 Fax+(613) 9338 9260Sydney---- 16,6 Gladstone Rd Castle Hill, 2154, NSW, Australia Ph+(612) 9899 4599 Fax+(612) 9899 4019MOBILARM LIMITED MOBILERT SYSTEM TRANSMITTER (MFP-0015) Radiated Emissions - Vertical Polarity Radiated Emissions (dBuV/m) M040642R # = Ambient Limits: Legend: Source: __ Vertical Emissions 31 32 33 34 35 29 27 28 Ver 5.5 Build 93radiated emissions site 2 lerderderg t:A1360704_10M c1:C1700804 c2:NONE p:NONE a:NONESite ID: OATS2,Lerderderg Gorge Rd, Bacchus Marsh, VIC Test Officer:Kevin Hansen Peaks:No Freq Peak Qp Val dL1 (MHz) (dBuV/m) (dBuV/m) (dB) 1 434.32 82.7 82.7 .0 82.7 2 868.63 50.0 50.0 .0 50.0 Frequency (MHz) 100 30 1000 10 20 30 40 50 60 70 80 90 v ^ 1 ~ v ^ 2 ~ # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # EMC Technologies Pty. Ltd. - Global Product Certification Job No:M040642 Test Date: 05-07-2004 GRAPH No. 2 r:\PCF\M040642f_2.PCF Melbourne- 57 Assembly Drv Tullamarine, 3043, Vic, Australia Ph+(613) 9335 3333 Fax+(613) 9338 9260Sydney---- 16,6 Gladstone Rd Castle Hill, 2154, NSW, Australia Ph+(612) 9899 4599 Fax+(612) 9899 4019MOBILARM LIMITED MOBILERT SYSTEM TRANSMITTER (MFP-0015) Radiated Emissions - Horizontal Polarity Radiated Emissions (dBuV/m) M040642R # = Ambient Limits: Legend: Source: __ Horizontal Emissions 36 37 38 39 40 22 23 24 Ver 5.5 Build 93radiated emissions site 2 lerderderg t:A1360704_10M c1:C1700804 c2:NONE p:NONE a:NONESite ID: OATS2,Lerderderg Gorge Rd, Bacchus Marsh, VIC Test Officer:Kevin Hansen Peaks:No Freq Peak Qp Val dL1 (MHz) (dBuV/m) (dBuV/m) (dB) 1 434.32 86.4 86.4 .0 86.4 2 868.64 57.7 57.7 .0 57.7 Frequency (MHz) 100 25 1001 10 20 30 40 50 60 70 80 90 v ^ 1 ~ v ^ 2 ~ # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # #

FCC ID: SF5-08 Report No. M040642_Cert_Tx EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au EMC Technologies Report Number: M040642_Cert_Tx APPENDIX I – Channel Bandwidth FCC ID: SF5-08 Report No. M040642_Cert_Tx EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au 20 dB Bandwidth

FCC ID: SF5-08 Report No. M040642_Cert_Tx EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au EMC Technologies Report Number: M040642_Cert_Tx APPENDIX J – Pulsewidth & Duty Cycle FCC ID: SF5-08 Report No. M040642_Cert_Tx EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au FCC ID: SF5-08 Report No. M040642_Cert_Tx EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au FCC ID: SF5-08 Report No. M040642_Cert_Tx EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au FCC ID: SF5-08 Report No. M040642_Cert_Tx EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au

EMI TEST REPORT for CERTIFICATION to FCC PART 15.231 FCC ID: SF5-08 Test Sample: Personal RF Remote Transmitter (PTX) Model Number: MFP-0015 Tested for: Mobilarm Limited Report Number: M040642_Cert_Tx Issue Date: 19 th August 2004 EMC Technologies Pty Ltd reports apply only to the specific samples tested under stated test conditions. It is the manufacturer’s responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. EMC Technologies Pty Ltd shall have no liability for any deductions, inferences or generalisations drawn by the client or others from EMC Technologies Pty Ltd issued reports. This report shall not be used to claim, constitute or imply product endorsement by EMC Technologies Pty Ltd. The tests, calibrations or measurements covered by this document have been performed in accordance with NATA requirements which include the requirements of ISO/IEC 17025 and are traceable to national standards of measurement. This document shall not be reproduced, except in full. NATA Accredited Laboratory Number: 5292 EMC Technologies Pty Ltd ABN 82 057 105 549 57 Assembly Drive Tullamarine Victoria Australia 3043 Ph: + 613 9335 3333 Fax: + 613 9338 9260 email: [email protected] FCC ID: SF5-08 Report No. M040642_Cert_Tx Page 2 of 10 This Laboratory is accredited by the National Association of Testing Authorities, Australia. The tests reported herein have been performed in accordance with its terms of accreditation for FCC Part 15.This document shall not be reproduced, except in full. EMI TEST REPORT FOR CERTIFICATION to FCC Part 15.231 EMC Technologies Report No. M040642_Cert_Tx Issue Date: 19 th August 2004 CONTENTS 1.0 INTRODUCTION 2.0 GENERAL INFORMATION 3.0 CONDUCTED EMI MEASUREMENTS 4.0 RADIATED EMI MEASUREMENTS 5.0 BANDWIDTH 6.0 ANTENNA REQUIREMENT 7.0 COMPLIANCE STATEMENT APPENDIX A: MEASUREMENT INSTRUMENT DETAILS APPENDIX B: TEST SAMPLE PHOTOGRAPHS APPENDIX C: OPERATIONAL DESCRIPTIONS APPENDIX D: TEST SAMPLE BLOCK DIAGRAM APPENDIX E: TEST SAMPLE PCB LAYOUT APPENDIX F: TEST SAMPLE SCHEMATIC APPENDIX G: FCC ID LABELLING APPENDIX H: GRAPHS of EMI MEASUREMENTS APPENDIX I: CHANNEL BANDWIDTH PLOTS APPENDIX J: PULSEWIDTH & DUTY CYCLE APPENDIX K: USER MANUAL FCC ID: SF5-08 Report No. M040642_Cert_Tx Page 3 of 10 This Laboratory is accredited by the National Association of Testing Authorities, Australia. The tests reported herein have been performed in accordance with its terms of accreditation for FCC Part 15.This document shall not be reproduced, except in full. EMI TEST REPORT FOR CERTIFICATION to FCC PART 15.231 Report Number: M040642_Cert_Tx Test Sample: Personal Remote RF Transmitter (PTX) Model Number: MFP-0015 FCC ID: SF5-08 Equipment Type: Intentional Radiator Tested for: Mobilarm Limited Address: 768 Canning Highway, Applecross, Perth, 6153 Western Australia Phone: +618 9315 3511 Fax: +618 9315 3611 Responsible Party: Brenton Scott - CEO Test Standards: FCC Part 15, Subpart C – Intentional Radiators FCC Part 15.231: Periodic operation in the band 40.66-40.70 MHz and above 70 MHz ANSI C63.4 – 1992 OET Bulletin No. 63 Test Dates: 2 nd July to 18 th August 2004 Test Officers: Chieu Huynh Kevin Hansen B.Eng (Hons) Electronics Attestation: I hereby certify that the device(s) described herein were tested as described in this report and that the data included is that which was obtained during such testing. Authorised Signatory: Chris Zombolas Technical Director EMC Technologies Pty Ltd FCC ID: SF5-08 Report No. M040642_Cert_Tx Page 4 of 10 This Laboratory is accredited by the National Association of Testing Authorities, Australia. The tests reported herein have been performed in accordance with its terms of accreditation for FCC Part 15.This document shall not be reproduced, except in full. EMI TEST REPORT FOR CERTIFICATION to FCC PART 15.231 1.0 INTRODUCTION This report details the results of EMI tests and measurements performed on the Personal RF Remote Transmitter (PTX). Test results and procedures were performed in accordance with the following Federal Communications Commission (FCC) standards/regulations: 47 CFR, Part 15, Subpart C: Rules for intentional radiators (particularly section 15.231) Section 15.203: Antenna requirements Section 15.205: Restricted bands of operation Section 15.207: Conducted Emission Limits Section 15.209: Radiated Emission Limits (General requirements) Section 15.231: Periodic operation in the band 40.66-40.70 MHz and above 70 MHz The test sample complied with the requirements of 47 CFR, Part 15 Subpart C - Section 15.231. The Personal RF Remote Transmitter (PTX) is a component of the Mobilert Instant warning system that comprises 3 main components: PTX: Personal transmitter units worn by the crew Console: RF receiver unit with LCD display, keypad and alarm Charger: Inductively charges the PTX unit. The results for the Console and Charger are reported separately. Refer to EMC Technologies’ test report: M040642_DoC_Rx (Declaration of Conformity). 1.1 Summary of Results FCC Part 15, Subpart C Clauses Test Performed Result 15.203 Antenna Requirement Not Applicable 15.205 Operation in Restricted Band Complies 15.207 Conducted Emissions Not Applicable 15.209 Radiated Emissions Complies 15.231 (e) Field Strength Emissions Complies 15.231 (c) 20 dB Bandwidth Complies The measurement procedure used was in accordance with ANSI C63.4-1992 and OET Bulletin No. 96-43. The instrumentation conformed to the requirements of ANSI C63.2-1987. 1.2 Modifications by EMC Technologies No modifications were required. FCC ID: SF5-08 Report No. M040642_Cert_Tx Page 5 of 10 This Laboratory is accredited by the National Association of Testing Authorities, Australia. The tests reported herein have been performed in accordance with its terms of accreditation for FCC Part 15.This document shall not be reproduced, except in full. 2.0 GENERAL INFORMATION (Information supplied by the Client) 2.1 Product Details T…

Text truncated - open the document above for the full version.

FCC ID: SF5-08 Report No. M040642_Cert_Tx EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au EMC Technologies Report Number: M040642_Cert_Tx APPENDIX B2 – Test Setup Photographs FCC ID: SF5-08 Report No. M040642_Cert_Tx EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au Radiated Emissions Test Setup
