SFA-01012005RF Remote Thermostat

North American Version REMOTE CONTROL INSTALLATION & OPERATING INSTRUCTIONS © Copyright 2004, FPI Fireplace Products International Ltd. All rights reserved. 918-29007/21/04 The FireGenie TM Remote Control is tested safe when installed in accordance with this installation manual. It is your responsibility to read all instructions before starting installation and to follow these instructions carefully during installation. The FireGenie TM Remote Control is carefully engineered and MUST be installed only as specified. If you modify it or any of its components, you may possibly cause a fire hazard. The FireGenie TM Remote Control MUST be installed by a qualified installer. FCC Requirements Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 to the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiver antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio TV technician for help. Canadian Equipment Requirements This digital apparatus does not exceed the (class A/class B)* limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications. This device complies with RSS-210 of Industry and Science Canada. Operation is subject to the following two conditions; (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. All wiring should be done by a qualified electrician and shall be in compliance with local codes and with the National Electric Code ANSI/NFPA No. 70-current (In the United States), or with the CSA C22.1 Canadian Electric Code (in Canada). TABLE OF CONTENTS Remote Control Keypad......................................................................................................... 4 Remote Control Screen Display (LCD)................................................................................... 4 Remote Control - Basic Functions........................................................................................... 5 Switching the Remote ON and OFF .................................................................................. 5 Setting Time & Day........................................................................................................... 5 Receiver Operation................................................................................................................. 5 Manual Mode......................................................................................................................... 6 Auto Mode............................................................................................................................ 6 Program Mode....................................................................................................................... 7 Setting the Program Mode...................................................................................................... 8 Installing the Receiver............................................................................................................. 13 Installing to a Wall Mount................................................................................................... 13 Installing to a Fireplace...................................................................................................... 14 Troubleshooting...................................................................................................................... 17 Special Conditions in Program Mode................................................................................. 17 Displaying Temperature in Celsius or Fahrenheit................................................................. 18 Matching Remote Control & Receiver ID Code................................................................. 18 FPI FireGenie TM Remote Control Manual4 The FireGenie TM is a custom designed Remote Control system with the following features: * Thermostatic Control; * An Automatic & Manual Mode for controlling unit ON and OFF; * A Program Mode for programming 2 time periods per day for all days of the week. REMOTE CONTROL SCREEN DISPLAY (LCD) The LCD provides the following display features: 1. Flame Indication; 2. Manual & Auto Mode Indication - “MANUAL” / “AUTO”; 3. “ROOM” or “SET” Temperature Indicator; 4. Day of Week; 5. Transmit Indicator “ ” ; 6. System Status Indicator “ON” or “OFF”; 7. Battery Low Indicator “ “ 8. Programmed Mode Indication “PROG 1” / “PROG 2”; 9. Temperature Display in “ºC” or “ºF”; 10. Time of Day with AM, PM; REMOTE CONTROL KEYPAD There are 7 push buttons on the Remote Control: (1) ON/OFF Button: Switches the Remote ON or OFF; (2) “+” Button: This is the INCREMENT or HOUR button; (3) “-” Button: This is the DECREMENT or MINUTE button; (4) AUTO/MAN Button: Toggles between Manual, Auto and Program mode; (5) TIME Button: Initiates the setting of the Time and Day; (6) PROG Button: Initi…

Text truncated - open the document above for the full version.

PI FPI Fireplace Products International Ltd. 6988 Venture St. Delta, BC Canada V4G 1H4 Phone: (604) 946-5155 Fax: (604) 946-4349 www.regency-fire.com Federal Communications Commission Equipment Authorization Division Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21045 July 14 th 2004 Subject: Request for Confidentiality for FCC Certification Application Pursuant to Rule 47 CFR, Chapter 1, Section 0.457(d)(1)(ii), FPI Fireplace Products International Ltd, requests that prior to the equipment authorization grant for the test sample, the entire application be classified and deemed confidential by the Federal Communications Commission (FCC) and as such be withheld from public inspection. As per 47 CFR, Chapter 1, Section 0.457, the exhibits tendered for the purpose of this grant, contain details of trade secrets and technical data that is not made available to competitors and the general public. This information is treated in a confidential manner by FPI Fireplace Products International Ltd., and guarded from disclosure to our competitors. The exhibits outlined below are not routinely made available to FPI Fireplace Products International Ltd., staff, with such access granted only to those specifically involved with this particular project. They contain information detailing the unique technology and circuitry of the product that would be of significant benefit to our competitors. All employees treat this technical data in a confidential manner. The manufacture of this product has taken place after an extensive research and development process that has seen the company invest a considerable amount of time and money. The time and effort taken has enabled the product to meet the specific demands of the competitive market for which it is intended and it would be therefore detrimental to allow competitors easy access to design and development details. Apart from a limited number of employees, the information has previously only been disclosed to the Test House responsible for conducting testing and authorized to act as our agent during the certification process. Pursuant to 47CFR Chapter 1, Section 0.459, post-grant confidentiality is requested for the following items, ensuring that this material continue to be withheld from public inspection following the grant. Exhibits - PCB Layouts, Schematics, Block Diagram, Operational Description Sincerely Yours, Peter Yuen Designer

Response to TCB Findings 1. Please clarify how the device complies with 15.231(a)(3) in the auto mode. Periodic transmissions at regular predetermined intervals are not permitted. On Pg 4 of the operational description transmission intervals in auto mode as explained must be clarified and compliance with this section must be justified. The RF Remote Handset does not automatically transmit unless there is a change in room temperature or if the user changes the set temperature manually. In other words, the RF does not or will not automatically re-transmit unless there is an outside influence or manual intervention. Refer to revised APPENDIX C_OPERATION DESCRIPTION 2. The duty-cycle calculation must be made over the worst 100ms pulse train as explained in 15.35(c). From the plots supplied it appears that lower duty-cycle correction is available in 100ms pulse train. Please re-calculate and correct the test report. The fundamental level appears to be above the limit when corrected for duty-cycle. Refer to revised APPENDIX J-Duty Cycle (transmission time was reduced and more blanking was inserted within the worst 100ms pulse train by the software, no changes were made to the hardware). Also refer to revised test report (Section 4.4). 3. Please specify the RBW and VBW settings of the measurement system for the peak readings listed in Section 4.4 of the report. Below 1 GHz, the RBW = 120 kHz and the VBW = 300 kHz. Above 1 GHz, the RBW = 1 MHz and the VBW = 1 MHz.

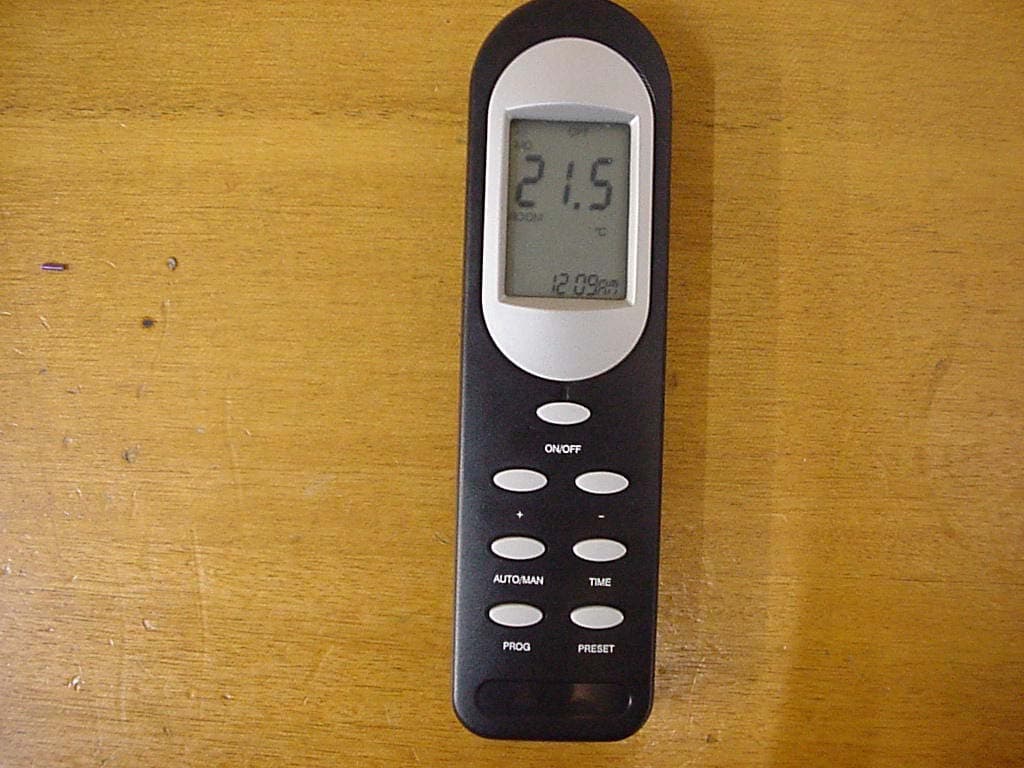

FCC ID: SFA-01012005 (IC: 5287A-01012005) Report No. M040713_Cert_Tx EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au EMC Technologies Report Number: M040713_Cert_Tx APPENDIX B1 – Test Sample Photographs (external) FCC ID: SFA-01012005 (IC: 5287A-01012005) Report No. M040713_Cert_Tx EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au APPENDIX B1 – Test Sample Photographs (external)

FCC ID: SFA-10102005 (IC ID: 5287A-01012005) Report No. M040713_Cert_Tx EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au EMC Technologies Report Number: M040713_Cert_Tx APPENDIX G – FCC LABELLING Label Material: 50 Micro white Mylar- permanent adhesive FCC ID: SFA-10102005 (IC ID: 5287A-01012005) Report No. M040713_Cert_Tx EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au

FCC ID: SFA-01012005 (IC: 5287A-01012005) Report No. M040713_Cert_Tx EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au EMC Technologies Report Number: M040713_Cert_Tx APPENDIX B3 – Internal Photographs (Test Sample, Antenna location) FCC ID: SFA-01012005 (IC: 5287A-01012005) Report No. M040713_Cert_Tx EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au APPENDIX B3 – Internal Photographs (Test Sample, Antenna location) Antenna Location

FCC ID: SFA-10102005 (IC ID: 5287A-01012005) Report No. M040713_Cert_Tx EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au EMC Technologies Report Number: M040713_Cert_Tx APPENDIX I – Channel Bandwidth FCC ID: SFA-10102005 (IC ID: 5287A-01012005) Report No. M040713_Cert_Tx EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au 20 dB Bandwidth

FCC ID: SFA-01012005 (IC ID: 5287A-01012005) Report No. M040713_Cert_Tx EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au EMC Technologies Report Number: M040713_Cert_Tx APPENDIX J – Duty Cycle & Pulse Width FCC ID: SFA-01012005 (IC ID: 5287A-01012005) Report No. M040713_Cert_Tx EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au Duty Cycle: Total Transmission (6 packets) Transmission Zoom (1 packet) FCC ID: SFA-01012005 (IC ID: 5287A-01012005) Report No. M040713_Cert_Tx EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au Duty Cycle - Zoom FCC ID: SFA-01012005 (IC ID: 5287A-01012005) Report No. M040713_Cert_Tx EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au Pulse Width:

FCC ID: SFA-10102005 (IC ID: 5287A-01012005) Report No. M040713_Cert_Tx EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au EMC Technologies Report Number: M040713_Cert_Tx APPENDIX H – Graphs of EMI Measurement EMC Technologies Pty. Ltd. - Global Product CertificationFCC 15.231 Job No:m040713 Test Date: 12-07-04 GRAPH No. 1 r:\PCF\m040713t_1.PCF Melbourne- 57 Assembly Drv Tullamarine, 3043, Vic, Australia Ph+(613) 9335 3333 Fax+(613) 9338 9260Sydney---- 16,6 Gladstone Rd Castle Hill, 2154, NSW, Australia Ph+(612) 9899 4599 Fax+(612) 9899 4019Millennium Electronics RF Remote Transmitter Radiated Emissions - Vertical polarity Radiated Emissions (dBuV/m) m040713rm040713r # = Ambient Limits: Legend: Source: __ Vertical Ambients __ Vertical Emissions 28 29 30 31 32 20 26 27 1 2 3 4 5 16 18 19 Ver 5.5 Build 93radiated emissions site 1 lerderderg t:A1370704_10M c1:C1310105 c2:NONE p:A1200305 a:NONESite ID: OATS1,Lerderderg Gorge Rd, Bacchus Marsh, VIC Test Officer:Jorge Lara Peaks:No Freq Peak Qp Val dL1 (MHz) (dBuV/m) (dBuV/m) (dB) 1 433.83 73.1 73.1 .0 73.1 2 867.67 56.0 56.0 .0 56.0 Frequency (MHz) 100 29.8 1001 10 20 30 40 50 60 70 80 90 v ^ 1 ~ v ^ 2 ~ # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # EMC Technologies Pty. Ltd. - Global Product CertificationFCC 15.231 Job No:m040713 Test Date: 12-07-04 GRAPH No. 2 r:\PCF\m040713t_2.PCF Melbourne- 57 Assembly Drv Tullamarine, 3043, Vic, Australia Ph+(613) 9335 3333 Fax+(613) 9338 9260Sydney---- 16,6 Gladstone Rd Castle Hill, 2154, NSW, Australia Ph+(612) 9899 4599 Fax+(612) 9899 4019Millennium Electronics RF Remote Transmitter Radiated Emissions - Horizontal polarity Radiated Emissions (dBuV/m) m040713rm040713r # = Ambient Limits: Legend: Source: __ Horizontal Ambients __ Horizontal Emissions 33 34 35 36 37 22 24 25 6 7 8 9 10 13 14 15 Ver 5.5 Build 93radiated emissions site 1 lerderderg t:A1370704_10M c1:C1310105 c2:NONE p:A1200305 a:NONESite ID: OATS1,Lerderderg Gorge Rd, Bacchus Marsh, VIC Test Officer:Jorge Lara Peaks:No Freq Peak Qp Val dL1 (MHz) (dBuV/m) (dBuV/m) (dB) 1 433.83 84.1 84.1 .0 84.1 2 867.67 57.4 57.4 .0 57.4 Frequency (MHz) 100 29.8 1001 10 20 30 40 50 60 70 80 90 v ^ 1 ~ v ^ 2 ~ # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # #

FCC ID: SFA-01012005 (IC: 5287A-01012005) Report No. M040713_Cert_Tx EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au APPENDIX A MEASUREMENT INSTRUMENTATION DETAILS EQUIPMENT TYPE MAKE/MODEL SERIAL NUMBER LAST CAL. DD/MM/YY DUE DATE DD/MM/YY CAL. INTERVAL EMI RECEIVER HP 8574B System Components 26/09/03 26/09/04 1 YEAR *2 EMI RECEIVER HP 8546A, Sn: 3549A00290 13/02/04 13/02/05 1 YEAR *2 EMI RECEIVER Rohde & Schwarz, Model ESIB40 SN 1088 7490, 20 Hz – 40 GHz 20/07/03 20/07/04 1 YEAR *3 ANTENNAS EMCO 93110B BICONICAL 20/08/03 20/08/04 1 YEAR *1 20 - 300 MHz Sn. 9804-3092 EMCO 93146A LOG PERIODIC 19/07/03 19/07/04 1 YEAR *1 200 -1000MHz Sn. 5033 EMCO 3115 DOUBLE RIDGED HORN 1 - 18 GHz Sn: 8908-3282 29/01/03 29/01/06 3 YEAR *1 Note *1. In-house calibration. Refer to Quality Manual. Note *2. NATA calibration by Agilent Technologies (Aust) Pty Ltd Note *3. NATA calibration by Rohde & Schwarz TEST SITES Shielded Room Test Laboratory Melbourne 11m x 8m x 4m Chamber-semi-anechoic 8.8m x 5.8m x 3.1m Test Chamber 3.4m x 6.1m x 2.5m Test Chamber 3.4m x 7.3m x 7.5m Test Chamber Feb 03 N/A N/A N/A Feb 04 N/A N/A N/A 1 Year *1 N/A N/A N/A Open Area Test Site Melbourne 3/10 Metre site. 1-4 metre antenna mast. 1.2 metre/400 kg Turntable. (Situated at Lerderderg Gorge, near Bacchus Marsh, Victoria) 11/02/04 11/02/05 1 Year *1 Note *1. In-house calibration. Refer to Quality Manual.

EMI TEST REPORT for CERTIFICATION to FCC PART 15.231 & RSS-210 FCC ID: SFA-01012005 Industry Canada ID: 5287A-01012005 Test Sample: RF Remote Handset Transmitter Model: 910-388 Tested for: Fireplace Products International Ltd Report Number: M040713_Cert_Tx Issue Date: 19 th August 2004 EMC Technologies Pty Ltd reports apply only to the specific samples tested under stated test conditions. It is the manufacturer’s responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. EMC Technologies Pty Ltd shall have no liability for any deductions, inferences or generalisations drawn by the client or others from EMC Technologies Pty Ltd issued reports. This report shall not be used to claim, constitute or imply product endorsement by EMC Technologies Pty Ltd. The tests, calibrations or measurements covered by this document have been performed in accordance with NATA requirements which include the requirements of ISO/IEC 17025 and are traceable to national standards of measurement. This document shall not be reproduced, except in full. NATA Accredited Laboratory Number: 5292 EMC Technologies Pty Ltd ABN 82 057 105 549 57 Assembly Drive Tullamarine Victoria Australia 3043 Ph: + 613 9335 3333 Fax: + 613 9338 9260 email: [email protected] FCC ID: SFA-01012005 (IC: 5287A-01012005) Report No. M040713_Cert_Tx Page 2 of 11 This Laboratory is accredited by the National Association of Testing Authorities, Australia. The tests reported herein have been performed in accordance with its terms of accreditation for FCC Part 15.This document shall not be reproduced, except in full. EMI TEST REPORT FOR CERTIFICATION to FCC Part 15.231 & RSS-210 EMC Technologies Report No. M040713_Cert_Tx Issue Date: 19 th August 2004 CONTENTS 1.0 INTRODUCTION 2.0 GENERAL INFORMATION 3.0 CONDUCTED EMI MEASUREMENTS 4.0 RADIATED EMI MEASUREMENTS 5.0 BANDWIDTH 6.0 ANTENNA REQUIREMENT 7.0 COMPLIANCE STATEMENT APPENDIX A: MEASUREMENT INSTRUMENT DETAILS APPENDIX B: TEST SAMPLE PHOTOGRAPHS APPENDIX C: OPERATIONAL DESCRIPTIONS APPENDIX D: TEST SAMPLE BLOCK DIAGRAM APPENDIX E: TEST SAMPLE SCHEMATIC APPENDIX F: TEST SAMPLE PCB LAYOUT APPENDIX G: FCC ID LABELLING APPENDIX H: GRAPHS of EMI MEASUREMENTS APPENDIX I: CHANNEL BANDWIDTH PLOTS APPENDIX J: PULSEWIDTH & DUTY CYCLE APPENDIX K: USER MANUAL FCC ID: SFA-01012005 (IC: 5287A-01012005) Report No. M040713_Cert_Tx Page 3 of 11 This Laboratory is accredited by the National Association of Testing Authorities, Australia. The tests reported herein have been performed in accordance with its terms of accreditation for FCC Part 15.This document shall not be reproduced, except in full. EMI TEST REPORT FOR CERTIFICATION to FCC PART 15.231 & RSS-210 Report Number: M040713_Cert_Tx Test Sample: RF Remote Handset Transmitter Model: 910-388 Manufacturer: Millennium Electronics Pty Ltd Address: 12 Webber Parade, East Keilor, VIC 3033, Australia Phone: +61 3 9331 7032 Fax: +61 3 9331 7038 Contact: Eric Au FCC ID: SFA-01012005 Industry Canada ID: 5287A-01012005 Equipment Type: Intentional Radiator Tested for: Fireplace Products International Ltd Address: 6988 Venture Street, Delta BC, Canada, V4G1H4 Phone: +604 9465155 Fax: +604 9464349 Responsible Party: Peter Yuen Test Standards: FCC Part 15, Subpart C – Intentional Radiators FCC Part 15.231: Periodic operation in the band 40.66-40.70 MHz and above 70 MHz ANSI C63.4 – 2003 OET Bulletin No. 65 RSS-210 Issue 5 Low Power Licence-Exempt RadioCommunication Devices: 6.1.1: Momentarily Operated Devices Test Dates: 12 th to 22 nd July 2004 Test Officers: Chieu Huynh Jorge Lara B.Eng (Hons) Electronics Attestation: I hereby certify that the device(s) described herein were tested as described in this report and that the data included is that which was obtained during such testing. Authorised Signatory: Chris Zombolas Technical Director EMC Technologies Pty Ltd FCC ID: SFA-01012005 (IC: 5287A-01012005) Report No. M040713_Cert_Tx Page 4 of 11 This Laboratory is accredited by the National Association of Testing Authorities, Australia. The tests reported herein have been performed in accordance with its terms of accreditation for FCC Part 15.This document shall not be reproduced, except in full. EMI TEST REPORT FOR CERTIFICATION to FCC PART 15.231 & RSS-210 1.0 INTRODUCTION This report details the results of EMI tests and measurements performed on the RF Remote Handset Transmitter, Model: 910-388. Test results and procedures were performed in accordance with the following Federal Communications Commission (FCC) standards/regulations: 47 CFR, Part 15, Subpart C: Rules for intentional radiators (particularly section 15.231) Section 15.203: Antenna requirements Section 15.205: Restricted bands of operation Section 15.207: Conducted Emission Limits Section 15.209: Radiated Emission Limits (General requirements) Section 15.231: Periodic operation in the band 40.66-40.70 MHz and above 70 MHz The test sample complied with the requirements of 47 CFR, Part 15 Subpart C - Section 15.231. The test sample also complied with the Industry Canada RSS-210 issue 5 (Low Power Licence-Exempt Radiocommunication Devices (All Frequency Bands)) clause 6.1.1 The RF Remote Handset Transmitter (RF Remote) is Radio Frequency based Thermostat that is designed to communicate with the Millivolt System which in turn operates a fireplace unit. The results for the Millivolt System are reported separately. Refer to EMC Technologies’ test report: M040714_DoC_Rx (Declaration of Conformity). 1.1 Summary of Results FCC Part 15, Subpart C Clauses Industry Canada RSS-210 Clauses Test Performed Result 15.203 5.5 Antenna Requirement Not Applicable 15.205 6.3 Operation in Restricted Band Complies 15.207 6.6 Conducted Emissions Not Applicable 15.209 6.3 Radiated Emissions Complies 15.231 (b) 6.1.1(b) Field Strength Emissions Complies 15.231 (c) 6.1.1(c) 20 dB Bandwidth Complies The measurement procedure used was in accordance with …

Text truncated - open the document above for the full version.

FCC ID: SFA-01012005 (IC: 5287A-01012005) Report No. M040713_Cert_Tx EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au EMC Technologies Report Number: M040713_Cert_Tx APPENDIX B2 – Test Setup Photographs FCC ID: SFA-01012005 (IC: 5287A-01012005) Report No. M040713_Cert_Tx EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au APPENDIX B2 – Test Setup Photographs Radiated Emissions: 30 – 1000 MHz Radiated Emissions: 1000 – 4340 MHz
