SFF-KM1400127MHz Transmitter

PMS 293 C PMS 283 C COLLECT THEM ALL! ¡COLECCIONALOS TODOS! PLEASE READ ALL INSTRUCTIONS CAREFULLY BEFORE PLAYING AND RETAIN THIS INSTRUCTION FOR FUTURE REFERENCE. RADIO CONTROL FREQUENCY To be interference-free, do not operate this vehicle with other radio-controlled toys not included in this package within transmission range. TRANSMITTER AND RECEIVER Since this vehicle is controlled by radio waves and to avoid interruption, do not operate this vehicle near electrical or telephone lines, CB interference, CD players, mobile phones, elevators, steel girders, other electronic devices and near highways. BATTERY INSTALLATION Set the “ON-OFF” switch at the bottom of the vehicle to “OFF” position before inserting batteries. Unscrew and open the battery compartment cover to inset batteries in the vehicle as shown in the diagram on this packaging. Make sure all batteries are at correct polarity. Close the cover and tighten the screws. CAUTION: Batteries should be installed by adults only. Be sure to insert batteries correctly and always follow the toy and battery manufacturers’ instructions. Never mix used and new batteries together in the battery compartment. Replace all batteries at the same time. Never mix alkaline, standard and rechargeable batteries together in the battery compartment. Use only one battery type. Do not use rechargeable batteries. Do not recharge non-rechargeable batteries. Remove used or dead batteries from the product immediately. Do not dispose of batteries in fire. Batteries may explode or leak if misused. Remove batteries from product before extended storage. To prevent supply terminal short-circuit, keep battery compartment free of all materials except batteries. If batteries contain mercury, recycle or dispose them as hazardous waste. For your safety, never play the vehicle on street. VEHICLE OPERATION Turn the “ON-OFF” switch at the bottom of the vehicle to “ON” position and the vehicle will be idling. Pull the trigger on the transmitter downward, and then the vehicle will go forward. Release the trigger, and then the vehicle will stop. Push the trigger upward on the transmitter, and then the vehicle will go backward and turn. OPERATION TIPS Operate the vehicle only on smooth (but not slippery), dry and clean surfaces. Do not play the vehicle on grass, sand or carpet. Do not drive the vehicle through water. Always keep the transmitter antenna upward for better transmission. Do not make any physical contact with the transmitter antenna while operating. Keep the vehicle in a dry and cool place after playing. Do not leave it directly under sunlight. THIS PRODUCT CONFORMS TO TOY SAFETY STANDARD ASTM F963-11. RADIO CONTROL DE FREQUENCIA Para evitar interferencia, no utilice este vehículo con otros juguetes que son controlados por radio y están dentro del rango de transmissión. TRANSMISOR Y RECEPTOR Porque este vehículo es controlado por radio y para evitar interrupción, no funcione este vehículo cerca de líneas elétronicas o telefónicas, la interferencia de CB, reproductores de CD, teléfonos móviles, ascensores, vigas de acero, otros dispositivos eletrónicos y cerca de carreteras. INSTALACIÓN DE LAS BATERÍAS Ajuste “ON-OFF” en la parte inferior del vehículo a la posición “OFF” antes de introducir las baterías. Desatornille y abra la tapa del comparimiento de la batería para introducir las baterías en el vehículo como el diagrama de este envase. Asegúrese de que todas las baterías entán en la polaridad correcta. Cierre la tapa y apriete los tornillos. PRECAUCIÓN Las baterías deben ser instalados solamente por los adultos. Asegúrese de insertar las baterías correctamente y siga siempre las instrucciones del fabricantes de la batería y el juguete. No mezcle las baterías usadas y nuevas juntos en el cmpartimiento de la batería. Reemplace todas las baterías al mismo tiempo. No mezcle las baterías alcalinas, estándar y recargable juntos en el compartimiento de la batería. Utilice sólo un tipo de batería. No utilice las batterías recargables. No recargue las baterías no recargables. Retire las baterías usadas o gastadas del producto immediatamente. No deseche las baterías en el fuego. Las baterías pueden explotar o tener fugas si se utilizan mal. Retire las pilas desde el producto antes de su almacenamiento prolongado. Para evitar terminal de suministro de corto’circuito, excepto las baterías, no ponga otros materiales en el compartimiento. Si las baterías contienen mercurio, recicle o deseche ellas como residuos peligrosos. Para su seguridad, no juegue el vehículo en la calle. OPERACIÓN DE VEHÍCULO Ajuste “ON-OFF” en la parte inferior del vehículo a la posición “ON” y entonces el vehículo funcionará en marcha lenta. Hale el gatillo de la transmisor hacia abajo, y entonces el vehículo avanzará. Suelte el gatillo, y entonces el vehículo detendría. Empuje el gatillo hacia arriba en el transmisor, y entonces el vehículo irá hacia atrás y girará. CONSEJOS DE USO Funcione el vehículo solamente en suave (pero no resbaladiza), las superficies secas y limpias. No juege el vehículo en l hierba, la arena o la alfombra. No conduzca el cehículo a través del agua. Mantenga siempre la antena del transmisor hacia arriba para mejor transmisiónes. No ponga en contacto físicamente con la transmisor cuando jugar. Mantenga el vehículo en el lugar seco y fresco después de jugar. No lo deje bajo la luz directamente. ESTE PRODUCTO CUMPLE CON LA NORMA DE SEGURIDAD DE JUGUETE – ASTM F963-11. FEATURES • Radio control • Go forward, stop and turn in reverse POR FAVOR LEA TODAS LAS INSTRUCCIONES ANTES DE JUGAR Y CONSERVE ESTAS INSTRUCCIONES PARA EL FUTURO. CARACTERÍSTICAS • Radio control • Avanza, detiene y gira en sentido Made in CHINA for Kmart Corporation Hoffman Estates, IL 60179 Check out the entire line of Just Kidz toys at www.Kmart.com/JustKidz R/C big wheels vehicles R/C big wheels vehicles 008916MAY13 0-66940111-9 008916MAY13 0-66940111-9 Color may vary. Color puede variar. Complies with ASTM F963…

Text truncated - open the document above for the full version.

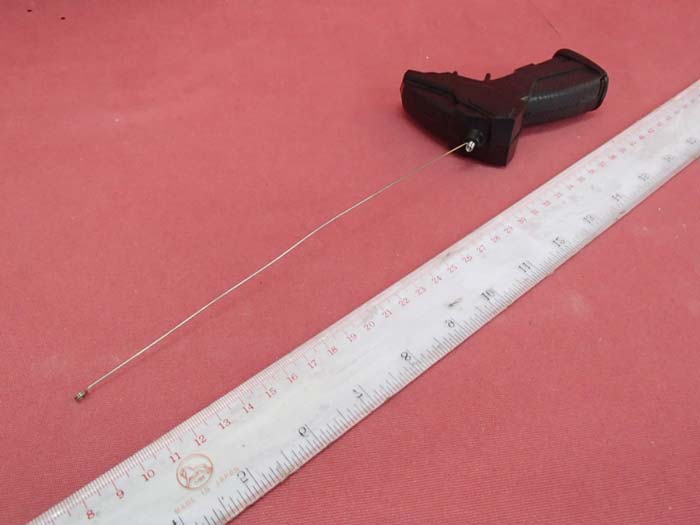

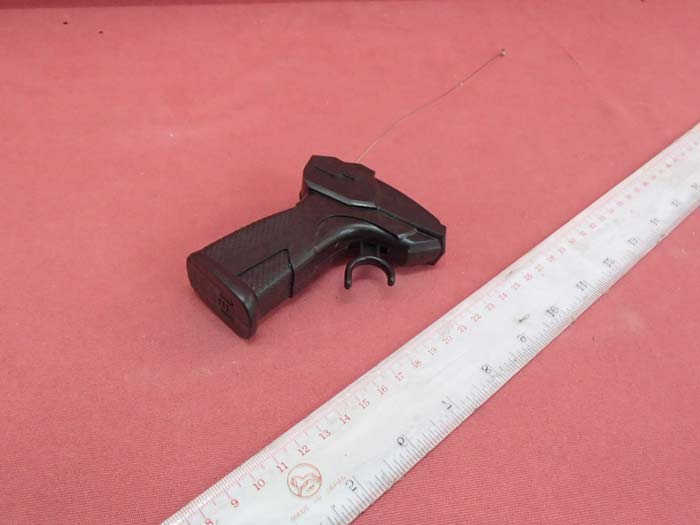

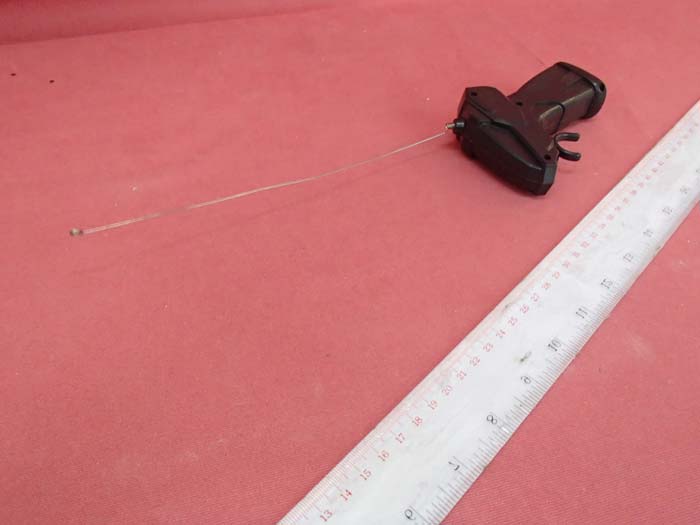

INTERTEK TESTING SERVICE Report No.: 14041539HKG-001 Equipment Photographs Model : AU00530 (External) FCC ID: SFF-KM14001 INTERTEK TESTING SERVICE Report No.: 14041539HKG-001 Equipment Photographs Model : AU00530 (External) FCC ID: SFF-KM14001

INTERTEK TESTING SERVICE Report No.: 14041539HKG-001 Equipment Photographs Model : AU00530 (Internal) FCC ID: SFF-KM14001 INTERTEK TESTING SERVICE Report No.: 14041539HKG-001 Equipment Photographs Model : AU00530 (Internal) FCC ID: SFF-KM14001 INTERTEK TESTING SERVICE Report No.: 14041539HKG-001 Equipment Photographs Model : AU00530 (Internal) FCC ID: SFF-KM14001

Model: AU00530 (Transmitter portion) Technical Description of Transmitter The transmitter operates at 27.145 MHz, and controls the corresponding receiver to move forward and backward. The circuit of the transmitter comprises of, 1. An Encoding circuit Consisting: SW-B, SW-F, Q1, Q2 2. A RF Oscillator (27.145MHz) Consisting: X1 3. A Filter Network Consisting: L1, C4, C5,C7 4. A RF Modulator and Amplifier Consisting: Q3 5. A Power Supply Consisting: 1 x 9.0V Alkaline Battery Antenna Type: External, Integral Antenna Gain: 0dB Nominal rated field strength: 60.5dBμV/m at 3m Maximum allowed field strength of production tolerance: +/-3dB

Analysis Report Report No.: 14041539HKG-001 The Equipment Under Test (EUT) is a transmitter of a RC Car operating at 27.145 MHz as dictated by a crystal. The EUT is powered by a 9.0 V DC source (1 x 9.0V 6F22 battery). The EUT has a forward / backward control lever. After switching ON the EUT and the receiver of the RC Car, activating the control levers on the EUT can control the receiver moving forward and backward. Antenna Type: External integral antenna Antenna Gain: 0dBi Nominal rated field strength: 60.5dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB According to the KDB 447498: Based on the Maximum allowed field strength of production tolerance was 63.5dBμV/m at 3m in frequency 27.145MHz, thus; The EIRP = [(FS*D) ^2*1000 / 30] = 0.00067mW Conducted power = Radiated Power (EIRP) – Antenna Gain So; Conducted Power = 0.00067mW. The SAR Exclusion Threshold Level for 27.145MHz when the minimum test separation distance is < 50mm: = [474 * (1 + log100/f(MHz))]/2 = 371.2mW Since the above conducted output power is well below the SAR Exclusion threshold level, so the EUT is considered to comply with SAR requirement without testing.

Valued Qualþ. Delivercd. Issuing Laboratory: lntertek Testing Services Hong Kong Limited Hong Kong Accreditation Serv¡ce (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditat¡on Scheme (HOKLAS) for specif¡c laboratory activities as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were detemined by th¡s laboratory in accordance with its terms of accreditation. TEST REPORT HIT- n6il -*^#l Report No.: I 4041539HKG-001 Auxo lnternational Ltd. Application For Certification (Original Grant) (FCC lD: SFF-KMI400l) Transmitter Approved by: Prepared and Checked by: Tse Ying, Cathy Senior Lead Engineer Ng Mei Nar, Chris Lead Engineer Date: May 20, 2014 I The test report only allNs to bê rêv¡sed within the retenlion period unless further stândârd or the requ¡Ement was notiæd. This report is for the exclusive use of lnte¡teks Client and is providêd pursuant to the agreement between lntertek and its Cl¡ent. lnterteks responsibility and liability are l¡mited to the tsrms ând ænd¡t¡ons of ths agreement. lntertek assumes no l¡âbility to any party, other than to the Cl¡ent in acærdanæ w¡th the agrêement, for any loss, êxpense or darlrage occasioned by the use of this repori. Only the Client is authorizêd to pem¡t æpying or distribut¡on of th¡s report and then only in its entirsty. Any use of the lntertek name or onê of its marks for the sale or advsrtisement of the tested mâterial, product or æruice must f¡rst be approved in Miting by lntertek. The obseruations and test rêsults in this reporl are relêvânt only to the sample tested. This report by ¡tself does not imply thât the material, product, or sery¡ce is or has êver bæn under an lntertek cêrt¡ficat¡on prcgram. lntertek Testing Seruices Hong Kong Ltd. 2/F., Garment Cenhe, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Issuing Laboratory: Intertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. Report No.: 14041539HKG-001 i FCC ID: SFF-KM14001 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com GENERAL INFORMATION Grantee: Auxo International Ltd. Grantee Address: Room 1425, Block A, Hoi Luen Ind. Centre, 55 Hoi Yuen Road, Kwun Tong, Hong Kong. Contact Person: Edward Chan Tel: (852) 2763 6293 Fax: (852) 2763 6299 e-mail: N/A Manufacturer: Yue Tian Toy Factory Manufacturer Address: Xindi Place, High Mau Chau River Dam, Feng Xiang Street, Chenghai, Shantou Brand Name: N/A Model: AU00530, AU00513 Type of EUT: Transmitter Description of EUT: 27MHz Transmitter Serial Number: N/A FCC ID: SFF-KM14001 Date of Sample Submitted: April 28, 2014 Date of Test: April 28, 2014 to April 30, 2014 Report No.: 14041539HKG-001 Report Date: May 20, 2014 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% Issuing Laboratory: Intertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. Report No.: 14041539HKG-001 ii FCC ID: SFF-KM14001 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com SUMMARY OF TEST RESULT TEST SPECIFICATION REFERENCE RESULTS Transmitter Field Strength 15.227 Pass The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2012 Edition Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. Issuing Laboratory: Intertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. Report No.: 14041539HKG-001 iii FCC ID: SFF-KM14001 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Table of Contents 1.0 General Description............................................................................................ 1 1.1 Product Description ........................................................................................... 1 1.2 Related Submittal(s) Grants ............................................................................... 1 1.3 Test Methodology .............................................................................................. 1 1.4 Test Facility ....................................................................................................... 1 2.0 System Test Configuration .............................…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE Report No: 14041539HKG-001 Configuration Photographs Worst-Case Radiated Emissions (Front View) Model : AU00530 14041539HKG-001 FCC ID: SFF-KM14001 INTERTEK TESTING SERVICE Report No: 14041539HKG-001 Configuration Photographs Worst-Case Radiated Emissions (Back View) Model : AU00530 14041539HKG-001 FCC ID: SFF-KM14001
