SFH-PC0001Motion Sensor

Operating Instructions SMC Version 1.5 Date: 02.02.2005 Trade Name: Publicount Model No: SENSOR This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada. Operation is subject to the following two conditions. (1) this device my not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: SFHPC0001 IC: 5288A-PC0001 This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Warning: Changes or modifications made to this equipment not expressly approved by Publicount may void the FCC authorization to operate this equipment. Summary Summary description of the Publicount SMC • People counting system • Storage and transmission of customer traffic data • Aluminium housing, approx. dimensions 170 x130 x70 mm • Approx. weight 1000g • Mains input 100..240V AC / 50..60Hz via external 12V DC power supply unit • Power consumption max. 30 Watt • 30-day cycle memory • Connection of up to 12 Publicount sensors • Up to 32 data SMCs on one RS-485 bus • Firmware update to SMC firmware possible in site Summary description of firmware versions: 1.1. Replacement firmware for HUZ2 versions PCHUZ 60, 61, 90, 91 with boot-loader (RS232) Sensors: KF 32.x Operating Instructions HUZ3 3 / 3 Contents Contents: 1. Introduction.............................................................................................................5 2. Assembly of sensors..............................................................................................6 2.1. The size of the projection field.........................................................................6 2.2. Number of sensors to be installed....................................................................8 2.2.1. SMC Firmware 1.x.....................................................................................8 2.3. Position of the projection field..........................................................................9 2.4. Floor markings...............................................................................................11 2.5. Connector assignment...................................................................................12 2.6. Connection of sensors to the SMC................................................................. 13 3. Connecting SMCs together...................................................................................14 4. PC, Modem, Com Server......................................................................................15 4.1. End equipment connected to the RS232 port of a single SMC......................15 4.2. End equipment connected with the RS485 bus for more than one SMC.......16 5. Operating the SMC...............................................................................................17 5.1. Terminal settings............................................................................................17 5.2. General operation..........................................................................................19 5.2.1. Interrogation into SMCs connected.........................................................19 5.2.2. Activating the SMC..................................................................................19 5.3. Firmware 1.x..................................................................................................20 5.3.1. Sensor measurement data, counting parameters of the SMC.................21 5.3.2. Additional setting parameters..................................................................23 5.3.3. Live Mode................................................................................................25 5.3.4. Control Counting......................................................................................26 5.3.5. Automatic Calibration..............................................................................27 5.3.6. Configuration Menu.................................................................................28 5.3.7. Sensor measurements, control counting.................................................30 5.3.8. Agreeing control counts...........................................................................32 5.3.9. Firmware update for the SMC.................................................................33 5.3.10. SMC Error Log.......................................................................................36 5.3.11 Trouble Shooting....................................................................................42 6. Operating the sensors – Version KF32.x..............................................................43 6.1. Version info on KF sensors............................................................................43 6.2. Auto-test.........................................................................................................44 6.3. Firmware Update...........................................................................................45 Appendix...................................................................................................................47 A1 - Separating an installation cable.....................................................................47 A2 – Suitable installation cable for Publicount installations...................................50 A3 - Known errors with the SMC firmware............................................................51 A3.1 –SMC Version 1.1.....................................................................................51 A4. Optional: Connection via Bluetooth................................................................52 A4.1. Producing the connection to the SMC............................…

Text truncated - open the document above for the full version.

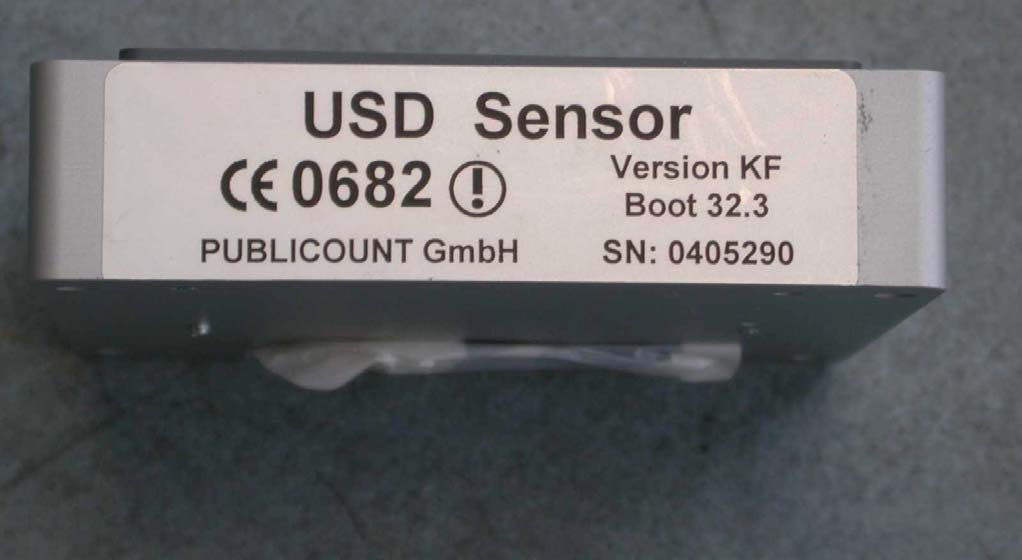

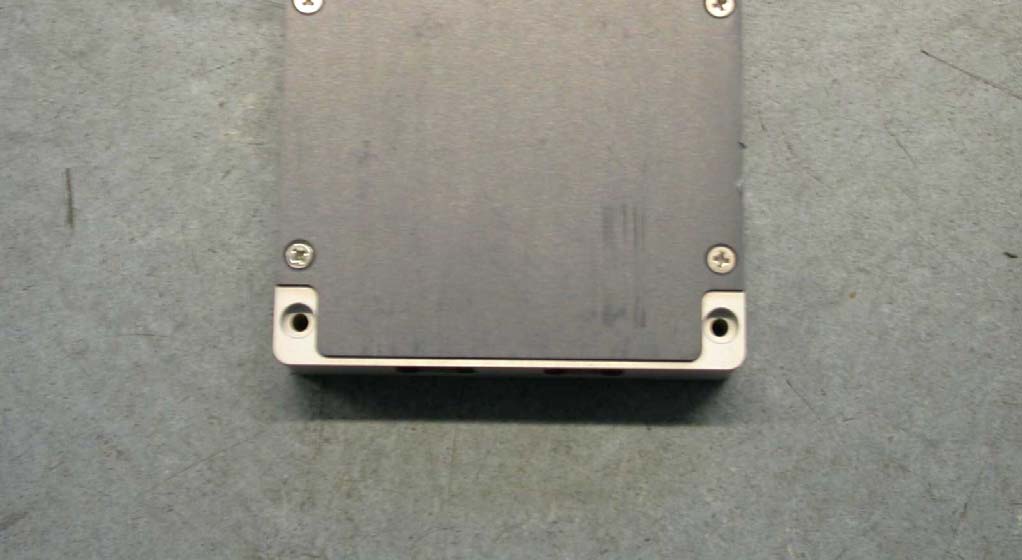

CETECOM ICT Services GmbH Test report No.: 2–3717–01–01/04Date : 13.08.2004Page 30 of 39 4.Photographs Photo 1 CETECOM ICT Services GmbH Test report No.: 2–3717–01–01/04Date : 13.08.2004Page 31 of 39 Photo 2 CETECOM ICT Services GmbH Test report No.: 2–3717–01–01/04Date : 13.08.2004Page 32 of 39 Photo 3 CETECOM ICT Services GmbH Test report No.: 2–3717–01–01/04Date : 13.08.2004Page 33 of 39 Photo 4 CETECOM ICT Services GmbH Test report No.: 2–3717–01–01/04Date : 13.08.2004Page 34 of 39 Photo 5

CETECOM ICT Services GmbH Test report No.: 2–3717–01–01/04Date : 13.08.2004Page 35 of 39 Photo 6 CETECOM ICT Services GmbH Test report No.: 2–3717–01–01/04Date : 13.08.2004Page 36 of 39 Photo 7

CETECOM ICT Services GmbH Radio Satellite Communication Untertürkheimer Straße 6–10, D-66117 Saarbrücken, Telephone +49 (0) 681 598 - 0 , Fax +49 (0) 681 598 – 9 075 Test report No.: 2–3717–01–01/04This test report consists of 39 pagesPage 1 of 39 Recognized by the Federal Communications Commission and Industry Canada Anechoic chamber registration No. 90462 (FCC) Anechoic chamber registration No. 3463 (IC) TCB ID: DE0001 Accredited by the German Accreditation Council DAR–Registration Number TTI–P–G 081/94-D0 Independent ETSI compliance test house ETSI Test report No.:2–3717–01–01/04 Applicant:Publicount GmbH. Type:USD Sensor Test standard:FCC Part 15.245 CETECOM ICT Services GmbH Test report No.: 2–3717–01–01/04Date : 13.08.2004Page 2 of 39 Table of contents 1.General information............................................................................................................ 3 1.1.Notes .............................................................................................................................. 3 1.2.Testing laboratory ..........................................................................................................4 1.3.Details of applicant ........................................................................................................4 1.4.Application details .........................................................................................................4 1.5.Test item (EUT) .............................................................................................................5 1.6.Technical data ................................................................................................................ 5 1.6.1.Operation conditions ......................................................................................................6 1.6.2.Equipment under test .....................................................................................................6 1.7.Test standards:................................................................................................................ 6 1.8.Code of Federal Regulations (CFR 47).......................................................................... 6 1.9.Industry Canada Standards............................................................................................. 6 2.Technical test...................................................................................................................... 7 2.1.Summary of test results .................................................................................................. 7 2.2.Test environment............................................................................................................7 2.3.Measurement and test set-up .......................................................................................... 7 2.4.Test equipment utilized and test set-up .......................................................................... 8 2.5.Test results ................................................................................................................... 12 3.Plots, graphs and data sheets ......................................................................................... 16 4.Photographs ..................................................................................................................... 30 CETECOM ICT Services GmbH Test report No.: 2–3717–01–01/04Date : 13.08.2004Page 3 of 39 1. General information 1.1. Notes The test results of this test report relate exclusively to the test item specified in 1.5.. CETECOM ICT Services GmbH does not assume responsibility for any conclusions and generalisations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the CETECOM ICT Services GmbH. Tester : 13.08.2004 Manfred Paschwitz DateNameSignature Technical responsibility for area of testing : 13.08.2004 Dirk Hausknecht DateNameSignature CETECOM ICT Services GmbH Test report No.: 2–3717–01–01/04Date : 13.08.2004Page 4 of 39 1.2. Testing laboratory CETECOM ICT Services GmbH Untertürkheimerstraße 6–10P.O. Box 10 04 45 66117 Saarbrücken66004 Saarbrücken GermanyGermany Telephone:+ 49 (0) 681 598–0 Fax:+ 49 (0) 681 598–9075 e-mail:[email protected] Internet:http://www.cetecom.de Accredited testing laboratory Accredited by: Regulierungsbehörde für Telekommunikation und Post (RegTP) Listed by: Federal Communications Commission (FCC) Industry Canada AuthorityIdentification/Registration No. RegTPTTI-P-G 081/94-D0 FCC90462 IC3463 Testing location, if different from CETECOM ICT Services GmbH: (Not applicable) Name:(Not applicable) 1.3. Details of applicant Name:Publicount GmbH. Street:Bürgerbuschweg 48 Town:51381 Leverkusen Country:Germany Telephone:+49 (0) 21 71 9093 0 Fax:+49 (0) 21 71 9093 100 Contact person Name:Mr. Harald Franke Telephone:+49 (0) 21 71 9093 0 Fax:+49 (0) 21 71 9093 100 e mail:[email protected] 1.4. Application details Date of receipt of application :27.07.2004 Date of receipt of test item:10.08.2004 Date of test:10./11./12.08.2004 CETECOM ICT Services GmbH Test report No.: 2–3717–01–01/04Date : 13.08.2004Page 5 of 39 1.5. Test item (EUT) Description of EUT:Field disturbance sensor System designation:Microwave Sensor Type designation:Personal Count System Name:Publicount GmbH. Street:Bürgerbuschweg 48 Town:51381 Leverkusen Country:Germany 1.6. Technical data Frequency range:24.075 GHz ... 24.175 GHz Operational frequency:24.112 GHz Field strength:155 mV/m Type of modulation :500KN0N (CW) Normal AC power supply:115.0 V FCC ID:SFH-PC0001 Certification No. IC:5288A-PC0001 Open Area Test Site IC No.:3436 IC StandardsRSS 210 ATTESTATION: DECLARATION OF COMPLIANCE: I declare that the testing was performed or supervised by me; that the tes…
