SFSBWM0001Body Weight Scale (2.4GHz Transeceiver)

Block Diagram for the Body Scale:
Loadcells output voltages related to the body weigh t to the MCU
MCU processed the voltages and display weight data on the LCD
RTC provides time information to the MCU.
Calibration and current weight, time data are store d inside the EEPROM
MCU communicates with external devices via the blue tooth module
Power Module provides two separate 3.3V supplies to the Bluetooth module and other parts of the Body S cale respectively (from 4 AA cells) MCU Clocked with 3.58MHz EEPROM RTC, clocked with 32.768kHz LoadCell (4pcs) Bluetooth Module Power 3.3V for the whole system (except Bluetooth Module) 3.3V for Bluetooth Module alone LCD

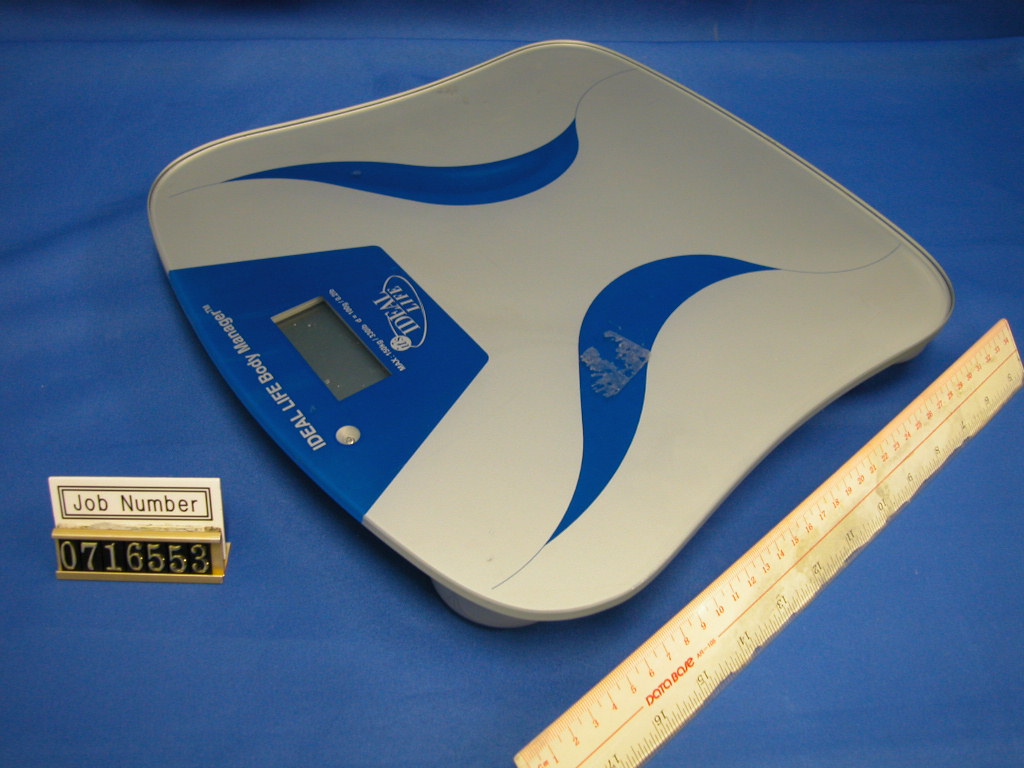

External Photo FCC ID : SFSBWM0001 External Photo - front External Photo - rear

FCC ID: SFSBWM0001 36 mm X 60 mm Scale IDEAL LIFE INC. Model: BWM 0001 TORONTO ON M4R 1A3 6V DC 4 x AA FCC ID: SFSBWM0001 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. ID NO: 1000528028

Internal Photo FCC ID : SFSBWM0001 Internal Photo - 1 Internal Photo - 2 Internal Photo FCC ID : SFSBWM0001 Internal Photo - 3 Internal Photo - 4

TechInformation_v02-7.doc Page 1 of 2 Brief Technical Information of the Body Scale When user plugged 4 AA cells into the battery compartment, the Body Scale (here after called “the device”) is ready to use. Part A—Regarding to Schematic Diagram “Scale_v08.pdf” The “Bridge_Sensor” outputs voltage (across BS-, BS+) correlated to weight imposed on the device. It passes through an RC network (R7, R8, C1, C21, C22) and ends at pins AI+, AI- of U1. U1 processes the voltage data and display corresponding weight information on the LCD with calibration data stored inside EEPROM U4. In addition, U1 stores weight data along with time information (obtained from RTC chip U3) to U4. U1 will activate the Bluetooth Module by enabling the power supply to the module. This is done by setting pin 4 (CE) of U5 to high voltage level. Pin 5 of U5 will provide a steady 3.3V to the Bluetooth Module. U1 will then send weight, time and other information to the Bluetooth Module via its UART_IN pin. Bluetooth Module will, in return, send information back to U1 via UART_OUT pin of U1. After sending data out via the Bluetooth module (or after being idle for over 5 minutes), the device will enter its standby mode (power to Bluetooth Module disabled, with other measures done in order to keep current consumption low). The device leaves it standby mode by activating the vibration switch S2 when user steps on the device. Part B—Regarding to Schematic Diagram “ISBTM8-3(Class1 Module)_1120.pdf” The Bluetooth Module communicates with U1 (of “Scale_v08.pdf”) via its Baseband IC U4 (along with data stored inside the EEPROM U6). U5, U2, U3, SW1, SW2, SW3 are the major components of the module to handle the RF part of the Bluetooth communication. The module outputs the RF signal via its pin 1 (RF_OUT). Pseudo-random hopping sequence is used over the total 79 channels between 2.402GHz to 2.480GHz. And with a nominal hop rate of 1600 hops/s. The transmit timming is equal to the bluetooth specification v1.1.Details illustration of the circuit can be found in the following block diagram. TechInformation_v02-7.doc Page 2 of 2 SW1-3 shown about are GaAs MMIC SPDT switches to folk one signal path into two. U5 serves two functions here: a) U5modulates digital signal from U4 to RF signal. The RF signal goes through SW3 to SW1 under the control of pins TX, RX. This signal further goes through SW1 to the Power Amplifier of U2. With control pins PL, PH, two different gains can be provided to the Power Amplifier where J is mainly a voltage divider consisting of R2-4. Finally the signal path ends at SW2 which goes to pin 1 (RF_OUT) b)U5 decodes RFsignal received from Pin 1 (RF_OUT). RF signal received firstly goes through SW2 to U3 under the control of pins TX, RX. U3 is a 2.4GHZ SAW filter centered at 2442MHz. The LNA of U2 amplifies the RF signal to SW3. Finally, this signal reaches U5 under the control pins of TX, RX. Part C—Regarding to Schematic Diagram “Antenna.pdf” The antenna of the device is printed on the main PCB and is connected to RF_OUT pin of the Bluetooth Module. This RF_OUT signal feeds into the antenna via a simple LC impedance matching network (L2, L3, C28). U5 SW3 SW1 U2 J LNAOUT PA I N U3 LNAIN SW2 PAOUT Pin 1(RF_OUT) TX RX TX RX PL PH U3 Saw filter 2.4GHz-2.4835GHz IS1601N TM1010 U5=IS1601N Part C -- Regarding to Schematic Diagram "Antenna.pdf" Confidential Page1 /15 Version 1.0 Released Date: 2004.09.01 Integrated System Solution Corp. Preliminary IS1601N Bluetooth RF Transceiver IS1601 Bluetooth RF Transceiver Data Sheet Publication Release Date: Sept., 2004 Revision 1.0 Confidential Page2 /15 Version 1.0 Released Date: 2004.09.01 Integrated System Solution Corp. Preliminary IS1601N Bluetooth RF Transceiver TABLE OF CONTENTS 1INTRODUCTION .................................................................................................................................................................. 3 1.1G ENERAL DESCRIPTION..................................................................................................................................................... 3 1.2F EATURES.......................................................................................................................................................................... 3 1.3A PPLICABLE PRODUCTS..................................................................................................................................................... 3 2FUNCTIONAL DESCRIPTION ........................................................................................................................................... 4 2.1G ENERAL........................................................................................................................................................................... 4 2.2T HERECEIVER FRONT-END............................................................................................................................................... 4 2.3T HERECEIVER BACK-END................................................................................................................................................ 5 2.4T HEAUTOMATIC TUNING CIRCUITRY...............................................................................................................................5 2.5T HESYNTHESIZER............................................................................................................................................................. 5 2.6T HETRANSMITTER CIRCUITRY.......................................................................................................................................... 5 2.7T HELOW FREQUENCY CIRCUITRY.................................................................................................................................... 5 2.8T HEDIGITAL CIRCUITRY....................................................................................................................................…

Text truncated - open the document above for the full version.

- The evaluation data of the report will be kept for 3 years from the date of issuance. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Tai Nam Industrial Co., Ltd. Application For Certification (FCC ID: SFSBWM0001) Transmitter 0716553 BH/ SL October 05, 2007 INTERTEK TESTING SERVICES FCC ID: SFSBWM0001 i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1: General Description EXHIBIT 2: System Test Configuration EXHIBIT 3: Emission Results EXHIBIT 4: Equipment Photographs EXHIBIT 5: Product Labelling EXHIBIT 6: Technical Specifications EXHIBIT 7: Instruction Manual EXHIBIT 8: Miscellaneous Information INTERTEK TESTING SERVICES FCC ID: SFSBWM0001 ii MEASUREMENT/TECHNICAL REPORT Tai Nam Industrial Co., Ltd. - MODEL: BWM 0001 FCC ID: SFSBWM0001 October 05, 2007 This report concerns (check one:) Original Grant X Class II Change Equipment Type: Low Power Transmitter (example: computer, printer, modem, etc.) Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart C for intentional radiator - the new 47 CFR [05-04-07 Edition] provision. Report prepared by: Ho Wai Kin, Ben Intertek Testing Services Hong Kong Ltd. 2/F., Garment Center, 576, Castle Peak Road, Kowloon, Hong Kong. Phone: 852-2173-8505 Fax: 852-2371-0521 INTERTEK TESTING SERVICES FCC ID: SFSBWM0001 iii Table of Contents 1.0 General Description............................................................................................ 2 1.1 Product Description ............................................................................................ 2 1.2 Related Submittal(s) Grants ............................................................................... 2 1.3 Test Methodology............................................................................................... 3 1.4 Test Facility........................................................................................................ 3 2.0 System Test Configuration ................................................................................. 5 2.1 Justification ........................................................................................................ 5 2.2 EUT Exercising Software.................................................................................... 5 2.3 Special Accessories ........................................................................................... 5 2.4 Equipment Modification ...................................................................................... 6 2.5 Measurement Uncertainty .................................................................................. 6 2.6 Support Equipment List and Description ............................................................. 6 3.0 Emission Results ................................................................................................ 8 3.1 Field Strength Calculation................................................................................... 9 3.2 Radiated Emission Configuration Photograph................................................... 10 3.3 Radiated Emission Data ................................................................................... 11 4.0 Equipment Photographs ................................................................................... 14 5.0 Product Labelling.............................................................................................. 16 6.0 Technical Specifications................................................................................... 18 7.0 Instruction Manual ............................................................................................ 20 8.0 Miscellaneous Information ............................................................................... 22 8.1 Bandedge Plot ................................................................................................. 23 8.2 Discussion of Pulse Desensitization.................................................................. 24 8.3 Emissions Test Procedures .............................................................................. 25 INTERTEK TESTING SERVICES FCC ID: SFSBWM0001 iv List of attached file Exhibit type File Description filename Test Report Test Report report.pdf Operation Description Technical Description descri.pdf Test Setup Photo Radiated Emission radiated photos.doc Test Report Bandedge Plot be.pdf External Photo External Photo external photos.doc Internal Photo Internal Photo internal photos.doc Block Diagram Block Diagram block.pdf Schematics Circuit Diagram circuit.pdf ID Label/Location Label Artwork and Location label.pdf User Manual User Manual manual.pdf INTERTEK TESTING SERVICES FCC ID: SFSBWM0001 1 EXHIBIT 1 GENERAL DESCRIPTION INTERT…
