SFUD28080RKE Transmitter

Re: Certification for Ortech Transmitter P/N: 05026081 FCC ID: SFUD28080 IC: 5295A-D28080 USER'S MANUAL INFORMATION (PRELIMINARY) The User's Manual is in preparation. The following material will be contained in the manual: FCC ID: SFUD28080 IC: 5295A-D28080 This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. WARNING: Changes or modifications not expressively approved by the party responsible for compliance could void the user's authority to operate the equipment. The term “IC:” before the radio certification number only signifies that Industry Canada technical specifications were met.

Re: Certification for Ortech Transmitter P/N: 05026081 FCC ID: SFUD28080 IC: 5295A-D28080 POWER OF ATTORNEY A letter granting Valdis V. Liepa the Power of Attorney is on file and can be provided when so requested. Re: Certification for Ortech Transmitter P/N: 05026081 FCC ID: SFUD28080 IC: 5295A-D28080 REQUEST FOR CONFIDENTIALITY Pursuant to 47 CRF 0.459, Ortech requests that a part of the subject application be held confidential. This comprises Exhibits (5) Schematics (10) Parts List (Part of Exhibit only) Ortech has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. If there are any questions regarding this request, please contact me at the above address or call 734-483-4211, fax 734-647-2106 or e-mail [email protected]. Sincerely, Valdis V. Liepa Research Scientist University of Michigan September 1, 2005 Re: Certification for Ortech Transmitter P/N: 05026081 FCC ID: SFUD28080 IC: 5295A-D28080 STATEMENT OF MODIFICATIONS There were no modifications made to the DUT by this test laboratory. (Also see Section 3.1 of the attached Test Report). _____________________ Valdis V. Liepa Research Scientist Re: Certification for Ortech Transmitter P/N: 05026081 FCC ID: SFUD28080 IC: 5295A-D28080 GENERAL PRODUCT INFORMATION The device, for which certification is pursued, has been designed by: Ortech 2806 N. Industrial Road Kirksville, Missouri 63501 Kevin Hoshaw Tel: 660-627-1655 x166 Fax: 660-627-5410 It will be manufactured by: Ortech Yuhshin USA, Ltd. 2806 N. Industrial Road Kirksville, Missouri 63501 Kevin Hoshaw Tel: 660-627-1655 x166 Fax: 660-627-5410 Canadian Contact: ORTECH, 1258 Chilver Windsor, Ontario Canada N8Y 2L1 Craig St. Pierre Phone 586-492-1990 Fax 586-775-8170 [email protected] THIS MUST BE SIGNED BY THE APPLICANT AND SHOULD BE PLACED ON APPLICANTS LETTERHEAD ONLY IF AGENT IS SUBMITTING APPLICATION American TCB 6731 Whittier Ave. McLean, VA 22101 Acknowledgement of IC Listing Requirements By signing this document, we acknowledge that any information specified on the ATCB Application and Agreement Form for Industry Canada Certification Services provided with this application may be provided to Industry Canada. We acknowledge that this information may be posted in the Radio Equipment List (REL) on the Department's Web Site. Additionally, we understand that we must inform ATCB of any changes to the information submitted. We further acknowledge that the Certified product shall not be distributed, leased, or offered for sale in Canada prior to its listing on the Industry Canada Radio Equipment List (REL). We are aware that we may verify the status of this listing at the following web address: http://strategis.ic.gc.ca/cgi-bin/sc_mrksv/spectrum/reltelSearch/search.pl?lang=e&db=rel Dated this __24th_________day of __August___, 2005__. By: __________________________ ___Bob Wallace__________ (Signature) (Print name) Title: __Program Coordinator_____ email: [email protected] On behalf of: Ortech Yuhshin USA, Ltd. (Company Name) Telephone: 660-627-1655 x141 THIS MUST BE SIGNED BY THE APPLICANT AND SHOULD BE PLACED ON APPLICANTS LETTERHEAD ONLY IF AGENT IS SUBMITTING APPLICATION Attn: Director of Certification Authority to Act as Agent I appoint Valdis V. Liepa, University of Michigan to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in Industry Canada’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for Certification, as specified by American TCB, still resides with Ortech, 2806 N. Industrial Road, Kirksville, Missouri 63501 Dated this __24th_________day of __August___, 2005__. Agency Agreement Expiration Date: 28 March 2006 By: __________________________ __Bob Wallace_______ (Signature) (Print name) Title: __Program Coordinator_____ email: [email protected] On behalf of: Ortech Yuhshin USA, Ltd. Telephone: 660-627-1655 x141______________

The fob has the following sections: Power Supply, User Interfaces, Microcontroller (STARC2XL), RF Antenna, LF Antenna and a RF circuit. The following block diagram gives a visual representation of the relationship of these sections. User Interfaces (Buttons) S T A R C 2 X L RF Oscillator 315/434MHz RF Anten Power Supply LF Antenna Starc2XL clock frequencies 4MHz, 2MHz, 125KHz

September 1, 2005 Federal Communications Commission Equipment Approval Services P.O. Box 358315 Pittsburgh, PA 15251-5315 Re: Certification for Ortech Transmitter P/N: 05026081 FCC ID: SFUD28080 IC: 5295A-D28080 Please find enclosed application materials for certification of Ortech 05026081 Transmitter. We tested it and found it to comply with FCC Part 15. If there are any questions regarding the application or testing performed, please contact me at the above address or call 734-483-4211, fax 734-647-2106, or e-mail [email protected]. Sincerely, Valdis V. Liepa Research Scientist September 1, 2005 Certification and Engineering Bureau Industry Canada 3701 Carling Avenue, Bldg. 94 Ottawa, Ontario K2H 8S2 Re: Certification for Ortech Transmitter P/N: 05026081 FCC ID: SFUD28080 IC: 5295A-D28080 Please find enclosed application materials for certification of Ortech 05026081 Transmitter. We tested the device and found it to comply with RSS-210. The product is identified by: IC: 5295A-D28080 If there are any questions, suggestions, etc., regarding the application or testing performed, please contact me at the above address or call 734-483-4211, fax 734-647- 2106; e-mail: [email protected]. Sincerely, Valdis V. Liepa Research Scientist

September 1, 2005 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 RE: Certification Application FCC ID: SFUD28080 IC: 5295A-D28080 Please find enclosed application materials for certification of Ortech 05026081 Transmitter. Note: 1) portions of this submittal are filed Confidential 2) a list of the modifications made is provided in Attestations. If there are any questions regarding the application or testing performed, please contact me at the above address or call 734-483-4211, fax 734-647-2106, or e-mail [email protected]. Sincerely, Valdis V. Liepa Research Scientist

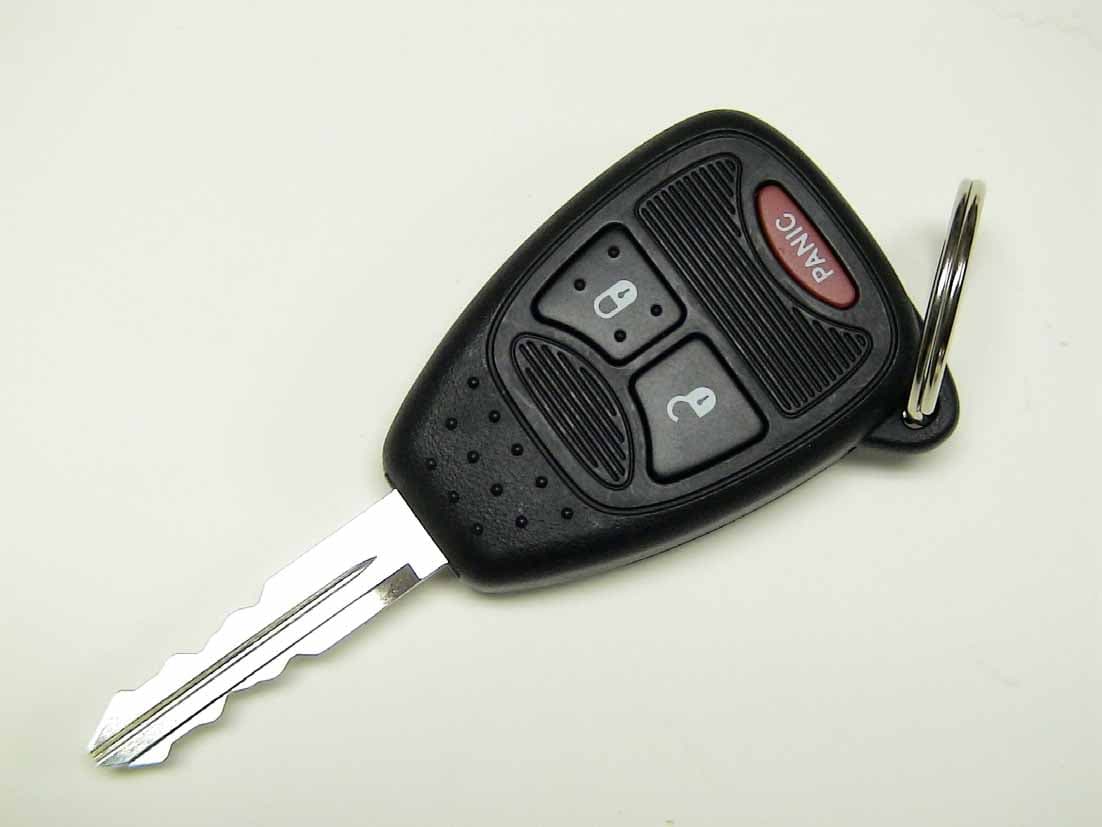

3 Button (top) 3 Butto n (bottom)

3 Button top (apart) 3 Button bottom (apart) PCB (top) PCB (bottom)

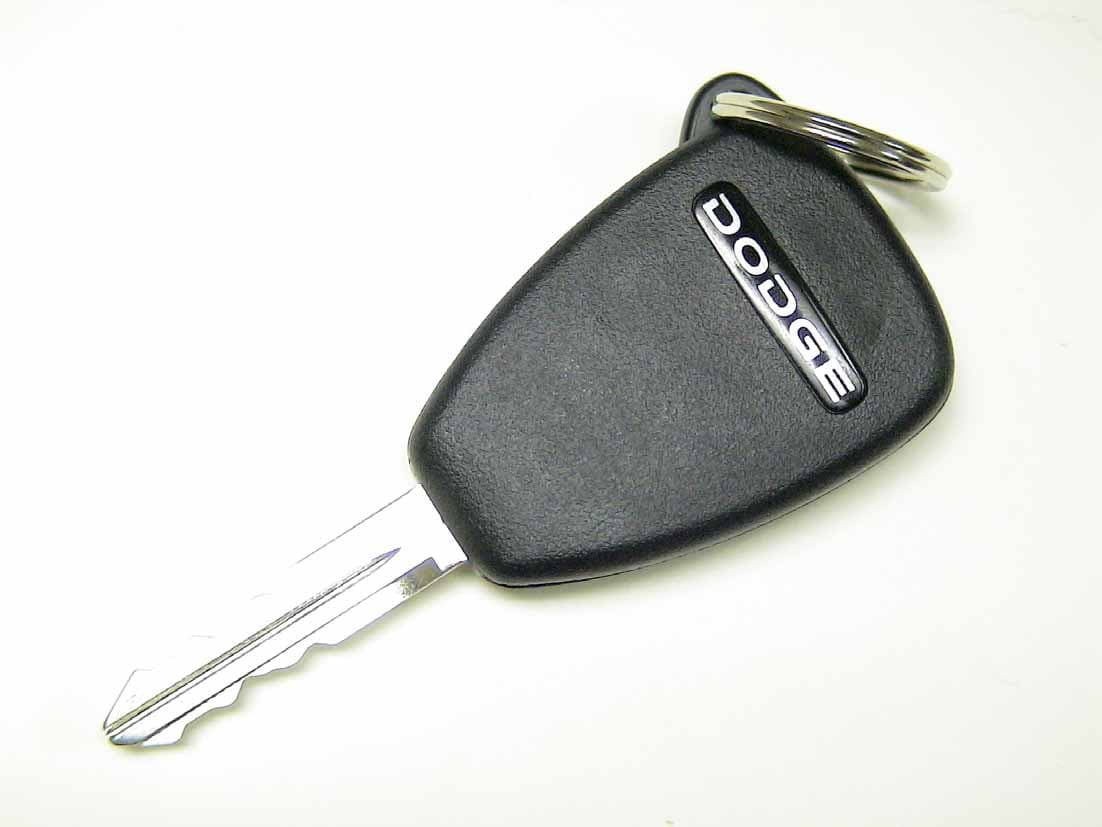

The Daimler Chrysler Corporate PCB is an interface for the customer to communicate with the vehicle's DaimlerChrysler Wireless Control Module (WCM). It combines normal RKE function and transponder functions in a single unit. The Corporate PCB consists of a circuit board and circuit components. The conventional metal key blade which is used to start and unlock doors is molded in the upper housing of the FOB. The Corporate FOB also has Key Pad Polydome Switches on the top surface of the assembly. Pressing the FOB polydome switches will result in the FOB sending the following RF signals to the WCM: ‰ Lock doors ‰ Unlock doors ‰ Activate the vehicle horn in a PANIC mode ‰ Open a trunk, lift gate, or flipper glass ‰ Open Sliding Doors ‰ Remote Start / Kill (unique button sequences) The Corporate PCB also provide the immobilizer function through LF circuit providing: ‰ Transponder Functionality (North American and European models only) The Corporate PCB (internal to housing) can be used for Remote Keyless Entry (RKE) via 315MHz ( North American and Japan) and 433.92MHz (European) radio frequency (RF) and for immobilizer functionality via a 125KHz low frequency (LF). The RF link is comprised of a control module (WCM), containing a receiver, and a PCB transmitter which provide the traditional remote keyless entry. The purpose of the WCM’s receiver is to receive and demodulate the RF signals from the Corporate PCB and condition the signals for processing by the WCM’s microcontroller. For RKE mode, the user presses a Corporate PCB button which shorts the PCB switch traces together via the keypad’s carbon pills or pads. Depending on the switch pressed, the transmitter will transmit a command corresponding to the function of the switch. The WCM also communicates to the Corporate PCB via an LF link (immobilizer mode). Immobilizer mode is used when the user attempts to start the vehicle. When the key assembly is inserted into the ignition and turned, the WCM modulates its antenna located around the lock cylinder in an attempt to communicate (charge) with the PCB via 125 kHz. The PCB will demodulate that information and respond back to the WCM (given a correctly demodulated LF transmission) via a LF Link at 125 kHz. When the WCM receives the correct information via the LF link, the vehicle engine is allowed to remain started. If the correct transmission is not received, the vehicle will turn off approximately two seconds after the ignition was turned on. In transponder mode, coin battery is not required for communication between the WCM and the Corporate PCB. For the RKE functionality, the PCB determines the user command corresponding to which switch is pressed. The command is Manchester encoded at 2.4 k baud and then modulated with Amplitude Shift Keying (ASK) at 315 MHz for North America (High Power), 315 MHz for Japan (Low Power), and 433.92 MHz for Europe. The RF signal is broadcasted to the vehicle via an RF antenna on the PCB. The components, which constitute the Corporate PCB device are: ‰ Microcontroller and Low Frequency Immobilizer (STARC2XL) ‰ LC Antenna Tank (1 antenna to cover single axis for immobilizer) ‰ Radio Frequency generation circuit (SAW stabilized Colpitts oscillator for North America and Europe and crystal controlled PLL RF IC for Japan)

U of M Radiation Laboratory Test Report No. 415031-259 rev. 1.0 09/01/2005 Page 1 of 9 The University of Michigan Radiation Laboratory 3228 EECS Building Ann Arbor, MI 48109-2122 Tel: (734) 764-0500 Measured Radio Frequency Emissions From Ortech Transmitter P/N: 05026081 Report No. 415031-259 September 1, 2005 Copyright © 2005 For: Ortech 2806 N. Industrial Road Kirksville, Missouri 63501 Contact: Kevin Hoshaw Tel: 660-627-1655 x166 Fax: 660-627-5410 PO: Verbal Tests supervised by: Measurements made by: Report approved by: _____________________ Joseph D. Brunett Valdis V. Liepa Research Scientist Summary Tests for compliance with FCC Regulations Part 15, Subpart C, and Industry Canada RSS-210, were performed on Ortech P/N 05026081. This device is subject to the Rules and Regulations as a Transmitter. In testing completed on August 30, 2005, the device tested in the worst case met the allowed FCC specifications for radiated emissions by 0.5 dB (see p. 6). Besides harmonics, there were no other significant spurious emissions found; emissions from digital circuitry were negligible. The conducted emission tests do not apply, since the device is powered from a 3 VDC battery. U of M Radiation Laboratory Test Report No. 415031-259 rev. 1.0 09/01/2005 Page 2 of 9 1. Introduction Ortech P/N 05026081 was tested for compliance with FCC Regulations, Part 15, adopted under Docket 87-389, April 18, 1989, and with Industry Canada RSS-210, Issue 5, November, 2001. The tests were performed at the University of Michigan Radiation Laboratory Willow Run Test Range following the procedures described in ANSI C63.4-2003 "Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz". The Site description and attenuation characteristics of the Open Site facility are on file with FCC Laboratory, Columbia, Maryland (FCC Reg. No: 91050) and with Industry Canada, Ottawa, ON (File Ref. No: IC 2057). 2. Test Procedure and Equipment Used The pertinent test equipment commonly used in our facility for measurements is listed in Table 2.1 below. The middle column identifies the specific equipment used in these tests. Table 2.1 Test Equipment. Test Instrument Eqpt. Used Manufacturer/Model Spectrum Analyzer (0.1-1500 MHz) Hewlett-Packard, 182T/8558B Spectrum Analyzer (9kHz-22GHz) X Hewlett-Packard 8593A SN: 3107A01358 Spectrum Analyzer (9kHz-26GHz) X Hewlett-Packard 8593E, SN: 3412A01131 Spectrum Analyzer (9kHz-26GHz) Hewlett-Packard 8563E, SN: 3310A01174 Spectrum Analyzer (9kHz-40GHz) Hewlett-Packard 8564E, SN: 3745A01031 Power Meter Hewlett-Packard, 432A Power Meter Anritsu, ML4803A/MP Harmonic Mixer (26-40 GHz) Hewlett-Packard 11970A, SN: 3003A08327 Harmonic Mixer (40-60 GHz) Hewlett-Packard 11970U, SN: 2332A00500 Harmonic Mixer (75-110 GHz) Hewlett-Packard 11970W, SN: 2521A00179 Harmonic Mixer (140-220 GHz) Pacific Millimeter Prod., GMA, SN: 26 S-Band Std. Gain Horn S/A, Model SGH-2.6 C-Band Std. Gain Horn University of Michigan, NRL design XN-Band Std. Gain Horn University of Michigan, NRL design X-Band Std. Gain Horn S/A, Model 12-8.2 X-band horn (8.2- 12.4 GHz) Narda 640 X-band horn (8.2- 12.4 GHz) Scientific Atlanta , 12-8.2, SN: 730 K-band horn (18-26.5 GHz) FXR, Inc., K638KF Ka-band horn (26.5-40 GHz) FXR, Inc., U638A U-band horn (40-60 GHz) Custom Microwave, HO19 W-band horn(75-110 GHz) Custom Microwave, HO10 G-band horn (140-220 GHz) Custom Microwave, HO5R Bicone Antenna (30-250 MHz) X University of Michigan, RLBC-1 Bicone Antenna (200-1000 MHz) X University of Michigan, RLBC-2 Dipole Antenna Set (30-1000 MHz) X University of Michigan, RLDP-1,-2,-3 Dipole Antenna Set (30-1000 MHz) EMCO 2131C, SN: 992 Active Rod Antenna (30 Hz-50 MHz) EMCO 3301B, SN: 3223 Active Loop Antenna (30 Hz-50 MHz) EMCO 6502, SN:2855 Ridge-horn Antenna (300-5000 MHz) X University of Michigan Amplifier (5-1000 MHz) X Avantak, A11-1, A25-1S Amplifier (5-4500 MHz) X Avantak Amplifier (4.5-13 GHz) Avantek, AFT-12665 Amplifier (6-16 GHz) Trek Amplifier (16-26 GHz) Avantek LISN Box University of Michigan Signal Generator Hewlett-Packard 8657B U of M Radiation Laboratory Test Report No. 415031-259 rev. 1.0 09/01/2005 Page 3 of 9 3. Configuration and Identification of Device Under Test The DUT is Remote Keyless Entry (RKE) transmitter, 1 x 0.75 x 3.5 inches in size. It operates at 315 MHz and the carrier is pulse modulated with Manchester Encoding. The device consists of a SAW stabilized Colpitts oscillator with a PCB loop antenna. The DUT was designed and manufactured by Ortech, 2806 N. Industrial Road, Kirksville, Missouri 63501. It is identified as: Ortech Receiver P/N: 05026081 FCC ID: SFUD28080 IC: 5295A-D28080 The transmitter transmits for up to 15 seconds, so long as the button is depressed. The DUT is manually activated and ceases to transmit within 5 seconds of deactivation. See Figure 6.4. 3.1 Modifications Made There were no modifications made to the DUT by this laboratory. 4. Emission Limits The DUT tested falls under the category of an Intentional Radiators and the Digital Devices. For FCC, it is subject to Part 15, Subpart C, (Section 15.231), Subpart B, (Section 15.109), and Subpart A, (Section 15.33). For Industry Canada it is subject to RSS-210, (Sections 6.1 and 6.3). The applicable testing frequencies with corresponding emission limits are given in Tables 4.1 and 4.2 below. As a digital device, the DUT is considered as a Class B device. 4.1 Radiated Emission Limits Table 4.1. Radiated Emission Limits (FCC: 15.33, 15.35, 15.109; IC: RSS-210, 6.2.2(r)). (Digital Class B) Freq. (MHz) E lim (3m) μV/m E lim dB(μV/m) 30-88 100 40.0 88-216 150 43.5 216-960 200 46.0 960-2000 500 54.0 Note: Average readings apply above 1000 MHz (1 MHz BW) Quasi-Peak readings apply to 1000 MHz (120 kHz BW) U of M Radiation Laboratory Test Report No. 415031-259 rev. 1.0 09/01/2005 Page 4 of 9 Table 4.2. Radiated Emission Limits (FCC: 15.231(b), 15.205(a); IC: RSS-210; 6.1, 6.3). (Trans…

Text truncated - open the document above for the full version.

DUT on OATS (close-up) DUT on OATS
