SFYBTH-708IEABluetooth Headset

www.tuv.com Test Report No.: 14008458 001 Appendix 4 page 9 of 16 1.6 User Manual www.tuv.com Test Report No.: 14008458 001 Appendix 4 page 10 of 16 www.tuv.com Test Report No.: 14008458 001 Appendix 4 page 11 of 16 www.tuv.com Test Report No.: 14008458 001 Appendix 4 page 12 of 16 www.tuv.com Test Report No.: 14008458 001 Appendix 4 page 13 of 16 www.tuv.com Test Report No.: 14008458 001 Appendix 4 page 14 of 16 www.tuv.com Test Report No.: 14008458 001 Appendix 4 page 15 of 16 www.tuv.com Test Report No.: 14008458 001 Appendix 4 page 16 of 16

20 Jan, 2005 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rule, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: - Schematics - Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Stayton Chan ( Product Manager )

Ersteller: U. Rodemeier Revision: 00 Erstelldatum: 3. August 2001 Datum: 3. August 2001 Seite 1 von 1 M:\Benannte Stelle\TCB\Kunden\TÜV Rheinland HK\2005\05_XXX bth-708-iea\Authorization letter.doc IEA Electro-Acoustic Co., Ltd PHOENIX TEST-LAB GmbH Product Certification Königswinkel 10 D 32825 Blomberg To Whom It May Concern: Please be advised that IEA Electro-Acoustic Co., Ltd authorizes TÜV Rheinland H.K. Ltd. to act on our behalf, until otherwise notified, for applications submitted to PHOENIX TEST-LAB GmbH (PTL). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse ACT of 1988, U.S.C.862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you for your attention to this matter. Stayton Chan ( Product Manger )

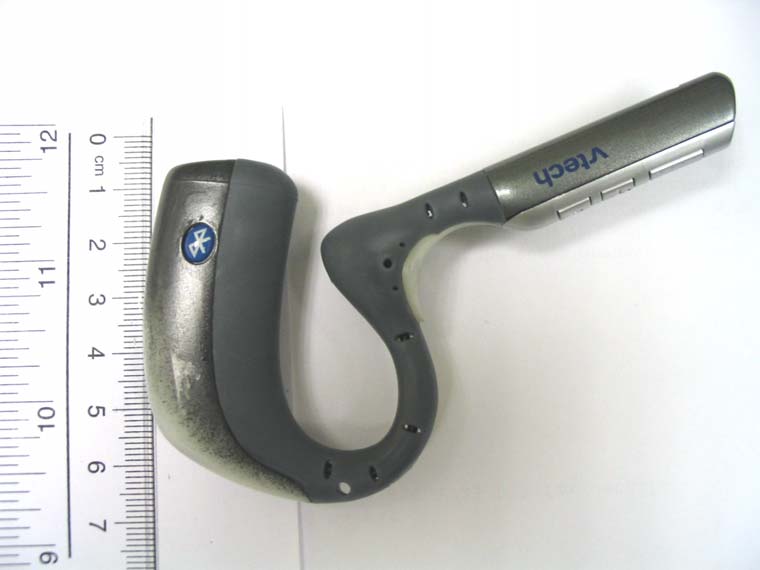

www.tuv.com Test Report No.: 14008458 001 Appendix 3 page 1 of 7 Appendix 3 Construction Photos www.tuv.com Test Report No.: 14008458 001 Appendix 3 page 2 of 7 1.1 External view 1.1.1 Front view 1.1.2 Rear view www.tuv.com Test Report No.: 14008458 001 Appendix 3 page 3 of 7 1.1.3 Side view 1 1.1.4 Side view 2 www.tuv.com Test Report No.: 14008458 001 Appendix 3 page 4 of 7 1.1.5 Side view 3

www.tuv.com Test Report No.: 14008458 001 Appendix 4 page 2 of 16 1.1 FCCID Label Artwork The yellow oval shows the location of the Rating Label.

www.tuv.com Test Report No.: 14008458 001 Appendix 3 page 5 of 7 1.2 Internal view 1.2.1 Front side 1 1.2.2 Front side 2 The yellow circle indicates the location of the antenna. It’s printed on the edge of the PCB. www.tuv.com Test Report No.: 14008458 001 Appendix 3 page 6 of 7 1.2.3 Front side 3 1.2.4 Rear side 1 www.tuv.com Test Report No.: 14008458 001 Appendix 3 page 7 of 7 1.2.5 Rear side 2

www.tuv.com Test Report No.: 14008458 001 Appendix 4 page 3 of 16 1.2 Operational Descriptions 1.2.1 Product Descriptions The test item is a wireless headset based on the Bluetooth technology. It transfers the audio signal to and from a corresponding Bluetooth Audio Gateway such as mobile phone wirelessly. Bluetooth is a short-range radio link intended to be a cable replacement between portable and/or fixed electronic devices. 1.2.2 Technical Background of the Wireless Technology Bluetooth operates in the unlicensed ISM band at 2.4 GHz. A frequency hop transceiver is applied to combat interference and fading. A shaped, binary FM modulation is applied to minimize transceiver complexity. The symbol rate is 1 Ms/s. A slotted channel is applied with a nominal slot length of 625 μs. For full duplex transmission, a Time-Division Duplex (TDD) scheme is used. On the channel, information is exchanged through packets. Each packet is transmitted on a different hop frequency. A packet nominally covers a single slot, but can be extended to cover up to five slots. The Bluetooth protocol uses a combination of circuit and packet switching. Slots can be reserved for synchronous packets. Bluetooth can support an asynchronous data channel, up to three simultaneous synchronous voice channels, or a channel which simultaneously supports asynchronous data and synchronous voice. Each voice channel supports a 64 kb/s synchronous (voice) channel in each direction. The asynchronous channel can support maximal 723.2 kb/s asymmetric (and still up to 57.6 kb/s in the return direction), or 433.9 kb/s symmetric. The Bluetooth system consists of a radio unit, a link control unit, and a support unit for link management and host terminal interface functions.

www.tuv.com Test Report No.: 14008458 001 Date: 31.03.2005 page 2 of 14 Table of Content Page Cover Page .................................................................................1 Table of Content ..........................................................................2 Product information.......................................................................................................4 Manufacturers declarations ....................................................................................................................... 4 Product function and intended use........................................................................................................... 4 Submitted documents ................................................................................................................................ 4 Special accessories and auxiliary equipment.......................................................................................... 4 List of Test and Measurement Instruments.................................................................5 Result FCC Part 15 – Subpart C ...................................................................................6 Subclause 15.203 – Antenna Information....................................................................... Pass................. 6 Subclause 15.204 – Antenna Information....................................................................... Pass................. 6 Subclause 15.207 – Disturbance Voltage on AC Mains ................................................ Pass................. 6 Subclause 15.247 (a) – Carrier Frequency Separation.................................................. Pass................. 7 Subclause 15.247 (a) – Time of Occupancy (Dwell Time) ............................................. Pass................. 8 Subclause 15.247 (a) – 20 dB Bandwidth .............................................................................. .................. 9 Subclause 15.247 (a) – Hopping Sequence .................................................................... Pass.................9 Subclause 15.247 (a) – Equal Hopping Frequency Use ................................................ Pass............... 10 Subclause 15.247 (a) – Receiver Input Bandwidth ........................................................ Pass............... 11 Subclause 15.247 (a) – Receiver Hopping Capability.................................................... Pass............... 11 Subclause 15.247 (b) – Peak Output Power ................................................................... Pass............... 11 Subclause 15.247 (b) – Band edge compliance ............................................................. Pass............... 12 Subclause 15.247 (c) – Spurious Conducted Emissions .............................................. Pass............... 12 Subclause 15.247 (c) – Spurious Radiated Emissions.................................................. Pass............... 13 Appendix 1 – Test protocols 63 pages Appendix 2 – Test setup 2 pages Appendix 3 – Photo documentation 7 pages www.tuv.com Test Report No.: 14008458 001 Date: 31.03.2005 page 3 of 14 Appendix 4 – Product documentation 16 pages www.tuv.com Test Report No.: 14008458 001 Date: 31.03.2005 page 4 of 14 Product information Manufacturers declarations Transmitter Receiver Operating frequency range 2402 - 2480 MHz 2402 - 2480 MHz Type of modulation FHSS modulation FHSS modulation Number of channels 79 79 Channel separation 1 MHz 1 MHz Type of antenna Integral Antenna Integral Antenna Antenna gain (dBi) 2.0 Power level fix Type of equipment stand alone stand alone Connection to public utility power line Yes Nominal voltage V nor : 3.7 V V nor : 3.7 V Independent Operation Modes Page scan Inquiry scan Connection state - ACL Link Connection state - SCO Link Product function and intended use The test item is a Wireless Headset based on the Bluetooth technology. Bluetooth is a short-range radio link intended to be a cable replacement between portable and/or fixed electronic devices. Bluetooth operates in the unlicensed ISM Band at 2.4 GHz. In the US a band of 83.5 MHz width is available. In this band, 79 RF channels spaced 1 MHz apart are defined. The channel is represented by a pseudo-random hopping sequence through the 79 channels. The channel is divided into time slots, with a nominal slot length of 625 μs, where each slot corresponds to different RF hop frequencies. The nominal hop rate is 1600 hops/s. The symbol rate on the channel is 1 Ms/s. Submitted documents Circuit Diagram Block Diagram Bill of material User manual Special accessories and auxiliary equipment The product has been tested together with the following additional accessory: 1. Nokia AC/DC Adaptor Model number: ACP-8X Serial number: 067519710594026210 Input: 100-240VAC, 120mA, 50-60Hz Output: 5.3V, 500mA www.tuv.com Test Report No.: 14008458 001 Date: 31.03.2005 page 5 of 14 List of Test and Measurement Instruments Kind of Equipment Manufacturer Type S/N Test Receiver Rohde & Schwarz ESH-3 890173/033 L/I/S/N Rohde & Schwarz ESH 3-Z5 849876/026 Oscilloscope HP 54713B US34510455 Test Receiver Rohde & Schwarz ESVP 882402/033 Absorbing Clamp Rohde & Schwarz MDS-21 979 3/4 Test Receiver Rohde & Schwarz ESVS30 842807/009 Biconical Antenna Rohde & Schwarz HK116 841489/015 Log.-Periodic Antenna Rohde & Schwarz HL223 841516/017 Universal Power Analyzer Voltech PM3000A 9915 Reference Impedance Network Voltech IEC 555 Standard 9946 AC Power Source California Instr. 4500L HK51895 Trip-Loop Antenna Chase LLA6142 1019 Double Ridge Horn Antenna EMCO 3115 9002-3351 Double Ridge Horn Antenna EMCO 3115 9002-3347 RF Comms Test Set HP 8920B US36492628 Spectrum Analyser + Tracking G. HP 8596E 3639A00758 Signal Generator Rohde & Schwarz SMY 01 844146/024 Signal Generator Rohde & Schwarz SMY 01 844146/023 BiLog Antenna EMCO 3143 9607-1287 Isotropic Field Probe Holladay HI-4422 90956 Power Amplifier Kalmus 757-…

Text truncated - open the document above for the full version.

www.tuv.com Test Report No.: 14008458 001 Appendix 1 page 1 of 63 Appendix 1 Test results www.tuv.com Test Report No.: 14008458 001 Appendix 1 page 2 of 63 Disturbance Voltage on AC Mains Date: 22 Feb 2005 EUT: BTH-708 Company: IEA Electro-Acoustic Co., Ltd. Humidity: 60% Temperature: 23ºC Voltage supply: 3.7V from rechargeable battery Test by: Sharon Li Op. mode: Charging Live measurement Frequency (MHz) QP reading (dBμV) Av reading (dBμV) Results 0.232 44.8 37.6 Pass 0.464 38.4 28.4 Pass 0.695 36.4 30.5 Pass 1.157 38.9 31.4 Pass Neutral measurement Frequency (MHz) QP reading (dBμV) Av reading (dBμV) Results 0.232 45.3 44.8 Pass 0464 36.9 35.4 Pass 0.695 41.9 38.8 Pass 1.157 37.2 29.5 Pass www.tuv.com Test Report No.: 14008458 001 Appendix 1 page 3 of 63 www.tuv.com Test Report No.: 14008458 001 Appendix 1 page 4 of 63 www.tuv.com Test Report No.: 14008458 001 Appendix 1 page 5 of 63 Carrier Frequency Separation Date: 21 Feb 2005 EUT: BTH-708 Company: IEA Electro-Acoustic Co., Ltd. Humidity: 60% Temperature: 23ºC Voltage supply: 3.7V from rechargeable battery Test by: Sharon Li Op. mode: Hopping on Reference frequency (MHz) Channel Separation (MHz) 2441.000 0.996 A 996 kHz RBW 100 kHz 996 kHz VBW 300 kHz 996 kHz SWT 2.5 ms 996 kHz Ref 20 dBm 996 kHz Center 2.441 GHz 996 kHz Span 3 MHz 996 kHz 300 kHz/ 996 kHz Att 30 dB 996 kHz * 996 kHz 1 PK 996 kHz MAXH 996 kHz 996 kHz 996 kHz 996 kHz 996 kHz 996 kHz 996 kHz 996 kHz 996 kHz 996 kHz -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 996 kHz Delta 2 [T1] 0.07 dB -996.000000000 kHz Marker 1 [T1] -4.15 dBm 2.441000000 GHz Delta 3 [T1] -0.05 dB 996.000000000 kHz 2 13 DELTA MARKER 3 996 kHz Date: 21.FEB.2005 13:56:12 www.tuv.com Test Report No.: 14008458 001 Appendix 1 page 6 of 63 Dwell Time Date: 21 Feb 2005 EUT: BTH-708 Company: IEA Electro-Acoustic Co., Ltd. Humidity: 60% Temperature: 23ºC Voltage supply: 3.7V from rechargeable battery Test by: Sharon Li Op. mode: Hopping on Burst Duration (ms) Number of hopping Time of occupancy (s) Results 2.936 64 0.002936 x 64 = 0.1879 Pass A 2.936 ms Ref 20 dBm 2.936 ms Att 30 dB 2.936 ms * 2.936 ms RBW 1 MHz 2.936 ms VBW 3 MHz 2.936 ms * 2.936 ms TRG 2.936 ms MAXH 2.936 ms Center 2.441 GHz 2.936 ms 400 μs/ 2.936 ms SWT 4 ms 2.936 ms 1 PK 2.936 ms 2.936 ms 2.936 ms 2.936 ms 2.936 ms 2.936 ms 2.936 ms 2.936 ms 2.936 ms 2.936 ms -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 2.936 ms Marker 1 [T1] -2.99 dBm 1.000000 μs Delta 2 [T1] 0.07 dB 2.936000 ms 1 2 DELTA MARKER 2 2.936 ms Date: 21.FEB.2005 14:06:32 www.tuv.com Test Report No.: 14008458 001 Appendix 1 page 7 of 63 CLRWR 31.6 s A 31.6 s SGL 31.6 s Ref 20 dBm 31.6 s Att 30 dB 31.6 s * 31.6 s RBW 1 MHz 31.6 s VBW 3 MHz 31.6 s Center 2.441 GHz 31.6 s 3.16 s/ 31.6 s SWT 31.6 s 31.6 s 1 PK 31.6 s * 31.6 s -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 31.6 s SWEEP TIME 31.6 s Date: 8.APR.2005 11:40:30 www.tuv.com Test Report No.: 14008458 001 Appendix 1 page 8 of 63 20dB Bandwidth Date: 21 Feb 2005 EUT: BTH-708 Company: IEA Electro-Acoustic Co., Ltd. Humidity: 60% Temperature: 23ºC Voltage supply: 3.7V from rechargeable battery Test by: Sharon Li Op. mode: TX mode, DH5 with PRBS9 payload Tx frequency (MHz) ∆f L (MHz) ∆f H (MHz) |∆f H |+|∆f L | (MHz) Results 2402 0.404 0.416 0.820 Pass 2441 0.412 0.408 0.820 Pass 2480 0.404 0.416 0.820 Pass A -22.3 dBm MAXH -22.3 dBm Ref 20 dBm -22.3 dBm Center 2.402 GHz -22.3 dBm Span 2 MHz -22.3 dBm 200 kHz/ -22.3 dBm Att 30 dB -22.3 dBm * -22.3 dBm RBW 30 kHz -22.3 dBm * -22.3 dBm VBW 100 kHz -22.3 dBm * -22.3 dBm 1 PK -22.3 dBm SWT 2.5 ms -22.3 dBm-22.3 dBm-22.3 dBm-22.3 dBm-22.3 dBm-22.3 dBm-22.3 dBm-22.3 dBm-22.3 dBm-22.3 dBm -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 -22.3 dBm Delta 2 [T1] -20.09 dB -404.000000000 kHz Marker 1 [T1] -2.30 dBm 2.401996000 GHz Delta 3 [T1] -20.61 dB 416.000000000 kHz 2 1 3 F1 F2 TH -22.3 dBm THRESHOLD LINE -22.3 dBm Date: 21.FEB.2005 14:33:44 Tx frequency: 2402MHz www.tuv.com Test Report No.: 14008458 001 Appendix 1 page 9 of 63 A -22.44 dBm 1 PK -22.44 dBm MAXH -22.44 dBm Ref 20 dBm -22.44 dBm Center 2.441 GHz -22.44 dBm Span 2 MHz -22.44 dBm 200 kHz/ -22.44 dBm Att 30 dB -22.44 dBm * -22.44 dBm RBW 30 kHz -22.44 dBm * -22.44 dBm SWT 2.5 ms -22.44 dBm VBW 100 kHz -22.44 dBm * -22.44 dBm-22.44 dBm-22.44 dBm-22.44 dBm-22.44 dBm-22.44 dBm-22.44 dBm-22.44 dBm-22.44 dBm-22.44 dBm -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 -22.44 dBm Delta 2 [T1] -20.84 dB -412.000000000 kHz Marker 1 [T1] -2.44 dBm 2.441000000 GHz Delta 3 [T1] -20.29 dB 408.000000000 kHz 2 1 3 F1 F2 TH -22.44 dBm THRESHOLD LINE -22.44 dBm Date: 21.FEB.2005 15:54:57 Tx frequency: 2441MHz A 416 kHz Ref 20 dBm 416 kHz Att 30 dB 416 kHz * 416 kHz 1 PK 416 kHz MAXH 416 kHz Center 2.48 GHz 416 kHz Span 2 MHz 416 kHz 200 kHz/ 416 kHz RBW 30 kHz 416 kHz VBW 100 kHz 416 kHz * 416 kHz * 416 kHz SWT 2.5 ms 416 kHz 416 kHz 416 kHz 416 kHz 416 kHz 416 kHz 416 kHz 416 kHz 416 kHz 416 kHz -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 416 kHz Delta 2 [T1] -20.49 dB -404.000000000 kHz Marker 1 [T1] -2.00 dBm 2.479996000 GHz Delta 3 [T1] -20.50 dB 416.000000000 kHz 2 1 3 TH -22 dBm F1 F2 DELTA MARKER 3 416 kHz Date: 21.FEB.2005 14:45:20 Tx frequency: 2480MHz www.tuv.com Test Report No.: 14008458 001 Appendix 1 page 10 of 63 Peak Output Power Date: 21 Feb 2005 EUT: BTH-708 Company: IEA Electro-Acoustic Co., Ltd. Humidity: 60% Temperature: 23ºC Voltage supply: 3.7V from rechargeable battery Test by: Sharon Li Op. mode: TX mode, DH1 with PRBS9 payload Tx Frequency (MHz) Power P PK (dBm) Cable Attenuation (dB) Actual Peak Power (dBm) Results 2402 -2.30 3.52 1.22 Pass 2441 -2.48 3.65 1.17 Pass 2480 -2.11 3.60 1.49 Pass A 2.40209 GHz 1 PK 2.40209 GHz MAXH 2.40209 GHz Ref 20 dBm 2.40209 GHz Center 2.402 GHz 2.40209 GHz Span 5 MHz 2.40209 GHz 500 kHz/ 2.40209 GHz Att 30 dB 2.40209 GHz * 2.40209 GHz RBW 1 MHz 2.40209 GHz * 2.40209 GHz SWT 2.5 ms 2.40209 GHz VBW 3 MHz 2.40209 GHz * 2.40209 GHz 2.40209 GHz 2.40209 GHz 2.40209 GHz 2.40209 GHz 2.40209 GHz 2.40209 GHz 2.40209 GHz 2.40209…
