SGLWLS-2002WIRELESS LIGHTNING WARNING SYSTEM

0 Transmitter1 Transmitter3 Transmitter2 Lightning Current The system detects lightning strikes on transmission lines and transmits a wa rning by Radio Frequency This system can be utilized to d etect lightning strikes or any infrastructure [Transmitter] [Transmitter] [Receiver] [Receiver] ENCOMM Patent No. ENCOMM Patent No. 03 03 88361 88361 Wireless Lightning Warning System Wireless Lightning Warning System ( WLS 2002 ) ( WLS 2002 ) 1 1) Features of WLS 2002 It promptly senses lightning str ikes on the power lines and tra nsmission towers by using the lightning current detection c ircuit in a small transmitter situated on the top of power tower, and it sends the number of lightning strikes and the ID. of the tower to patrols through the receivers. 2) The necessity for developing WLS 2002 The conventional way (Flag signa l) has had several drawbacks su ch as high maintenance, difficult observation, a nd the loss of labor. Identifying these concerns, Enco mm has fully worked on the new w ay of detecting lightning strikes by Radio Frequency. This system is being utilized by KEPCO(Korea Electric Power Corp oration) to check for damage caused by lightning to tr ansmission towers and other fac ilities by the lightning. Transmitter1 Transmitter3 Transmitter2 Lightning Current Necessity of WLS 2002 Necessity of WLS 2002 2 WLS2002 is installed on the transmission tower. When the tower is struck by lightning , the transmitter transmits a RF signal. The receiver displays information, which will be used to discover the exact location of a lightning strike. Transmitter Transmitter 3 Application Application Transmitter1 Transmitter3 Transmitter2 Lightning Current A. The transmitter1 is 1234567, Transmitter2 is 1234568, and Transmitter3 is 1234569. B. When lightning strikes transmission tower #1, the transmitter on the tower transmits the ID number (1234567) of #1. C. An inspector can easily recognize the transmission towers struck by lightning in real- time. 4 Ratings Ratings ~ ~ L250 X L250 mm L250 X L250 mm Angle Angle Structure Size Structure Size 66/154 / 345 / 765 66/154 / 345 / 765 Rated Voltage Rated Voltage (kV) (kV) Without arc Without arc - - horn horn With arc With arc - - horn horn WLS 2002 WLS 2002 Type Type ~ ~ Φ Φ 620 mm 620 mm Pipe Pipe ■ Applied Standard : Technica l Specification Of KEPCO 5 ‰ ‰ Initial Display Initial Display Receiver Receiver LCD DISPLAY Mode key Read key [ KEY FUNCTIONS ] - Mode Key : Setting M enu and confirming. - Read Key : Reading Message and choosing function [ LCD DISPLAY ] - Graphic LCD Module display s the received messages 6 ‰ ‰ Power ON Power ON - When the receiver turns on, it displays Encomm Logo for 4 secon ds, and then it goes to initial display. - On the initial state, MENU mode can be started by pressing the Mode key for 2 second - Pressing the Read key, it advance you to the next menu- Pressing the Mode key, it will return you to the main menu - The display is returned to the main menu by pressing the read key - You can then alter the values on the display- After altering the values, you can confirm the values by pres sing the Mode key - After confirmation, the displ ay returns to the Main Menu 7 ‰ ‰ MENU MENU * CLEAR ALL MENU :1. Removes all unnecessary messa ges except for unopened message s * POWER OFF MENU : 1. Entering into battery saving mode, LCD and RF module are pow er off 2. Pressing the Mode key, you will turn on the receiver 8 [ Display of unread messages ] * TOWER NUM :: ID. of tower* LF_COUNT :: No. of lightning strike * LOW_BAT :: Status of B attery in the transmitter [ [ Negative Negative ] ] [ Display of read messages ] ‰ ‰ Reading messages Reading messages - When the messages are received, press the ‘ Read Key ’ 9 Electric Specification Electric Specification - - 20 20 °C∼ °C∼ 60 60 °C °C - - 20 20 °C∼ °C∼ 60 60 °C °C Operation Temp. Operation Temp. small small 132( 132( L) x 145(W) x 46(H)mm L) x 145(W) x 46(H)mm Dimension Dimension - - 10 10 mW mW (Optional) (Optional) Output Power Output Power 60 60 mA mA (operation), 50uA(standby) (operation), 50uA(standby) Power Consumption Power Consumption Loop Loop Helical Helical Antenna Antenna 1.5 1.5 V(AAA) V(AAA) 3.6 3.6 V V Battery Battery - - 3days/hit 3days/hit Transmit time Transmit time NRZ NRZ - - FSK FSK NRZ NRZ - - FSK FSK Mod/ Mod/ Demod Demod - - 1 1 Km(min) at 10mW Km(min) at 10mW Distance Distance 447.2625 447.2625 MHz MHz 447.2625 447.2625 MHz MHz Frequency Frequency Receiver Receiver Transmitter Transmitter ■ Applied Standard : Technical Specification Of KEPCO KEPCO : Korea Electronic Power Corporation 10 Features Features ‰ Available for all transmission vol tages and all types of power transmission towers ‰ Repeated usability with a long lifetime (10years(min) at standby mode) ‰ Auto reset after operation ‰ Easy to use and operate to set ‰ Low Power Consumption Cautions Modifications not expressly approv ed by the party responsible for compliance could void the user’s authority to operate the equipment. FCC compliance Information This device complies with part 15 of FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received. Including interference that ma y cause undesired operation. Information to User This equipment has been tested and found to comply with the limits for a Class B digital device, Pursua nt to part 15 of the FCC Rules. These limits are designed to provid e reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio Frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or televi sion reception, which can be determined by turning …

Text truncated - open the document above for the full version.

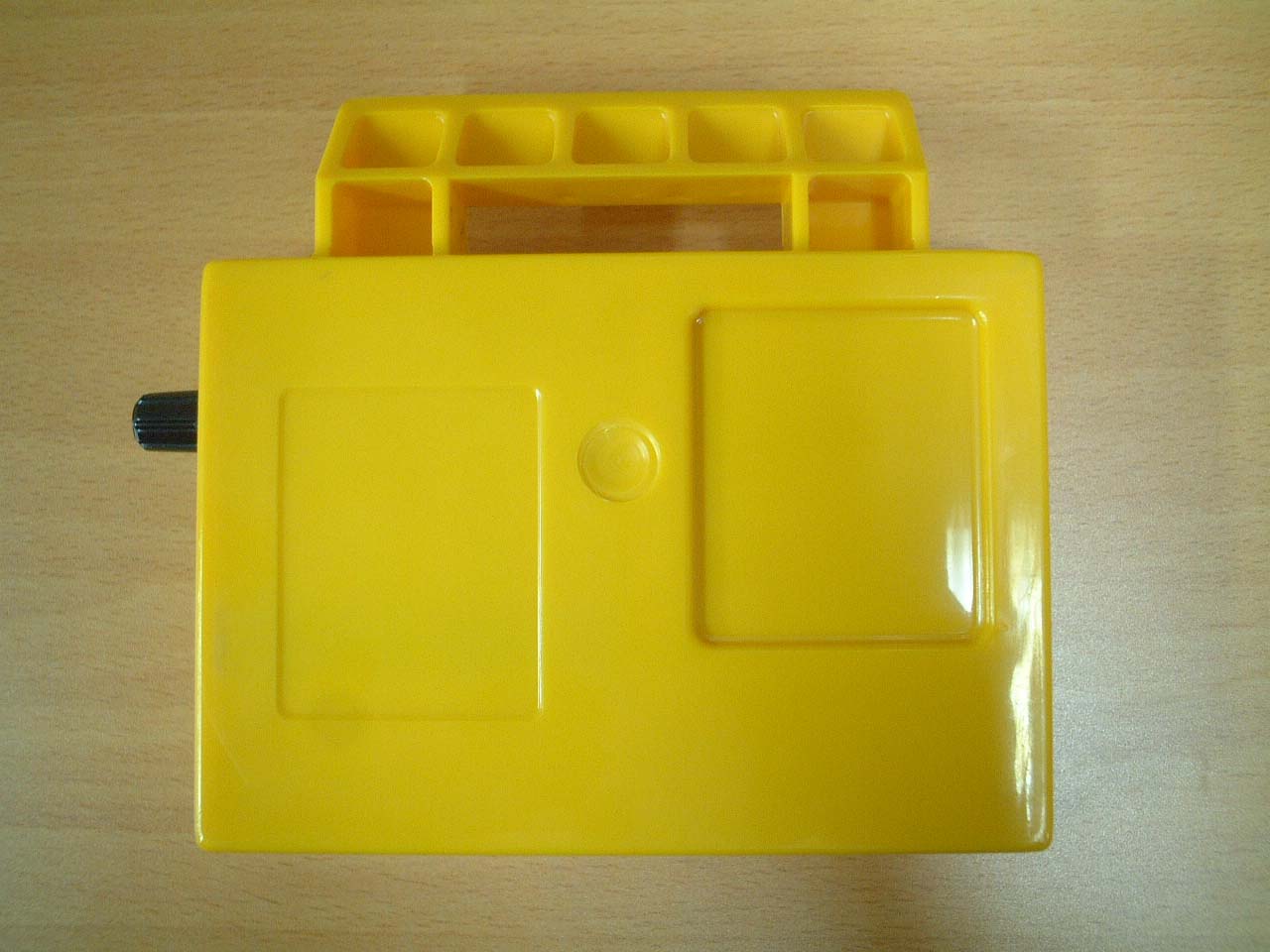

FCC ID: SGLWLS-2002 Copyright Ⓒ 2004, DIGITAL EMC Co., Ltd. View 1 FCC ID: SGLWLS-2002 Copyright Ⓒ 2004, DIGITAL EMC Co., Ltd. View 2

FCC ID: SGLWLS-2002 FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase ] (SEE NEXT PAGE) FCC ID: SGLWLS-2002 APPENDIX - 1 FCC ID: SGLWLS-2002 Model No.: WLS-2002 Serial Number: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC ID: SGLWLS-2002 Copyright Ⓒ 2004, DIGITAL EMC Co., Ltd. View 1 FCC ID: SGLWLS-2002 Copyright Ⓒ 2004, DIGITAL EMC Co., Ltd. View 2 FCC ID: SGLWLS-2002 Copyright Ⓒ 2004, DIGITAL EMC Co., Ltd. View 3 FCC ID: SGLWLS-2002 Copyright Ⓒ 2004, DIGITAL EMC Co., Ltd. View 4

ENCOMM CO., LTD. Wireless Lightning warning System (WLS-2002) 1. Operational Description 1-1. Application WLS2002 is installed on the transmission tower. When the tower is struck by lightning , the transmitter transmits a RF signal. The receiver displays information, which will be used to discover the exact location of a lightning strike. 1) The lightning detector consists of surge sensor. 2) The lightning detector wakes up a controller. 3) The controller operates transmitter. 4) The FSK part of transmitter modulates and transmits RF signal. 5) A receiver demodulates the received signals, and then patrols get status of tower. A. The transmitter1 is 1234567, Transmitter2 is 1234568, and Transmitter3 is 1234569. B. When lightning strikes transmission tower #1, the transmitter on the tower transmits the ID number (1234567) of #1. C. An inspector can easily recognize the transmission towers struck by lightning in real-time. Transmitter1 Transmitter3 Transmitter2 Lightning Current 1-2. Flow Chart 1. Power On Reset 2. Register init. 3. I/O init. Detect? 1. Message init. 2. Timer ON Lightning ? Message trans. Low Batt? Low Bat. ? Time OFF? YES NO NO NO YES NO YES YES NO YES YES 1-3. Key Operation Power ON LO Osc. Modulation Data Transmission Push Key Push Key Push Key 3. EUT’s Spec. ITEM S S p p e e c c . . F F r r e e q q u u e e n n c c y y 4 4 4 4 7 7 . . 2 2 6 6 2 2 5 5 M M H H z z M M o o d d u u l l a a t t i i o o n n N N R R Z Z - - F F S S K K T T r r a a n n s s m m i i t t t t i i m m e e 3 3 d d a a y y s s / / h h i i t t B B a a t t t t e e r r y y 3 3 . . 6 6 V V A A n n t t e e n n n n a a H H e e l l i i c c a a l l P P o o w w e e r r C C o o n n s s u u m m p p t t i i o o n n 6 6 0 0 m m A A ( ( o o p p e e r r a a t t i i o o n n ) ) , , 5 5 0 0 u u A A ( ( s s t t a a n n d d b b y y ) ) O O u u t t p p u u t t P P o o w w e e r r B B e e l l o o w w 1 1 0 0 m m W W D D i i m m e e n n s s i i o o n n 1 1 3 3 2 2 ( ( L L ) ) x x 1 1 4 4 5 5 ( ( W W ) ) x x 4 4 6 6 ( ( H H ) ) m m m m

Page: 1/3 1. LOGIC PART ENCOMM CODE DESCRIPTION VPN Vol. LOCATION No. CRYSTAL OSC. 32.768KHz 30PPM VTC-200(32.768KHz) 1 X3 CRYSTAL OSC. 3.6864MHz 30PPM VTC-200(3.6864MHz) 1 X2 IC RESET, XC61CN2402MR XC61CN2402MR/ TOREX 1 IC4 IC VR,3V, XC6203E302PR XC6203E302PR/ TOREX 1 IC5 IC MPU,H8/3664F H8/3664F 1 IC1 IC EEPROM,CSI93C66S-TE13 CSI93C66S-TE13 1 IC2 RES 0603 1/10W 0 MCR03 EZH J 0R0 1 R1 RES 0603 1/10W 20K MCR03 EZH J 203 1 R17 RES 0603 1/10W 47K MCR03 EZH J 473 1 R20 RES 0603 1/10W 100K MCR03 EZH J 104 3 R21,R28,R29 MLCC 0603 COG 50V 5% 15PF GRM39 COG 150J50PT 2 C10,C27 MLCC 0603 COG 50V 5% 33PF GRM39 COG 330J50PT 2 C12,C28 MLCC 0603 Y5V 16V, K급 0.1uF GRM39 Y5V 104Z16PT 6 C43,C44,C45,C46,C47,C48 TANTAL CHIP 3428 6.3V 47uF / B TYPE TCMS 6.3V 47uF +/-10% 3428 2 TT6,TT7 TEST SWITCH1 SW2 2.RF PART ENCOMM CODE DESCRIPTION VPN Vol. LOCATION No. ANTENNA(Helical) EC-447 1 ANT1 CRYSTAL OSC. 12.84MHz 20PPM CRYSTAL 12.8 20PPM 1 X1 PLL IC TB31202FN 1 IC3 TR, 2SC3356R25 SOT-23 2SC3356R25 4 Q1,Q2,Q3,Q4 TR PNP,SOT-23, KTN2907AS, KEC KTN2907AS 1 Q5 VARIABLE CAP. DIODE 1SV239 2 VD1,VD2 TRIMMER CAP. 20PF TZY2R200A001 1 TC1 RES 0603 1/10W 10 MCR03 EZH J 100 1 R2 RES 0603 1/10W 22 MCR03 EZH J 220 1 R3 RES 0603 1/10W 100 MCR03 EZH J 101 1 R4 RES 0603 1/10W 220 MCR03 EZH J 221 2 R5,R24 RES 0603 1/10W 270 MCR03 EZH J 271 1 R6 RES 0603 1/10W 330 MCR03 EZH J 331 1 R7 RES 0603 1/10W 360 MCR03 EZH J 361 1 R8 RES 0603 1/10W 2.4K MCR03 EZH J 242 1 R9 RES 0603 1/10W 2.7K MCR03 EZH J 272 1 R10 RES 0603 1/10W 4.7K MCR03 EZH J 472 3 R11,R25,R26 RES 0603 1/10W 5.6K MCR03 EZH J 562 1 R12 WLS-2002 Part List WLS-2002 Page: 2/3 RES 0603 1/10W 6.8K MCR03 EZH J 682 2 R13,R27 RES 0603 1/10W 10K MCR03 EZH J 103 1 R14 RES 0603 1/10W 15K MCR03 EZH J 153 1 R15 RES 0603 1/10W 16K MCR03 EZH J 163 1 R16 RES 0603 1/10W 24K MCR03 EZH J 243 1 R18 RES 0603 1/10W 27K MCR03 EZH J 273 1 R19 MLCC 0603 COG 50V 0.25% 0.5PF GRM39 COG 0R5C50PT 1 C1 MLCC 0603 COG 50V 0.25% 1PF GRM39 COG 010C50PT 1 C2 MLCC 0603 COG 50V 0.25% 2PF GRM39 COG 020C50PT 1 C3 MLCC 0603 COG 50V 0.25% 3PF GRM39 COG 030C50PT 2 C4,C20 MLCC 0603 COG 50V 0.25% 4PF GRM39 COG 040C50PT 2 C5,C21 MLCC 0603 COG 50V 0.25% 7PF GRM39 COG 070C50PT 1 C6 MLCC 0603 COG 50V 0.25% 8PF GRM39 COG 080C50PT 2 C7,C22 MLCC 0603 COG 50V 0.5% 10PF GRM39 COG 100D50PT 2 C8,C23 MLCC 0603 COG 50V 5% 12PF GRM39 COG 120J50PT 4 C9,C24,C25,C26 MLCC 0603 COG 50V 5% 22PF GRM39 COG 220J50PT 1 C11 MLCC 0603 COG 50V 5% 33PF GRM39 COG 330J50PT 1 C29 MLCC 0603 COG 50V 5% 68PF GRM39 COG 680J50PT 2 C13,C30 MLCC 0603 COG 50V 5% 100PF GRM39 COG 101J50PT 2 C14,C33 MLCC 0603 X7R 50V 10% 470PF GRM39 X7R 471K50PT 2 C15,C31 MLCC 0603 X7R 50V 10% 1000PF GRM39 X7R 102K50PT 2 C16,C32 MLCC 0603 X7R 50V 10% 0.01uF GRM39 X7R 103K50PT 3 C18,C34,C35 MLCC 0603 X7R 50V 10% 0.022uF GRM39 X7R 223K50PT 1 C17 MLCC 0603 Y5V 16V, K급 0.1uF GRM39 Y5V 104Z16PT 8 C19,C36,C37,C38,C39,C40,C41,C42 INDUCTOR 0805CS-8N2EMPS, 8.2nH 0805CS-8N2EMPS 1 L1 INDUCTOR 0805CS-120EMPS, 12nH 0805CS-120EMPS 3 L2,L7,L8 INDUCTOR 0805CS-220EMPS, 22nH 0805CS-220EMPS 2 L3,L9 INDUCTOR 0805CS-270EMPS, 27nH 0805CS-270EMPS 1 L4 INDUCTOR 0805CS-101EMPS, 100nH 0805CS-101EMPS 1 L5 INDUCTOR 0805CS-331EMPS, 330nH 0805CS-331EMPS 1 L6 TANTAL CHIP 3216 6.3V 1uF / A TYPE TCMS 4V 1uF +/-10% 3216 1 TT1 TANTAL CHIP 3216 6.3V 10uF / A TYPE TCMS 4V 10uF +/-10% 3216 2 TT2,TT3 TANTAL CHIP 3216 6.3V 22uF / A TYPE TCMS 4V 22uF +/-10% 3216 2 TT4,TT5 3. SENSING PART ENCOMM CODE DESCRIPTION VPN Vol. LOCATION No. SCR 03P4M 1 Q6 TVS 1.5KE180CA 1 TVS ZENER DIODE 1N4729A 1 ZD1 DIODE 1N4007 5 D1,D2,D3,D4,D5 ROTARY SWITCH1 SW1 RES DIP 1/4W ±1% 470 1 R1/D RES DIP 1/4W ±1% 910 1 R2/D RES DIP 1/4W ±1% 1.4K 1 R3/D Tap Res WLS-2002 Page: 3/3 RES DIP 1/4W ±1% 1.6K 1 R4/D RES DIP 1/4W ±1% 2.4K 1 R5/D RES DIP 1/4W ±1% 4K 1 R6/D RES DIP 1/4W ±1% 10 1 R7/D RES DIP 1/4W ±1% 2.4K 1 R8/D RES DIP 1/4W ±1% 100K 1 R9/D CAP DIP 0.1uF1 C1/D 굵기 : 0.4mm No. of turn : 3 SIZE : 58 x 52 mm 재질 : UEW PCB 1 BATTERY XL-200F 1 BAT1 CONNECTOR (7PIN) 1 CON7 Antenna1 ANT1 Tap Res SENSING COIL1 WLS-2002

DEMC#DR50110408AI Copyright ○ c 2004, DIGITAL EMC Co., Ltd. Page 1 of 19 683-3, Yubang-Dong, Yongin-Si, Kyunggi-Do, Korea. 449-080 Tel: +82-31-321-2664 Fax: +82-31-321-1664 http://www.digitalemc.com CERTIFICATE OF COMPLIANCE FCC Part 2, 15 & 90 Certification Dates of Tests: August 13 ~ 21, 2004 Test Report S/N:DR50110408AI Test Site : DIGITAL EMC CO., LTD. FCC ID: APPLICANT Device name : Wireless Lighting Warning System Manufacturer : ENCOMM CO., Ltd Model name : WLS-2002 Serial number : Identical prototype FCC Rule Part(s) : §2, §15, §90 Frequency Range : 447.2625MHz RF Output Power : 10mW Emission Designators : 18K6F1D Data of issue : August 23, 2004 I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. SGLWLS-2002 ENCOMM CO., Ltd DEMC#DR50110408AI Copyright ○ c 2004, DIGITAL EMC Co., Ltd. Page 2 of 19 TABLE OF CONTENTS 1. GENERAL INFORMATION’S -------------------------------------------------------------------------- 2. INFORMATION’S ABOUT TEST ITEM ---------------------------------------------------------------- 2.1 EQUPIPMENT INFORMATION ---------------------------------------------------------------------- 2.2 TESTED FREQUENCY -------------------------------------------------------------------------------- 2.3 TEST CONDITION -------------------------------------------------------------------------------------- 3. TEST REPORT ------------------------------------------------------------------------------------------------ 3.1 SUMMARY OF TESTS --------------------------------------------------------------------------------- 3.2 REQUIREMENTS --------------------------------------------------------------------------------------- 3.2.1 CARRIER OUTPUT POWER ------------------------------------------------------------------- 3.2.2 UNWANTED EMISSIONS (TRANSMITTER CONDUCTED) (CONDUCTED) ------- 3.2.3 FIELD STRENGTH OF SPURIOUS RADIATION ------------------------------------------- 3.2.4 EMISSION MASKS (OCCUPIED BANDWIDTH) ------------------------------------------- 3.2.5 FREQUENCY STABILITY ----------------------------------------------------------------------- 3.2.6 NECESSARY BANDWIDTH AND EMISSION BANDWIDTH --------------------------- APPENDIX APPENDIX TEST EQUIPMENT USED FOR TESTS ---------------------------------------------- 3 4 4 4 4 5 5 6 6 7 10 12 14 16 17 DEMC#DR50110408AI Copyright ○ c 2004, DIGITAL EMC Co., Ltd. Page 3 of 19 1. General information’s This report contains the result of tests performed by: DIGITAL EMC CO., LTD. Address : 683-3, Yubang-Dong, Yongin-Si, Kyunggi-Do, Korea. 449-080 http://www.digitalemc.com E-mail : [email protected] Tel: +82-31-321-2664 Fax: +82-31-321-1664 Quality control in the testing laboratory is implemented as per ISO/IEC 17025 which is the “General requirements for the competents of calibration and testing laboratory”. This laboratory is accredited by NVLAP for NVLAP Lab. Code : 200559-0. Test operator: engineer August 23, 2004 Kyung-Taek LEE Data Name Signature Report Reviewed By: manager August 23, 2004 Dong –Min JUNG Data Name Signature Ordering party: Company name : ENCOMM CO., Ltd Address : #312, Ulsan University Techno Complex Bldg., San 29, Mugeo-dong, Nam-gu Zipcode : 680-749 City/town : Ulsan City Country : KOREA Date of order : August 10, 2004 DEMC#DR50110408AI Copyright ○ c 2004, DIGITAL EMC Co., Ltd. Page 4 of 19 2. Information’s about test item WLS-2002 2.1 Equipment information Equipment model no. WLS-2002 Equipment serial no. Identical prototype Type of equipment Fixed Type of modulation NRZ-FSK Frequency Range 447.2625 MHz Rated RF output power 10mW Type of antenna Helical Antenna Battery type 3.6V DC NITHIUM Battery 2.2 Tested environment Temperature : 15 ~ 35 ( o C) Relative humidity content : 20 ~ 75 % Air pressure : 86 ~ 103 kPa Tested Voltage : DC 3.6V 2.3 Test conditions Test Conditions Temperature(°C) Low -30 High +50 2.4 EMI Suppression Device(s)/Modifications -> none DEMC#DR50110408AI Copyright ○ c 2004, DIGITAL EMC Co., Ltd. Page 5 of 19 3. Test Report 3.1 Summary of tests Rule Reference Parameter Status (note 1) 2.1046 Carrier Output Power C 2.1049 Emission Masks (Occupied Bandwidth) C 2.1051 Unwanted Emissions (Transmitter Conducted) C 2.1053 / 15.209 Field Strength of Spurious Radiation C 2.1055 Frequency Stability (Temperature Variation) C 2.1055 Frequency Stability (Voltage Variation) C 2.202 Necessary Bandwidth and Emission Bandwidth C Note 1: C=Complies NC=Not Complies NT=Not Tested NA=Not Applicable Note 2: The device is only operated by battery. Note 3: The device is governed by FCC rule Part 2, 15 and 90. DEMC#DR50110408AI Copyright ○ c 2004, DIGITAL EMC Co., Ltd. Page 6 of 19 3.2 Requirements 3.2.1 Carrier Output Power Definition: - The carrier power output for a transmitter for this service is the power available at the output terminals of the transmitter when the output terminals are connected to the standard transmitter load. FCC ID : SGLWLS-2002 Specification : 47 CFR 2.1046 (a) Test method : ANSI/TIA/EIA-603-2001, Paragraph 2.2.1 Measurement Procedure: - For Conducted measurement, The EUT was connected to a resistive coaxial attenuator of normal load impedance, and the unmodulated output power was measured by means of an R.F. Power Meter. - For Radiated measurement, Effective Radiated Power Output Measurements by Substitution Method according to ANSI/TIA/EIA-603-A-2001. The EUT was placed on a wooden turn-table 3-meters from the receive antenna. The receive antenna height and turntable rotation was adjusted for the highest reading on the receive spectrum analyzer. A half-wave dipole was substituted in place of the EUT. This dipole antenna was driven by a signal generator and the level of the signal generator was adjusted to obtain the same receive spectr…
