SHG-WL21ARemote Controller

Remote Control Instruction Manual This 7.5’ tree is pre-strung with 1,400 clear and colored mini lights (800 clear, 200 blue, 200 red, and 200 green) CARTON INCLUDES: • 4 Pre-lighted tree sections (A-Top, B-Upper Middle, C-Lower Middle, D - Bottom • Sturdy metal tree stand • 4 Screws for tree stand • 27 Extra 2.5 volt replacement bulbs • 1 Spare fuse (5-Amp) inside plug for mini light string (Exhibit A) • Warranty Registration Card How To Use Your Remote Control: 1) Locate On/Off switch on right hand side of remote control and position button to On mode. Always remember to turn remote Off after use to conserve battery life. 2) Please notice there are 4 buttons on front of remote control box. Color, On/Off, Function, and Speed. 3) Push the On/Off button to illuminate your tree. 4) Then determine your color selection using the Color button: a. Push button once for all clear lights b. Push button twice for combination of clear and blue lights c. Push button three times for combination of clear and red lights d. Push button four times for combination of clear and green lights e. Push button five times for combination of clear, blue, red, and green lights creating a multi light effect 5) Then determine the motion effect you want to show off the lighting of your tree by using the Function button: a. Push button once for Steady illumination b. Push button twice for Color Changing illumination. This will cause your lights to change colors – depending on your color selection. IE: Clear to blue, clear to red, clear to green or from clear to blue/red/green (multi) c. Push button three times for Chasing illumination. This will cause your lights to chase through your color selection. IE: Clear to blue, clear to red, clear to green or clear (always on) chasing through blue, red, and green colors. 6) Finally – determine the speed of the function selected utilizing the Speed button: a. There are five speeds. Push the button as many times as necessary to achieve your desired speed. The device is complied with FCC 15.231(a)(1), a manually operated transmitter shall employ a switch that will automatically deactivate the transmitter within not more than 5 seconds of being released. Please Note: These operating instructions are merely a guide to get you comfortable with using the remote control. Once you turn on the remote and the tree - you can set these functions in any order you want – the choice is yours. FCC Warning Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: † Reorient or relocate the receiving antenna. † Increase the separation between the equipment and receiver. † Connect the equipment into an outlet on a circuit different from that to which the receiver is needed. † Consult the dealer or an experienced radio/TV technician for help.

KUPOINT ELECTRIC FACTORY Company Kupoint Electric Factory Address Juqi Village,Humen,Dongguan,Guangdong,China Country China Telephone number (86-769)5551666 Fax number (86-769)5551777 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request RE: FCC ID: SHG-WL21A Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematic diagram Block diagram Technical description The above materials contain trade secrets and proprietary information not customarily release to the public. The public disclosure of these matters might be harmful to the Applicant and Provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the data of the Grant for this application. Sincerely, Arthur. Liao Manager Kupoint Electric Factory

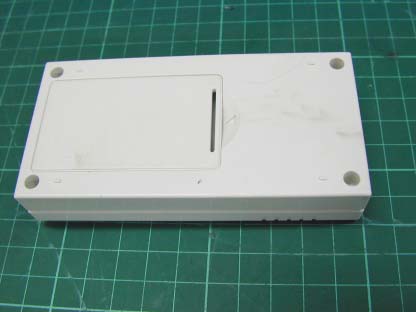

Photo 1: External photo of EUT Photo 2: External photo of EUT

WL921 FCC ID: SHG-WL21A This device complies with Part 15 of the FCC Rules. Operation is subject to th e following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.” 18mm 40mm FCC ID Location

FCC ID. : SHG-WL21A Report No.: EME-050301 Page 1 of 18 EMC TEST REPORT Report No. : EME-050301 Model No. : WL921 Issued Date : Apr. 14, 2005 Applicant : Kupoint Electric Factory Juqi Village, Humen, Dongguan, Guangdong, China Test By : Intertek Testing Services Taiwan Ltd. No. 11, Ko-Tze-Nan Chia-Tung Li, Shiang-Shan District, Hsinchu, Taiwan This test report consists of 18 pages in total. It may be duplicated completely for legal use with the allowance of the applicant. It shall not be reproduced except in full, without the written approval of Intertek Laboratory. The test result(s) in this report only applies to the tested sample(s). Victor Wen Project Engineer Reviewed By Jerry Liu FCC ID. : SHG-WL21A Report No.: EME-050301 Page 2 of 18 Table of Contents Summary of Tests ............................................................................................................. 3 1. General information...................................................................................................... 4 1.1 Identification of the EUT ....................................................................................... 4 1.2 Additional information about the EUT .................................................................. 4 1.3 Antenna description ............................................................................................... 5 2. Test specifications.........................................................................................................6 2.1 Test standard .......................................................................................................... 6 2.2 Operation mode...................................................................................................... 6 2.3 Test equipment ....................................................................................................... 7 3. Radiated emission test FCC 15.231 (b) ........................................................................ 8 3.1 Operating environment .......................................................................................... 8 3.2 Test setup & procedure .......................................................................................... 8 3.3 Radiated emission limit ......................................................................................... 9 3.3.1 Fundamental and harmonics emission limits...................................................... 9 3.3.2 General radiated emission limit ........................................................................ 10 3.4 Calculation of Average Factor ............................................................................. 11 3.5 Radiated emission test data FCC 15.231 ............................................................. 15 3.5.1 Measurement results: Fundamental and Harmnic Radiated Emission Data..... 15 3.5.2 Measurement results: frequencies equal to or less than 1 GHz ........................ 16 3.5.3 Measurement results: frequencies above 1GHz................................................ 17 3.6 Measured bandwidth FCC 15.231(C) .................................................................. 18 FCC ID. : SHG-WL21A Report No.: EME-050301 Page 3 of 18 Summary of Tests Remote Controller -Model: WL921 FCC ID: SHG-WL21A Test Reference Results Radiated Emission test 15.231(b), 15.209 Complies Measured bandwidth 15.231(c) Complies FCC ID. : SHG-WL21A Report No.: EME-050301 Page 4 of 18 1. General information 1.1 Identification of the EUT Applicant : Kupoint Electric Factory Product : Remote Controller Model No. : WL921 FCC ID. : SHG-WL21A Frequency Range : 315MHz Channel Number : Single Frequency of each channel : 315MHz Type of Modulation : ASK Power Supply : 4.5Vdc from Battery Power Cord : N/A Sample Received : Apr. 7, 2005 Test Date(s) : Apr. 11, 2005 ~ Apr. 12, 2005 1.2 Additional information about the EUT The EUT is a Remote Controller. For more detail features, please refer to Users manual as file name “Installation guide.pdf” FCC ID. : SHG-WL21A Report No.: EME-050301 Page 5 of 18 1.3 Antenna description The EUT uses a permanently connected antenna. Antenna Gain : 6.30 dBi max Antenna Type : PCB Printed Connector Type : N/A FCC ID. : SHG-WL21A Report No.: EME-050301 Page 6 of 18 2. Test specifications 2.1 Test standard The EUT was performed according to the procedures in FCC Part 15 Subpart C Section 15.231. 2.2 Operation mode After verifying three setups of transmitter, we found the worst case was occurred at setup 2, so the final test was executed under this condition and recorded in this report. During all of the tests, the EUT was operated in transmitting continuously. Once the button releasing, the transmission will be stopped within 1 second. FCC ID. : SHG-WL21A Report No.: EME-050301 Page 7 of 18 2.3 Test equipment Equipment Brand Frequency range Model No. Intertek ID No. Next Cal. Date EMI Test Receiver Rohde & Schwarz9kHz~2.75GHz ESCS 30 EC303 04/13/2005 EMI Test Receiver Rohde & Schwarz20Hz~26.5GHz ESMI EC317 07/14/2005 Spectrum Analyzer Rohde & Schwarz9kHz~30GHz FSP 30 EC353 07/13/2005 Spectrum Analyzer Rohde & Schwarz20Hz~40GHz FSEK 30 EC365 10/18/2005 Horn Antenna EMCO 1GHz~18GHz 3115 EC338 08/16/2005 Horn Antenna SCHWARZBECK14GHz~40GHz BBHA 9170EC351 07/08/2005 Bilog Antenna SCHWARZBECK25MHz~1.7GHz VULB 9160EC368 05/20/2005 Pre-Amplifier MITEQ 100MHz~26.5GHz919981 EC373 4/13/2005 Pre-Amplifier MITEQ 26GHz~40GHz 828825 EC374 1/28/2006 Controller HDGmbH N/A HD 100 EP317-1 N/A Antenna Tower HDGmbH N/A MA 240 EP317-2 N/A Turn Table HDGmbH N/A DS 420S EP317-3 N/A LISN Rohde & Schwarz9KHz~30MHz ESH3-Z5 EC344 01/14/2006 Note: The above equipments are within the valid calibration period. FCC ID. : SHG-WL21A Report No.: EME-050301 Page 8 of 18 3. Radiated emission test FCC 15.231 (b) 3.1 Operating environment Temperature: 20 Relative Humidity: 55 % Atmospheric Pressure 1023 hPa 3.2 Test setup & procedure The Diagram below shows the test setup, which is…

Text truncated - open the document above for the full version.

Photo 1: Radiated Emission Test Set-up Photo 2: Radiated Emission Test Set-up
