BED101 User manual 1 Bluetooth Class2 Bluetooth AV Dongle User manual Doc Version :20050627 Product ID BED101 Product Name BED Class 2 Bluetooth AV Dongle Firmware Version Rev 6.3.1 USB-AV Hardware Version Rev.01 DESCRIPTION BED101 Bluetooth USB Dongle is a Bluetooth stereo audio transmitter that transmits stereo audio thru Bluetooth A2DP Profile to Bluetooth stereo receiver(Headphone:BES102). Comply with Bluetooth Specification V1.2 and support A2DP profile, Users can benefit form the convenience of wireless stereo function. FEATURE z Comply with Bluetooth Specification V1.2 z New Bluetooth V1.2 Mandatory Functionality 1.Adaptive Frequency Hopping (AFH) 2. Faster Connections 3. Flow and Flush Timeout 4. Parameter Ranges z Optional V1.2 Functionality Supported 1. Extended SCO (eSCO) EV3+CRC,EV4,EV5 2. Scatter Mode 3. LMP Absence Mark, Quality of service and SCO handle 4. L2CAP flow and error Control 5. Synchronization z Built-in Link controller and Link Manager Protocol z USB interface fits desktop/laptop PCs z Compliant with USB 1.1 Specification (that is, works with all USB interface) z Bluetooth Class 2 operation with over 10m range z Easy to follow-friendly user interface (Plug & Play) provides an easy way to connect other Bluetooth devices APPLICATIONS: NotebookPC BED101 User manual 2 Technical SPECIFICATION ITEMS SPECIFICATION Standard Bluetooth V1.2 Interface USB (Type A) Link Mode ACL, eSCO (Extended Synchronous Connection-Oriented) Data Rate Asynchronous:723.2kbps/57.6kbps Synchronous:433.9kbps/433.9kbps Frequency Band ISM 2.4GHz Compatible OS Microsoft Windows 98/2000//ME/XP Bluetooth Profiles support A2DP(AV) Receiver Signal Range Better than –76dBm @0.1%BER RF Output Power -3 ~ +2dBm (Max +4 dBm) Operation current < 70mA(max) Operating Distance Up to 10 meters Output interface USB V1.1 Operation Temperature -10 ~ +60 Degree C Storage Temperature -20 ~ +70 Degree C Modulation GFSK(Gaussian Frequency Shift Keying) USB Specification Ver 1.1 Spectrum Frequency Hopping Spread Spectrum (FHSS) Security Provided Pairing, Encryption, Authentication Dimension 46.00mm x 18.50mm x 8.4mm Installation Steps 1. Plug the AV Dongle (BED101) into the USB port of a PC. 2. The AV Dongle (BED101) will blink rapidly (signaling that it is searching for devices). 3. Turn on the BES102 and wait for the function LED to become solid (signaling that it has been connected by the AV Dongle (BED101). 4. Launch the audio player software and play the music. BED101 User manual 3 Notice on FCC Operation is subject to the following 2 conditions: 1. This device may not cause interference. 2. This device must accept any interference, including interference that may cause undesired operation of the device. 15.21 You are cautioned that changes or modifications not expressly approved by the part responsible for compliance could void the users authority to operate the equipment. 15.105(b) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment. FCC RF Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

RF_160, Issue 01 Declaration of Authorization We Name: BlueExpert Technology Corp. Address: 8F, No 16, Lane 77, Sin-Ai Road, NeiHu City: Taipei City Country: Taiwan Declare that: Name: SGS Taiwan Ltd. Address: 134, Wu Kung Rd., Wuku Industrial Zone City: Taipei County Country: Taiwan is authorized to apply for Certification of the following product(s): Product description: Bluetooth AV Dongle Type designation: BED101 Trademark: BlueExpert on our behalf. Date: Jun. 24, 2005 City: Taipei Name: Cheana Chang Signature:

Report No: ER/2005/50028 ID: SHP-BED101 Issue Date: Jun. 03, 2005 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw 0513 ILAC MRA APPENDIX 2 EXTERNAL OF EUT Report No: ER/2005/50028 ID: SHP-BED101 Issue Date: Jun. 03, 2005 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw 0513 ILAC MRA Front View of EUT Back View of EUT

FCC ID LABEL FORMAT AND LOCATION Applicant: BlueExpert Technology Corp. FCC ID: SHP-BED101 FCC ID: SHP-BED101 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID LABEL AREA

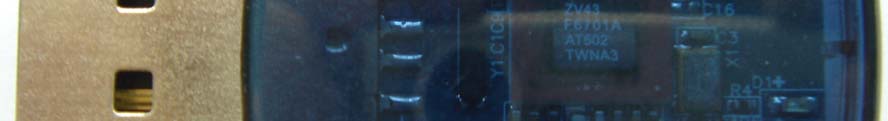

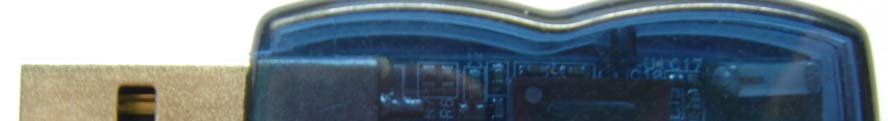

Report No: ER/2005/50028 ID: SHP-BED101 Issue Date: Jun. 03, 2005 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw 0513 ILAC MRA APPENDIX 3 INTERNAL OF EUT Report No: ER/2005/50028 ID: SHP-BED101 Issue Date: Jun. 03, 2005 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw 0513 ILAC MRA Open View of EUT Internal View of EUT – 1 Report No: ER/2005/50028 ID: SHP-BED101 Issue Date: Jun. 03, 2005 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw 0513 ILAC MRA Internal View of EUT – 2 Antenna

Report No: ER/2005/50028 ID: SHP-BED101 Issue Date: Jun. 03, 2005 Page: 1 of 54 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw 0513 ILAC MRA ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT INTENTIONAL RADIATOR CERTIFICATION TO FCC PART 15 SUBPART C REQUIREMENT OF Product Name: Bluetooth AV Dongle Brand Name: BlueExpert Model Name: BED101 Model Difference: N/A FCC ID: SHP-BED101 Report No.: ER/2005/50028 Issue Date: Jun. 03, 2005 FCC Rule Part: §15.247 Prepared for BlueExpert Technology Corp. 8F, No 16, Lane 77, Sin-Ai Road, NeiHu, Taipei City, Taiwan,R.O.C. Prepared by SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei County, Taiwan. Note: This report shall not be reproduced except in full, without the written approval of SGS Taiwan Ltd. This document may be altered or revised by SGS Taiwan Ltd. personnel only, and shall be noted in the revision section of the document. Report No: ER/2005/50028 ID: SHP-BED101 Issue Date: Jun. 03, 2005 Page: 2 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw 0513 ILAC MRA VERIFICATION OF COMPLIANCE Applicant: BlueExpert Technology Corp. 8F, No 16, Lane 77, Sin-Ai Road, NeiHu, Taipei City, Taiwan,R.O.C. Equipment Under Test: Bluetooth AV Dongle Brand Name: BlueExpert FCC ID Number: SHP-BED101 Model No.: BED101 Model Difference: N/A File Number: ER/2005/50028 Date of test: May. 20, 2005 ~ Jun. 01, 2005 Date of EUT Received: May. 19, 2005 We hereby certify that: The above equipment was tested by SGS Taiwan Ltd. The test data, data evaluation, test proce- dures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (2003) and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.247 The test results of this report relate only to the tested sample identified in this report. Test By: Date Jun. 03, 2005 Henk Huang Prepared By: Date Jun. 03, 2005 Elisa Chen Approved By Date Jun. 03, 2005 Vincent Su Report No: ER/2005/50028 ID: SHP-BED101 Issue Date: Jun. 03, 2005 Page: 3 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw 0513 ILAC MRA Version Version No. Date 00 Jun. 03, 2005 Report No: ER/2005/50028 ID: SHP-BED101 Issue Date: Jun. 03, 2005 Page: 4 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw 0513 ILAC MRA Table of Contents 1. GENERAL INFORMATION .........................................................................................................7 1.1. Product Description ............................................................................................................................7 1.2. Related Submittal(s) / Grant (s) ..........................................................................................................7 1.3. Test Methodology ...............................................................................................................................7 1.4. Test Facility.........................................................................................................................................7 1.5. Special Accessories .............................................................................................................................7 1.6. Equipment Modifications....................................................................................................................7 2. SYSTEM TEST CONFIGURATION ............................................................................................8 2.1. EUT Configuration .............................................................................................................................8 2.2. EUT Exercise ......................................................................................................................................8 2.3. Test Procedure.....................................................................................................................................8 2.4. Configuration of Tested System..........................................................................................................9 3. SUMMARY OF TEST RESULTS ...............................................................................................10 4. DESCRIPTION OF TEST MODES ............................................................................................10 5. CONDUCTED EMISSION TEST................................................................................................11 5.1. Standard Applicable ..........................................................................................................................11 5.2. EUT Setup.................................................…
