SHP-BED401Bluetooth USB Dongle

IVT BlueSoleil™ User Manual Version: 1.4.9 This document describes how to use IVT BlueSoleil™. IVT BlueSoleil™ User Manual 1 Contents 1 BlueSoleil™ Introduction............................................................................ 3 2 BlueSoleil™ Graphical User Interface ......................................................... 4 2.1 Start BlueSoleil™ ...................................................................................... 4 2.2 Exit BlueSoleil™ ........................................................................................ 4 2.3 BlueSoleil™ Main Window ........................................................................... 5 2.3.1 My Device Icon................................................................................................................................ 5 2.3.2 Remote Bluetooth Device Icons ....................................................................................................... 6 2.3.3 Bluetooth Service Icons ................................................................................................................... 7 2.4 Service Window......................................................................................... 8 2.4.1 My Service Icons............................................................................................................................ 10 3 Personal Area Networking........................................................................ 12 3.1 Introduction ........................................................................................... 12 3.2 Connect Two Computers........................................................................... 12 3.3 Computer with PAN acting as a TCP/IP Gateway .......................................... 18 3.3.1 Connect to the Internet using ICS.................................................................................................. 19 3.3.2 Settings on the PAN server ............................................................................................................ 20 3.4 PAN Configuration ................................................................................... 22 3.4.1 My PAN Service............................................................................................................................. 22 4 Dial-Up Networking .................................................................................. 23 4.1 Introduction ........................................................................................... 23 4.2 Connect to a Dial-up Gateway from a Computer........................................... 23 5 Bluetooth Serial Port ................................................................................ 27 5.1 Introduction ........................................................................................... 27 5.2 Connect Two Computers........................................................................... 27 5.3 Use SPP to Print a Document..................................................................... 30 5.4 SPP Configuration.................................................................................... 32 5.4.1 My SPP Service ............................................................................................................................. 32 6 Bluetooth File Transfer............................................................................. 33 6.1 Introduction ........................................................................................... 33 6.2 Transfer files to/from a Computer .............................................................. 33 6.3 FTP Configuration .................................................................................... 39 6.3.1 My FTP Service ............................................................................................................................. 39 7 LAN Access............................................................................................... 40 7.1 Introduction ........................................................................................... 40 7.2 Access a Local Area Network (LAN) ............................................................ 40 8 Object Push.............................................................................................. 46 8.1 Introduction ........................................................................................... 46 8.2 Transfer Objects from a Computer to a Bluetooth Cellular Phone .................... 46 8.3 Transfer Objects from a Bluetooth Cellular Phone to a Computer .................... 51 8.4 Transfer Objects between Two Computers................................................... 55 8.5 Configure OPP Service.............................................................................. 56 8.5.1 My OPP Service ............................................................................................................................ 56 9 Synchronization ....................................................................................... 57 9.1 Introduction ........................................................................................... 57 9.2 Exchange PIM Data with a Cellular Phone.................................................... 57 IVT BlueSoleil™ User Manual 2 9.3 Set up SYNC Connection between Two Computers ....................................... 59 9.4 Synchronization Configuration................................................................... 63 9.4.1 My Synchronization Service...........................................................................................................63 10 Hardcopy Cable Replacement ................................................................ 64 10.1 Introduction......................................................................................... 64 10.2 Print a Document Using a Bluetooth Printer .............................................. 64 11 Human Interf…

Text truncated - open the document above for the full version.

Agent Authorization Letter attn: Reviewing Engineer Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize MET Laboratories, Inc. to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988,21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely,

Agent Authorization Letter attn: Reviewing Engineer Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize SGS Taiwan Ltd. to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988,21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely,

REPORT NO: EF/2004/80019 ID: SHP-BED401 DATE: Sep. 13, 2004 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 134 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw ILAC MRA APPENDIX 2 EXTERNAL OF EUT REPORT NO: EF/2004/80019 ID: SHP-BED401 DATE: Sep. 13, 2004 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 134 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw ILAC MRA Front View of EUT (BED401) Back View of EUT (BED401) REPORT NO: EF/2004/80019 ID: SHP-BED401 DATE: Sep. 13, 2004 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 134 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw ILAC MRA Front View of EUT (BED402) Back View of EUT (BED402)

FCC ID LABEL FORMAT AND LOCATION Applicant: BlueExpert Technology Corp. FCC ID: SHP-BED401 FCC ID: SHP-BED401 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID LABEL AREA

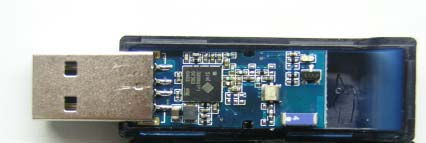

REPORT NO: EF/2004/80019 ID: SHP-BED401 DATE: Sep. 13, 2004 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 134 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw ILAC MRA APPENDIX 3 INTERNAL OF EUT REPORT NO: EF/2004/80019 ID: SHP-BED401 DATE: Sep. 13, 2004 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 134 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw ILAC MRA Open View of EUT (BED401) Open View of EUT (BED402) REPORT NO: EF/2004/80019 ID: SHP-BED401 DATE: Sep. 13, 2004 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 134 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw ILAC MRA Internal of EUT Internal of EUT

REPORT NO: EF/2004/80019 ID: SHP-BED401 DATE: Sep. 13, 2004 Page: 1 of 53 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 134 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw ILAC MRA ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT INTENTIONAL RADIATOR CERTIFICATION TO FCC PART 15 SUBPART C REQUIREMENT OF Product name: Bluetooth USB Dongle Brand Name: BlueExpert Model Name: BED401, BED402 Model Difference: variant in sizes FCC ID: SHP-BED401 REPORT NO: EF/2004/80019 ISSUE DATE: Sep. 13, 2004 FCC Rule Part: 15.247 Prepared for BlueExpert Technology Corp. 8F, No 16, Lane 77, Sin-Ai Road, NeiHu, Taipei City, Taiwan,R.O.C. Prepared by SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei County, Taiwan. Note: This report shall not be reproduced except in full, without the written approval of SGS Taiwan Ltd. This document may be altered or revised by SGS Taiwan Ltd. personnel only, and shall be noted in the revision section of the document. REPORT NO: EF/2004/80019 ID: SHP-BED401 DATE: Sep. 13, 2004 Page: 2 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 134 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw ILAC MRA VERIFICATION OF COMPLIANCE Applicant: BlueExpert Technology Corp. 8F, No 16, Lane 77, Sin-Ai Road, NeiHu, Taipei City, Taiwan,R.O.C. Equipment Under Test: Bluetooth USB Dongle Brand Name: BlueExpert FCC ID Number: SHP-BED401 Model No.: BED401, BED402 Model Difference: Variant in sizes File Number: EF/2004/80019 Date of test: Sep. 06, 2004 ~ Sep. 10, 2004 Date of EUT Received: Sep. 04, 2004 We hereby certify that: The above equipment was tested by SGS Taiwan Ltd. The test data, data evaluation, test proce- dures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (2001) and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.247 The test results of this report relate only to the tested sample identified in this report. Test By: Date Sep. 13, 2004 Alex Hsieh Approved By Date Sep. 13, 2004 Vincent Su REPORT NO: EF/2004/80019 ID: SHP-BED401 DATE: Sep. 13, 2004 Page: 3 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 134 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw ILAC MRA Table of Contents 1. GENERAL INFORMATION .........................................................................................................6 1.1. Product Description ............................................................................................................................6 1.2. Related Submittal(s) / Grant (s) ..........................................................................................................6 1.3. Test Methodology ...............................................................................................................................6 1.4. Test Facility.........................................................................................................................................6 1.5. Special Accessories .............................................................................................................................6 1.6. Equipment Modifications....................................................................................................................6 2. SYSTEM TEST CONFIGURATION ............................................................................................7 2.1. EUT Configuration .............................................................................................................................7 2.2. EUT Exercise ......................................................................................................................................7 2.3. Test Procedure.....................................................................................................................................7 2.4. Configuration of Tested System..........................................................................................................8 3. SUMMARY OF TEST RESULTS .................................................................................................9 4. DESCRIPTION OF TEST MODES ..............................................................................................9 5. CONDUCTED EMISSION TEST................................................................................................10 5.1. Standard Applicable ..........................................................................................................................10 5.2. EUT Setup.........................................................................................................................................10 5.3. Measurement Procedure....................................................................................................................10 5.4. Measurement Equipment Used: ........................................................................................................11 5.5. Measurement Result..........................................................................................................................11 6. PEAK OUTPUT POWER MEASUREMENT.....................................................…

Text truncated - open the document above for the full version.

Chris Harvey From: Chris Harvey [[email protected]] Sent: Friday, September 17, 2004 11:24 AM To: '[email protected]' Cc: '[email protected] '; '[email protected] '; 'Marianne Bosley' Subject: Additional Information needed for BlueExpert FCC ID: SHP-BED002 MT#16184 & FCC ID: SHP-BED401 MT#16185 Page 1 of 2 9/20/2004 Elisa, I have completed reviewing these applications for BlueExpert. 1.In addition to the need for the Users Manual requested earlier... 2.you have supplied a letter of authorization from BlueExpert to MET Laboratories. However, since you have submitted the application and are working as an agent for the applicant we must also have a Letter of Authorization from BlueExpert to SGS Taiwan. Please provide this letter for these 2 applications and also ensure that this letter is provided for all applications for which you are acting as the agent. 3.The Test Report for the FCC ID: SHP-BED401 (MT#16185) has several locations where the FCC ID: SHP- BED002 and/or the model number BED002/BED005 are used. Please review this report to ensure the correct information is contained and correct this report for these references to the wrong FCC ID and model. Also, the reports have the following typo, the low threshold stated in section 15.2 of the test report should be approximately 24mW (not 65mW) (power listed for BED401 is not correct). Please submit the updated test reports. 4.I have a document attached to this e-mail which will be updated to the FCC site, which declares compliance for several FCC 15.247 requirements of Bluetooth devices. Please retain this document and include it in submissions for future Bluetooth FCC/IC applications. 5.The Internal and External photos submitted for FCC ID: SHP-BED401 seem to be labeled as photos for models BED002 and BED005. Please review the files submitted, correct them, or provide the correct photos as necessary. Please contact me if you have any questions. Best regards, Chris Harvey -----Original Message----- From: Chris Harvey [mailto:[email protected]] Sent: Friday, September 17, 2004 6:36 AM To: '[email protected]'; 'TCB INFO'; 'Marianne Bosley'; 'Rob Frier'; 'Shari Meyers'; 'TCB INFO' Cc: '[email protected] '; '[email protected] ' Subject: RE: BlueExpert Technology Corp. / FCC ID: SHP-BED401 & SHP-BED002 Elisa, we have received both of these applications, but as I have been reviewing the documents early this morning I have found that the Users Manuals for both of these applications were not included in the zip files. Please e-mail these 2 Users Manual documents to me. Best regards, Chris Harvey -----Original Message----- From: [email protected] [mailto:[email protected]] Sent: Friday, September 17, 2004 2:37 AM To: TCB INFO; Marianne Bosley; Rob Frier; '[email protected] '; Shari Meyers; TCB INFO Cc: '[email protected] '; '[email protected] ' Subject: BlueExpert Technology Corp. / FCC ID: SHP-BED401 & SHP-BED002 Marianne, There are two projects BlueExpert Technology Corp. / FCC ID: SHP-BED401 and SHP-BED002 need to apply FCC ID Grants . I now submitting the FCC ID materials as follows: Please check the documentation of SHP-BED401 and SHP-BED002 both include: User Manual Confidential Letter Operation Description Block Diagram Schematic Test Report FCC ID Label Setup photos External photos Internal photos Application Form Agent Authorization Letter TCB Service Agreement Purchase Order Should there be any mistake or problem, please feel free to contact me. Thank you for your favorable considerations upon this matter. Sincerely, Elisa Chen --- Elisa Chen E&E Lab. of SGS Taiwan Ltd. E-Mail: [email protected] TEL: +886 2 2299 3279 ext. 1161 FAX: +886 2 2298 2698 No. 134, Wu Kung Road, Wuku Industrial Zone, Taipei County, Taiwan Page 2 of 2 9/20/2004

Bluetooth Declaration Per FCC 15.247 Requirements 1 Output power and channel separation of a Bluetooth device in the different operating modes: The different operating modes (data-mode, acquisition-mode) of a Bluetooth device don’t influence the output power and the channel spacing. There is only one transmitter which is driven by identical input parameters concerning these two parameters. Only a different hopping sequence will be used. For this reason the check of these RF parameters in one op-mode is sufficient. 2 Frequency range of a Bluetooth device: Hereby we declare that the maximum frequency of this device is: 2402 – 2480 MHz. This is according the Bluetooth Core Specification V 1.0B (+ critical errata) for devices which will be operated in the USA. This was checked during the Bluetooth Qualification tests (Test Case: TRM/CA/04-E). Other frequency ranges ( e.g. for Spain, France, Japan) which are allowed according the Core Specification are not supported by this device. 3 Co-ordination of the hopping sequence in data mode to avoid simultaneous occupancy by multiple transmitters: Bluetooth units which want to communicate with other units must be organized in a structure called piconet. This piconet consist of max. 8 Bluetooth units. One unit is the master the other seven are the slaves. The master co-ordinates frequency occupation in this piconet for all units. As the master hop sequence is derived from it’s BD address which is unique for every Bluetooth device, additional masters intending to establish new piconets will always use different hop sequences. 4 Example of a hopping sequence in data mode: Example of a 79 hopping sequence in data mode: 40, 21, 44, 23, 42, 53, 46, 55, 48, 33, 52, 35, 50, 65, 54, 67, 56, 37, 60, 39, 58, 69, 62, 71, 64, 25, 68, 27, 66, 57, 70, 59, 72, 29, 76, 31, 74, 61, 78, 63, 01, 41, 05, 43, 03, 73, 07, 75, 09, 45, 13, 47, 11, 77, 15, 00, 64, 49, 66, 53, 68, 02, 70, 06, 01, 51, 03, 55, 05, 04 5 Equally average use of frequencies in data mode and behaviour for short transmissions: The generation of the hopping sequence in connection mode depends essentially on two input values: 1. LAP/UAP of the master of the connection 2. Internal master clock The LAP (lower address part) are the 24 LSB’s of the 48 BD_ADDRESS. The BD_ADDRESS is an unambiguous number of every Bluetooth unit. The UAP (upper address part) are the 24 MSB’s of the 48 BD_ADDRESS. The internal clock of a Bluetooth unit is derived from a free running clock which is never adjusted and is never turned off. For synchronisation with other units only offset are used. It has no relation to the time of the day. Its resolution is at least half the RX/TX slot length of 312.5 μs. The clock has a cycle of about one day (23h30). In most case it is implemented as 28 bit counter. For the deriving of the hopping sequence the entire LAP (24 bits), 4 LSB’s (4 bits) (Input 1) and the 27 MSB’s of the clock (Input 2) are used. With this input values different mathematical procedures (permutations, additions, XOR-operations) are performed to generate the sequence. This will be done at the beginning of every new transmission. Regarding short transmissions the Bluetooth system has the following behaviors: The first connection between the two devices is established, a hopping sequence was generated. For transmitting the wanted data the complete hopping sequence was not used. The connection ended. The second connection will be established. A new hopping sequence is generated. Due to the fact that the Bluetooth clock has a different value, because the period between the two transmission is longer (and it cannot be shorter) than the minimum resolution of the clock (312.5 μs). The hopping sequence will always differ from the first one. 6 Receiver input bandwidth and behaviors for repeated single or multiple packets: The input bandwidth of the receiver is 1 MHz. In every connection one Bluetooth device is the master and the other one is the slave. The master determines the hopping sequence (see chapter 5). The slave follows this sequence. Both devices shift between RX and TX time slot according to the clock of the master. Additionally the type of connection (e.g. single or multislot packet) is set up at the beginning of the connection. The master adapts its hopping frequency and its TX/RX timing according to the packet type of the connection. Also the slave of the connection will use these settings. Repeating of a packet has no influence on the hopping sequence. The hopping sequence generated by the master of the connection will be followed in any case. That means, a repeated packet will not be send on the same frequency, it is send on the next frequency of the hopping sequence. 7 Dwell time in data mode The dwell time of 0.3797s within a 30 second period in data mode is independent from the packet type (packet length). The calculation for a 30 second period is a follows: Dwell time = time slot length * hop rate / number of hopping channels *30s Example for a DH1 packet (with a maximum length of one time slot) Dwell time = 625 μs * 1600 1/s / 79 * 30s = 0.3797s (in a 30s period) For multislot packet the hopping is reduced according to the length of the packet. Example for a DH5 packet (with a maximum length of five time slots) Dwell time = 5 * 625 μs * 1600 * 1/5 *1/s / 79 * 30s = 0.3797s (in a 30s period) This is according the Bluetooth Core Specification V 1.0B (+ critical errata) for all Bluetooth devices. There for all Bluetooth devices comply with the FCC dwell time requirement in data mode. This was checked during the Bluetooth Qualification tests. The Dwell time in hybrid mode is measured and stated in the test report. 8 Channel Separation in hybrid mode The nominal channel spacing of the Bluetooth system is 1Mhz independent of the operating mode. The maximum “initial carrier frequency tolerance” which is allowed for Bluetooth is fcenter = 75 kHz. This was checked during the Bluetooth Qualification tests (Test Case:…

Text truncated - open the document above for the full version.

REPORT NO: EF/2004/80019 ID: SHP-BED401 DATE: Sep. 13, 2004 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 134 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw ILAC MRA APPENDIX 1 PHOTOGRPHS OF SET UP REPORT NO: EF/2004/80019 ID: SHP-BED401 DATE: Sep. 13, 2004 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 134 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw ILAC MRA Radiated Emission Set up Photos REPORT NO: EF/2004/80019 ID: SHP-BED401 DATE: Sep. 13, 2004 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 134 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw ILAC MRA Conducted Emission Setup Photos
