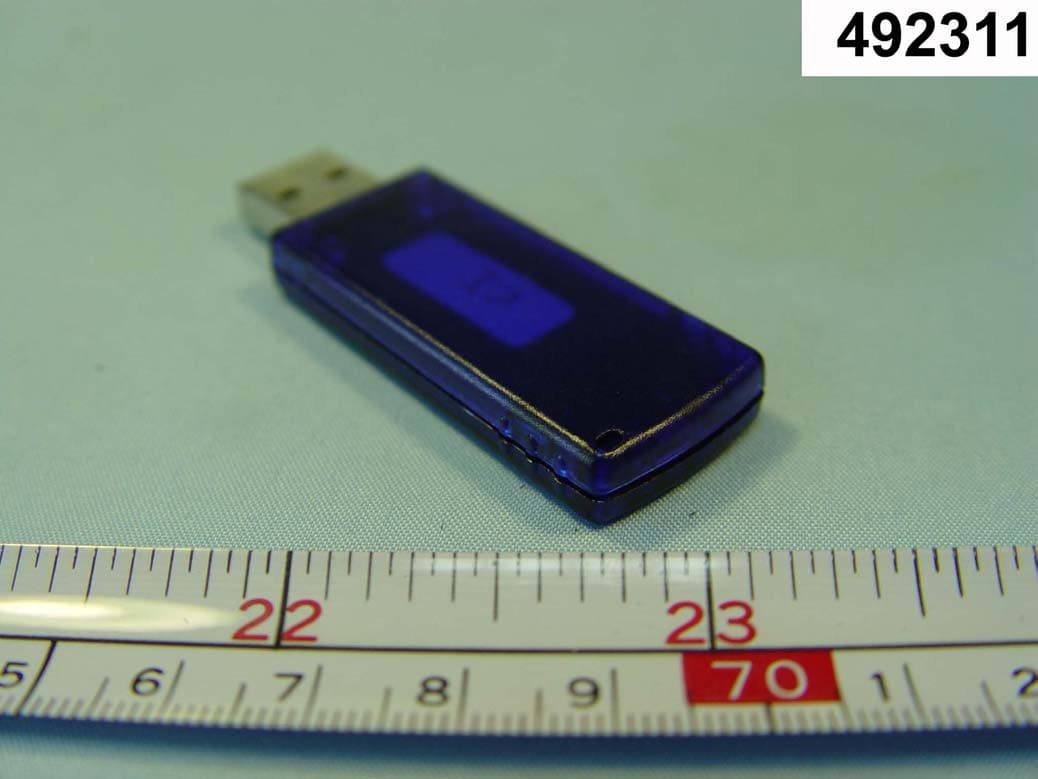

SI4-MBDC211BLUETOOTH USB ADAPTER

Bluetooth USB Adapter User Guider Unwire your life V1.4.2- 920928y 1 Index INTRODUCTION 3 CHAPTER 1 Bluetooth profile support 3 Drivers support 3 Setup for Mac 3 CHAPTER 2 Application note for Windows 98SE/ME/2000/XP 5 Icons used for Bluetooth devices and services 5 Network sharing setting for Windows 8 File transfer setting for Windows 16 Dial-up networking setting for Windows 18 FAX setting 21 PIM Item Transfer setting 22 PIM Synchronization setting 23 Serial Port setting 24 ActiveSync setting 25 Audio Gateway setting for windows 27 Personal area network setting for Windows 29 How to setup an Ad-hoc Network 30 How to setup with Bluetooth Network Access Point 32 2 Introduction Bluetooth is an open specification for a cutting-edge technology that enables short-range wireless connections between desktop and laptop computers, personal digital assistants, cellular phones, printers, scanners, digital cameras and even home appliances — on aglobally available band (2.4GHz) for worldwide compatibility. In a nutshell, Bluetooth unplugs your digital peripherals and makes cable clutter a thing of the past. Now you can connect your PDA or PC to Bluetooth™ enabled mobile phone with this Bluetooth™ adapter. You can access e-mail & Internet no matter where you are with just a little help from your Bluetooth™ mobile phone. Plus, when you are back in the office, you can hook yourself up to your office network as well as communicate with other Bluetooth™-enabled devices. 3 Chapter 1 1.1 Bluetooth profile support includes: Generic Access Profile (GAP), Serial Port Profile (SPP), Service Discovery Application Profile (SDAP), Generic Object Exchange Profile (GOEP), Object Push Profile (OPP), File Transfer Profile (FTP), Dial-up Network Profile (DUN), LAN Access Profile (LAP), Fax Profile (FAX), Synchronization Profile, Headset Profile, Audio GatewayProfile(AG) Personal Area Network (PAN) Human Interface Device (HID) Hardcopy Cable Replacement Profile (HCRP) 1.2 Drivers support USB Bluetooth: Windows 98SE, Me, 2000, XP, Linux O.S., Mac O.S. X v10.1.2 and higher... 1.3 Mac O.S.X v10.1.2 Mac O.S. X v1.2 has build-in Bluetooth software for USB Bluetooth adapters, therefore no additional Bluetooth software is required. Simply plug in the USB Bluetooth adapter and a Bluetooth icon will appear in the System folder. Open the Bluetooth applet to configure the Bluetooth functions on your Mac system 4 Chapter 2 Application note for Windows 98SE/ME/2000/XP 2.1 Icons used for Bluetooth devices and services Bluetooth icons provide at-a-glance feedback about a device or service's status by changing appearance. The Bluetooth icon in the Windows system tray provides feedback about Bluetooth status. Basic Bluetooth Icon Device Icons for Windows 98SE, Me and 2K 5 Service Icons for Windows 98SE, Me and 2K Device Icons for Windows XP 6 Service Icons for Windows XP NOTE: Only available services are displayed in the menus 7 2.2. Network sharing setting for Windows The Network Access service permits a Bluetooth enabled PC (client) to access the Internet via another Bluetooth enabled PC (Server) that already has an Ethernet connection. Windows network sharing setting PC to PC (Windows 2000 or Windows XP) 1. To enable Internet Connection Sharing on the server PC 2. Click on Start menu-->Settings -->Network and Dial-up Connections and find your Local Area Connection (LAN) that is connected to the Internet. 3. Right click the active LAN connection to open the "Properties" dialog box. 8 4. Click on "Advanced" tab and select the "Internet Connection Sharing" checkbox to enable Internet sharing. 9 5. Click on "Settings..." button and select the services you wish to provide other Bluetooth devices. Click "OK" to save the changes. 6. Go back to the "Network and Dial-up Connections" window, right click the "Bluetooth LAN Access Server Driver" and select "Properties". 10 7. Under "General" tab, click on "Internet Protocol (TCP/IP)" and "Properties". 11 8. Under "General" tab, assign a virtual IP as shown in the picture below. Then click "OK" to save the changes. 9. This allows the server PC to act as a DHCP server towards the client PCs. NOTE: For Win98SE and WinMe, please download and install WinRoute (or similar program) on the Server PC to allow DHCP service. 10. On the client PC, launch the Bluetooth software stack by clicking the "My Bluetooth Places" icon located on the desktop. 11. Double click the "Entire Bluetooth Neighborhood" icon to search for other Bluetooth devices nearby. 12 12. After searching is completed, locate the computer name of the server PC and double click it to discover the Bluetooth services it has to offer. (i.e. Bluetooth Serial Port, Dial-up Networking, File Transfer, Network Access, etc.). 13. Click on the "Network Access" icon to connect to the shared Internet connection on the server PC. 14. Click OK without entering any username or password. If one is already present, click OK anyway and it will still connect. 15. Now you can access the Internet via Bluetooth. Note: If your PC accesses the Internet via a proxy server, remember to configure the proxy setting of you browser program in the client PC. Consult your MIS personnel if you're not sure what to set. 13 Proxy setup 1. To set up proxy, right click "Internet Explorer", select "Properties", select "Connections" tab. Select "BluetoothNull Connection" and click on "Settings...". 14 2. Select the "Proxy server" checkbox and enter the proxy address of you company and Port number. Then click “OK” to save the changes. 15 2.3. File transfer setting for Windows The File Transfer service allows one Bluetooth device to perform file operations on the default File Transfer directory (and the folders and files it contains) of another Bluetooth device. File transfer setting for Windows PC to PC 1. After successful USB adapter setup on two PCs, launch the Bluetooth software stack on both PCs by clicking the "My Bluetooth Places" icon located on the desktop. 2. On one PC …
