SI4-MBDC4201BLUETOOTH USB ADAPTER CLASS 1

Bluetooth USB Adapter User Guider Unwire your life V1.4.2- 920928y 1 Index INTRODUCTION 3 CHAPTER 1 Bluetooth profile support 3 Drivers support 3 Setup for Mac 3 CHAPTER 2 Application note for Windows 98SE/ME/2000/XP 5 Icons used for Bluetooth devices and services 5 Network sharing setting for Windows 8 File transfer setting for Windows 16 Dial-up networking setting for Windows 18 FAX setting 21 PIM Item Transfer setting 22 PIM Synchronization setting 23 Serial Port setting 24 ActiveSync setting 25 Audio Gateway setting for windows 27 Personal area network setting for Windows 29 How to setup an Ad-hoc Network 30 How to setup with Bluetooth Network Access Point 32 2 FCC Regulations: zThis device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. zThis device has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiated radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user‘s authority to operate the equipment. The antenna(s) used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Introduction Bluetooth is an open specification for a cutting-edge technology that enables short-range wireless connections between desktop and laptop computers, personal digital assistants, cellular phones, printers, scanners, digital cameras and even home appliances — on aglobally available band (2.4GHz) for worldwide compatibility. In a nutshell, Bluetooth unplugs your digital peripherals and makes cable clutter a thing of the past. Now you can connect your PDA or PC to Bluetooth™ enabled mobile phone with this Bluetooth™ adapter. You can access e-mail & Internet no matter where you are with just a little help from your Bluetooth™ mobile phone. Plus, when you are back in the office, you can hook yourself up to your office network as well as communicate with other Bluetooth™-enabled devices. 3 Chapter 1 1.1 Bluetooth profile support includes: Generic Access Profile (GAP), Serial Port Profile (SPP), Service Discovery Application Profile (SDAP), Generic Object Exchange Profile (GOEP), Object Push Profile (OPP), File Transfer Profile (FTP), Dial-up Network Profile (DUN), LAN Access Profile (LAP), Fax Profile (FAX), Synchronization Profile, Headset Profile, Audio GatewayProfile(AG) Personal Area Network (PAN) Human Interface Device (HID) Hardcopy Cable Replacement Profile (HCRP) 1.2 Drivers support USB Bluetooth: Windows 98SE, Me, 2000, XP, Linux O.S., Mac O.S. X v10.1.2 and higher... 1.3 Mac O.S.X v10.1.2 Mac O.S. X v1.2 has build-in Bluetooth software for USB Bluetooth adapters, therefore no additional Bluetooth software is required. Simply plug in the USB Bluetooth adapter and a Bluetooth icon will appear in the System folder. Open the Bluetooth applet to configure the Bluetooth functions on your Mac system 4 Chapter 2 Application note for Windows 98SE/ME/2000/XP 2.1 Icons used for Bluetooth devices and services Bluetooth icons provide at-a-glance feedback about a device or service's status by changing appearance. The Bluetooth icon in the Windows system tray provides feedback about Bluetooth status. Basic Bluetooth Icon Device Icons for Windows 98SE, Me and 2K 5 Service Icons for Windows 98SE, Me and 2K Device Icons for Windows XP 6 Service Icons for Windows XP NOTE: Only available services are displayed in the menus 7 2.2. Network sharing setting for Windows The Network Access service permits a Bluetooth enabled PC (client) to access the Internet via another Bluetooth enabled PC (Server) that already has an Ethernet connection. Windows network sharing setting PC to PC (Windows 2000 or Windows XP) 1. To enable Internet Connection Sharing on the server PC 2. Click on Start menu-->Settings -->Network and Dial-up Connections and find your Local Area Connection (LAN) that is connected to the Internet. 3. Right click the active LAN connection to open the "Properties" dialog box. 8 4. Click on "Advanced" tab and select the "Internet Connection Sharing" checkbox to enable Internet sharing. 9 5. Click on "Settings..." button and select the services you wish to provide other Bluetooth devices. Click "OK" to save the changes. 6. Go back to the "Network and Dial-up Connections" window, right click the "Bluetooth LAN Access Server Driver" and select "Properties". 10 7. Under "General" tab, click on "Internet Protocol (TCP/IP)" and "Properties". 11 8. Under "General" tab, assign a virtual IP as shown in the picture below. Then click "OK" to save the changes. 9. This allows the server PC to act as a DHCP server towards the client PCs. NOTE: For Win98SE and WinMe, please download and install WinRoute (or similar program) on the Server PC to allow DHCP service. 10. On the client PC, launch the Bluetooth software stack by clicking the "…

Text truncated - open the document above for the full version.

MAVIN TECHNOLOGY INC. 1/1 Date: Aug./ 25 / 2005 Federal Communications Commission Authorization and Evaluation Division FCC ID：SI4-MBDC4201 Confidentiality Request Pursuant to Sections 0..457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accomparrting this Application As outlined below: 1. Block diagram 2. Schematics 3. Operation Description 4. Parts List The above materials contain trade secrets and proprietary information not customarily Released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Contact Person: Lewis Huang MAVIN TECHNOLOGY INC. 3F, No. 35, Hsin Tai Rd., Chupei City, Taiwan 302, R.O.C. TEL: 886-3-553-5898 FAX: 886-3-553-3289 e-mail: [email protected]

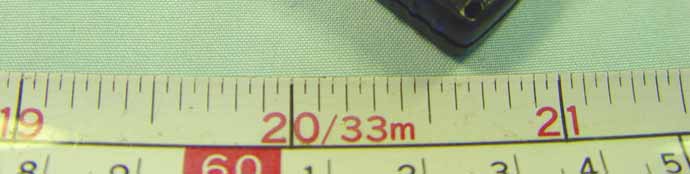

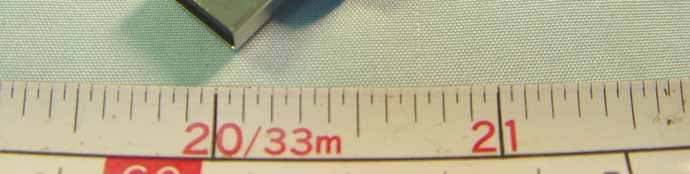

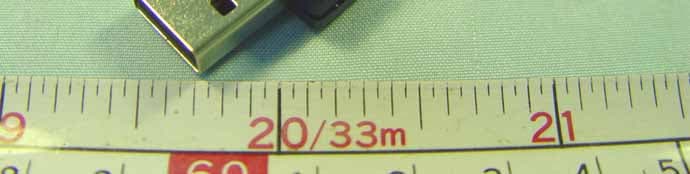

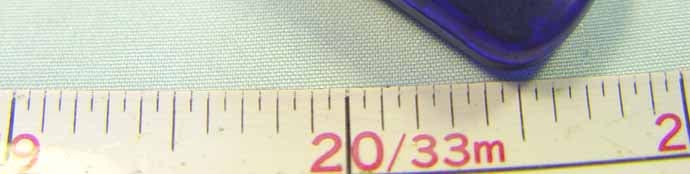

FCC TEST REPORT REPORT NO. : FR581914 SPORTON International Inc. Page Number : A1 OF A8 TEL : 886-2-2696-2468 Report Issued Date : Aug. 29, 2005 FAX : 886-2-2696-2255 Rev. 01 APPENDIX A. External Photographs of EUT FCC TEST REPORT REPORT NO. : FR581914 SPORTON International Inc. Page Number : A2 OF A8 TEL : 886-2-2696-2468 Report Issued Date : Aug. 29, 2005 FAX : 886-2-2696-2255 Rev. 01 FCC TEST REPORT REPORT NO. : FR581914 SPORTON International Inc. Page Number : A3 OF A8 TEL : 886-2-2696-2468 Report Issued Date : Aug. 29, 2005 FAX : 886-2-2696-2255 Rev. 01 FCC TEST REPORT REPORT NO. : FR581914 SPORTON International Inc. Page Number : A4 OF A8 TEL : 886-2-2696-2468 Report Issued Date : Aug. 29, 2005 FAX : 886-2-2696-2255 Rev. 01 FCC TEST REPORT REPORT NO. : FR581914 SPORTON International Inc. Page Number : A5 OF A8 TEL : 886-2-2696-2468 Report Issued Date : Aug. 29, 2005 FAX : 886-2-2696-2255 Rev. 01 FCC TEST REPORT REPORT NO. : FR581914 SPORTON International Inc. Page Number : A6 OF A8 TEL : 886-2-2696-2468 Report Issued Date : Aug. 29, 2005 FAX : 886-2-2696-2255 Rev. 01 FCC TEST REPORT REPORT NO. : FR581914 SPORTON International Inc. Page Number : A7 OF A8 TEL : 886-2-2696-2468 Report Issued Date : Aug. 29, 2005 FAX : 886-2-2696-2255 Rev. 01 FCC TEST REPORT REPORT NO. : FR581914 SPORTON International Inc. Page Number : A8 OF A8 TEL : 886-2-2696-2468 Report Issued Date : Aug. 29, 2005 FAX : 886-2-2696-2255 Rev. 01

FCC TEST REPORT REPORT NO. : FR581914 SPORTON International Inc. Page Number : B1 OF B12 TEL : 886-2-2696-2468 Report Issued Date : Aug. 29, 2005 FAX : 886-2-2696-2255 Rev. 01 APPENDIX B. Internal Photographs of EUT FCC TEST REPORT REPORT NO. : FR581914 SPORTON International Inc. Page Number : B2 OF B12 TEL : 886-2-2696-2468 Report Issued Date : Aug. 29, 2005 FAX : 886-2-2696-2255 Rev. 01 FCC TEST REPORT REPORT NO. : FR581914 SPORTON International Inc. Page Number : B3 OF B12 TEL : 886-2-2696-2468 Report Issued Date : Aug. 29, 2005 FAX : 886-2-2696-2255 Rev. 01 FCC TEST REPORT REPORT NO. : FR581914 SPORTON International Inc. Page Number : B4 OF B12 TEL : 886-2-2696-2468 Report Issued Date : Aug. 29, 2005 FAX : 886-2-2696-2255 Rev. 01 FCC TEST REPORT REPORT NO. : FR581914 SPORTON International Inc. Page Number : B5 OF B12 TEL : 886-2-2696-2468 Report Issued Date : Aug. 29, 2005 FAX : 886-2-2696-2255 Rev. 01 FCC TEST REPORT REPORT NO. : FR581914 SPORTON International Inc. Page Number : B6 OF B12 TEL : 886-2-2696-2468 Report Issued Date : Aug. 29, 2005 FAX : 886-2-2696-2255 Rev. 01 FCC TEST REPORT REPORT NO. : FR581914 SPORTON International Inc. Page Number : B7 OF B12 TEL : 886-2-2696-2468 Report Issued Date : Aug. 29, 2005 FAX : 886-2-2696-2255 Rev. 01 FCC TEST REPORT REPORT NO. : FR581914 SPORTON International Inc. Page Number : B8 OF B12 TEL : 886-2-2696-2468 Report Issued Date : Aug. 29, 2005 FAX : 886-2-2696-2255 Rev. 01 FCC TEST REPORT REPORT NO. : FR581914 SPORTON International Inc. Page Number : B9 OF B12 TEL : 886-2-2696-2468 Report Issued Date : Aug. 29, 2005 FAX : 886-2-2696-2255 Rev. 01 FCC TEST REPORT REPORT NO. : FR581914 SPORTON International Inc. Page Number : B10 OF B12 TEL : 886-2-2696-2468 Report Issued Date : Aug. 29, 2005 FAX : 886-2-2696-2255 Rev. 01 FCC TEST REPORT REPORT NO. : FR581914 SPORTON International Inc. Page Number : B11 OF B12 TEL : 886-2-2696-2468 Report Issued Date : Aug. 29, 2005 FAX : 886-2-2696-2255 Rev. 01 FCC TEST REPORT REPORT NO. : FR581914 SPORTON International Inc. Page Number : B12 OF B12 TEL : 886-2-2696-2468 Report Issued Date : Aug. 29, 2005 FAX : 886-2-2696-2255 Rev. 01

Document No.: 581914 RF Exposure Test Report Date: Sep. 05, 2005 FCC ID: SI4-MBDC4201 Sporton International Inc. This report man not be reproduced, expect in full, without the prior written consent of Sporton International Inc. RF Exposure Test Report for MAVIN TECHNOLOGY INC. MBD-C4.20-1 Equipment : Bluetooth USB Adapter Class1 Trade Name : Mavin Model No. : MBD-C4.20-1 FCC ID : SI4-MBDC4201 Filing Type : Certification Applicant : MAVIN TECHNOLOGY INC. 3F, No. 35, Hsin Tai Rd., Chupei City, Taiwan 302, R.O.C. ‚ Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. SPORTON International Inc. 6F, No.106, Sec. 1, Hsin Tai Wu Rd., Hsi Chih, Taipei Hsien, Taiwan, R.O.C. Document No.: 581914 RF Exposure Test Report Date: Sep. 05, 2005 FCC ID: SI4-MBDC4201 Sporton International Inc. Maximum Permissible Exposure Test Report for MBD-C4.20-1 1.0 Introduction The report has been prepared on behalf of MAVIN TECHNOLOGY INC. Bluetooth USB Adapter Class1 to show compliance with the RF Exposure. 1.1 Requirements Three different categories of transmitters are defined by the FCC in OET Bulletin 65. These categories are fixed installation, mobile and portable and are defined as follows: ƒ Fixed installation: fixed location means that the device, including its antenna, is physically secured at a permanent location and is not able to be easily moved to another location. Additionally, distance to humans form the antenna is maintained to at least 2 meters. ƒ Mobile Devices: a mobile device is defined as a transmitting device designed to be used in other than fixed locations and to be generally used in such a way that a separation distance of at least 20 centimeters is normally maintained between the transmitter’s radiating structures and the body of the user or nearby persons. Transmitters designed to be used by consumers or workers that can be easily re-located, such as a wireless modem operating in a laptop computer, are considered mobile devices if they meet the 20 centimeter separation requirement. The FCC rules for evaluating mobile devices for RF compliance are found in 47 CFR 2.1091. ƒ Portable Devices: a portable device is defined as a transmitting device designed to be used so that the radiating structure(s) of the device is/are within 20 centimeters of the body of the user. Portable device requirements are found in Section 2.1093 of the FCC’s Rules (47 CFR 2.1093) For this test report the Motorola Corporation Indoor UWB Device with unity gain antenna is being done as a mobile device and the MPE is evaluated at the 20cm test distance. The FCC also categorizes the use of the device as based upon the user’s awareness and ability to Document No.: 581914 RF Exposure Test Report Date: Sep. 05, 2005 FCC ID: SI4-MBDC4201 Sporton International Inc. exercise control over his or her exposure. The two categories defined are Occupational/Controlled Exposure and General Population/Uncontrolled Exposure. These two categories are defined as follows: ƒ Occupational/controlled Exposure: In general, occupational/controlled exposure limits are applicable to situation in which persons are exposed as a consequence of their employment, who have been made fully aware of the potential for exposure. Awareness of the potential for RF exposure in a workplcae or similar environment can be provided through specific training as part of a RF safety program. If appropriate, warning signs and labels can also be used to establish such awareness by providing prominent information on the risk of potential exposure and instructions on methods to minimize such exposure risks. ƒ General Population/Uncontrolled Exposure: The general population / uncontrolled exposure limits are applicable to situations in which the general public may be exposed or in which persons who are exposed as a consequence of their employment may not be made fully aware of the potential for exposure or cannot exercise control over their exposure. Members of the general public would come under this category when exposure is not employment-related; for example, in the case of a wireless transmitter that exposes persons in its vicinity. Warning labels placed on low-power consumer devices such as cellular telephones are not considered sufficient to allow the device to be considered under the occupational/controlled category, and the general population/uncontrolled exposure limits apply to these devices. Since there are no warnings or training associated with this unit and it can be used by anyone, Bluetooth USB Adapter Class1 is evaluated to the General Population / Uncontrolled Exposure limits. 1.2 Radio Frequency Radiation Exposure Evaluation For this device, the calculation is as follows: ¾ No Evaluation Required if power is below this threshold: F (GHz) MW dBm 2.48 24.19 13.84 Maximum measured transmitter power for the EUT: Document No.: 581914 RF Exposure Test Report Date: Sep. 05, 2005 FCC ID: SI4-MBDC4201 Sporton International Inc. Pout (dBm) 10.98 Threshold for no RF Exposure evaluation is 13.84 dBm. Transmitter power of this device is 10.98 dBm Conclustion: No RF Exposure evaluation required since Transmitter Pout is below FCC threshold.

FCC TEST REPORT Report No. : FR581914 SPORTON International Inc. FCC ID. : SI4-MBDC4201 TEL : 886-2-2696-2468 Page No. : i FAX : 886-2-2696-2255 Report Issued Date : Aug. 29, 2005 Rev. 01 Table of Contents History of this test report....................................................................................................................................ii 1. General Description of Equipment under Test.............................................................................................1 1.1. Applicant..................................................................................................................................................1 1.2. Manufacturer ...........................................................................................................................................1 1.3. Basic Description of Equipment under Test ............................................................................................1 1.4. Feature of Equipment under Test ...........................................................................................................1 2. Test Configuration of Equipment under Test ...............................................................................................2 2.1. Test Manner ............................................................................................................................................2 2.2. Test Mode ...............................................................................................................................................2 2.3. Connection Diagram of Test System ......................................................................................................2 2.4. Ancillary Equipment List ..........................................................................................................................2 3. RF Utility ...........................................................................................................................................................3 4. General Information of Test............................................................................................................................4 4.1. Test Voltage ............................................................................................................................................4 4.2. Standard for Methods of Measurement...................................................................................................4 4.3. Test in Compliance with ..........................................................................................................................4 4.4. Frequency Range Investigated ...............................................................................................................4 4.5. Test Distance .................................................................................................................. ........................4 5. Report of Measurements and Examinations ................................................................................................5 5.1. List of Measurements and Examinations ................................................................................................5 5.2. Hopping Channel Separation ..................................................................................................................6 5.3. Number of Hopping Frequency .............................................................................................................10 5.5 Dwell Time of Each Frequency within a 30 Seconds Period ................................................................16 5.6 Output Power ........................................................................................................................................36 5.7 100kHz Bandwidth of Frequency Band Edges.....................................................................................40 5.8 Conducted Emission .............................................................................................................................44 5.9 Radiated Emission Measurement .........................................................................................................47 5.10 Antenna Requirements........................................................................................................................53 6. List of Measuring Equipments Used ...........................................................................................................54 7. Uncertainty Evaluation..................................................................................................................................55 Appendix A. External Product Photograph Appendix B. Internal Photograph Appendix C. Setup Photograph FCC TEST REPORT Report No. : FR581914 SPORTON International Inc. FCC ID. : SI4-MBDC4201 TEL : 886-2-2696-2468 Page No. : ii FAX : 886-2-2696-2255 Report Issued Date : Aug. 29, 2005 Rev. 01 History of this test report Report No.: FR581914 Report Issue Date: Aug. 29, 2005 Original Report Issue Date Description FCC TEST REPORT Report No. : FR581914 SPORTON International Inc. FCC ID. : SI4-MBDC4201 TEL : 886-2-2696-2468 Page No. : 1 of 56 FAX : 886-2-2696-2255 Report Issued Date : Aug. 29, 2005 Rev. 01 1. General Description of Equipment under Test 1.1. Applicant MAVIN TECHNOLOGY INC. 3F, NO. 35, Hsin Tai Rd., Chupei City, Taiwan 302, R.O.C. 1.2. Manufacturer MAVIN TECHNOLOGY INC. 3F, NO. 35, Hsin Tai Rd., Chupei City, Taiwan 302, R.O.C. 1.3. Basic Description of Equipment under Test Equipment : Bluetooth USB Adapter Class1 Trade Name : Mavin Model No. : MBD-C4.20-1 FCC ID : SI4-MBDC4201 Power Supply Type : DC 3.3V 1.4. Feature of Equipment under Test Product Feature & Specification 1. Modulation Type/Data Rate GFSK 2. Frequency Range. 2400 MHz ~ 2483.5 MHz USA/Canada: 11 European: 13 Number o f Channels Japan: 13, 14 Other: 79 V 3. Carrier Frequency of each channel 2402+ n*1 MHz, n= …

Text truncated - open the document above for the full version.

FCC TEST REPORT Report No. : FR581914 SPORTON International Inc. Page No. : C1 of C3 TEL : 886-2-2696-2468 Report Issued Date : Aug. 29, 2005 FAX : 886-2-2696-2255 Rev. 01 Conducted Emission FRONT VIEW REAR VIEW Appendix C. Set up Photograph FCC TEST REPORT Report No. : FR581914 SPORTON International Inc. Page No. : C2 of C3 TEL : 886-2-2696-2468 Report Issued Date : Aug. 29, 2005 FAX : 886-2-2696-2255 Rev. 01 SIDE VIEW FCC TEST REPORT Report No. : FR581914 SPORTON International Inc. Page No. : C3 of C3 TEL : 886-2-2696-2468 Report Issued Date : Aug. 29, 2005 FAX : 886-2-2696-2255 Rev. 01 Radiation Emission FRONT VIEW REAR VIEW
