SI5BHP210Bluetooth Internet Telephony Handset

User Manual v0.1 Bluetooth Internet Telephony Handset Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This device complies with FCC RF Exposure limits set forth for an uncontrolled environment, under 47 CFR 2.1093 paragraph (d)(2). This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment has been SAR-evaluated for Normal condition. Chapter 1: Getting to know the Telephone Kit................................................4 Minimum System Requirements..................................................................................4 Unpacking and Checking the Contents........................................................................4 Identifying Components...............................................................................................4 Chapter 2: Getting Started..............................................................................6 Setting up the telephone kit..........................................................................................6 Software Installation.....................................................................................................6 Using the telephone kit.................................................................................................8 Chapter 3: Exploring the Telephone kit Menu.................................................8 Icons shown on the Handset........................................................................................8 Function Keys:.............................................................................................................9 Configurations..............................................................................................................9 Chapter 4: Guide to Basic Functions............................................................10 How to make a call?...................................................................................................10 How to answer a call?................................................................................................10 How to make a conference call?................................................................................10 How to redial the last call? (to be implemented).........................................................11 How to redial any call from Call List?..........................................................................11 Appendix......................................................................................................12 Troubleshooting.........................................................................................................12 Chapter 1: Getting to know the Telephone Kit Minimum System Requirements n PC running Windows XP, 2000 n Skype is installed n At least 400 MHz processor n At least 128 MB RAM n At least 50MB free disk space on your hard drive Unpacking and Checking the Contents Packing content n BHP-210 Blutooth VoIP Phone n BUB-211 High Power Bluetooth USB Adapter n 700 mAh Li-on battery n 100 cm USB cable (mini-USB to B-type connector) n Quick guide n CD (with software, driver, utility and user guide) Identifying Components BHP-210 Front View Back View BUB-211 Chapter 2: Getting Started Setting up the telephone kit 1. Place the included 700 mAh Li-on battery into the BHP-210’s battery compartment 2. Connect USB cable to charge battery pack (please let the battery charge for a full 6 hours before using the phone for the first time) Software Installation 1. Turn on your PC 2. Please insert the Utility CD into CD-ROM drive, and then follow the instruction below to install Bluetooth software. Note: DO NOT plug the USB Adapter into the USB port before software installation 3. Follow the directions on your screen to install the software.

1-1. Please Click “Install Bluetooth Driver” Item. 1-2. Please Click “Install” icon. 1-3. Please Click “Next” 1-4. Please Choose “I accept the terms in the license agreement”, then click “Next” Using the telephone kit Chapter 3: Exploring the Telephone kit Menu Icons shown on the Handset Icon Meaning Icon Meaning Homepage Contacts Ring Bell Call List Skype out account Skypeme Do Not Disturb Online Offline Away Not Available Making calls In ChangeStatus Mode Configuration Status-SkypeMe Status-Offline Status-Invisible Status-Not Disturb Status-N/A Status-Away Status-Online Battery Full (The black area goes Charging 1-1. Double Click the “Blutooth VoIP Phone” icon on your desktop. 1-2. Check “Allow this program to use Skype”. Click “OK” lower as the battery charge runs low) Battery Empty Battery Full (when you are charging) Function Keys: Sync Contacts Configuration Cancel Off-hook Make a call Answer a call List (Up/Down)p Power ON/OFF On-hook (hand-up) End a call Exit Configurations Press to enter configuration mode Function Introductions Functions Descriptions Call List“Missed Display missed call lists Call List“Incoming Display Incoming call lists Call List“Outgoing Display Outgoing call lists ChangeStatus Status options: “SkypeMe”, “Online”, “Away”, “N/A”, “Not Disturb”, “Invisible”, “Offline” Credit Showing how many skype out credits you have Ringer Test ringer BT Pairing Pair Bluetooth devices F/W Version Showing F/W version installed in your BHP-210 F/W Upgrade Upgrade firmware Chapter 4: Guide to Basic Functions How to make a call? 1. Power on “Wait until “press button to sync contact lists with PC skype 2. Use List button to scroll up/down the contact lists 3. Press to start a call. 4. Press to disconnect this call How to answer a call? 1. When you hear the ring bell from BHP-210, press to answer this call How to make a conference call? A. invite another contact when you are chatting 1. Press to go to the contact list menu. 2. Make 1 st call 3. Press to invite 2 nd contact “ Press to select 4. Select CON CALL to invite 2 nd contact to join this conference call with 1 st contact 5. Select “P2P CALL” to hold 1 st call and talk to 2 nd contact. B. invite contacts and conference them together 1. Press to go to the contact list menu. 2. Press “*” to mark the contact you want to include in this conference call. (Conference participants (max 4+host) 3. Press to start this conference call How to redial the last call? (to be implemented) 1. Press to redial the last call. 2. Select the contact (from the outgoing call list) you want to dial to make a call. How to redial any call from Call List? 1. Redial from Missed Calls: Press “Call List“Missed“Choose one contact to dial. (press to cancel this action) 2. Redial from Incoming Calls: Press “Call List“Incoming Calls“Choose one contact to dial. (press to cancel this action) 3. Redial from Outgoing Calls: Press “Call List“Outgoing Calls“Choose one contact to dial. (press to cancel this action) Appendix Troubleshooting Problem: Popup “Please keyin the BT MAC address like xx:xx:xx:xx 1. Please input the MAC address of your Bluetooth Phone. Note: You can find the device address of your BHP-210 from it’s back label* Note: please remove the battery to find the back label

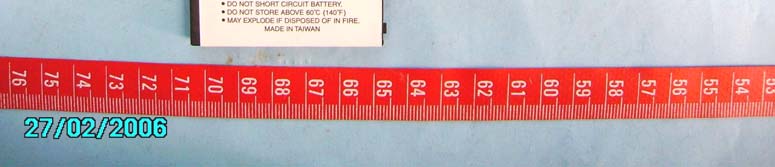

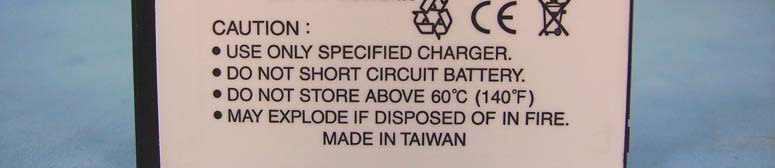

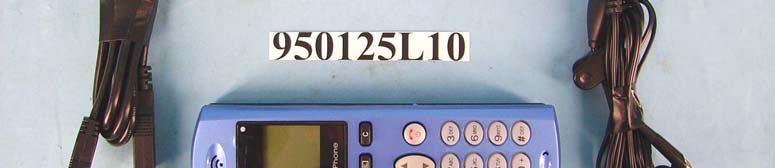

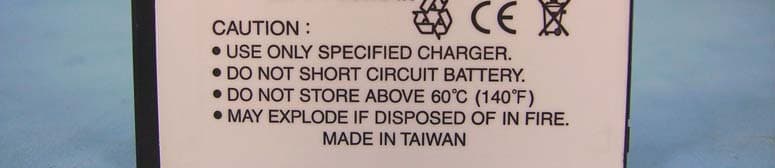

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3

Page 1 LABEL LOCATION FCC ID: SI5BHP210

FCC ID : SI5BHP210 Bluetooth Internet Telephony Handset C=1.75(mm) BHP-210 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference. (2) this device must accept any interference received, including interference that may cause undesired operations. 40 0.15 + - + - 20 0.15 BHP-210 BOTTOM LABEL

Page 4 Page 5 Page 6 Page 7 Page 8

FCC ID: SI5BHP210 Report No. RF950125L10 Operational Description The transmitter of the EUT (Bluetooth Internet Telephony Handset) is powered by 3.7Vdc from lithium battery or 5Vdc from AC adapter or 5Vdc from host equipment. The antenna is PIFA antenna without antenna connector. This device is a Frequency Hopping device with 79 hopping frequencies. For more detailed instruction, please take a look at the user’s manual.

A - 1 APPENDIX A: TEST DATA Liquid Level Photo HSL 2450MHz D=151mm MSL 2450MHz D=155mm A - 2 Date/Time: 2006/2/25 08:36:02 Test Laboratory: Advance Data Technology Right Head-Cheek-GFSK-Ch0-Mode 1 DUT: Bluetooth Internet Telephony Handset ; Type: BHP-210 ; Test Frequency: 2402 MHz Communication System: Bluetooth ; Frequency: 2402 MHz ; Duty Cycle: 1:1 Phantom: SAM 12 Medium parameters used: f = 2402 MHz; σ = 1.81 mho/m; ε r = 40; ρ = 1000 kg/m 3 ; Liquid level: 151 mm Phantom section: Right Section ; DUT test position : Cheek ; Modulation type: GFSK Antenna type : PIFA Antenna ; Air temp. : 22.1 degrees ; Liquid temp. : 21.1 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1790; ConvF(4.74, 4.74, 4.74) ; Calibrated: 2004/12/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579; Calibrated: 2005/3/23 - Phantom: SAM 12; Type: SAM V4.0; Serial: TP 1202 - Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 160 Touch position - Low Channel 0/Area Scan (7x11x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.277 mW/g Touch position - Low Channel 0/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 12.7 V/m Peak SAR (extrapolated) = 0.476 W/kg SAR(1 g) = 0.281 mW/g; SAR(10 g) = 0.157 mW/g Maximum value of SAR (measured) = 0.304 mW/g Touch position - Low Channel 0/Zoom Scan (7x7x7) (7x7x7)/Cube 1: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 12.7 V/m Peak SAR (extrapolated) = 0.462 W/kg SAR(1 g) = 0.250 mW/g; SAR(10 g) = 0.134 mW/g Maximum value of SAR (measured) = 0.272 mW/g A - 3 Date/Time: 2006/2/25 09:08:29 Test Laboratory: Advance Data Technology Right Head-Cheek-GFSK-Ch39-Mode 1 DUT: Bluetooth Internet Telephony Handset ; Type: BHP-210 ; Test Frequency: 2441 MHz Communication System: Bluetooth ; Frequency: 2441 MHz ; Duty Cycle: 1:1 Phantom: SAM 12 Medium parameters used: f = 2441 MHz; σ = 1.86 mho/m; ε r = 39.8; ρ = 1000 kg/m 3 ; Liquid level: 151 mm Phantom section: Right Section ; DUT test position : Cheek ; Modulation type: GFSK Antenna type : PIFA Antenna ; Air temp. : 22.1 degrees ; Liquid temp. : 21.1 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1790; ConvF(4.74, 4.74, 4.74) ; Calibrated: 2004/12/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579; Calibrated: 2005/3/23 - Phantom: SAM 12; Type: SAM V4.0; Serial: TP 1202 - Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 160 Touch position - Mid Channel 39/Area Scan (7x11x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.302 mW/g Touch position - Mid Channel 39/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 13.2 V/m Peak SAR (extrapolated) = 0.564 W/kg SAR(1 g) = 0.319 mW/g; SAR(10 g) = 0.175 mW/g Maximum value of SAR (measured) = 0.349 mW/g Touch position - Mid Channel 39/Zoom Scan (7x7x7) (7x7x7)/Cube 1: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 13.2 V/m Peak SAR (extrapolated) = 0.577 W/kg SAR(1 g) = 0.299 mW/g; SAR(10 g) = 0.158 mW/g Maximum value of SAR (measured) = 0.324 mW/g A - 4 A - 5 Date/Time: 2006/2/25 09:52:04 Test Laboratory: Advance Data Technology Right Head-Cheek-GFSK-Ch78-Mode 1 DUT: Bluetooth Internet Telephony Handset ; Type: BHP-210 ; Test Frequency: 2480 MHz Communication System: Bluetooth ; Frequency: 2480 MHz ; Duty Cycle: 1:1 Phantom: SAM 12 Medium parameters used: f = 2480 MHz; σ = 1.89 mho/m; ε r = 39.6; ρ = 1000 kg/m 3 ; Liquid level: 151 mm Phantom section: Right Section ; DUT test position : Cheek ; Modulation type: GFSK Antenna type : PIFA Antenna ; Air temp. : 22.1 degrees ; Liquid temp. : 21.1 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1790; ConvF(4.74, 4.74, 4.74) ; Calibrated: 2004/12/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579; Calibrated: 2005/3/23 - Phantom: SAM 12; Type: SAM V4.0; Serial: TP 1202 - Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 160 Touch position - High Channel 78/Area Scan (7x11x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.250 mW/g Touch position - High Channel 78/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 12.5 V/m Peak SAR (extrapolated) = 0.462 W/kg SAR(1 g) = 0.261 mW/g; SAR(10 g) = 0.144 mW/g Maximum value of SAR (measured) = 0.284 mW/g Touch position - High Channel 78/Zoom Scan (7x7x7) (7x7x7)/Cube 1: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 12.5 V/m Peak SAR (extrapolated) = 0.499 W/kg SAR(1 g) = 0.254 mW/g; SAR(10 g) = 0.132 mW/g Maximum value of SAR (measured) = 0.278 mW/g A - 6 Date/Time: 2006/2/25 10:23:36 Test Laboratory: Advance Data Technology Right Head-Tilt-GFSK-Ch0-Mode 2 DUT: Bluetooth Internet Telephony Handset ; Type: BHP-210 ; Test Frequency: 2402 MHz Communication System: Bluetooth ; Frequency: 2402 MHz; Duty Cycle: 1:1 Medium: HSL2450 Medium parameters used: f = 2402 MHz; σ = 1.81 mho/m; ε r = 40; ρ = 1000 kg/m 3 ; Liquid level: 151 mm Phantom section: Right Section ; DUT test position : Tilt ; Modulation type: GFSK Antenna type : PIFA Antenna ; Air temp. : 22.1 degrees ; Liquid temp. : 21.1 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1790 ; ConvF(4.74, 4.74, 4.74) ; Calibrated: 2004/12/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579; Calibrated: 2005/3/23 - Phantom: SAM 12; Type: SAM V4.0; Serial: TP 1202 - Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 160 Tilt position - Low Channel 0/Area Scan (7x11x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.243 mW/g Tilt position - Low Channel 0/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 12.5 V/m Peak SAR (extrapolated) = 0.489 W/kg SAR(1 g) = 0.238 mW/g; SAR(10 g) = 0.122 mW/g Maximum value of SAR (measured) = 0.259 mW/g A - 7…

Text truncated - open the document above for the full version.

B - 1 APPENDIX B: ADT SAR MEASUREMENT SYSTEM C - 1 APPENDIX C: PHOTOGRAPHS OF SYSTEM VALIDATION D - 1 APPENDIX D: SYSTEM CERTIFICATE & CALIBRATION D1: SAM PHANTOM D - 3 D2: DOSIMETRIC E-FIELD PROBE D - 12 D3: DAE D - 16 D4: SYSTEM VALIDATION DIPOLE

Report no.: SA950125L101Report Format Version 2.0.3 SAR TEST REPORT REPORT NO.: SA950125L10 MODEL NO.: BHP-210 RECEIVED: Jan. 26, 2006 TESTED: Feb. 23 ~ Feb. 25, 2006 ISSUED: Feb. 27, 2006 APPLICANT: U-MEDIA Communications, Inc. ADDRESS: 9F, No.1, Jin-shan 7th St., Hsinchu 300, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14 th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 42 pages in total except Appendix. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. No. 2177-01 Report no.: SA950125L102Report Format Version 2.0.3 TABLE OF CONTENTS 1.CERTIFICATION .........................................................................................................3 2.GENERAL INFORMATION..........................................................................................4 2.1GENERAL DESCRIPTION OF EUT .........................................................................4 2.2GENERAL DESCRIPTION OF APPLIED STANDARDS ..........................................5 2.3GENERAL INOFRMATION OF THE SAR SYSTEM.................................................5 2.4GENERAL DESCRIPTION OF THE SPATIAL PEAK SAR EVALUATION................9 3.DESCRIPTION OF SUPPORT UNITS ......................................................................12 4.DESCRIPTION OF TEST MODES AND CONFIGURATIONS ..................................13 4.1.DESCRIPTION OF ANTENNA LOCATION ............................................................13 4.2.DESCRIPTION OF ASSESSMENT POSITION......................................................14 4.3.DESCRIPTION OF TEST MODE ...........................................................................16 4.4.SUMMARY OF TEST RESULTS ............................................................................17 5.TEST RESULTS ........................................................................................................18 5.1TEST PROCEDURES ............................................................................................18 5.2MEASURED SAR RESULTS..................................................................................20 5.3SAR LIMITS............................................................................................................26 5.4RECIPES FOR TISSUE SIMULATING LIQUIDS ...................................................27 5.5TEST EQUIPMENT FOR TISSUE PROPERTY .....................................................29 6.SYSTEM VALIDATION ..............................................................................................30 6.1TEST EQUIPMENT ................................................................................................30 6.2TEST PROCEDURE...............................................................................................31 6.3VALIDATION RESULTS..........................................................................................33 6.4SYSTEM VALIDATION UNCERTAINTIES..............................................................34 7.MEASUREMENT SAR PROCEDURE UNCERTAINTIES.........................................35 7.1.PROBE CALIBRATION UNCERTAINTY ................................................................35 7.2.ISOTROPY UNCERTAINTY...................................................................................36 7.3.BOUNDARY EFFECT UNCERTAINTY ..................................................................36 7.4.PROBE LINEARITY UNCERTAINTY .....................................................................37 7.5.READOUT ELECTRONICS UNCERTAINTY .........................................................37 7.6.RESPONSE TIME UNCERTAINTY........................................................................37 7.7.INTEGRATION TIME UNCERTAINTY ...................................................................38 7.8.PROBE POSITIONER MECHANICAL TOLERANCE ............................................39 7.9.PROBE POSITIONING...........................................................................................39 7.10. PHANTOM UNCERTAINTY ...................................................................................40 7.11. DASY4 UNCERTAINTY BUDGET .........................................................................41 8.INFORMATION ON THE TESTING LABORATORIES ..............................................42 APPENDIX A: TEST CONFIGURATIONS AND TEST DATA APPENDIX B: ADT SAR MEASUREMENT SYSTEM APPENDIX C: PHOTOGRAPHS OF SYSTEM VALIDATION APPENDIX D: SYSTEM CERTIFICATE & CALIBRATION Report no.: SA950125L103Report Format Version 2.0.3 1. CERTIFICATION PRODUCT: Bluetooth Internet Telephony Handset MODEL: BHP-210 BRAND: U-MEDIA APPLICANT: U-MEDIA Communications, Inc. TESTED: Feb. 23 ~ Feb. 25, 2006 TEST SAMPLE: ENGINEERING SAMPLE STANDARDS: FCC Part 2 (Section 2.1093), RSS-102 FCC OET Bulletin 65, Supplement C (01-01), The above equipment has been tested by Advance Data Technology Corporation, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY:, DATE:Feb. 27, 2006 Rebecca Huang TECHNICAL ACCEPTANCE :, DATE:Feb. 27, 2006 Responsible for RF Stanely Hsu APPROVED BY:, DATE:Feb. 27, 2006 Gary Chang / Supervisor Report no.: SA950125L104Report Format Version 2.0.3 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT PRODUCT Bluetooth Internet Telephony Handset MODEL NO. BHP-210 FCC ID SI5BHP210 POWER …

Text truncated - open the document above for the full version.

Report No.: RF950125L10 1 Report Format Version 2.0.4 FCC TEST REPORT REPORT NO.: RF950125L10 MODEL NO.: BHP-210 RECEIVED: Jan. 26, 2006 TESTED: Feb. 09 ~ Feb. 20, 2006 ISSUED: Feb. 23, 2006 APPLICANT: U-MEDIA Communications, Inc. ADDRESS: 9F, No.1, Jin-shan 7th St., Hsinchu 300, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14 th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 88 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. NO. 2177-01 Report No.: RF950125L10 2 Report Format Version 2.0.4 TABLE OF CONTENTS 1. CERTIFICATION............................................................................................4 2. SUMMARY OF TEST RESULTS.......................................................................5 2.1 MEASUREMENT UNCERTAINTY .............................................................................6 3. GENERAL INFORMATION..............................................................................7 3.1 GENERAL DESCRIPTION OF EUT ..........................................................................7 3.2 DESCRIPTION OF TEST MODES ............................................................................8 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST........................................................9 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL............................10 3.2.3 GENERAL DESCRIPTION OF APPLIED STANDARDS...........................................12 3.2.4 DESCRIPTION OF SUPPORT UNITS .....................................................................12 4. TEST TYPES AND RESULTS........................................................... ............13 4.1 CONDUCTED EMISSION MEASUREMENT...........................................................13 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT .........................................13 4.1.2 TEST INSTRUMENTS .............................................................................................13 4.1.3 TEST PROCEDURES..............................................................................................14 4.1.4 DEVIATION FROM TEST STANDARD ....................................................................14 4.1.5 TEST SETUP...........................................................................................................15 4.1.6 EUT OPERATING CONDITIONS.............................................................................16 4.1.7 TEST RESULTS ......................................................................................................17 4.2 RADIATED EMISSION MEASUREMENT................................................................29 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT ..............................................29 4.2.2 TEST INSTRUMENTS .............................................................................................30 4.2.3 TEST PROCEDURES..............................................................................................31 4.2.4 DEVIATION FROM TEST STANDARD ....................................................................31 4.2.5 TEST SETUP...........................................................................................................32 4.2.6 EUT OPERATING CONDITIONS.............................................................................32 4.2.7 TEST RESULTS ......................................................................................................33 4.3 NUMBER OF HOPPING FREQUENCY USED........................................................41 4.3.1 LIMIT OF HOPPING FREQUENCY USED...............................................................41 4.3.2 TEST INSTRUMENTS .............................................................................................41 4.3.3 TEST PROCEDURES..............................................................................................41 4.3.4 DEVIATION FROM TEST STANDARD ....................................................................42 4.3.5 TEST SETUP...........................................................................................................42 4.3.6 TEST RESULTS ......................................................................................................42 4.4 DWELL TIME ON EACH CHANNEL........................................................................45 4.4.1 LIMIT OF DWELL TIME USED ................................................................................45 4.4.2 TEST INSTRUMENTS .............................................................................................45 4.4.3 TEST PROCEDURES..............................................................................................45 Report No.: RF950125L10 3 Report Format Version 2.0.4 4.4.4 DEVIATION FROM TEST STANDARD ....................................................................45 4.4.5 TEST SETUP...........................................................................................................46 4.4.6 TEST RESULTS ......................................................................................................46 4.5 CHANNEL BANDWIDTH.........................................................................................54 4.5.1 LIMITS OF CHANNEL BANDWIDTH .......................................................................54 4.5.2 TEST INSTRUMENTS .............................................................................................54 4.5.3 TEST PROCEDURE.............................................................…

Text truncated - open the document above for the full version.

Report No.: RF950125L10 83 Report Format Version 2.0.5 5. PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST MODE A Report No.: RF950125L10 84 Report Format Version 2.0.5 MODE B Report No.: RF950125L10 85 Report Format Version 2.0.5 RADIATED EMISSION TEST MODE A Report No.: RF950125L10 86 Report Format Version 2.0.5 MODE B
