SI5HCA100Wireless Digital Audio Player

1. Introduction The AudioMate is a standalone multifunction wireless entertainment appliance that supports digital audio player (MP3, WMA), Internet radio, FM radio receiver and alarm clock functionalities in a box. The digital audio player feature can receive and playback audio streaming contents wirelessly from your premium content providers, or existed media server at home, or retrieve and playback digital audio contents from local USB based storage devices, like portable USB flash, MP3 player or USB based hard-drive. AudioMate can also act as an Internet radio that lets you enjoy cool Internet live radio without need to rely on your PC. In addition, the build-in FM radio feature of AudioMate lets you listen to traditional FM radio programs if you don’t have Internet available at your place. The built-in high quality stereo speakers eliminate the need of extra accessories while enjoy your favorite music. 2. Main features: - Hardware • Compatible with standard IEEE 802.11b and 802.11g standards • Acting as a client in infrastructure wireless network • Support site survey and SSID selection/connect via local UI • Support Wi-Fi certificated security, such as WEP and WPA-PSK (only WPA-PSK needed for home applications). • Built-in 128 x 64 pixels graphic based LCD with backlight. • Built-in 2-channel high quality stereo speakers. • Built-in USB host for connecting to local storage devices. • Built-in FM radio receiver to receive FM radio programs. - Software • Play audio files (MP3, WMA) to built-in stereo speakers or external audio output • Play Internet content services, such as premium audio content, Internet radio. • Management schemes „ By infrared remote controller, or local LCD UI and buttons for configuration and control. „ By PC host utility, user can customize Internet radio profiles. Subscribe Internet premium audio contents. • Support seeking function while playing audio clips. Wireless Digital Audio Player HCA-100 • Support Windows Connect Now self-configure to appropriate wireless network settings. • Support auto-discover and access to the content over the network, which may reside on PC-based media server, networked HDD storage or other digital media devices, providing that these devices support de facto Digital Home protocols, such as UPnP AV, Intel NMPR, DLNA protocols, or Microsoft Media Connect solutions. • Play audio files in USB storage device via built-in USB host port. • Normal alarm clock function Keypad definition: UPPER arrow key RIGHT arrow key LEFT arrow key DOWN arrow key ENTER, PLAY, PAUS key Volume up Volume down AudioMate Remote Controller Layout 3. Getting Start AudioMate supports de facto Digital Home protocols, such as UPnP AV, Intel NMPR, DLNA protocols. It can work with all UPnP compliant media servers. However, for better AudioMate evaluation, you are recommended to use Microsoft Windows Media Connect running over Windows XP with SP2 (Service Pack 2) as your media server. In addition, AudioMate also supports Windows Connect Now (WCN) self configuration. AudioMate provides a built-in USB host port for WCN. You are recommended to use Windows Connect Now (WCN) to easily setup your WLAN network to appropriate settings. Learn more about Windows XP SP2, please visit http://www.microsoft.com/windowsxp/sp2/default.mspx For the details about Windows Media Connect, please visit Microsoft Web site http://www.microsoft.com/downloads/details.aspx?FamilyID=56fd1b34-48ba-4 24b-9227-7c10e2e9fff1&displaylang=en And visit http://www.microsoft.com/whdc/device/netattach/WCN.mspx to get the detail information of Windows Connect Now (WCN) Note: You have to update your Windows XP to SP2 before you enable WCN function and install Windows Media Connect media server. Wired Ethernet Connection (option) Depending on your router requirement, you can select either dynamic IP address assigned by your DHCP server (or router) or you can assign static IP address for AudioMate manually. You are always recommended to use dynamic IP address (“Audo” mode) for wired connections, if applicable. Using dynamic IP address assigned by DHCP server (“Auto” mode) – Factory Default To establish wired Ethernet connection, you just need to simply connect RJ-45 cable (with dynamic IP address assignment) to AudioMate, AudioMate will get IP address from DHCP server and activate Ethernet connection automatically. For the details of DHCP server setup, please refer to your DHCP-ready broadband router user’s manual. Go to Main Screen Æ Settings (or press “Setup” hot key on remote controller directly) Æ select “Interface Setting” Æ select “Ethernet” Æ go to “IP Setting” Æ select “Network Mode” Æ select “Auto” Using static IP address You can use static IP address for the wired connections. To use static IP address for network connections, you have to assign and specify the dedicated IP address, corresponding network Mask, Sub-net, DNS address, etc... information at both router side and AudioMate. Go to Main Screen Æ Settings (or press “Setup” hot key on remote controller directly) Æ select “Interface Setting” Æ select “Ethernet” Æ go to “IP Setting” Æ select “Network Mode” Æ select “Static Æ go to “IP Address” and assign dedicated IP address for AudioMate Æ Go to “Subnet mask” and enter the mask Æ go to “Default Gateway” and give gateway IP address (usually the IP address of your router) Æ go to “DNS Server” setting and enter DNS server address WLAN Connection WLAN Connection with Security Disabled (no security) To make WLAN connection without security, you can follow the procedure: Main Screen Æ “Settings” menu Æ “Network Setting” menu (or press “SETUP” button on remote controller) Æ “WLAN Setting Wizard” menu, then press ENTER. AudioMate will do wireless LAN site survey automatically. Choose the appropriate WLAN AP (SSID) for your WLAN connection. Enable WLAN Security with WCN (Windows Connect Now) AudioMate supports Windows Connect Now (WCN) self configuration. AudioMate provides a built-in USB host port fo…

Text truncated - open the document above for the full version.

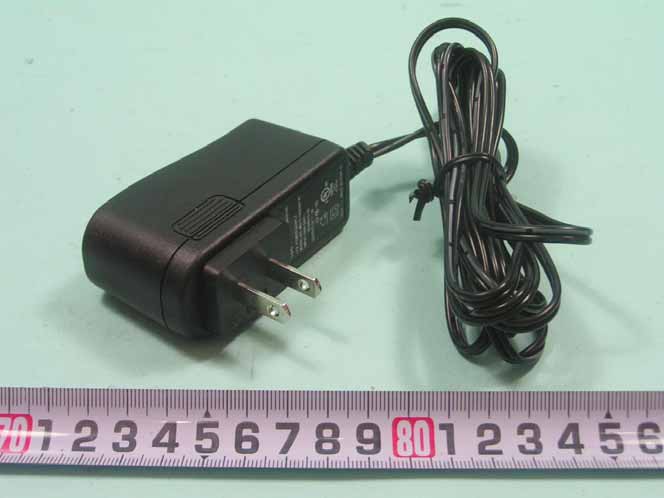

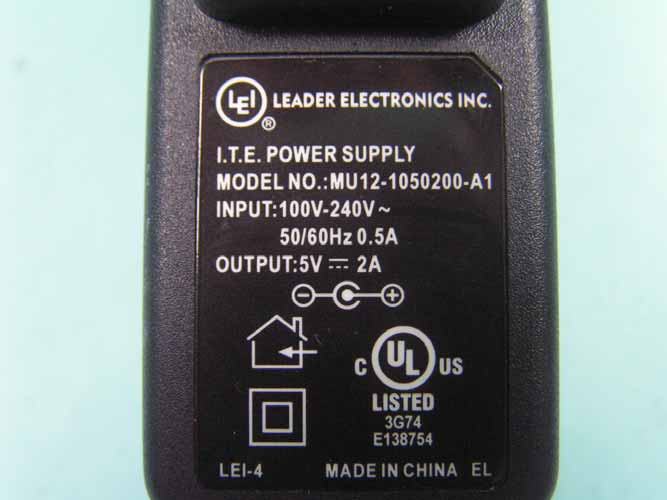

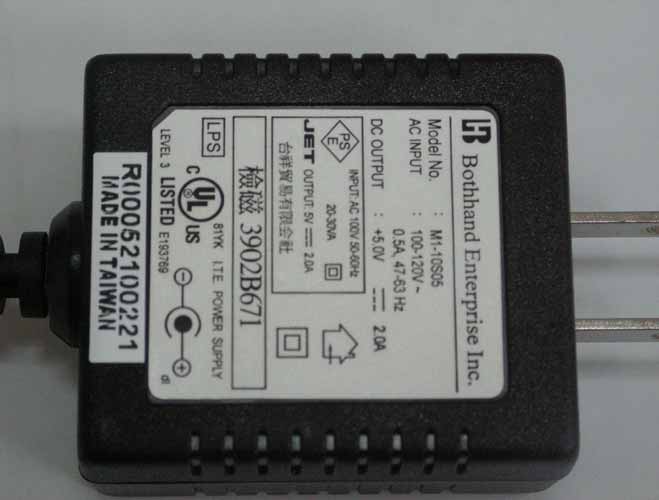

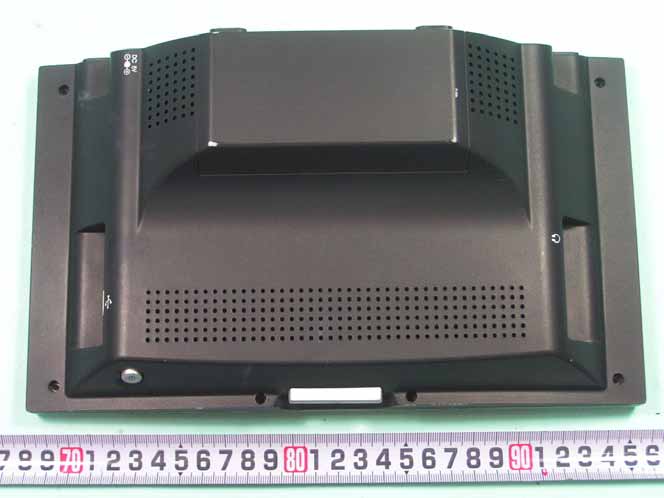

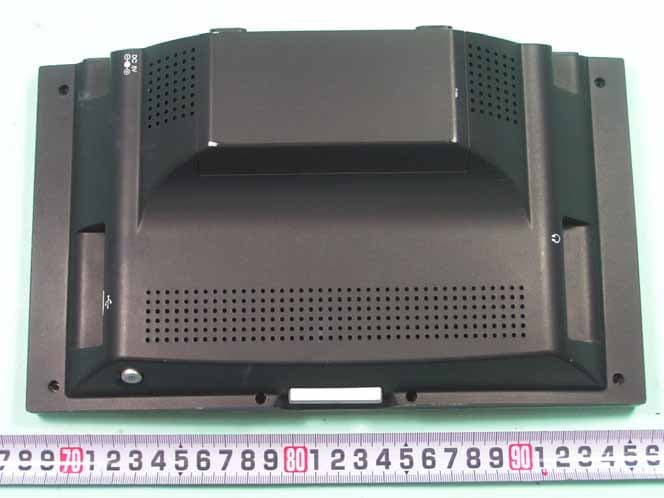

T SPORTON International Inc. ISSUED DATE : Aug,17,2005 TEL : 886-2-2696-2468 PAGE NUMBER : A1 OF A55 FAX : 886-2-2696-2255 FRONT VIEW REAR VIEW APPENDIX A. Photographs of EUT T SPORTON International Inc. ISSUED DATE : Aug,17,2005 TEL : 886-2-2696-2468 PAGE NUMBER : A2 OF A55 FAX : 886-2-2696-2255 FRONT VIEW REAR VIEW T SPORTON International Inc. ISSUED DATE : Aug,17,2005 TEL : 886-2-2696-2468 PAGE NUMBER : A3 OF A55 FAX : 886-2-2696-2255 FRONT VIEW REAR VIEW T SPORTON International Inc. ISSUED DATE : Aug,17,2005 TEL : 886-2-2696-2468 PAGE NUMBER : A4 OF A55 FAX : 886-2-2696-2255 FRONT VIEW REAR VIEW T SPORTON International Inc. ISSUED DATE : Aug,17,2005 TEL : 886-2-2696-2468 PAGE NUMBER : A5 OF A55 FAX : 886-2-2696-2255 FRONT VIEW REAR VIEW T SPORTON International Inc. ISSUED DATE : Aug,17,2005 TEL : 886-2-2696-2468 PAGE NUMBER : A6 OF A55 FAX : 886-2-2696-2255 FRONT VIEW REAR VIEW T SPORTON International Inc. ISSUED DATE : Aug,17,2005 TEL : 886-2-2696-2468 PAGE NUMBER : A7 OF A55 FAX : 886-2-2696-2255 FRONT VIEW REAR VIEW T SPORTON International Inc. ISSUED DATE : Aug,17,2005 TEL : 886-2-2696-2468 PAGE NUMBER : A11 OF A55 FAX : 886-2-2696-2255 FRONT VIEW REAR VIEW T SPORTON International Inc. ISSUED DATE : Aug,17,2005 TEL : 886-2-2696-2468 PAGE NUMBER : A12 OF A55 FAX : 886-2-2696-2255 FRONT VIEW REAR VIEW T SPORTON International Inc. ISSUED DATE : Aug,17,2005 TEL : 886-2-2696-2468 PAGE NUMBER : A36 OF A55 FAX : 886-2-2696-2255 FRONT VIEW REAR VIEW T SPORTON International Inc. ISSUED DATE : Aug,17,2005 TEL : 886-2-2696-2468 PAGE NUMBER : A37 OF A55 FAX : 886-2-2696-2255 FRONT VIEW REAR VIEW T SPORTON International Inc. ISSUED DATE : Aug,17,2005 TEL : 886-2-2696-2468 PAGE NUMBER : A38 OF A55 FAX : 886-2-2696-2255 FRONT VIEW REAR VIEW T SPORTON International Inc. ISSUED DATE : Aug,17,2005 TEL : 886-2-2696-2468 PAGE NUMBER : A39 OF A55 FAX : 886-2-2696-2255 FRONT VIEW REAR VIEW T SPORTON International Inc. ISSUED DATE : Aug,17,2005 TEL : 886-2-2696-2468 PAGE NUMBER : A40 OF A55 FAX : 886-2-2696-2255 FRONT VIEW REAR VIEW T SPORTON International Inc. ISSUED DATE : Aug,17,2005 TEL : 886-2-2696-2468 PAGE NUMBER : A41 OF A55 FAX : 886-2-2696-2255 FRONT VIEW REAR VIEW

T SPORTON International Inc. ISSUED DATE : Aug,17,2005 TEL : 886-2-2696-2468 PAGE NUMBER : A8 OF A55 FAX : 886-2-2696-2255 FRONT VIEW REAR VIEW T SPORTON International Inc. ISSUED DATE : Aug,17,2005 TEL : 886-2-2696-2468 PAGE NUMBER : A9 OF A55 FAX : 886-2-2696-2255 FRONT VIEW REAR VIEW T SPORTON International Inc. ISSUED DATE : Aug,17,2005 TEL : 886-2-2696-2468 PAGE NUMBER : A10 OF A55 FAX : 886-2-2696-2255 FRONT VIEW REAR VIEW T SPORTON International Inc. ISSUED DATE : Aug,17,2005 TEL : 886-2-2696-2468 PAGE NUMBER : A11 OF A55 FAX : 886-2-2696-2255 FRONT VIEW REAR VIEW T SPORTON International Inc. ISSUED DATE : Aug,17,2005 TEL : 886-2-2696-2468 PAGE NUMBER : A12 OF A55 FAX : 886-2-2696-2255 FRONT VIEW REAR VIEW T SPORTON International Inc. ISSUED DATE : Aug,17,2005 TEL : 886-2-2696-2468 PAGE NUMBER : A13 OF A55 FAX : 886-2-2696-2255 FRONT VIEW REAR VIEW T SPORTON International Inc. ISSUED DATE : Aug,17,2005 TEL : 886-2-2696-2468 PAGE NUMBER : A14 OF A55 FAX : 886-2-2696-2255 FRONT VIEW REAR VIEW T SPORTON International Inc. ISSUED DATE : Aug,17,2005 TEL : 886-2-2696-2468 PAGE NUMBER : A15 OF A55 FAX : 886-2-2696-2255 FRONT VIEW REAR VIEW T SPORTON International Inc. ISSUED DATE : Aug,17,2005 TEL : 886-2-2696-2468 PAGE NUMBER : A16 OF A55 FAX : 886-2-2696-2255 FRONT VIEW REAR VIEW T SPORTON International Inc. ISSUED DATE : Aug,17,2005 TEL : 886-2-2696-2468 PAGE NUMBER : A17 OF A55 FAX : 886-2-2696-2255 FRONT VIEW REAR VIEW T SPORTON International Inc. ISSUED DATE : Aug,17,2005 TEL : 886-2-2696-2468 PAGE NUMBER : A18 OF A55 FAX : 886-2-2696-2255 FRONT VIEW REAR VIEW T SPORTON International Inc. ISSUED DATE : Aug,17,2005 TEL : 886-2-2696-2468 PAGE NUMBER : A19 OF A55 FAX : 886-2-2696-2255 FRONT VIEW REAR VIEW T SPORTON International Inc. ISSUED DATE : Aug,17,2005 TEL : 886-2-2696-2468 PAGE NUMBER : A20 OF A55 FAX : 886-2-2696-2255 FRONT VIEW REAR VIEW T SPORTON International Inc. ISSUED DATE : Aug,17,2005 TEL : 886-2-2696-2468 PAGE NUMBER : A21 OF A55 FAX : 886-2-2696-2255 FRONT VIEW REAR VIEW T SPORTON International Inc. ISSUED DATE : Aug,17,2005 TEL : 886-2-2696-2468 PAGE NUMBER : A22 OF A55 FAX : 886-2-2696-2255 FRONT VIEW REAR VIEW T SPORTON International Inc. ISSUED DATE : Aug,17,2005 TEL : 886-2-2696-2468 PAGE NUMBER : A23 OF A55 FAX : 886-2-2696-2255 FRONT VIEW REAR VIEW T SPORTON International Inc. ISSUED DATE : Aug,17,2005 TEL : 886-2-2696-2468 PAGE NUMBER : A24 OF A55 FAX : 886-2-2696-2255 FRONT VIEW REAR VIEW T SPORTON International Inc. ISSUED DATE : Aug,17,2005 TEL : 886-2-2696-2468 PAGE NUMBER : A25 OF A55 FAX : 886-2-2696-2255 FRONT VIEW REAR VIEW T SPORTON International Inc. ISSUED DATE : Aug,17,2005 TEL : 886-2-2696-2468 PAGE NUMBER : A26 OF A55 FAX : 886-2-2696-2255 FRONT VIEW REAR VIEW T SPORTON International Inc. ISSUED DATE : Aug,17,2005 TEL : 886-2-2696-2468 PAGE NUMBER : A27 OF A55 FAX : 886-2-2696-2255 FRONT VIEW REAR VIEW T SPORTON International Inc. ISSUED DATE : Aug,17,2005 TEL : 886-2-2696-2468 PAGE NUMBER : A28 OF A55 FAX : 886-2-2696-2255 FRONT VIEW REAR VIEW T SPORTON International Inc. ISSUED DATE : Aug,17,2005 TEL : 886-2-2696-2468 PAGE NUMBER : A29 OF A55 FAX : 886-2-2696-2255 FRONT VIEW REAR VIEW T SPORTON International Inc. ISSUED DATE : Aug,17,2005 TEL : 886-2-2696-2468 PAGE NUMBER : A30 OF A55 FAX : 886-2-2696-2255 FRONT VIEW REAR VIEW T SPORTON International Inc. ISSUED DATE : Aug,17,2005 TEL : 886-2-2696-2468 PAGE NUMBER : A31 OF A55 FAX : 886-2-2696-2255 FRONT VIEW REAR VIEW T SPORTON International Inc. ISSUED DATE : Aug,17,2005 TEL : 886-2-2696-2468 PAGE NUMBER : A32 OF A55 FAX : 886-2-2696-2255 FRONT VIEW REAR VIEW T SPORTON International Inc. ISSUED DATE : Aug,17,2005 TEL : 886-2-2696-2468 PAGE NUMBER : A33 OF A55 FAX : 886-2-2696-2255 FRONT VIEW REAR VIEW T SPORTON International Inc. ISSUED DATE : Aug,17,2005 TEL : 886-2-2696-2468 PAGE NUMBER : A34 OF A55 FAX : 886-2-2696-2255 FRONT VIEW REAR VIEW T SPORTON International Inc. ISSUED DATE : Aug,17,2005 TEL : 886-2-2696-2468 PAGE NUMBER : A35 OF A55 FAX : 886-2-2696-2255 FRONT VIEW REAR VIEW T SPORTON International Inc. ISSUED DATE : Aug,17,2005 TEL : 886-2-2696-2468 PAGE NUMBER : A36 OF A55 FAX : 886-2-2696-2255 FRONT VIEW REAR VIEW T SPORTON International Inc. ISSUED DATE : Aug,17,2005 TEL : 886-2-2696-2468 PAGE NUMBER : A37 OF A55 FAX : 886-2-2696-2255 FRONT VIEW REAR VIEW T SPORTON International Inc. ISSUED DATE : Aug,17,2005 TEL : 886-2-2696-2468 PAGE NUMBER : A38 OF A55 FAX : 886-2-2696-2255 FRONT VIEW REAR VIEW T SPORTON International Inc. ISSUED DATE : Aug,17,2005 TEL : 886-2-2696-2468 PAGE NUMBER : A39 OF A55 FAX : 886-2-2696-2255 FRONT VIEW REAR VIEW T SPORTON International Inc. ISSUED DATE : Aug,17,2005 TEL : 886-2-2696-2468 PAGE NUMBER : A40 OF A55 FAX : 886-2-2696-2255 FRONT VIEW REAR VIEW T SPORTON International Inc. ISSUED DATE : Aug,17,2005 TEL : 886-2-2696-2468 PAGE NUMBER : A41 OF A55 FAX : 886-2-2696-2255 FRONT VIEW REAR VIEW T SPORTON International Inc. ISSUED DATE : Aug,17,2005 TEL : 886-2-2696-2468 PAGE NUMBER : A42 OF A55 FAX : 886-2-2696-2255 FRONT VIEW REAR VIEW T SPORTON International Inc. ISSUED DATE : Aug,17,2005 TEL : 886-2-2696-2468 PAGE NUMBER : A43 OF A55 FAX : 886-2-2696-2255 FRONT VIEW REAR VIEW T SPORTON International Inc. ISSUED DATE : Aug,17,2005 TEL : 886-2-2696-2468 PAGE NUMBER : A44 OF A55 FAX : 886-2-2696-2255 FRONT VIEW REAR VIEW T SPORTON International Inc. ISSUED DATE : Aug,17,2005 TEL : 886-2-2696-2468 PAGE NUMBER : A45 OF A55 FAX : 886-2-2696-2255 FRONT VIEW REAR VIEW T SPORTON International Inc. ISSUED DATE : Aug,17,2005 TEL : 886-2-2696-2468 PAGE NUMBER : A46 OF A55 FAX : 886-2-2696-2255 FRONT VIEW REAR VIEW T SPORTON International Inc. ISSUED DATE : Aug,17,2005 TEL : 886-2-2696-2468 PAGE NUMBER : A47 OF A55 FAX : 886-2-2696-2255 FRONT VIEW REAR VIEW T SPORTON International Inc. ISSUED DATE : Aug,17,2005 TEL : 886-2-2696-2468 PAGE NUMBER : A48 OF A55 FAX : 886-2-2696-2255 FRONT VIEW REAR VIEW T SPORTON International Inc. ISSUED DATE : Aug,17,2005 TE…

Text truncated - open the document above for the full version.

Description of Operation Date: 2005/8/18 EUT is a Wireless digital Audio player with 11 channels(2412MHz~2462MHz, Space 5MHz). It allows you to connect to other WLAN device. General Operational Description: 1. Time base of the transmission frequency: For IF and RF frequency, Crystal is a clock reference. 2. Synthesizer: Synthesizer inside Transceiver IC and operate frequency in 2.4GHz ISM Band. Internal voltage controlled oscillator (VCO) provides the desired LO signal base on the phase-locked loop (PLL) with a relatively wide tuning range for this application. 3. Transmission: BBP IC has DSSS (BPSK/QPSK/CCK) and OFDM (BPSK/QPSK/16QAM/64QAM) modulation function, it provides transmission data rate are 1, 2, 5.5, 11 Mbps on DSSS and 6, 12, 18, 24, 36, 48, 54 Mbps on OFDM. Digital data signal will be converted to analog (TX IQ) signals through DAC in BBP IC, TX IQ pass through to low pass filter. TX I/Q signal use direct conversion (zero-IF) architecture converter to generate carrier frequency signal. Transceiver IC and external PA magnify output power. 4. Receiver: Reverse direction isolation of LNA inside Transceiver IC suppresses unwanted radiation. Then 2.4GHz RF signal will be directly down to IF signal (RX IQ) and high frequency spurious emissions are suppressed by LPF. At last RX IQ signal will be demodulated digital data. 5. Base band Processing: Channel Selection: Channel selection is controlled by BBP IC. Data Modulation: DSSS (BPSK/QPSK/CCK) and OFDM (BPSK/QPSK/16QAM/64QAM) modulation type is controlled by BBP IC. Power Control Level: BBP IC has the power leveling loop table are calibrated by manufacturer, then uses closed-loop power control function to limit RF output power level. Power leveling step accuracy is 0.5dB. Transmit/Receive Switch: EUT has Transmit/Receive Switch and Antenna switch Data Link Layer: Firmware implements the full IEEE 802.11 Wireless LAN MAC protocol. It supports BSS and IBSS operation under DCF, and operation under the optional Point Coordination Function (PCF). Lower level protocol functions such as RTS/CTS generation and acknowledgment, fragmentation and de-fragmentation, and automatic beacon monitoring are handled without host intervention. Active scanning is performed autonomously once initiated by host command. Host interface command and status handshakes allow concurrent operations from multi-threaded I/O drivers. 6. Power: 5VDC from adapter. This power is provided to regulator components to regulated DC power. Features of Equipment under Test Items Description Type of Modulation DSSS (CCK / DQPSK / DBPSK) OFDM (16QAM / 64QAM / DQPSK / DBPSK ) Number of Channels 11 Frequency Band 2400.0 MHz ~ 2483.5 MHz Carrier Frequency Range 2412.0 MHz ~ 2462.0 MHz Data Rate 1, 2, 5.5, 11 Mbps - DSSS 6, 12, 18, 24, 36, 48, 54 Mbps - OFDM Max. Conducted Output Power DSSS : 13.82 dBm OFDM : 18.44dBm Antenna Type PCB Antenna / 4.0dBi Communication Type Half-Duplex Testing Duty Cycle 75.00% Power Rating (DC/AC, Voltage) 5VDC from adapter Test Power Source 120.00V AC Temperature Range (Operating) -20 ~ 55 °C

FCC ID: SI5HCA100 Issued on Aug. 16, 2005 Report No.: FR551319 SPORTON International Inc. Page No. : 52 of 57 TEL : 886-2-2696-2468 Issued Date : Aug. 16, 2005 FAX : 886-2-2696-2255 5.8. RF Exposure 5.8.1. Limit For Maximum Permissible Exposure (MPE) This product can be classified as mobile device, so the 20cm separation distance warning is required. In this section, the power density at 20cm location is calculated to examine if it is lower than the limit. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm²) Averaging Time |E|²,|H|² or S ( minutes ) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 F = frequency in MHz *Plane-wave equivalent power density 5.8.2. MPE Calculation Method E (V/m) d GP××30 Power Density: Pd (mW/cm²) 377 2 E E Electric field (V/m) P Peak RF output power (mW) G EUT Antenna numeric gain (numeric) d Separation distance between radiator and human body (cm) The formula can be changed to Pd 2 377 30 d GP × ×× From the peak EUT RF output power, the minimum mobile separation distance, d=20cm, as well as the gain of the used antenna, the RF power density can be obtained. FCC ID: SI5HCA100 Issued on Aug. 16, 2005 Report No.: FR551319 SPORTON International Inc. Page No. : 53 of 57 TEL : 886-2-2696-2468 Issued Date : Aug. 16, 2005 FAX : 886-2-2696-2255 5.8.3. Calculated Result and Limit ‚ Modulation Type: DSSS ‚ Temperature: 25°C ‚ Relative Humidity: 60% ‚ Duty Cycle of the Equipment During the Test: 75.00% ‚ Test Engineer: Eason Lu Channel No. Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) 01 4.00 2.51 13.82 24.10 0.0120 1 06 4.00 2.51 11.84 15.28 0.0076 1 11 4.00 2.51 11.03 12.68 0.0063 1 ‚ Modulation Type: OFDM ‚ Temperature: 25°C ‚ Relative Humidity: 60% ‚ Duty Cycle of the Equipment During the Test: 75.00% ‚ Test Engineer: Eason Lu Channel No. Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) 01 4.00 2.51 18.44 69.82 0.0349 1 06 4.00 2.51 17.12 51.52 0.0257 1 11 4.00 2.51 17.02 50.35 0.0252 1

FCC ID: SI5HCA100 Issued on Aug. 16, 2005 Report No.: FR551319 SPORTON International Inc. TEL : 886-2-2696-2468 FAX : 886-2-2696-2255 FCC TEST REPORT CATEGORY : Mobile PRODUCT NAME : Wireless digital Audio player FCC ID. : SI5HCA100 FILING TYPE : Certification BRAND NAME : U-MEDIA MODEL NAME : HCA-100 APPLICANT : U-MEDIA Communications, Inc. 9F, No. 1, Jin-Shan 7th St., Hsinchu 300, Taiwan, R.O.C. MANUFACTURER : U-MEDIA Communications, Inc. 9F, No. 1, Jin-Shan 7th St., Hsinchu 300, Taiwan, R.O.C. ISSUED BY : SPORTON INTERNATIONAL INC. 6F, No. 106, Sec. 1, Hsin Tai Wu Rd., His Chih, Taipei Hsien, Taiwan, R.O.C. Statements: The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. Certificate or Test Report could not be used by the applicant to claim the product endorsement by NVLAP and any agency of U.S. government. The test equipment used to perform the test is calibrated and traceable to NML/ROC or NIST/USA. Lab Code: 200079-0 FCC ID: SI5HCA100 Issued on Aug. 16, 2005 Report No.: FR551319 SPORTON International Inc. Page No. : i TEL : 886-2-2696-2468 Issued Date : Aug. 16, 2005 FAX : 886-2-2696-2255: Table of Contents HISTORY OF THIS TEST REPORT .....................................................................................................................II CERTIFICATE OF COMPLIANCE.......................................................................................................................III 1. GENERAL DESCRIPTION OF EQUIPMENT UNDER TEST...........................................................................1 1.1. Applicant ......................................................................................................................................................................................... 1 1.2. Manufacturer ................................................................................................................................................................................... 1 1.3. Basic Description of Equipment under Test.................................................................................................................................... 1 1.4. Features of Equipment under Test ................................................................................................................................................. 1 1.5. Antenna Description........................................................................................................................................................................ 2 1.6. Adapter Description ........................................................................................................................................................................ 2 1.7. Table for Carrier Frequencies ......................................................................................................................................................... 2 2. TEST CONFIGURATION OF THE EQUIPMENT UNDER TEST .....................................................................3 2.1. Connection Diagram of Test System .............................................................................................................................................. 3 2.2. The Test Mode Description............................................................................................................................................................. 4 2.3. Description of Test Supporting Units .............................................................................................................................................. 4 3. GENERAL INFORMATION OF TEST ..............................................................................................................5 3.1. Test Facility ..................................................................................................................................................................................... 5 3.2. Standards for Methods of Measurement......................................................................................................................................... 5 3.3. DoC Statement ............................................................................................................................................................................... 5 3.4. Frequency Range Investigated ....................................................................................................................................................... 5 3.5. Test Distance .................................................................................................................................................................................. 5 3.6. Test Software .................................................................................................................................................................................. 5 4. LIST OF MEASUREMENTS .............................................................................................................................7 4.1. Summary of the Test Results.......................................................................................................................................................... 7 5. TEST RESULT ..................................................................................................................................................8 5.1. Test of 6dB Spectrum Bandwidth ................................................................................................................................................... 8 5.2. Test of Maximum Peak Conducted Output Power........................................................................................................................ 13 5.3. Test of Peak Power Spectral Density .......................................................…
