SI5SA10HRC100Bidirectional Remote Control

SA-1000 (ACR+HRC) Docking Base with Radio Remote Controller for iPod User Guide Packing Contents 1: Remote Contorl (HRC-100) 2: BaseStation (ACR-100) 3: AV Cable 4: Power Adapter 5. Battery 6: Universal inserts Compatible iPod Model No.: - iPod with video (30GB, 60GB, 80GB) - iPod nano (1GB, 2GB, 4GB, 8GB) - iPod with color display (20GB, 30GB, U2, 40GB, 60GB) - iPod (20GB, U2, 40GB) - iPod mini (4GB, 6GB) Remote Controller (HRC-100) 11 10 9 8 7 6 5 4 3 2 1 1: Power On / Off, Mute ACR, Let ACR go to standby mode 2: Volume Up / Down 3: Page up 4: Main Menu 5: Page Down 6: Previous Track, Rewind 7: Next Track, Fast-forward 8: Up 9: Down 10: Play / Pause / OK 11: Charging Pad Note: When you first use Remote Controller, please full charge it. BaseStation (ACR-100) 1: HRC Docking: Charge Remote Control 2: iPod Docking: Charge and sync iPod 3: iPod LED 4: Power LED 5: RC LED 1: Power port 4: RCA Video out 2: miniUSB port 5/6: RCA Audio out 3: S-Video 7 Earphone Jack 1 2 4 5 3 76 5 432 1 Setting up SA-1000 1. Attach the included AC Adapter to Power port, and plug the other end into a wall outlet. When Power is on, ACR’s Power LED will be turned on. 2. Slip your iPod onto ACR’s dock connector. SA-1000 includes three universal dock inserts, designed for iPod mini, 4 th G iPod and iPod photo. All new iPods come with a universal dock insert in their packaging. When iPod is connected, ACR’s iPod LED will be turned on. 3. Turn HRC Power on, ACR’s RC LED will be turned on; if not, go to SettingÆ Pair Device to start pairing. When Pairing done, ACR’s RC LED will be turned on. Playing Music 1. If your Speaker supports RCA, attach the yellow, and red RCA connectors to the appropriate ports on your Stereo. Attach the other end of the cable to ACR RCA A/V Out port. 2. Using the navigation buttons on the HRC, you can browse through your menus and playlists. 3. During playback, use the Central button to Play / Pause, use Right / Left button for Next / Previous Track 4. HRC allows you to browse for another track or playlist while a track is playing by pressing Menu button. Press the Menu button at the Main Menu screen to return to the Now Playing screen. Connecting to TV 1. If you are connecting SA-1000 to TV, attach the yellow, red, and white RCA connectors on the included cable to the appropriate ports on your TV/Stereo. Attach the other end of the cable to ACR RCA A/V Out port. Note: if your TV supports S-Video, you may use a standard S-Video cable to connect Synchronize with iTune 1. Attach USB cable (miniUSB to USB) to PC / MAC, you can synchronize iPod with iTunes running on PC / MAC 2. When synchronization complete, please remove USB cable. FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

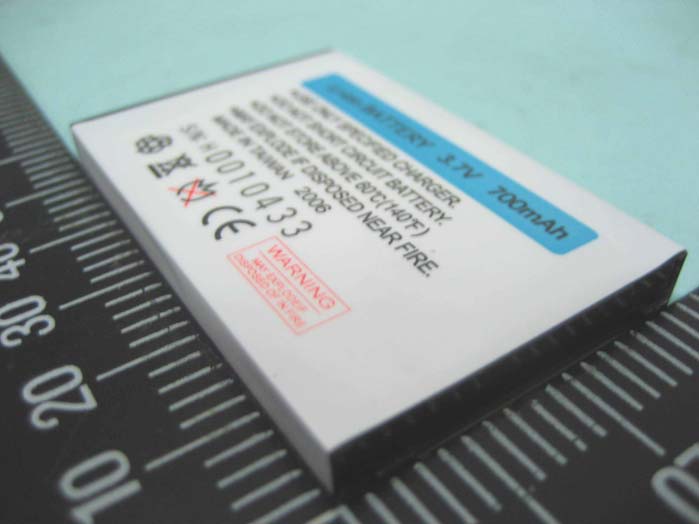

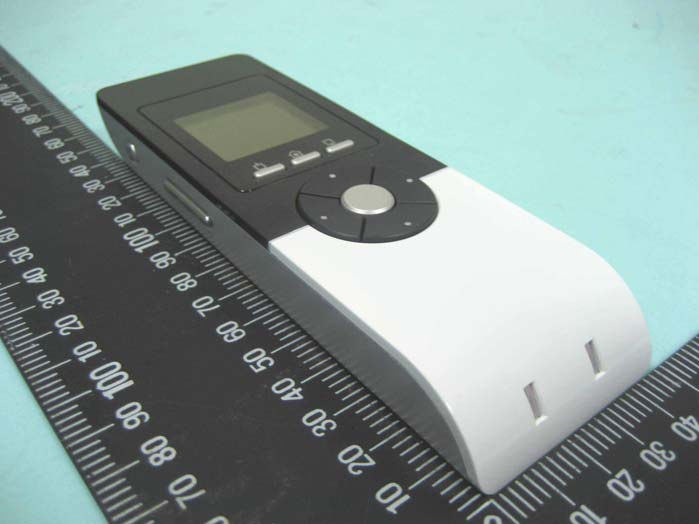

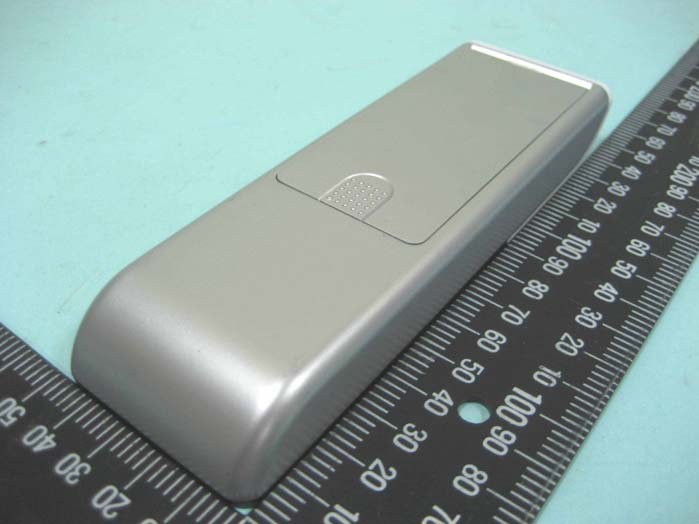

SPORTON International Inc. PAGE NUMBER : A1 OF A3 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 03, 2007 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT SPORTON International Inc. PAGE NUMBER : A2 OF A3 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 03, 2007 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A3 OF A3 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 03, 2007 FAX : 886-2-2696-2255

Label Size: 40.3 mm* 25.3mm

SPORTON International Inc. PAGE NUMBER : A1 OF A4 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 03, 2007 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT SPORTON International Inc. PAGE NUMBER : A2 OF A4 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 03, 2007 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A3 OF A4 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 03, 2007 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A4 OF A4 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 03, 2007 FAX : 886-2-2696-2255

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: 03 FCC RADIO TEST REPORT Applicant’s company U-MEDIA Communications, Inc. Applicant Address 9F, No. 1, Jin-Shan 7th St., Hsinchu 300, Taiwan, R.O.C. FCC ID SI5SA10HRC100 Manufacturer’s company U-MEDIA Communications, Inc. Manufacturer Address 9F, No. 1, Jin-Shan 7th St., Hsinchu 300, Taiwan, R.O.C. Product Name Bidirectional Remote Control Brand Name U-MEDiA Model Name HRC-100 Test Rule Part(s) 47 CFR FCC Part 15 Subpart C § 15.249 Test Freq. Range 2400 ~ 2483.5MHz Received Date Feb. 07, 2007 Final Test Date Apr. 02, 2007 Submission Type Original Equipment Statement The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.4-2003 and 47 CFR FCC Part 15 Subpart C. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Report No.: FR720718 Report Format Version: 03 Page No. : i of ii FCC ID: SI5SA10HRC100 Issued Date : Apr. 23, 2007 Table of Contents 1. CERTIFICATE OF COMPLIANCE ......................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT .......................................................................................................................... 2 3. GENERAL INFORMATION .................................................................................................................................. 3 3.1. Product Details....................................................................................................................................................................................3 3.2. Accessories .........................................................................................................................................................................................3 3.3. Table for Filed Antenna.......................................................................................................................................................................3 3.4. Table for Carrier Frequencies .............................................................................................................................................................3 3.5. Table for Test Modes ...........................................................................................................................................................................4 3.6. Table for Testing Locations..................................................................................................................................................................4 3.7. Table for Supporting Units ...................................................................................................................................................................4 3.8. EUT Operation during Test ...................................................................................................................................................................5 3.9. Test Configurations .............................................................................................................................................................................6 4. TEST RESULT ..................................................................................................................................................... 8 4.1. AC Power Line Conducted Emissions Measurement...........................................................................................................................8 4.2. Field Strength of Fundamental Emissions Measurement ...................................................................................................................12 4.3. 20dB Spectrum Bandwidth Measurement ........................................................................................................................................20 4.4. Radiated Emissions Measurement ....................................................................................................................................................23 4.5. Band Edge Emissions Measurement .................................................................................................................................................35 4.6. Antenna Requirements .....................................................................................................................................................................39 5. LIST OF MEASURING EQUIPMENTS ................................................................................................................... 40 6. TEST LOCATION.............................................................................................................................................. 42 7. TAF CERTIFICATE OF ACCREDITATION ............................................................................................................. 43 APPENDIX A. PHOTOGRAPHS OF EUT.......................................................................................................... A1 ~ A7 APPENDIX B. TEST PHOTOS.......................................................................................................................... B1 ~ B5 Report No.: FR720718 Report Format Version: 03 Page No. : ii of ii FCC ID: SI5SA10HRC100 Issued Date : Apr. 23, 2007 History of This Test Report Original Issue Date: Apr. 23, 2007 Report No.: FR720718 ■ No additional attachment. □ Additional attachment were issued as following record: Attachment No. Issue Date Description 15.205(a) 15.209(a) 47 CFR…

Text truncated - open the document above for the full version.

Report No.: FR720718 FCC ID: SI5SA10HRC100 Page No. : 1 of 5 Appendix B. Test Photos Report No.: FR720718 FCC ID: SI5SA10HRC100 Page No. : 2 of 5 1. Photographs of Conducted Emissions Test Configuration FRONT VIEW REAR VIEW Report No.: FR720718 FCC ID: SI5SA10HRC100 Page No. : 3 of 5 2. Photographs of Radiated Emissions Test Configuration 9kHz ~30MHz FRONT VIEW REAR VIEW Report No.: FR720718 FCC ID: SI5SA10HRC100 Page No. : 4 of 5 30MHz~1GHz FRONT VIEW REAR VIEW Report No.: FR720718 FCC ID: SI5SA10HRC100 Page No. : 5 of 5 Above 1GHz FRONT VIEW REAR VIEW
