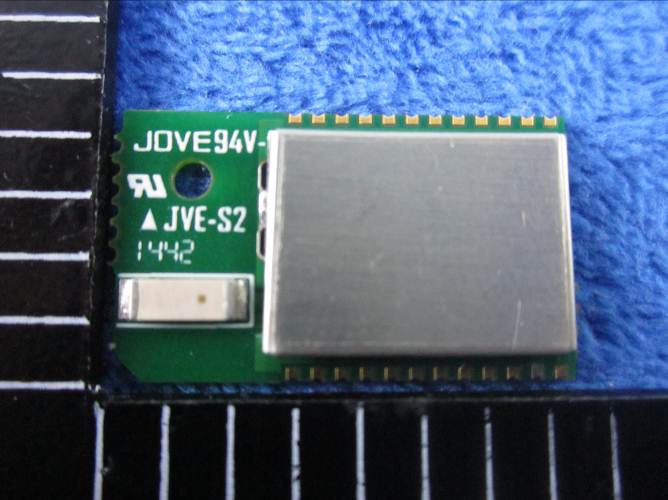

SI8JO-BLE02JO Bluetooth Low Energy Module (BLE)

Chongqing Jinou Science & Technology Development Co., Ltd JO-BLE02 JO Bluetooth Low Energy Module （BLE） Hardware Datasheet Rev 1.1 Chongqing JINOU Science and Technology Development Co., Ltd. Chongqing Jinou Science & Technology Development Co., Ltd Page 1 of 1 Contents 1. Features ............................................................................................................................... 2 2. Product Description ......................................................................................................... 3 3. Applications .......................................................................................................................... 3 4. Block Diagram ...................................................................................................................... 4 5. Pin Descriptions ............................................................................................................... 4 5.1 Device Terminal ........................................................................................................... 4 5.2 Device Terminal Functions ....................................................................................... 4 6. Electrical Specifications ........................................................................................................ 5 6.1 ABSOLUTE MAXIMUM RATINGS ......................................................................................... 5 6.2 RECOMMENDED OPERATING CONDITIONS ......................................................................... 6 6.3 ELECTRICAL CHARACTERISTICS ..................................................................................... 6 6.4 GENERAL CHARACTERISTICS ........................................................................................... 6 6.6 RF RECEIVE SECTION ..................................................................................................... 7 6.7 RF TRANSMIT SECTION ................................................................................................... 7 6.8 ANALOG TEMPERATURE SENSOR ....................................................................................... 8 6.9 ADC CHARACTERISTICS ................................................................................................... 8 6.10 DC CHARACTERISTICS ................................................................................................. 10 7. BLOCK DESCRIPTION .................................................................................................... 11 8. Solder Profiles ..................................................................................................................... 13 9. Physical Dimensions ........................................................................................................... 14 Chongqing Jinou Science & Technology Development Co., Ltd Page 1 of 14 Document History Revision Date Change Reason 1.0 2012-05-25 Original publication of this document. 1.1 2014-11-07 Updates include: increase the length of module. Chongqing Jinou Science & Technology Development Co., Ltd Page 2 of 14 JO-BLE02 1. Features · True Single-Chip BLE Solution: CC2540 Can Run Both Application and BLE Protocol Stack, Includes Peripherals to Interface With Wide Range of Sensors ,Etc. · Programmable Output Power Up to 4.5 dBm · IR Generation Circuitry · Powerful Five-Channel DMA · 12-Bit ADC With Eight Channels and Configurable Resolution · Two Powerful USARTs With Support for Several Serial Protocols · 19 General-Purpose I/O Pins · Low Power Mode: Active Mode RX Down to 19.6 mA Active Mode TX (-6dBm)：24 mA Power Mode 1 (3-ms Wake-Up): 235 uA Power Mode 2 (Sleep Timer On): 0.9 uA Power Mode 3 (External Interrupts): 0.4 uA · Wide Supply-Voltage Range (2 V–3.6 V) Full RAM and Register Retention in All Power Modes · Nominal Supply Voltage at 3.3±0.1V · Surface-mount, Size: 24.1×14.5 （unit：mm error = ±0.2mm） Chongqing Jinou Science & Technology Development Co., Ltd Page 3 of 14 2. Product Description The JO-BLE02 module (chip CC2540) is a cost-effective, low-power, true system-on-chip (SoC) for Bluetooth low energy applications. It enables robust BLE master or slave nodes to be built with very low total bill-of-material costs. The CC2540 combines an excellent RF transceiver with an industry-standard enhanced 8051 MCU, in-system programmable flash memory, 8-KB RAM, and many other powerful supporting features and peripherals. The CC2540 is suitable for systems where very low power consumption is required. Very low-power sleep modes are available. Short transition times between operating modes further enable low power consumption. The CC2540 comes in two different versions: CC2540F128/F256, with 128 and 256 KB of flash memory, respectively. Combined with the Bluetooth low energy protocol stack from Texas Instruments, the CC2540F128/F256 forms the market’s most flexible and cost-effective single-mode Bluetooth low energy solution. 3. Applications 2.4-GHz Bluetooth low energy Systems Mobile Phone Accessories Sports and Leisure Equipment Consumer Electronics Human Interface Devices(Keyboard,Mouse,Remote Control) USB Dongles Health Care and Medical Chongqing Jinou Science & Technology Development Co., Ltd Page 4 of 14 4. Block Diagram 5. Pin Descriptions 5.1 Device Terminal No. Des Des No. 1 P2_0 A0 | P0_0 24 2 P2_2 | DC P0_1 23 3 P2_1 | DD RX | P0_2 22 4 P1_7 TX | P0_3 21 5 P1_6 CT | P0_4 20 6 P1_3 RT | P0_5 19 7 P1_4 RST 18 8 P1_5 P0_6 17 9 USB_N P0_7 16 10 USB_P P1_0 15 11 VCC P1_1 14 12 GND P1_2 13 5.2 Device Terminal Functions PIN NAME PIN TYPE DESCRIPTION 1 P2_0 Digital I/O Port 2.0 2 P2_2 | DC Digital I/O Port 2.2 Debug Clock Debug data interface 3 P2_1 | DD Digital I/O Port 2.1 Debug Data Debug data interface 4 P1_7 Digital I/O Port 1.7 5 P1_6 Digital I/O Port 1.6 Chongqing Jinou Science & Technology Development Co., Ltd Page 5 of 14 6 P1_3 Digital I/O Port 1.3 7 P1_4 Digital I/O Port 1.4 8 P1_5 Digital I/O Port 1…
