SINWDB30G802.11 b/g Bridge with VOIP

Copyright © 2006. Always On Wireless, Inc. All rights reserved. WiFlyer+v User Manual Always On Wireless, Inc. 3701 Kirby • Suite 1090 Houston, Texas 77098 Phone 713.523.9334 • Fax 713.521.2120 Version 1.0; last updated May 5, 2006 Copyright 2006 Always On Wireless, Inc. All rights reserved. WiFlyer+v, Always On Wireless, the Always On Wireless logos, and all other Always On Wireless product or service names are trademarks of Always On Wireless, Inc. All other registered trademarks or trademarks belong to their respective companies. Specifications are subject to change without notice. Table of Contents Introduction to the WiFlyer ® +v Base Station......................................................................1 Package Contents ...................................................................................................2 WiFlyer+v at a Glance ...........................................................................................2 Setting Up Your WiFlyer+v ................................................................................................5 What You Need to Set Up the WiFlyer+v Base Station for Internet Access .........5 Powering up the WiFlyer+v ...................................................................................5 WiFlyer+v Modes of Operation .............................................................................5 Bridge Mode........................................................................................................................6 Broadband Access Point Mode ...........................................................................................7 Connecting to a Broadband Internet Connection ...................................................7 Configuring the WiFi Network ..............................................................................7 Configuring the WiFlyer+v Using a Broadband Connection...............................10 Dialup Access Point Mode ................................................................................................11 Configuring the WiFi Network ............................................................................11 Configuring the WiFlyer+v Using a Dial-up Connection ....................................14 Advanced Configuration Features.....................................................................................15 Status ....................................................................................................................15 Device ............................................................................................................15 Statistics.........................................................................................................16 Logs ...............................................................................................................17 Wireless .........................................................................................................18 Print Server ....................................................................................................18 Wide Area Network .............................................................................................19 Broadband Wide Area Network Settings.......................................................19 Routing ..........................................................................................................23 Dial Configuration [Dialup Mode only] ........................................................24 Dial Options [Dialup Mode only] ..................................................................25 Phonebook [Dialup Mode only] ....................................................................25 Access Numbers [Dialup Mode only] ...........................................................25 Local Area Network .............................................................................................26 LAN ...............................................................................................................26 DHCP.............................................................................................................27 Dynamic DNS................................................................................................30 Wireless Networking............................................................................................31 Wireless Network ..........................................................................................31 Advanced Wireless ........................................................................................32 Security ..........................................................................................................33 Wireless Security ...........................................................................................33 Virtual Server ................................................................................................35 Gaming ..........................................................................................................37 Access Control...............................................................................................38 Web Filter ......................................................................................................39 MAC Address Filter ......................................................................................40 Firewall ..........................................................................................................41 Inbound Filter ................................................................................................42 VoIP and Multimedia ...........................................................................................43 StreamEngine.................................................................................................43 Special Applications ......................................................................................45 VoIP.............................…

Text truncated - open the document above for the full version.

3701 Kirby Dr., Suite 1090, Houston, Texas 77098 May 31, 2006 Certification and Engineering Bureau Industry Canada Spectrum Engineering Branch 3701 Carling Avenue, Building 94 Ottawa, Ontario RE: Confidentiality Request regarding application for certification Always On Wireless, Inc., a Texas corporation (AOW), hereby requests confidential treatment of the schematics, block diagrams, circuit and block diagram description, and related technical documentation submitted with this application. These materials contain trade secrets and proprietary information that are confidential and not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Sincerely, James A. Knight Chief Operating & Financial Officer

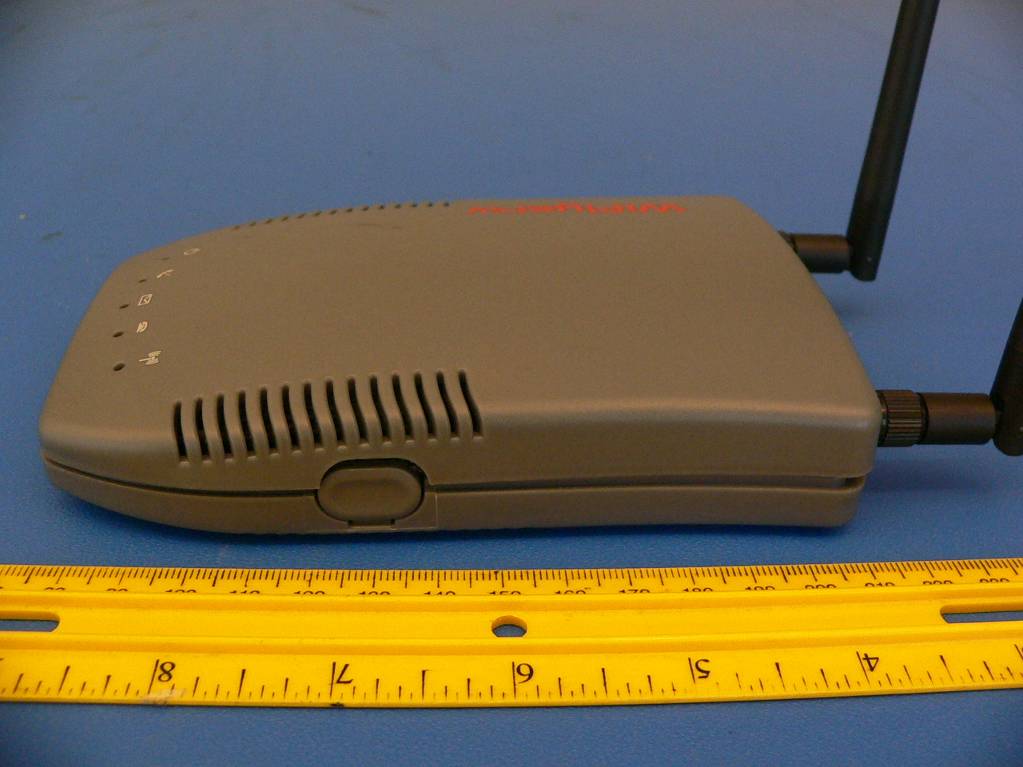

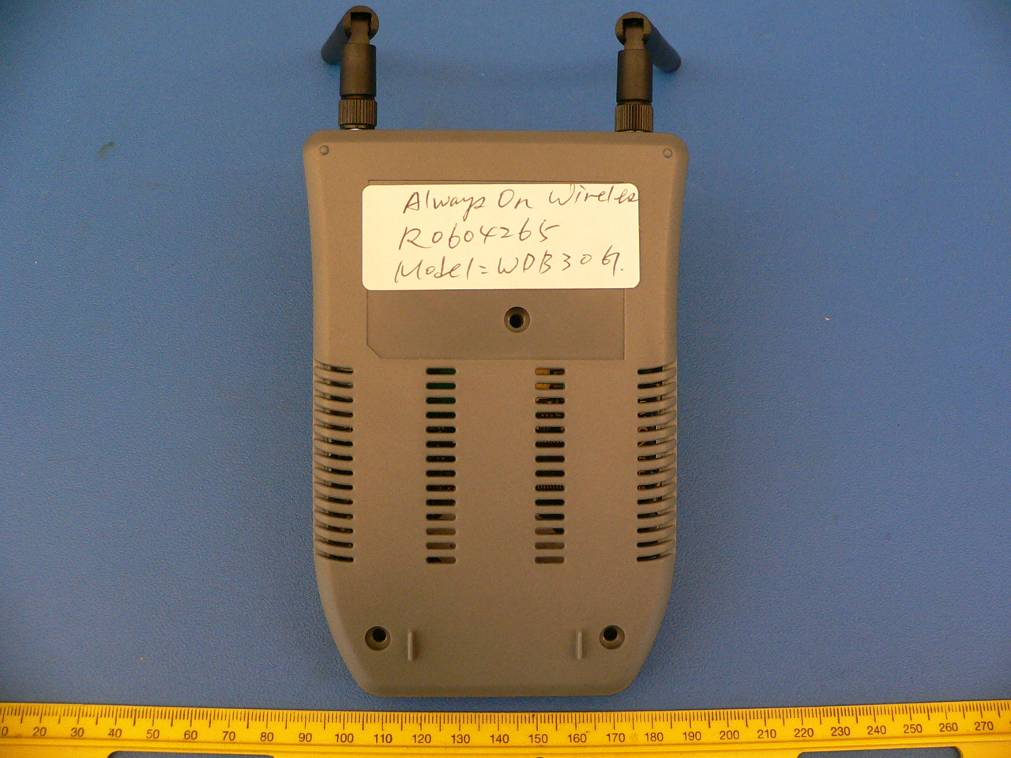

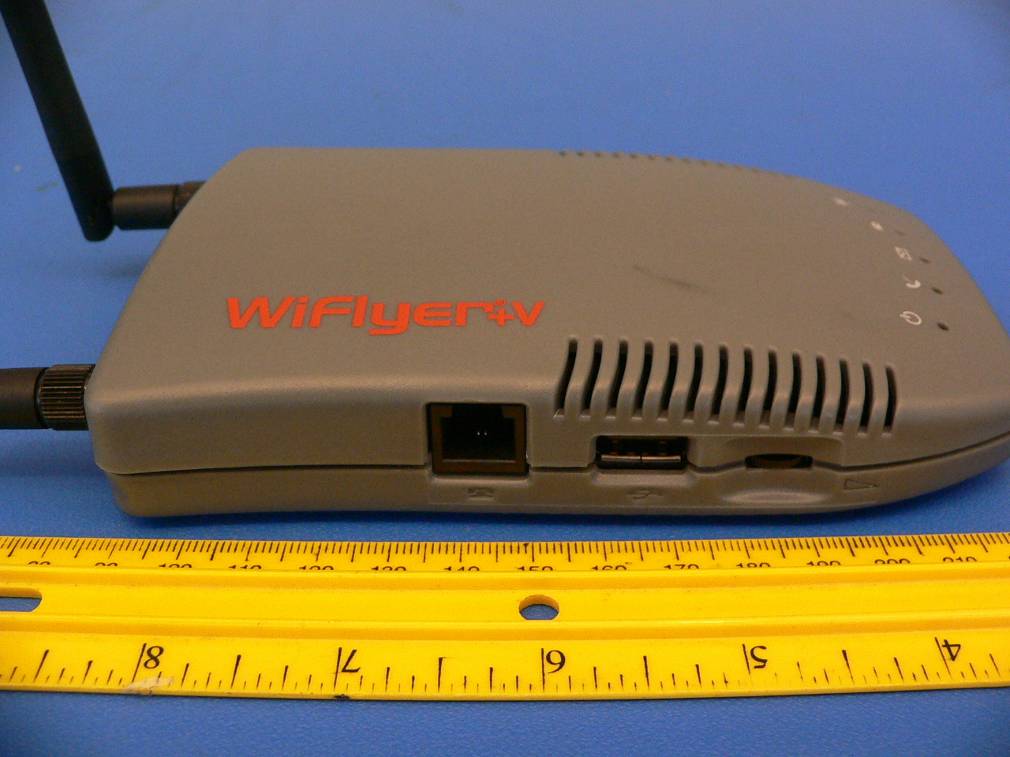

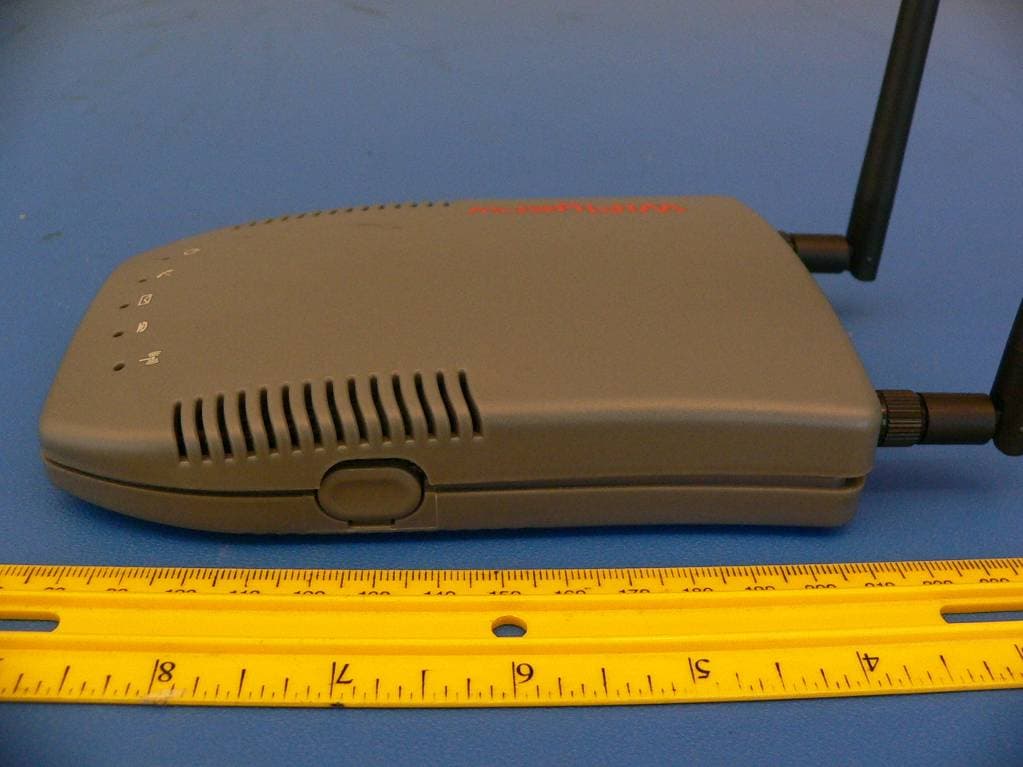

EXHIBIT C - EUT PHOTOGRAPHS EUT – Front View EUT – Rear View EUT – Left Side View EUT – Right Side View EUT – Bottom View Power Supply 1 Power Supply 2

EXHIBIT A - FCC ID LABEL INFORMATION FCC ID Label contents: Proposed Label Location on EUT Rear View of EUT/FCC ID Label This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: SINWDB30G

EUT – Component View EUT – Antenna Connector with Reverse SMA Connector EUT – Solder View EUT – Main PCBA Component View RF Board – Front View RF Board – Rear View RF Board – with Shield Off

§15.247(e)(i),§2.1091 - RF EXPOSURE According to §15.247(e)(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1091 RF exposure is calculated. Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minute) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1.0 30 f = frequency in MHz * = Plane-wave equivalent power density MPE Prediction Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S = PG/4πR² Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal: 17.66 (dBm ) Maximum peak output power at antenna input terminal: 58.34 (mW) Prediction distance: 20 (cm) Prediction frequency: 2400 (MHz) Antenna Gain (typical): 2.0 (dBi) antenna gain: 1.58 (numeric) Power density at prediction frequency at 20 cm: 0.018 (mW/cm 2 ) MPE limit for uncontrolled exposure at prediction frequency: 1.0 (mW/cm 2 ) Test Result The EUT is a base device. The power density level at 20 cm is 0.018 mW/cm², which is below the uncontrolled exposure limit of 1.0mW/cm² at 2400 MHz.

FCC PART 15.247 EMI MEASUREMENT AND TEST REPORT For Always On Wireless, Inc. 3701 Kirby Dr. Suite 1090 Houston TX 77098 FCC ID: SINWDB30G Model: WDB30G This Report Concerns: Original Report Product Type: 802.11b/g bridge with VOIP Test Engineer: James Ma Report No.: R0604265 Report Date: 2006-06-06 Reviewed By: Daniel Deng Prepared By: Bay Area Compliance Laboratory Corporation (BACL) 1274 Anvilwood Ave. Sunnyvale, CA 94089 Tel: (408) 732-9162 Fax: (408) 732 9164 TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................................................4 EUT PHOTO.................................................................................................................................................................4 OBJECTIVE...................................................................................................................................................................4 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................4 TEST METHODOLOGY..................................................................................................................................................4 TEST FACILITY.............................................................................................................................................................5 SYSTEM TEST CONFIGURATION..........................................................................................................................6 JUSTIFICATION.............................................................................................................................................................6 EUT EXERCISE SOFTWARE..........................................................................................................................................6 SPECIAL ACCESSORIES.................................................................................................................................................6 EQUIPMENT MODIFICATIONS.......................................................................................................................................6 LOCAL SUPPORT EQUIPMENT LIST AND DETAILS........................................................................................................6 POWER SUPPLY INFORMATION.....................................................................................................................................6 INTERFACE PORTS AND CABLING................................................................................................................................6 TEST SETUP BLOCK DIAGRAM.....................................................................................................................................7 SUMMARY OF TEST RESULTS ...............................................................................................................................8 §15.247(E)(I),§2.1091 - RF EXPOSURE ....................................................................................................................9 §15.203 - ANTENNA REQUIREMENT....................................................................................................................10 APPLICABLE STANDARD............................................................................................................................................10 §15.207 (A) - CONDUCTED EMISSION..................................................................................................................11 MEASUREMENT UNCERTAINTY..................................................................................................................................11 TEST SETUP...............................................................................................................................................................11 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................11 TEST PROCEDURE......................................................................................................................................................11 SUMMARY OF TEST RESULTS.....................................................................................................................................12 CONDUCTED EMISSIONS TEST PLOTS AND DATA.......................................................................................................12 §2.1051 & §15.247(D) - SPURIOUS EMISSIONS AT ANTENNA TERMINALS................................................15 STANDARD APPLICABLE............................................................................................................................................15 EQUIPMENT LIST........................................................................................................................................................15 MEASUREMENT RESULT............................................................................................................................................15 §15.205 & §15.209 & §15.247(C) - SPURIOUS RADIATED EMISSION..............................................................28 MEASUREMENT UNCERTAINTY..................................................................................................................................28 EUT SETUP................................................................................................................................................................29 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................29 TEST PROCEDURE........…

Text truncated - open the document above for the full version.

EXHIBIT B - TEST SETUP PHOTOGRAPHS Conducted Emission - Front View Conducted Emission –Rear View Radiated Emissions – Front View Radiated Emissions – Rear View
