SJF041226.96-27.28MHz WIRELESS R/C TOY-TX

FCC NOTE: THE ANTENNA PROVIDED IS A UNIQUE ANTENNA. BY INSTALLATION OF UNAUTHORIZED ANTENNA TO THIS EQUIPMENT. SUCH UNAUTHORIZED INSTALLATION COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT.

Block Diagram Switch Controls sw1,sw2 Encoder IC1 Oscillator circuit 27MHz Q1,XTL RF AmplifierQ2 Filter L3,C9,C10 F B L R ANT

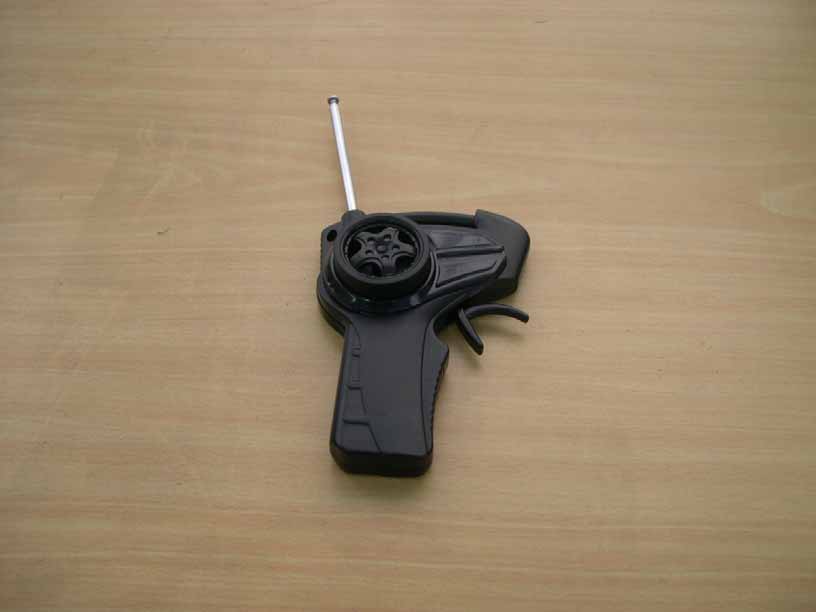

DSCN1293 (1280x960x16M jpeg) DSCN1294 (1280x960x16M jpeg)

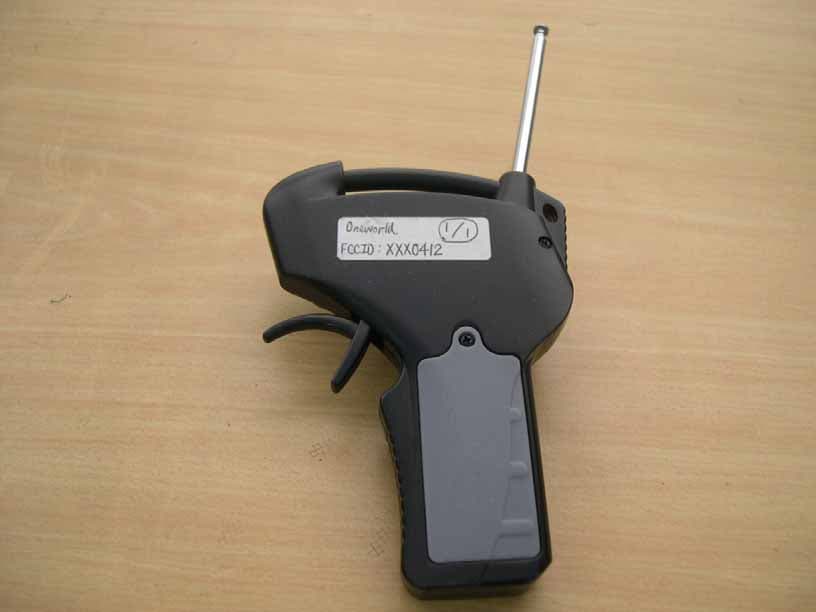

FCC ID Label Sample for Model SJF0412_ FCC ID: SJF0412 Made in China This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation.

DSCN1297 (1280x960x16M jpeg)

DSCN1298 (1280x960x16M jpeg) DSCN1299 (1280x960x16M jpeg)

APPLICANT: OneWorld Enterprises Ltd FCC ID: SJF0412 Circuit Description SW1 and SW2 give signals to the encoder IC1. IC1 encode the signal and modulate the signal on 27MHz oscillation by the oscillator circuit through the base of Q1. The signal then goes into the RF amplifier through Q2. The signal then passes through a filter and transmits through the antenna. Antenna, Ground, and Power Source The antenna consists of a 23cm long telescoping chrome over brass tubing. There is no external ground connection. The ground is only that of the printed circuit board. Electric current is supplied by a 3 Volt primary storage cell.

THRU Lab & Engineering. RM1105,11FL, ACE TECHNO TOWER 197-22,GURO-DONG GURO-GU SEOUL KOREA 81221095059F81221095056 email [email protected] APPLICANT: ONEWORLD ENTERPRISES LIMITED. FCC ID: SJF0412 REPORT #: THRU-410005 COVER SHEET Test Report Product Name: 26.96-27.28 MHz Wireless R/C Toy – TX FCC ID: SJF0412 Applicant: OneWorld Enterprises Limited. 1601, Enterprise Square Two 3 Sheung Yuet Road Kowloon Bay Kowloon Hong Kong Date Receipt:10/05/2004 Date Tested: 10/06/2004 THRU Lab & Engineering. RM1105,11FL, ACE TECHNO TOWER 197-22,GURO-DONG GURO-GU SEOUL KOREA 81221095059F81221095056 email [email protected] APPLICANT: ONEWORLD ENTERPRISES LIMITED. FCC ID: SJF0412 REPORT #: THRU-410005 TABLE OF CONTENTS TABLE OF CONTENTS LIST APPLICANT: ONEWORLD ENTERPRISES LIMITED FCC ID: SJF0412 TEST REPORT CONTAINING: PAGE 1.............TEST EQUIPMENT LIST PAGE 2.............TEST PROCEDURE PAGE 3-7...........RADIATION INTERFERENCE TEST DATA PAGE 8.............OCCUPIED BANDWIDTH PAGE 9.............OCCUPIED BANDWIDTH PLOT EXHIBITS CONTAINING: EXHIBIT 1............BLOCK DIAGRAM EXHIBIT 2............SCHEMATIC EXHIBIT 3............INSTRUCTION MANUAL EXHIBIT 4............SAMPLE OF FCC ID LABEL EXHIBIT 5............LOCATION OF FCC ID LABEL EXHIBIT 6............EXTERNAL PHOTO - FRONT SIDE EXHIBIT 7............EXTERNAL PHOTO - BACK SIDE EXHIBIT 8............INTERNAL PHOTO - COMPONENT SIDE EXHIBIT 9............INTERNAL PHOTO - COPPER SIDE EXHIBIT 10...........CIRCUIT DESCRIPTION EXHIBIT 11...........TEST SET UP PHOTO THRU Lab & Engineering. RM1105,11FL, ACE TECHNO TOWER 197-22,GURO-DONG GURO-GU SEOUL KOREA 81221095059F81221095056 email [email protected] APPLICANT: ONEWORLD ENTERPRISES LIMITED. FCC ID: SJF0412 REPORT #: THRU-410005 1 of 9 Test Equipment List DEVICE MODEL MFGR SERNO DUE.CAL EMI Test Receiver ESVS 10 Rohde & Schwarz 830489/001 2005.04.07. Spectrum Analyzer 8566B Hewlett Packard 2311A02394 2005.04.07. Spectrum Display 85662A Hewlett Packard 2542A12429 2005.04.07. Quasi-Peak Adapter 85650A Hewlett Packard 2521A00887 2005.04.07. RF Preselector 85685A Hewlett Packard 2648A00504 2005.04.07. Pre-Amplifier 8449B Hewlett Packard 3008A00375 2005.04.07. Pre-Amplifier 8447F Hewlett Packard 3113A05367 2005.04.07. Spectrum Monitor EZM Rohde & Schwarz 862304/007 2005.04.07. Bico-Antenna 94455-1 Eaton 977 2005.03.17. Log-Periodic Antenna 3146 EMCO 2051 2005.03.17. Dipole Antenna TDA25/1/2 Electro Metrics 176/200/200 2005.03.17. Horn Antenna SAS-571 A.H Systems 414 2005.03.17. Spectrum Analyzer R3261C Advantest 71720189 2005.04.07. LISN KNW-242 Kyoritsu 8-923-2 2004.07.17. LISN 8012-50-R- 24 Solar 8379121 2004.07.17. Loop Ant 6507 EMCO 1435 2004.10.06. Signal Generator SMS Rohde & Schwarz 872165/100 2005.04.07. Modulation Analyzer 8901B Hewlett Packard 3438A05094 2005.04.07. Frequency Counter CMC251 Tektronic CMC-251TW52489 2005.04.07. THRU Lab & Engineering. RM1105,11FL, ACE TECHNO TOWER 197-22,GURO-DONG GURO-GU SEOUL KOREA 81221095059F81221095056 email [email protected] APPLICANT: ONEWORLD ENTERPRISES LIMITED. FCC ID: SJF0412 REPORT #: THRU-410005 2 of 9 TEST PROCEDURE GENERAL: This report shall NOT be reproduced except in full without the written approval of THRULab & ENGINEERING. RADIATION INTERFERENCE: The test procedure used was ANSI STANDARD C63.4-1992 using a HEWLETT PACKARD spectrum analyzer with a preselector. The bandwidth of the spectrum analyzer was 100 kHz with an appropriate sweep speed. The analyzer was calibrated in dB above a microvolt at the output of the antenna. The resolution bandwidth was 100 kHz and the video bandwidth was 300 kHz. The ambient temperature of the UUT was 29ºC with a humidity of 30%. FORMULA OF CONVERSION FACTORS: The Field Strength at 3m was established by adding the meter reading of the spectrum analyzer (which is set to read in units of dBuV) to the antenna correction factor supplied by the antenna manufacturer. The antenna correction factors are stated in terms of dB. The gain of the Preselector was accounted for in the Spectrum Analyzer Meter Reading. Example: Freq (MHz) METER READING + ACF = FS 33 20 dBuV + 10.36 dB = 30.36 dBuV/m @ 3m ANSI STANDARD C63.4-1992 10.1.7 MEASUREMENT PROCEDURES: The unit under test was placed on a table 80 cm high and with dimensions of 1m by 1.5m. The table used for radiated measurements is capable of continuous rotation. When an emission was found, the table was rotated to produce the maximum signal strength. At this point, the antenna was raised and lowered from 1m to 4m. The antenna was placed in both the horizontal and vertical planes. The situation was similar for the conducted measurement except that the table did not rotate. The EUT was setup as described in ANSIC63.4-1992 with the EUT 40 cm from the vertical ground wall. Not Applicable, battery operated. THRU Lab & Engineering. RM1105,11FL, ACE TECHNO TOWER 197-22,GURO-DONG GURO-GU SEOUL KOREA 81221095059F81221095056 email [email protected] APPLICANT: ONEWORLD ENTERPRISES LIMITED. FCC ID: SJF0412 REPORT #: THRU-410005 3 of 9 APPLICANT: ONEWORLD ENTERPRISES LIMITED FCC ID: SJF0412 NAME OF TEST: RADIATION INTERFERENCE RULES PART NO.: 15.227(a) REQUIREMENTS: CARRIER FREQUENCY SHALL NOT EXCEEDS 10,000 microvolts/meter AT 3M. Frequency (MHz) Meter Reading dBuv/m PK Meter Reading dBuv/m AV Polar Ant Height m Antenna Factor dB Cable Loss dB Result dBuv PK Result dBuv AV Limit dBuv/m PK Limit dBuv/m AV Margin dBuv/m PK Margin dBuv/m AV 26.9984 22.9 15.4 H 2.6 16.1 0.9 39.9 32.4 100 80 -60.1 -47.6 26.9984 37.2 31.2 V 2.0 16.1 0.9 54.2 48.2 100 80 -45.8 -31.8 SAMPLE CALCULATION: FSdBuV/m = MR (dBuV) + ACFdB. TEST PROCEDURE : The procedure used was ANSI STANDARD C63.4-1992. The spectrum was scanned from 30 MHz to 1000 MHz. When an emission was found, the table was rotated to produce the maximum signal strength. The antenna was placed in both the horizontal and vertical planes and the worse case emissions were reported. The UUT was tested in 3 orthogonal planes. TEST RESULTS: THE UNIT…
