SJT4EGSMBIn vehicle fleet tracking system

B B E E L L L L C C A A N N A A D D A A T T E E L L E E P P O O D D U U S S E E R R M M A A N N U U A A L L Version 1.01 3/22/2004 12:46 AM TelePod Contents User Manual [ Version 1.01 ] Revised 09/28/2004 7:12 PM Page 2 of 21 Version Control Version # Completion Date Author/Reviewer Comments 0.90 draft 2002-11-28 Eddie Chan Initial Draft 1.0 2003-01-22 Eddie Chan Reviewed 1.01 2004-03-22 Calum Tsang Reviewed and updated. 1.02 2004-09-28 Calum Tsang Updated with TelePod4/GSM information. Technical Notice: • The footer on each page automatically reflects the title, document type and version, which are typed on the front page. Please do not edit the footer manually • The date/time of creation on the title page can be updated by highlighting it and pressing F9 • Please do not change the styles in the document • Be sure not to remove section breaks from the title page • Please give the documents short but meaningful file names • Please do not use dots in the filenames • Please update document version on the title page after editing • Please use and correct the Properties of the document Proprietary Notice: Restriction on User and Disclosure The information (data) contained in all sheets of this document constitutes a trade secret and/or information that is commercial or financial and confidential or privileged. It may be furnished to authorized recipients only and in confidence with the understanding that it will not, without the permission of Bell Canada, be used or disclosed for other than to the extent expressly authorized in writing by Bell Canada Copyright © 2004 by Bell Canada All Rights Reserved. Bell © is a registered trademark. This document is proprietary and confidential for Bell Canada. FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. The vehicle-mount antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. TelePod Contents User Manual [ Version 1.01 ] Revised 09/28/2004 7:12 PM Page 3 of 21 1 1 C C O O N N T T E E N N T T S S 1 CONTENTS ........................................................................................................................................ 3 2 INTRODUCTION............................................................................................................................... 4 2.1 PRODUCT RELEASE OVERVIEW......................................................................................................... 4 2.2 OVERVIEW........................................................................................................................................ 4 2.3 ASSUMPTIONS................................................................................................................................... 4 3 DEVICE INSTALLATION ............................................................................................................... 5 3.1 MOUNTING........................................................................................................................................ 5 3.2 POWER AND IGNITION INPUT............................................................................................................. 5 3.3 GPS RECEIVER................................................................................................................................. 5 3.4 OBD II ADAPTER CABLE.................................................................................................................. 6 3.5 GLASS MOUNT CELLULAR ANTENNA............................................................................................... 6 4 SOFTWARE SCHEDULING ............................................................................................................6 4.1 INTRODUCTION................................................................................................................................. 6 4.2 USAGE.............................................................................................................................................. 7 5 SOFTWARE REPORT SEARCH................................................................................................... 16 5.1 INTRODUCTION...............................................................................................................................16 5.2 USAGE............................................................................................................................................ 17 TelePod Introduction User Manual [ Version 1.01 ] Revised 09/28/2004 7:12 PM Page 4 of 21 2 2 I I N N T T R R O O D D U U C C T T I I O O N N 2 2 . . 1 1 P P R R O O D D U U C C T T R R E E L L E E A A S S E E O O V V E E R R V V I I E E W W Telematics is a fairly new technology that combines computers with telecommunications. In recent years, telematics has primarily been used in conveying vehicle information through various telecommunication mediums. This information can be manipulated into different formats in order to support a number of different purposes and uses. TelePod was developed in-house by Bell Canada Fleet Services and was originally named the PICCI (Personal In Car Computer Interface). The TelePod is essentially a miniature computer. It has all the physical characteristics of a computer, for example, COM ports, USB ports, Ethernet port, etc. This device is essentially a hub to a wealth of information and data, which can be passed through several mediums such as 1xRTT, satellite, and Ethernet. This release of the product will include not only the hardware (ie. TelePod), but the applications located on the TelePod which will collect the vehicle information and transport it to the Bell Fleet application system. Fleet managers will find this product useful in the field to gather performance reports…

Text truncated - open the document above for the full version.

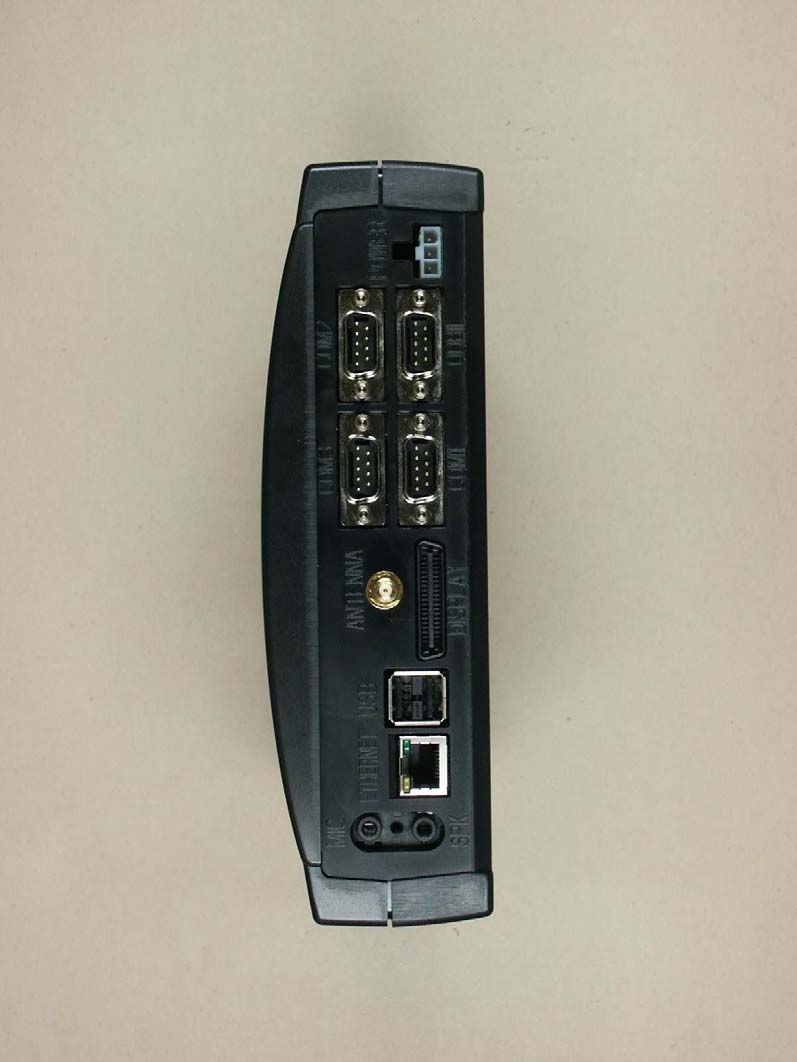

ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20409-9009-P-15 Page 1 of 13 Appendix A. Pictures ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20409-9009-P-15 Page 2 of 13 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20409-9009-P-15 Page 3 of 13

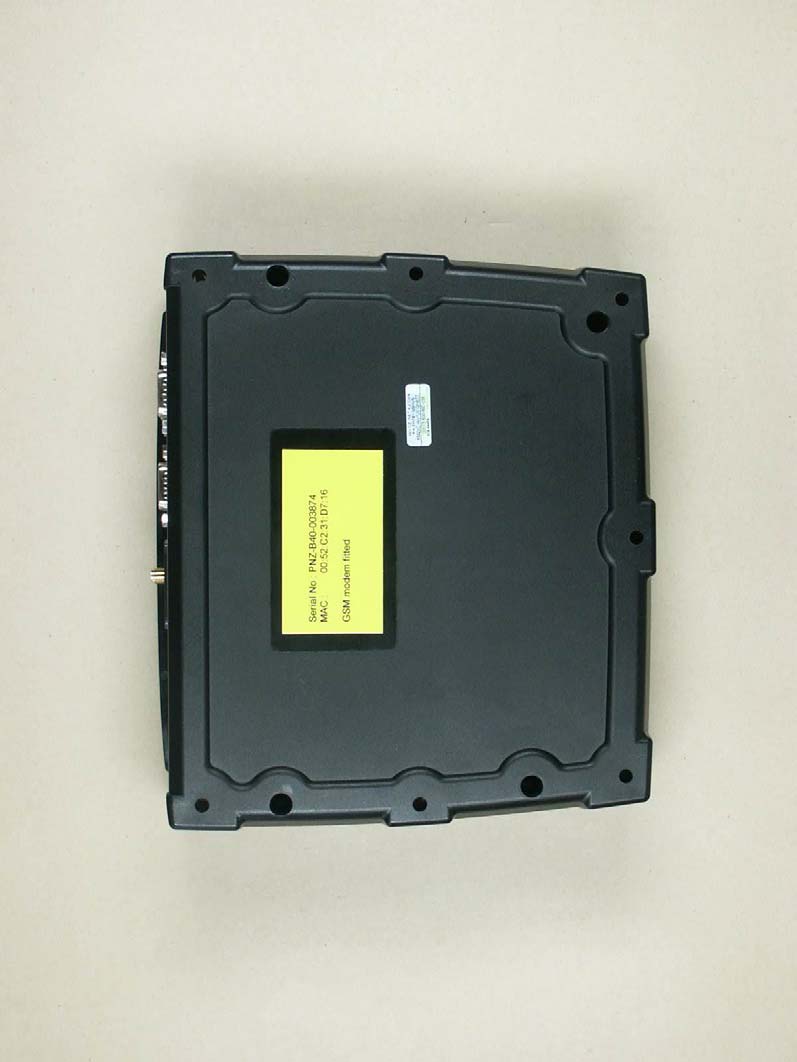

FCC Label for TelePod4 GSM: Label Location: Serial No: PNZ-B40-006950 MAC: 00:52:C2:31:D7:18 GSM modem fitted FCC ID: SJT4EGSMB This device complies with Part 15 of the FCC Rules. Operation is subject to the following conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

ETS Dr. Genz GmbH, Germany Registration number: G0M20409-9009-P-2224 Page 25 of 41 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 5.3 Radio Frequency Radiation Exposure Because the intended use of the test sample as a fixed device a theoretical MPE related evaluation as an example is done below, for information purposes. FCC OET Bulletin 65 Edition 97.01 determines the equations for predicting RF fields and applicable limits. The prediction for power density in the far-field of the antenna can be made by use of the general equation below. This equation is generally accurate in the far-field but will over-predict power density in the near field, where it could be used for making a “worst case” or conservative prediction. The internal / external antennas used for this mobile transmitter must provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. P G S = --------- 4 π R 2 S – Power Density P – Conducted power R – Distance D – Cable Loss AG – Antenna Gain G= AG-D PCS 1900 Item Unit Value Remarks P mW 918.3 Peak value D dB 4.5 Calculated value AG dBi -3 Peak gain G 0.178 Calculated value R cm 20 Assumed value S mW/cm 2 0.0325 Calculated value GSM 850 Item Unit Value Remarks P mW 1614.4 Peak value D dB 2.5 Calculated value AG dBd -3 Peak gain G 0.282 Calculated value R cm 20 Assumed value S mW/cm 2 0.0515 Calculated value Limits: Limit for General Population / Uncontrolled Exposure Frequency (MHz) Power Density (mW/cm 2) 1500 – 100.000 1,0

ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH FCC - TEST - REPORT FCC RULES PARTS 22 and 24 FCC ID: SJT4EGSMB Test report no.: G0M20409-9009-P-2224 ELECTRONIC TECHNOLOGY SYSTEMS STORKOWER STRASSE 38C, D-15526 REICHENWALDE B. BERLIN DR. GENZ GMBH PHONE +49-33631-888 00 FAX +49-33631-888 660 ETS Dr. Genz GmbH, Germany Registration number: G0M20409-9009-P-2224 Page 1 of 41 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH TABLE OF CONTENTS 1 General information 1.1 Notes 1.2 Testing laboratory 1.3 Details of approval holder 1.4 Application details 1.5 Test item 1.6 Test standards 2 Technical test 2.1 Summary of test results 2.2 Test environment 2.3 Test equipment utilized 2.4 General Test Procedure 3 Test Results 4 RF Power Output, FCC 2.1046 4.1 Test Procedure 4.2 Test Results 5 Radiated Power FCC 22.913, FCC 24.232 5.1 Test Procedure 5.2 Test Results 5.3 Radio Frequency Radiation Exposure 6 Modulation Deviation Limiting, FCC 2.1047, 22.915(b)(c) 6.1 Test Procedure 6.2 Test Results 7 Audio Filter Characteristics, FCC 22.915(d) 7.1 Test Procedure 7.2 Test Results 8 Emission Limitations, , FCC 2.1049 8.1 Test Procedure 8.2 Test Results 9 Occupied Bandwidth FCC 22.917(b)(d); FCC 2.1049 9.1 Test Procedure 9.2 Test Results 10 Out of Band Emissions at Antenna Terminals, FCC 24.238(a) 10.1 Test Procedure 10.2 Test results 11 Field Strength of Spurious Radiation, FCC 2.1053, 24.236 11.1 Test Procedure 11.2 Test Results ETS Dr. Genz GmbH, Germany Registration number: G0M20409-9009-P-2224 Page 2 of 41 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 12 Line Conducted Emissions, FCC 15.207 12.1 Test Procedure 12.2 Test Results 13 Frequency Stability vs Temperature, FCC 2.1055, 22.355, 24. 235 13.1 Test Procedure 13.2 Test Equipment 14 Frequency Stability vs Voltage, FCC 2.1055, 22.355, 24.235 14.1 Test Procedure 14.2 Test Equipment ETS Dr. Genz GmbH, Germany Registration number: G0M20409-9009-P-2224 Page 3 of 41 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH. Tester: 30.09.2004 N. Kaspar Date ETS-Lab. Name Signature Technical responsibility for area of testing: 30.09.2004 Dr. Genz Date ETS Name Signature ETS Dr. Genz GmbH, Germany Registration number: G0M20409-9009-P-2224 Page 4 of 41 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.2 Testing laboratory 1.2.1 Location ELECTRONIC TECHNOLOGY SYSTEM DR. GENZ GMBH (ETS) Storkower Straße 38c D-15526 Reichenwalde b. Berlin Germany Telephone : +49 33631 888 00 Telefax : +49 33631 888 66 1.2.2 Details of accreditation status A CCREDITED TESTING LABORATORY DAR-REGISTRATION NUMBER: TTI-P-G 126/96 A CCREDITED COMPETENT BODY DAR-REGISTRATION NUMBER: BPT-ZE-026/96 FCC FILED TEST LABORATORY REG. NO. 96970 BLUETOOTH QUALIFICATION TEST FACILITY (BQTF) ACCREDITED BY: BLUETOOTH QUALIFICATION REVIEW BOARD (BQRF) I NDUSTRY CANADA FILED TEST LABORATORY REG. NO. IC 3470 A2LA ACCREDITED Certificate Number: 1983-01 1.3 Details of approval holder Name : Bell Canada Fleet Solutions Street : 20 Norelco Drive, Suite 200 Town : North York, Ontario Country : Canada M9L 1S2 Telephone : 416 747 4495 Fax : 416 744 1585 Contact : Elgin McMillan E-Mail : [email protected] ETS Dr. Genz GmbH, Germany Registration number: G0M20409-9009-P-2224 Page 5 of 41 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.4 Application details Date of receipt of application : 20.09.2004 Date of receipt of test item : 20.09.2004 Date of test : 23.09.2004 – 27.09.2004 1.5 Test item Description of test item : Bell Canada Fleet Solutions Vehicle Tracking System Type identification : TelePod 4/GSM Serial number : Test model without serial number. Photos : See annex A. Technical data Frequency range Tx – GSM 850 : 824.2 – 848.80 MHz Frequency range Tx – PCS : 1850.2 – 1909.8 MHz Frequency range Rx - GSM 850 : 869.2 – 893.8 MHz Frequency range Rx - PCS : 1930.2 – 1989.8 MHz Antenna type : "On-Glass" Premium 3 dB Dual-Band Window-Mount Antenna Antenna Connector : SMA connector Antenna Gain : 5 dBi / 3 dBd Power supply : 12 V DC Operating mode : duplex Type of modulation : GMSK (GSM modulation) Emission : GXW Manufacturer: (if applicable) Name : Prolificx Inc.Prolificx Inc. Street : 13 Ronwood Ave. Level 1 Town : Manukau City, Auckland Country : New Zealand ETS Dr. Genz GmbH, Germany Registration number: G0M20409-9009-P-2224 Page 6 of 41 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.6 Test standards Technical standard : FCC Parts 22, 24, 2, 15 Additional information : Because of using the GSM 850 as an alternative technology in 850 MHz band, not all test cases of FCC Part 22 are required. 2 Technical test 2.1 Summary of test results No deviations from the technical specification(s) were ascertained in the course : of the tests performed. or The deviations as specified in 2.5 were ascertained in the course of the tests … performed. 2.2 Test environment Temperature : 23 o C Relative humidity content : 20 ... 75 % Air pressure : 86 ... 103 kPa ETS Dr. Genz GmbH, Germany Registra…

Text truncated - open the document above for the full version.

ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20409-9009-P-15 Page 10 of 13 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20409-9009-P-15 Page 11 of 13 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20409-9009-P-15 Page 12 of 13 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20409-9009-P-15 Page 13 of 13
