SJV-2879316Wireless Remote

Manual Windlass wireless remoter manual 1. Picture 2. Operation 1） Matching address code Press the matching switch and the light turns on, then press IN key or OUT key. The receiver will save the address. Not need the matching in normal using. 2） Operation Hold the POWER key for about 3 seconds to turn on or turn off the system, then press the IN or OUT key to operate the windlass, the light will display the state. The system will be turned off in 2 minutes with no operation. 3）Valid distance:≥100 inches。 4）Disturbance：The remote distance will change with ambient interference. 3. Performances （1）Remoter: No. Content Performance 1 Work voltage DC12V/23A one cell 2 Static current ≤0.1UA 3 Work current ≤10MA 4 Transmitting power ≤10MW 5 Transmitting frequency 315MHZ 6 Modulation method ASK 7 Coding method Learning code 8 Transmitting intensity +8db （2）Receiver: No. Content Performance 1 Work voltage DC7-15V 2 Static current ≤10MA 3 Work current 10A 4 Receiving sensitivity -108dbm 5 Receiving frequency 315MHZ 6 Coding method Learning code 7 Responding speed ≤0.1S 四、Excellent feature： 1）Matching address code and operation method is easy, 2）Good anti-jamming ability and long remote distance； 3）Low standby power for remoter(zero power), 4）Fast responding speed, Fast turn off. Because the high anti-disturb performance. Notes: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. Manual

Polaris Industries Inc. No. 1000 Lujiazui Ring Road HangSeng Bank Tower, 15/F Shanghai, 200120, China Agent Authorization Letter March 25, 2013 MET Laboratories, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize (Hanson Chueng/ Shenzhen Timeway Technology Consulting Co., Ltd.) to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely,

Polaris Industries Inc. No. 1000 Lujiazui Ring Road HangSeng Bank Tower, 15/F Shanghai, 200120, China Long Term Confidentiality Request Letter March 25, 2013 MET Laboratories, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR (wireless remote, Model: 2879316, FCC ID: SJV-2879316) To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the (Schematics, Operational Description, Block Diagram) required to be submitted with this application be permanently withheld from public review. The above documents are company proprietary information that could never get into the possession of your competition). Please contact me if there is any information you may need. Sincerely,

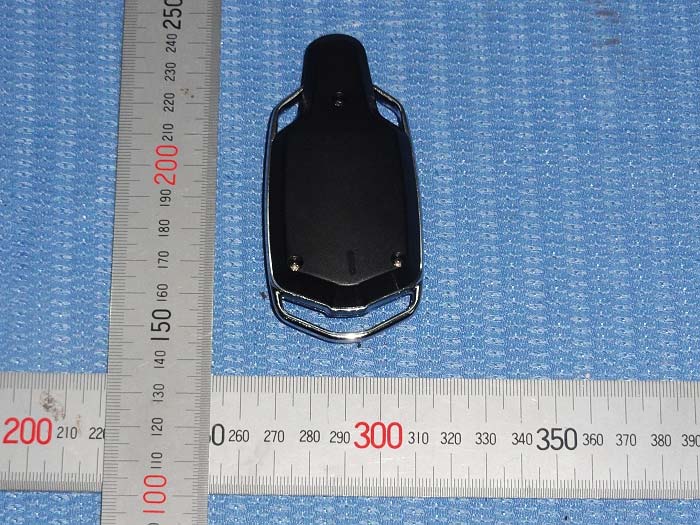

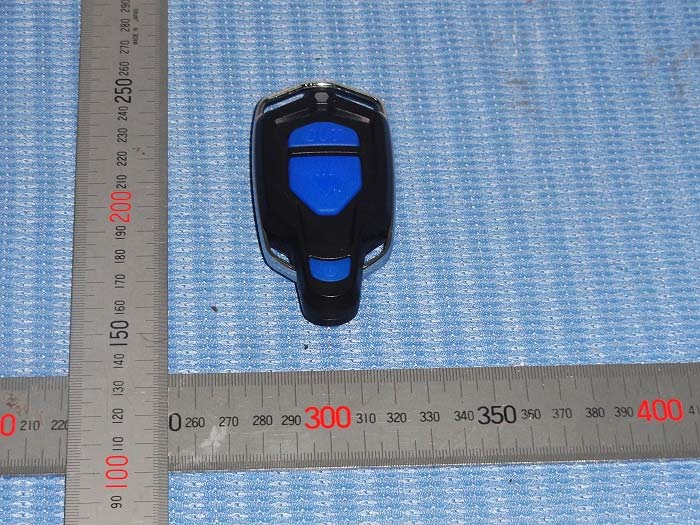

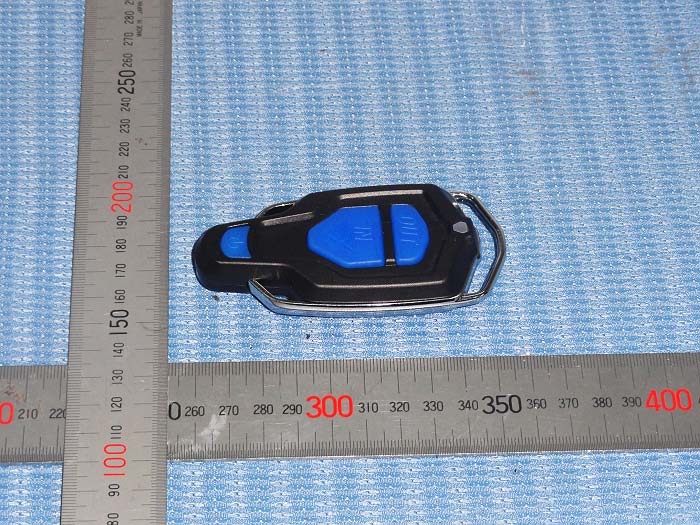

Outside View (Tx) Outside View (Tx)

Model:2879316 This device complies with part 15 of the FCC rules. Operation is subject to the foliowing two conditions (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Freq. :315MHz FCC ID:SJV-2879316 Mark Location: FCC ID Label Location

Inside View (Tx) Inside View (Tx) Report No: 1303001 Page 2 of 3 Date: 2013-03-25 The report refers only to the sample tested and does not apply to the bulk. This report is issued in confidence to the client and it will be strictly treated as such by the Shenzhen Timeway Technology Consulting Co .,Ltd. It may not be reproduced rather in its entirety or in part and it may not be used for adverting. The client to whom the report is issued may, however, show or send it . or a certified copy there of prepared by the Shenzhen Timeway Technology Consulting co .,Ltd to his customer. Supplier or others persons directly concerned. Shenzhen Timeway Technology Consulting co .,Ltd will not, without the consent of the client enter into any discussion of correspondence with any third party concerning the contents of the report. In the event of the improper use of the report. The Shenzhen Timeway Technology Consulting co .,Ltd reserves the rights to withdraw it and to adopt any other remedies which may be appropriate. Inside View (Tx) Report No: 1303001 Page 3 of 3 Date: 2013-03-25 The report refers only to the sample tested and does not apply to the bulk. This report is issued in confidence to the client and it will be strictly treated as such by the Shenzhen Timeway Technology Consulting Co .,Ltd. It may not be reproduced rather in its entirety or in part and it may not be used for adverting. The client to whom the report is issued may, however, show or send it . or a certified copy there of prepared by the Shenzhen Timeway Technology Consulting co .,Ltd to his customer. Supplier or others persons directly concerned. Shenzhen Timeway Technology Consulting co .,Ltd will not, without the consent of the client enter into any discussion of correspondence with any third party concerning the contents of the report. In the event of the improper use of the report. The Shenzhen Timeway Technology Consulting co .,Ltd reserves the rights to withdraw it and to adopt any other remedies which may be appropriate. Inside View (Tx)

ISO/IEC17025 Accredited Lab. Report No: FCC 1303001 File reference No: 2013-03-25 Applicant: Polaris Industries Inc. Product: wireless remote Model No: 2879316 Trademark: Polaris Test Standards: FCC Part 15 Subpart C, Paragraph 15.231 Test result: It is herewith confirmed and found to comply with the requirements set up by ANSI C63.4&FCC Part 15 Subpart C, Paragraph 15.231 regulations for the evaluation of electromagnetic compatibility Approved By Jack Chung Manager Dated: March 25, 2013 Results appearing herein relate only to the sample tested The technical reports is issued errors and omissions exempt and is subject to withdrawal at SHENZHEN TIMEWAY TECHNOLOGY CONSULTING CO LTD 5/F,Block 4, Anhua Industrial Zone.,No.8 TaiRan Rd.CheGongMiao,FuTian District, Shenzhen,CHINA. Tel (755) 83448688 Fax (755) 83442996 Report No: 1303001 Page 2 of 32 Date: 2013-03-25 The report refers only to the sample tested and does not apply to the bulk. This report is issued in confidence to the client and it will be strictly treated as such by the Shenzhen Timeway Technology Consulting Co .,Ltd. It may not be reproduced rather in its entirety or in part and it may not be used for adverting. The client to whom the report is issued may, however, show or send it . or a certified copy there of prepared by the Shenzhen Timeway Technology Consulting co .,Ltd to his customer. Supplier or others persons directly concerned. Shenzhen Timeway Technology Consulting co .,Ltd will not, without the consent of the client enter into any discussion of correspondence with any third party concerning the contents of the report. In the event of the improper use of the report. The Shenzhen Timeway Technology Consulting co .,Ltd reserves the rights to withdraw it and to adopt any other remedies which may be appropriate. Special Statement： The testing quality ability of our laboratory meet with "Quality Law of People's Republic of China" Clause 19. The testing quality system of our laboratory meets with ISO/IEC-17025 requirements, which is approved by CNAS. This approval result is accepted by MRA of APLAC. Our test facility is recognized, certified, or accredited by the following organizations: CNAS-LAB Code: L2292 The EMC Laboratory has been assessed and in compliance with CNAS-CL01 accreditation criteria for testing Laboratories (identical to ISO/IEC 17025:1999 General Requirements) for the Competence of testing Laboratories. FCC-Registration No.: 899988 The EMC Laboratory has been registered and fully described in a report filed with the (FCC) Federal Communications commission. The acceptance letter from the FCC is maintained in our files. Registration No.:899988. IC- Registration No.: IC5205A-02 The EMC Laboratory has been registered and fully described in a report filed with the (IC) Industry Canada. The acceptance letter from the IC is maintained in our files. Registration IC No.: 5205A-02. VCCI- Registration No.: R-3015 and C-3332 The EMC Laboratory has been registered and fully described in a report filed with the (VCCI) Voluntary Control Council for Interference. The acceptance letter from the VCCI is maintained in our files. Registration IC No.: R-3015 and C-3332 Report No: 1303001 Page 3 of 32 Date: 2013-03-25 The report refers only to the sample tested and does not apply to the bulk. This report is issued in confidence to the client and it will be strictly treated as such by the Shenzhen Timeway Technology Consulting Co .,Ltd. It may not be reproduced rather in its entirety or in part and it may not be used for adverting. The client to whom the report is issued may, however, show or send it . or a certified copy there of prepared by the Shenzhen Timeway Technology Consulting co .,Ltd to his customer. Supplier or others persons directly concerned. Shenzhen Timeway Technology Consulting co .,Ltd will not, without the consent of the client enter into any discussion of correspondence with any third party concerning the contents of the report. In the event of the improper use of the report. The Shenzhen Timeway Technology Consulting co .,Ltd reserves the rights to withdraw it and to adopt any other remedies which may be appropriate. Test Report Conclusion Content 1.0 General Details ................................................................................................ 4 1.1 Test Lab Details................................................................................................ 4 1.2 Applicant Details.............................................................................................. 4 1.3 Description of EUT .......................................................................................... 4 1.4 Submitted Sample............................................................................................. 4 1.5 Test Duration.................................................................................................... 5 1.6 Test Uncertainty.................................................................................................5 1.7 Test By.......................................................................................................... 5 2.0 List of Measurement Equipment......................................................................... 5 3.0 Technical Details............................................................................................. 6 3.1 Summary of Test Results..................................................................................... 6 3.2 Test Standards.................................................................................................. 6 4.0 EUT Modification............................................................................................. 6 5.0 Power Line Conducted Emission Test...................................................................... 7 5.1 Schematics of the Test........................................................................................ 7 5.2 Test Method and Test Procedure..........…

Text truncated - open the document above for the full version.

Radiated emission test view
