SJXC803VEHICLE SECURITY SYSTEM C803

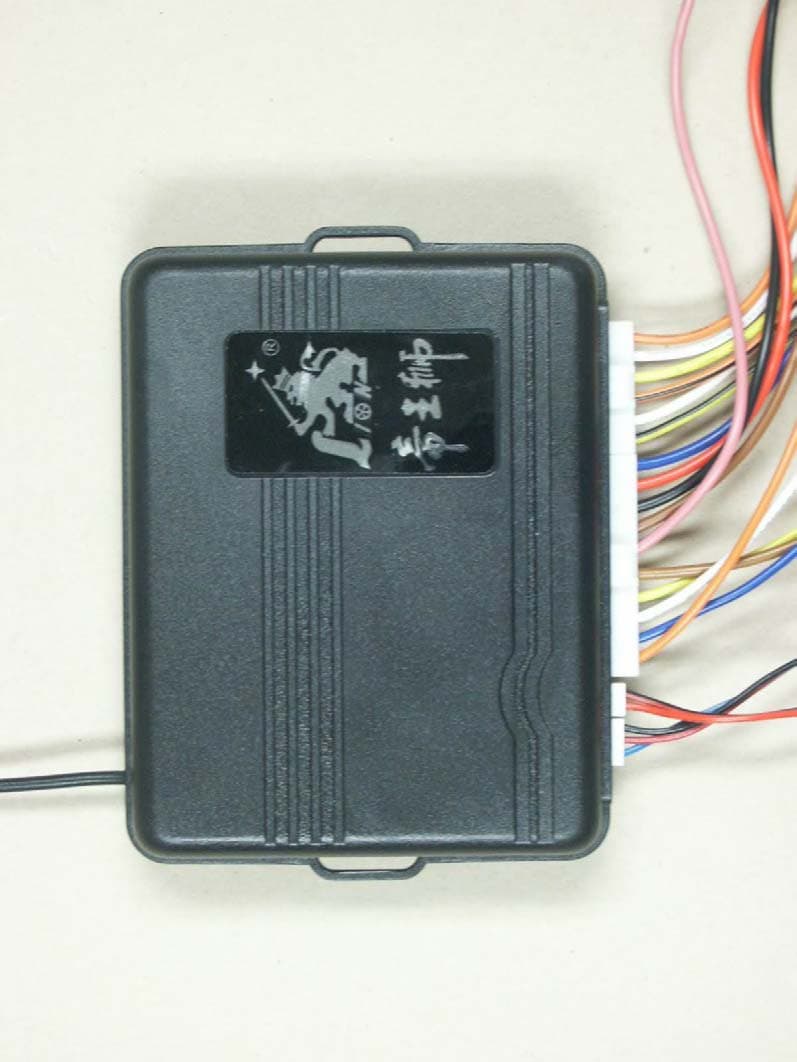

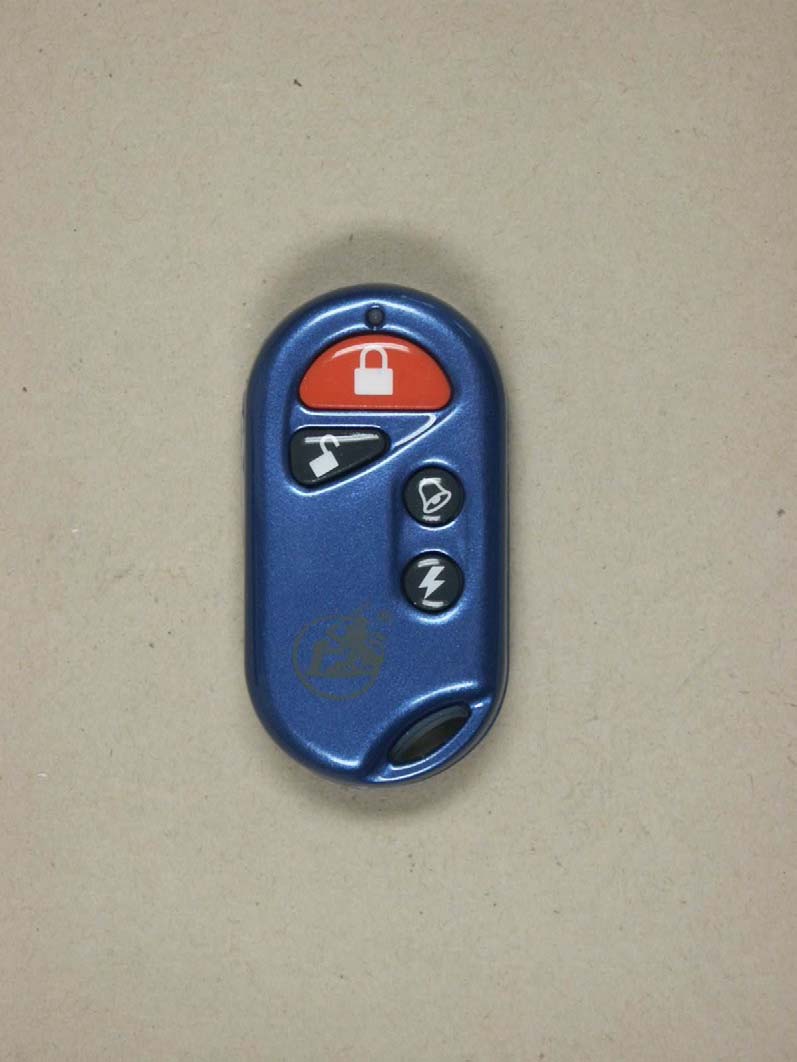

VEHICLE SECURITY SYSTEM USERS MANUAL CONTENTS: OPERATING INSTRUCTIONS DESCRIPTION OF FUNCTIONS AND FEATURES XC2003-C803 OPERATING INSTRUCTIONS 3 BUTTON REMOTE CONTROL FUNCTION ARM DISARM MUTE ALARM MODE ANTI-HIJACKINGPANIC/ CAR FINDING TRUNK RELEASE PRESS Press For 5 Seconds When ACC-ON press for 2 seconds Press For 3 Seconds 4 BUTTON REMOTE CONTROL FUNCTION ARM DISARM MUTE ALARM MODE ANTI-HIJACKINGPANIC/ CAR FINDING TRUNK RELEASE PRESS When ACC-ON ,then Press For 3 Seconds FUNCTION SETTING FUNCTION JP Position METHOD Electronic / Air Compressor Lock JP2 Electronic Lock: Open circuit Air compressor Lock: Short circuit Auto arming setting JP1 Short circuit Hints for arming setting JP3 Short circuit 3/4 Button Transition JP4 4 Button remote: Open circuit 3 Button remote: Short circuit NOTE: 1. THE SYSTEM IS SET IN JP1 OPEN CIRCUIT (ELECTRONIC LOCK) MODE DURING PRODUCTION. 2. ICON OF INDICATING SHORT CIRCUIT & OPEN CIRCUIT. ( ：<< SHORT ) (：<< OPEN ) 3. DO ALL SETTING IN NO POWER SUPPLIED CONDITION. DESCRIPTION OF FUNCTIONS & FEATURES A) ARM THE ALARM (a) Siren will chirp once and lights flash once. (b) If equipped with central door lock, doors lock automatically. (c) Alarm is armed, the L.E.D blinks. B) DISARM THE ALARM (a) Siren will chirp 2 times and lights flash 3 times. (b) Power door lock/unlock automatically. (c) Alarm is disarmed and returns to its normal status. Please also refer to “AUTO REARMING” feature. C) MUTE ALARM MODE (a) Lights flash once, but siren will not chirp. (b) If the alarm shock is triggered, lights will flash, but siren will not sound. (c) If the door is opened, the alarm will be activated after 15 seconds. D) PANIC, CAR FINDING (a) Press in normal arming mode, the siren will sound and lights will flash for 15+/-5 seconds. Press again to stop. (b) Press in mute arming mode, the siren will not sound and lights will flash for 15+/-5 seconds. Press again to stop. (c) After the15+/-5 seconds alarm cycle, the system will return to its previous status (armed or disarmed or mute alarm mode). (d) Press again to stop the status. This feature can also be used as a searching function to locate the vehicle in a large parking lot. E) STOP SIREN TEMPORARILY If alarm system is triggered off, the siren will blare. By pressing to stop the siren temporarily but the alarm system is still on arming mode. F) CALL FOR EMERGENCY HELP When driving, press , the siren will keep sounding and parking lights will keep flashing for 15 +/-5 seconds for calling for emergency help. Press again to stop the above operation. G) ANTI-HIJACKING (Optional) When driving, the key on ACC.ON position. Press, the parking lights will flash quickly(This is stand-up for anti-hijacking mode). And then pressing button within 5 seconds, the system is into anti-hijacking mode, the lamps keep lighting. And the engine will be cut off and siren keep sounding, lamps flashing after 15 seconds. Press to stop the function. (only for 4 button remote ) When driving, the key on ACC.ON position. Press for 2 seconds, the parking lights will keep on(This is stand-up for anti-hijacking mode). After 15 seconds, the engine will be cut off and the siren will sound, lamps flashing. Press to stop the function. (only for 3button remote ) Make the car stop automatically within 10 seconds when the theft drives the car. Suggestion: Connect engine cut off relay to starter power wire. SPECIAL FEATURES 1.MISS-TOUCH Once the vehicle started accidentally touching buttons that normally arm the alarm, will not arm the alarm, but will lock doors. Press disarm button to unlock the doors. 2.AUTO RE-ARM If nobody enters the car in 20+/-5 seconds after the system is disarmed by pressing button , the door of the car will automatically be locked again and the system will come back to be on "ALERT" mode. 3. AUTO CENTRAL LOCK When driving, press or to lock or unlock the doors, but the alarm system will not be set work. Turn on the ignition after closing the car doors in a proper way, after 15 seconds, step on the foot brake and the car doors will be locked automatically. Please note: The doors will not be locked automatically if the ignition key is not turned to the "ACC. ON" position or if the doors are not closed properly. The car doors will automatically unlocked when the key is taken out of the ignition switch. 4. VIBRATION RECORD If the car is bumped, the system will take a record about the vibration of the car and will give warning to the car owner by beeps when the alarm system is disarmed, so that the car owner can check the car inside and outside to make sure about the safety of the car. 5. WARNINGS OF IMPROPER CLOSED OF DOORS If the doors are not properly closed, the lamps will keep flashing for 15+/-5 seconds in order to give warnings to the cars behind. 6. WARNINGS OF ABNORMAL SITUATION If the alarm system is triggered in arming mode, then: (a.) The siren will sound on in arming mode (without sounding in mute mode) when the car window is knocked or when the car is bumped. (b.) The siren will keep sounding for 25+/-5 seconds when the car door is opened or when the engine is ignited illegally. 7. TWO STAGE SIREN VERIFICATION If the car body by bumped slightly, then L.E.D keep lighting and the parking light flash and the siren will only chirp 5 times. If the car body by bumped continuously or the car door is opened, the siren will keep sounding for 25+/-5 seconds. 8. MEMORY ALARM MODES If the car power is cut off whether the system is armed or disarmed, the system will still keep in original condition. 9. TRUNK RELEASE FUNCTION Press for 3 seconds in any mode (arm/disarm/mute), the trunk will release. It shall last 1 second. 10. EMERGENCY DISARMING FUNCTION Turn the key from ACC ON- OFF for 10 times, stay ON position under arming mode, the system will be disarmed.(using in the condition of the remote lost). 11. AUTO ARMING (Optional) When the car is parked, the door is closed properly, if the car owner forgets to arm the system, the system wil…

Text truncated - open the document above for the full version.

__________________________________________________________________________________ ETS Handelsregister: Bankverbindung: Electronic Technology Systems Dr. Genz GmbH Amtsgericht Frankfurt/Oder HRB 5151 Sparkasse Oder-Spree Storkower Strasse 38c Geschäftsführung: Dr. Dietmar Genz BLZ 170 550 50 D-15526 Reichenwalde b. Berlin Norbert Kaspar Kto. Nr. 3105165974 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH - ETS - STORKOWER STRASSE 38c, D-15526 REICHENWALDE B. BERLIN Tel: 033631 888 000 FAX: 033631 888660 REQUEST FOR CONFIDENTIALITY If you do not require confidentiality your exhibits are visible on the FCC website for everyone. A request for confidentiality must be indicated in item 8 of the 731 form and a letter making specific request for confidentiality must accompany the application as a separate exhibit. This letter must state exactly which portions of the application are to be held in confidence and for what specific reason. Only certain exhibits may be held in confidence. Schematic Diagrams, Operational Descriptions, Users Manuals and Internal Photos are candidates for this. Users Manuals will only be held in confidence under certain conditions such as when the Manual will only be available to licensed or specially trained personnel. Internal Photographs will only be held in confidence if the device is sealed using specially fasteners that cannot be opened using common hand tools or if the PCB’s are completely potted. The FCC is a federal agency and as such has duties to the public to disclose information made known to it (see 47 CFR 0). The FCC has a procedure to handle confidential items and any request will be delivered to the FCC for them to decide if it can be held in confidence. A request for confidentially does not guarantee that the FCC will grant it. Please find below a sample letter for confidentiality reques

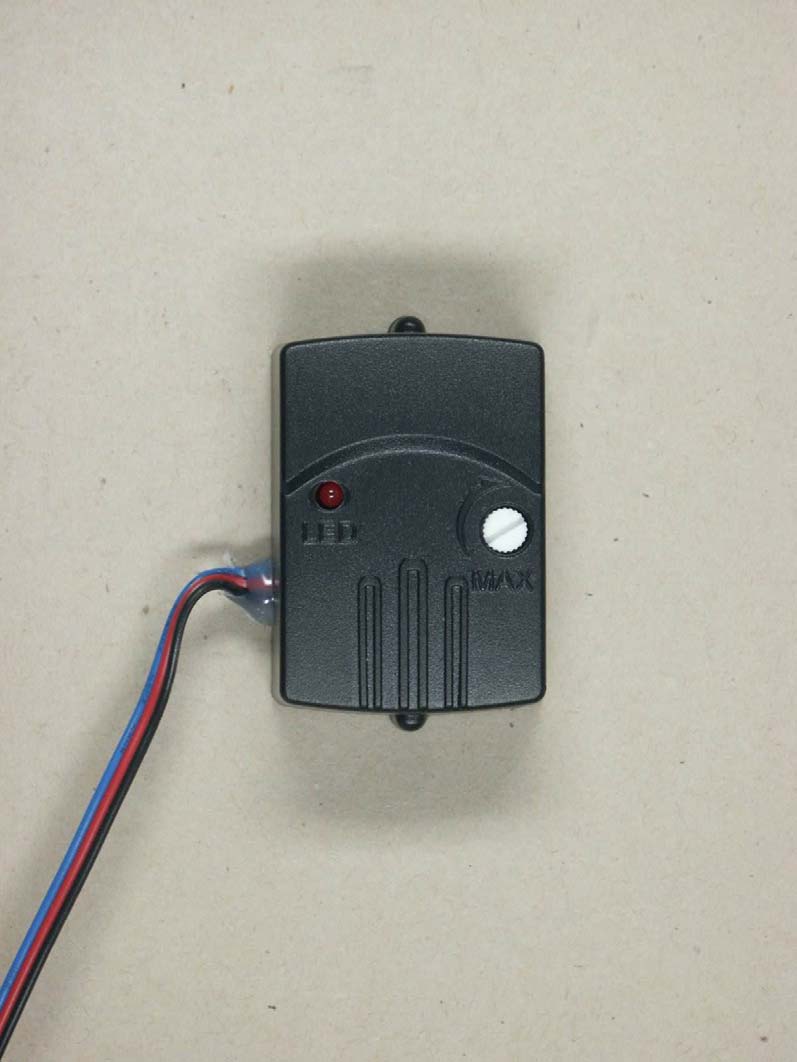

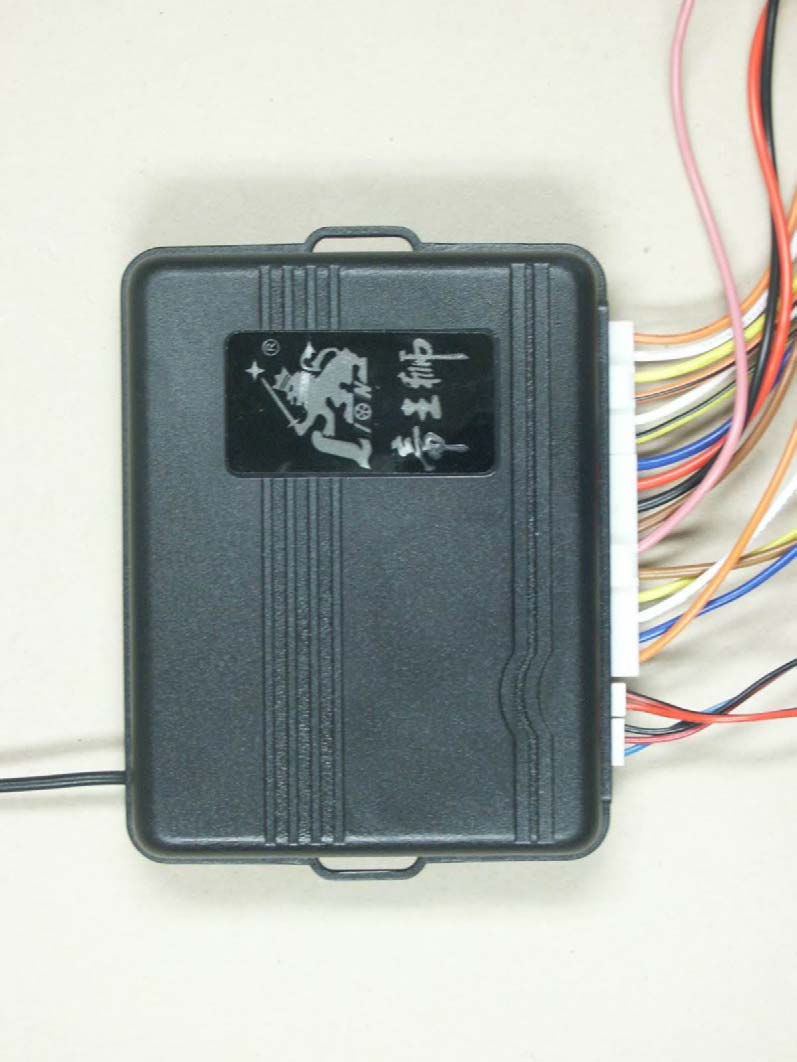

ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G4M20407-2177-C-1 Page 1 of 20 Appendix A. Pictures ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G4M20407-2177-C-1 Page 2 of 20 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G4M20407-2177-C-1 Page 3 of 20 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G4M20407-2177-C-1 Page 7 of 20 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G4M20407-2177-C-1 Page 8 of 20 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G4M20407-2177-C-1 Page 11 of 20 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G4M20407-2177-C-1 Page 12 of 20 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G4M20407-2177-C-1 Page 13 of 20

XINCHENG Vehicle Parts Manufacturing Factory TEL:+86-760-2396863 FAX:+86-760-2398370 E-MAIL:[email protected] Web:http://www.xinchengco.com

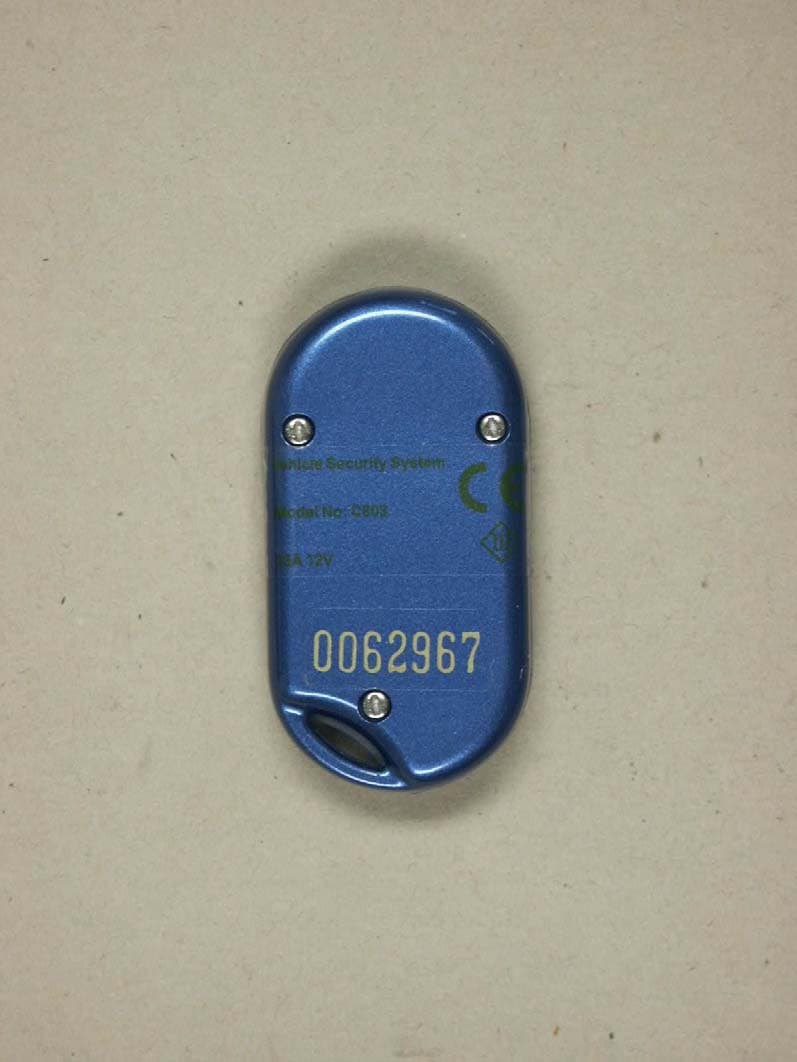

FCC ID Label 1. NOTICE： Size of the marking: _14.3mm__ (W) by 4mm___(H) 2. FCC ID NOTICEE Product: VEHICLE SECURITY SYSTEM C803 This device complies with part 15 of The FCC rules. Model No.:C803___ Operation is subject to the following two conditions: FCC ID: SJXC803 (1) This device may not cause harmful interference, andf Power requirement:12V (2) This device must accept any interference received,Including interference that may cause undesired operation. 3. Notice: this lable use in remote FCC ID：SJXC803 XINCHENG Vehicle Parts Manufacturing Factory TEL:+86-760-2396863 FAX:+86-760-2398370 E-MAIL:[email protected] Web:http://www.xinchengco.com

ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G4M20407-2177-C-1 Page 4 of 20 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G4M20407-2177-C-1 Page 5 of 20 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G4M20407-2177-C-1 Page 6 of 20 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G4M20407-2177-C-1 Page 9 of 20 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G4M20407-2177-C-1 Page 10 of 20 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G4M20407-2177-C-1 Page 14 of 20 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G4M20407-2177-C-1 Page 15 of 20

ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH TEST - REPORT FCC RULES PART 15 / SUBPART B and C Test report no.: G4M20407-2177-C-1 FCC ID:SJXC803 ELECTRONIC TECHNOLOGY SYSTEMS STORKOWER STRASSE 38C, D-15526 REICHENWALDE B. BERLIN DR. GENZ GMBH PHONE +49-33631-888 00 FAX +49-33631-888 66 ETS Dr. Genz GmbH, Germany Registration number: G4M20407-2177-C-1 Page 1 of 29 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH TABLE OF CONTENTS 1 General information 1.1 Notes 1.2 Testing laboratory 1.3 Details of approval holder 1.4 Application details 1.5 Test item 1.6 Test standards 2 Technical test 2.1 Summary of test results 2.2 Test environment 2.3 Test equipment utilized 2.4 Test Procedure 3 Test Results ETS Dr. Genz GmbH, Germany Registration number: G4M20407-2177-C-1 Page 2 of 29 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Futhermore, there is no guarantee that a test sample which has Passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample posseses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extractes from the report requires the prior written approval of the ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH. Tester: 16.09.2004 N. Kaspar Date ETS-Lab. Name Signature Technical responsibility for area of testing: 16.09.2004 Dr. Genz Date ETS Name Signature ETS Dr. Genz GmbH, Germany Registration number: G4M20407-2177-C-1 Page 3 of 29 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.2 Testing laboratory 1.2.1 Location ELECTRONIC TECHNOLOGY SYSTEM DR. GENZ GMBH (ETS) Storkower Straße 38c D-15526 Reichenwalde b. Berlin Germany Telefon : +49 33631 888 00 Telefax : +49 33631 888 66 1.2.2 Details of accreditation status A CCREDITED TESTING LABORATORY DAR-REGISTRATION NUMBER: TTI-P-G 126/96-30 ACCREDITED COMPETENT BODY DAR-REGISTRATION NUMBER: BPT-ZE-026/96-00 FCC FILED TEST LABORATORY REG. NO. 96970 A2LA Accredited Certification No.1983-01 B LUETOOTH QUALIFICATION TEST FACILITY (BQTF) Accredited by Bluetooth Qualification Review Board INDUSTRY CANADA FILED TEST LABORATORY REG. NO. IC 3470 1.3 Details of approval holder Name : Zhongshan Guzhen Xincheng Vehicle Parts Manufacturing Factory Street : Caoer Industrial District, Guzhen Town Town : Zhongshan, Guangdong Country : China Telephone : +86-760-2396862 Fax : +86-760-2398370 Contact : Ms. Liu Yong Di Telephone : +86-760-2396862 ETS Dr. Genz GmbH, Germany Registration number: G4M20407-2177-C-1 Page 4 of 29 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.4 Application details Date of receipt of application : 27.07.2004 Date of receipt of test item : 27.07.2004 Date of test : 11.08.2004 – 12.08.2004; 16.09.2004 1.5 Test item Description of test item : Vehicle Security System Type identification : C803 Serial number : Test sample without serial number Transmitting frequency : 433.818 MHz - 433.842 MHz Operation mode : simplex Transmitting mode : P1D Voltage supply : 12 V DC (battery) Antenna : Internal antenna Photos : see Annex Manufacturer: (if applicable) Name : Street : Town : Country : Additional information: none ETS Dr. Genz GmbH, Germany Registration number: G4M20407-2177-C-1 Page 5 of 29 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.6 Test standards Technical standard : FCC RULES PART 15 / SUBPART B §15.109/ SUBPART C § 15.203, §15.231 2 Technical test 2.1 Summary of test results No deviations from the technical specification(s) were ascertained in the course : of the tests performed. or The deviations as specified in 2.5 were ascertained in the course of the tests … performed. 2.2 Test environment Temperature : 25 o C Relative humidity content : 20 ... 75 % Air pressure : 86 ... 103 kPa Details of power supply : 12 V DC (battery) ETS Dr. Genz GmbH, Germany Registration number: G4M20407-2177-C-1 Page 6 of 29 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 2.3 Test equipment utilized No. Test equipment Type Manufacturer ETS 0001 Test receiver ESHS 10 Rohde & Schwarz ETS 0002 Test receiver ESVP Rohde & Schwarz ETS 0003 Test receiver ESVS 10 Rohde & Schwarz ETS 0004 Spectrum and network analyzer FSMS 26 Rohde & Schwarz ETS 0005 Test receiver SMV 11 MEB ETS 0006 Test receiver system SME 12 MEB ETS 0008 Antenna Loop antenna Siemens ETS 0009 Antenna ARA 2 MEB ETS 0010 Antenna Loop antenna MEB ETS 0011 Antenna van Veen/ Frame Rohde & Schwarz ETS 0012 Antenna HK 116 Rohde & Schwarz ETS 0013 Antenna HL 223 Rohde & Schwarz ETS 0014 Antenna HL 025 Rohde & Schwarz ETS 0015 Antenna HL 025 Rohde & Schwarz ETS 0016 Precision antenna kit VHAP Schwarzbeck ETS 0017 Precision antenna kit UHAP Schwarzbeck ETS 0020 Antenna DP 21 MEB ETS 0021 Antenna DP 3 MEB ETS 0022 Antenna SAS-200/ 521 A.H. Systeme+D65 ETS 0023 Antenna DP 1 MEB ETS 0024 Antenna mast AF 2 MEB ETS 0025 Antenna mast AF 2 MEB ETS 0026 Tripod Heinrich Deisel ETS 0027 Tripod Heinrich Deisel ETS 0028 Tripod STA 2 C. Lorenz AG ETS 0029 Tripod Berlebach ETS 0031 Turn table DS 412 Heinrich Deisel ETS 0032 Controller HD 050 Heinrich Deisel ETS 0033 RF generator SMG Rohde & Schwarz ETS 0034 RF generator/ Amplifier SMLR Rohde & Schwarz ETS 0035 RF generator/ Amplifier SMLM Rohde & Schwarz ETS 0038 RF amplifier 150L Amplifier Research ETS 0039 Absorbing clamp MDS 21 Rohde & Schwarz ETS Dr. Genz GmbH, Germany Registration number: G4M20407-2177-C-1 Page 7 of 2…
