SK6-XH2120Hardened Wireless Access Point

Hardened Wireless Access Point XH2-120 Quick Installation Guide XD4 Series September 16, 2015 is a registered trademark of Xirrus, Inc. All other trademarks and brand names are marks of their respective holders. Please see Legal Notices, Warnings, Compliance Statements, and Warranty and License Agreements in the Wireless AP User’s Guide. All rights reserved. This document may not be reproduced or disclosed in whole or in part by any means without the written consent of Xirrus, Inc. Part Number: 812-0085-011 Rev A September 16, 2015 XH Outdoor Access Points 1 Quick Installation Guide For XH2 Models The XH2 Series Hardened Wireless Access Point provides two dual-band 802.11ac radios in a hardened case for installation outdoors and in other harsh environments. This guide describes how to install the XH2 Series on a pole or wall and execute the initial power up of the AP. The pole or wall can be a structure that is at ground level or on a roof. The XH2 is not compatible with other Xirrus mounting options. For additional information, see the Wireless AP User's Guide. The XH2 Series includes the XH2-120 (Model XH2120). This document is intended ONLY for XH2 model APs. For other models please see the installation guide for that model series. You Need the Following Items Professional Installation Required—regulatory requirements for the XH2-120 mandate that the device be installed and configured for use by trained professionals only. Direct questions regarding installation and use of the product s to Xirrus Customer Support (see last page). Accessory Kit (included in each AP carton) includes: Mounting bracket and eight attachment screws Grounding screw Two watertight RJ connector assemblies Appropriate tools, bands, screws, and/or anchors required for the desired mounting location (not provided with the AP). Antennas and cables for two radios, to be installed by a professional installer. Cables are low-loss outdoor-rated coaxial cables terminated with N-type male connectors (e.g., Xirrus part number ANT-CAB-195-10-MM-02). Note that some antennas include integrated cables as part of the unit, and these do not need separate cables. See Xirrus External Antenna Guide for recommended antennas. If you are not using one of the recommended antennas, the XH2-120’s output power setting must be reduced by 1 dB for every dB above 6dBi gain the selected antenna may produce. Grounding wire and lug. If lightning surges are a concern, consider using a lighting arrestor. Workstation with a Web browser to configure the AP. RJ-45 Ethernet connection(s) to your wired network. Gigabit1/PoE+ —XH2-120 APs are powered via one Power over Ethernet (PoE) port using an outdoor-rated Ethernet Cat 5e or Cat 6 cable that also carries data traffic. Use only 802.3at 1 XH Outdoor Access Points 2 PoE+ compliant switches or power injectors, or a Xirrus-supplied PoE injector (the 30W XP1-MSI-30, or current models rated at 70W or higher). (Optional) GIGABIT2—Connection to this second, data-only Gigabit port provides additional bandwidth. Use Cat 5E or Cat 6 cable. The AP protects its inputs from typical static charge buildup on antennas. In areas where lightning surges are a concern, a lightning arrestor may be used between the antenna and the AP, with 6 AWG copper wire from the arrestor to a good earth ground. NOTE: PoE Injectors and switches must be installed and used indoors. NOTE: If XH2 models are used indoors, they are to be connected only to PoE networks without routing to the outside plant. NOTE: The AP comes with plastic covers installed on Ethernet and antenna ports. You MUST leave these covers securely installed on unused ports to prevent weather damage. Choose a Suitable Location The XH2-120 is tested to IP65 waterproof and dust-proof requirements to protect against severely wet and dusty environments. For optimal placement, we recommend that a predictive survey be performed by a qualified Xirrus partner. Choose a location that is not subjected to submersion. Direct sunlight may raise the effective ambient temperature many degrees above air temperature. It is best to choose a location that has some protection from the sun. The maximum cable length between the XH2-120 and the RJ-45 Ethernet network is 100 meters. The PoE injector is not a repeater, so its location will not increase this distance. The XH2-120 can operate from a Wireless Distribution System (WDS) link. However, the unit will need to be configured via the Ethernet connection prior to mounting and power must still be supplied via the GIG1 Ethernet connector. Keep the unit away from electrical devices or appliances that generate RF noise—at least 3 to 6 feet (1 to 2 meters). The AP must be installed in a position so that the LED’s cover is not directly affected by the Sun's radiation (typically with the LED and Ethernet connectors facing down). Prepare the Mounting Location The installation must ensure that the AP is grounded to earth ground to dissipate any static electric charge that may develop due to wind. 2 3 XH Outdoor Access Points 3 Determine a good electrical earth ground point near the AP mounting location. If an earth ground point is not available, consult an electrician to have one installed. Before the AP is attached to a wall or pole, secure a grounding wire and lug to the AP with the provided screw in the location indicated in the illustration. Attach the Mounting Plate to the AP The accessory kit includes a mounting plate. Mounting plate dimensions are included in “Physical/Environmental Specifications” on page 12. The mounting plate can be used for wall or pole mounting by reversing the side of the plate exposed. Attach the mounting plate to the AP using the eight provided screws in the locations indicated below (secure in at least 4 places). For Wall Mounting: For Wall Mounting, position the bracket with the four slotted flanges pointed towards the AP, as shown in Step 3, above. For Pole Mounting: For Pole Mounting, pos…

Text truncated - open the document above for the full version.

Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Rd Columbia MD 21046-1609 Date: July 22, 2015 Subject: FCC Application for FCC ID: SK6-XH2120 To Whom it may concern, We, the undersigned, would like to declare that the composite portion catagorized as computer peripheral has been authorized under the Declaration of Conformity procedures. Applicant : Xirrus, Inc. Address : 2101 CORPORATE CENTER DR THOUSAND OAKS California 91320 United States Signature : _________________________________ Name and Job Title. : Paul Zahra / Principal Compliance Engineer E-mail : [email protected] Tel. : 805-262-1903

Date: July 22, 2015 Subject: Ad Hoc Mode Function Declaration FCC ID: SK6-XH2120 To Whom it may concern, We, Xirrus, Inc., declare that the device (FCC ID: SK6-XH2120) 1. is able to be operated on both master and client mode with Ad Hoc Mode (limited to operate on US/Canada frequencies only) supported within following frequency bands: a. 802.11bgn (2412~2462MHz；2422~2452MHz) b. 5G Band 1: 5180~5240MHz；5190~5230MHz；5250MHz c. 5G Band 4: 5745~5825MHz；5755~5795MHz；5775MHz 2. is not able to operate on non-US/Canada frequencies, country code selection will be disabled for this device. Please contact the one signed below or the authorized agent for this filing. Thank you. Regards, Applicant : Xirrus, Inc. Address : 2101 CORPORATE CENTER DR THOUSAND OAKS California 91320 United States Signature : _________________________________ Name and Job Title. : Paul Zahra / Principal Compliance Engineer E-mail : [email protected] Tel. : 805-262-1903

Date: 2015/8/13 Federal Communications Commission 7435 Oakland Mills Rd Columbia MD 21046-1609 Subject: Product Certification Representative Authorization Letter FCC ID: SK6-XH2120 Product name: Hardened Wireless Access Point To whom it may concern: We the undersigned, hereby authorize following person to act as our agent in the preparation of an application for equipment authorization of model XH2120 to the FCC Rules and Regulations. Sporton International Inc. Address : No. 52, Hwa Ya 1st Rd., Hwa Ya Technology Park, Kwei-Shan District, Tao Yuan City, Taiwan, R.O.C. Name : Kevin Liang Job Title : Vice Manager e-mail : [email protected] We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002(b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This appointment also includes the authority to complete FCC Form 731 on our behalf and sign the application as an authorized agent. Applicant : Xirrus, Inc. Address : 2101 CORPORATE CENTER DR THOUSAND OAKS California 91320 United States Signature : _________________________________ Name and Job Title. : Paul Zahra / Principal Compliance Engineer E-mail : [email protected] Tel. : 805-262-1903

Date: July 22, 2015 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Rd Columbia MD 21046-1609 Subject: Request for confidentiality FCC ID: SK6-XH2120 To whom it may concern: Short-term confidentiality Pursuant to DA 04-1705 of the Commission’s public notice, in order to comply with the marketing regulations in 47CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments for 180 days. 1. Internal Photographs 2. External Photographs 3. User’s manual 4. Test Set up photos Permanent confidentiality Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accompanying this Application As outlined below: 1. Block Diagram 2. Schematics 3. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Applicant : Xirrus, Inc. Address : 2101 CORPORATE CENTER DR THOUSAND OAKS California 91320 United States Signature : _________________________________ Name and Job Title. : Paul Zahra / Principal Compliance Engineer E-mail : [email protected]

Report No. : EP570330 SPORTON International Inc. Page Number : B1 of B32 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 APPENDIX B. Photographs of EUT Report No. : EP570330 SPORTON International Inc. Page Number : B2 of B32 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP570330 SPORTON International Inc. Page Number : B3 of B32 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP570330 SPORTON International Inc. Page Number : B13 of B32 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP570330 SPORTON International Inc. Page Number : B14 of B32 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP570330 SPORTON International Inc. Page Number : B15 of B32 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP570330 SPORTON International Inc. Page Number : B16 of B32 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP570330 SPORTON International Inc. Page Number : B17 of B32 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP570330 SPORTON International Inc. Page Number : B18 of B32 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP570330 SPORTON International Inc. Page Number : B19 of B32 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP570330 SPORTON International Inc. Page Number : B20 of B32 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP570330 SPORTON International Inc. Page Number : B21 of B32 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP570330 SPORTON International Inc. Page Number : B22 of B32 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP570330 SPORTON International Inc. Page Number : B23 of B32 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Ant. 1 Report No. : EP570330 SPORTON International Inc. Page Number : B24 of B32 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Ant. 2 Report No. : EP570330 SPORTON International Inc. Page Number : B25 of B32 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Ant. 3 Report No. : EP570330 SPORTON International Inc. Page Number : B26 of B32 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP570330 SPORTON International Inc. Page Number : B27 of B32 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP570330 SPORTON International Inc. Page Number : B28 of B32 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973

Page 7 of 35 XH2-120-R系列 此頁適用於XH2-120-R Case Label Case Label Case Label Case Label 黏貼 黏貼黏貼 黏貼 位置 位置位置 位置 : :: : TLA label for case: p/n:3263963100 TLA label for case: p/n:3263963100TLA label for case: p/n:3263963100 TLA label for case: p/n:3263963100， ，， ，黏貼於 黏貼於黏貼於 黏貼於 Case CaseCase Case 上 上上 上 需印一式一份貼於Case CaseCase Case。 TLA Serial Number 編碼方式如下： X XX X R RR RNN NNNN NNY YY YWW WWWW WWEEEEEE EEEEEEEEEEEE EEEEEE= 例"X112527000001" X -- Brand Identification X = Xirrus R -- The version number will be “1” NN -- 12 for the XH2-120 series arrays Y -- Single Digit Year Code (example 2014 = ‘4’, 2015 = ‘5’) WW -- 2 digit Week code, Monday first day of week EEEEEE -- last 6 digits of the Base Ethernet MAC Addres X112527000011 TLA Serial Number 編碼 方式如下 50:60:28:00:00:20 – 00:00:3F 802.11 MAC Address Range: 50:60:28:00:00:01 – 00:00:02 Eth MAC Address: V1 FCC TLA WIFI WIFI LABEL Page 8 of 35 XH2-120-R系列 此頁適用於XH2-120-R Gift Box Gift Box Gift Box Gift Box label and Carton label label and Carton labellabel and Carton label label and Carton label 都是用同一張 都是用同一張都是用同一張 都是用同一張 p/n: p/n: p/n: p/n: 3263985700 32639857003263985700 3263985700 需印一式二份，一份貼於Gift Box Gift BoxGift Box Gift Box，一份貼於Carton CartonCarton Carton 用。 打印方式說明如下： 打印方式說明如下：打印方式說明如下： 打印方式說明如下： 編號 編號編號 編號 8 88 8 跟編號 跟編號跟編號 跟編號17 1717 17 打印 打印打印 打印 MAC MACMAC MAC 碼一樣 碼一樣碼一樣 碼一樣, , , , 編號 編號編號 編號 17 1717 17 不需要打印冒號 不需要打印冒號不需要打印冒號 不需要打印冒號 編號 編號編號 編號 10 Range 10 Range10 Range 10 Range 前半段跟編號 前半段跟編號前半段跟編號 前半段跟編號19 1919 19 打印 打印打印 打印 MAC MACMAC MAC 碼一樣 碼一樣碼一樣 碼一樣, , , , 編號 編號編號 編號 19 1919 19 不需要打印冒號 不需要打印冒號不需要打印冒號 不需要打印冒號 字型大小及字體，對應圖片上的編號 字型大小及字體，對應圖片上的編號字型大小及字體，對應圖片上的編號 字型大小及字體，對應圖片上的編號 1.Arial 36pt BOLD 2.Arial 26pt 3.Arial 26pt 4.Arial 26pt BOLD 5.Arial 26pt 6.Arial 26pt 7.Arial 26pt 8.Arial 26pt 9.Arial 26pt 10.Arial 26pt 12.Arial 36pt 13.Arial 26pt 14.Bar Code = Code39-Full ASCII, X-Dimension = 6.67 mils, Y- Dimension = .15 in, Density = 10.344 Chars/in, Start/Stop Character = * 15.Arial 26pt 16.Bar Code = Code39-Full ASCII, X-Dimension = 6.67 mils, Y-Dimension = .15 in, Density = 10.344 Chars/in, Start/Stop Character = * 17.Arial 26pt 18.Bar Code = Code39-Full ASCII, X-Dimension = 6.67 mils, Y-Dimension = .15 in, Density = 10.344 Chars/in, Start/Stop Character = * 19.Arial 26pt 20.Arial 26pt 台灣生產時內容為MADE IN TAIWAN 大陸生產時內容為MADE IN CHINA 7.4.2-5841 XH2-120 XH2120, POE XH2120 X11252700001 50:60:28:00:00:01 – 00:00:02 50:60:28:00:00:20 – 00:00:3F Serial Number編碼 方式,請依照 TLA Serial Number之定義編碼 Page 9 of 35 XH2-120-R系列 此頁適用於XH2-120-R FCC LABEL FCC LABELFCC LABEL FCC LABEL ( 3264243300 ) ( 3264243300 )( 3264243300 ) ( 3264243300 )

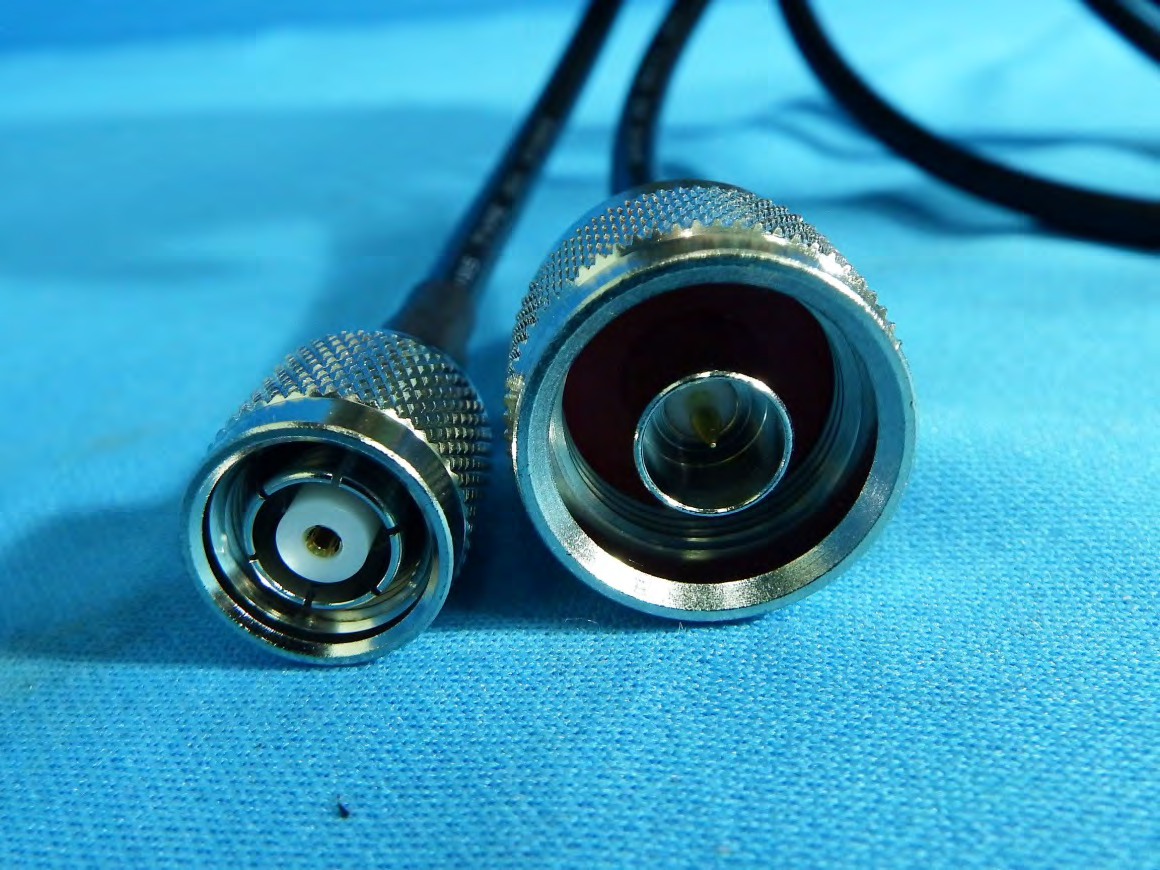

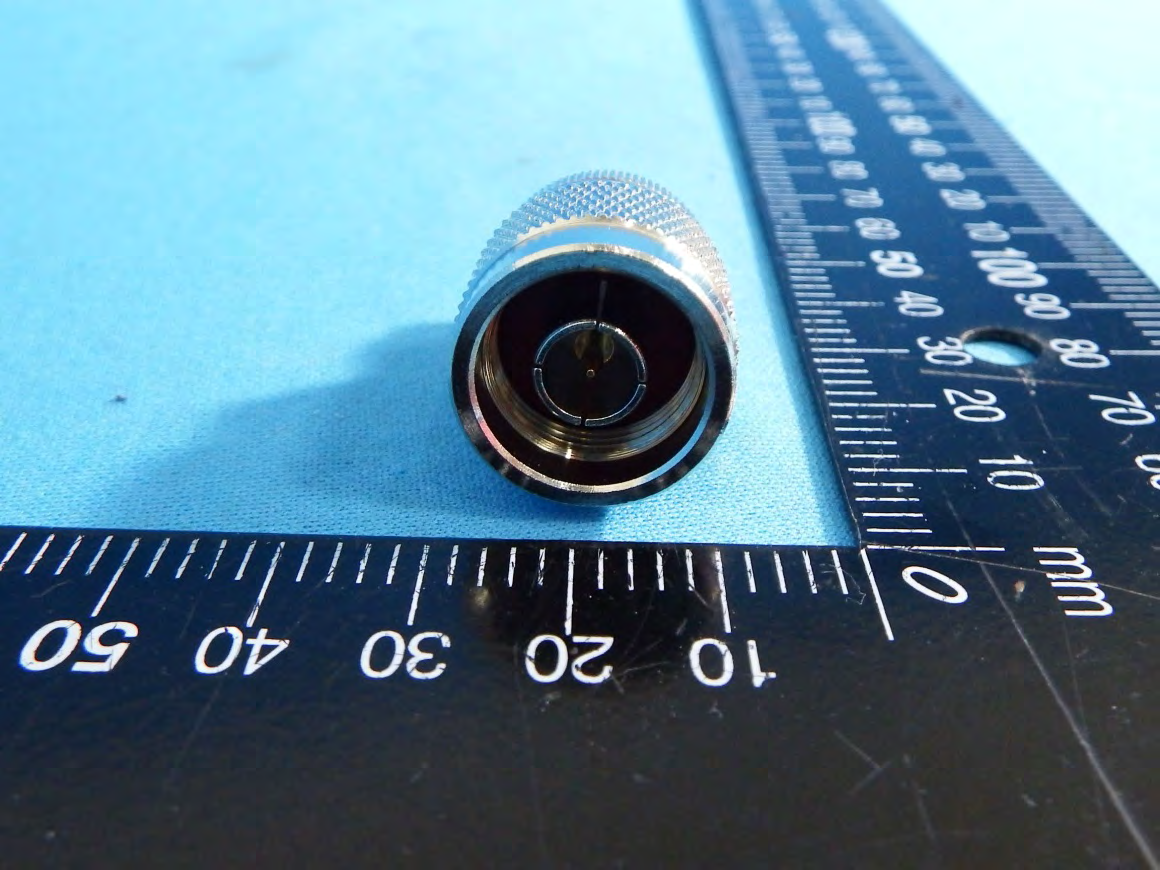

Report No. : EP570330 SPORTON International Inc. Page Number : B4 of B32 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Ant. Port 2 Ant. Port 1 Ant. Port 2 Ant. Port 1 Report No. : EP570330 SPORTON International Inc. Page Number : B5 of B32 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP570330 SPORTON International Inc. Page Number : B6 of B32 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP570330 SPORTON International Inc. Page Number : B7 of B32 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP570330 SPORTON International Inc. Page Number : B8 of B32 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP570330 SPORTON International Inc. Page Number : B9 of B32 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP570330 SPORTON International Inc. Page Number : B10 of B32 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 2.4 GHz / 5GHz Module Report No. : EP570330 SPORTON International Inc. Page Number : B11 of B32 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP570330 SPORTON International Inc. Page Number : B12 of B32 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973

FCC EMF Test Report Report No. : FA570330 SPORTON INTERNATIONAL INC. Page No. : 1 of 3 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1 Human Exposure Assessment 1.1 Maximum Permissible Exposure 1.1.1 Limit of Maximum Permissible Exposure Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f 2 )* 6 30-300 61.4 0.163 1.0 6 300-1500 - - F/300 6 1500-100,000 - - 5 6 Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f 2 )* 30 30-300 27.5 0.073 0.2 30 300-1500 - - F/1500 30 1500-100,000 - - 1.0 30 Note 1: f = frequency in MHz ; *Plane-wave equivalent power density Note 2: For the applicable limit, see FCC 1.1310 1.1.2 MPE Calculation Method E (V/m) = d GP30 Power Density: Pd (W/m 2 ) = 377 E 2 E = Electric field (V/m) P = RF output power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = 2 d377 GP30   FCC EMF Test Report Report No. : FA570330 SPORTON INTERNATIONAL INC. Page No. : 2 of 3 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1.1.3 Result of Maximum Permissible Exposure We select one module to test because power of only one module is maximum. Two modules can work in 2.4GHz or 5GHz together, but they never work at the same channel. When two modules work in the same band, the transmit power will reduce 3 dB for each one. RF General Information 2400 MHz – 2483.5 MHz Frequency Range (MHz) IEEE Std. 802.11 Protocol Ch. Frequency (MHz) Channel Number Number of Transmit Chains (N TX ) RF Output Power (dBm) Co-location 2400-2483.5 b 2412-2462 1-11 [11] 2 22.82 Yes 2400-2483.5 g 2412-2462 1-11 [11] 2 21.87 Yes 2400-2483.5 n (HT20) 2412-2462 1-11 [11] 2 21.38 Yes 2400-2483.5 n (HT40) 2422-2452 3-9 [7] 2 17.83 Yes Note 1: RF output power specifies that Maximum Conducted (Average) Output Power. RF General Information 5150 MHz – 5250 MHz Frequency Range (MHz) IEEE Std. 802.11 Protocol Ch. Frequency (MHz) Channel Number Number of Transmit Chains (N TX ) RF Output Power (dBm) Co-location 5150-5250 a 5180-5240 36-48 [4] 2 16.89 Yes 5150-5250 n (HT20) 5180-5240 36-48 [4] 2 16.87 Yes 5150-5250 n (HT40) 5190-5230 38-46 [2] 2 16.80 Yes 5150-5250 ac (VHT20) 5180-5240 36-48 [4] 2 16.84 Yes 5150-5250 ac (VHT40) 5190-5230 38-46 [2] 2 16.83 Yes 5150-5250 ac (VHT80) 5210 48 [1] 2 14.77 Yes Note 1: RF output power specifies that Maximum Conducted (Average) Output Power. RF General Information 5725 MHz – 5850 MHz Frequency Range (MHz) IEEE Std. 802.11 Protocol Ch. Frequency (MHz) Channel Number Number of Transmit Chains (N TX ) RF Output Power (dBm) Co-location 5725-5850 a 5745-5825 149-165 [5]2 19.60 Yes 5725-5850 n (HT20) 5745-5825 149-165 [5]2 19.53 Yes 5725-5850 n (HT40) 5755-5795 151-159 [2]2 17.62 Yes 5725-5850 ac (VHT20) 5745-5825 149-165 [5]2 19.54 Yes 5725-5850 ac (VHT40) 5755-5795 151-159 [2]2 17.63 Yes 5725-5850 ac (VHT80) 5775 155 [1] 2 13.27 Yes Note 1: RF output power specifies that Maximum Conducted (Average) Output Power. FCC EMF Test Report Report No. : FA570330 SPORTON INTERNATIONAL INC. Page No. : 3 of 3 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Worst Maximum RF Output Power Result Exposure Environment General Population / Uncontrolled Exposure Separation Distance (cm) 20 Condition RF Output Power (dBm) Modulation Mode N TX Chain Port 1 Chain Port 2 Sum Chain DG (dBi) EIRP Power PD (S) (mW/cm²) 2.4GHz WLAN 2 19.84 19.78 22.82 2.3 25.12 0.0647 5GHz WLAN 2 16.84 16.32 19.60 5 24.60 0.0574 Co-location Total 0.1221 Maximum Permissible Exposure Limit (mW/cm²) 1 Note 1: N TX = Number of Transmit Chains

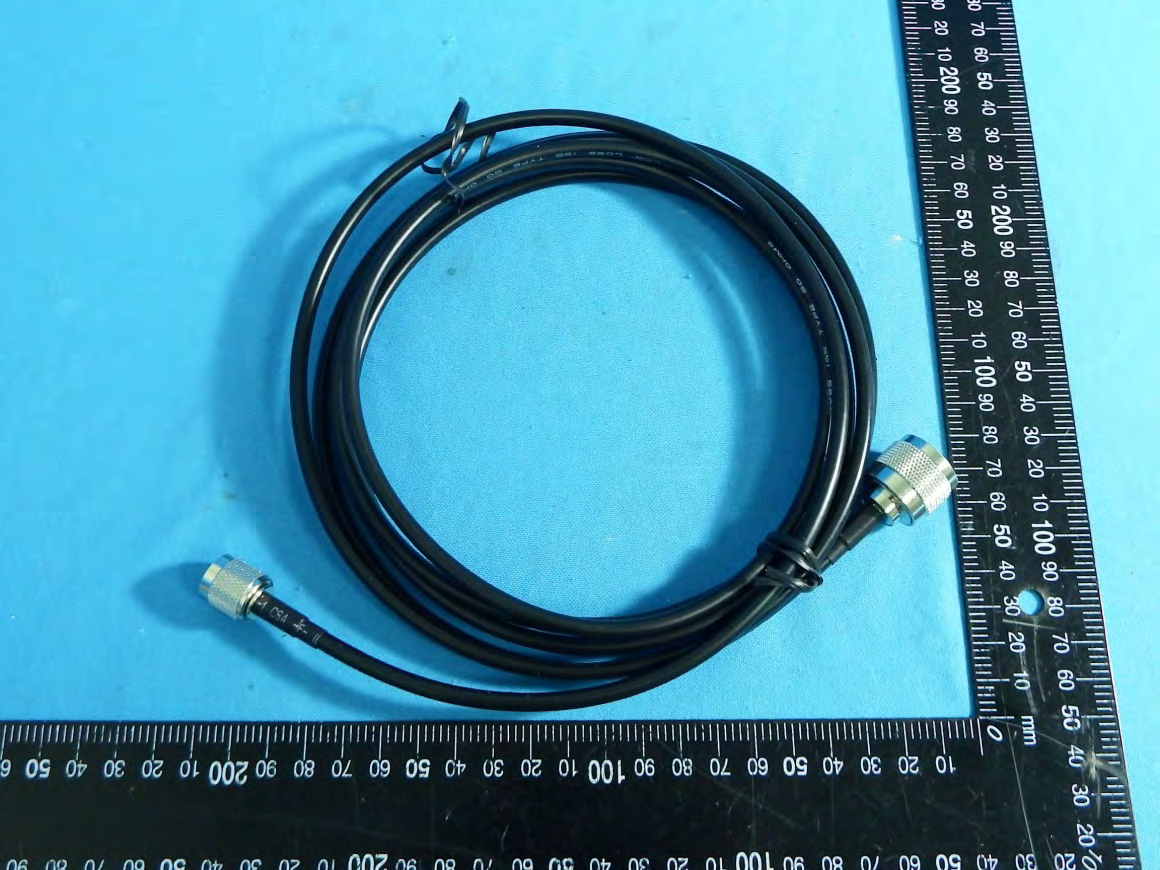

FCC Test Report Report No. : FR570330 SPORTON INTERNATIONAL INC. Page No. : 1 of 22 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1 CO-LOCATION 1.1 Antenna Information Antenna General Information No. Ant. Cat. Ant. Type Gain (dBi) Cable Length (m) 2.4 GHz 5 GHz 1 External OMNI 2 4 - 2 External OMNI 2.3 5 0.8 3 External OMNI 2.3 3.5 3.1 Note 1: For 2.4GHz: The EUT was pre-tested Antenna 2 and Antenna 3 because the gain of Antenna 2 and Antenna 3 is the same and higher than Antenna 1 among those Antennas. Next, comparing the cable length of Antenna 2 and Antenna 3, the worst case of Radiation Emission below 1GHz was Antenna 3 and the worst case of Radiation Emission above 1GHz was Antenna 2.For 5GHz: The following test Antenna was referring to 2.4GHz pretested worst case “Antenna 2” for 5GHz final test. Note 2: 11a/n/ac only includes 2TX/2RX to emission. IEEE 802.11a/n/ac has the CDD function. FCC Test Report Report No. : FR570330 SPORTON INTERNATIONAL INC. Page No. : 2 of 22 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1.2 The Worst Case Measurement Configuration The Worst Case Mode for Following Conformance Tests Tests Item Transmitter Radiated Unwanted Emissions Test Condition Radiated measurement If EUT consist of multiple antenna assembly (multiple antenna are used in EUT regardless of spatial multiplexing MIMO configuration), the radiated test should be performed with highest antenna gain of each antenna type. User Position EUT will be placed in fixed position. EUT will be placed in mobile position and operating multiple positions. EUT shall be performed three orthogonal planes. EUT will be a hand-held or body-worn battery-powered devices and operating multiple positions. EUT shall be performed three orthogonal planes. Operating Mode Operating Mode Description 1 Module1 2TX 2437MHz 11g + Module2 2TX 2412MHz 11g (ANT2) 2 Module1 2TX 5785MHz 11a + Module2 2TX 2437MHz 11g (ANT2) 3 Module1 2TX 2437MHz 11g + Module2 2TX 5785MHz 11a (ANT2) 4 Module1 2TX 5825MHz 11a + Module2 2TX 5785MHz 11a (ANT2) 5 Module1 2TX 2437MHz 11g + Module2 2TX 2412MHz 11g (ANT3) 6 Module1 2TX 5785MHz 11a + Module2 2TX 2437MHz 11g (ANT3) 7 Module1 2TX 2437MHz 11g + Module2 2TX 5785MHz 11a (ANT3) 8 Module1 2TX 5825MHz 11a + Module2 2TX 5785MHz 11a (ANT3) For below 1GHz : Operating mode 5~8 was the worst case and it was recorded in this test report. For above 1GHz: Operating mode 1~4 was the worst case and it was recorded in this test report. Modulation Mode 11a, HT20, HT40, VHT20, VHT40, VHT80 Orthogonal Planes of EUT X Plane Y Plane Worst Planes of EUT V FCC Test Report Report No. : FR570330 SPORTON INTERNATIONAL INC. Page No. : 3 of 22 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1.3 Transmitter Radiated Unwanted Emissions 1.3.1 Transmitter Radiated Unwanted Emissions Limit Restricted Band Emissions Limit Frequency Range (MHz) Field Strength (uV/m) Field Strength (dBuV/m)Measure Distance (m) 0.009~0.490 2400/F(kHz) 48.5 - 13.8 300 0.490~1.705 24000/F(kHz) 33.8 - 23 30 1.705~30.0 30 29 30 30~88 100 40 3 88~216 150 43.5 3 216~960 200 46 3 Above 960 500 54 3 Note 1: Test distance for frequencies at or above 30 MHz, measurements may be performed at a distance other than the limit distance provided they are not performed in the near field and the emissions to be measured can be detected by the measurement equipment. When performing measurements at a distance other than that specified, the results shall be extrapolated to the specified distance using an extrapolation factor of 20 dB/decade (inverse of linear distance for field-strength measurements, inverse of linear distance-squared for power-density measurements). Note 2: Test distance for frequencies at below 30 MHz, measurements may be performed at a distance closer than the EUT limit distance; however, an attempt should be made to avoid making measurements in the near field. When performing measurements below 30 MHz at a closer distance than the limit distance, the results shall be extrapolated to the specified distance by either making measurements at a minimum of two or more distances on at least one radial to determine the proper extrapolation factor or by using the square of an inverse linear distance extrapolation factor (40 dB/decade). The test report shall specify the extrapolation method used to determine compliance of the EUT. Un-restricted Band Emissions Limit RF output power procedure Limit (dB) Peak output power procedure 20 Average output power procedure 30 Note 1: If the peak output power procedure is used to measure the fundamental emission power to demonstrate compliance to requirements, then the peak conducted output power measured within any 100 kHz outside the authorized frequency band shall be attenuated by at least 20 dB relative to the maximum measured in-band peak PSD level. Note 2: If the average output power procedure is used to measure the fundamental emission power to demonstrate compliance to requirements, then the power in any 100 kHz outside of the authorized frequency band shall be attenuated by at least 30 dB relative to the maximum measured in-band average PSD level. 1.3.2 Measuring Instruments Refer a test equipment and calibration data table in this test report. FCC Test Report Report No. : FR570330 SPORTON INTERNATIONAL INC. Page No. : 4 of 22 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1.3.3 Test Procedures Test Method Measurements may be performed at a distance other than the limit distance provided they are not performed in the near field and the emissions to be measured can be detected by the measurement equipment. When performing measurements at a distance other than that specified, the results shall be extrapolated to the specified distance using an extrapolation factor of 20 dB/decade (inverse of linear distance for field-strength measurements, inverse of linear distance-squared for power-density measurements). The average emission lev…

Text truncated - open the document above for the full version.

FCC Test Report Report No. : FR570330AC SPORTON INTERNATIONAL INC. Page No. : 1 of 57 TEL : 886-3-327-3456 Report Version : Rev. 02 FAX : 886-3-327-0973 FCC Test Report Equipment : Hardened Wireless Access Point Brand Name : Xirrus Model No. : XH2120 FCC ID : SK6-XH2120 Standard : 47 CFR FCC Part 15.247 Operating Band : 2400 MHz – 2483.5 MHz FCC Classification : DTS Applicant Manufacturer : Xirrus, INC. 2101 Corporate Center Drive Thousand Oaks, California 91320 The product sample received on Jun. 18, 2015 and completely tested on Aug. 19, 2015. We, SPORTON, would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI C63.10-2013 and shown compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Kevin Liang / Assistant Manager FCC Test Report Report No. : FR570330AC SPORTON INTERNATIONAL INC. Page No. : 2 of 57 TEL : 886-3-327-3456 Report Version : Rev. 02 FAX : 886-3-327-0973 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information .............................................................................................................................................. 5 1.2 Support Equipment ................................................................................................................................. 7 1.3 Testing Applied Standards ..................................................................................................................... 7 1.4 Testing Location Information .................................................................................................................. 7 1.5 Measurement Uncertainty ...................................................................................................................... 8 2 TEST CONFIGURATION OF EUT ......................................................................................................... 9 2.1 The Worst Case Modulation Configuration ............................................................................................ 9 2.2 The Worst Case Power Setting Parameter ............................................................................................ 9 2.3 The Worst Case Measurement Configuration ...........................…

Text truncated - open the document above for the full version.
