SK8G902Dual-Band GSM Phone (GSM850 / GSM1900)

G902 (Dual-Mode GSM phone) User’s Manual Oct. 2004 KBT Mobile Co.,Ltd. - 2 About this manual Welcome to the G902 Phone. This Phone comes with two parts. ‘Before you start’ (Included in one sheet) ‘Operation Instruction’ (This manual) Before using your G902 Phone, read ‘Before you start’ for overview of features, basic setup, and other important details. After you have become familiarized with its basic functionality, you can use the other manual (Operation Instruction) as references for detailed features, less common tasks, and for maintaining your G902 Phone. These manuals can also serve as a source of information if you have problems operating your G902 Phone. - 3 I. Before you start (Included in one sheet) A. Features 1.Unpacking 2.Phone Layout 2.1 LCD 2.2 Camera 2.3 Icons Descriptions 2.4 Key Descriptions 2.5 Battery 2.6 Headset 3. Display Layout 3.1 Main Display Screen 3.2 Sub Display Screen 3.3 Camera Display Screen 3.4 Movie Display Screen 4. SIM Card B. Basic usages 1. Power On/Off 2. Call Function 2.1 Making a call 2.2 Answering a call 2.3 During a call 3. Camera Function 3.1 Take a photo(General) 3.2 Take a photo(Self shot) 3.3 Record a movie 3.4 Setting C. Devices Care - 4 II. Operation Instruction A. ‘Operation Instruction’- Basic 1. Function (Direct key Function) 1.1 Direct key for Phonebook lists 1.2 Direct key for Manners Mode 1.3 Direct key for Camera 1.4 Direct key for SMS message menu 1.5 Direct key for WAP browser 1.6 Direct key for Voice memo 1.7 Direct key for Scheduler menu 1.8 Making an international call 1.9 Entering a Pause ٛ Character in a Dial String 1.10 Watching the date 2. T9 Input mode 2.1 Accept text 2.2 T9 English 2.3 T9 Stroke 2.4 T9 Pin Yin 2.5 T9 BoPoMoFo 2.6 Multi-tap 2.7 Numeric 2.8 Symbols 2.9 Language 3. Phonebook 3.1 Search 3.2 Add entry 3.3 Speed dial 3.4 Image List 3.5 Copy all 3.6 Own Number 3.7 Delete all 3.8 Memory - 5 B. Operation Instruction – MENU Functions 1. Message 1.1 SMS 1.2 MMS 1.3 Voice Mail 1.4 Cell Broadcast 2. Call Log 2.1 Missed Calls 2.2 Received Calls 2.3 Dialed 2.4 Clear Logs 2.5 Call Timers 2.6 Call Costs 3. Settings 3.1 Alarm clock 3.2 Clock 3.3 Call settings 3.4 Phone setting 3.5 Sound 3.6 Security 3.7 Reset Setting 4. Secretary 4.1 Scheduler 4.2 World clock 4.3 Calculator 4.4 Unit Converter 4.5 Voice memo 5. Game 5.1 ZooZoo Club 5.2 Ace of Aces - 6 6. WAP 6.1 Home 6.2 Resume 6.3 Bookmarks 6.4 Settings 7. Multimedia 7.1 Take a photo 7.2 Capture mode 7.3 Photo List 7.4 Movie List 7.5 Settings 7.6 Memory Status 7.7 Camera Control mode C. Trouble Shooting D. Safety Information 1. Everyday Use of your phone 1.1 Using your phone in a vehicle 1.2 Non-ionizing radiation (exposure to Radio Frequency Signals) 1.3 Pacemakers 1.4 Hearing aids 1.5 Other medical devices 1.6 Operating Environment 1.7 Aircraft Safety 1.8 Explosive Atmospheres and materials 1.9 For Vehicle Equipped with an Air Bag 1.10 Battery charging E. Glossary - 7 I. Before you start G902 Phone - 8 A. Features 1. Unpacking Your package list is as shown below (Supplied) User Manual G902 - 9 2. Phone Layout The following illustration shows the main elements of your phone. 2.1 LCD The main LCD is TFT color LCD and has 260K colors. The sub LCD is CSTN LCD and has 65K colors. You can be enjoy the more clear LCD color with your G902 phone 2.2 Camera You can take a photo with G902’s embedded digital camera. G902 has VGA level camera module, you can enjoy highly qualify digital photo with your G902 phone. 2.3 Icons Descriptions < Icons in the Main display screen > Icon Description Shows the received signal strength and current signal strength is indicated by the number of bars displayed on the screen. Appears when a call is in progress. Appears when a call is not in progress. Appears when alert mode is selected as ring Appears when alert mode is selected as vibrator Appears when alert mode is selected as vibrate & Ring or Vibrate then Ring Appears when alert mode is selected as silent Appears when you select the manners mode Appears when text message has been received Appears when text message in box is full Appears when the phone is out of your home network area and phone has registered to the network other than its home service (i.e. when travelling in other countries with GSM service) Appears when the alarm clock is set. Shows the current battery charge level. The green area shows charge level of battery. - 10 < Icons in the sub display screen > Icon Description Shows the received signal strength. Appears when alert mode is selected as vibrator Appears when alert mode is selected as vibrate & Ring or Vibrate then Ring Appears when alert mode is selected as silent Appears when you select the manners mode Appears when a new text message has been received Appears when text message inbox is full Appears when the alarm clock is set. Shows the current battery charge level. Indicates that the battery of your phone is being charged. < Icons in the lower camera screen > Icon Description Menu soft key Icon Lists soft key Icon Shows Brightness Level Shows Digital Zoom Level * For the detailed description of indicator icon of upper camera screen, refer to the ‘3.3 photo mode screen’ and ‘3.4 movie mode screen’. 2.4 Keys Description Key Description Performs the functions indicated by the text in the left-bottom line of the display screen. Usually works as ‘selection’ key Performs the functions indicated by the text in the right-bottom line of the display screen. Usually works as ‘backup’ key - 11 Makes or answers a call. In the idle mode, launches the Dialled calls list Ends a call. Also switches the phone on or off when pressed and held. In the menu, returns to the idle mode or cancels your input. Clear Key, Usually works as ‘cancel’ key ~ Enter numbers, letters and some special characters. Enters international call ‘P’ (Pause) when pressed and held Enters manners mode. Located on the left side [Basic Function] Increases and decreases the volume [Camera Function] Direct Key for Self P…

Text truncated - open the document above for the full version.

KBT Mobile Co., Ltd. Subject: Part 24/ 22 / 2 Certification Company: KBT Mobile Co., Ltd. FCC ID: SK8G902 Gentlemen: Submitted herewith, on behalf of KBT Mobile Co., Ltd., is an application for Part 24, 22 Certification of the following Dual-Band GSM Phone: Trade Name/Model(s): KBT Mobile / G902 EUT Type: Dual-Band GSM Phone Tx Frequency: 824.20 – 848.80MHz (GSM850) / 1850.20MHz – 1909.80MHz (GSM1900) Rx Frequency: 869.20 – 893.80MHz (GSM850) / 1930.20MHz – 1989.80MHz (GSM1900) Max. RF Output Power: 0.75 W ERP GSM850 (28.8 dBm) / 0.583 W EIRP GSM1900 (27.7 dBm) Maximum SAR: 1.20 W/kg GSM850 Head SAR; 0.509 W/kg GSM850 Body SAR; 1.24 W/kg GSM1900 Head SAR; 0.286 W/kg GSM1900 Body SAR Attached is the applicant’s Letter of Authorization, Confidentiality Request, ESN Affidavit, measurement report test data and plots, RF Exposure measurement report and data, FCC ID label and location, test setup photographs, internal and external photographs, block diagram (confidential), circuit diagrams & description (confidential), operational description (confidential), parts list & tune-up procedure (confidential), and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. Mr. Park Young Sik - Project Manager KBT Mobile Co., Ltd. 4F POLARIS I, #15-3, JEONGJA-DONG, BUNDANG-GU, SEONGNAM-SI, GYEONGGI-DO, KORE A KBT Mobile Co., Ltd. 4F POLARIS I, #15-3, JEONGJA-DONG, BUNDANG-GU SEONGNAM-SI, GYEONGGI-DO, KOREA FRN: 0011629730 TEL: +82-31-719-5353 / FAX: +82-31-719-5684 E- Mail: [email protected]

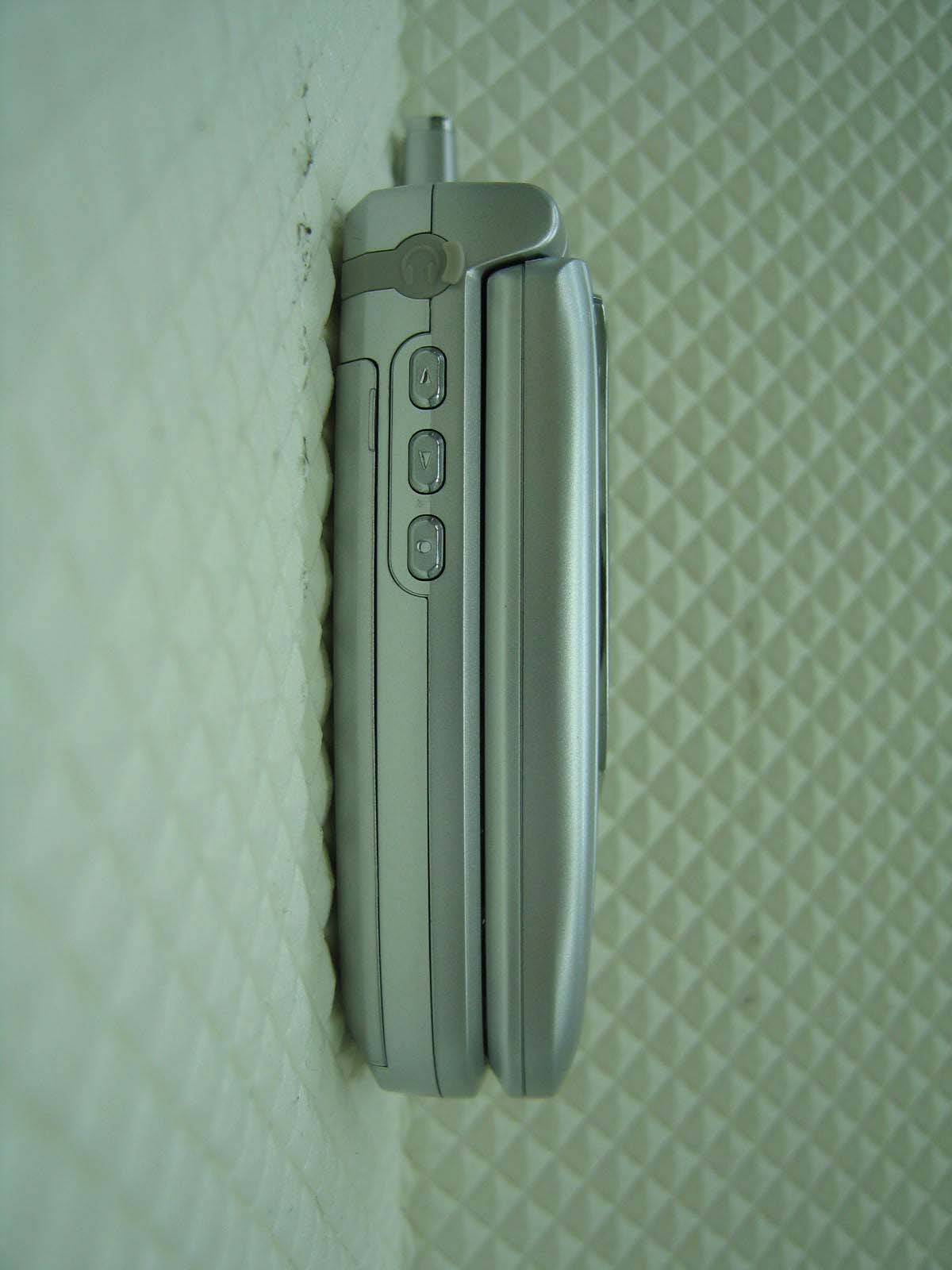

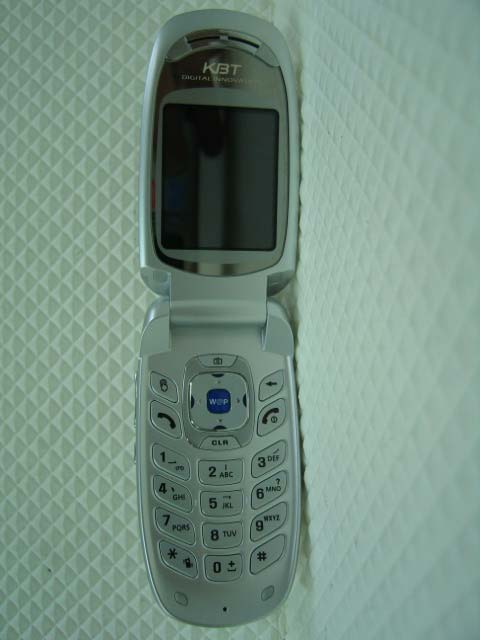

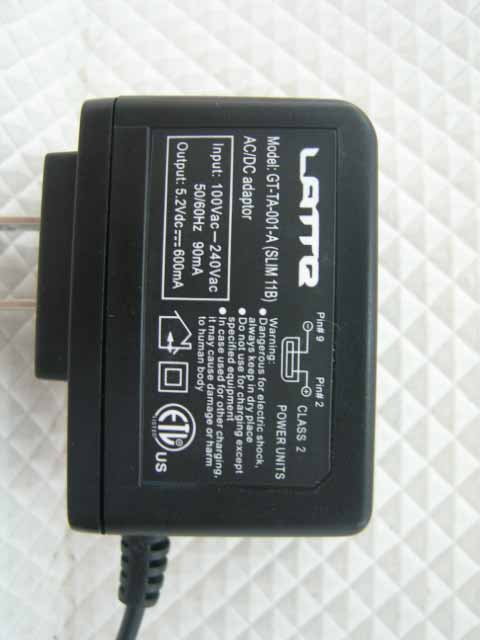

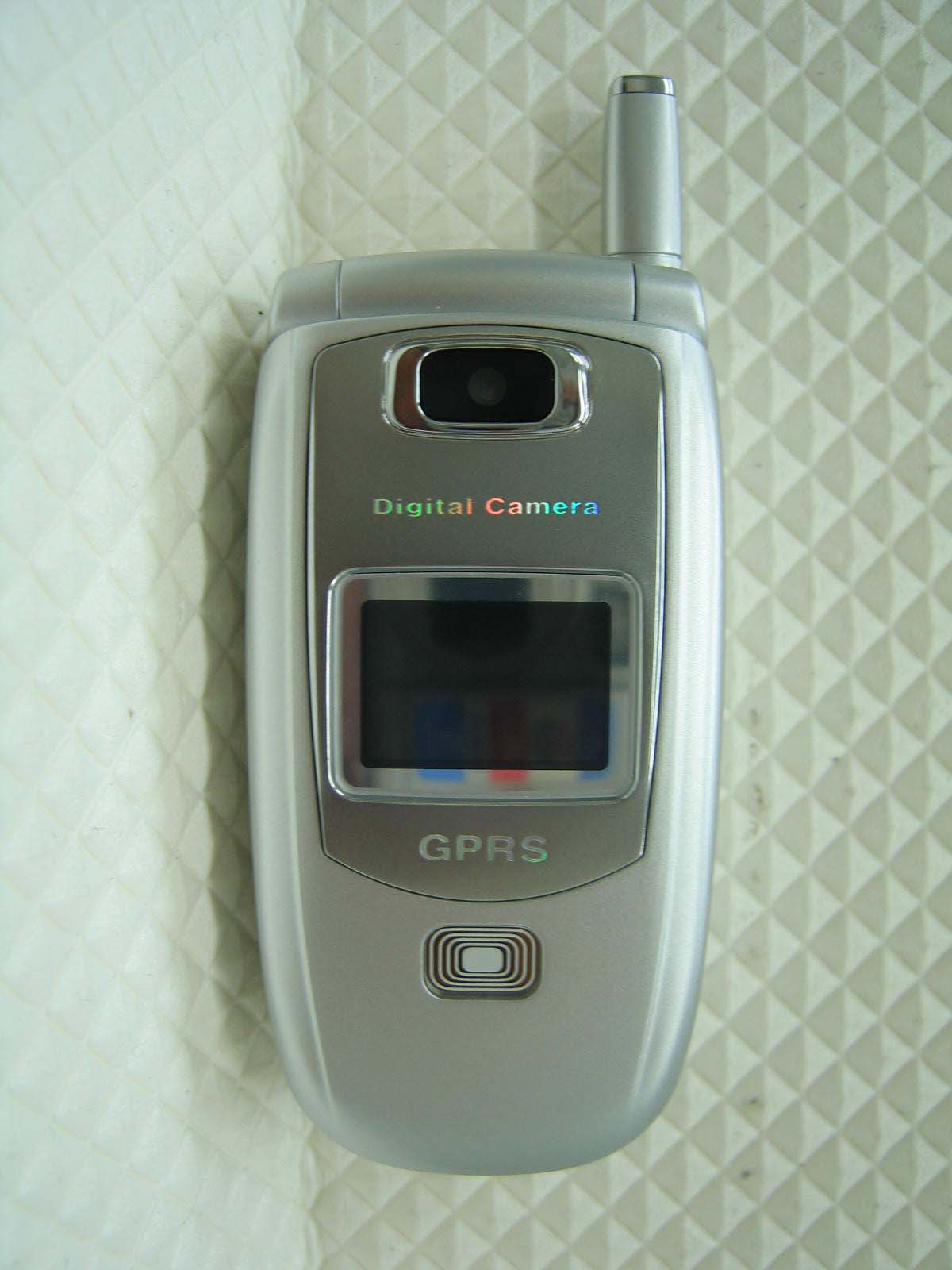

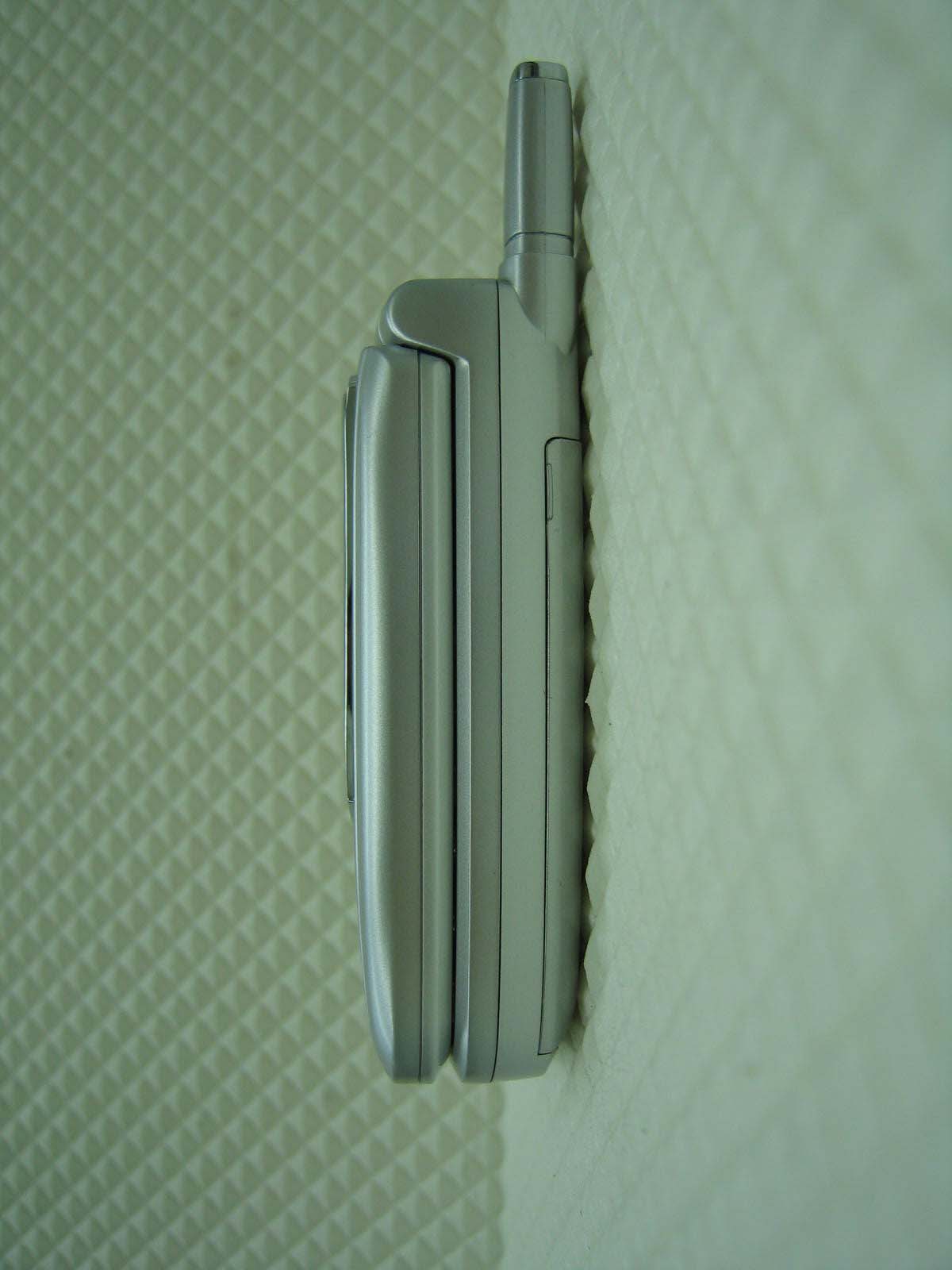

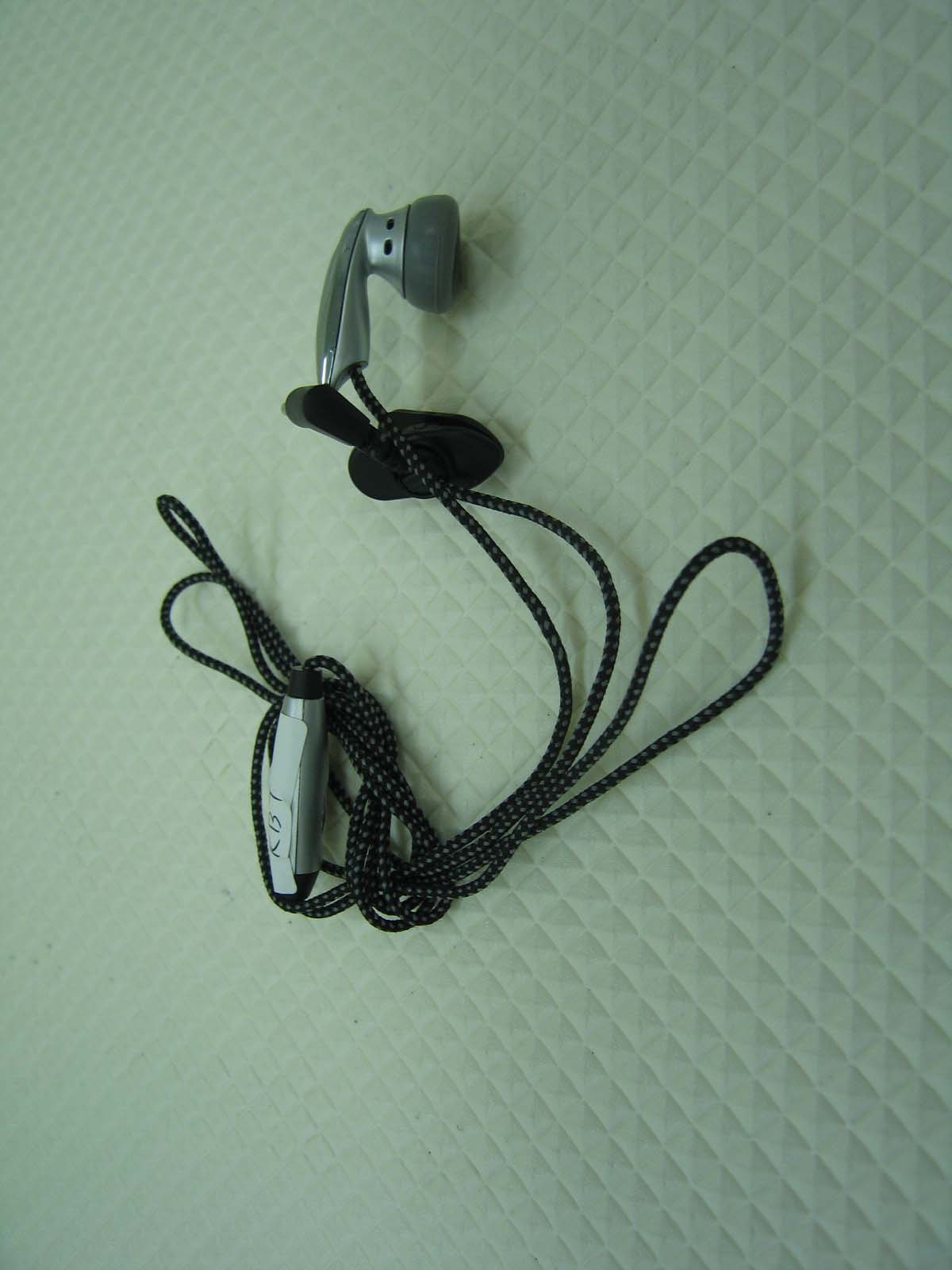

Report No.: HCT-SAR04-1110 FCC ID: SK8G902 DATE: November 17, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ATTACHMENT G – EXTERNAL PHOTOGRAPHS Report No.: HCT-SAR04-1110 FCC ID: SK8G902 DATE: November 17, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ EXTERNAL PHOTO Report No.: HCT-SAR04-1110 FCC ID: SK8G902 DATE: November 17, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ EXTERNAL PHOTO Report No.: HCT-SAR04-1110 FCC ID: SK8G902 DATE: November 17, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ EXTERNAL PHOTO Report No.: HCT-SAR04-1110 FCC ID: SK8G902 DATE: November 17, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ EXTERNAL PHOTO Report No.: HCT-SAR04-1110 FCC ID: SK8G902 DATE: November 17, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ EXTERNAL PHOTO Report No.: HCT-SAR04-1110 FCC ID: SK8G902 DATE: November 17, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ EXTERNAL PHOTO Report No.: HCT-SAR04-1110 FCC ID: SK8G902 DATE: November 17, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ EXTERNAL PHOTO Report No.: HCT-SAR04-1110 FCC ID: SK8G902 DATE: November 17, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ EXTERNAL PHOTO Report No.: HCT-SAR04-1110 FCC ID: SK8G902 DATE: November 17, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ EXTERNAL PHOTO

Report No.: HCT-SAR04-1110 FCC ID: SK8G902 DATE: November 17, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ATTACHMENT E – FCC ID LABEL/ LOCATION Report No.: HCT-SAR04-1110 FCC ID: SK8G902 DATE: November 17, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr LABELLING REQUIREMENTS PER §§ 2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE ) Report No.: HCT-SAR04-1110 FCC ID: SK8G902 DATE: November 17, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr

Report No.: HCT-SAR04-1110 FCC ID: SK8G902 DATE: November 17, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ATTACHMENT H – INTERNAL PHOTOGRAPHS Report No.: HCT-SAR04-1110 FCC ID: SK8G902 DATE: November 17, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ INTERNAL PHOTO Report No.: HCT-SAR04-1110 FCC ID: SK8G902 DATE: November 17, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ INTERNAL PHOTO Report No.: HCT-SAR04-1110 FCC ID: SK8G902 DATE: November 17, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ INTERNAL PHOTO Report No.: HCT-SAR04-1110 FCC ID: SK8G902 DATE: November 17, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ INTERNAL PHOTO Report No.: HCT-SAR04-1110 FCC ID: SK8G902 DATE: November 17, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ INTERNAL PHOTO Report No.: HCT-SAR04-1110 FCC ID: SK8G902 DATE: November 17, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ INTERNAL PHOTO Report No.: HCT-SAR04-1110 FCC ID: SK8G902 DATE: November 17, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ INTERNAL PHOTO Report No.: HCT-SAR04-1110 FCC ID: SK8G902 DATE: November 17, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ INTERNAL PHOTO Report No.: HCT-SAR04-1110 FCC ID: SK8G902 DATE: November 17, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ INTERNAL PHOTO Report No.: HCT-SAR04-1110 FCC ID: SK8G902 DATE: November 17, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ INTERNAL PHOTO Report No.: HCT-SAR04-1110 FCC ID: SK8G902 DATE: November 17, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ INTERNAL PHOTO

HYUNDAI CALIBRATION & CERTIFICATION TECH. CO., LTD. PRODUCT COMPLIANCE DIVISION SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL: +82 31 639 8518 FAX: +82 31 639 8525 www.hct.co.kr CERTIFICATE OF COMPLIANCE (SAR EVALUATION) EUT Type: Dual-Band GSM Phone (GSM850/ GSM1900) Tx Frequency: 824.20 — 848.80 MHz (GSM850) 1850.20 — 1909.80 MHz (GSM1900) Rx Frequency: 869.20 — 893.80 MHz (GSM850) 1930.20 — 1989.80 MHz (GSM1900) Max. RF Output Power: 0.75 W ERP GSM850 (28.8 dBm) / 0.583 W EIRP GSM1900 (27.7 dBm) Trade Name/Model(s): KBT MOBILE / G902 FCC Classification: Licensed Portable Transmitter Held to Ear (PCE) Application Type: Certification FCC Rule Part(s): §2.1093; FCC/ OET Bulletin Supplement C [July 2001] Maximum SAR: 1.20W/kg GSM850 Head SAR; 0.509W/kg GSM850 Body SAR; 1.24W/kg GSM1900 Head SAR; 0.286W/kg GSM1900 Body SAR This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/ IEEE Std. C95.1- 1992 and had been tested in accordance with the measurement procedures specified in ANSI/ IEEE Std. C95.3- 1992. (See Test Report). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Hyundai C-Tech Co., Ltd. Certifies that no party to this application has been denied FCC benefits pursuant to section 5301 of the Anti- Drug Abuse Act of 1998, 21 U.S. C. 853(a) Report prepared by : Ki-Soo Kim Manager of Product Compliance Team This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the HCT Co., Ltd. FCC ID : APPLICANT : SK8G902 KBT Mobile Co., Ltd. Date of Issue: November 17, 2004 Test Report No.: HCT-SAR04-1110 Test Site: HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. FRN: 0005866421 KBT Mobile Co., Ltd. 4F POLARIS I, #15-3, JEONGJA-DONG, BUNDANG-GU SEONGNAM-SI, GYEONGGI-DO, KOREA FRN: 0011629730 Report No.: HCT-SAR04-1110 FCC ID : SK8G902 DATE : November 17, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ２ of 22 Table of Contents 1.1 SCOPE ---------------------------------------------------------------------------------------------------------- 2.1 INTRODUCTION / SAR DEFINITION --------------------------------------------------------------------- 3.1 SAR MEASUREMENT SET-UP --------------------------------------------------------------------------- 4.1 E-FIELD PROBE SYSTEM --------------------------------------------------------------------------------- 5.1 EUT ARRANGEMENT ------------------------------------------------------------------------------------- 6.1 E-FIELD PROBE CALIBRATION PROCESS -------------------------------------------------------- 7.1 PHANTOM, HOLDER, & EQUIVALENT TISSUE --------------------------------------------------- 8.1 SYSTEM SPECIFICATIONS ------------------------------------------------------------------------------ 9.1 MEASUREMENT PROCESS ------------------------------------------------------------------------------ 10.1 ANSI/ IEEE C95.1 - 1992 RF EXPOSURE LIMITS -------------------------------------------------------- 11.1 MEASUREMENT UNCERTAINTIES ------------------------------------------------------------------- 12.1 TEST DATA SUMMARY ---------------------------------------------------------------------------------- 13.1 SAR TEST EQUIPMENT LIST --------------------------------------------------------------------------- 14.1 CONCLUSION ------------------------------------------------------------------------------------------------ 15.1 REFERENCES -------------------------------------------------------------------------------------------- 3 4 5 6 7-8 9-10 11 12 13 14 15 16-19 20 21 22 Report No.: HCT-SAR04-1110 FCC ID : SK8G902 DATE : November 17, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ３ of 22 SAR MEASUREMENT REPORT 1.1 SCOPE Environmental evaluation measurements of specific absorption rate 1 (SAR) distributions in emulated human head and body tissues exposed to radio frequency (RF) radiation from wireless portable devices for compliance with the rules and regulations of the U.S. Federal Communications Commission (FCC). 2 1. 2 Applicant • EUT Type: Dual-Band GSM Phone (GSM850/ GSM1900) • Trade Name: KBT MOBILE • Model(s): G902 • FCC ID: SK8G902 • Serial Number(s): SK820041100001 • Tx Frequency: 824.20 – 848.80 MHz (GSM850) 1850.20 – 1909.80 MHz (GSM1900) • Rx Frequency: 869.20 – 893.80 MHz (GSM850) 1930.20 – 1989.80 MHz (GSM1900) • Application Type: Certification • FCC Classification: Licensed Portable Transmitter Held to Ear (PCE) • FCC Rule Part(s): §2.1093; FCC/ OET Bulletin Supplement C [July 2001] • Modulation(s): GSM • Αntenna Type: Fixed • Date(s) of Tests: November 15, 2004 – November 16, 2004 • Place of Tests: Hyundai C-Tech. EMC Lab. Icheon, Kyounki-Do, KOREA • Report Serial No.: HCT-SAR04-1110 Figure 1. SAR System 1 Specific Absorption Rate (SAR) is a measure of the rate of energy absorption due to exposure to an RF transmitting source (wireless portable device). 2 IEEE/ANSI Std. C95.1-1992 limits are used to determine compliance with FCC ET Docket 93-62. Company Name: KBT Mobile Co.,Ltd. Address: 4F POLARIS I, #15-3, JEONGJA-DONG, BUNDANG-GU SEONGNAM-SI, GYEONGGI-DO, KOREA Attention: Mr. Park Young Sik Tel. / Fax : 82-31-719-5353 / 82-31-719-5684 E-Mail : [email protected] Report No.: HCT-SAR04-1110 FCC ID : SK8G902 DATE : November 17, 2004 HYUNDAI CALIBRATION & CERTIFICA…

Text truncated - open the document above for the full version.

Report No.: HCT-SAR04-1110 FCC ID : SK8G902 DATE : November 17, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ATTACHMENT O – SAR TEST PLOTS (1 of 2) Report No.: HCT-SAR04-1110 FCC ID : SK8G902 DATE : November 17, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR04-1110 FCC ID : SK8G902 DATE : November 17, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR04-1110 FCC ID : SK8G902 DATE : November 17, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR04-1110 FCC ID : SK8G902 DATE : November 17, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR04-1110 FCC ID : SK8G902 DATE : November 17, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR04-1110 FCC ID : SK8G902 DATE : November 17, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR04-1110 FCC ID : SK8G902 DATE : November 17, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR04-1110 FCC ID : SK8G902 DATE : November 17, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr

Report No.: HCT-SAR04-1110 FCC ID : SK8G902 DATE : November 17, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ATTACHMENT O – SAR TEST PLOTS (2 of 3) Report No.: HCT-SAR04-1110 FCC ID : SK8G902 DATE : November 17, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR04-1110 FCC ID : SK8G902 DATE : November 17, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR04-1110 FCC ID : SK8G902 DATE : November 17, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR04-1110 FCC ID : SK8G902 DATE : November 17, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR04-1110 FCC ID : SK8G902 DATE : November 17, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR04-1110 FCC ID : SK8G902 DATE : November 17, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR04-1110 FCC ID : SK8G902 DATE : November 17, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR04-1110 FCC ID : SK8G902 DATE : November 17, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr

Report No.: HCT-SAR04-1110 FCC ID : SK8G902 DATE : November 17, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ATTACHMENT O – SAR TEST PLOTS (3 of 3) Report No.: HCT-SAR04-1110 FCC ID : SK8G902 DATE : November 17, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR04-1110 FCC ID : SK8G902 DATE : November 17, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR04-1110 FCC ID : SK8G902 DATE : November 17, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR04-1110 FCC ID : SK8G902 DATE : November 17, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR04-1110 FCC ID : SK8G902 DATE : November 17, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR04-1110 FCC ID : SK8G902 DATE : November 17, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR04-1110 FCC ID : SK8G902 DATE : November 17, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR04-1110 FCC ID : SK8G902 DATE : November 17, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR04-1110 FCC ID : SK8G902 DATE : November 17, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR04-1110 FCC ID : SK8G902 DATE : November 17, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr

Report No.: HCT-SAR04-1110 FCC ID : SK8G902 DATE : November 17, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ATTACHMENT Q – DIPOLE VALIDATION Report No.: HCT-SAR04-1110 FCC ID : SK8G902 DATE : November 17, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ Validation Data (835MHz Brain) Report No.: HCT-SAR04-1110 FCC ID : SK8G902 DATE : November 17, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ Validation Data (1900MHz Brain) Report No.: HCT-SAR04-1110 FCC ID : SK8G902 DATE : November 17, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR04-1110 FCC ID : SK8G902 DATE : November 17, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR04-1110 FCC ID : SK8G902 DATE : November 17, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ Dielectric Parameter (835MHz Brain) Report No.: HCT-SAR04-1110 FCC ID : SK8G902 DATE : November 17, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ Dielectric Parameter (1900MHz Brain) Report No.: HCT-SAR04-1110 FCC ID : SK8G902 DATE : November 17, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO…

Text truncated - open the document above for the full version.
